Specifications:
1.2G frequency points: (1060MHz-1380MHz)
Maximum power: 2W (25mW/2000mW, two gears adjustable)
Input voltage: DC 7V-36V, supporting 2-8S battery input
Antenna interface: MMCX
Communication protocol: IRC Tramp

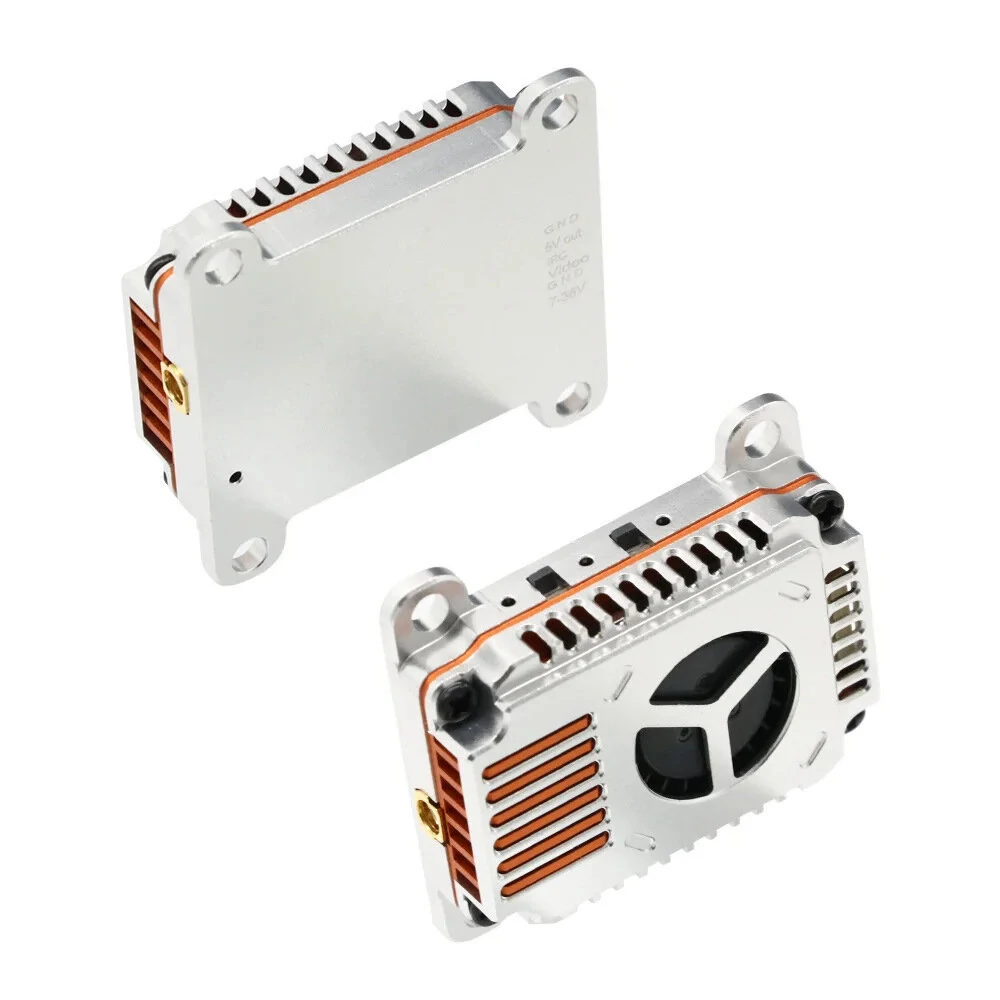

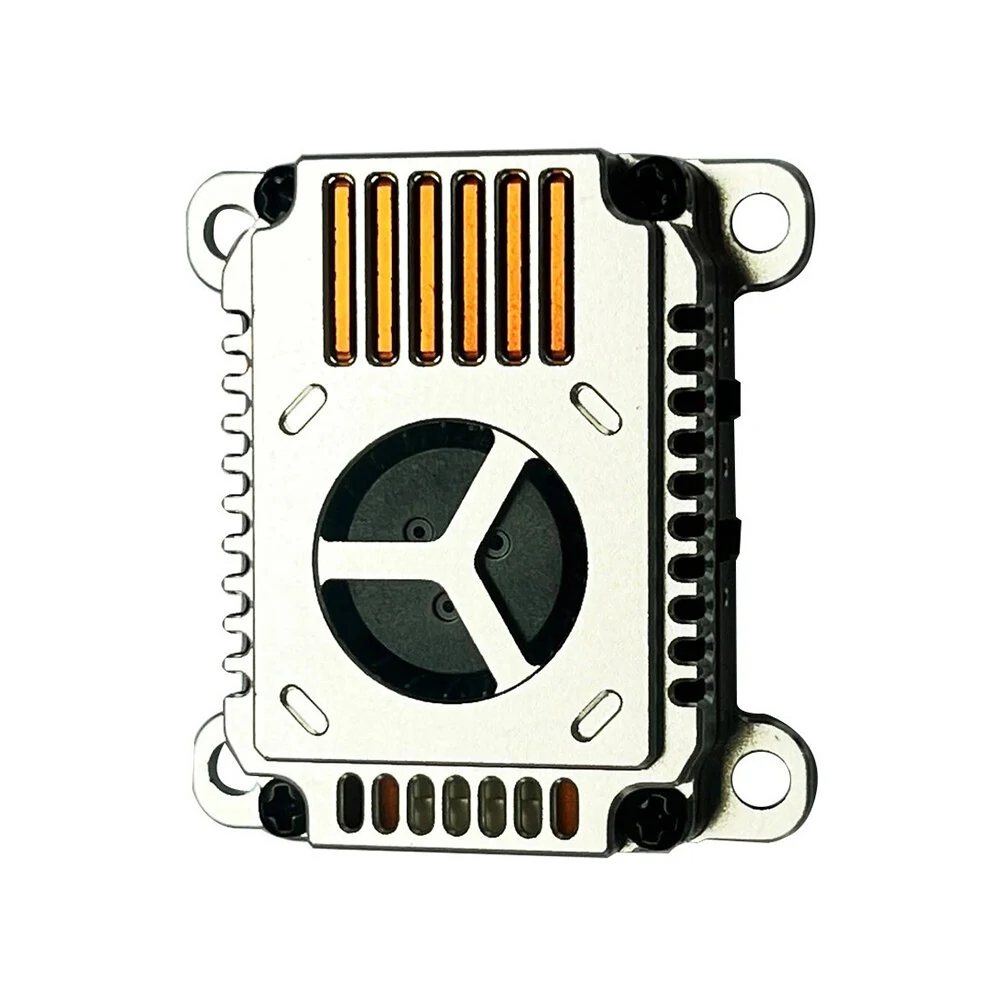

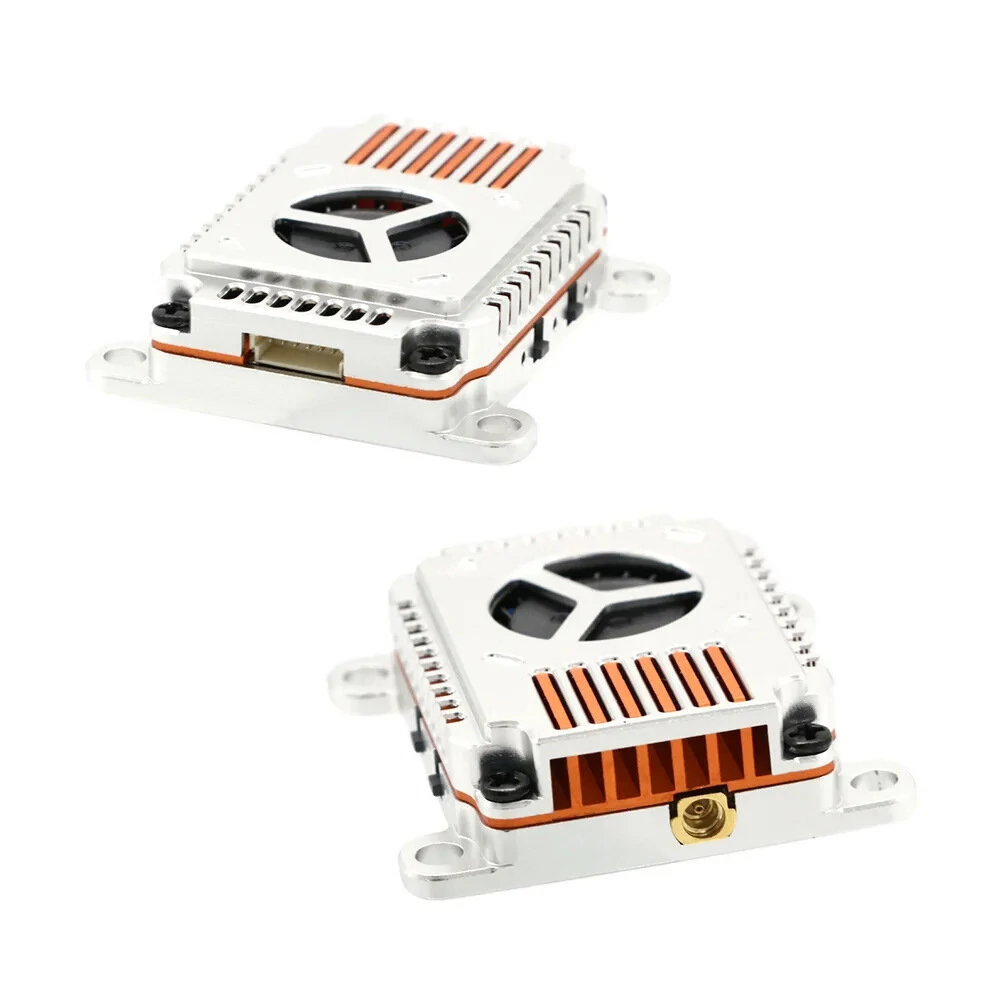

Heat-dissipating method: aluminum alloy heat sink+fan
Mounting hole location: 30.5mm*30.5mm /φ3.15mm
Product dimension: 37.7mm*36.1mm*11mm
Product weight: 16g
Precautions for Use:
1.A certain space shall be reserved when the image transmission module is installed to ensure the air convection around the module and module cooling; otherwise, if the overheating protection of the module is started, the power emission will be lowered and even closed.
2. It is suggested to ensure correct voltage scope and correct positive and negative anodes before powering-on to avoid element burning-out.
3. It is suggested to confirm antenna has been installed at the RF output terminal before powering-on to extend the service life of module.
4. Please read the Instruction before use to ensure correct wiring and extend the service life of module.

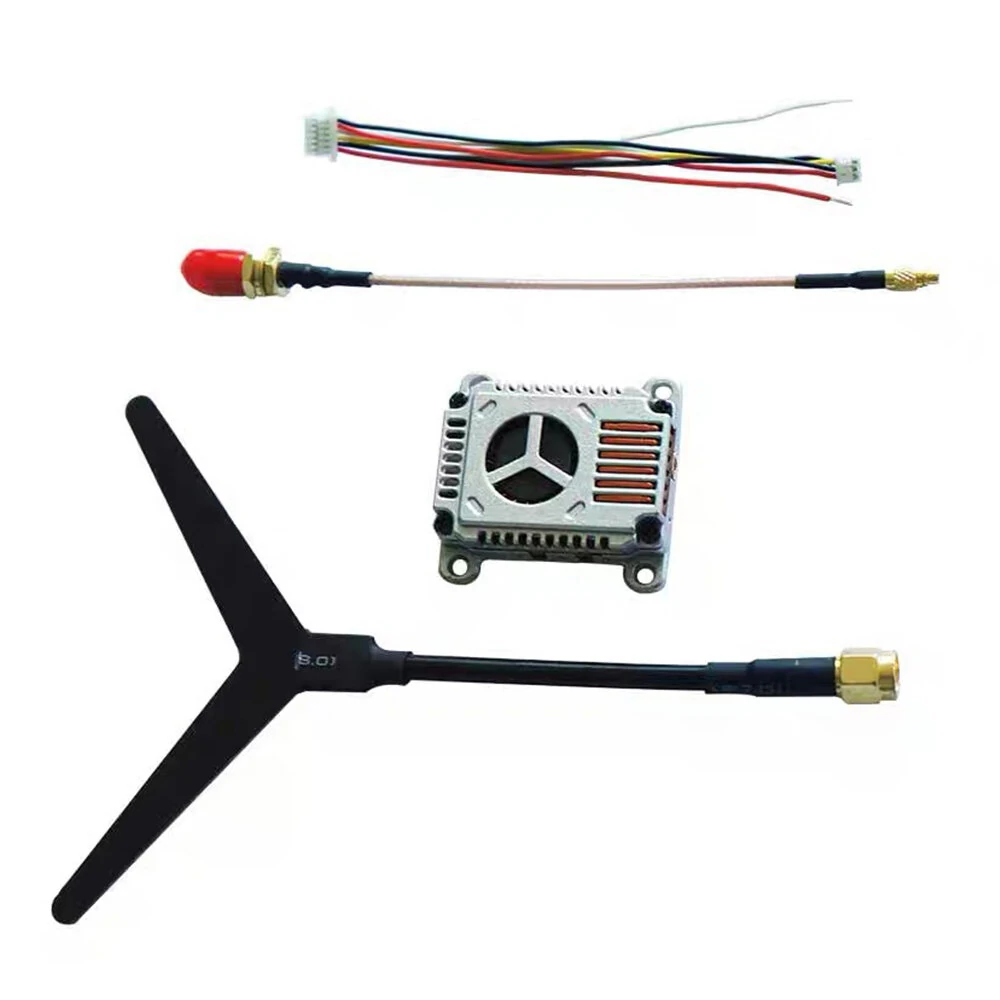

Package Included:
1x Transmitting Module Mainframe

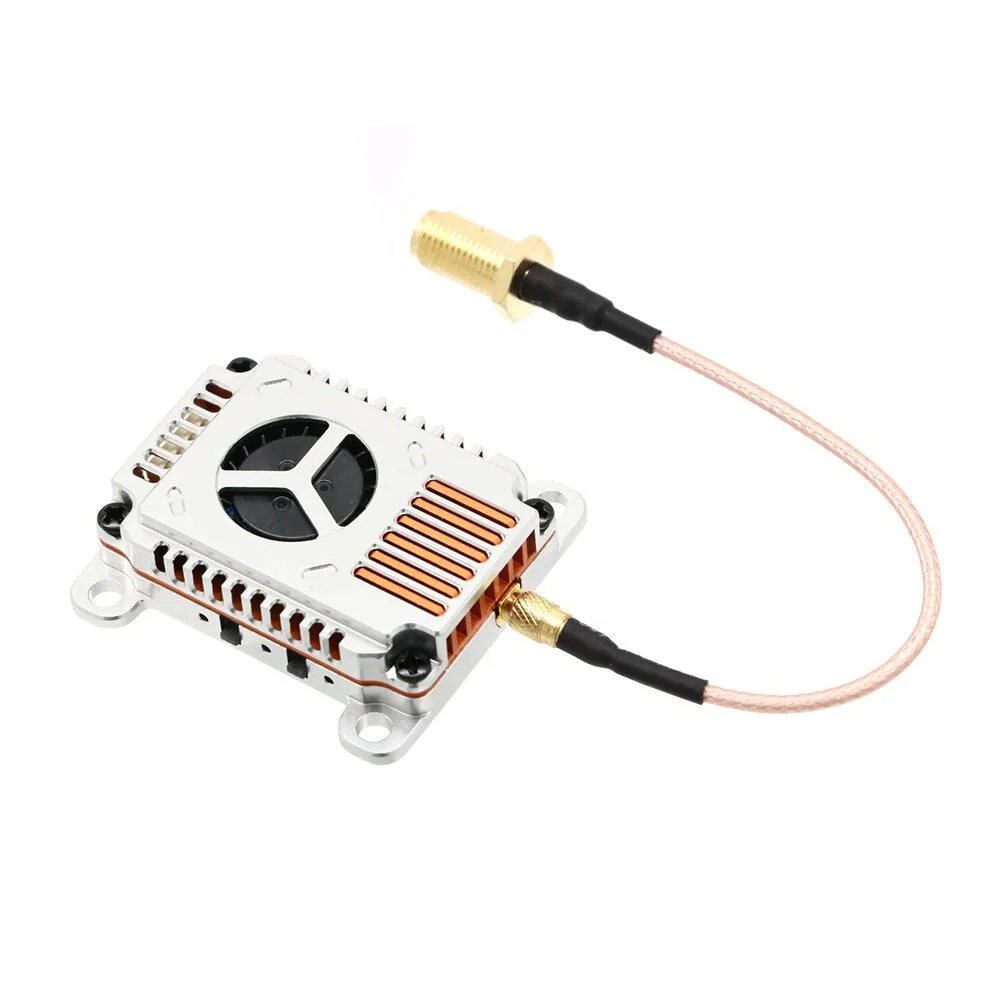

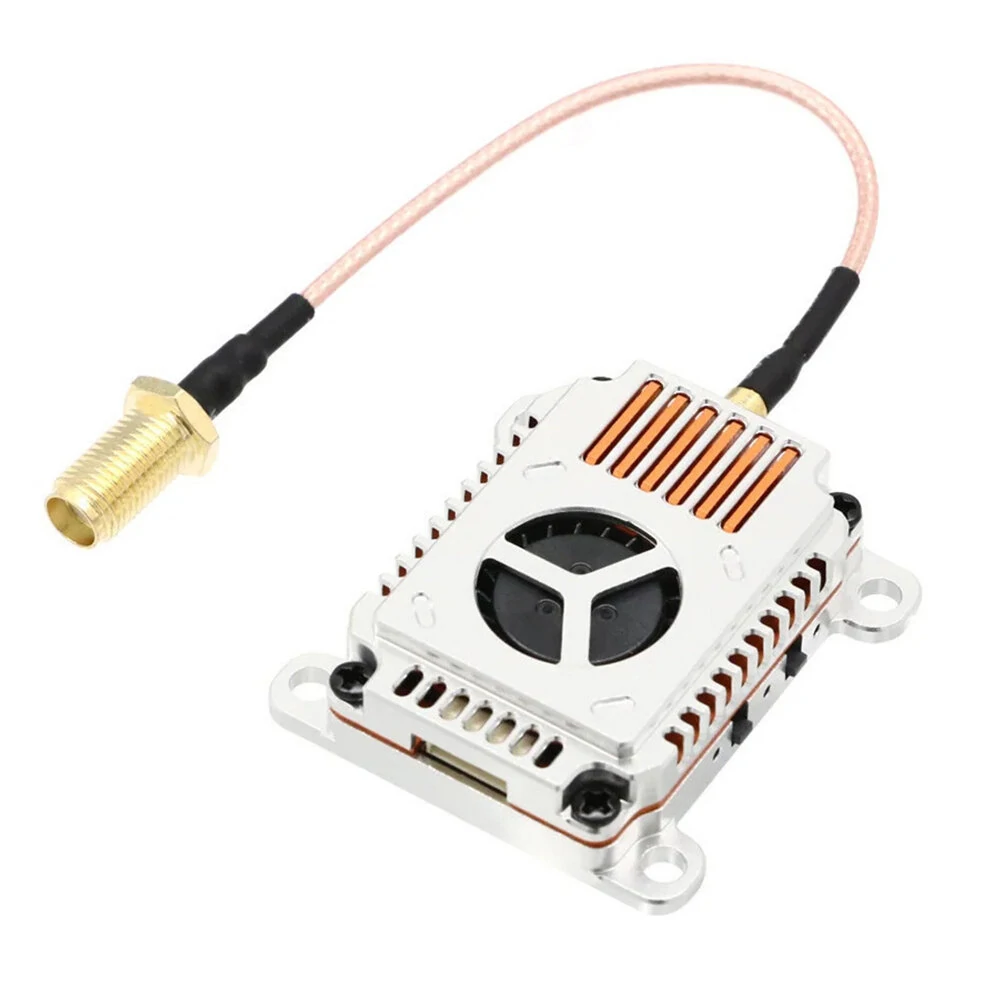

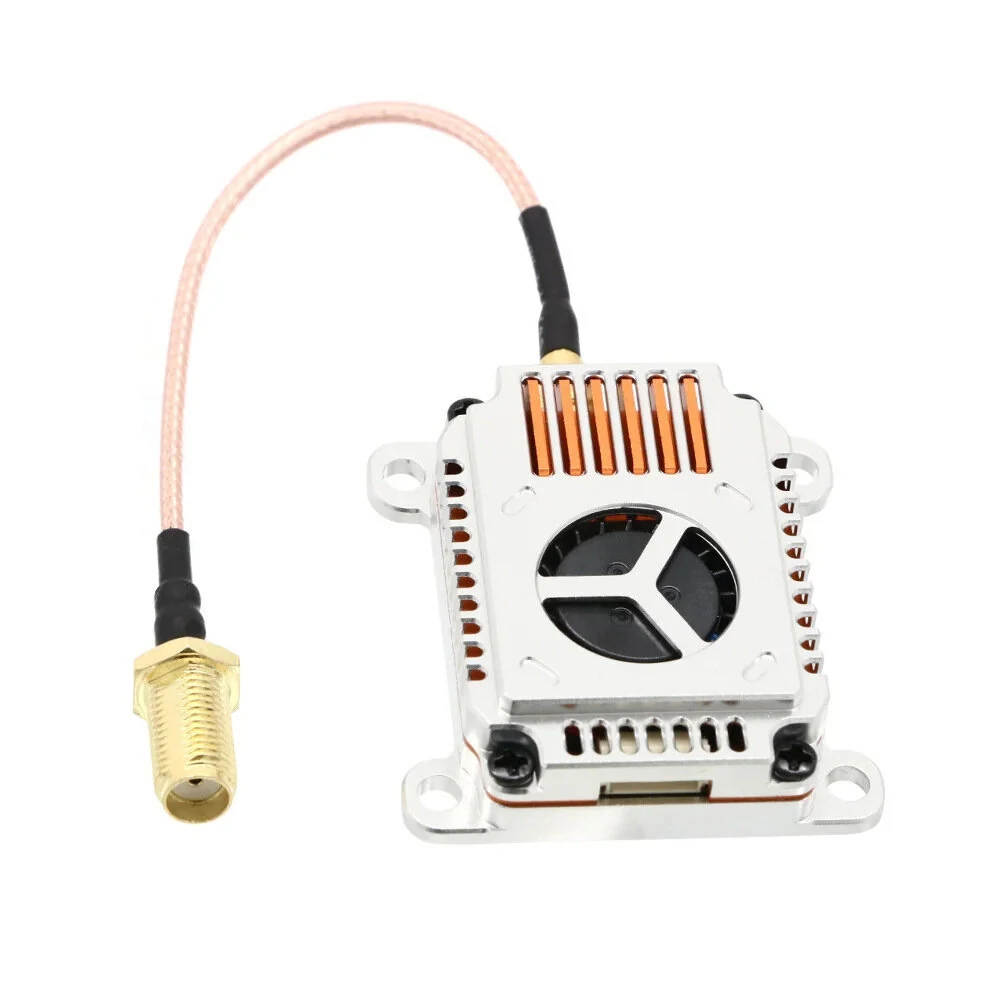

1x Special Mmcx Antenna Converter Line
1x 6p 1.0 Wiring
1x 1.2g Y-Type Special Antenna
