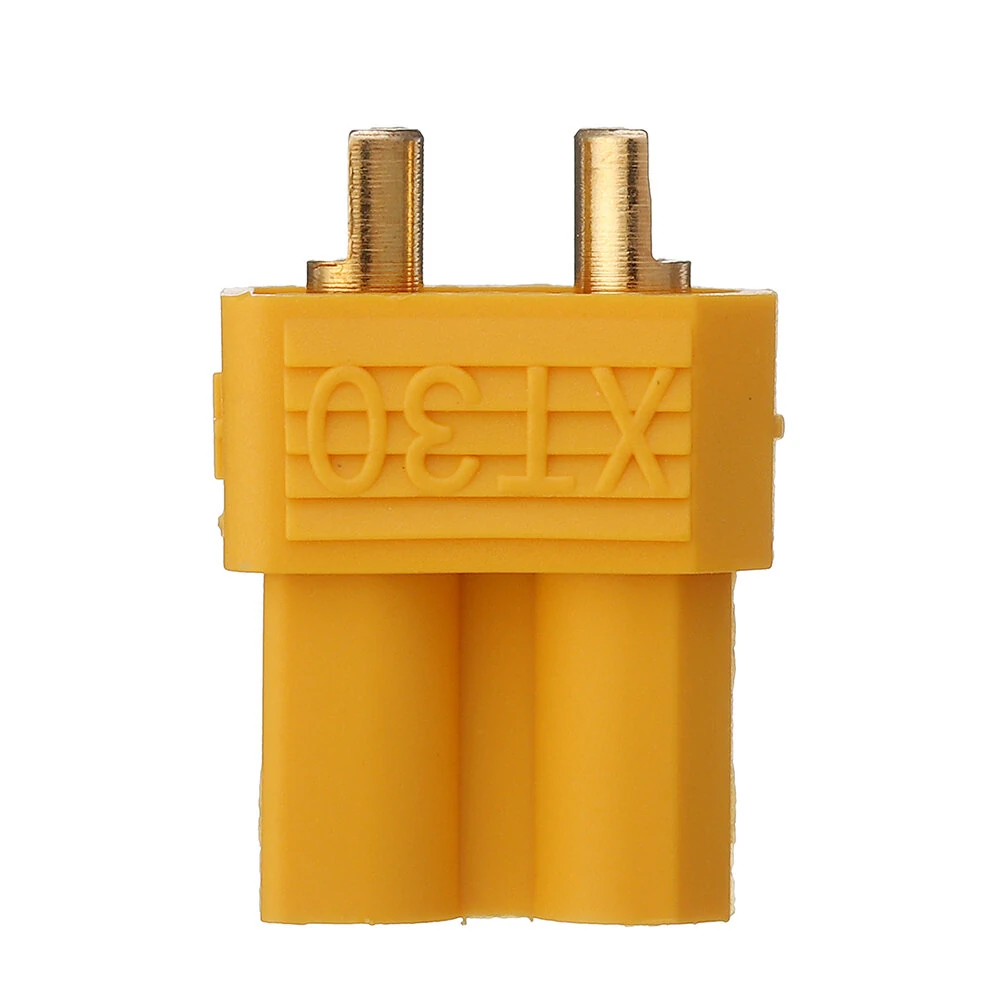

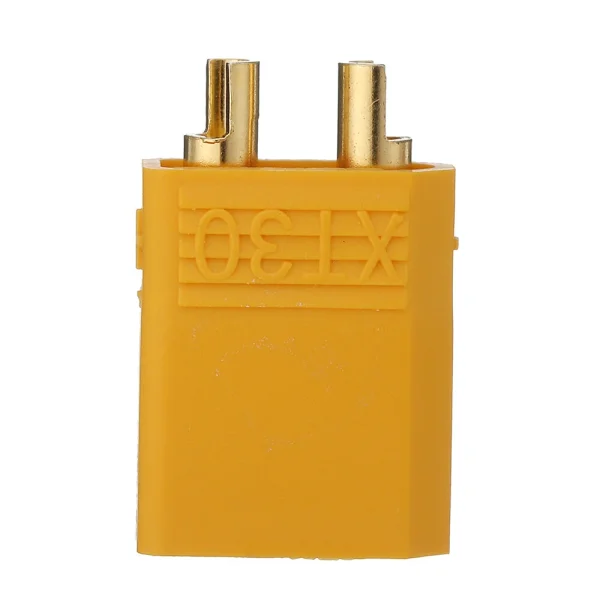

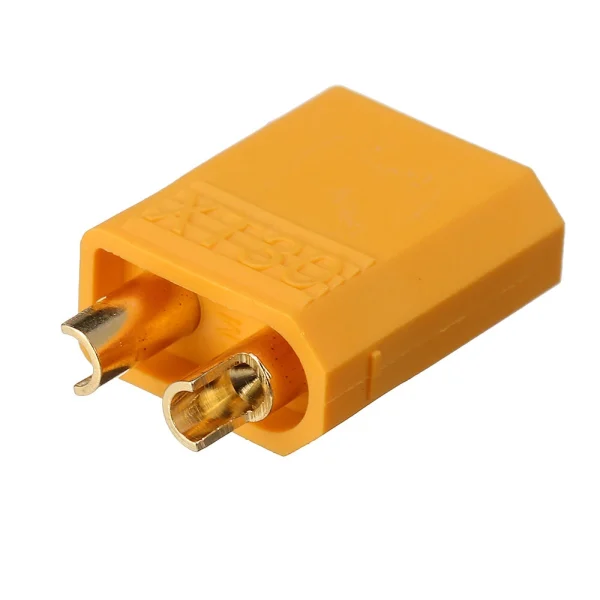

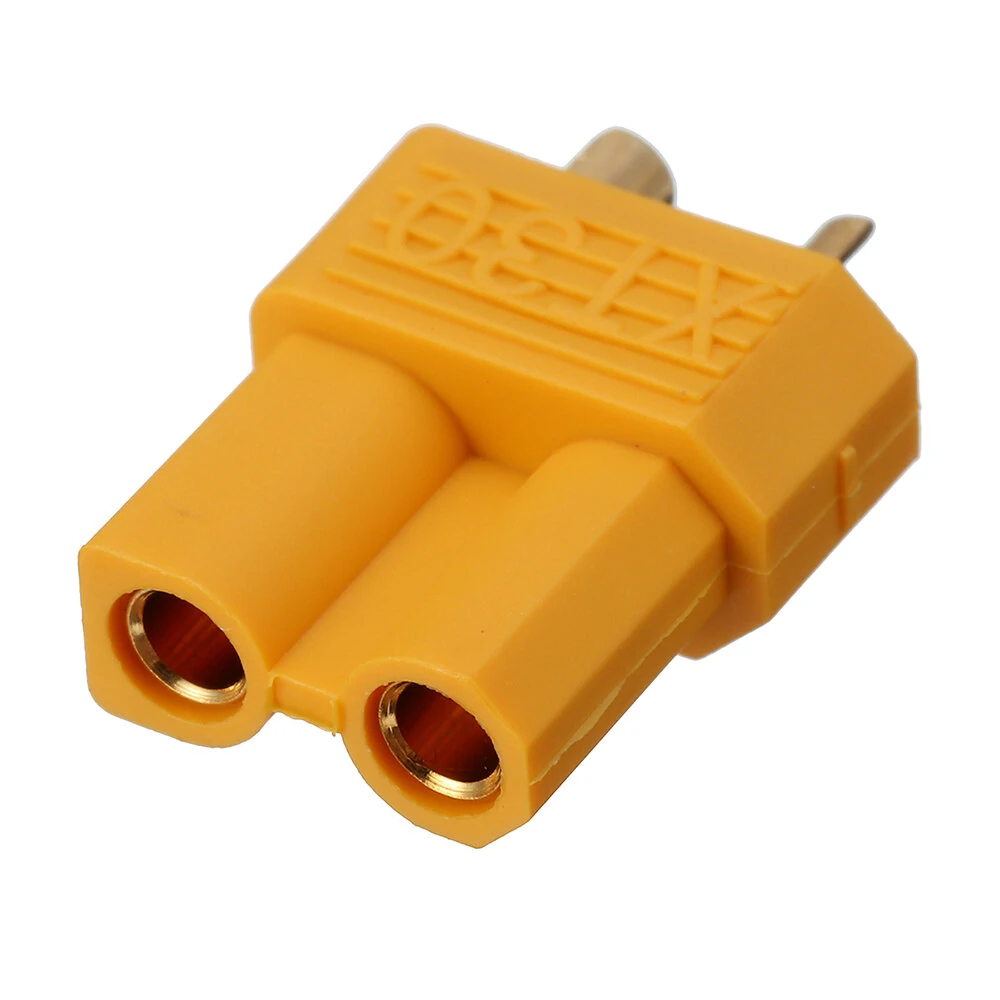

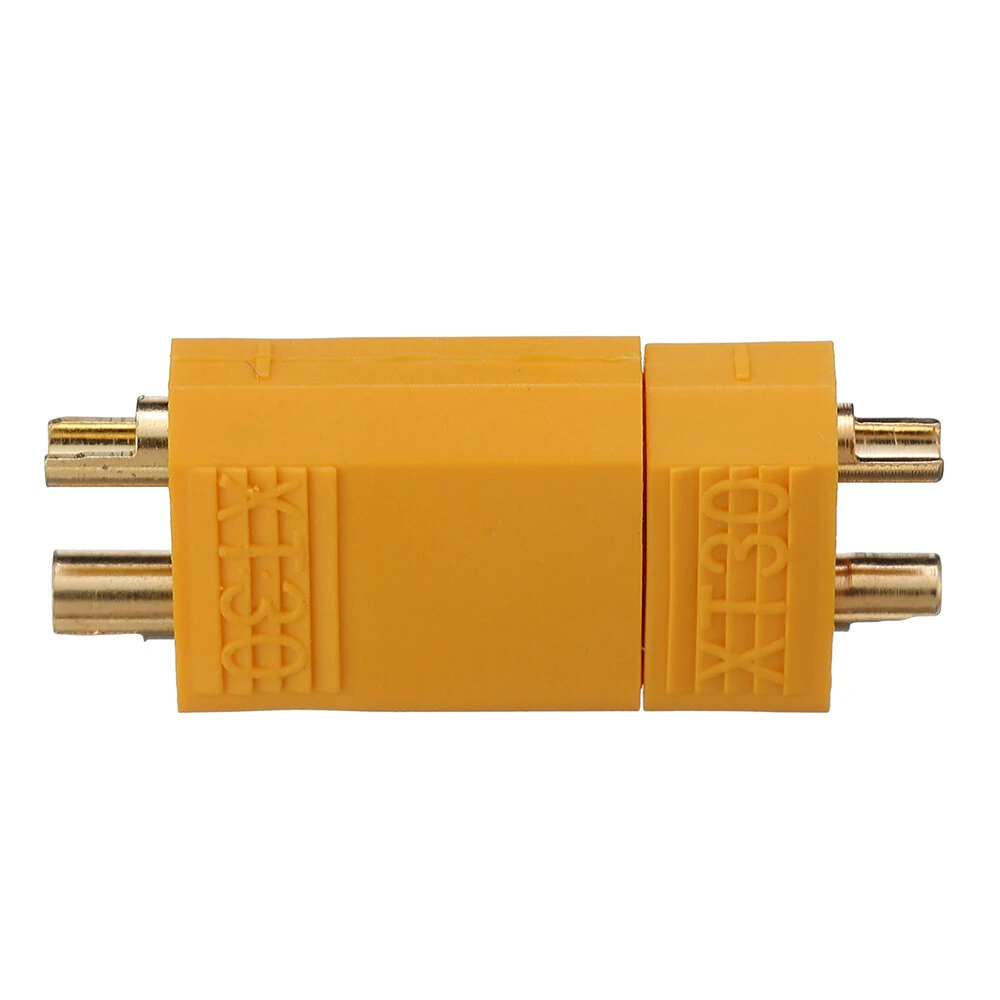

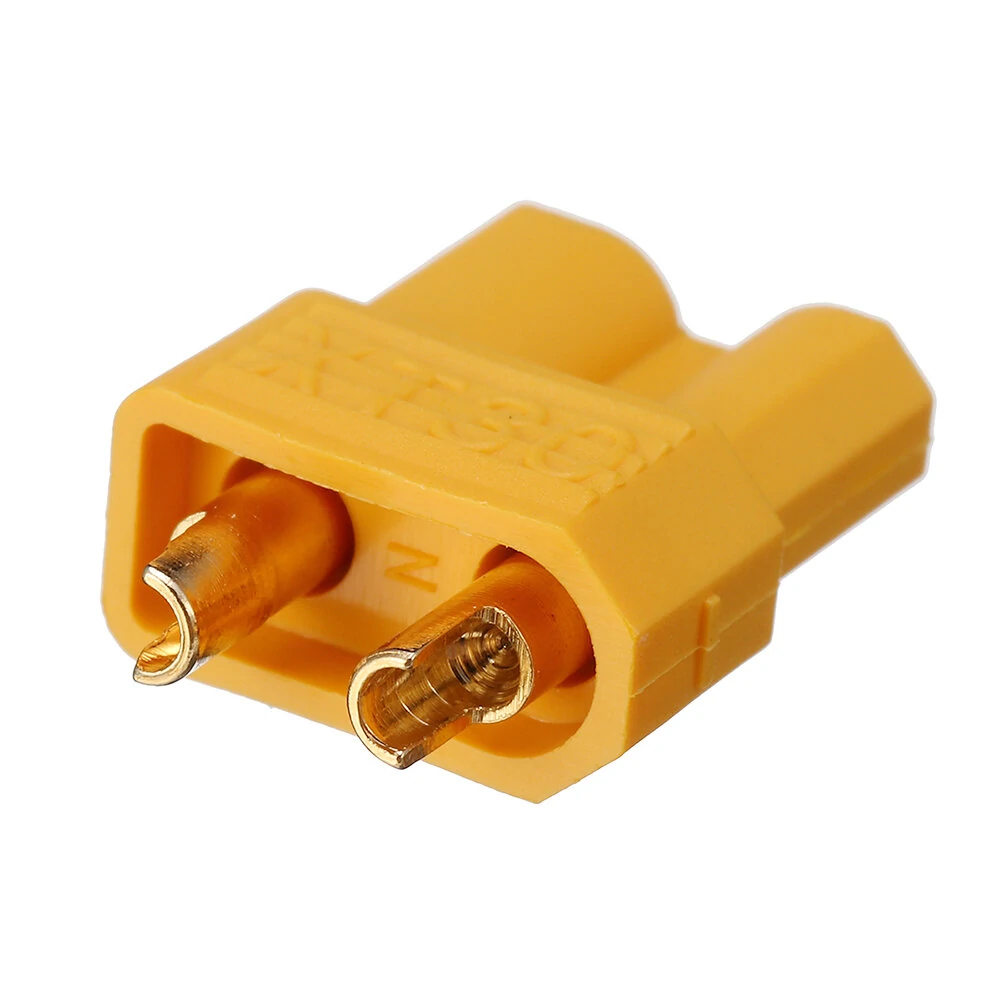

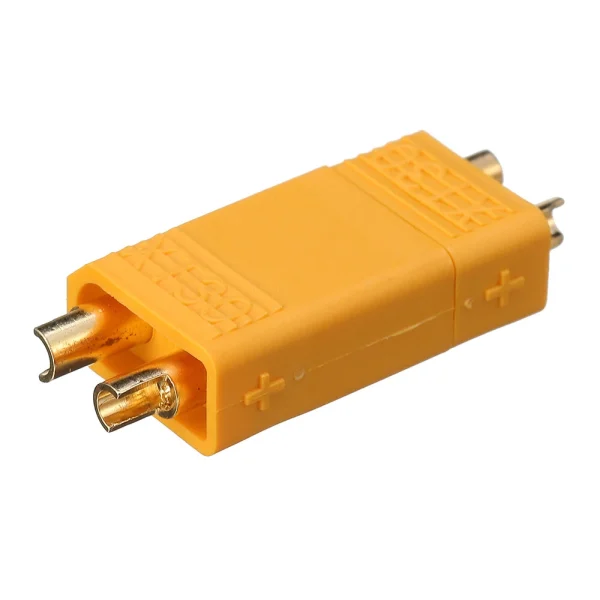

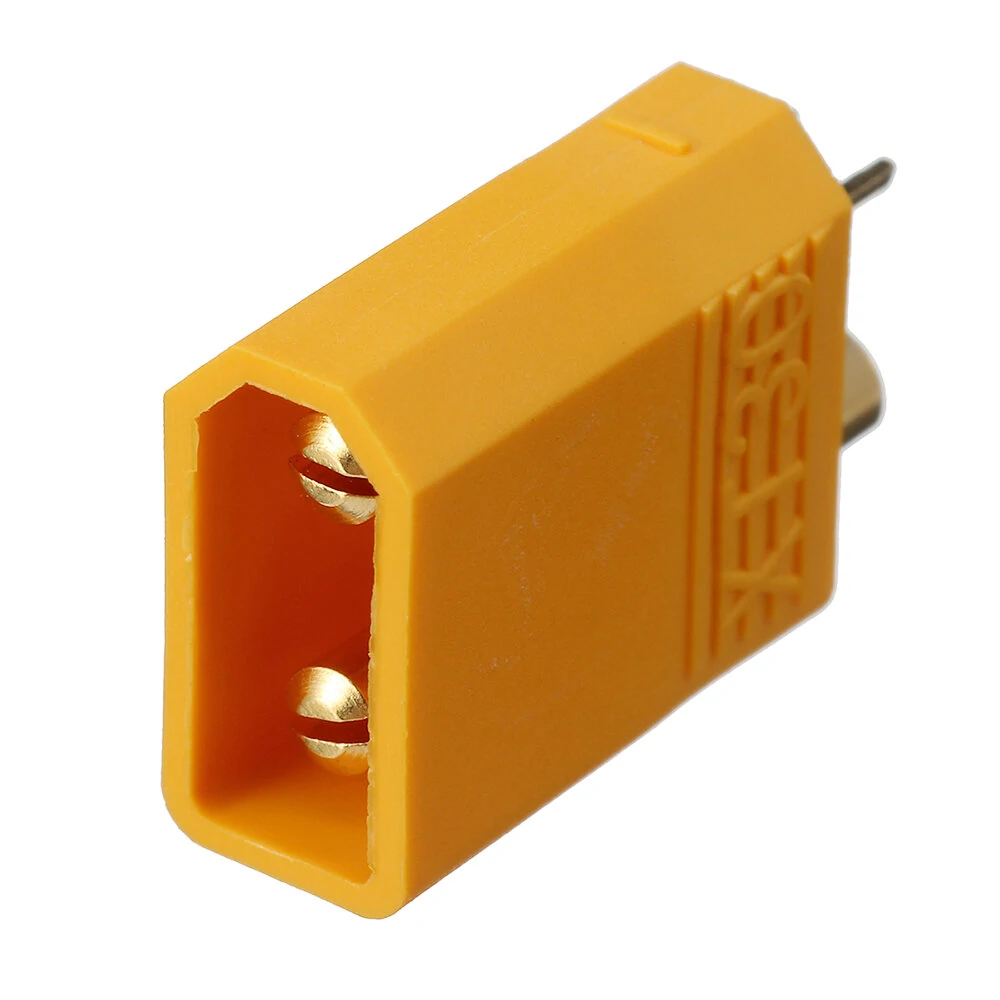

Made from high-temp Nylon and gold plated bullet connectors, both included in the injection mold at the time when forming the connector. The Amass XT30U ensures a solid high-amp connection, perfect for small lipo applications. Made of high temperature nylon the plug is also less likely to deform or melt.
Specification:
Brand Name: URUAV
Item Name: XT30U
Banana Plug: 2mm
Metal Material: Brass gold-plated
Plastic Material: PA66
Flammability Rating: UL94 V0
Contact Resistance: 0.70mΩ
Rated Voltage: DC 500V
Rated Current: 15A
Instantaneous Current: 30A
Recommend Use: 1000 times
Recommend Cable Spec.: 14-18 AWG
Recommend Temperature: -20°C ~ 120°C
Heat shrink tube:
Diameter: 3.5mm
Color: Red/Black
Packaging Included:
10X XT30U Male Plug
10X XT30U Female Plug
20X Red Heat Shrink Tube
20X Black Heat Shrink Tube
