Notice: This product is suitable for quadcopters.
Description

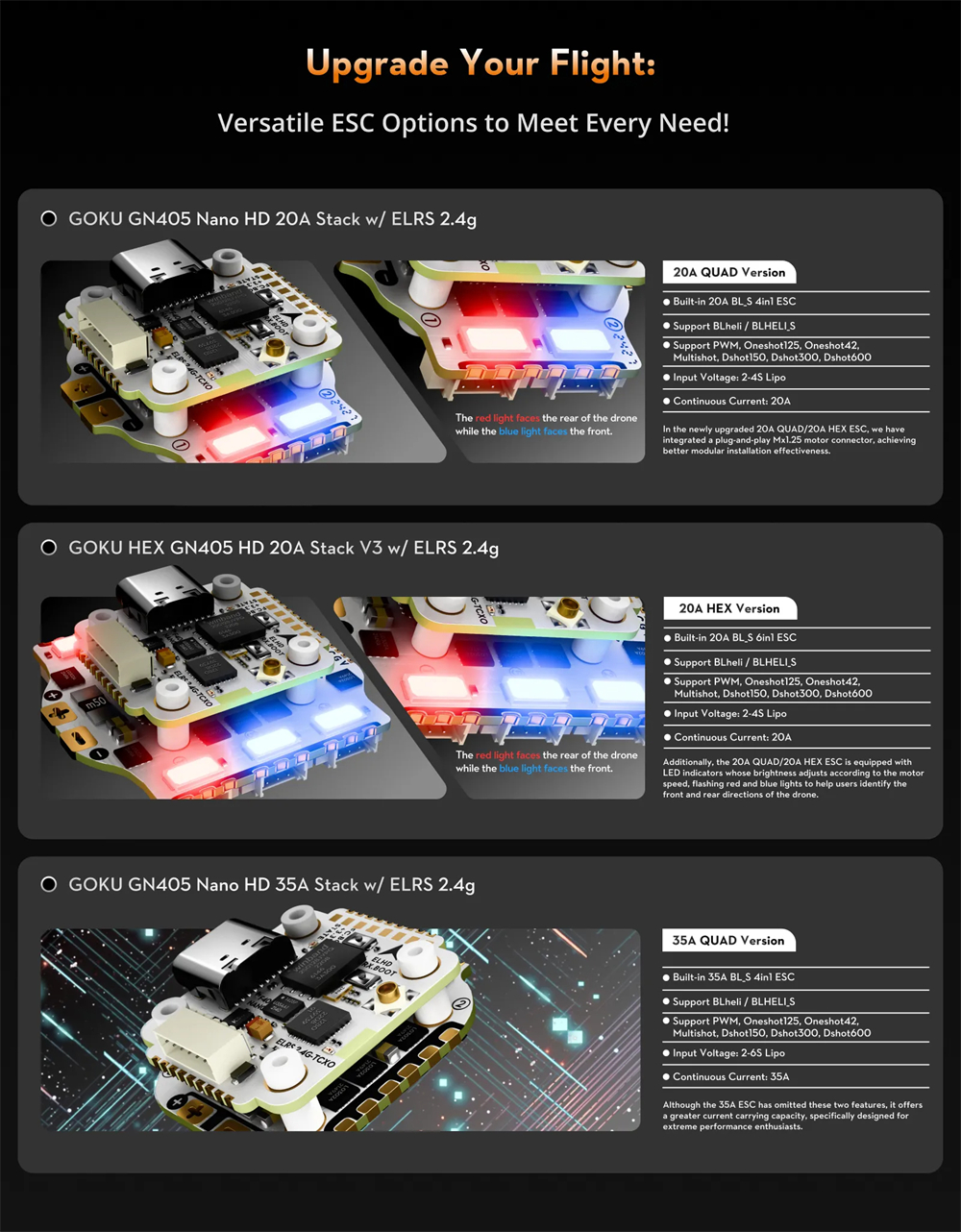

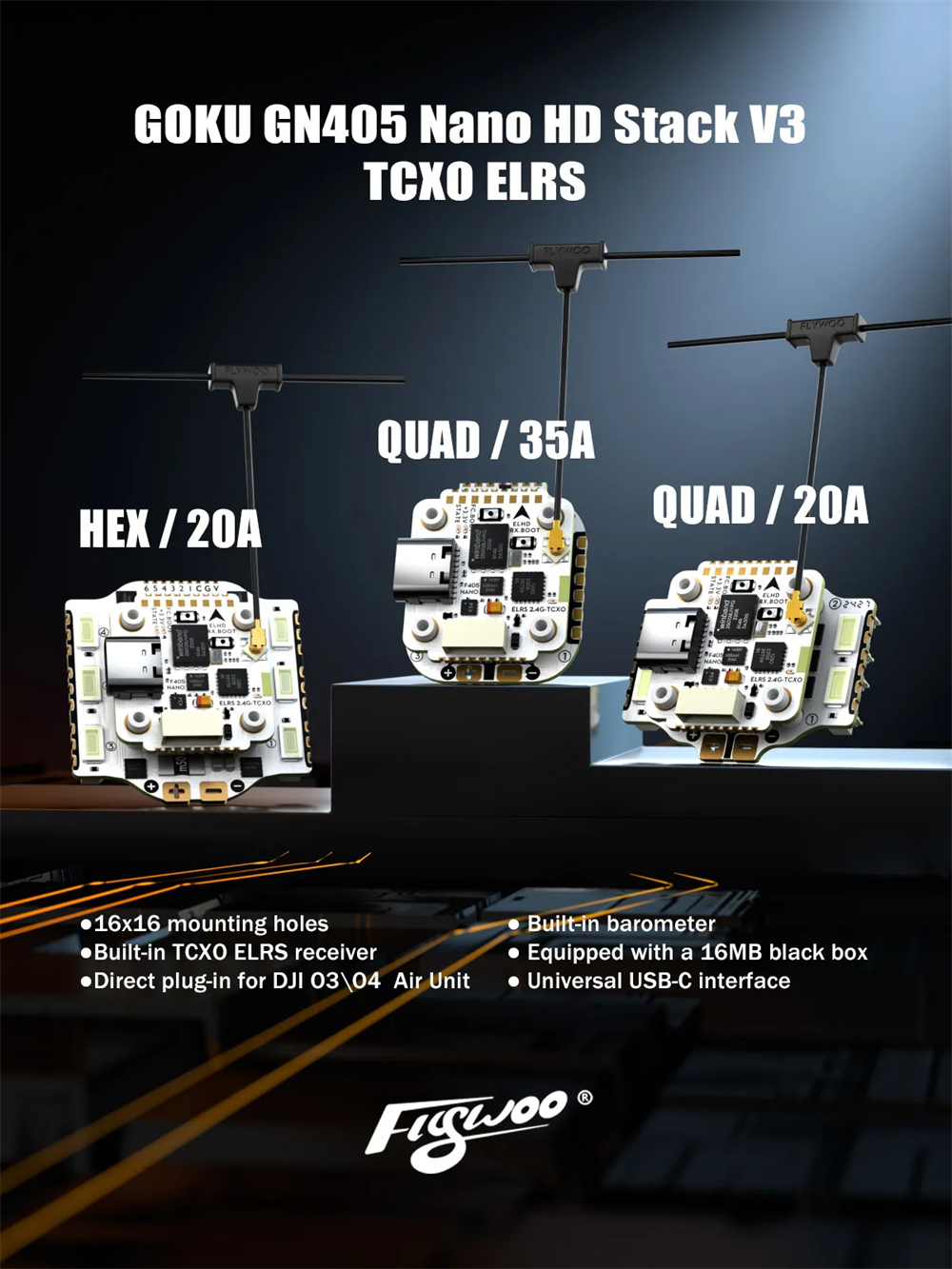

The Flywoo F405 NANO has been completely upgraded! We have further minimized and integrated the FC layout based on the original design. The new Flywoo GOKU GN405 Nano FC V3 w ELRS 2.4g is compact and features a USB-C universal port that is compatible with current mainstream data cables. It also supports the DJI O3 interface, allowing compatibility with high-quality digital transmission modules. Additionally, it has a complete set of six UART ports. Importantly, this flight controller is equipped with a TCXO ELRS high-precision receiver, making it an ideal solution for space-saving in micro drones. This flight controller is compatible with both QUAD and HEX drones, and users can switch between different ESC models. The latest three ESC models include: the 20A (QUAD) plug-and-play ESC, the 20A (HEX) plug-and-play ESC, and the high-performance 35A (QUAD) ESC. These options meet your compatibility needs for different drones, ensuring you have fun during your flights!

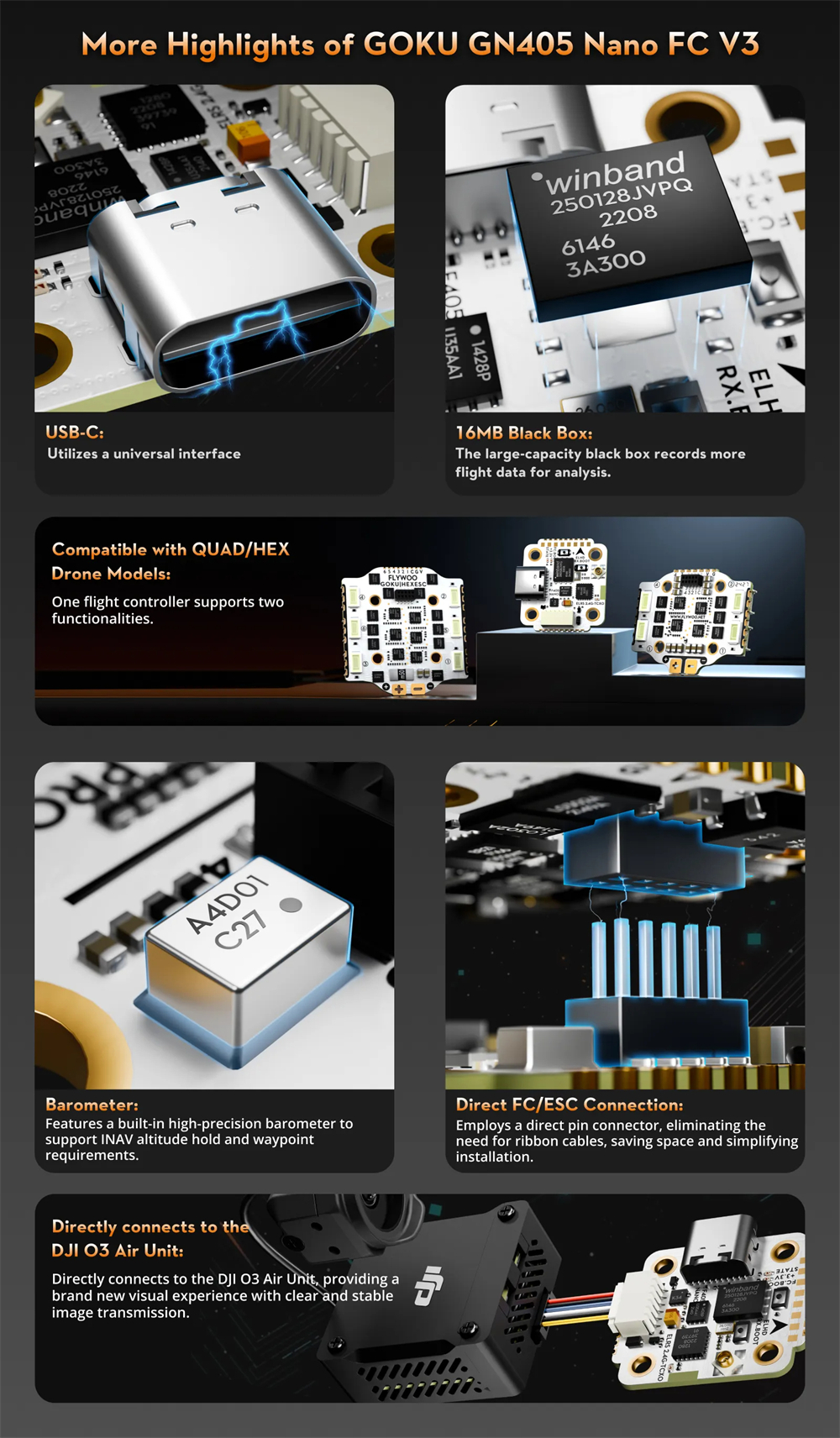

Highlights
– 16×16 mounting holes with a compact design
– Built-in TCXO ELRS receiver
– Direct plug-in for DJI O3O4 Air Unit
– FC/ESC pin header interface, compatible with QUAD/HEX
– Built-in barometer
– Equipped with a 16MB black box
– Universal USB-C interface
Specifications：
Brand: Flywoo
Model: GOKU
Item Name: GN405 Nano HD V3 F4 FC 20A ESC
| Product Name |
Flywoo GOKU GN405 Nano HD FC V3 w/ ELRS 2.4g 16×16 |
| MCU |
STM32F405 BGA |
| GYRO: |
ICM-42688P(SPI) |
| OSD |
NO |
| Barometer |
DP310 |
| Black Box |
16MB |
| USB Port Type |
Type-C |
| IMU(Gyro) |
ICM42688P |
| UARTS |
(1,2,3,4,5,6) |
| Input Voltage |
7.4V – 24V / 2 – 6S lipo |
| BEC |
5V 2A / 3.3V 0.5A |
| Size |
25mm x 23mm x 8mm |
| Hole Position |
M2 16X16mm |
| Weight |
3g (FC), 7.8g (FC+20A) |
| Product Name |
GOKU BS 20A ESC w/ LED V3 16×16 |
| ESC MCU |
BB21F16G |
| POWER LED |
YES |
| Continuous current |
20A |
| Input |
2-4s lipo |
| Supports |
PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |
| Size |
27×33mm board,16mm mounting holes (M2) |
| Weight |
4.5g |
Package Included:
| Model |
Included |

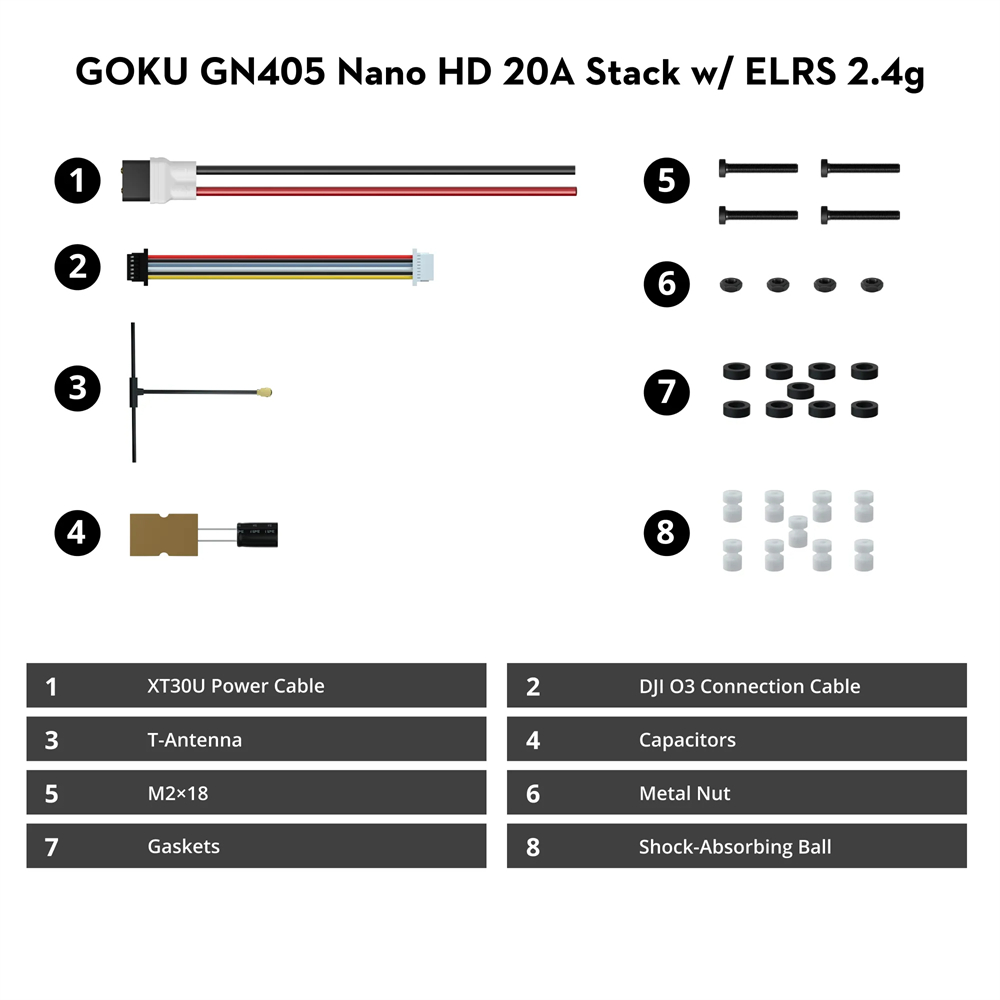

| GOKU GN405 Nano HD 20A Stack V3 |
1x GOKU GN405 Nano HD 20A Stack V3 1x XT30U Power Cable 1x T-Antenna 4x M2×18 9x Gaskets 1x DJI O3 Connection Cable 1x Capacitors 4x Metal Nut 9x Shock-Absorbing Ball |

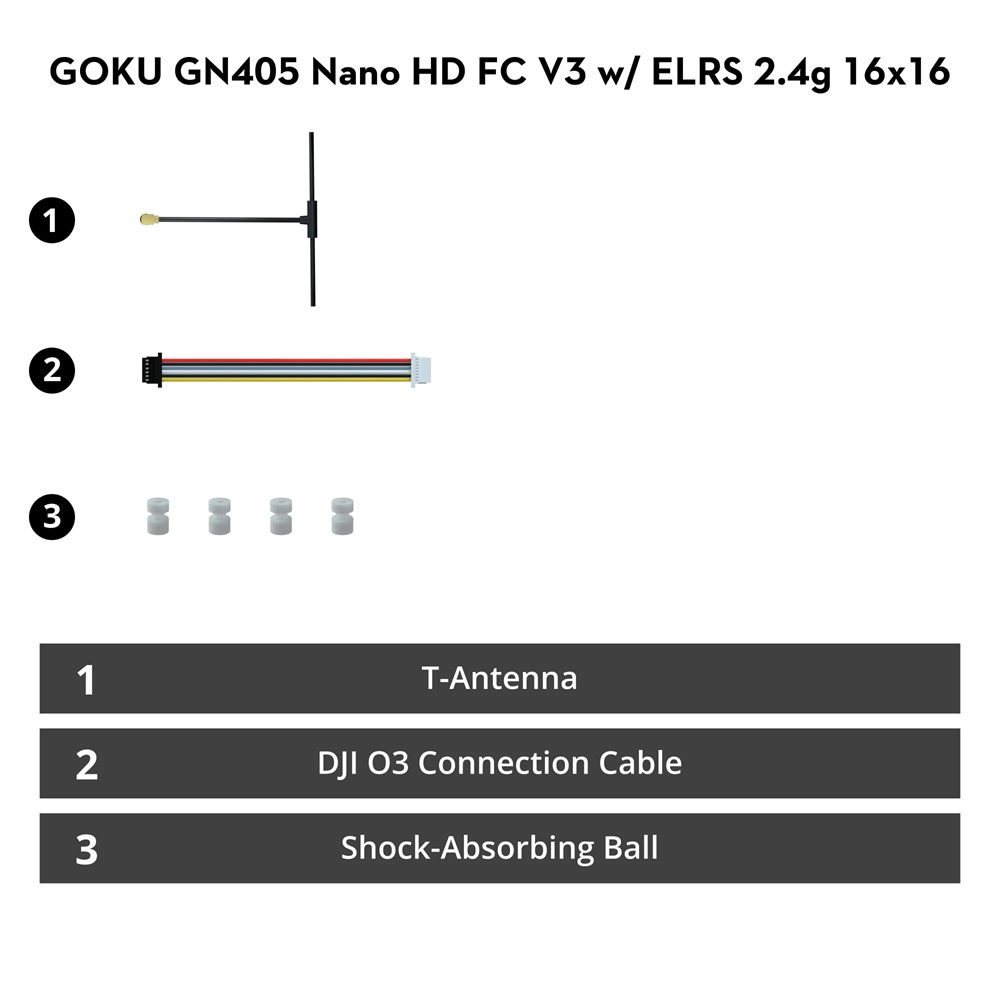

| GOKU GN405 Nano HD FC V3 w/ TCXO ELRS |
1x T-Antenna 1x DJI O3 Connection Cable 4x Shock-Absorbing Ball 1x GOKU GN405 Nano HD FC V3 w/ TCXO ELRS |

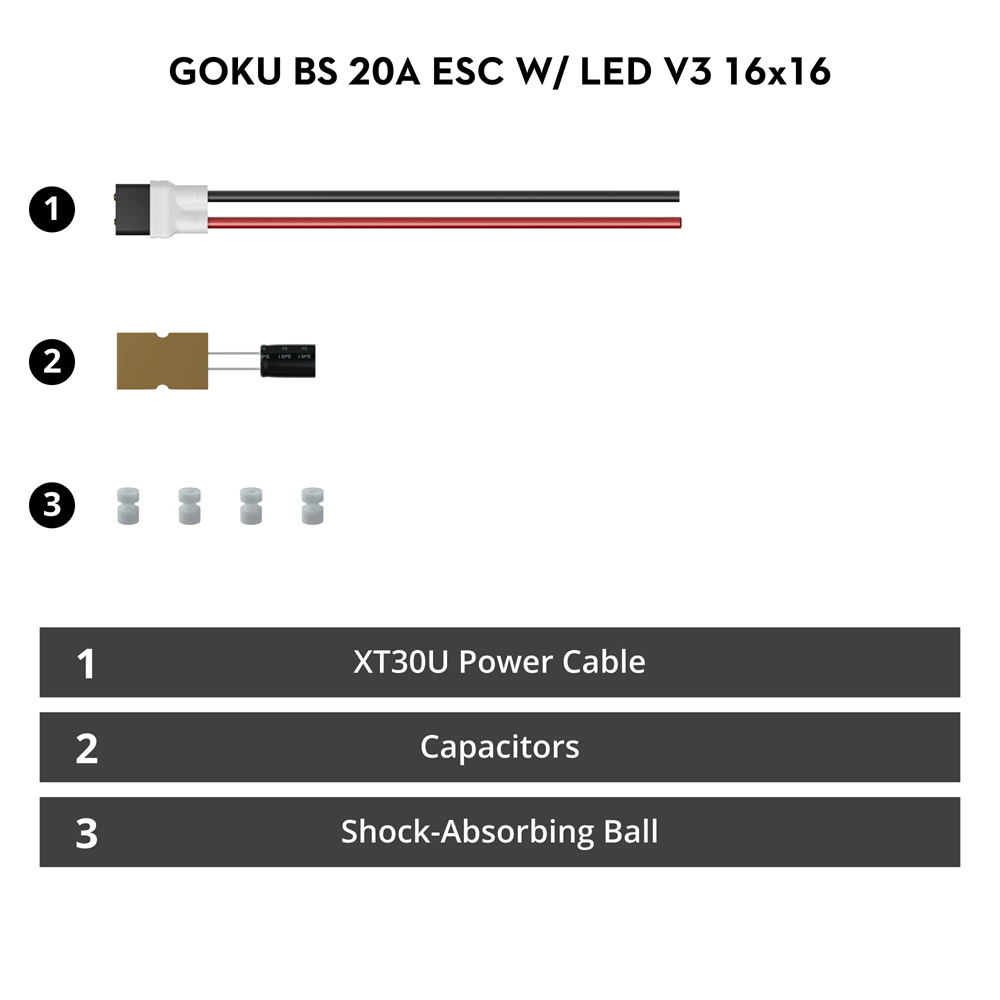

| GOKU BS 20A ESC V3 |
1x GOKU BS 20A ESC V3 1x XT30U Power Cable 1x Capacitors 4x Shock-Absorbing Ball |
