Specification:
Brand: EMAX
Model: ECOIII 2207
KV: 1700KV / 1900KV / 2400KV (Optional)
|
Model |
Specification: |
|
ECOIII 2207 1700KV |

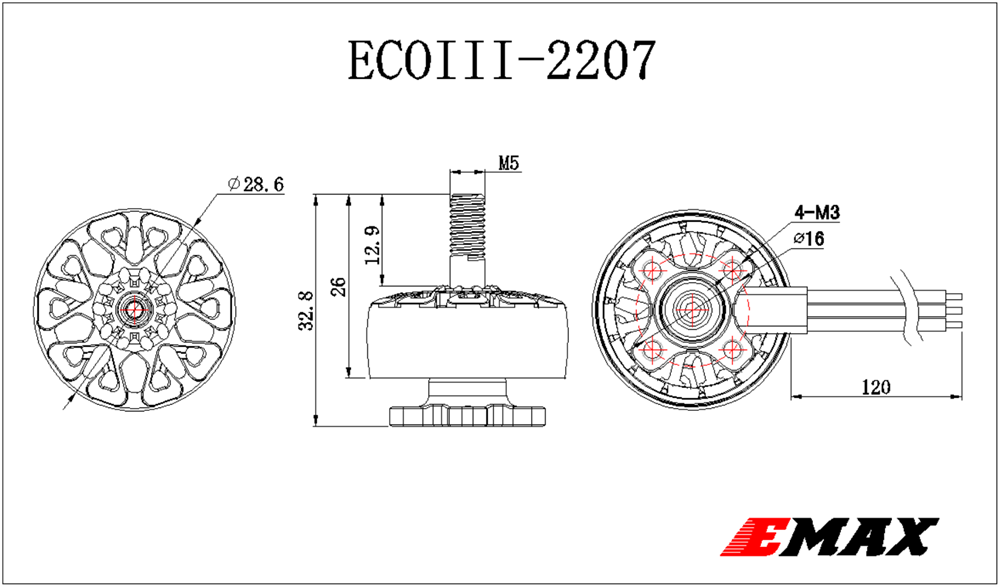

KV: 1700KV Idle Current(10A): 1.2A Motor Dimensions: φ28.6*32.8mm Internal Resistance: 74mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 4mm Propeller: 5′-5.5′ Lead 20#AWG: 120mm Peak Current(6S): 42A Max.Power(6S): 1050W Weight: 31.9g(W/O Silicone Wire) |
|
ECOIII 2207 1900KV |
KV: 1900KV Idle Current(10A): 1.5A Motor Dimensions: φ28.6*32.8mm Internal Resistance: 64mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 4mm Propeller: 5′ Lead: 20#AWG 120mm Peak Current(6S): 50A Max.Power(6S): 1260W Weight: 31.6g(W/O Silicone Wire) |
|
ECOIII 2207 2400KV |
KV: 2400KV Idle Current(10V): 2.1A Motor Dimensions: φ28.6*32.8mm Internal Resistance: 48mΩ Framework: 12N14P No.of cells: 3-4S Bearing Shaft: 4mm Propeller: 5′-5.5′ Lead: 20#AWG 120mm Peak Current(4S): 45A Max.Power(4S): 750W Weight: 31.5g(W/O Silicone Wire) |
Feature:
– G1 level rolling element Precision bearing
– Steel shaft
– Al 7075 Anodizing
– M3(16*16mm) hole pattern

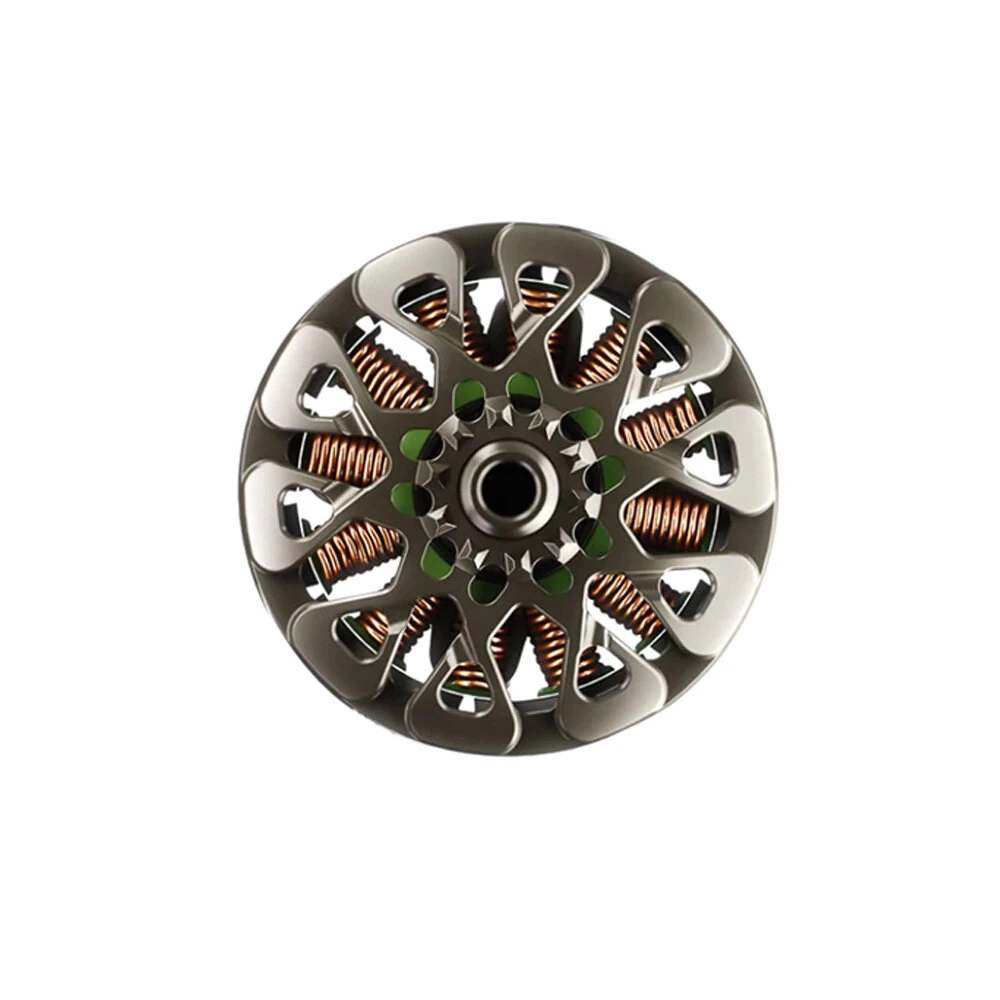

– Single strand winding
– 120mm 20 AWG silicone wire

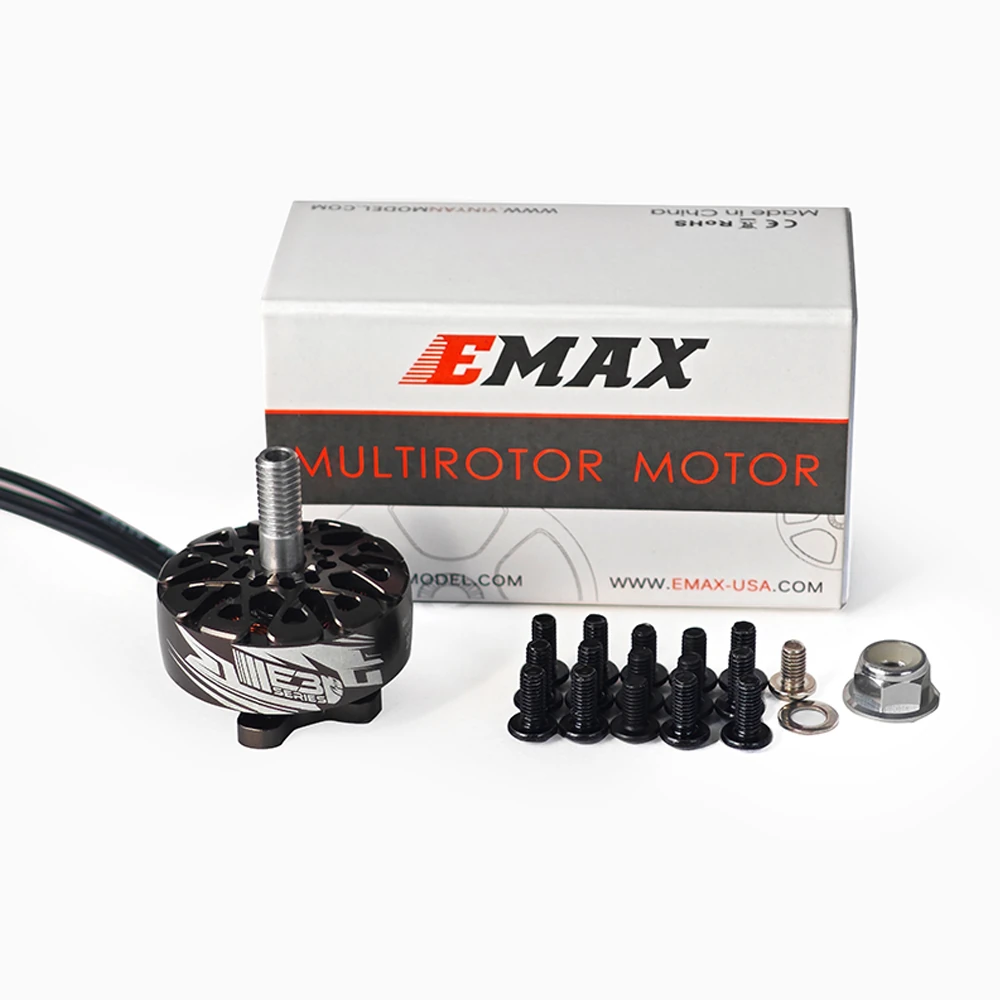

Package Included:
1x ECOIII 2207 FPV Brushless Motor
5x M3*8 Screw
5x M3*7 Screw
5x M3*6 Screw
1x Aluminum M5 nylock nut
1x Washer and Screw for shaft
OR
4x ECOIII 2207 FPV Brushless Motor
20x M3*8 Screw
20x M3*7 Screw
20x M3*6 Screw
4x Aluminum M5 nylock nut
4x Washer and Screw for shaft
