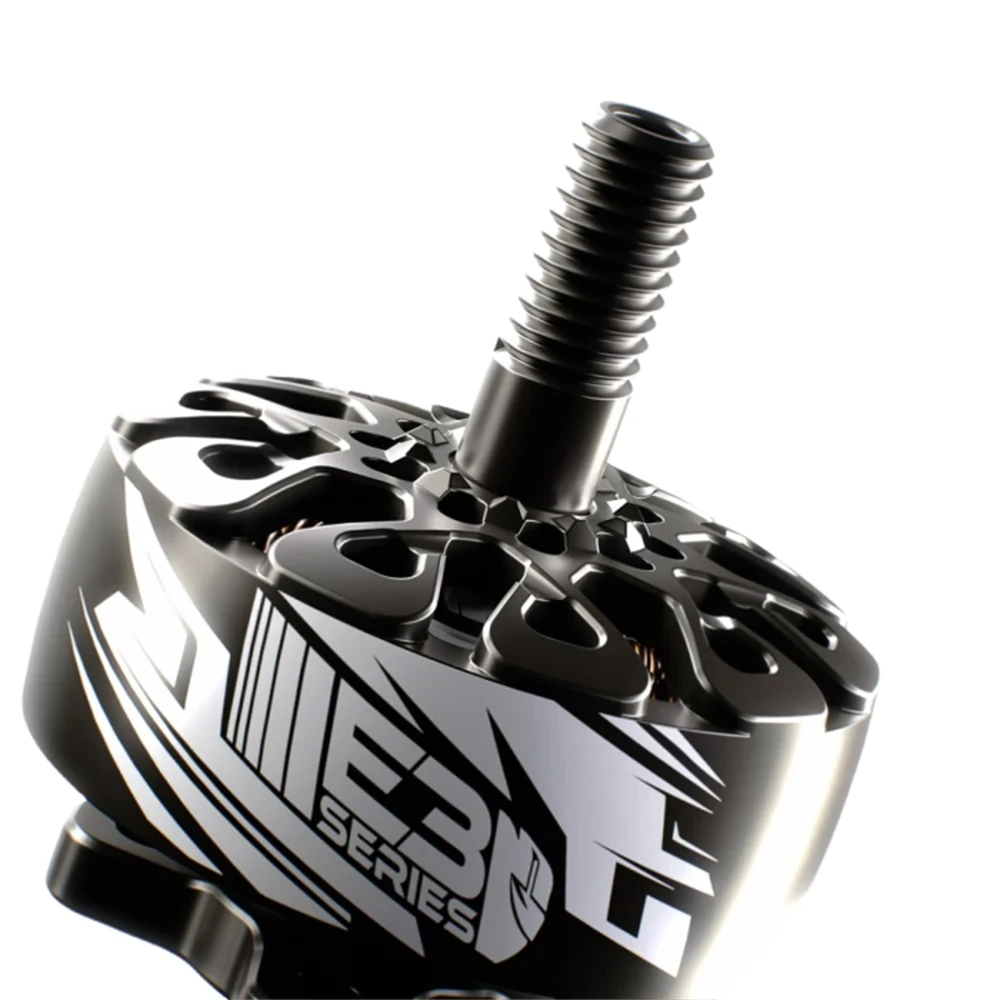

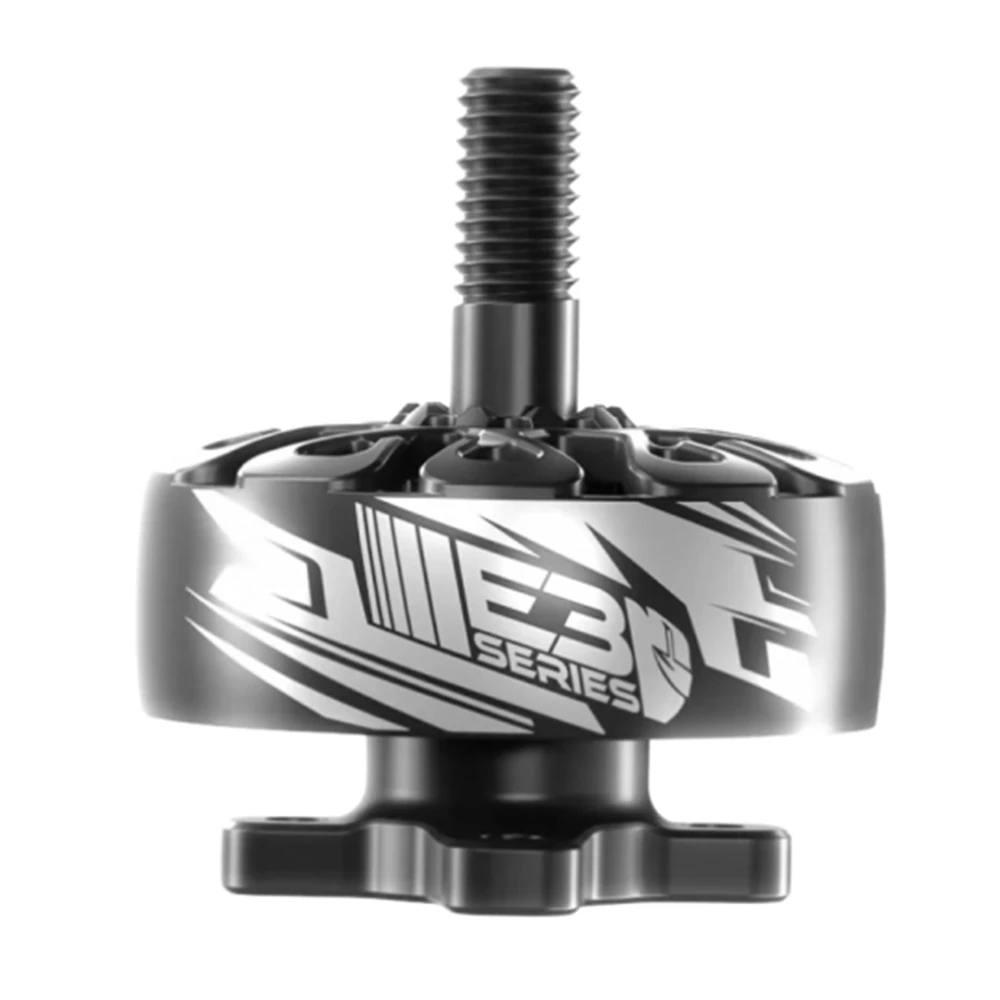

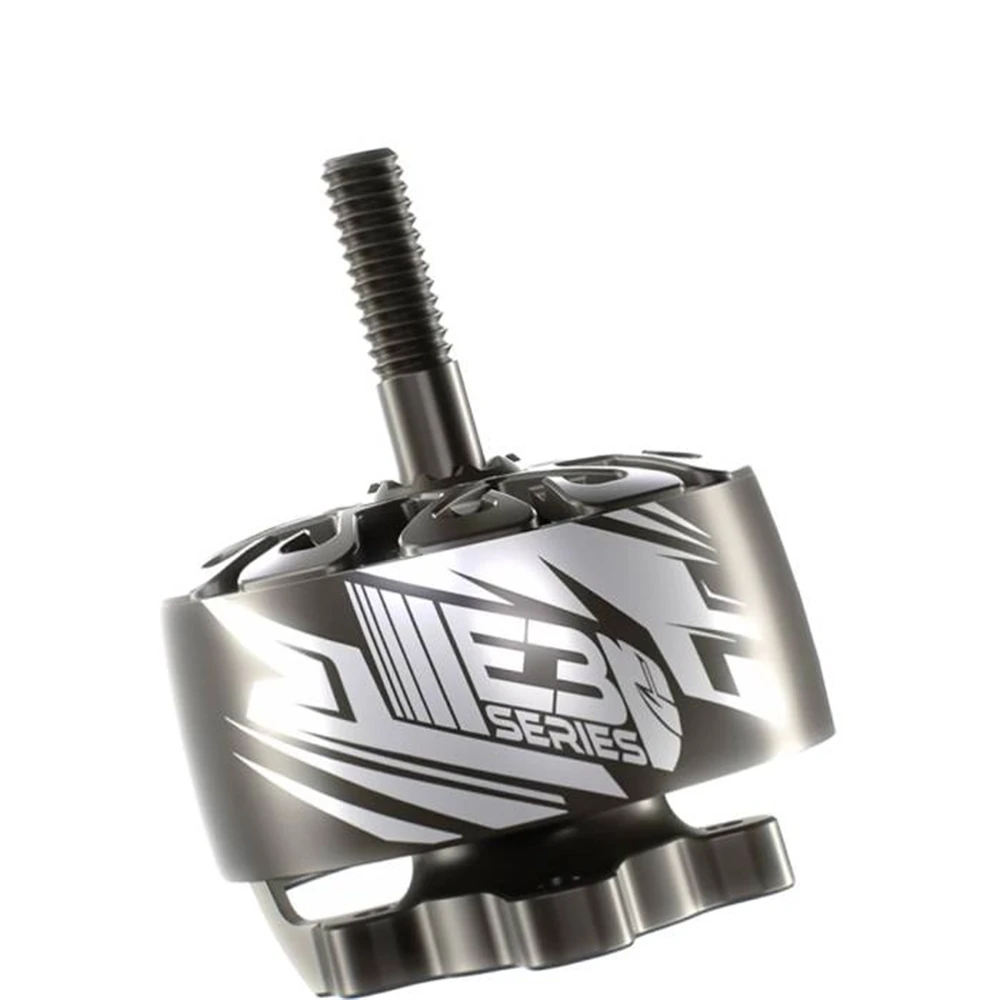

Description: The EMAX E3 Series 2808 Motor is available in 1300KV and 1500KV and is designed for long-range and cinematic FPV drones. With a larger stator for increased torque and efficiency, these motors provide smooth power delivery, precise control, and reliable performance. Perfect for 7′ prop setups, the E3 Series ensures stable, high-performance flights for both freestyle and cruising.
Specification:
Brand: EMAX
Model: ECOIII 2808
KV: 1300KV / 1500KV (Optional)
| Model |
Specification |

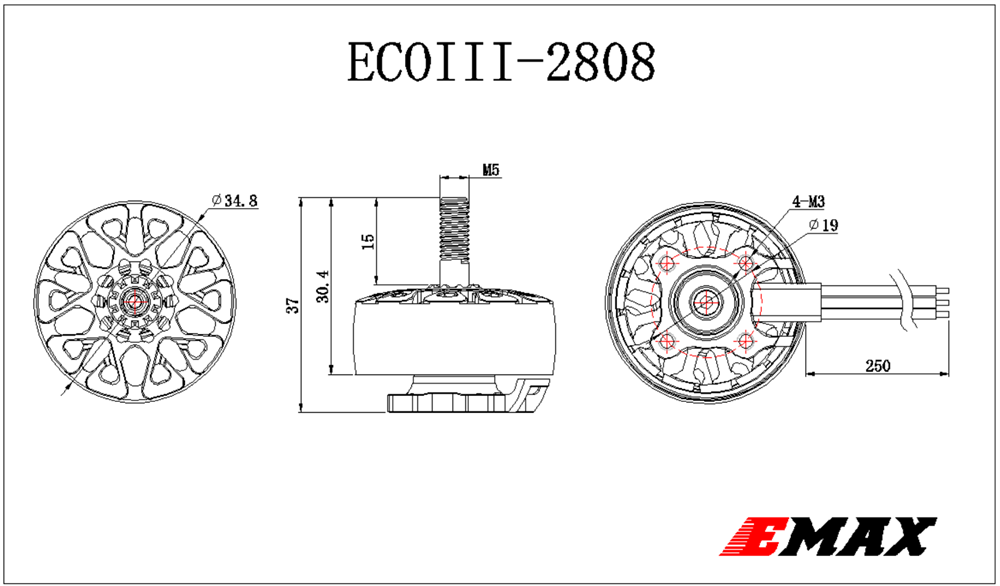

| ECOIII 2808 1300KV | KV: 1300KV Idle Current(10V): 1.5A Motor Dimensions: φ34.8*37mm Internal Resistance: 56mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 5mm Propeller: 6′-7′ Lead: 18#AWG 250mm Peak Current(6S): 56A Max.Power(6S): 1410W Weight: 53.6g(W/O Silicone Wire) |
| ECOIII 2808 1500KVor |
KV: 1500KV Idle Current(10V): 1.8A Motor Dimensions: φ34.8*37mm Internal Resistance: 47mΩ Framework: 12N14P No.of cells: 3-6S Bearing Shaft: 5mm Propeller: 6′-7′ Lead: 18#AWG 250mm Peak Current(6S): 65A Max.Power(6S): 1640W Weight: 53.8g(W/O Silicone Wire) |
Feature:
– G1 level rolling element Precision bearing
– Steel shaft
– Al 7075 Anodizing
– M3(19*19mm) hole pattern

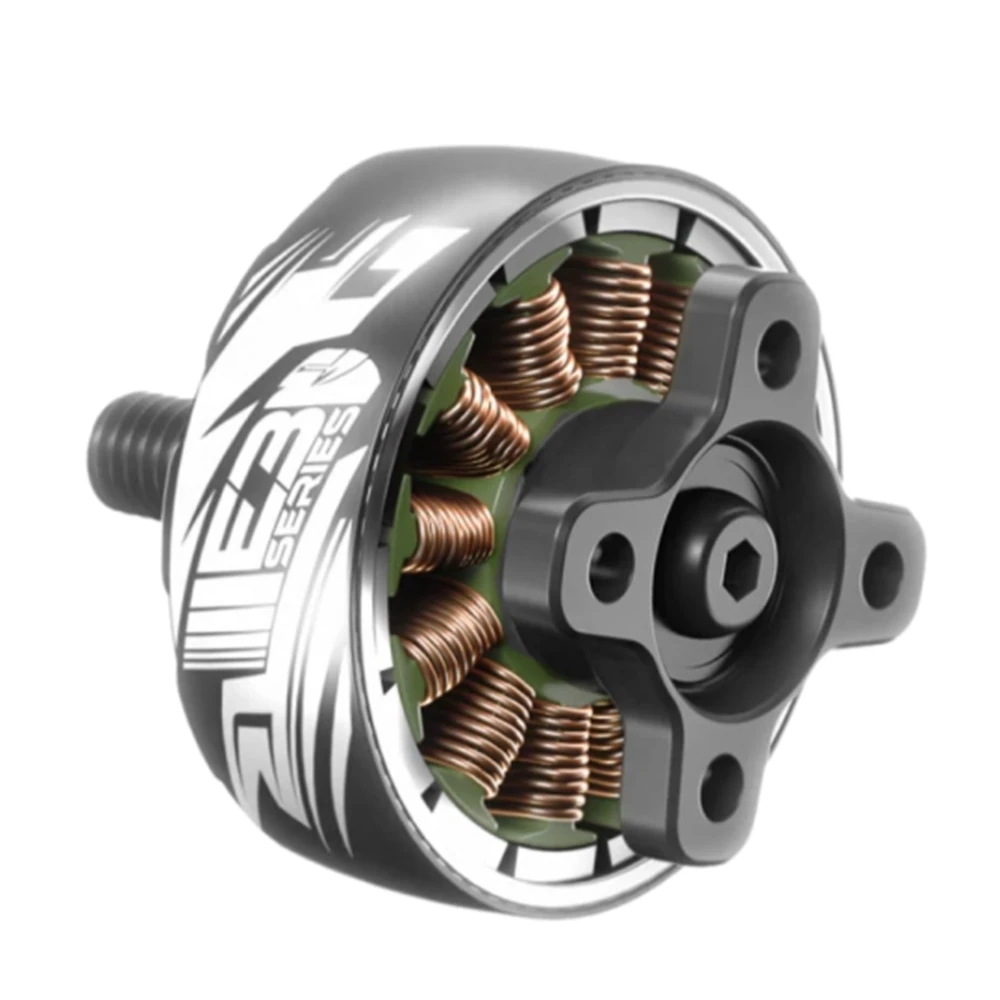

– Single strand winding
– 250mm 18 AWG silicone wire

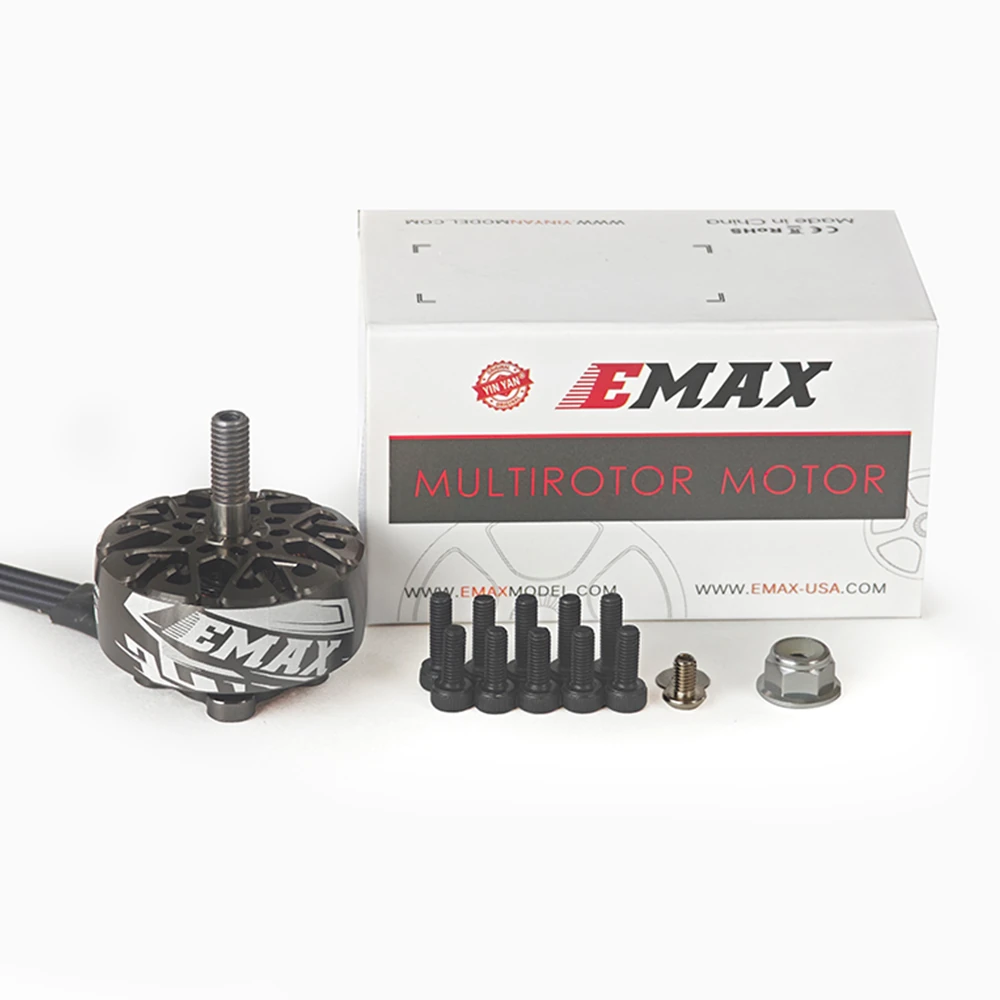

Package Included:
1x ECOIII 2808 Brushless Motor
5x M3*8 Screw
5x M3*10 Screw
1x Aluminum M5 Nylock Nut
1x Washer and Screw for Shaft
OR

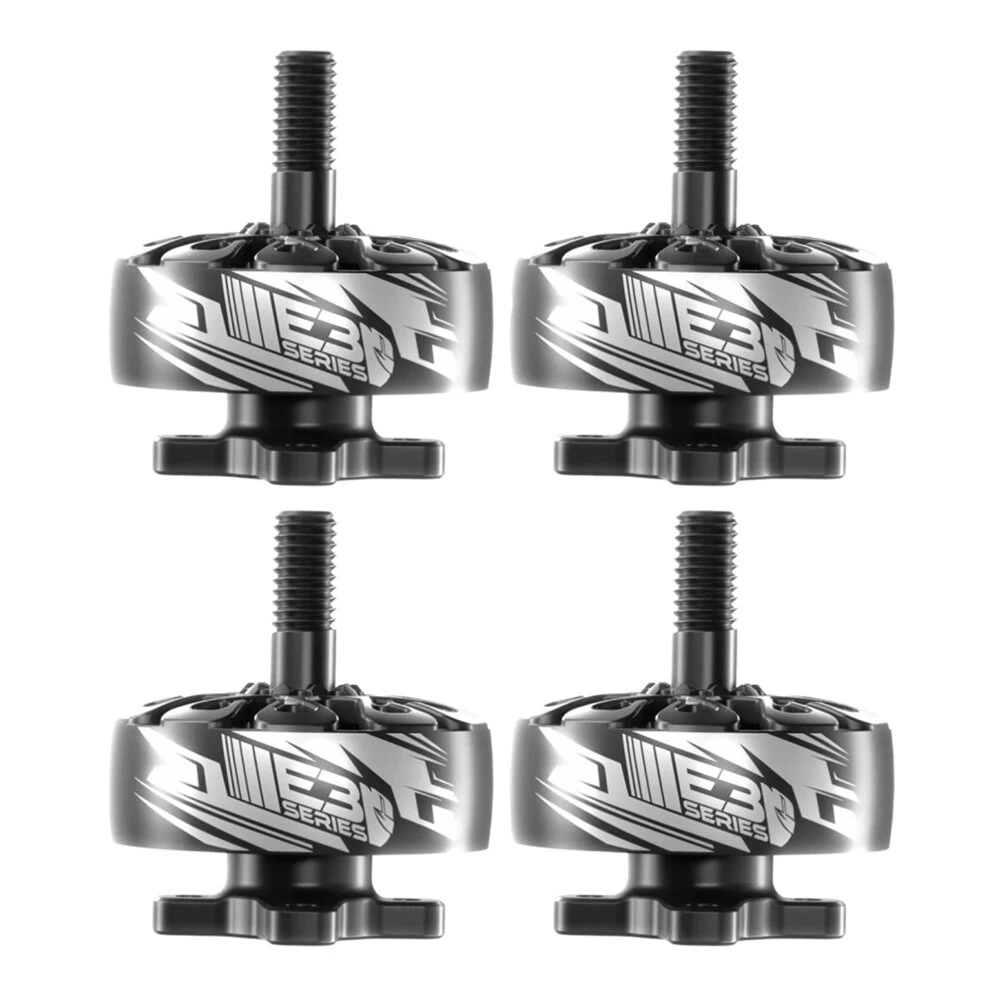

4x ECOIII 2808 Brushless Motor
20x M3*8 Screw
20x M3*10 Screw
4x Aluminum M5 Nylock Nut
4x Washer and Screw for Shaft
