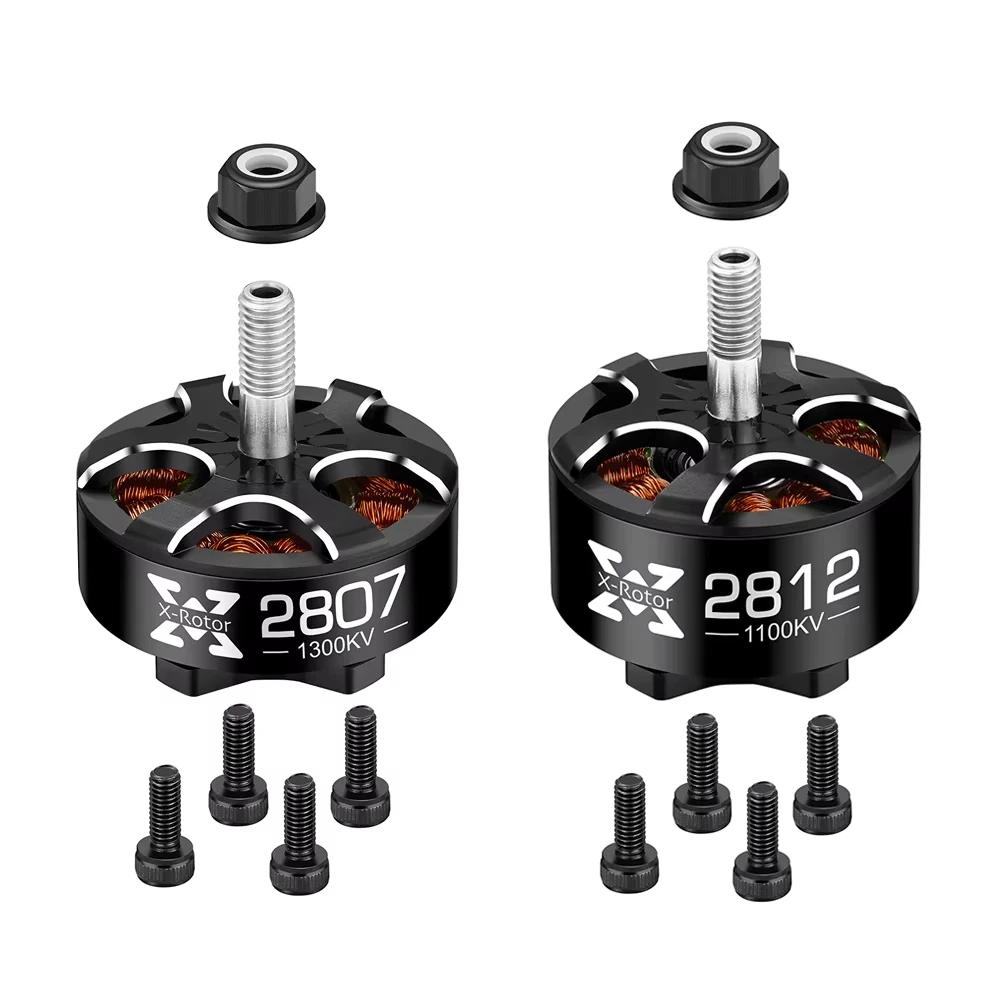

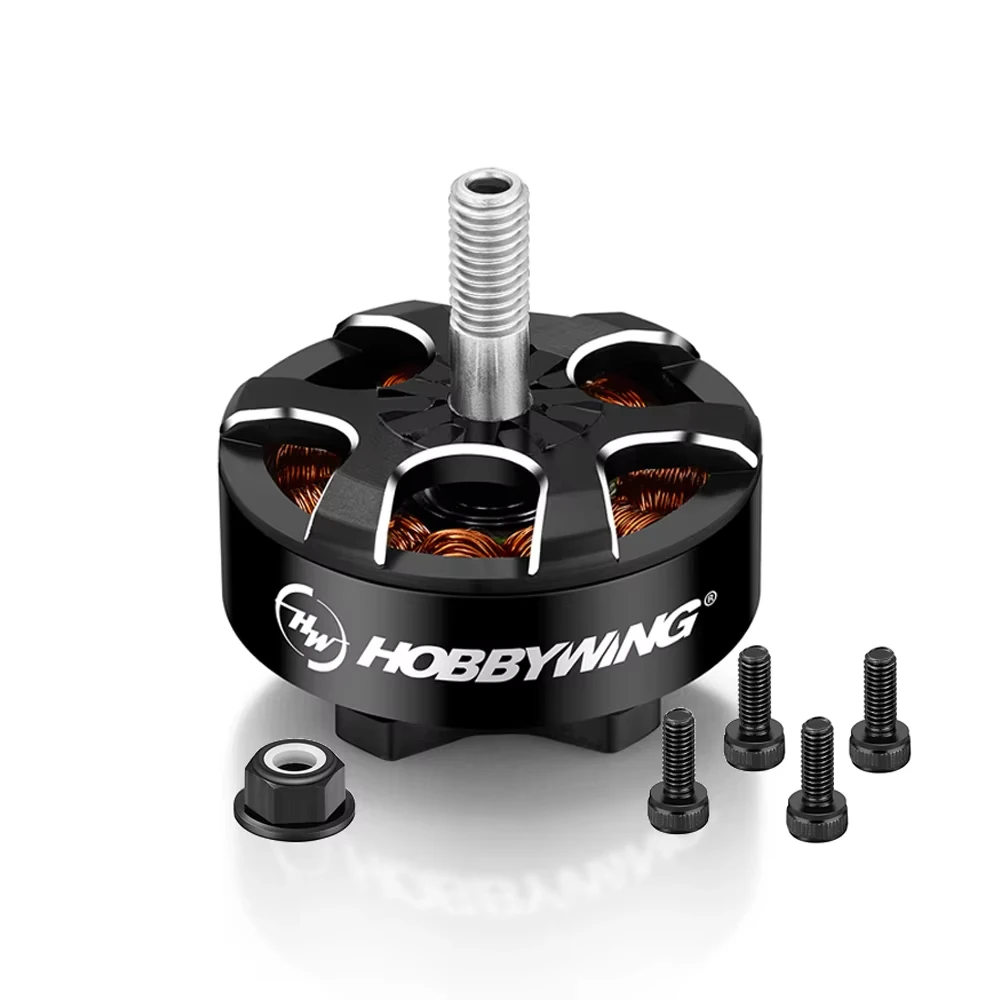

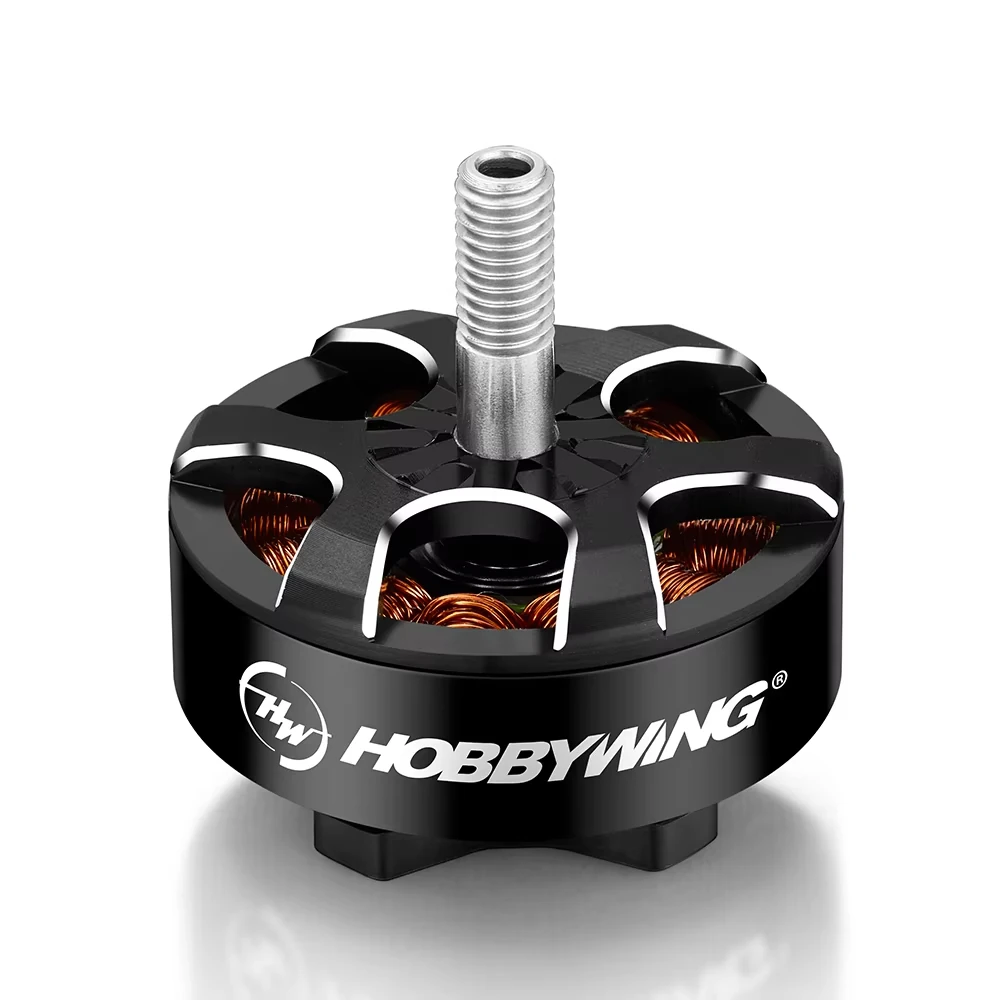

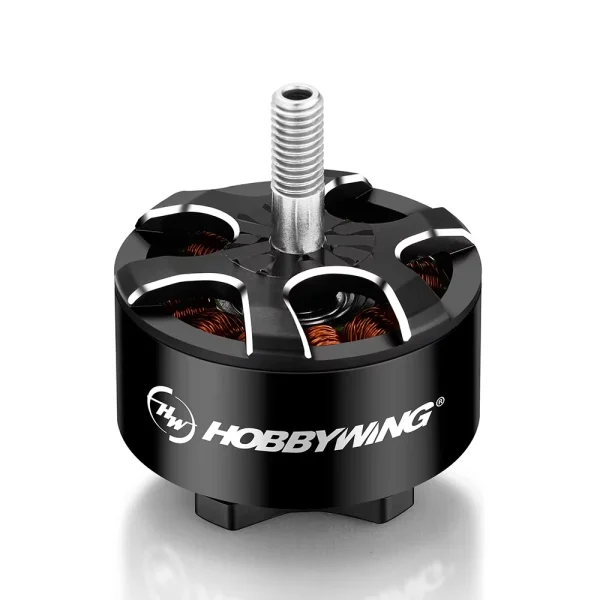

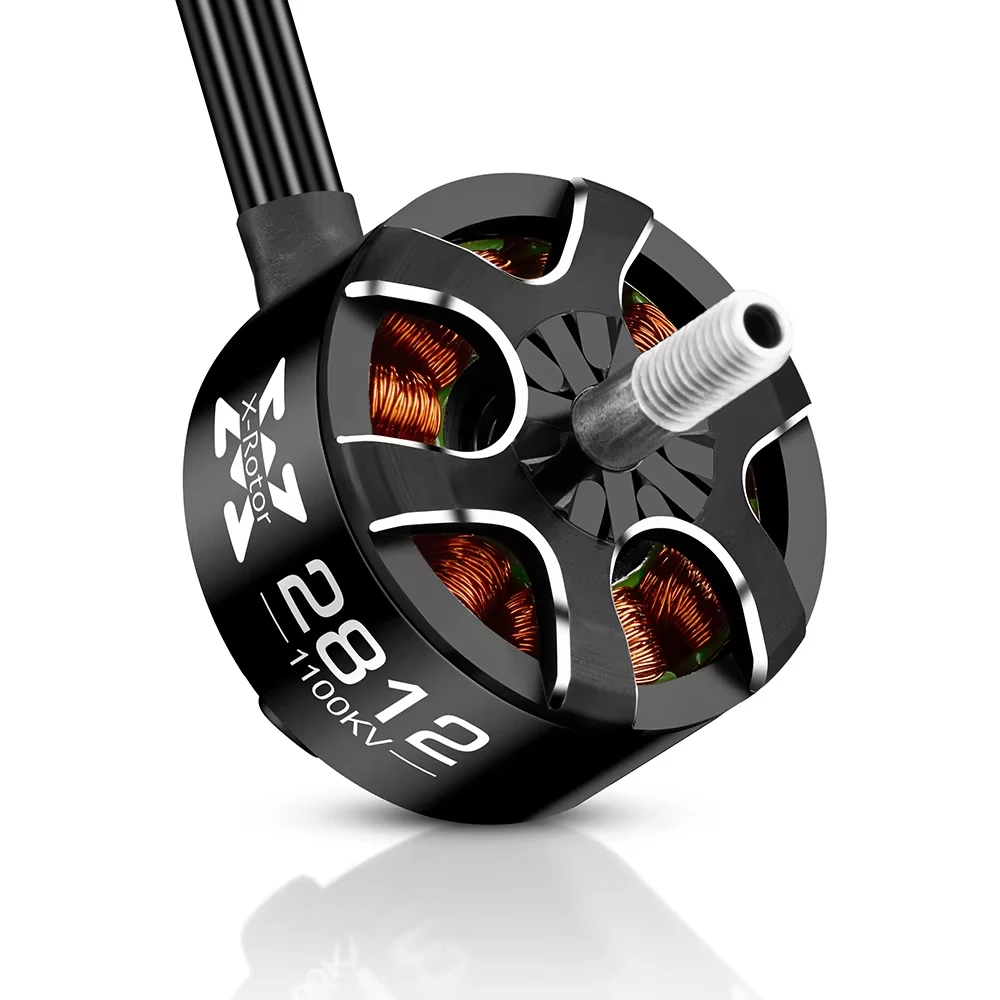

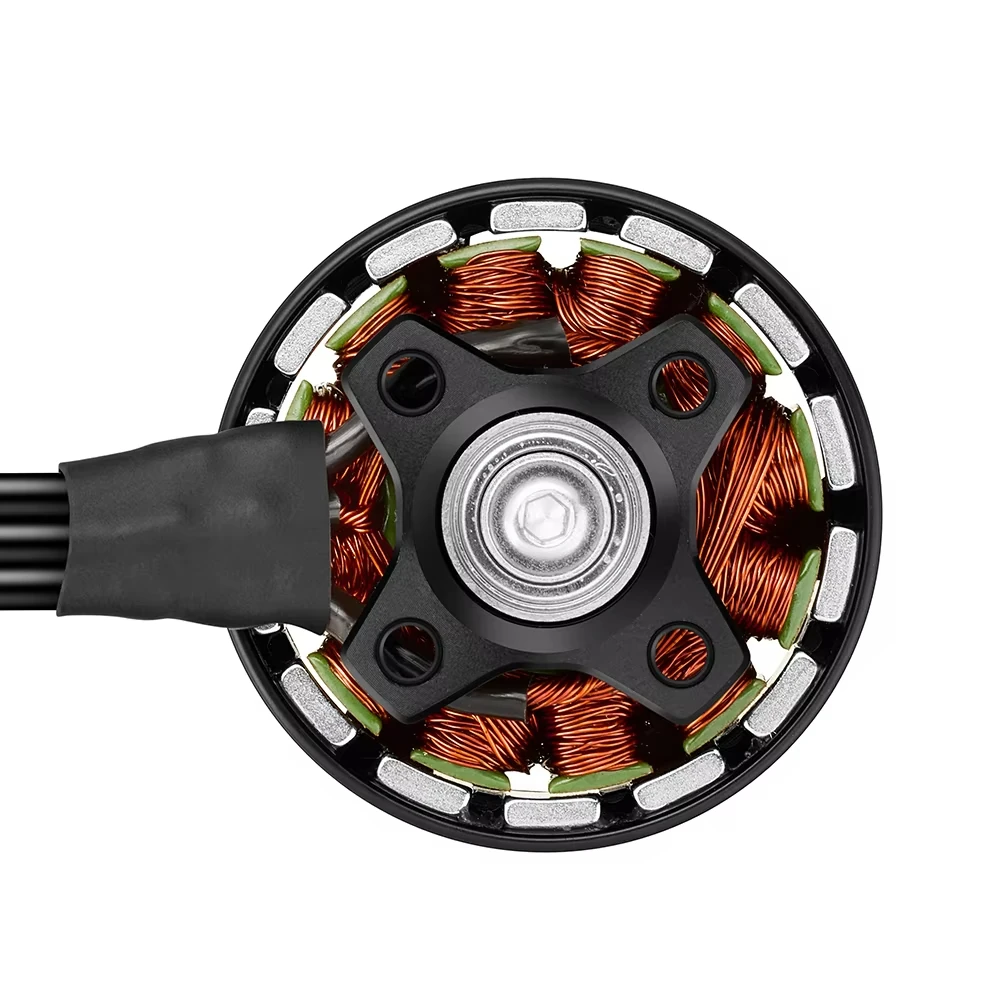

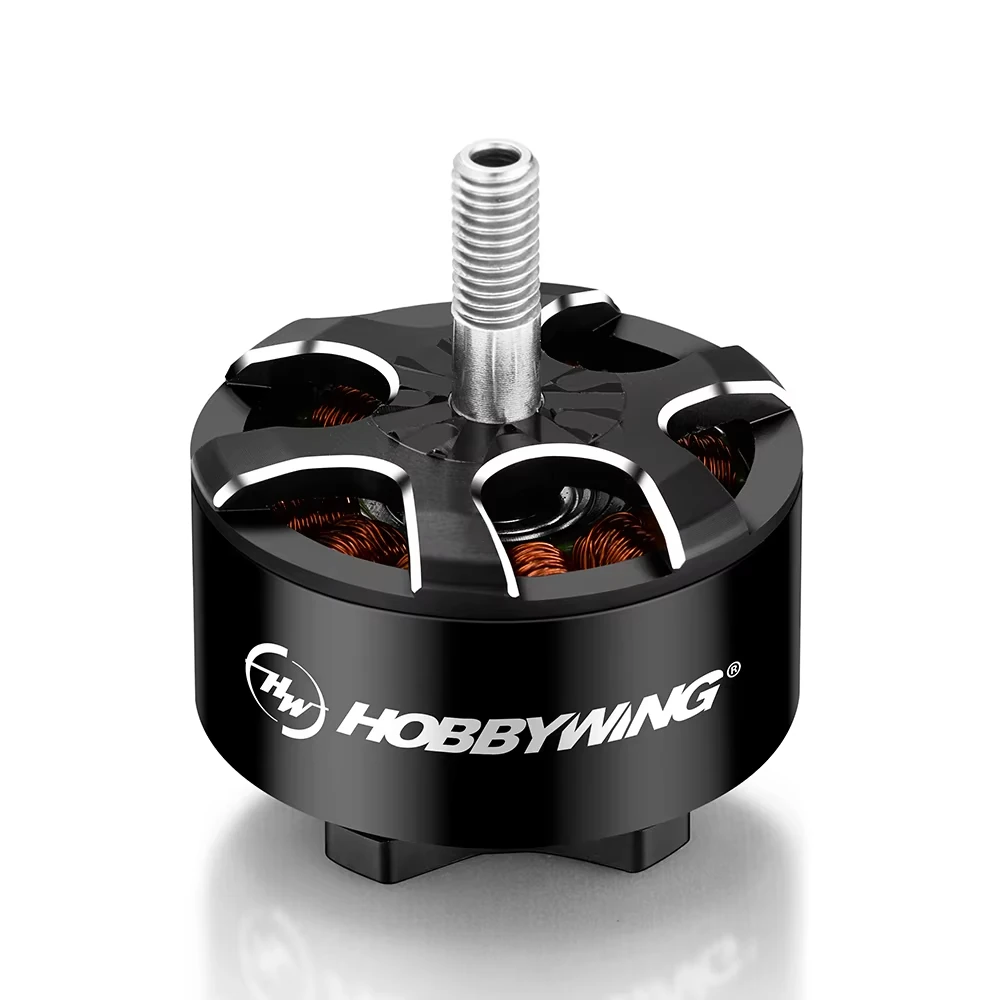

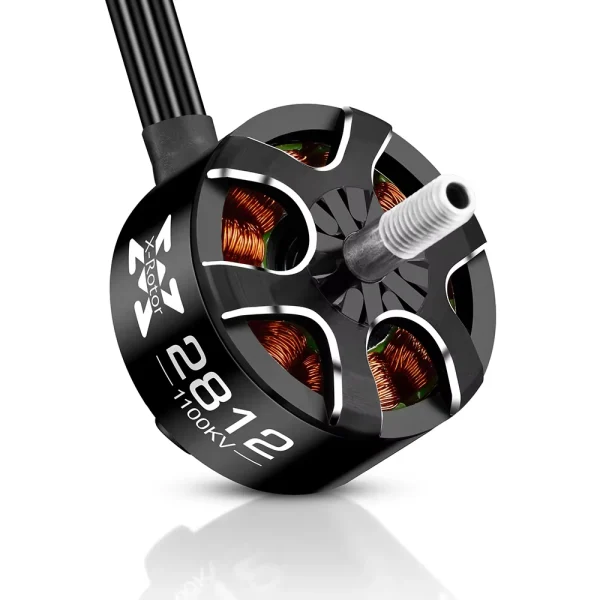

1PC /4PCS Hobbywing XRotor 2807 1300KV 1500KV 1700KV / 2812 900KV 1100KV Brushless Motor M5 Shaft for RC 7 Inch FPV Drone
$14.99 – $56.99
Buy NowFeature:
1. High-performance 0.2mm silicon steel sheets.
2. The multi-strand enameled wire winding design increases the slot full rate by approximately more than 5%.
3. 200℃high-temperature resistant enameled wire.
4. Meet the needs of users pursuing extreme motor performance.
5. Uses N52 strong magnetic tiles with an arc- shaped design to provide a stronger torque to the motor.
Specification:
Brand: Hobbywing
Model: Xrotor 2807 1300KV 1500KV 1700KV /2812 900KV 1100KV Brushless Motor(Optional)
| Model |
XRotor 2807 1300KV |
XRotor 2807 1500KV |
XRotor 2807 1700KV |
XRotor 2812 900KV |
XRotor 2812 1100KV |
| Product Number: |
30418000 |
30418001 |
30418002 |
30418003 |
30418004 |
| KV Rating: |
1300KV |
1500KV |
1700KV |
900KV |
1100KV |
| LiPo Cells (LiPo): |
4-6S |
4-5S |
3-4S |
4-6S |
4-6S |
| No-Load Current: |
2A/24V |
2.27A/20V |
2.13A/16V |
1.5A/24V |
1.88A/24V |
| Maximum Continuous Current: |
56.7A/6s |
59.5A/7s |
53.9A/13s |
49.6A/9s |
64.1A/10s |
| Maximum Continuous Rating: |
1361W/6s |
1195W/7s |
864W/13s |
1191W/9s |
1538W/10s |
| Maximum Thrust: |
2818g |
2646g |
2205g |
3355g |
3722g |
| Motor Weight: |
59g |
58.7g |
58.4g |
83.4g |
83.8g |
| Motor Size: |
Φ34 * 20.5mm |
Φ34 * 20.5mm |
Φ34 * 20.5mm |
Φ34 * 25.5mm |
Φ34 * 25.5mm |
| Slot/Pole: |
12N14P |
12N14P |
