20x20mm iFlight Blitz Mini E55 55A BLHeli_32 32bit 2-6S 4In1 Brushless ESC for Nazgul5 Evoque F5 F5D / F5X 5 Inch Freestyle FPV Racing Drone

Description

Specifications:
Brand: iFlight

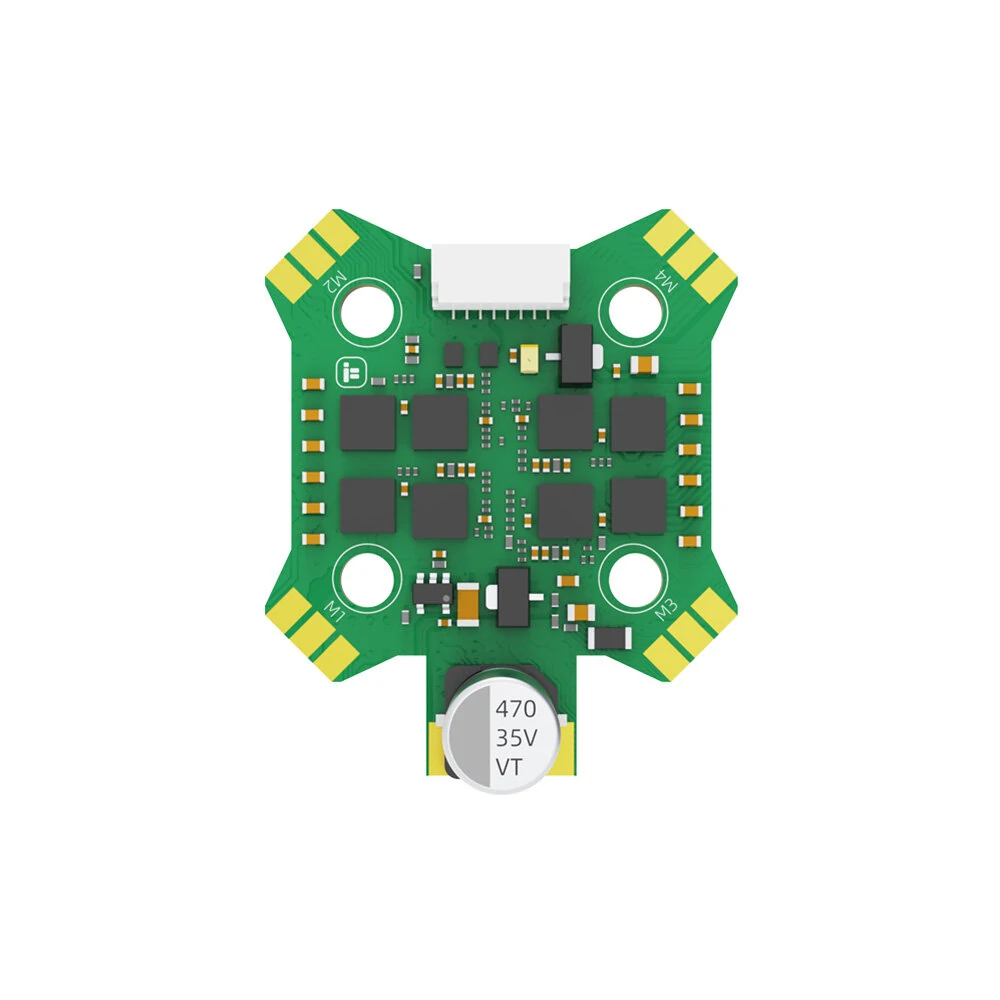

Product Name: BLITZ Mini E55 4-IN-1 ESC
Input Voltage: 2-6S
Max. Continuous Current: 55A
Max. Burst Current: 60A
MCU: G071
BEC: No
Firmware: BLHeli32
Current Sensor: Yes
Telemetry: Supported
Target: IFLIGHT_BLITZ_G071_01 32.9
Mounting Dimensions: 20 x 20 mm/Φ4mm
Dimensions: 35x42mm
Weight: 11.3g
Protocol: Supports DShot DShot150/300/600/MultiShot/OneShot, etc.

Features:
High-performance 4-in-1 ESC designed for model airplane fixed-wing enthusiasts.
Wide input voltage range of 2-6S for versatile compatibility.
Compact and lightweight design with a weight of just 11.3g for easy installation.
Supports various protocols including DShot, MultiShot, and OneShot for flexible control options.
Advanced features such as current sensor and telemetry support enhance monitoring and performance.

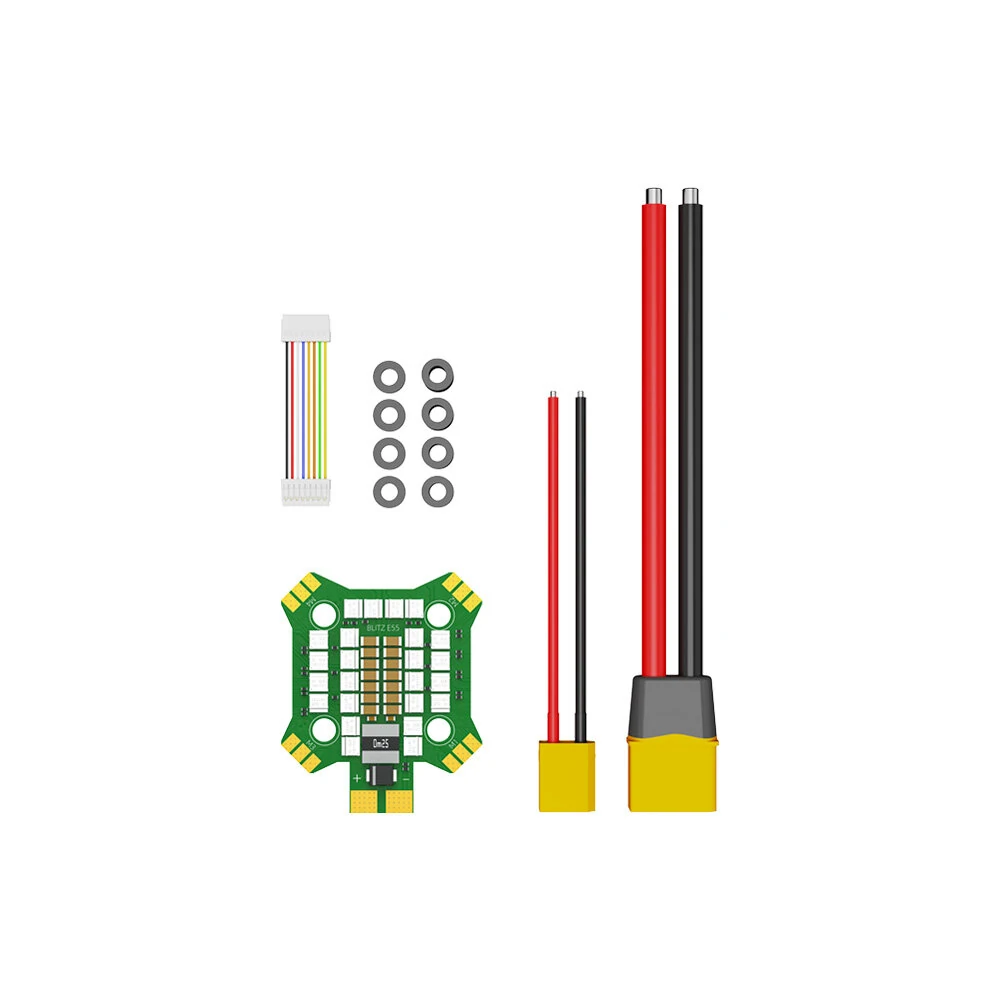

Package Includes:
1 x BLITZ Mini E55 4-IN-1 2-6S ESC
1 x Power cables & ESC signal wires

Note:
If you need to use the ESC in the iH3 ( DJI O3) Frame kit, please remove the capacitor after receiving the ESC, and then install the ESC.
