Description:

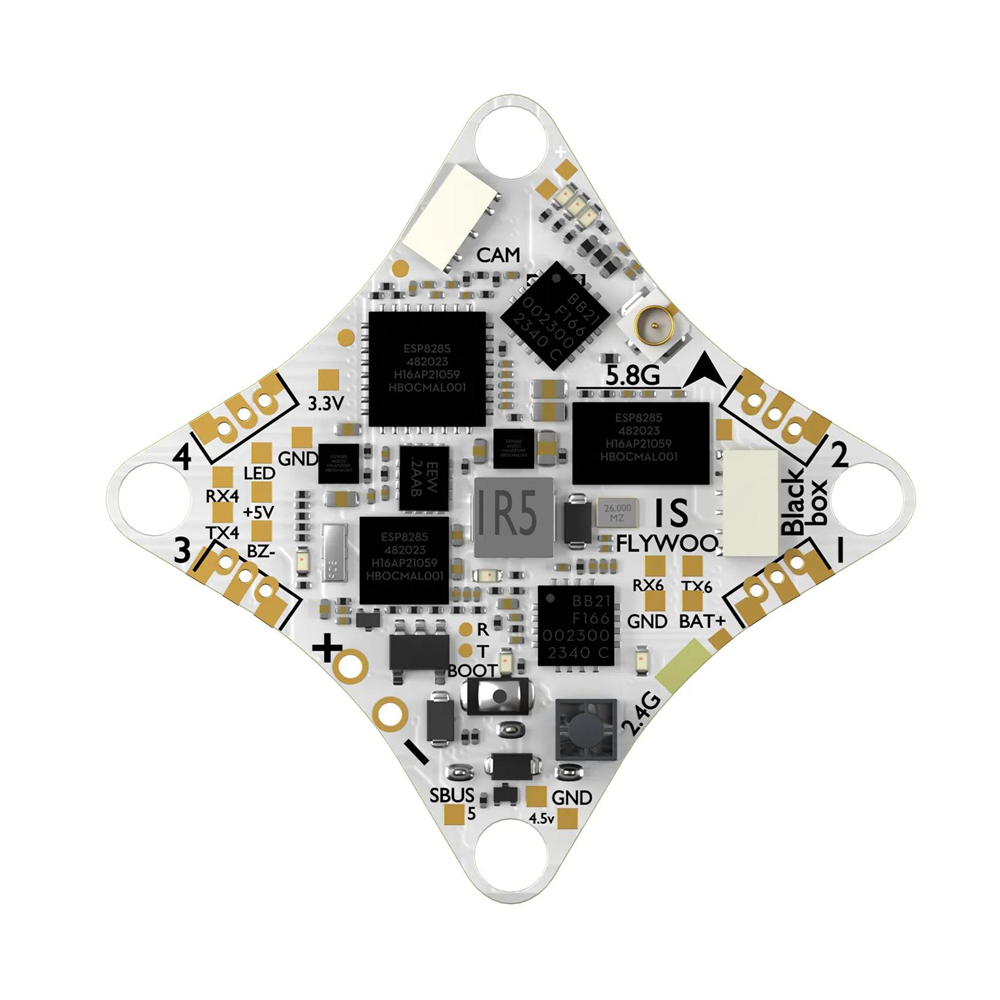

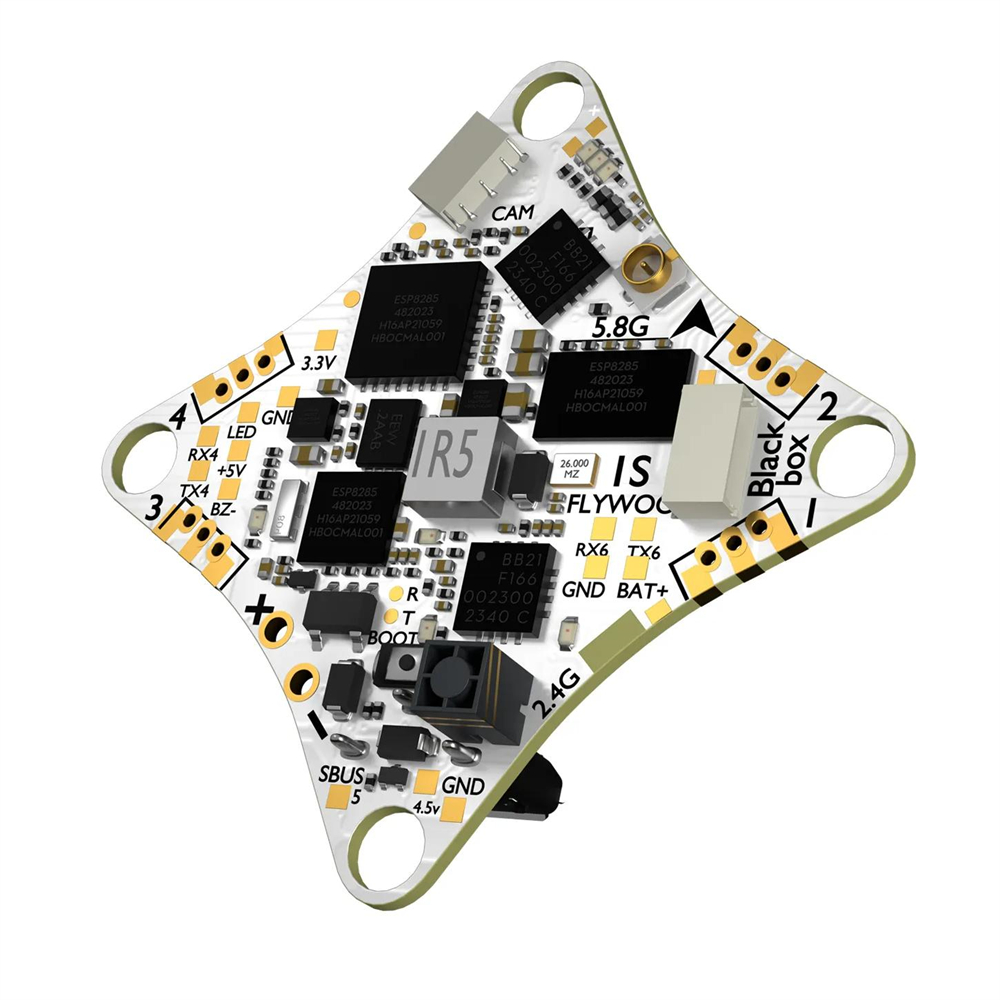

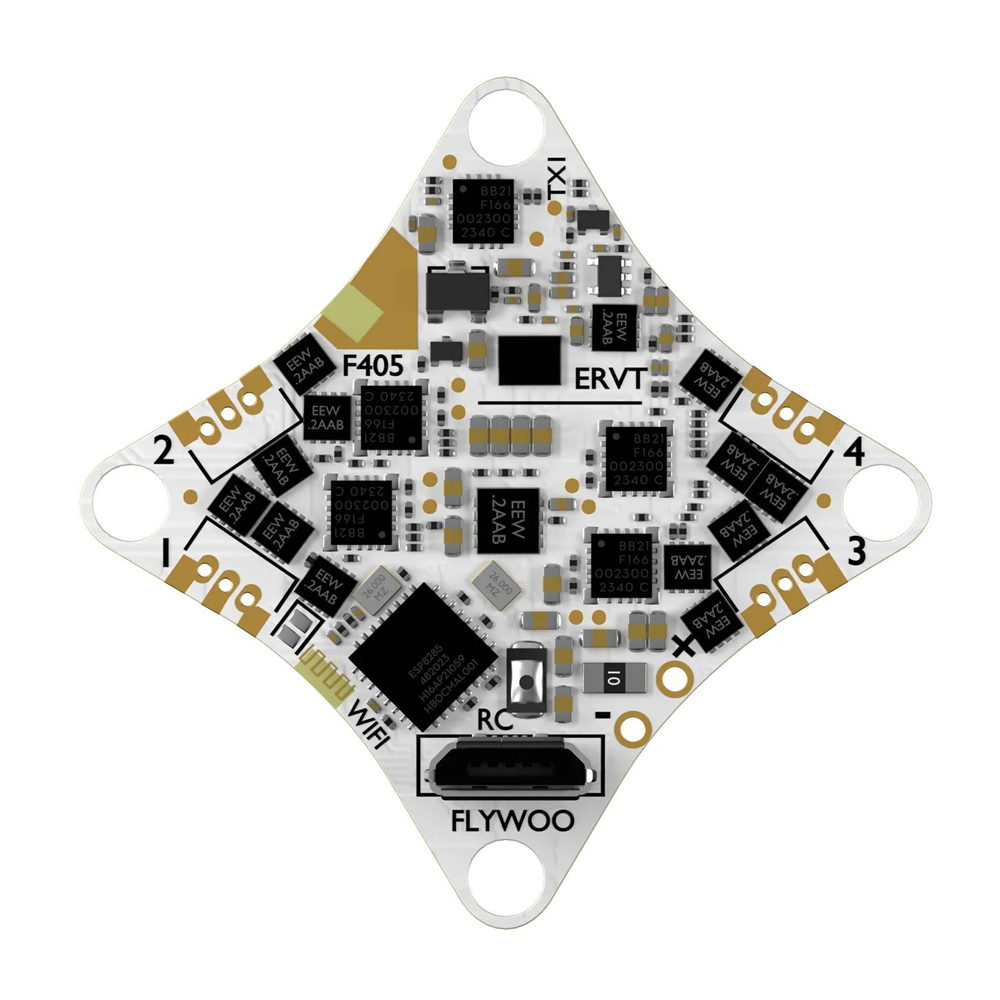

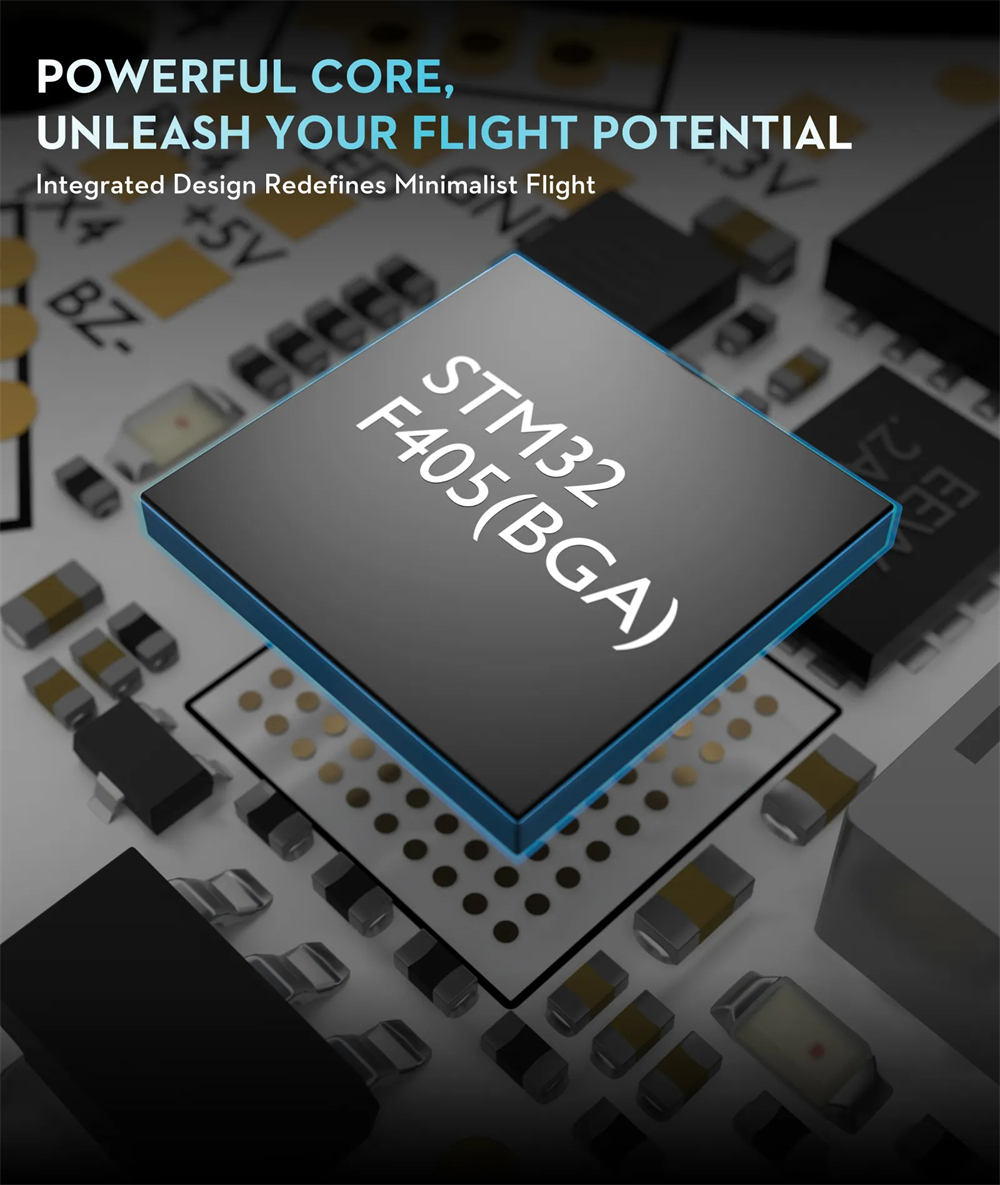

GOKU F405 ERVT 1S 5A 5-in-1 AIO Flight Controller – A revolutionary all-in-one solution integrating flight controller, ESC, VTX, receiver, and OSD. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.
Highlights:

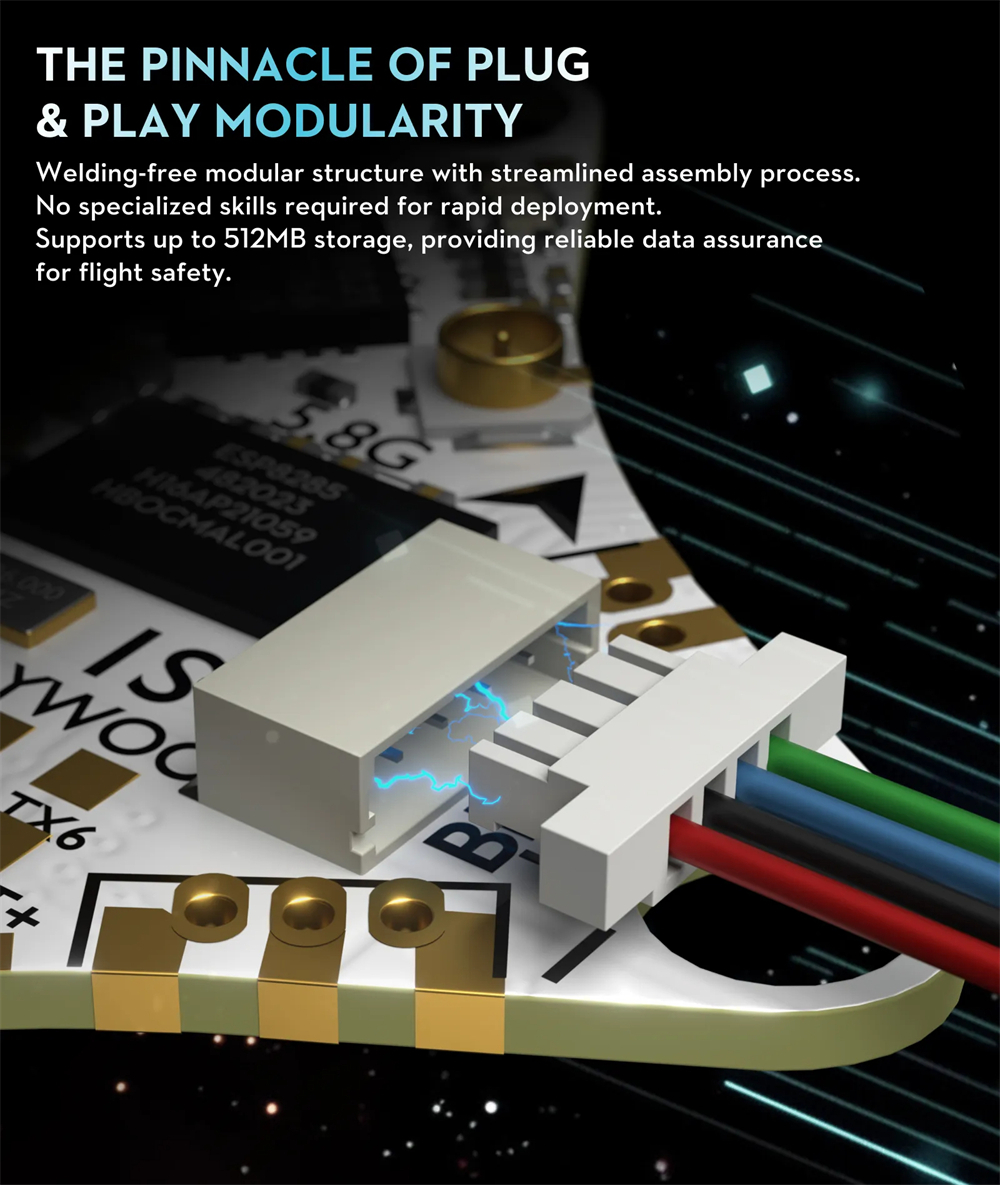

1. Integrated Design ：Modular plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox.
2. Unmatched Processing：
– F405BGA chipset with 68% faster clock speed for lighning-fast reponse.
– 1S LiPo, 5A continuous current output ensures stable power delivery (supports Bluejay firmware).
– Built-in 4kHz gyro

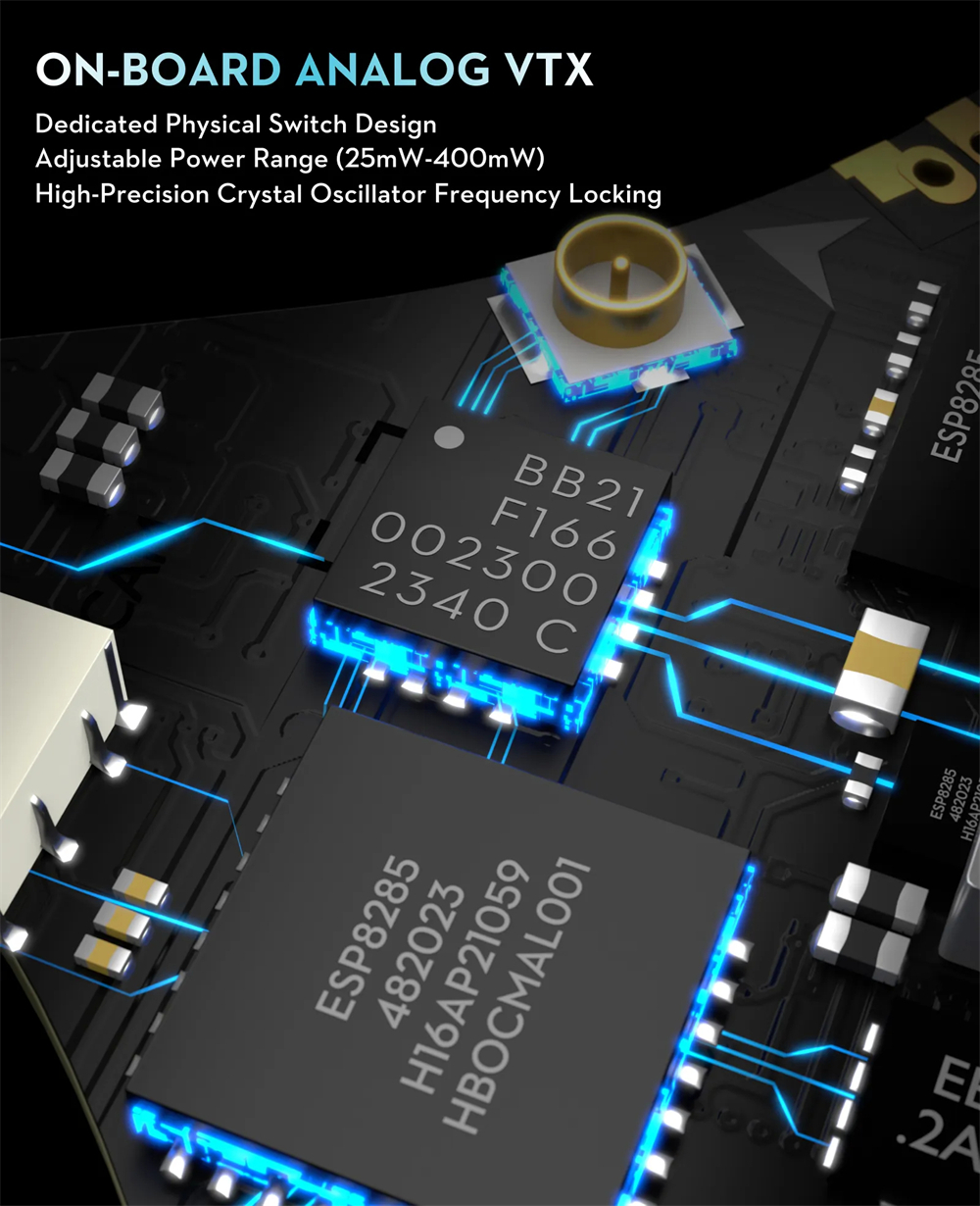

3. Video Transmission Switch：
-Featuring adjustable 25-400mW transmission power and electronic switch

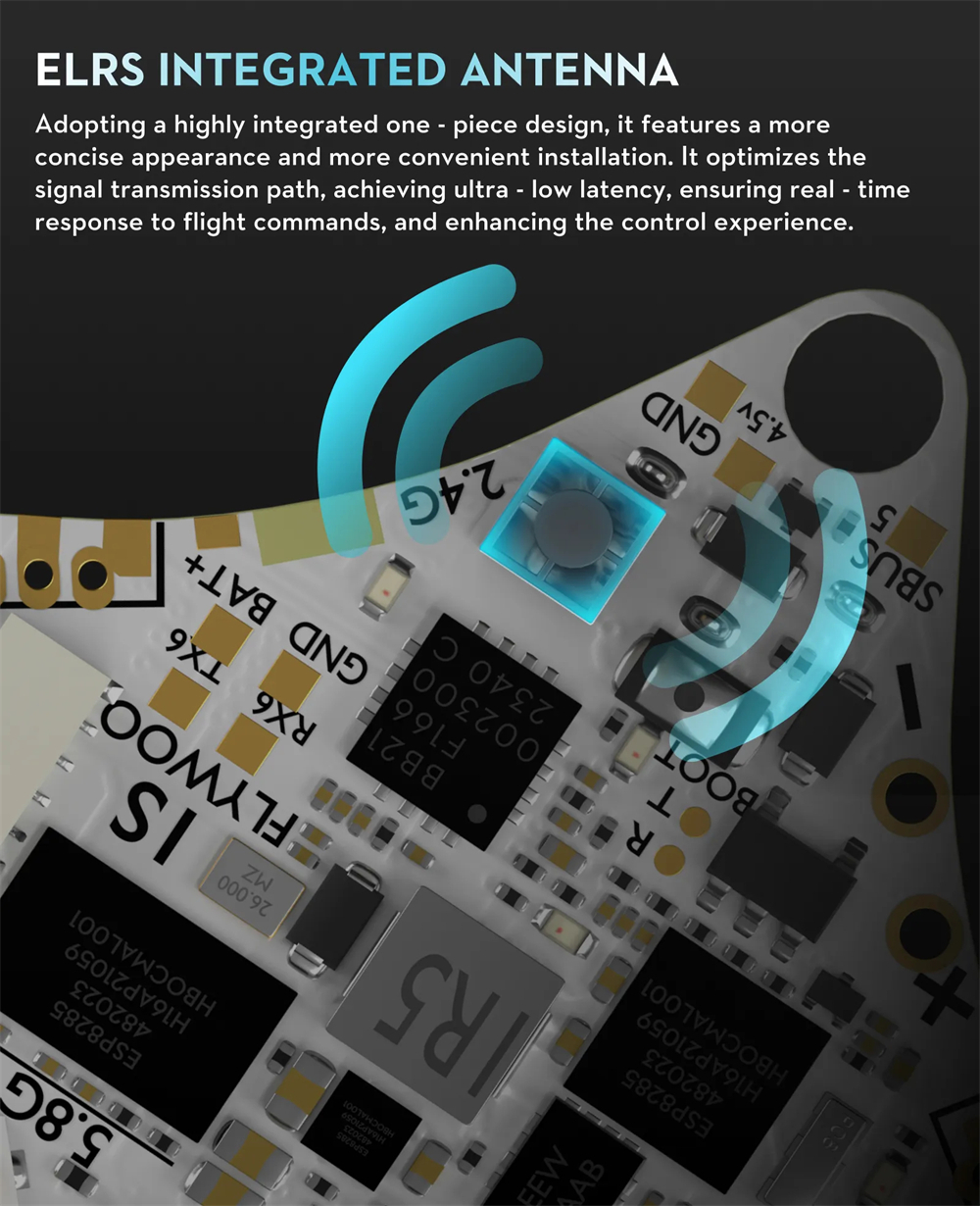

-The pagoda-style integrated antenna delivering ≥1.5km range
-1S-optimized circuitry for sub-50ms video latency
4. Professional Expandability:
– Optional Flywoo plug-and-play Flight Blackbox (512MB storage) .
– Fully compatible with Betaflight, INAV, and other mainstream firmware
Specification:
Brand: FLYWOO
Model: GOKU F405 ERVT
Item Name: 1S 5A ELRS AIO Built-in VTX

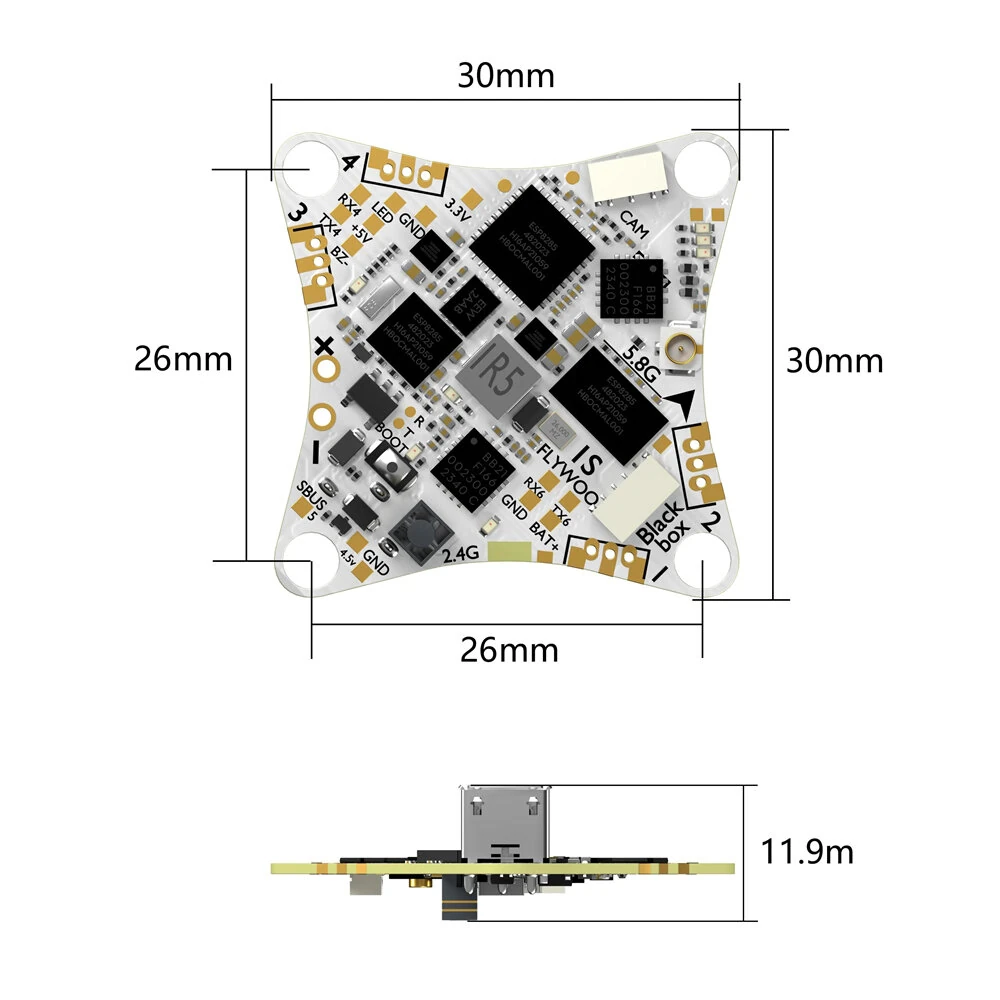

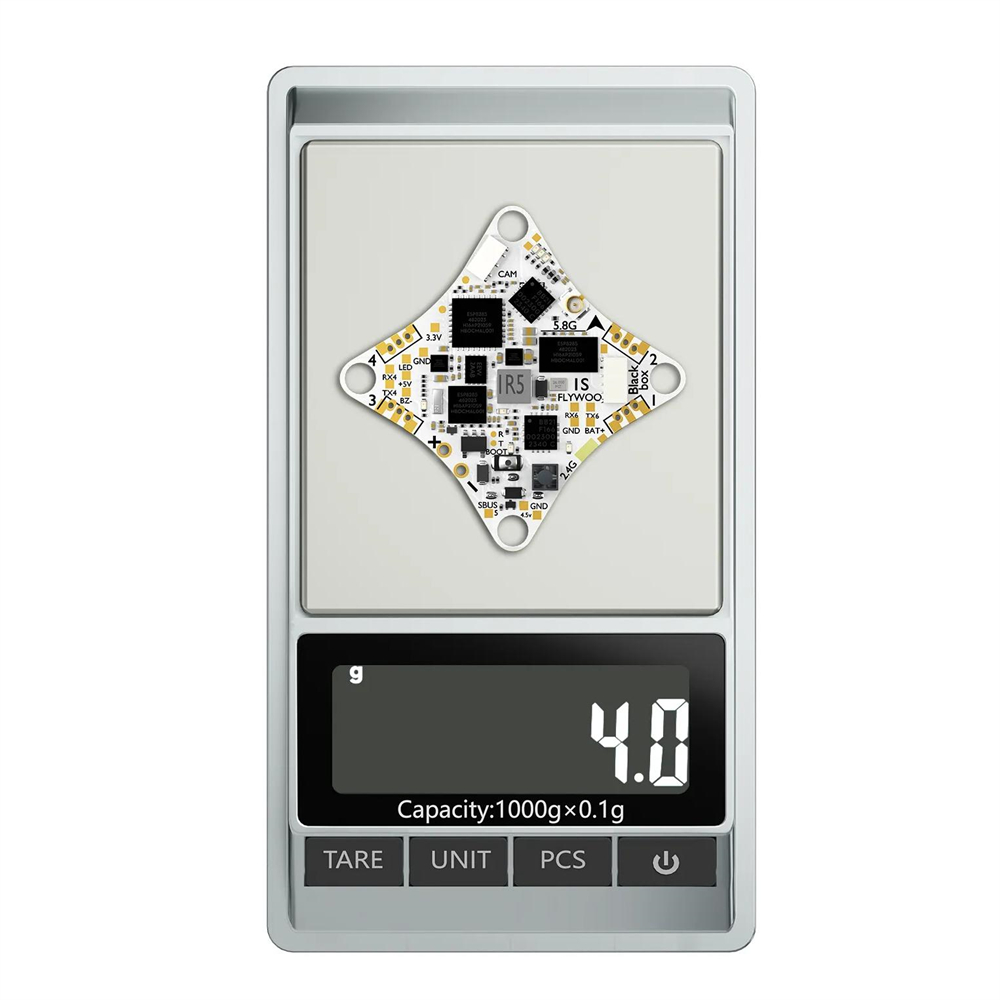

| FC | MCU: STM32F405BGA IMU: ICM42688P Barometer: No Black Box: No (Up to 512M external) OSD Support: AT7456E (LGA16) UART:UART1 (VTX IRC),UART2(Blackbox),UART3 (ELRS RX),UART4,UART5 (SBUS),UART6 Supported Protocols: CRSF, SBUS, iBus, Spektrum BEC: 5V 2.0A max RX: Flywoo EL24E 2400 RX 3.0.0 FC Firmware: FLYWOOF405S_AIO Dimensions: 30.5 x 30.5mm Mounting Holes: Standard 25.5/25.5mm square to center of holes Weight: 4g |
| Onboard 4in1 ESC | Power input: 1S Only Current: 5A continuous, 8A peak ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware Digital signal protocol: DShot300, DShot600 Motor Connector: JST1.25 Battery connector: A30 |
| Onboard analog VTX | Built-in VTX : 25/50/100/200/400/0mw VTX Protocol : IRC Tramp Frequency:5.8GHz 40 channels Raceband: 5658-5917MHz Operating temperature:-15°~+80° |
Package Incldued:
1x GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
1x A30 Power Cable
1x JST-0.8 3pin 50mm Camera Cable
1x Flywoo Black Box Connector Cable
4x 1.25mm 3-Pin Vertical Straight Socket
4x M2x6.6 Shock-Absoring Ball
