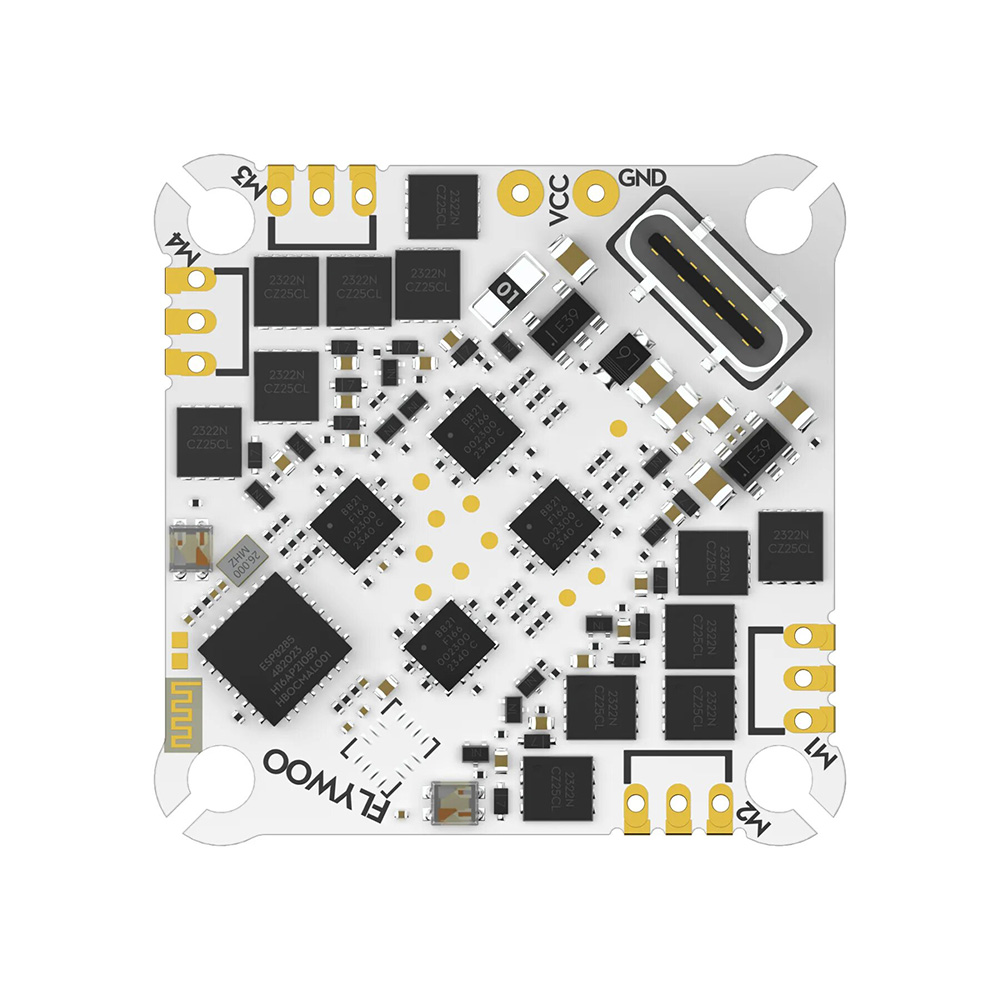

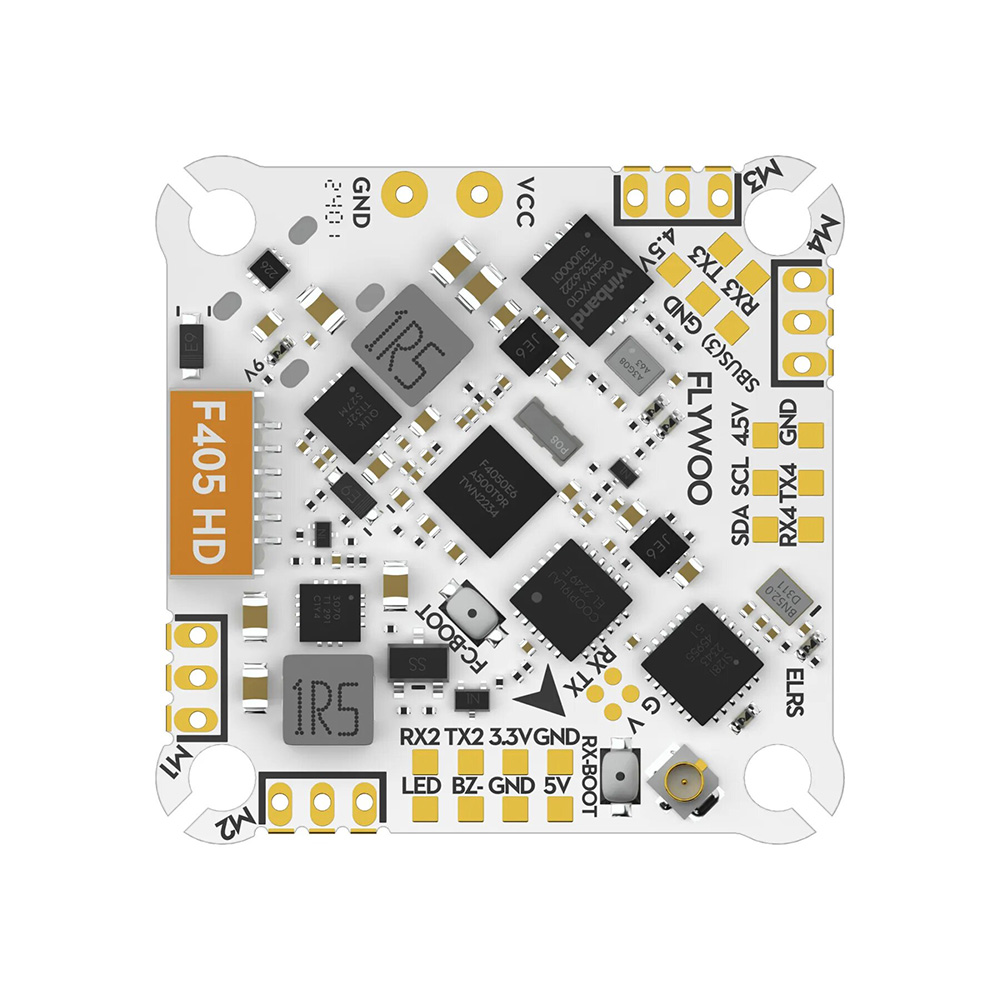

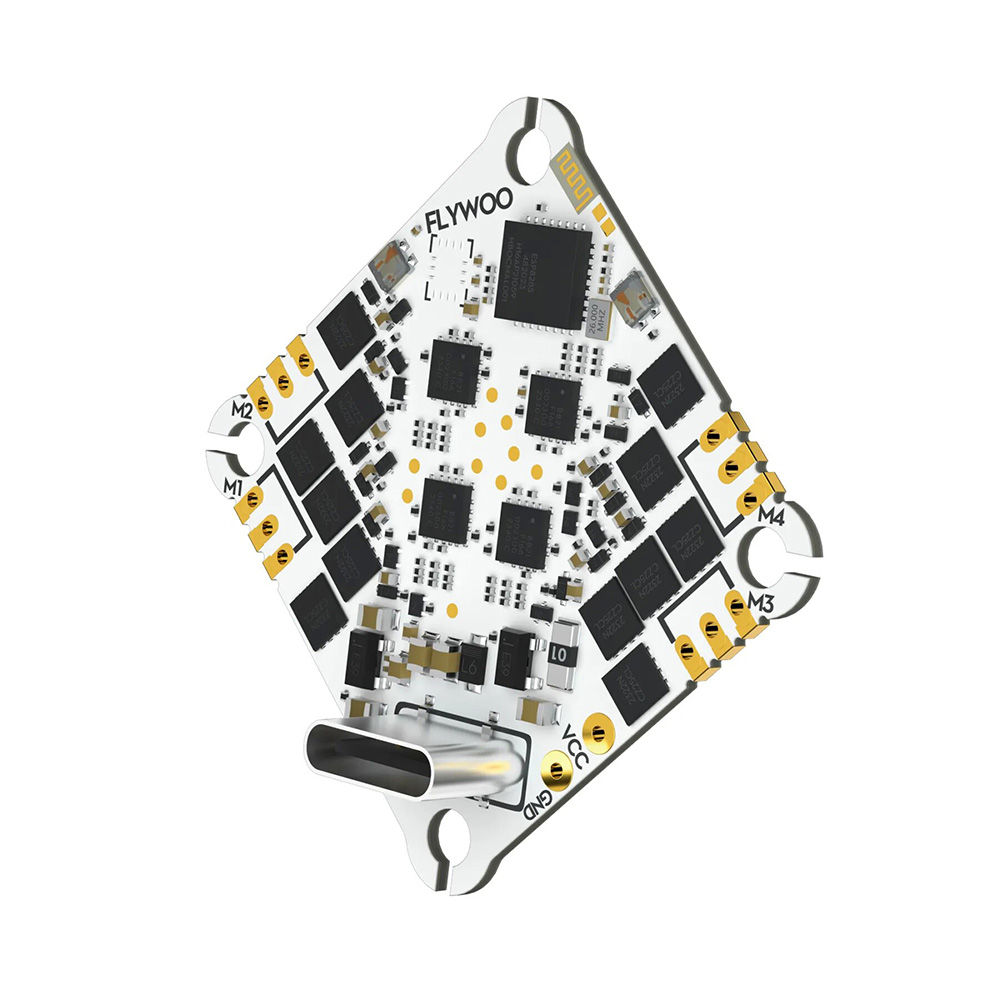

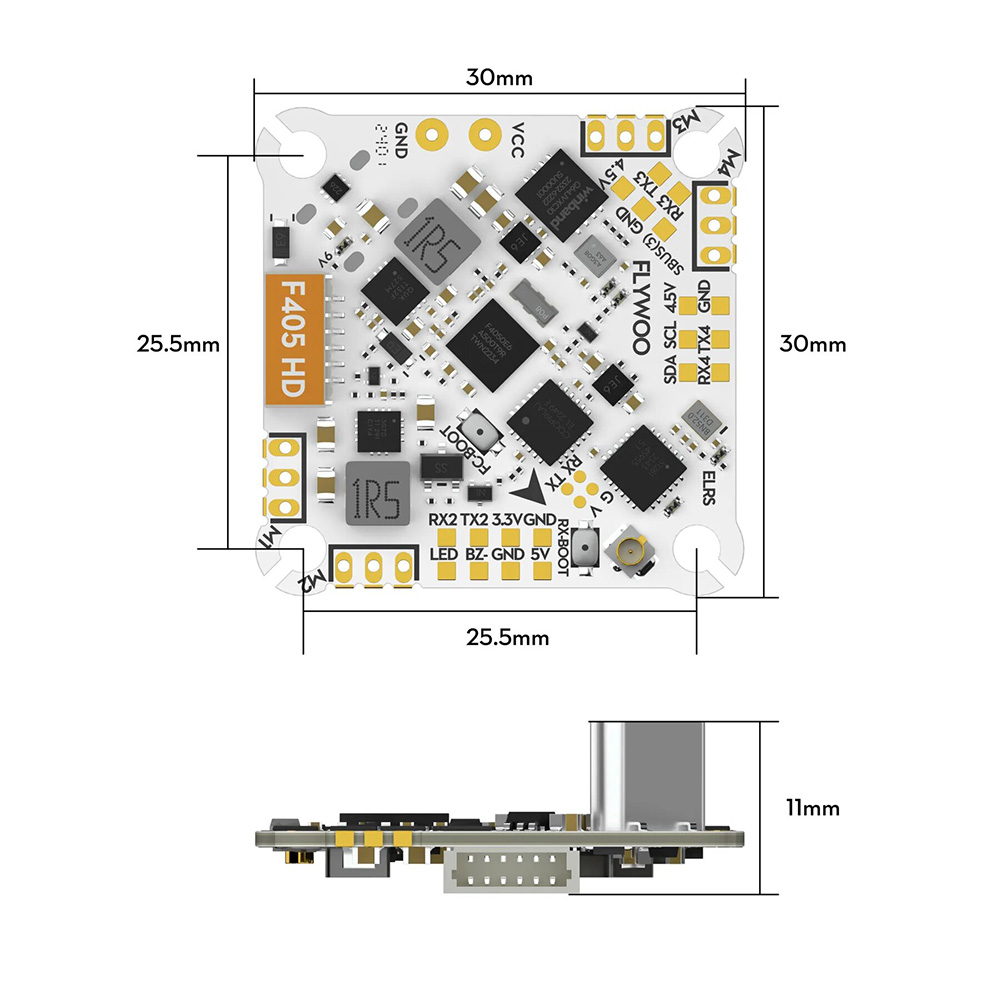

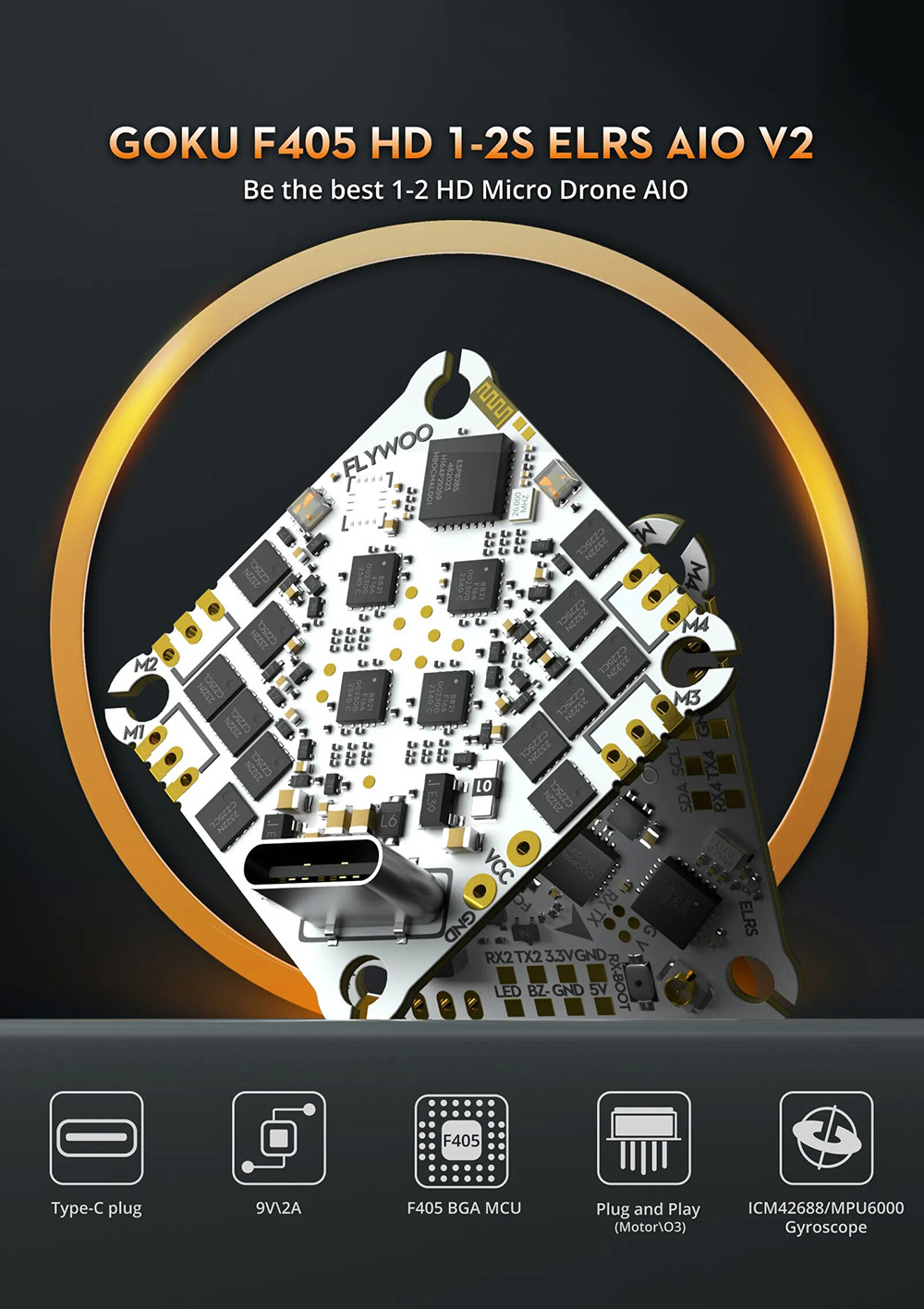

25.5×25.5mm Flywoo GOKU F405 HD 1-2S ELRS AIO V2 Flight Controller 9V BEC 12A BL_S 4in1 ESC / ELRS 2.4G RX for RC Drone FPV Racing

With the growing popularity of digital transmission, FLYWOO introduces an innovative solution for 1-2S HD Micro Drones.

This full-featured HD AIO solution integrates a Type-C interface, equipped with a high-performance F405 BGA MCU, and offers enoug Uart to meet the meet all you need. The GOKU F405 HD V2 AIO features a built-in 9V 2A BEC module, effectively preventing power cuts in the DJI O3 Air unit due to insufficient voltage.

Additionally, it comes with a serial ELRS 2.4G receiver, an 8MB black box, a barometer, and a current sensor, specifically designed for HD VTX. Its socket-style motor connections and plug-and-play (for DJI O3) design significantly simpliy the installation and debugging process, achieving a perfect blend of efficiency and convenience.

Highlights：

1.Type-C Design: Utilizes Type-C , more convenient and reliable connections.

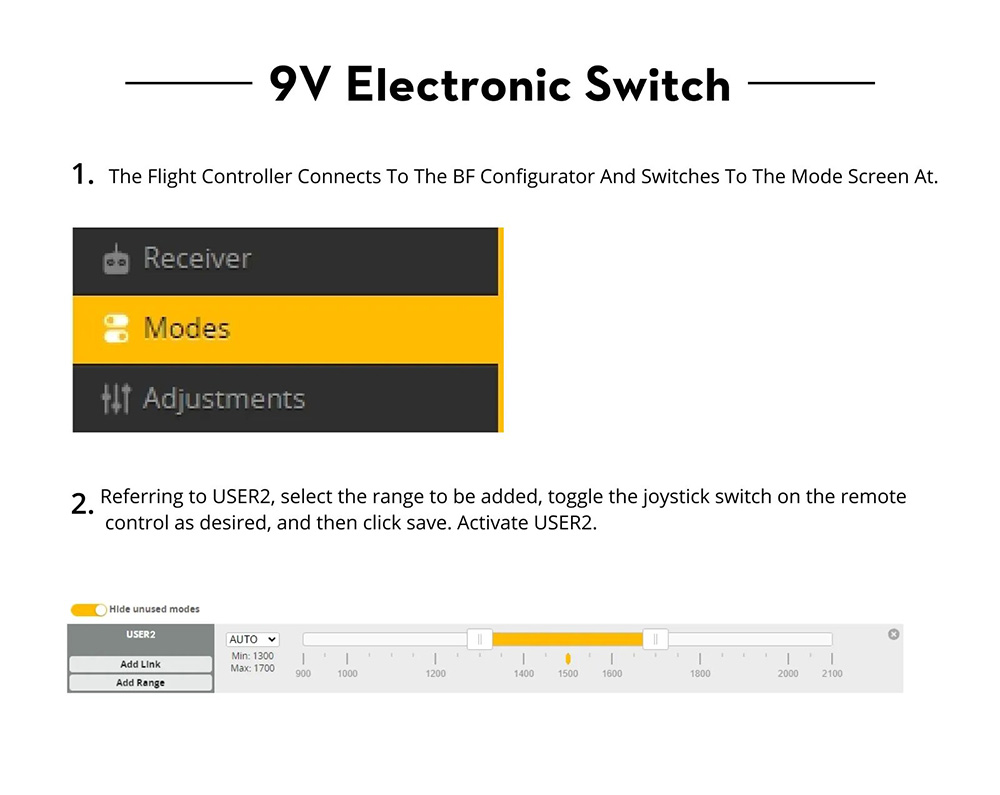

2.New Power Supply : Features 9V 2A BEC , effectively preventing power outages in the DJI O3 Air unit due to voltage dropping .
3.Plug-and-Play Port for DJI O3: Direct plug design for DJI O3 air unit eliminates complex soldering steps
4.Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.

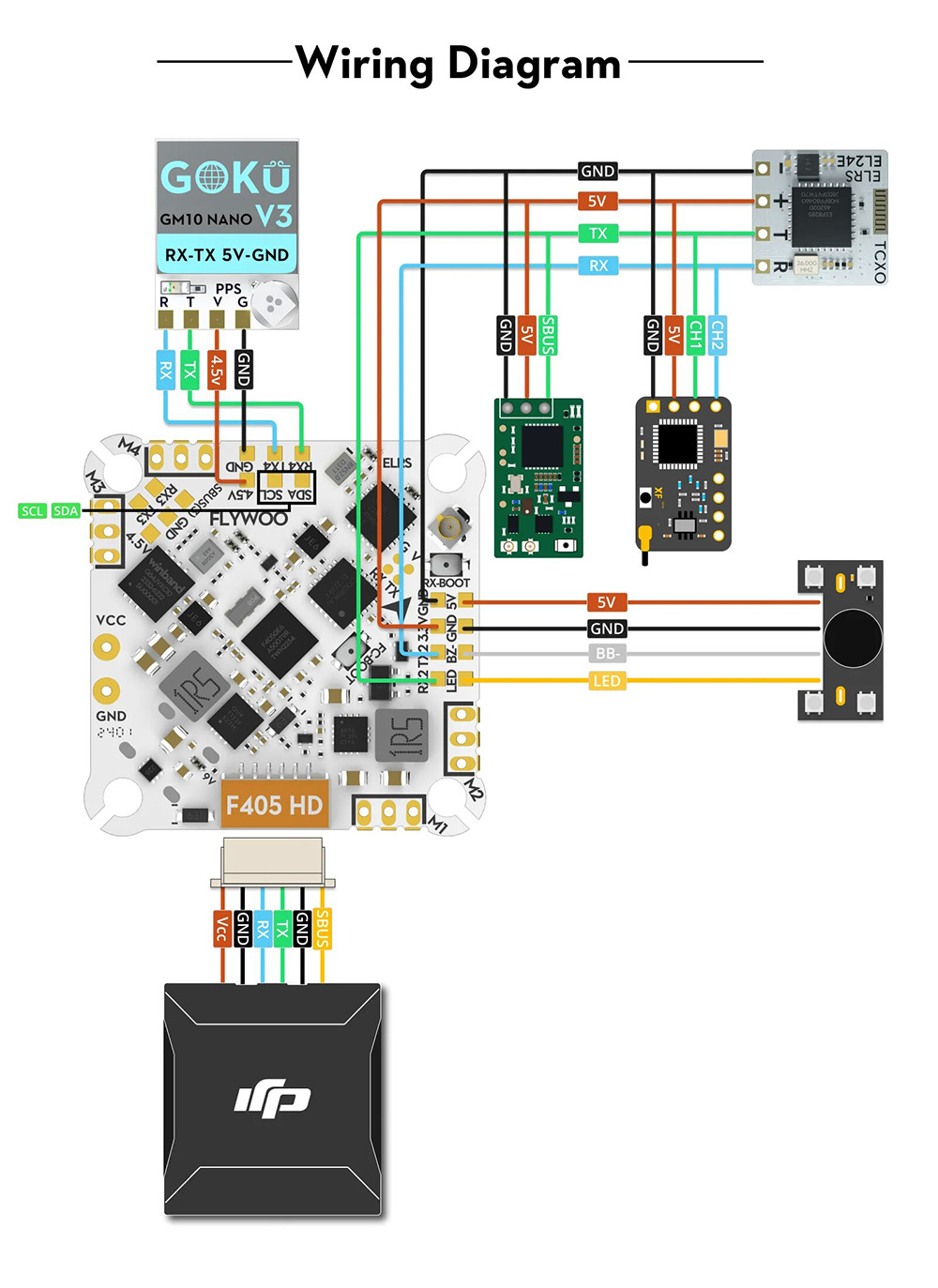

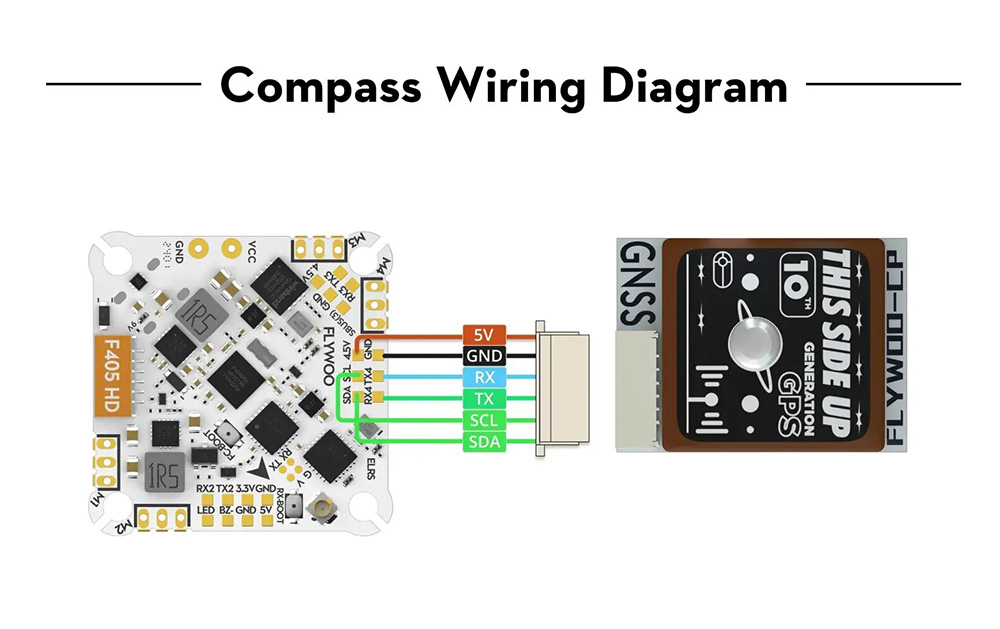

5.Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.

Specifications：

Brand: Flywoo

Model: GOKU F405 HD

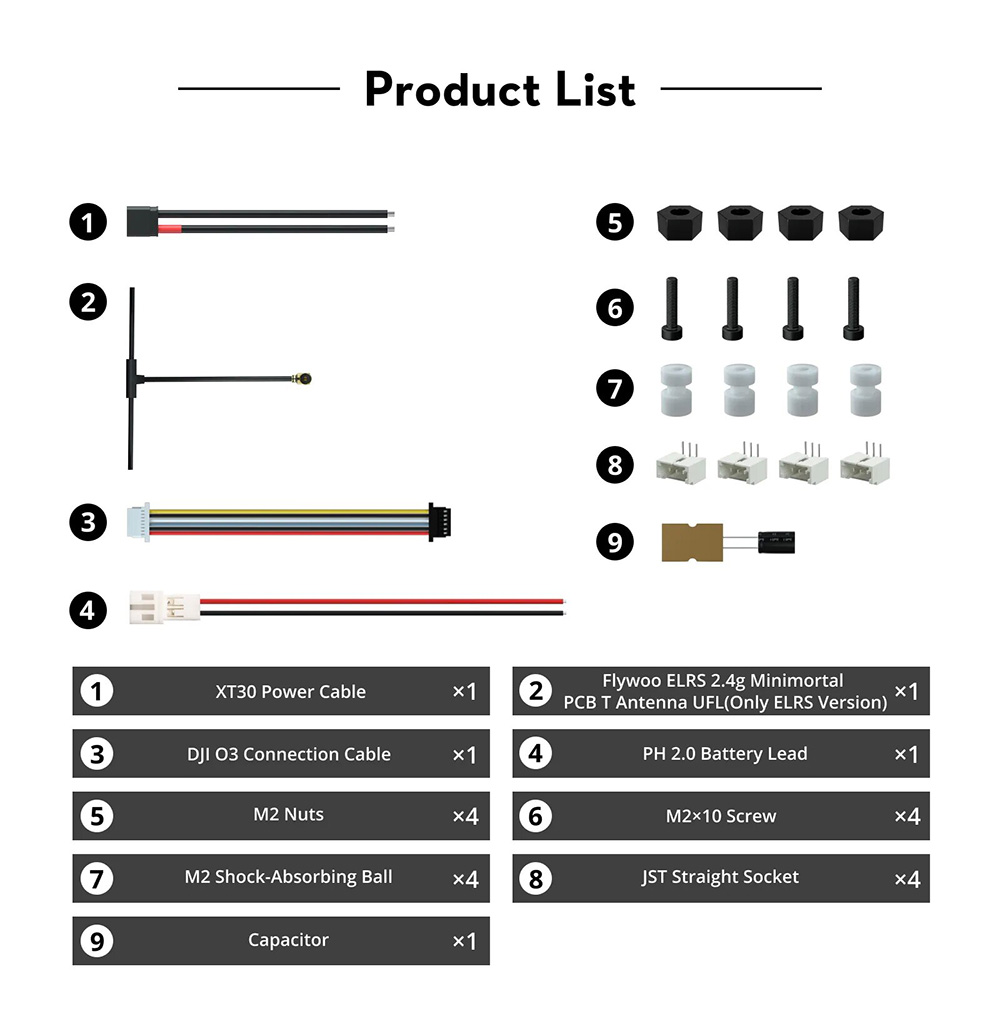

Package Included:
1x XT30 Power Cable
1x Flywoo ELRS 2.4g Minimortal PCB T Antenna UFL(only ELRS Receiver Version Has)
1x Connection Cable for DJI O3
1x PH 2.0 Battery Lead
1x capacitor
4x JST Straight Socket
4x M2*10 screw
4x M2 nuts
4x M2 shock-absorbing ball
