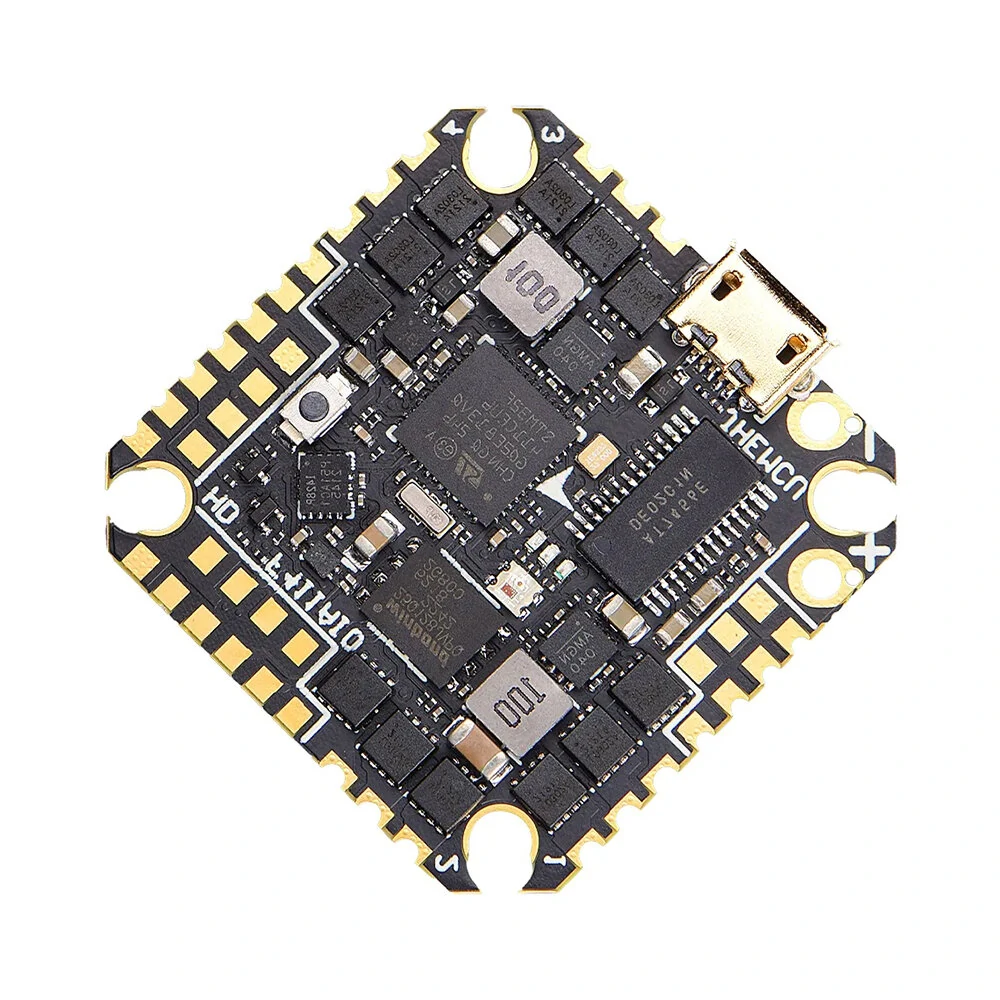

25.5×25.5mm JHEMCU GHF411AIO HD F4 OSD Flight Controller with 5V 10V BEC BL_S 40A 3-6S 4in1 ESC Support DJI O3 for RC FPV Racing Drone

Specifications:
Brand Name: JHEMCU
Model: GHF411AIO-HD
MCU: STM32F411/100MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: YES
Blackbox: 16MB
Input Voltage: 3S-6S (11.5V-26V)
5V-BEC: 5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver: ELRS(CRSF), TBS(CRSF), SBUS, IBUS, DSM2, DSMX
GPS: YES
Compass: YES
HD DJI O3: YES, support
USART: UART1, UART2, Softserial
IIC: IIC1
Led_Strip: YES
Buzzer: 5V
ESC Signal: Dshot150, Dshot300, Dshot600
USB: Micro USB
Current Port: YES
Voltage Sensor: YES
DFU Button: YES
FC Firmware: betaflight_4.4.2 JHEF411HD.HEX
Size: 33*33MM
Mounting Hole: 25.5*25.5*3MM / 26.5*26.5*3MM
Weight: 7.6g
ESC Current: 40A
ESC MCU: EFM8BB21
ESC TYPE: Blheli_S
ESC Firmware: G_H_30_48_v0.19.2.HEX (bluejay)

Features:

Utilizes STM32F411 chipset and ICM-42688-P gyroscope, ensuring stable flight and precision control.

Comes with integrated OSD, air pressure meter, and a 16MB black box for comprehensive flight data recording and management.

ESC boasts an 8-bit MCU of Blheli-S with an embedded TVS module, promoting efficiency without external soldering needs.

Supports a broad range of receivers including ELRS, TBS, and SBUS for versatile connectivity options.

Compact design coupled with powerful functionalities like GPS, compass, and HD O3 integration, making it perfect for FPV racing drones.

Package Included:
1x GHF411AIO-HD
1x XT60
4x M2 6.5MM Shock Absorber
2x 40A-16AWG Wire
1x 5P to 6P Connecting Cable for DJI O3

1x 470UF/35V Capacitor
1x TYPE-C Adapter Board
4x 28AWG Wire
1x Welding Practice Board
