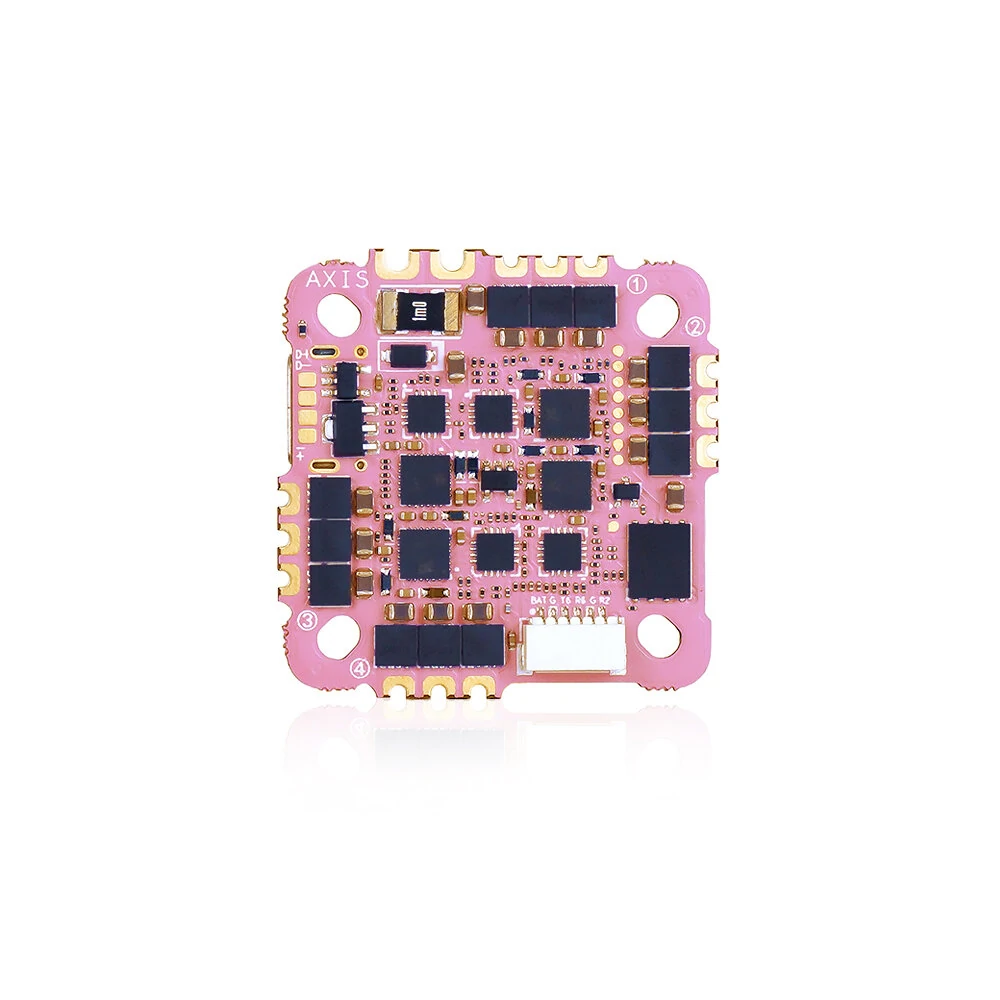

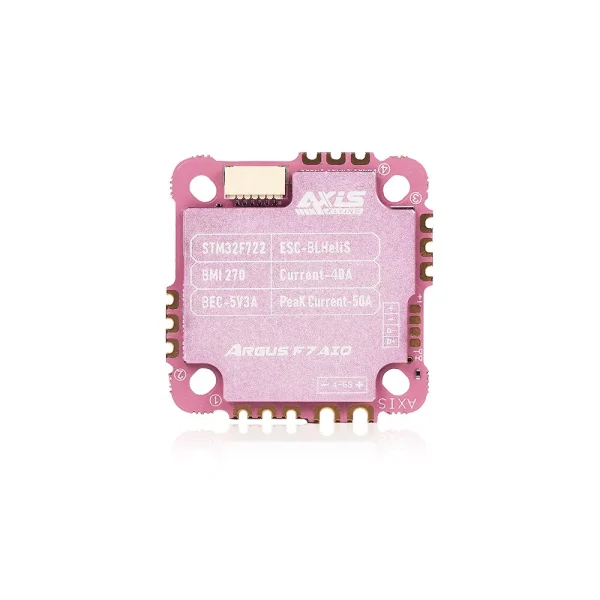

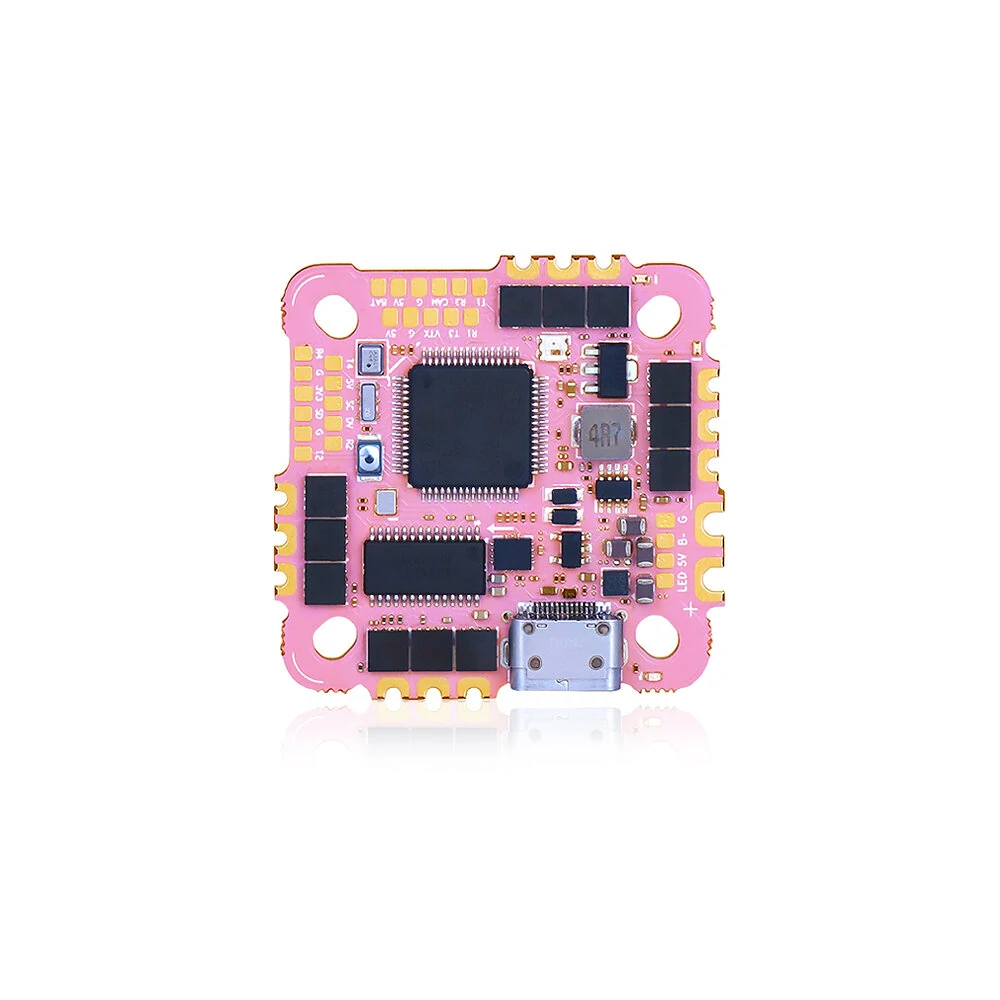

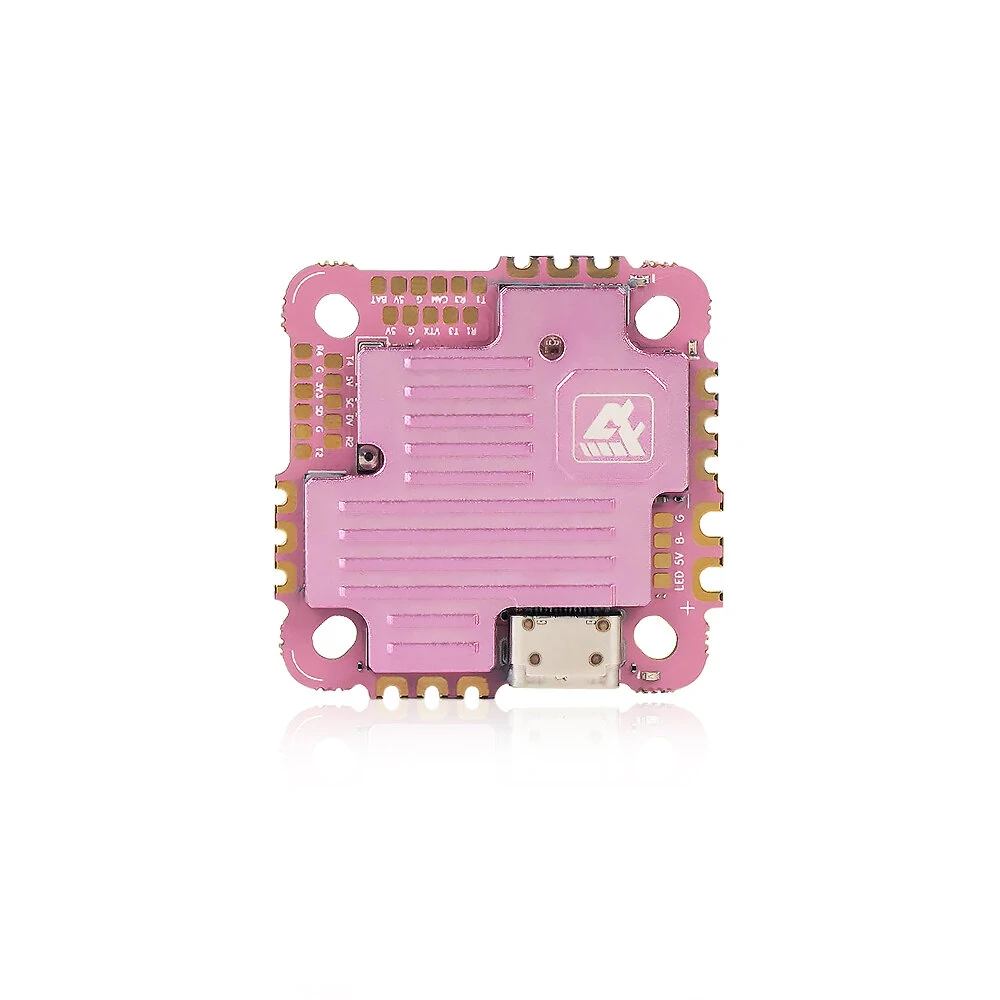

25.5×25.mm Axisflying Argus F7 Flight Controller AIO 40A 4-6S 4in1 Brushless ESC With Aluminum Shell Support DJI O3 Air Unit Vista for RC Drone FPV Racing

Description

Specifications:
Brand:  Axisflying

Model:  Argus F7 AIO 40

Item Name: F7 Flight Controller AIO 40A 4in1 ESC
Optional Version: Aluminum Case ( with  Aluminum shell in pink) /  NO Case (Without aluminum shell)

Argus F7 Flight Controller	MCU: STM32F722RET6 Gyro: BMI270 FC Target: AXIS ARGUSF7 AlO DJI O3 dedicated plug: Supported     Barometer: Supported   Uart: 5  BEC: 5V/3A  OSD: Supported   GPS: Supported   LED: Supported  Beeper: Supported   Mounting: 25.5mm/26.5mm  Size: 36*36*7 .2mm/4.4mm   Weight: 14. 6g/8.8g
Onboard 4In1 ESC	Bluejay(default) Current: 40A Max instant: 50A Input voltage: 4-6S Lipo Amperage Meter: 210 Scale

Features:

Rigorously Tested: Each AIO undergoes 800 full throttle takeoff and landing tests, ensuring its reliability.

Superior Protection: Built with high-quality circuit technology and an aluminum shell casing for increased lifespan.

Effective Cooling: Features CNC heat sinks on both sides for better cooling and protection.

Sync Stability: With Argus F7 AIO, pilots can bid farewell to desyncs.

Motor Compatibility: Perfectly matched with 20/21 motors.

Package Included:
1x F7 AIO 40A ESC Board
