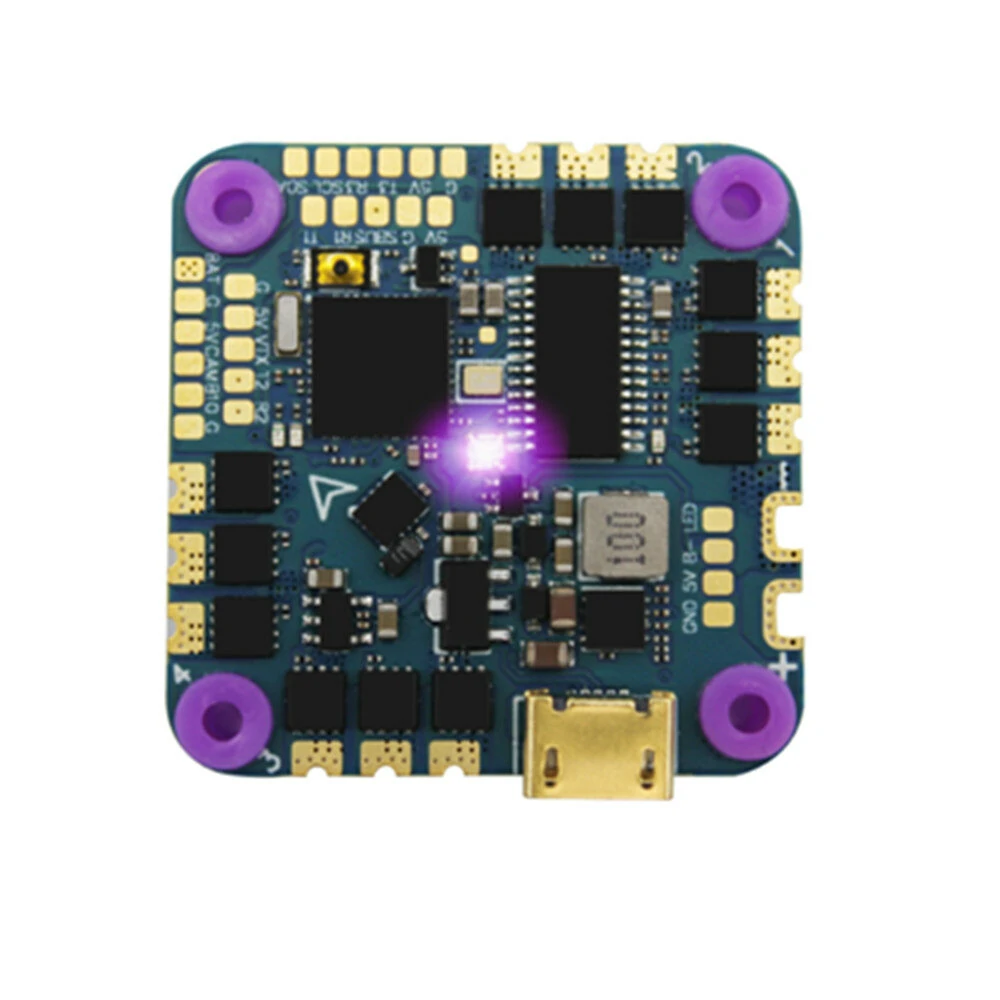

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 1

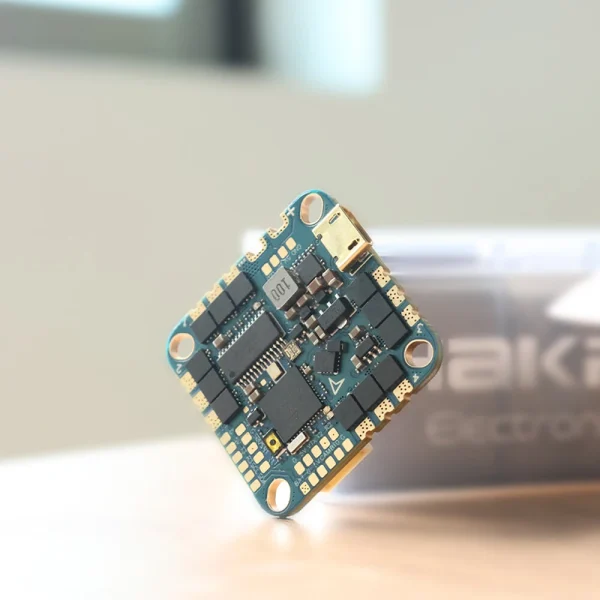

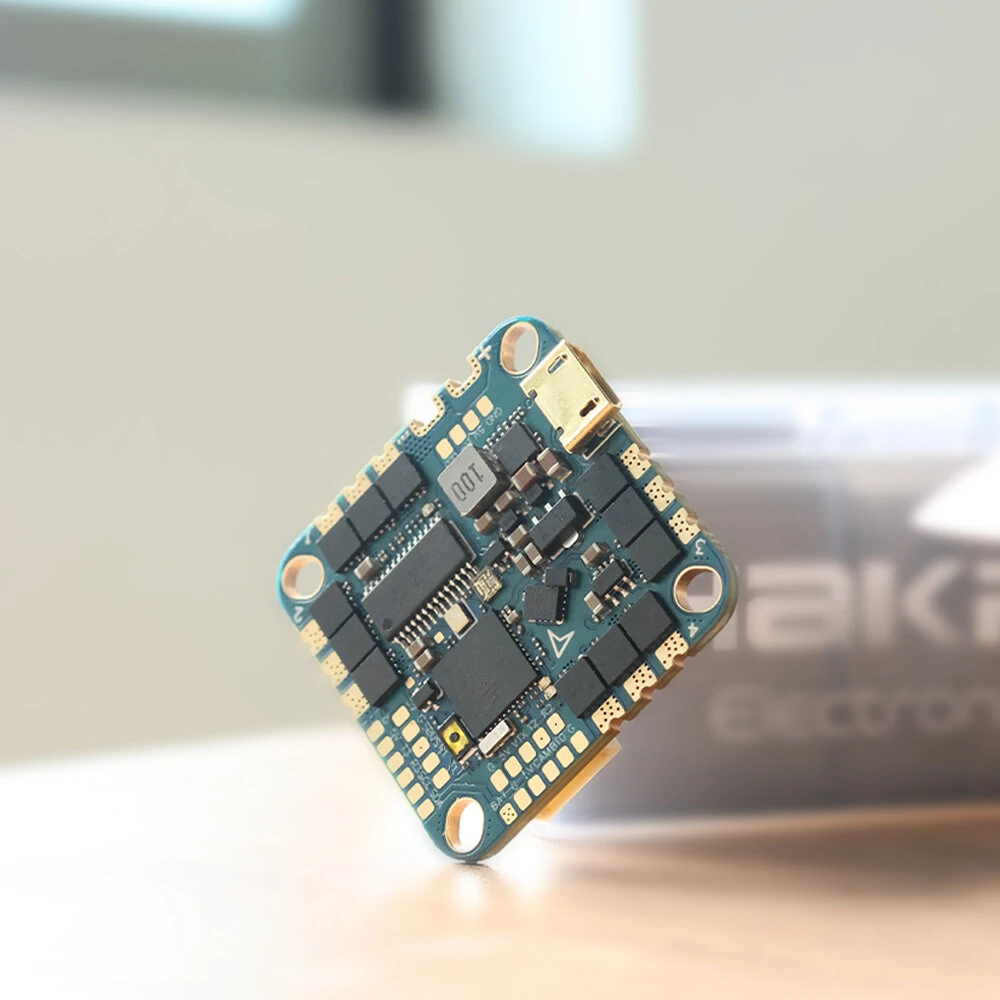

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 2

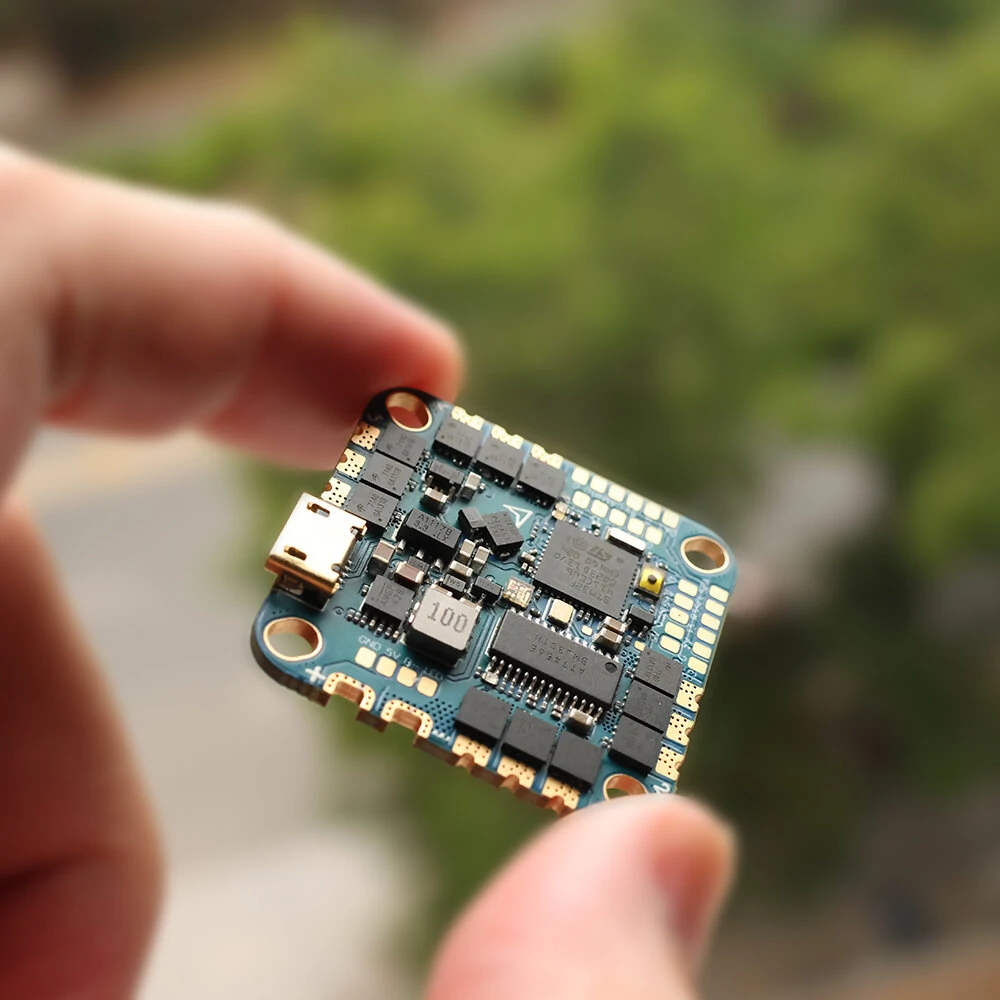

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 3
26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 4

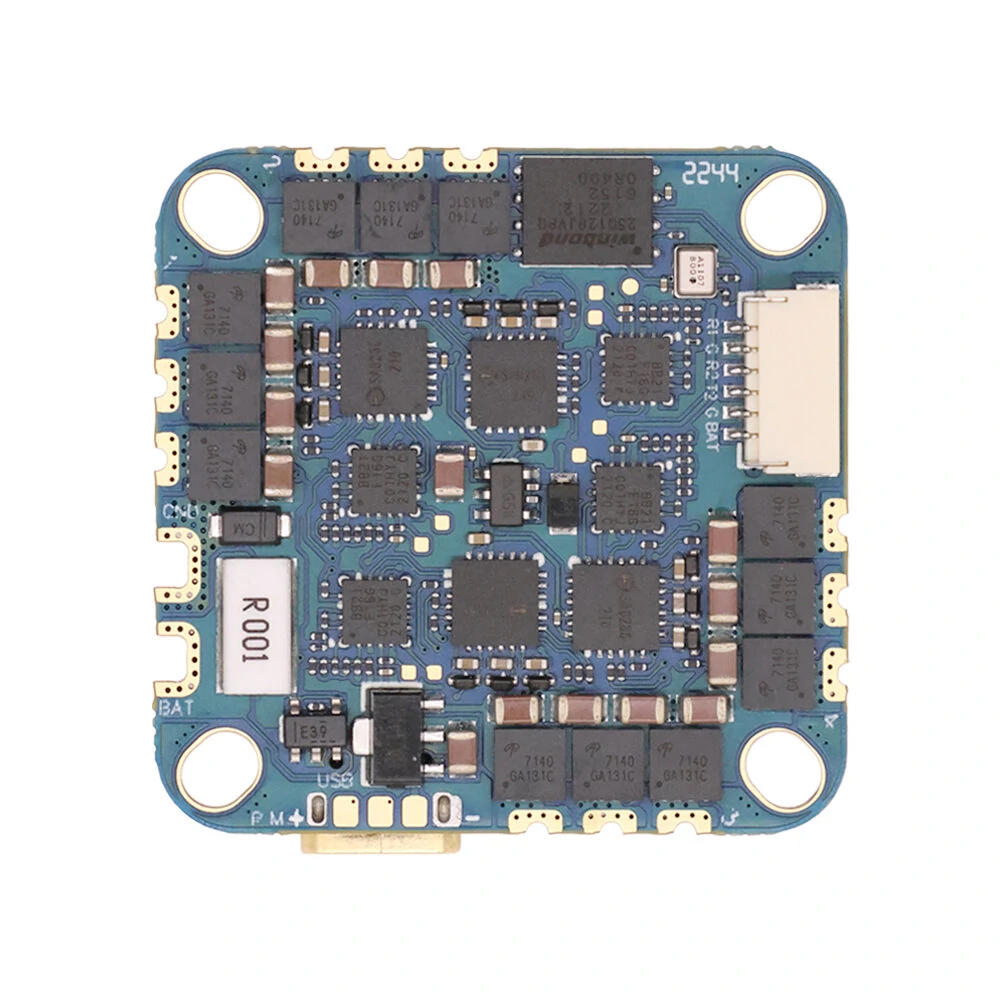

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 5

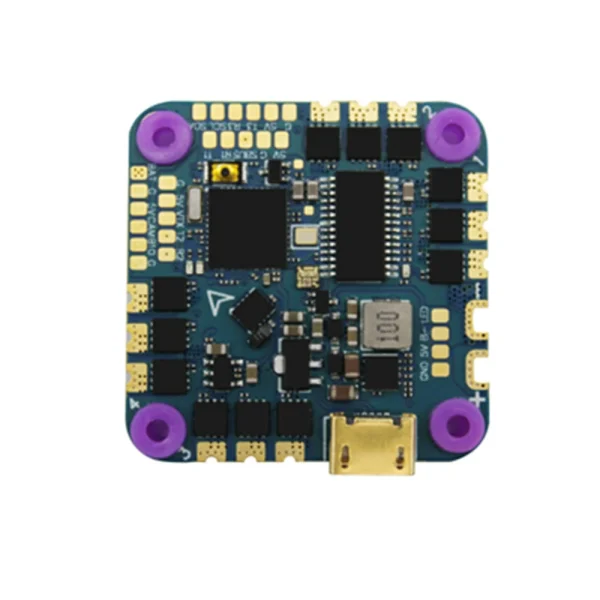

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone - Image 6
4Pairs Gemfan 1608 40mm 3-Blade PC Propeller 1mm/1.5mm for FPV Freestyle 1S Tinywhoop Drone
4 Pairs/12 Pairs Gemfan 45mm 1.8 Inch 3-Blade Ducted Propeller 1mm / 1.5mm Shaft Hole for 80-85mm Indoor ThinyWhoop RC Drone FPV Racing

26x26mm HAKRC F411 F4 OSD Flight Controller 20A / 40A AIO BLHELI _S 4in1 Brushless ESC w/ Barometer 5V BEC Output for FPV Racing RC Drone

0 out of 5

$56.99

SKU: POA0133191 Categories: , ,
Add to wishlist

Description

Notice: 35A AIO Version change into new 40A AIO Version.

July 24th, 2023

Description:

Brand: HAKRC

Item Name: HAKRC F411 20A/ 40A AIO

HAKRC F411 20A AIO HAKRC F411 40A AIO

FC:

CPU：STM32F411CEU6 IMU：ICM42688OSD：AT7456E

Barometer: integrated

Black Box: 16MBEC：5V/3A  LED: Adjustable LED light

Sensor: Built-in current sensor

ESC:

Firmware：HAKRCF411D

Firmware version: BLHELI _S (G- H-20)

Protocol support：PWM, Oneshot125， Oneshot42, Multishot, Dshot150， Dshot300， Dshot600

Input voltage: 2S-4S Lipo

Continuous current：20A

Peak current：25A

FC:

CPU：STM32F411CEU6 IMU：ICM42688OSD：AT7456E

Barometer: integrated

Black Box: 16MBEC：5V/1.5A  LED: Adjustable LED light

Sensor: Built-in current sensor

Firmware：HAKRCF411D

Compatible with Futaba/ Frsky/ Flysky/ TBS CRSF/ DSMX/DSM2 Receiver

ESC:

Firmware version: BLHELI _S (G- H-30)

Protocol support：PWM, Oneshot125， Oneshot42, Multishot, Dshot150， Dshot300, DShot600

Input voltage: 2S-6S Lipo

Continuous current：40A

Peak current：45A

Current Sensor Scale: 210

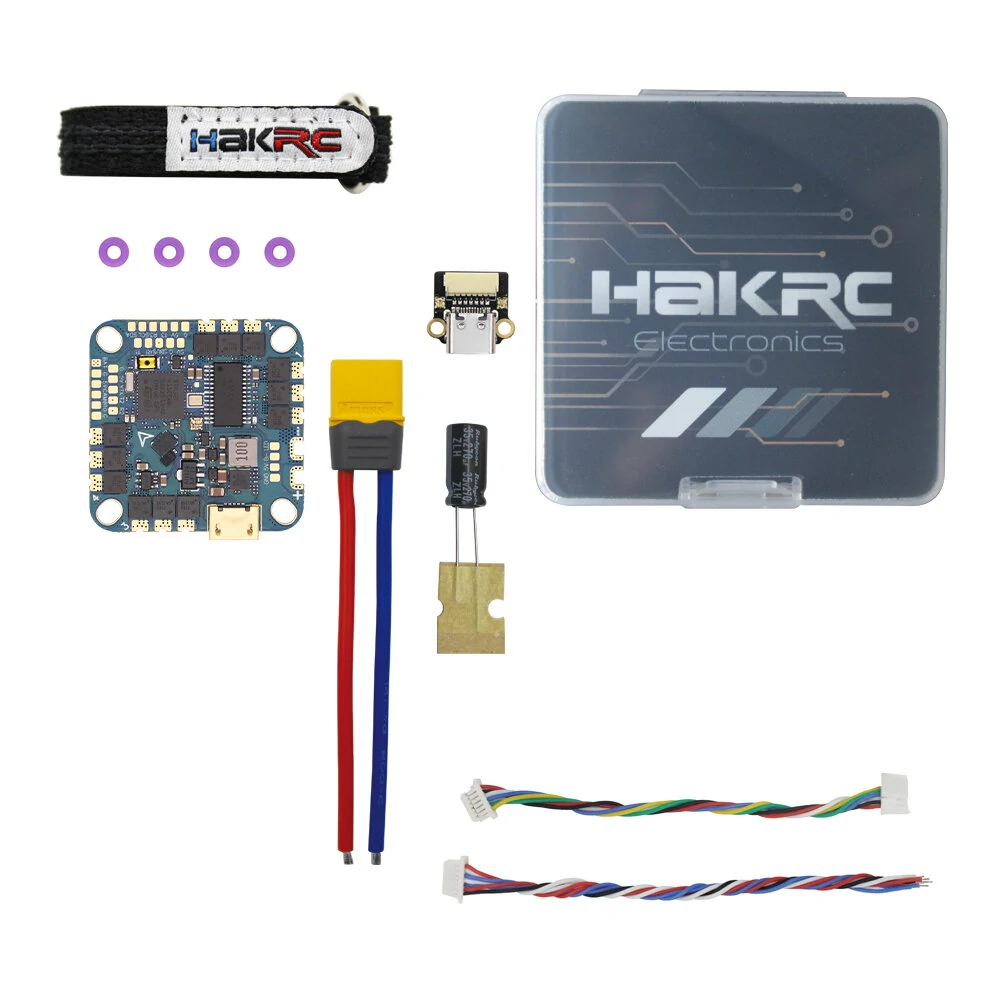

Package Included:

1x HAKRC F411 20A/ 40A AIO



Additional information

Weight 0.023 lbs
