Feature:

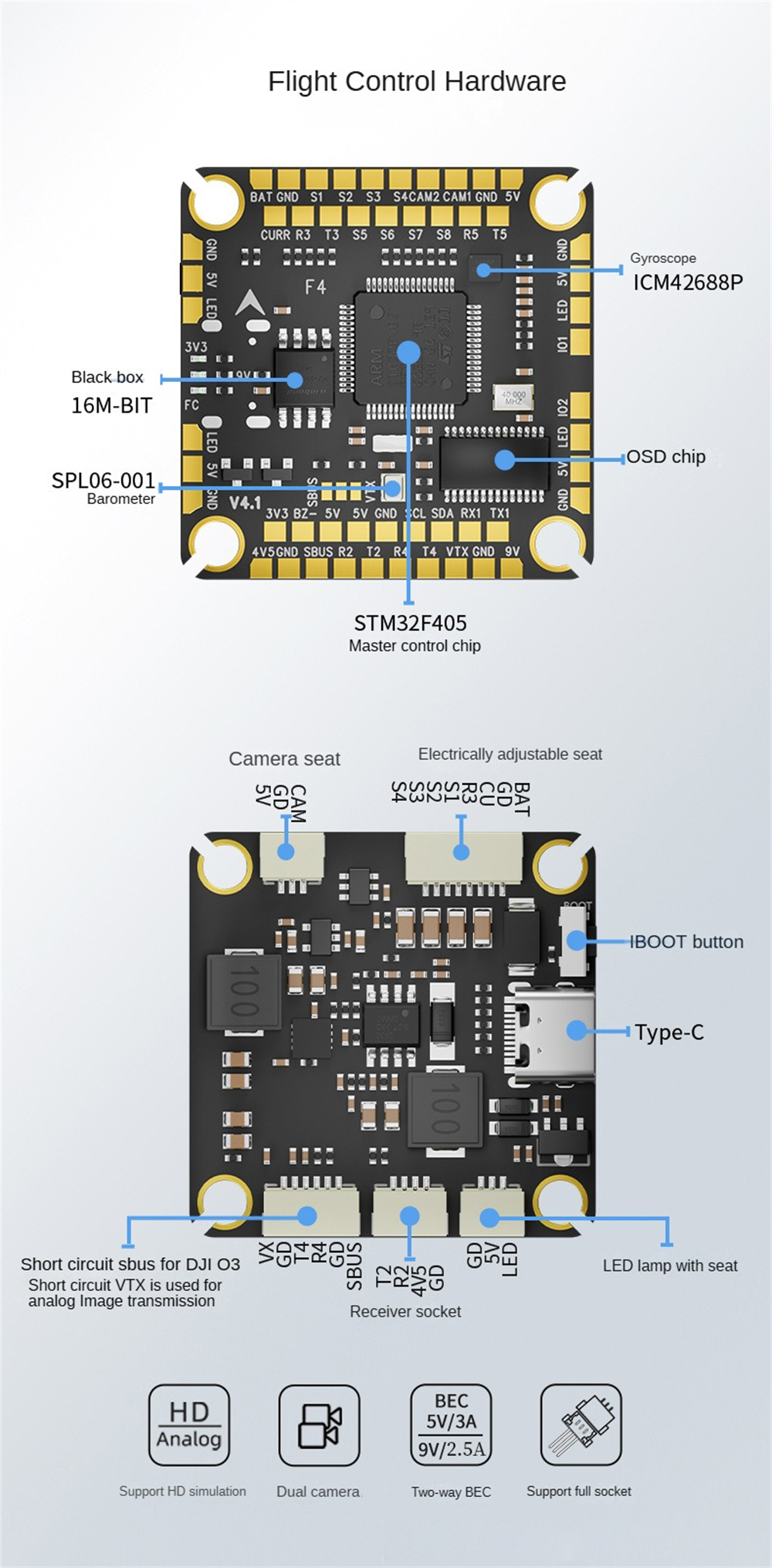

1. Advanced Processing Power: Equipped with STM32F405RGT6 main controller chip, offering powerful performance and efficient processing capabilities.
2. Versatile Connectivity: Supports various protocols including ELRS, CRSF, SBUS, Frsky, Futab, Flysky, TBS CRSF, and DSMX, ensuring smooth communication and compatibility with many devices.
3. Enhanced Flight Stability: Integrated ICM42688P Gyroscope and SPL06-001 Barometer for precise position and altitude measurements.
4. Multiple Output Options: Provides up to 8 channels for motor output, allowing for versatile aircraft configurations and control systems.
5. User-Friendly Interface: Features Type-C USB connector for easy and fast firmware updates and data transfer.

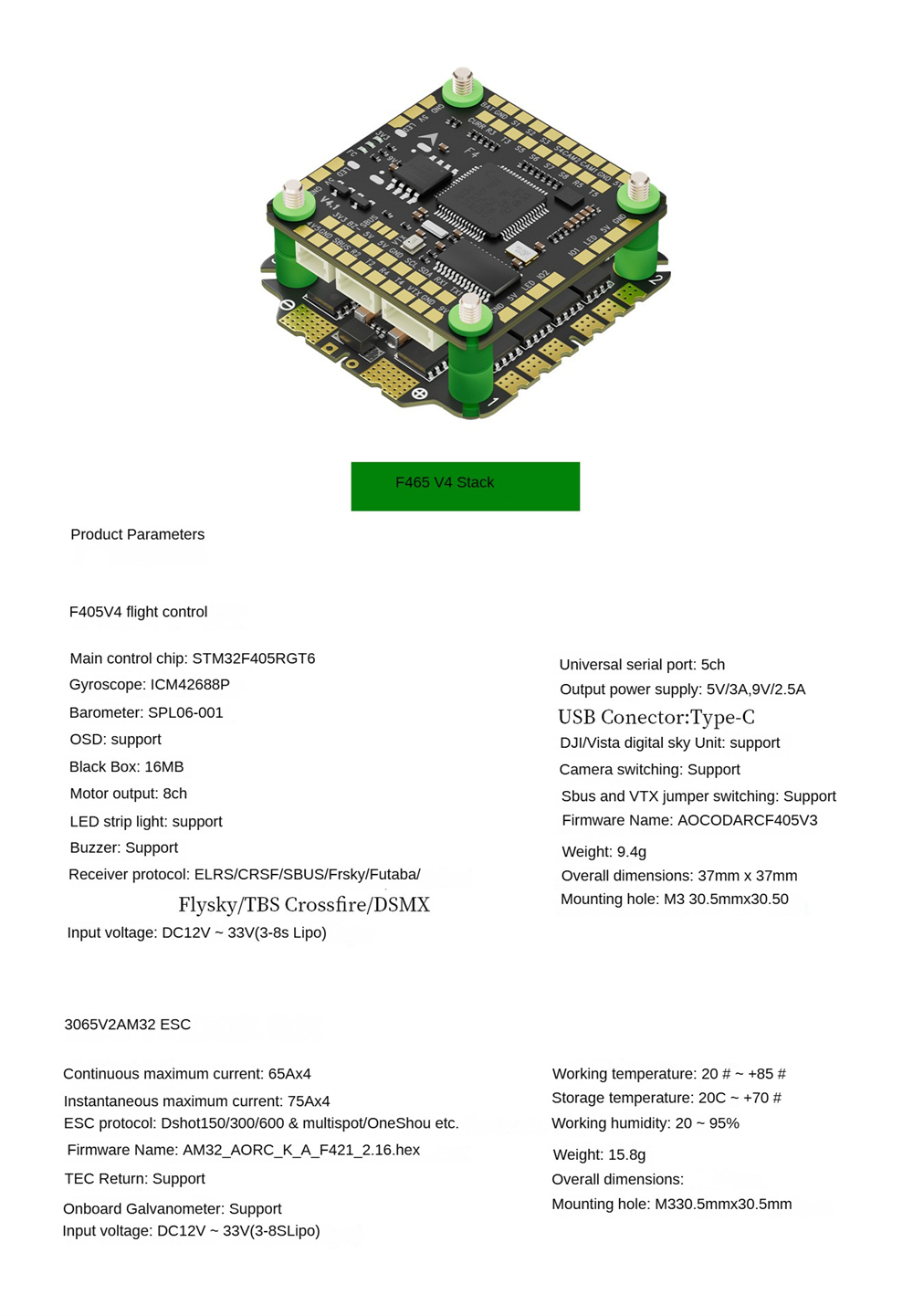

Specification:
Brand: Aocoda-RC

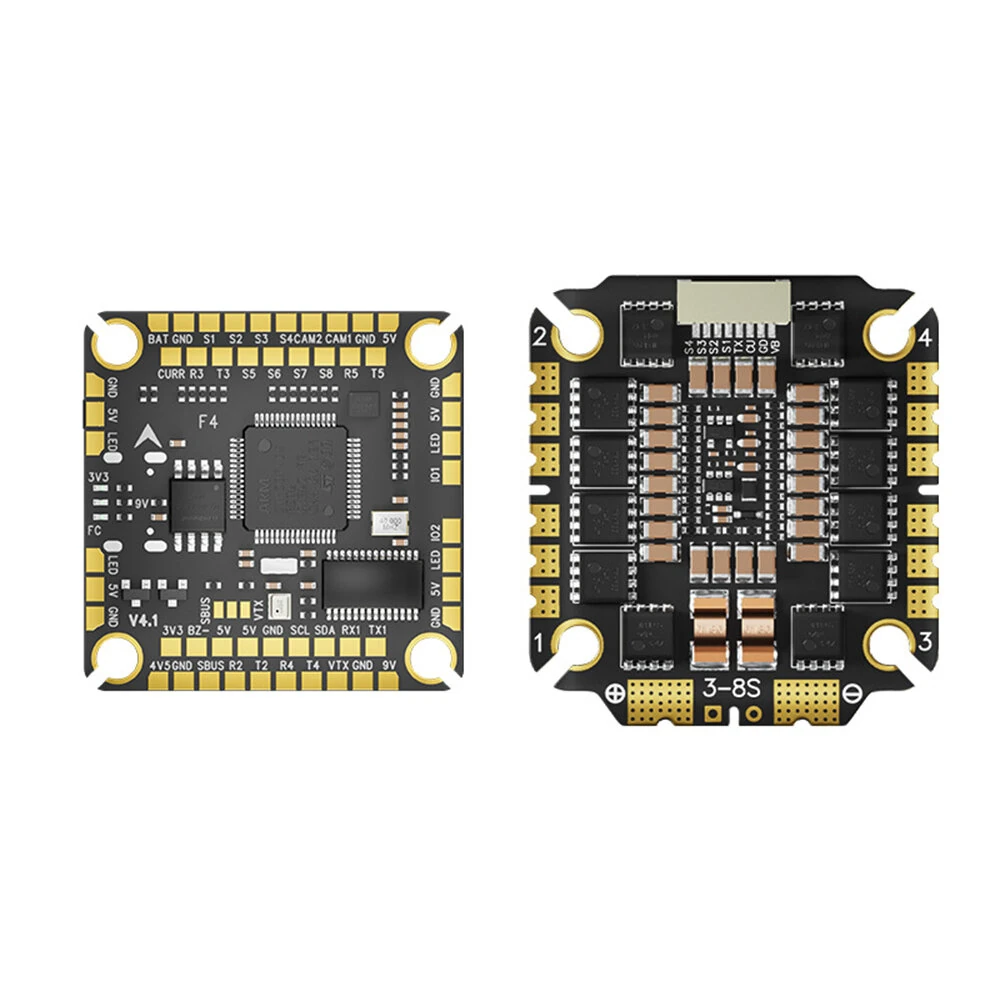

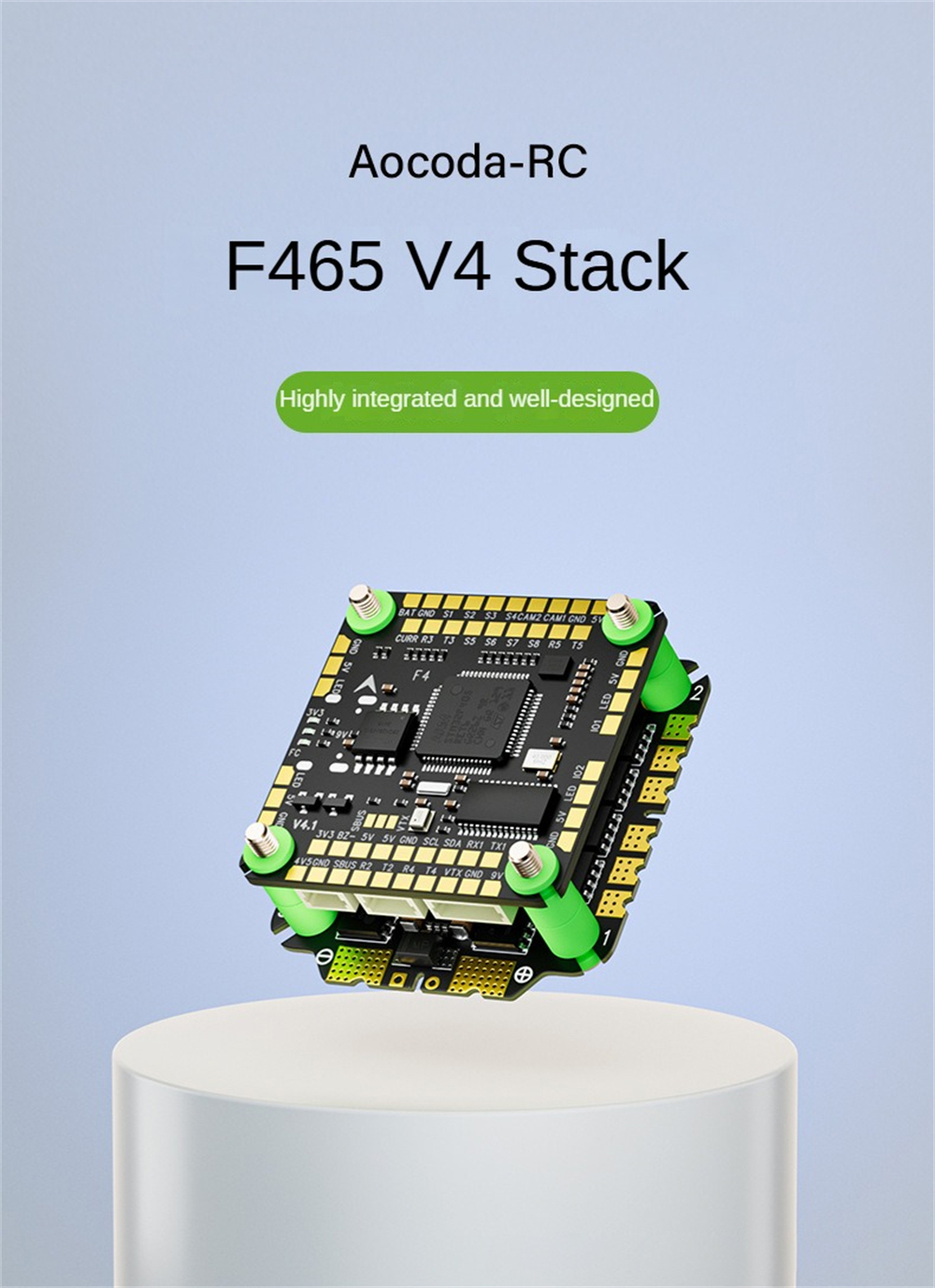

Model: F465 V4 Stack
| Item |
Specification |
| F405 V4 Flight Controller |

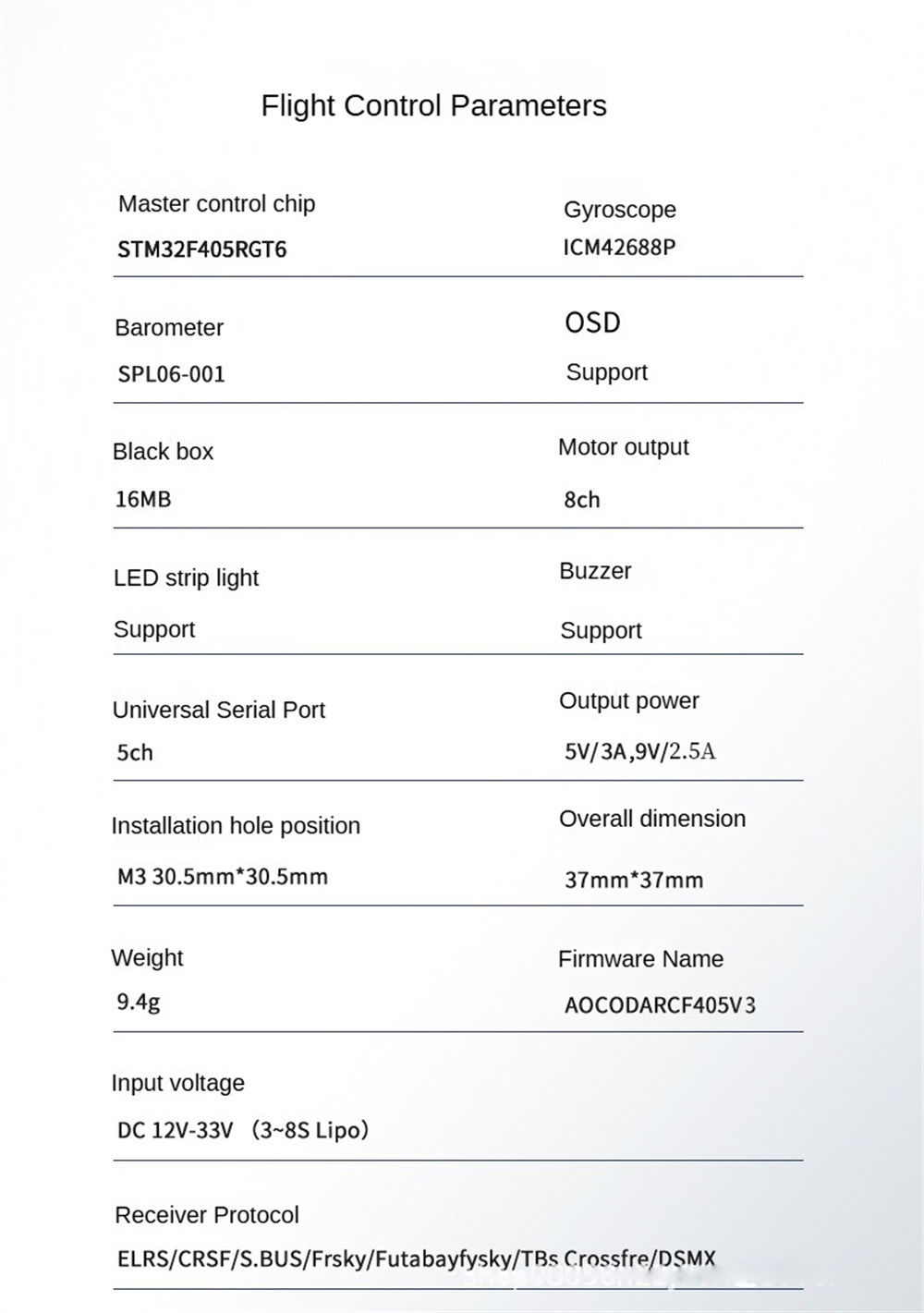

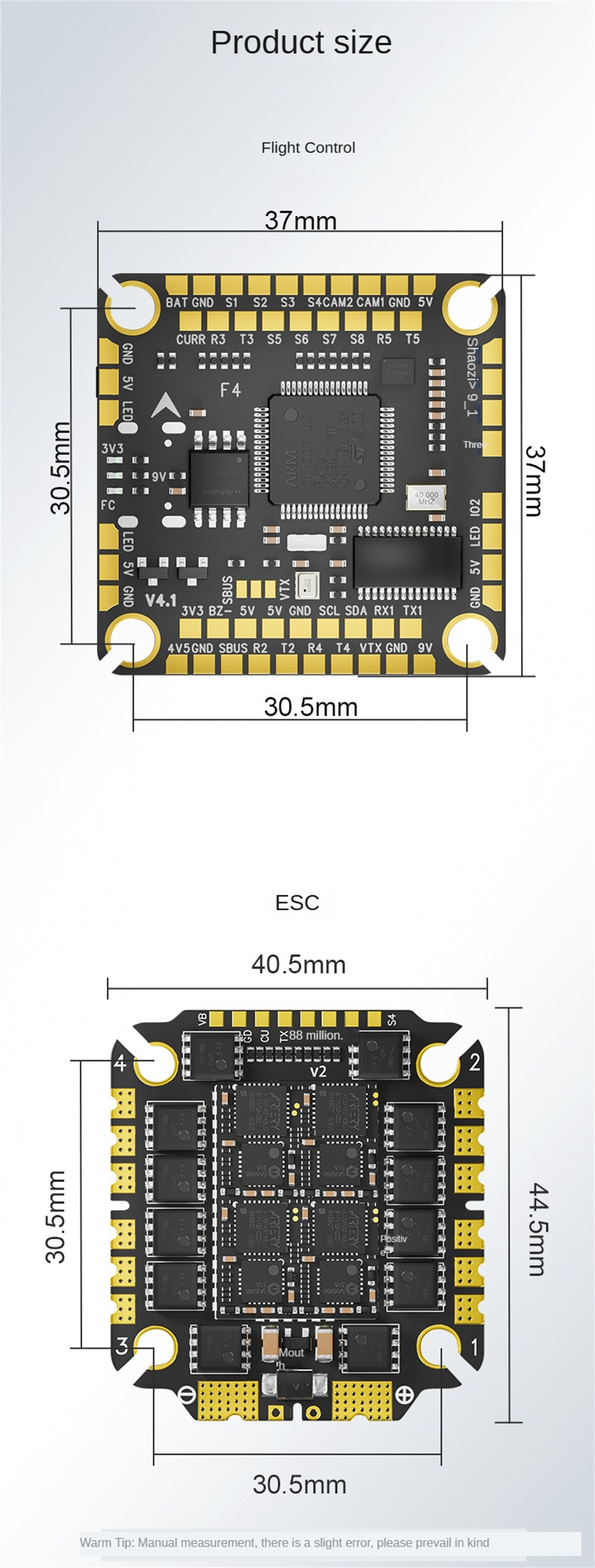

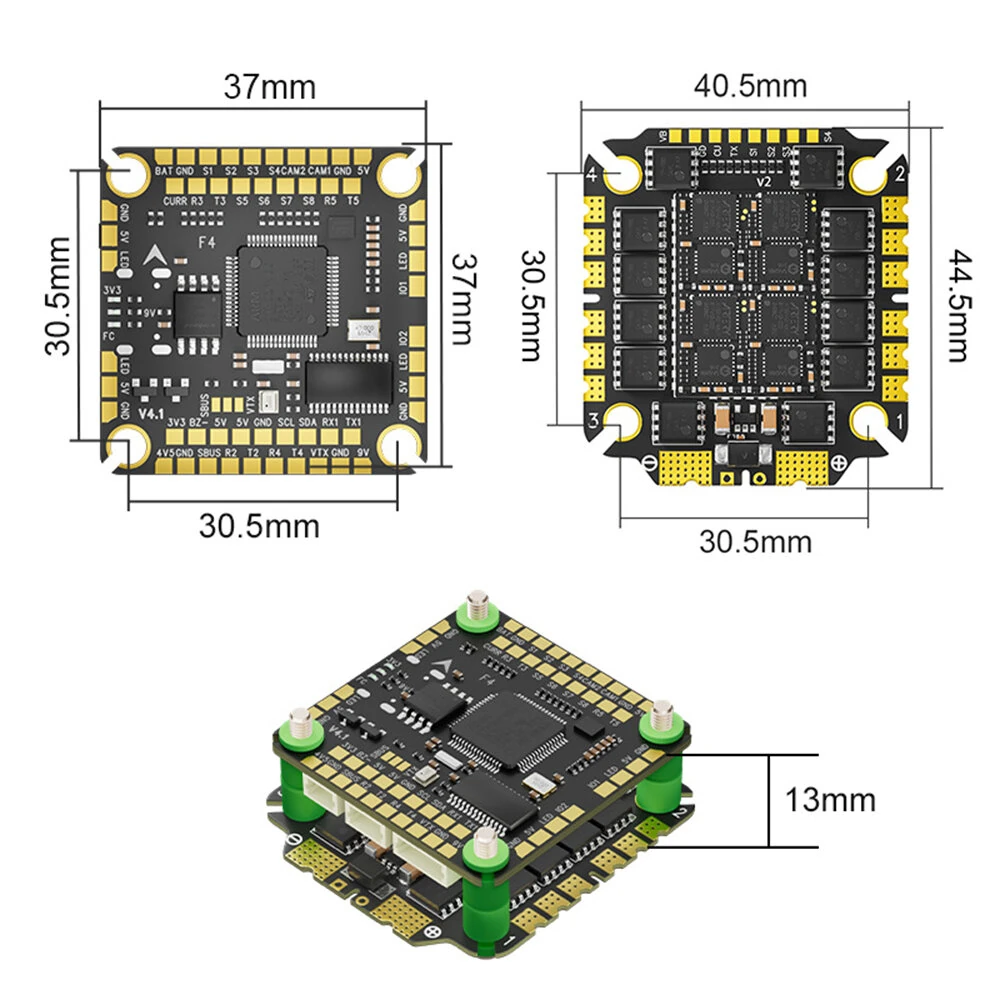

Main Controller Chip: STM32F405RGT6 Gyroscope: ICM42688P Barometer: SPL06-001 OSD: Supported Black Box: 16MB Motor Output: 8 channels LED Strips: Supported Buzzer: Supported Supported Protocols: ELRS, CRSF, SBUS, Frsky, Futab, Flysky, TBS CRSF, DSMX Voltage Input: DC 12V~33V (3~8S Lipo) Common Ports: 5 channels Output Power: 5V/3A, 9V/2.5A USB Connector: Type-C DJI/Vista Digital System: Supported Sbus and VTX Switching: Supported Mounting Holes: M3 30.5mm x 30.5mm Dimensions: 37mm x 37mm Weight: 9.4g |
| 65A 3-8S ESC |

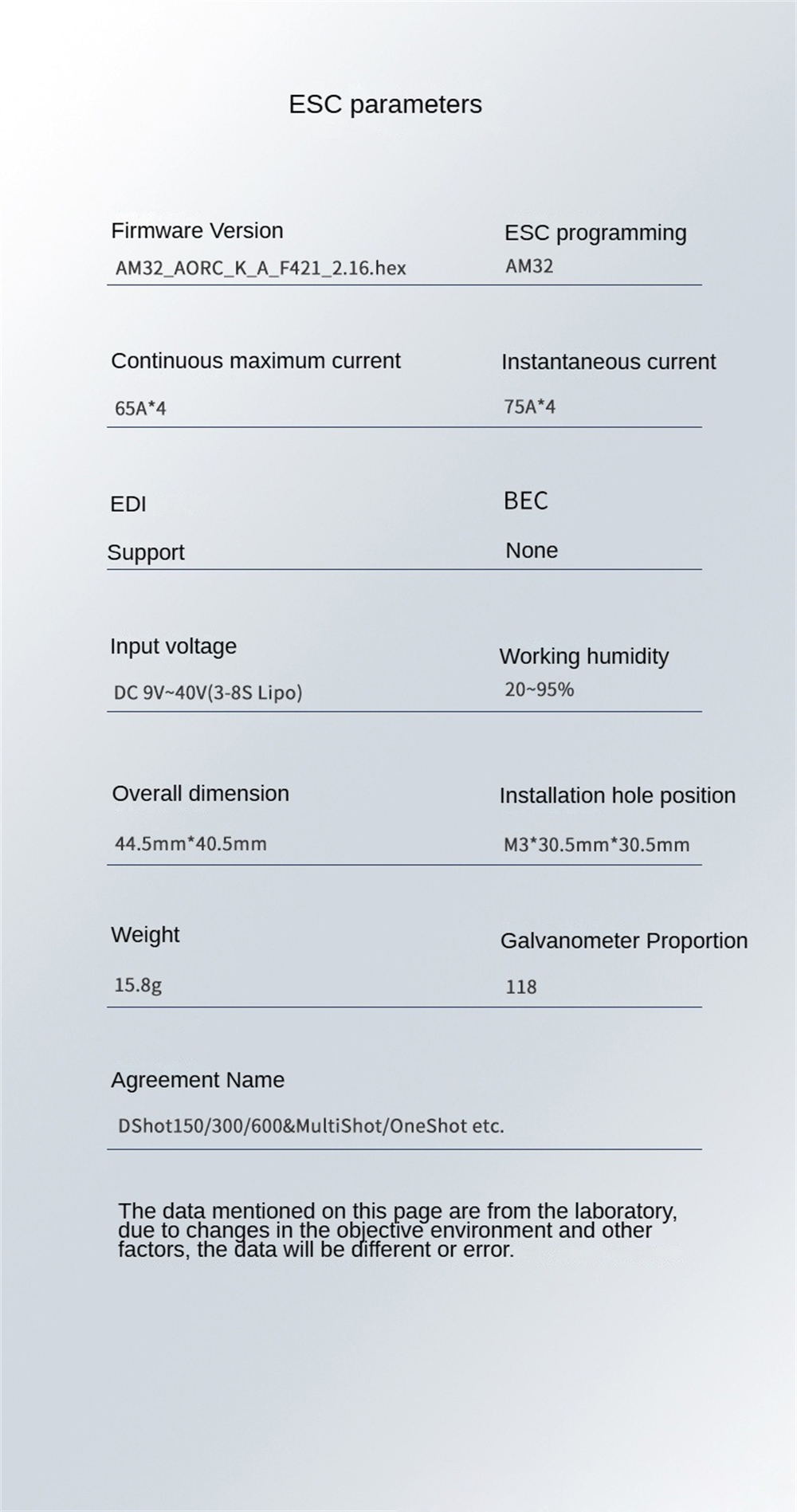

Continuous Current: 65A x 4 Peak Current: 75A x 4 ESC Programming: AM32_AORC_K_A_F421_2.16.hex Firmware: AM32 Voltage Input: DC 9V~40V (3~8S Lipo) BEC: None Working Temperature: 20°C~85°C Storage Temperature: 20°C~70°C Working Humidity: 20~95% Dimensions: 44.5mm x 40.5mm Mounting Holes: M3 30.5mm x 30.5mm Weight: 15.8g Current Sensor Ratio: 118 Supported Protocols: DShot150/300/600 & MultiShot/OneShot etc. |

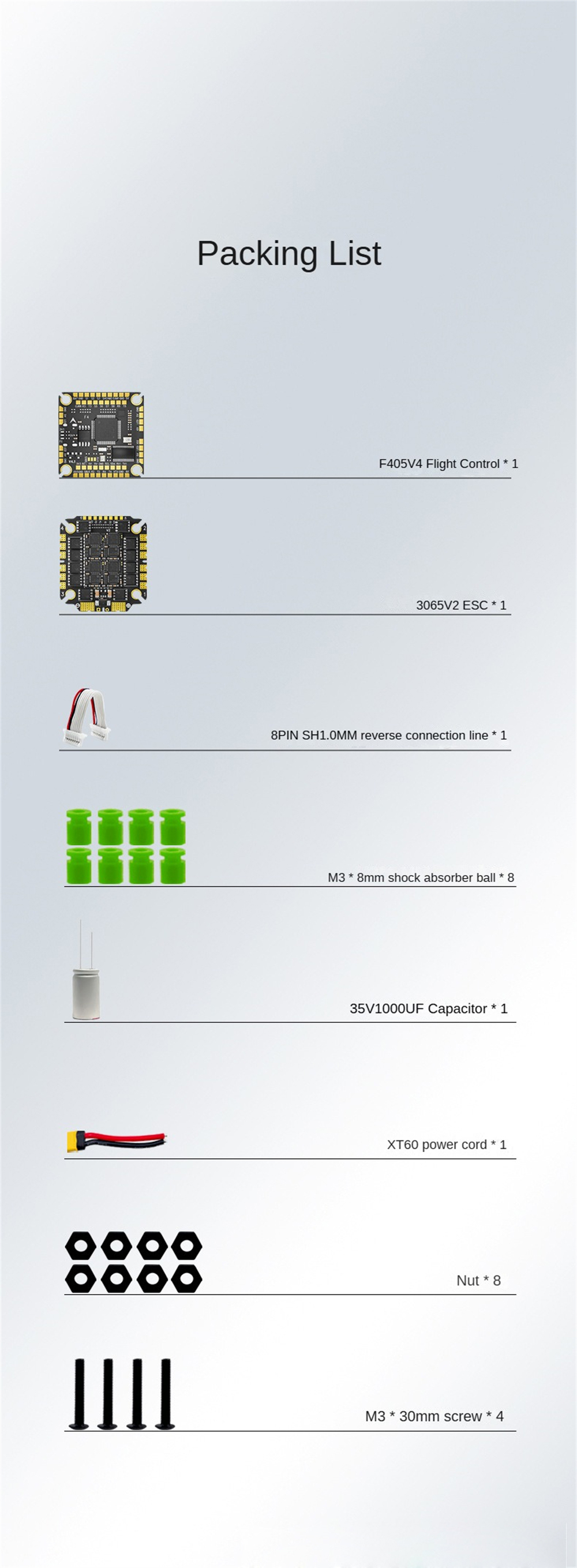

Package Included:
1 x F405 V4 Flight Controller
1 x 3065 V2 ESC
1 x 8PIN SH1.0MM Reverse Cable
8 x M3*8 MM shock Absorbing Ball
1 x 35V 1000UF Capacitor
1 x XT60 Power Cable
8 x Nuts
4 x M3*30MM Screws
