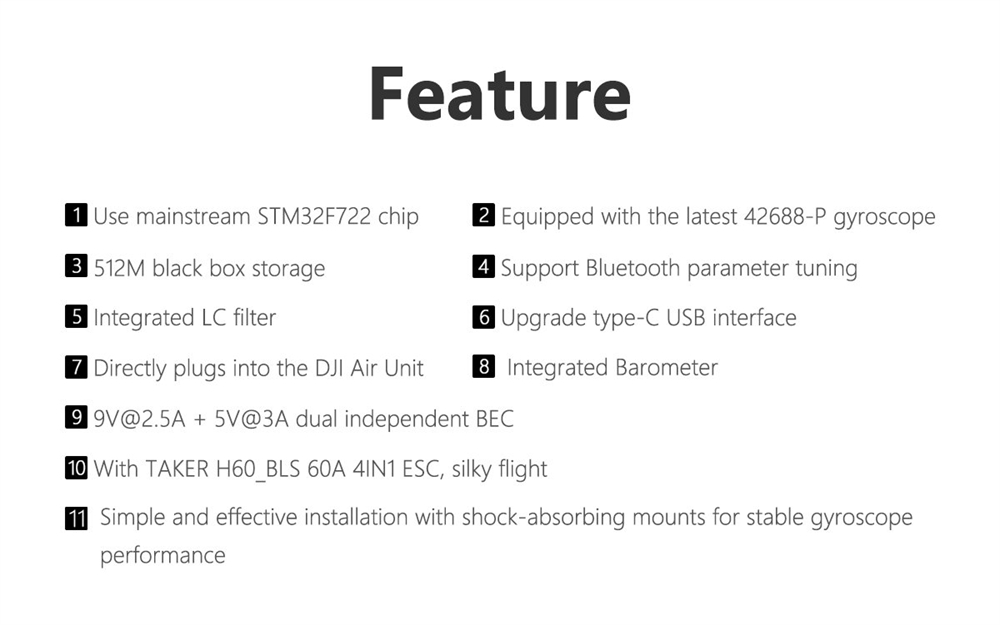

Feature:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7. With TAKER H60_BLS 60A 4IN1 ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. [email protected] + 5V@3A dual independent BEC

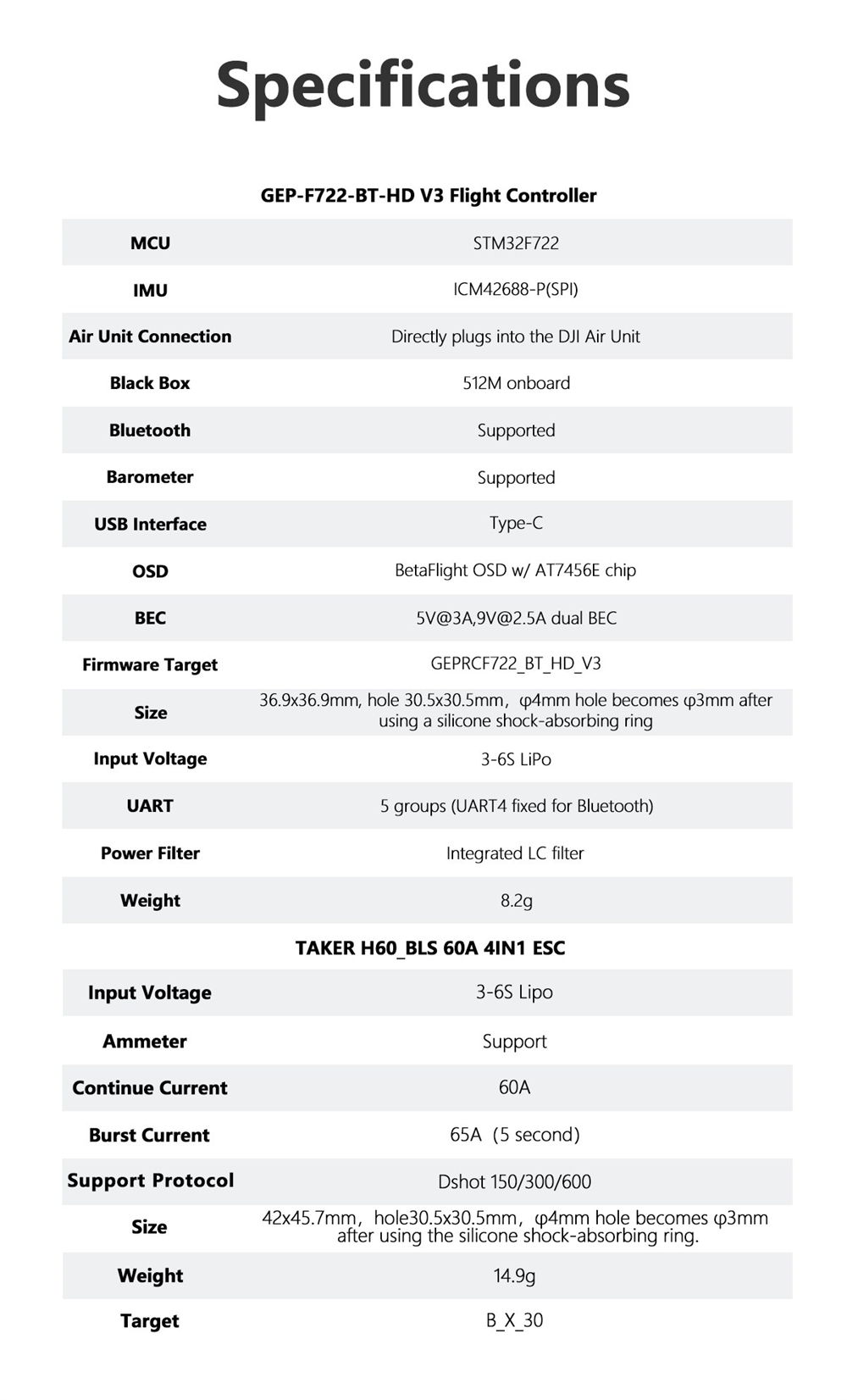

Specification:
Brand: GEPRC

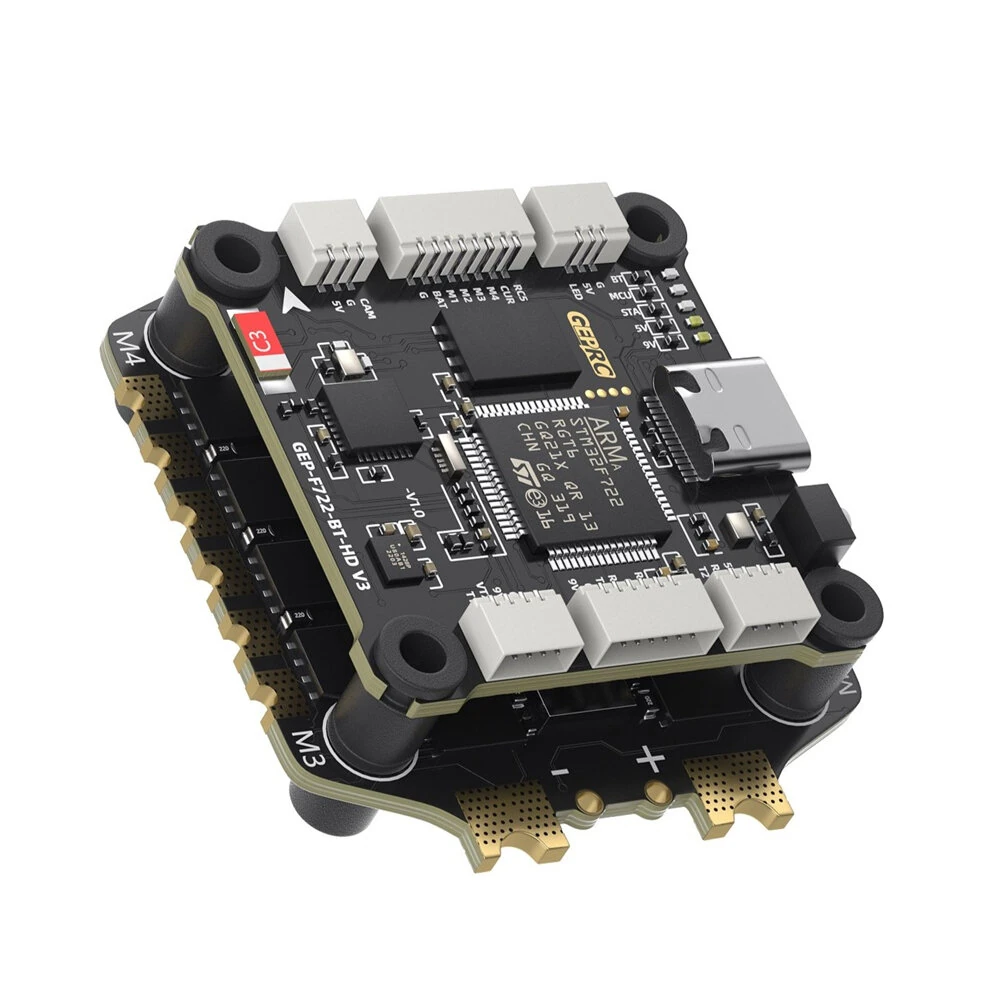

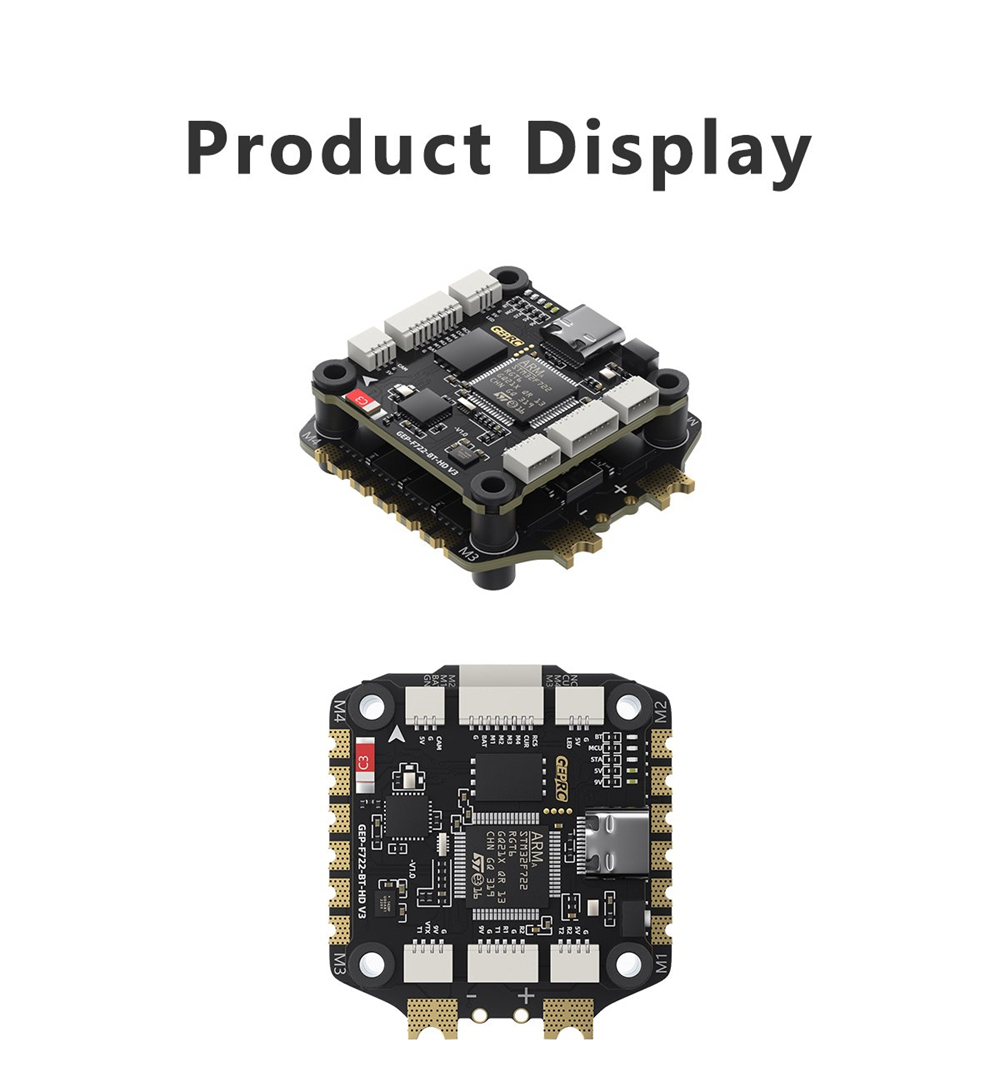

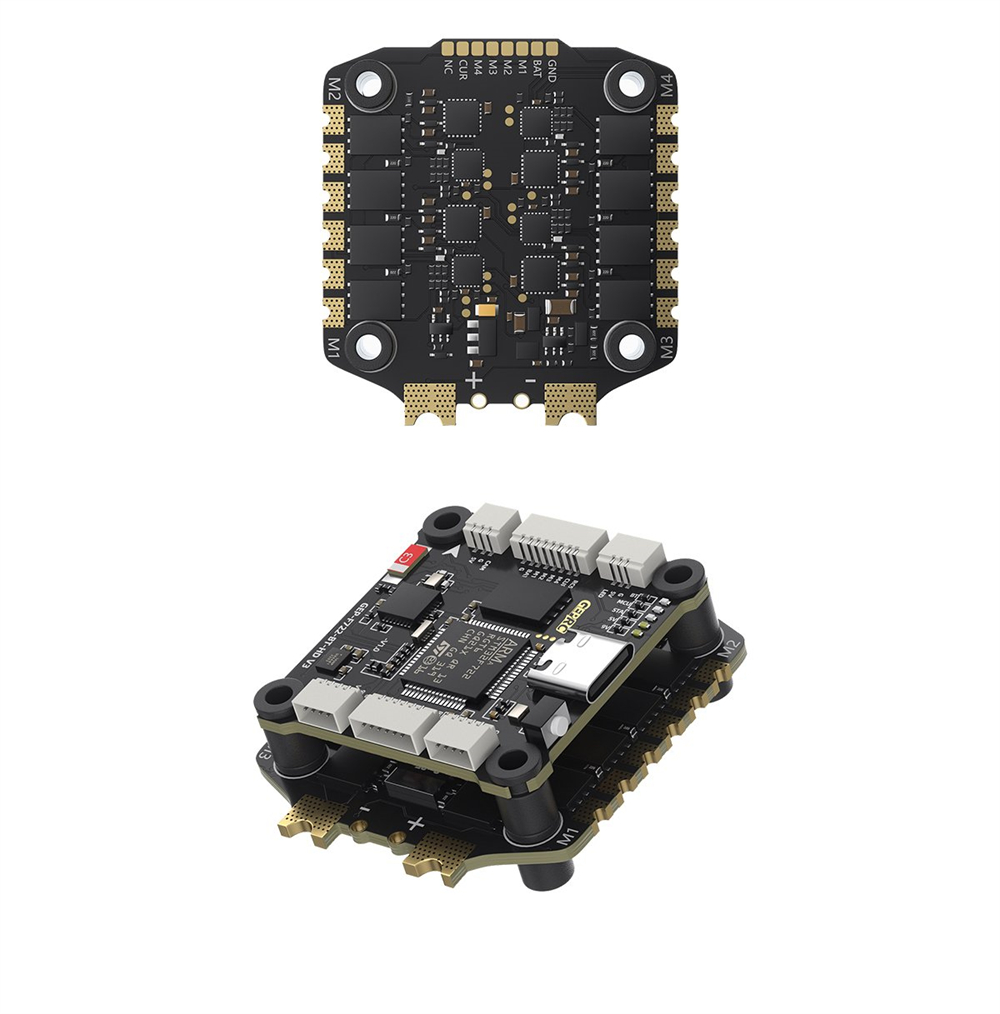

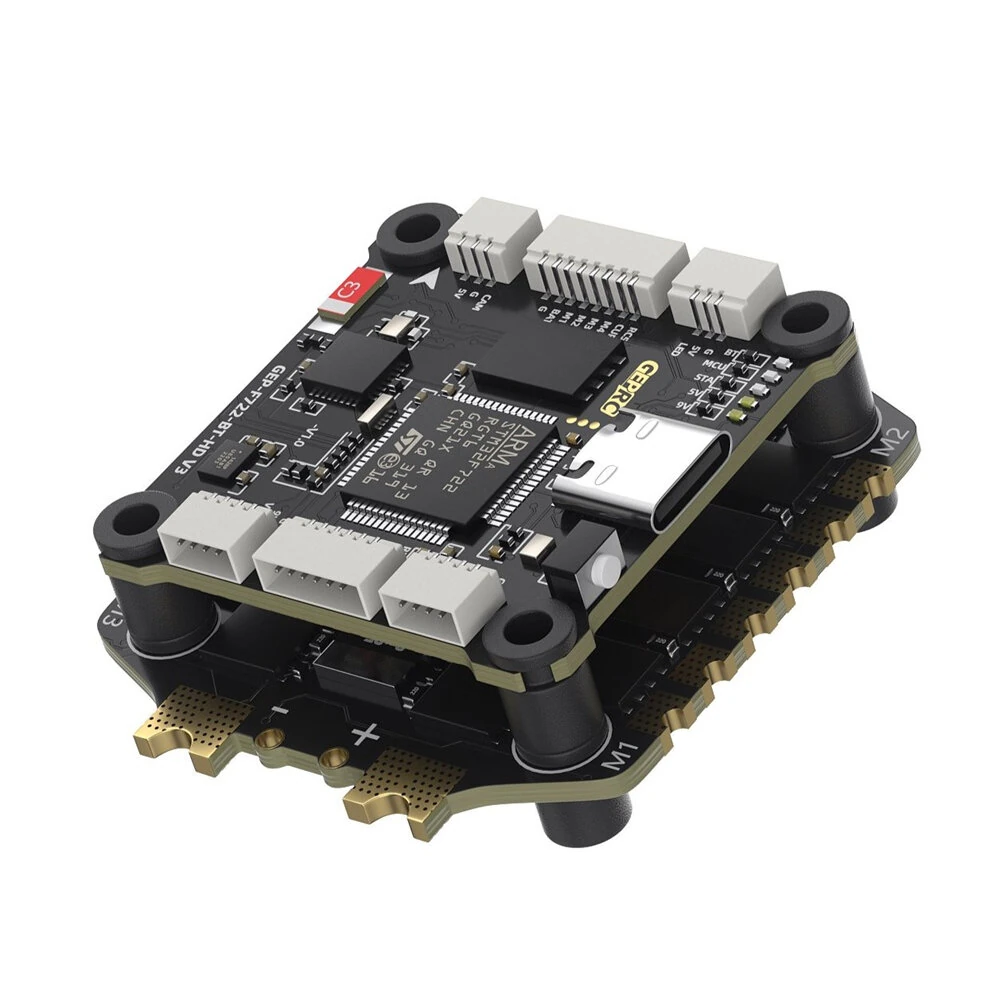

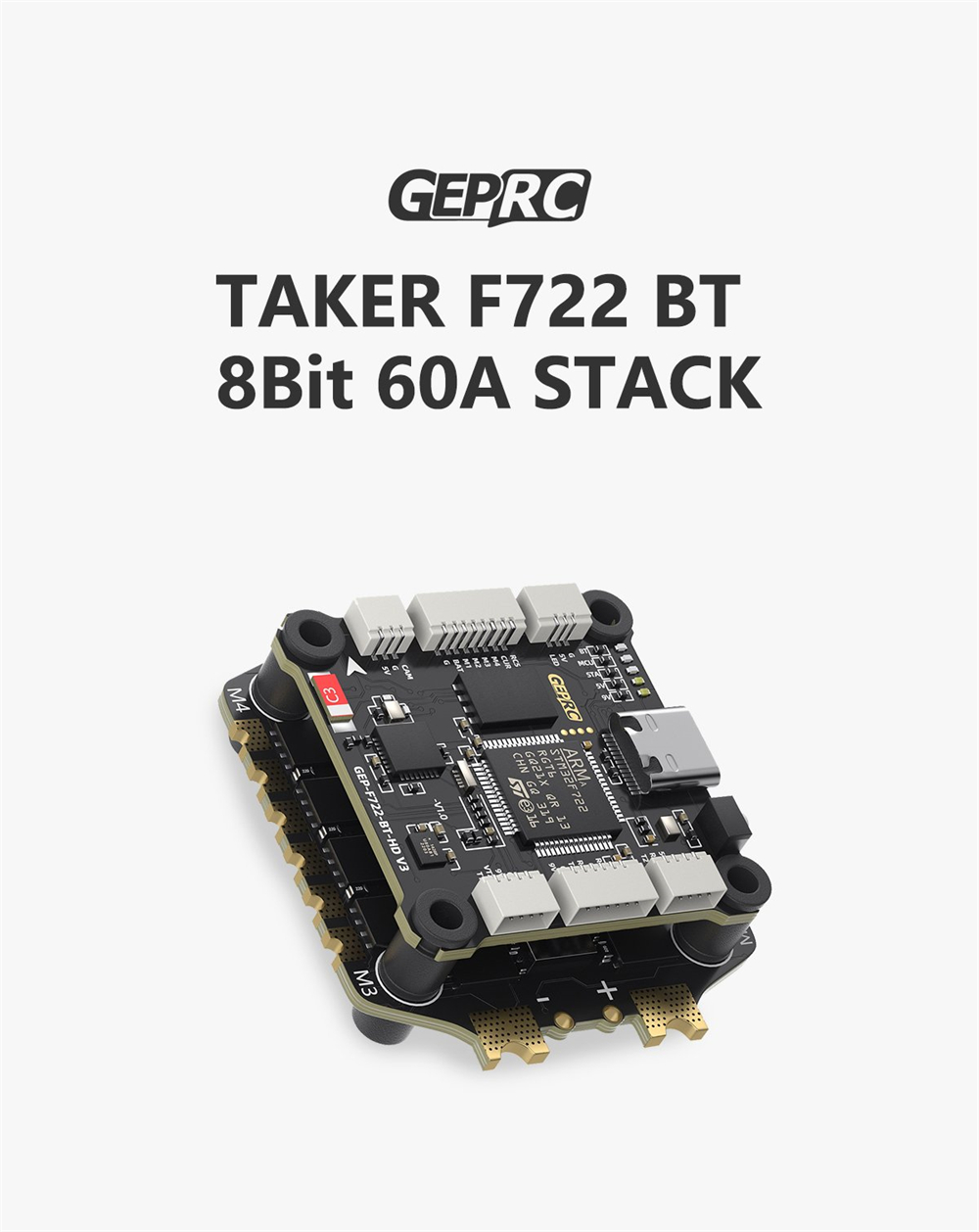

Model: TAKER F722 BT 8Bit 60A STACK
| Model |
Specification |

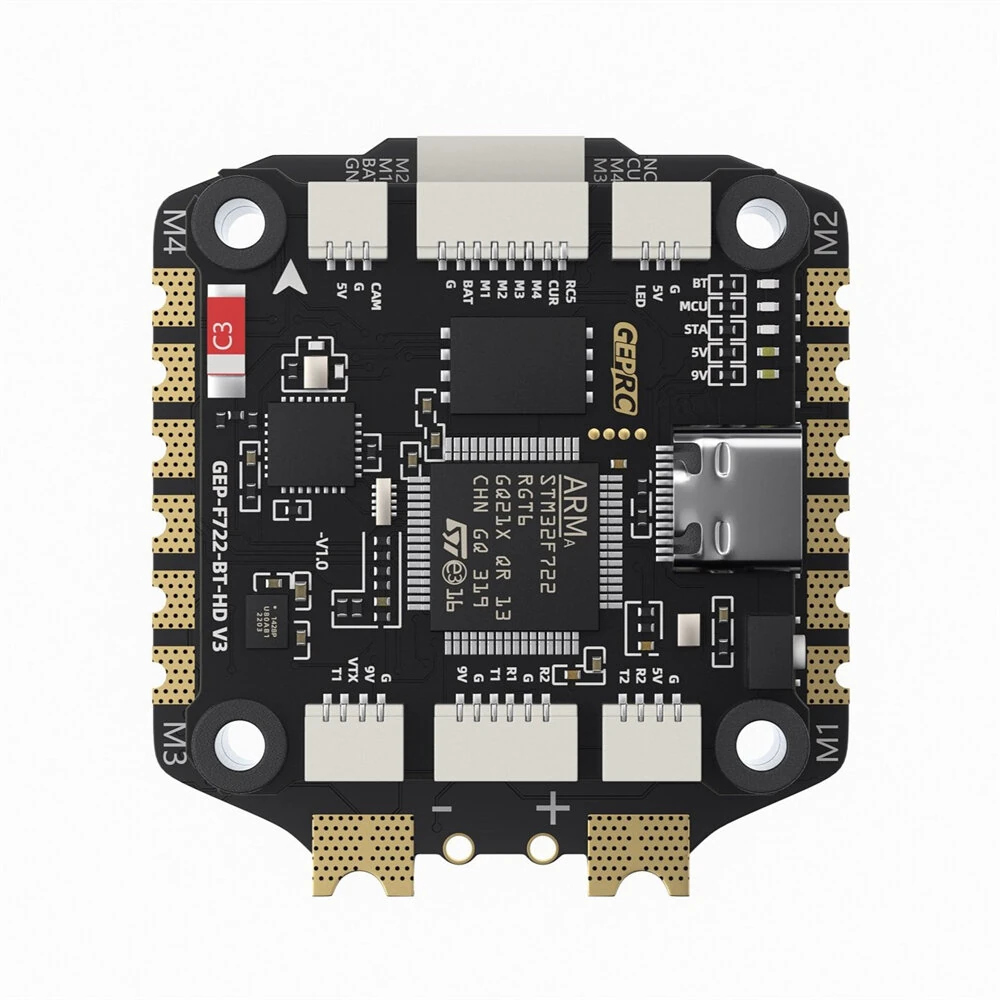

| F722 BT HD V3 Flight Controller |
MCU: STM32F722 IMU：ICM42688-P(SPI) Air Unit Connection: Directly plugs into the DJI Air Unit Black Box: 512M onboard Bluetooth: Supported Barometer: Supported USB Interface: Type-C OSD: BetaFlight OSD w/ AT7456E chip BEC: 5V@3A, [email protected] dual BEC Firmware Target: GEPRCF722_BT_HD_V3 Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring Input Voltage: 3-6S LiPo UART: 5 groups (UART4 fixed for Bluetooth) Power Filter: Integrated LC filter Weight: 8.2g |

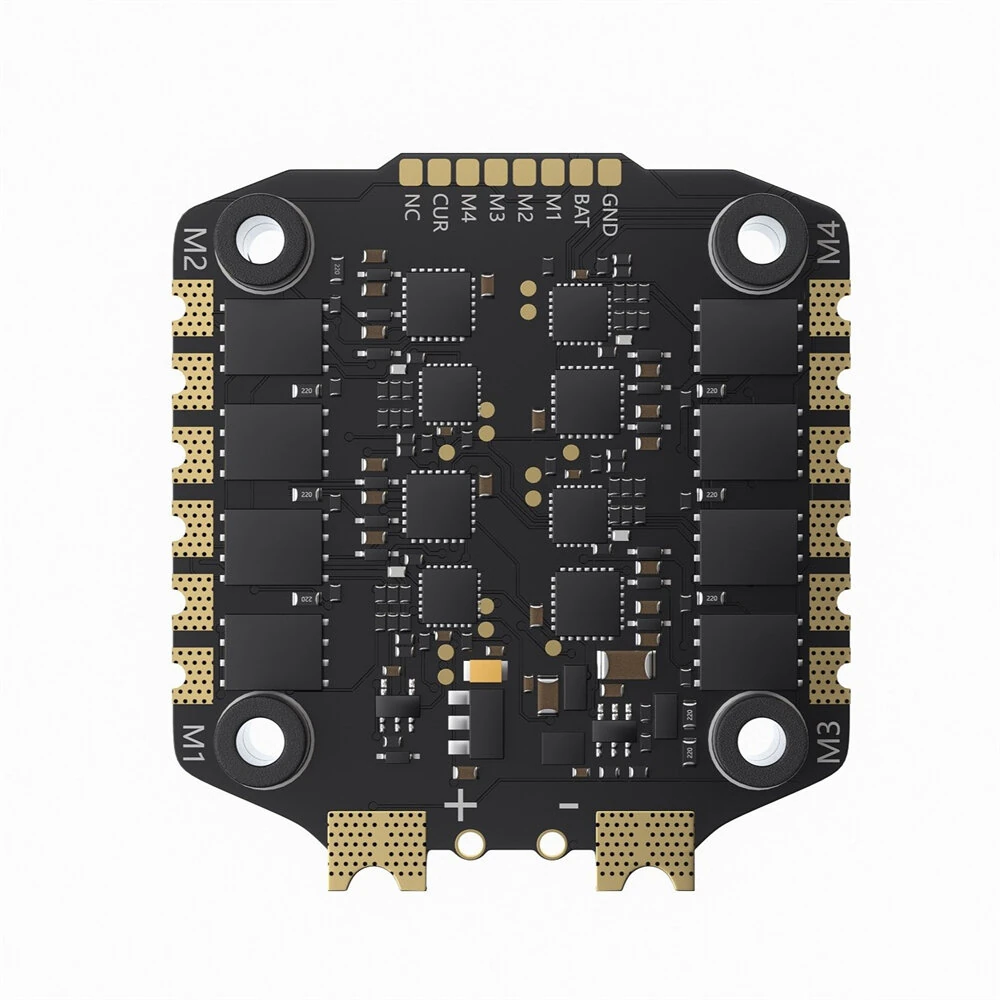

| 60A 4IN1 ESC |
Input Voltage: 3-6S Lipo Ammeter: Support Continue Current：60A Burst Current: 65A (5 second) Support Protocol: Dshot 150/300/600 Size: 42×45.7mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring Weight: 14.9g Target: B_X_30 |

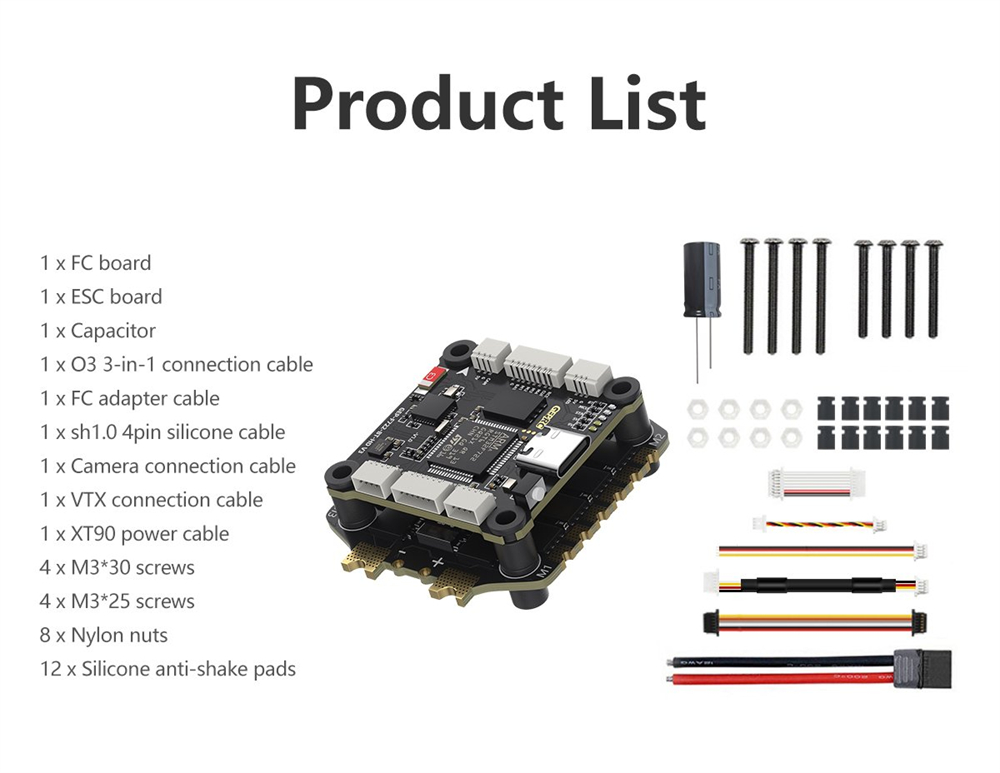

Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
