30.5*30.5mm iFlight BLITZ F745 Flight Controller E55 55A BLHeli_32 32Bits 4In1 Brushless ESC Stack for FPV RC Racing Drone

Description

Specification:

Brand: iFlight
Model: BLITZ F745, BLITZ E55

Optional Version: ESC ( Only E55 ESC)/ FC+ESC ( F745 FC & E55 ESC)

BLITZ F745 Flight Controller

MCU: STM32F745 Gyro: ICM42688 Barometer: DPS310 OSD Chip: AT7456E Flash: 32MB (Blackbox flash) UARTS: 6 Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Mount pattern: 30.5*30.5mm Dimensions: 36.5*35 mm Weight: 7.8g BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds) Output 9V 2.5A continuous output current, 3A peak current (15 seconds) BF Firmware target: IFLIGHT_BLITZ_F7_AIO Ardupilot Firmware：arduplane_with_bl Wiring Suggestion UART 1 for VTX HD / Analog UART 2 for a Receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet

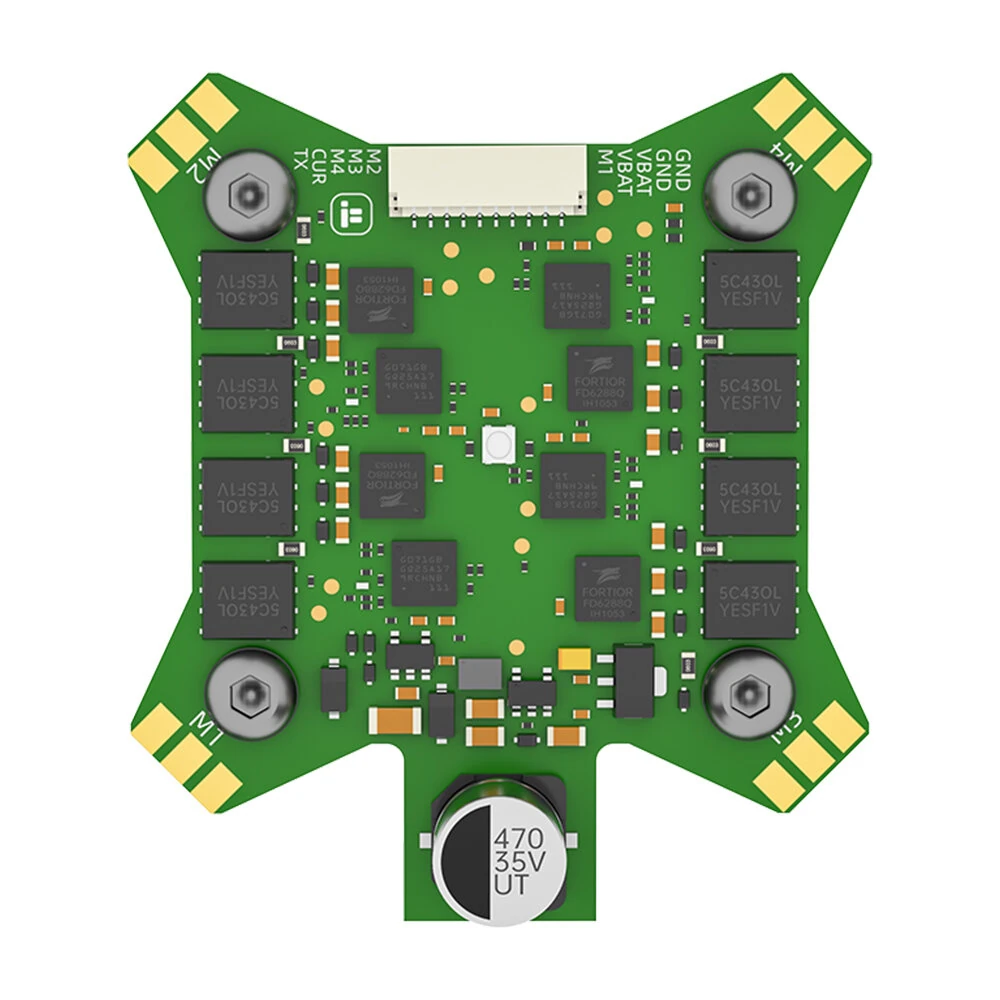

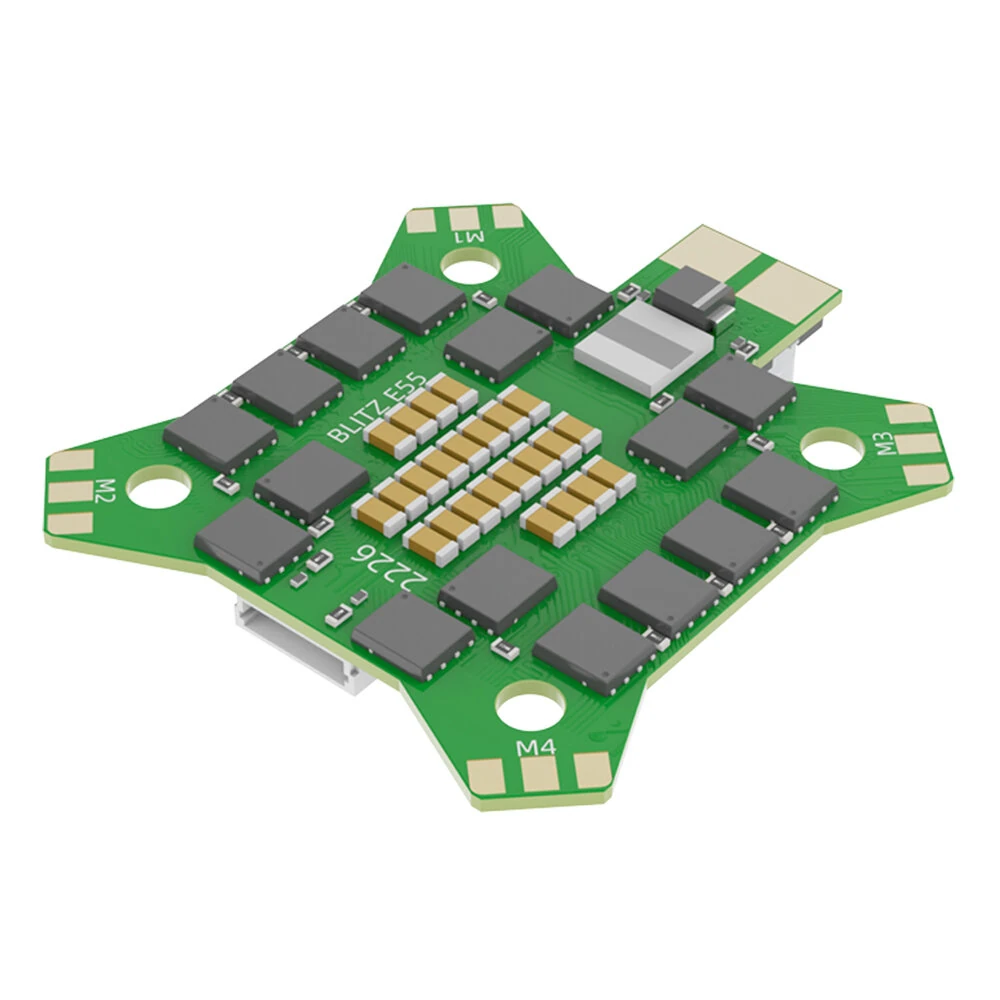

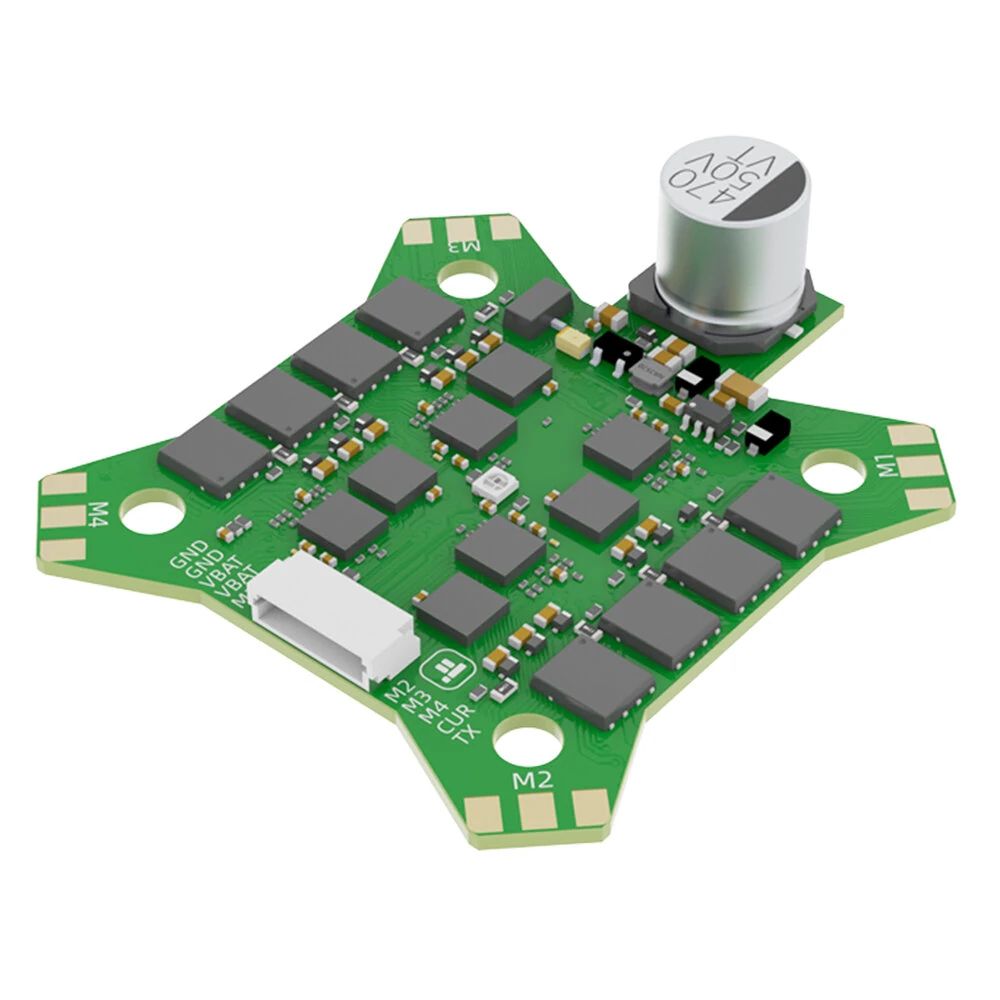

E55 4in1 ESC

Supports 2-6S lipo input MCU: G071 Constant: 55 Amps Burst: 65 Amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: IFLIGHT_BLITZ_G3 32.9 Mounting Holes: 30.5*30.5mm/Φ4mm Weight: 15.3g

Features:
1. Improved circuit design, better components and lower electrical noise!
2. DJI HD VTX Connector (Plug-and-Play / No soldering required).
3. FC indicator LEDs for visual debugging.
4. Support Betaflight, INAV, Ardupilot firmware.

Package Included:

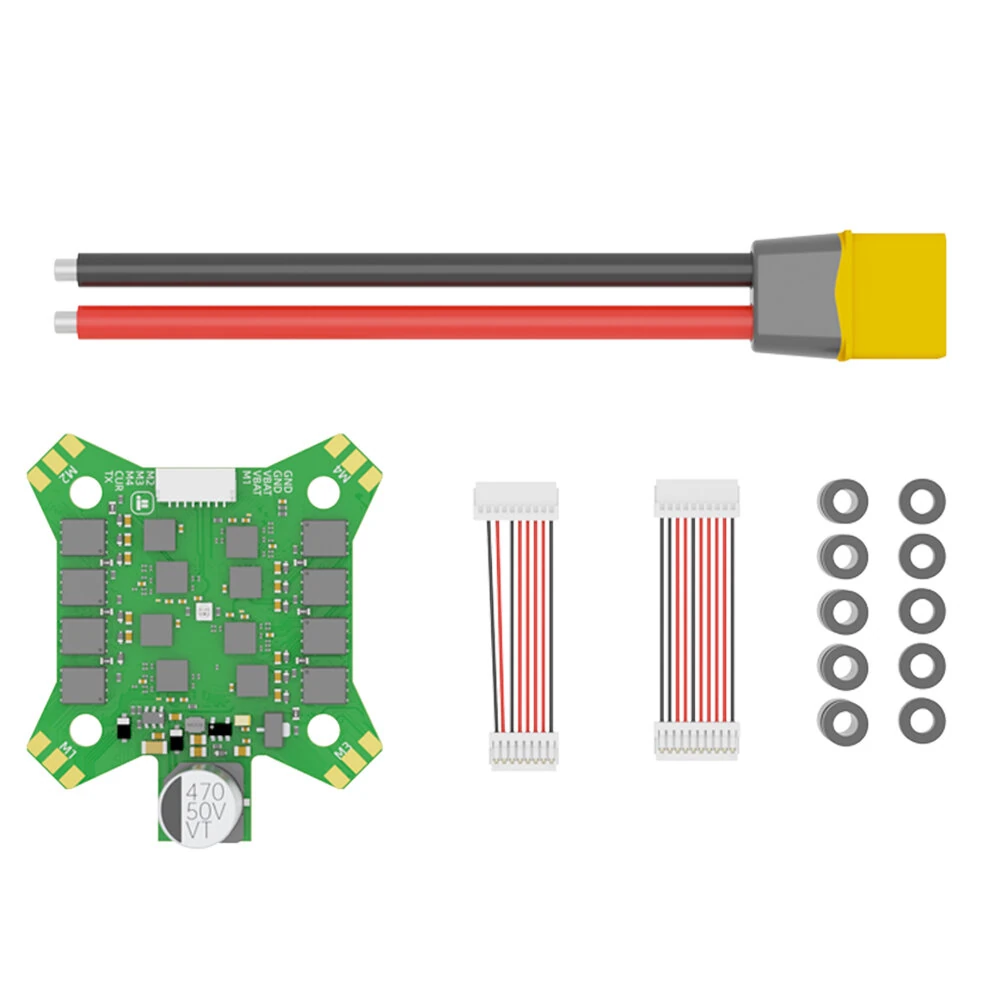

ESC Version	1 x BLITZ E55 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires
FC+ESC Version	1 x BLITZ F745 Flight Controller 1 x BLITZ E55 4IN1 2-6S ESC 1 x silicon grommets 1 x wire harness for F7 Flight controller
