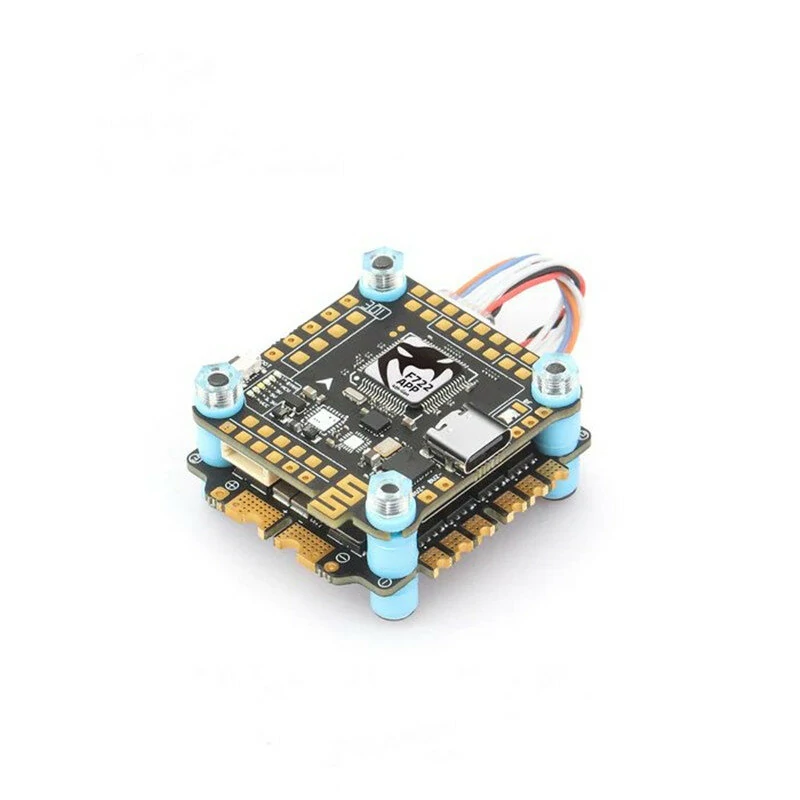

30.5*30.5mm MAMBA Stack MK4 F722 APP 45A 6S 32bit 128K Flytower MPU6000 for FPV Racing RC Drone

30.5*30.5mm MAMBA Stack MK4 F722 APP 45A 6S 32bit 128K Flytower MPU6000 for FPV Racing RC Drone - Image 1
30.5*30.5mm MAMBA Stack MK4 F722 APP 45A 6S 32bit 128K Flytower MPU6000 for FPV Racing RC Drone - Image 2
Awaiting product image YXZNRC F09-S Optical Flow Module RC Helicopter Parts
Original SJRC F22 S2 PRO+ F22S 4K PRO RC Drone Quadcopter Spare Parts 11.1V 3S 3500mAh Intelligent Flight LiPo Battery

30.5*30.5mm MAMBA Stack MK4 F722 APP 45A 6S 32bit 128K Flytower MPU6000 for FPV Racing RC Drone

0 out of 5

$120.31

SKU: POA10523564 Categories: , ,
Add to wishlist

Description

FC Specifications

MAMBA MK4 F722APPMCU: 216MHz STM32F722GYRO: MPU6000Target：MAMBA F722_2022AOSD: YesBlacbox: 16M Flash MemoryBarometer: SPL06Uarts: 6SetI2C: YesF.Port: YesRSSI: NoBuzzer Pad: YesCURR Pad: YesESC Signal: 8 SetESC Soft: Dshot300/600/1200ESC Telemetry: YesPower Led: YesLED Controller:BF LED/MB LEDAIR UNIT Port: YesWIFI: SpeedyBee APP VTX Switch: YesReceiver Protection: YesTVS Protection: Yes BEC:3.3V 0.5A& 5V 3A& 9V 3AInput: 3~6S Lipo (12.6~25.2V)Mounting size: 30.5mm/M3

ESC SpecificationsMAMBA F45_128KInput voltage: 3~6S Lipo (12.6V~25.2V)Continue current:45A×4Burst current:55A (10S)BEC: NoTarget：BLHeli_32 MAMBA F45_128KSOFT: Dshot300/600/1200PWM:24~128KTVS Protection: Yes MOUNTING: 30.5mm/M3Package Included:

MAMBA MK4 F722APP x1

MAMBA F45_128K ESC X1

High Frequency 1000uF/35V ×18pin sh1.0 ×2AIR UNIT sh1.0 ×112AWG 100mm ×2AMASS Original XT60×1

Additional information

Weight 0.108 lbs
Model

FC&ESC
