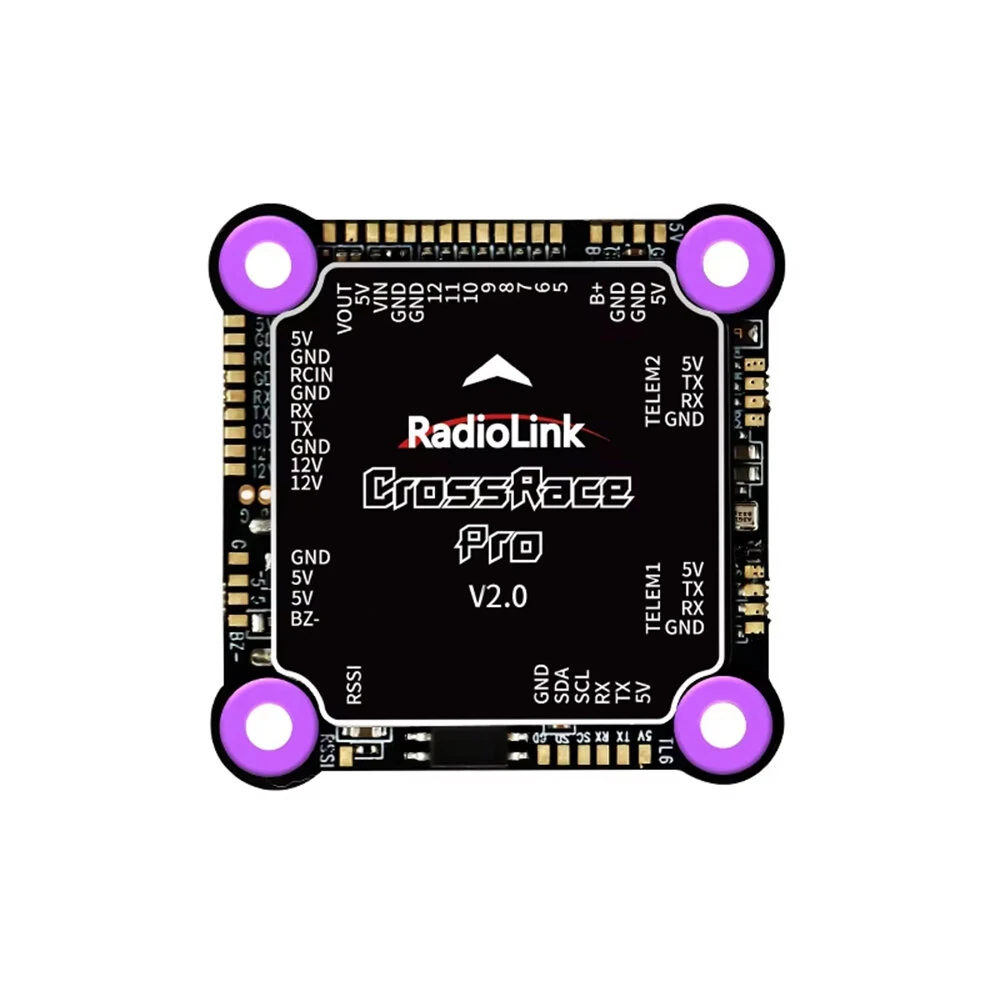

Specification:
Brand: Radiolink
Model: CrossRace Pro
| Item Name |
|
| Flight Controller |

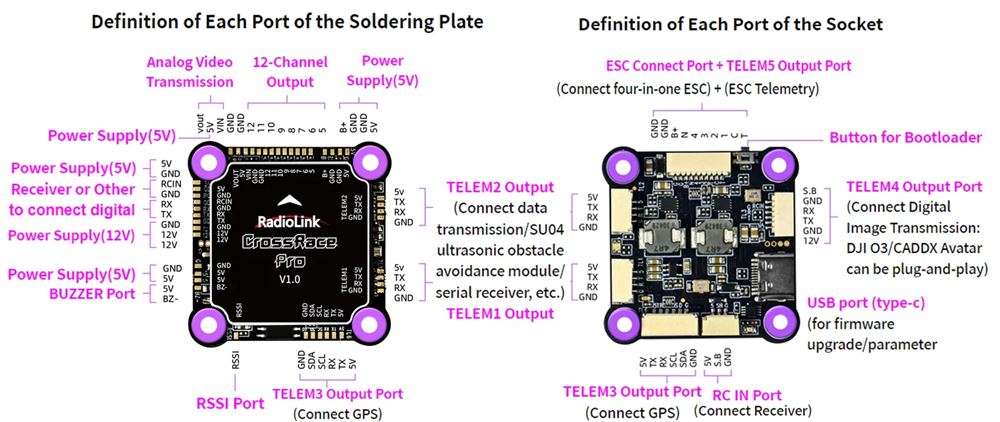

Main Processor: STM32H743 Flight Control Execution Rate: 1000HZ Chip Main Frequency: 480MHZ Gyroscope & Accelerometer: BMI270 Barometer: SPL06 Flash Memory: 128M internal storage, maximum of 2617 waypoints for multicopters Buzzer: 1 Safety Switch: None Connector Types: Socket Connector and Solder Plate Combination ESC Interface: 10PIN ESC interface, supporting voltage and current monitoring, and ESC telemetry BEC: Built-in 5V & 12V dual-route BEC Output Channels: 12-way output channels Mavlink UART Interface: 2 (no hardware flow control) USB Interface: 1 (Type-C) GPS UART Interface / I2C Interface: 1 RC Signal Type: PPM/SBUS Digital Video Transmission Interface: Supports DJI O3 and AV video transmission RSSI Signal Extraction: Supported Video OSD: Supported, with built-in video OSD module Supported ESC Protocols: PWM/DShot Protocol/OneShot Protocol RTK: Supported Input Voltage: 2-6S Input Current: 5A Relay (12V BEC Control): Supports RC channel control for 12V BEC interruption Supported Models: 2-8 axis multi-rotors Operating Power Supply: USB power supply 5V±0.3V Operating Temperature: -30~85°C |

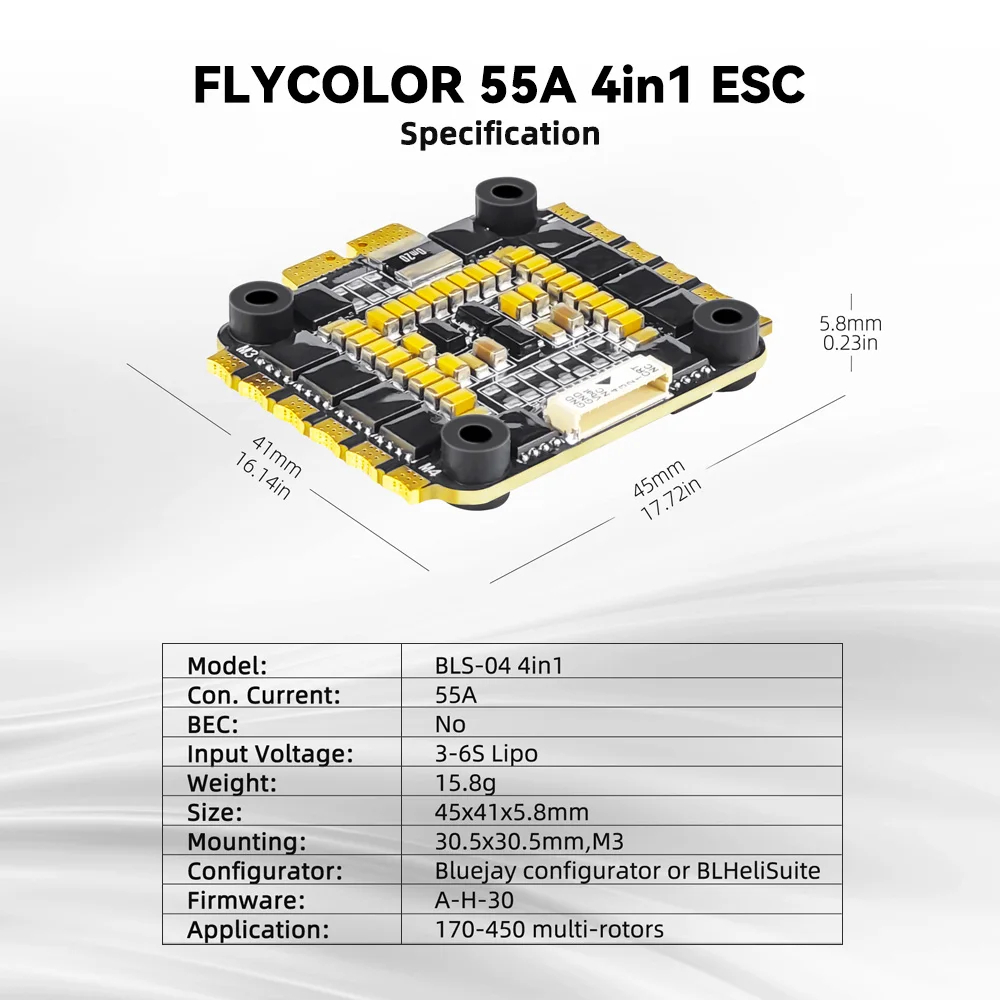

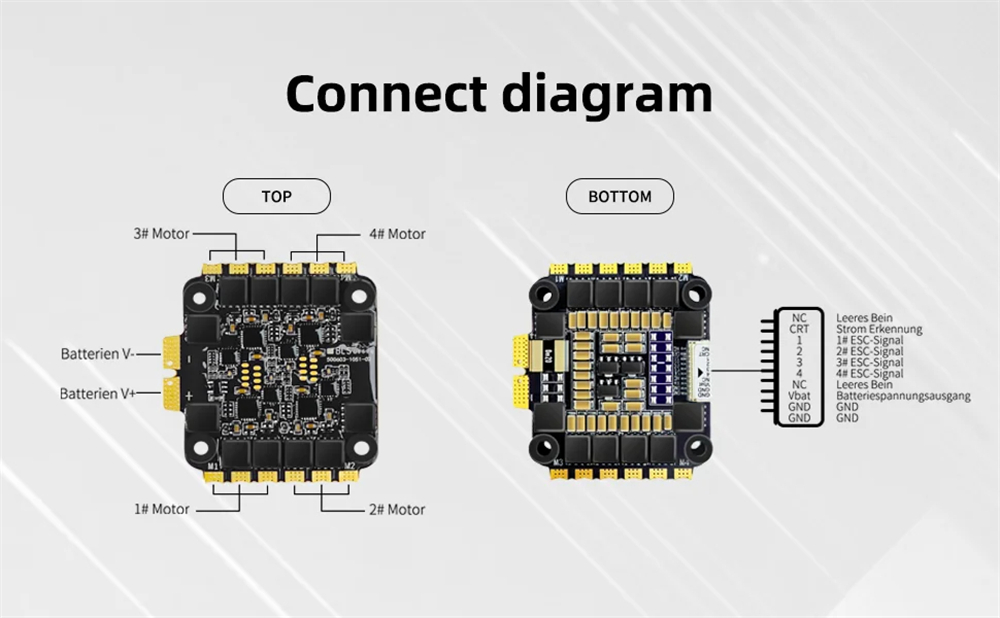

| BLS 4in1 55A ESC |
Continuous Current: 55A BEC: No LiPo Cells: 3-6S Weight: 15.8g Dimensions (reference): 45x41x5.8mm Mounting Hole: 30.5×30.5mm, M3 Configuration Software: Bluejay configurator or BLHeliSuite Firmware: A-H-30 |
Feature:

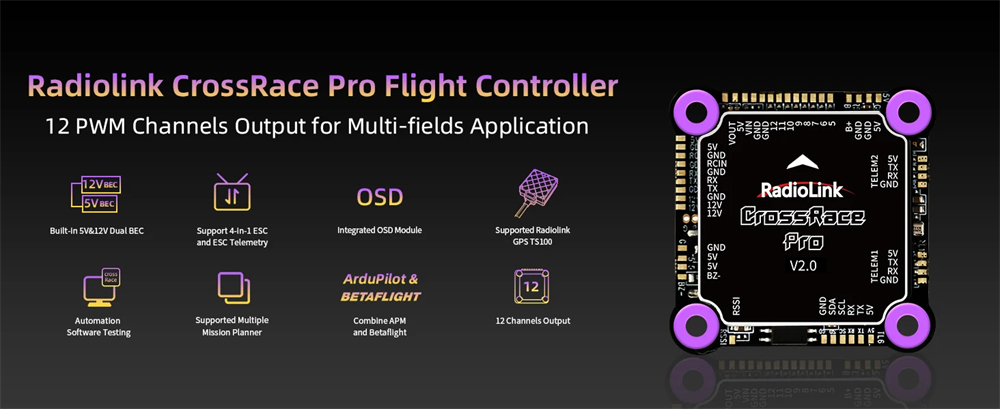

– Ultra-high performance flight control system
Equipped with STM32H743 main processor, running frequency 1000Hz, with BMI270 gyroscope, providing extreme flight response speed and stability

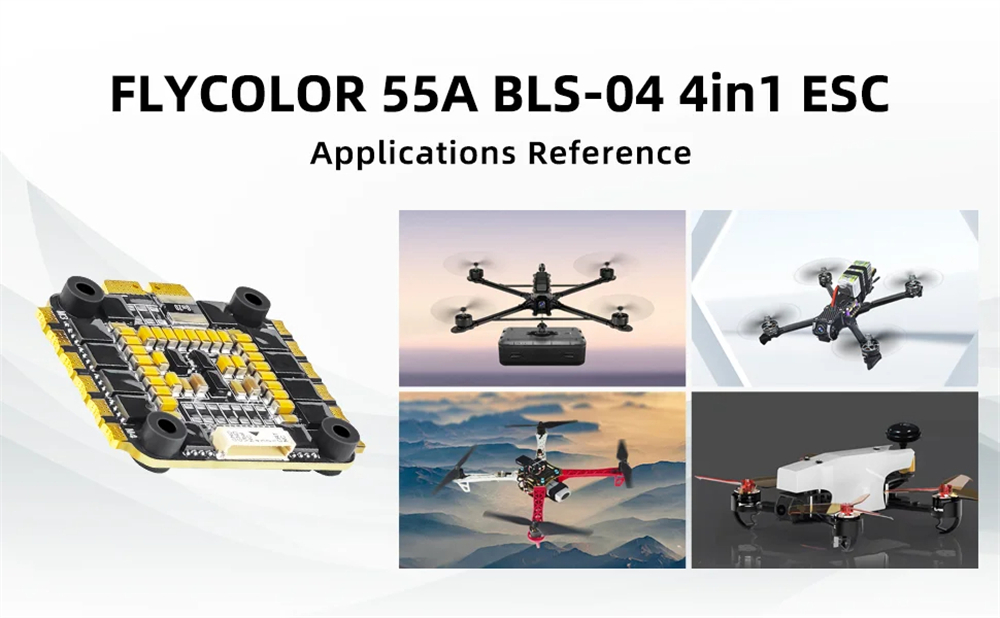

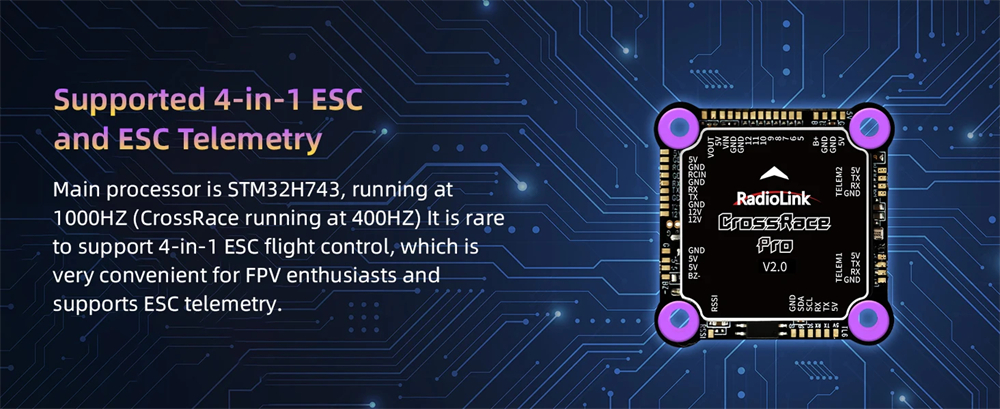

– 55A high current 4-in-1 ESC
BLS 4-in-1 ESC supports 55A continuous current, 3-6S input voltage, designed for high-performance FPV racing drones

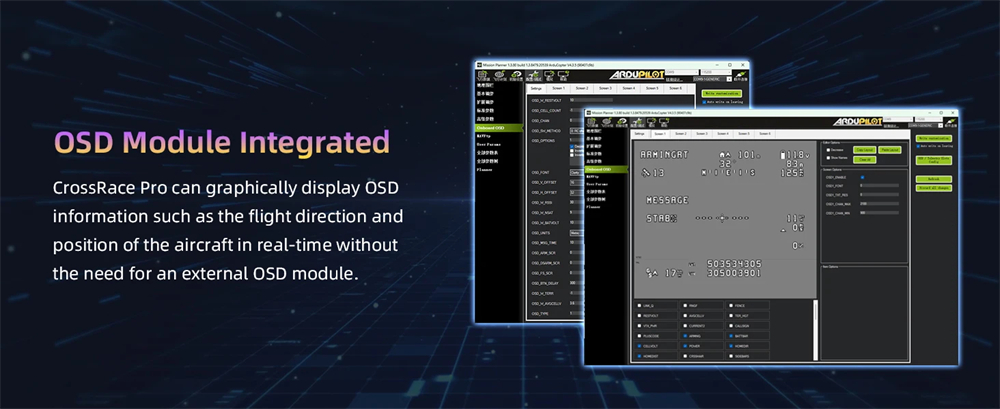

– Built-in OSD module
Integrated professional-grade OSD display function, supports digital image transmission systems such as DJI O3, no additional wiring required
– Dual-channel BEC power supply system:
Built-in 5V and 12V dual-channel BEC power supply, maximum support 3A output, providing stable power for various peripherals

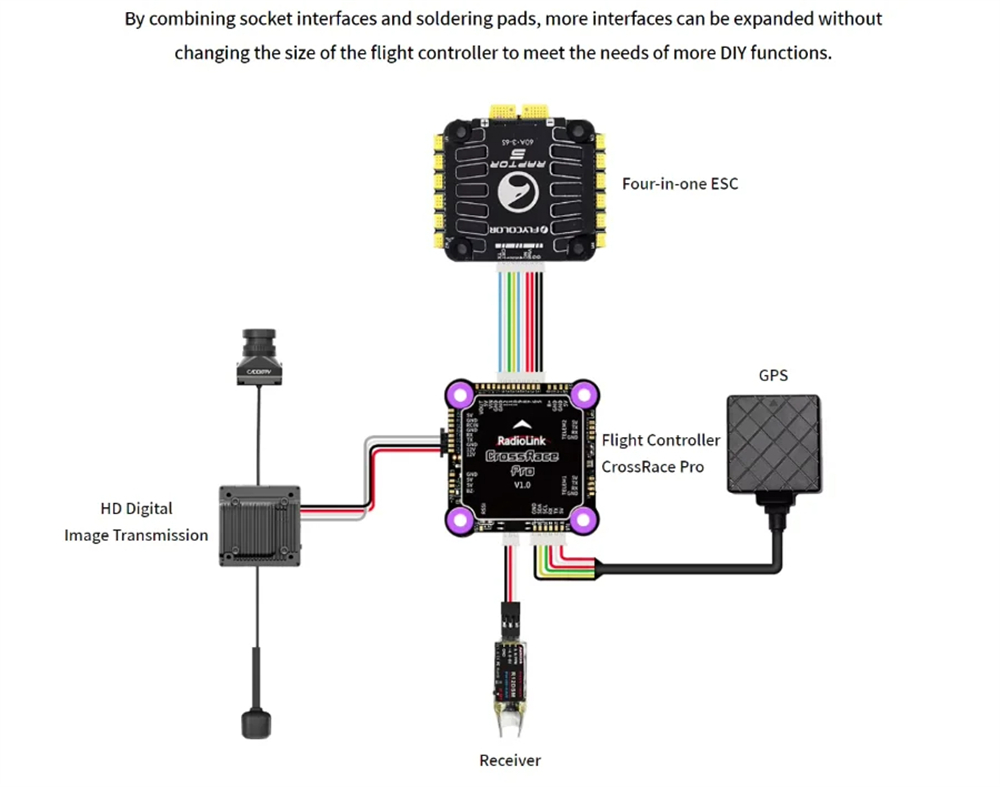

– Professional expansion interface
Provides 12-channel PWM output, 2 Mavlink UART interfaces, GPS/I2C interface, supports RTK and multiple ESC protocols to meet professional needs

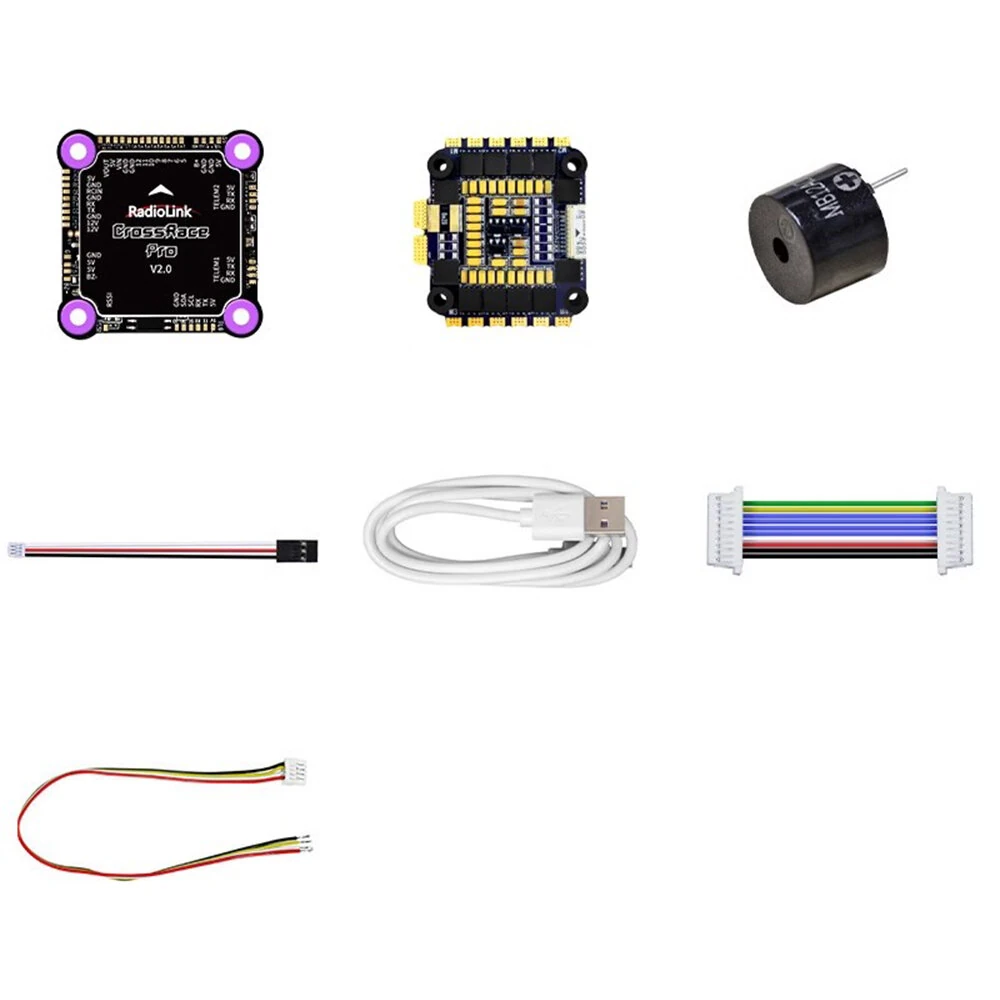

Package Included:
1x Flight Controller
1x ESC
1x Buzzer (must be welded)
2x TELEM1 and 2 Ports Connection Cable
1x USB Cable (upgrade or configuration)
1x ESC Four Connection Cable in One
1x Receiver Connection Cable mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’>
mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’>1x Packaging Box
mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’> mso-bidi-font-family:’Times New Roman’;font-size:10.5000pt;mso-font-kerning:1.0000pt;’>
