Features:
1. STM32F405 High-Performance Chip: The inclusion of the STM32F405RGT6 main control chip ensures advanced processing capabilities and reliable performance.
2. Dual BEC Output: Features dual BEC outputs with 5V/3A and 9V/2.5A, providing stable power for your flight setup.
3. OSD and Blackbox Support: Integrates OSD functionality and a 16MB black box to record flight data for detailed analysis.
4. Compatible Protocols: Supports multiple receiver protocols including ELRS, CRSF, SBUS, Frsky, Futab, and TBS Crossfire/DSMX.
5. Type-C Connector: Comes with a Type-C USB connector for easy and fast configuration and firmware updates.

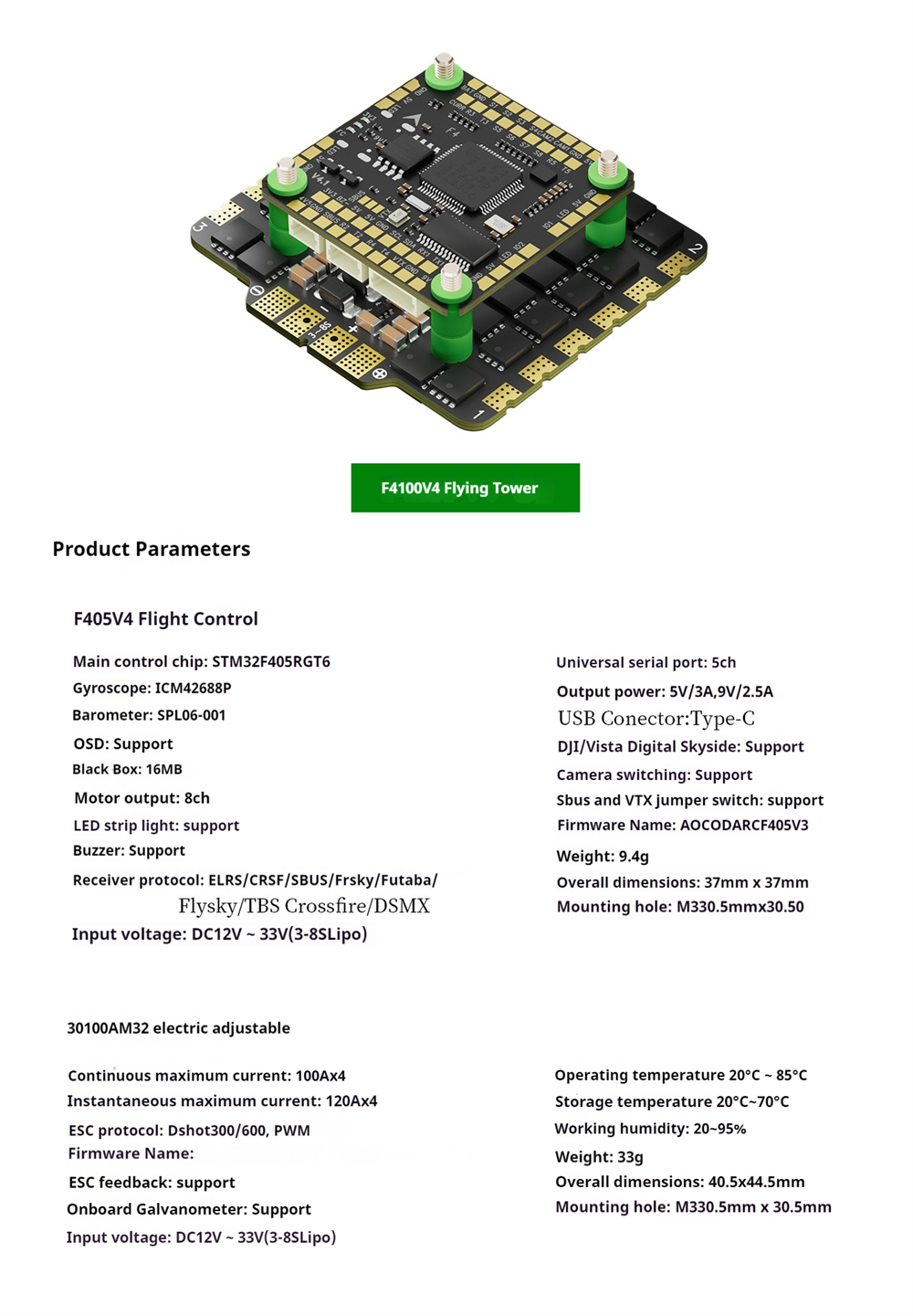

Specifications:
Brand: Aocoda-RC

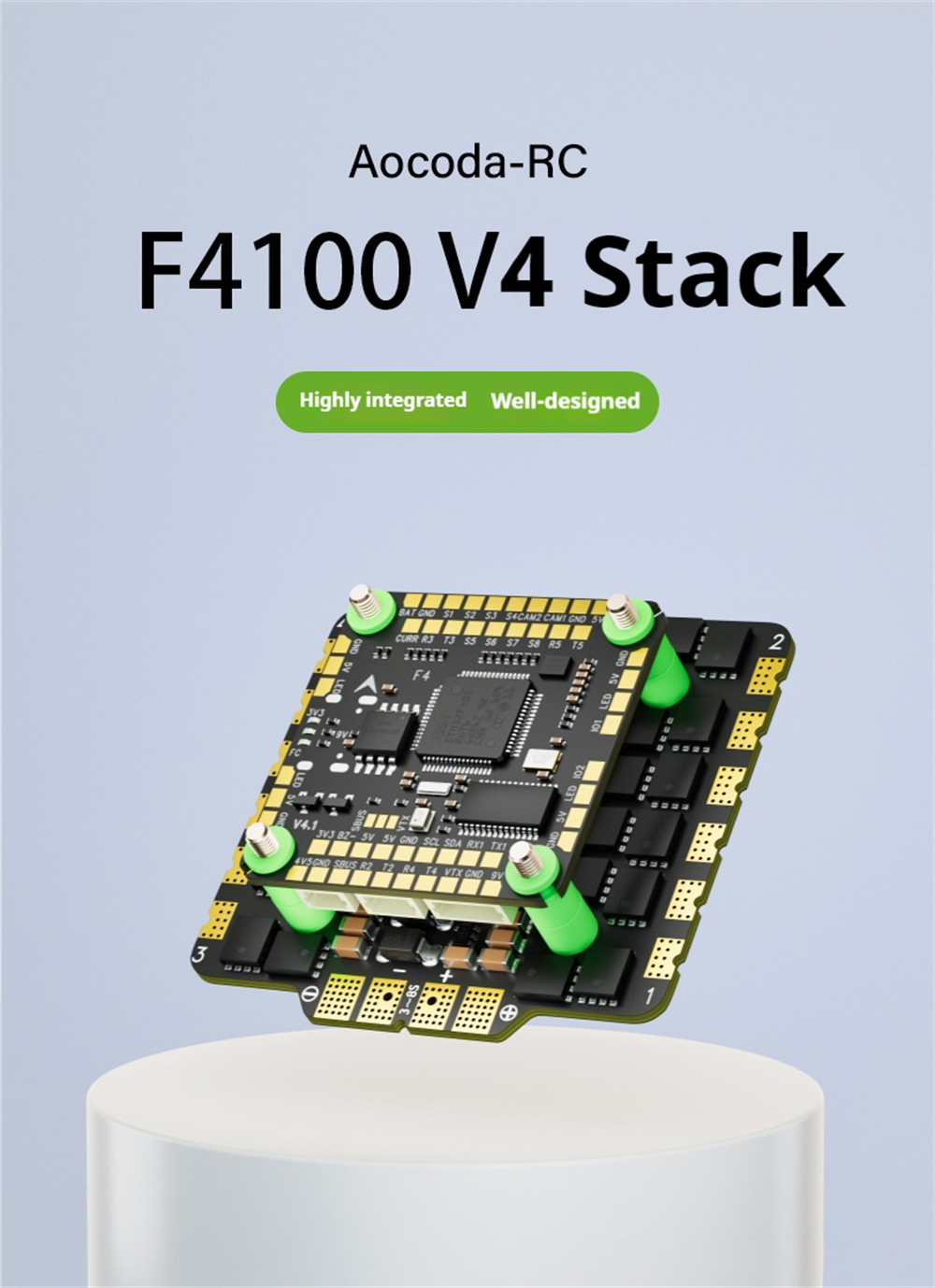

Model: F4100 V4 Stack
| Item |
Specification |

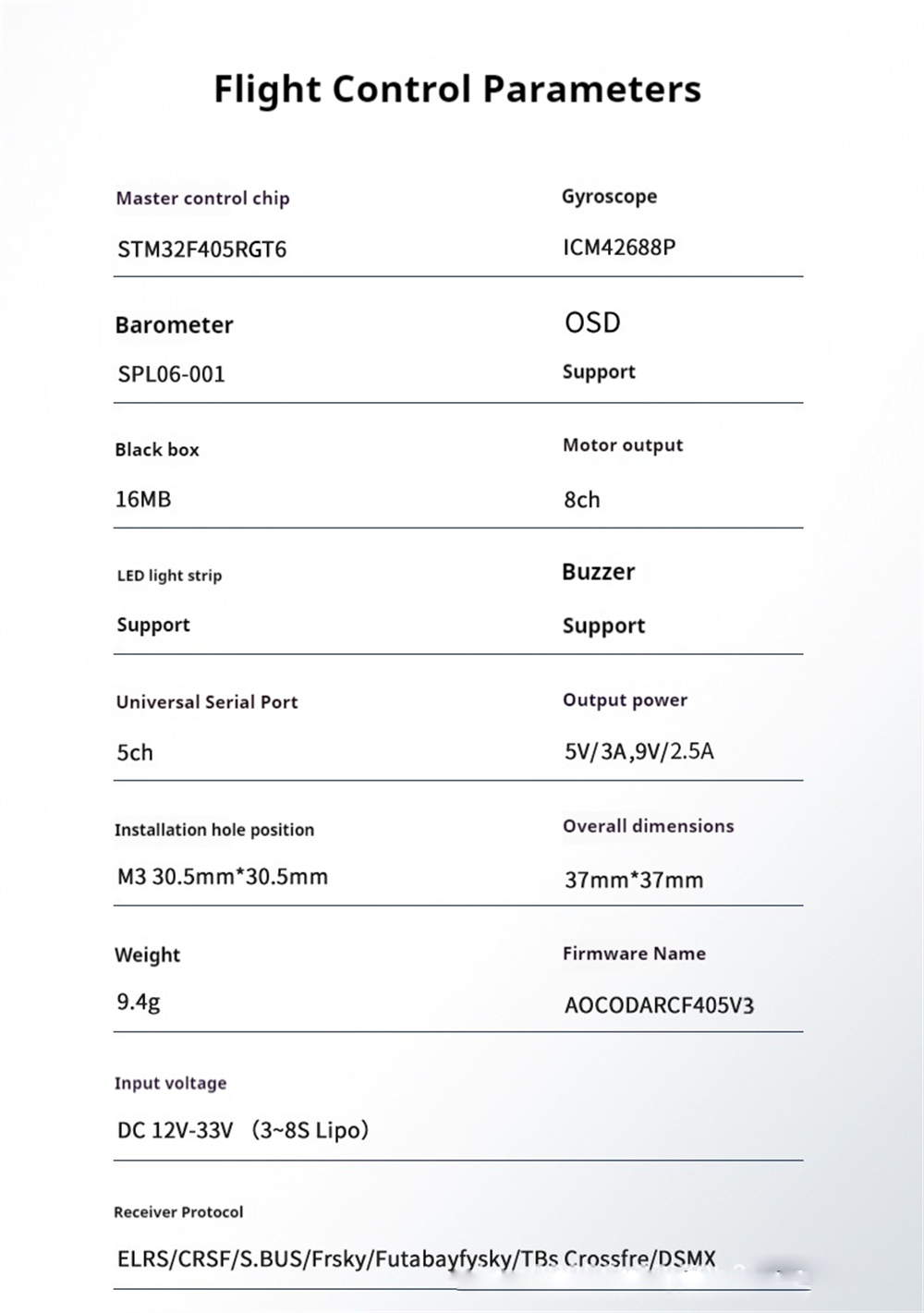

| F405 V4 Flight Controller |

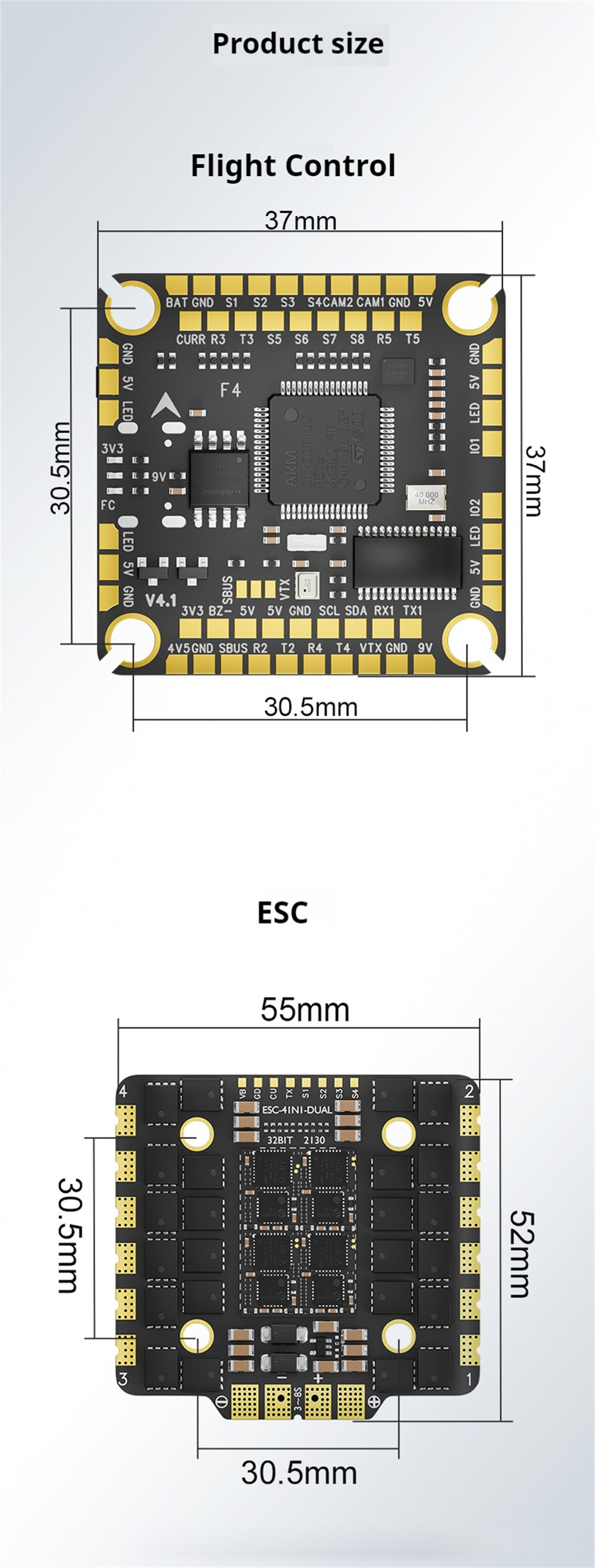

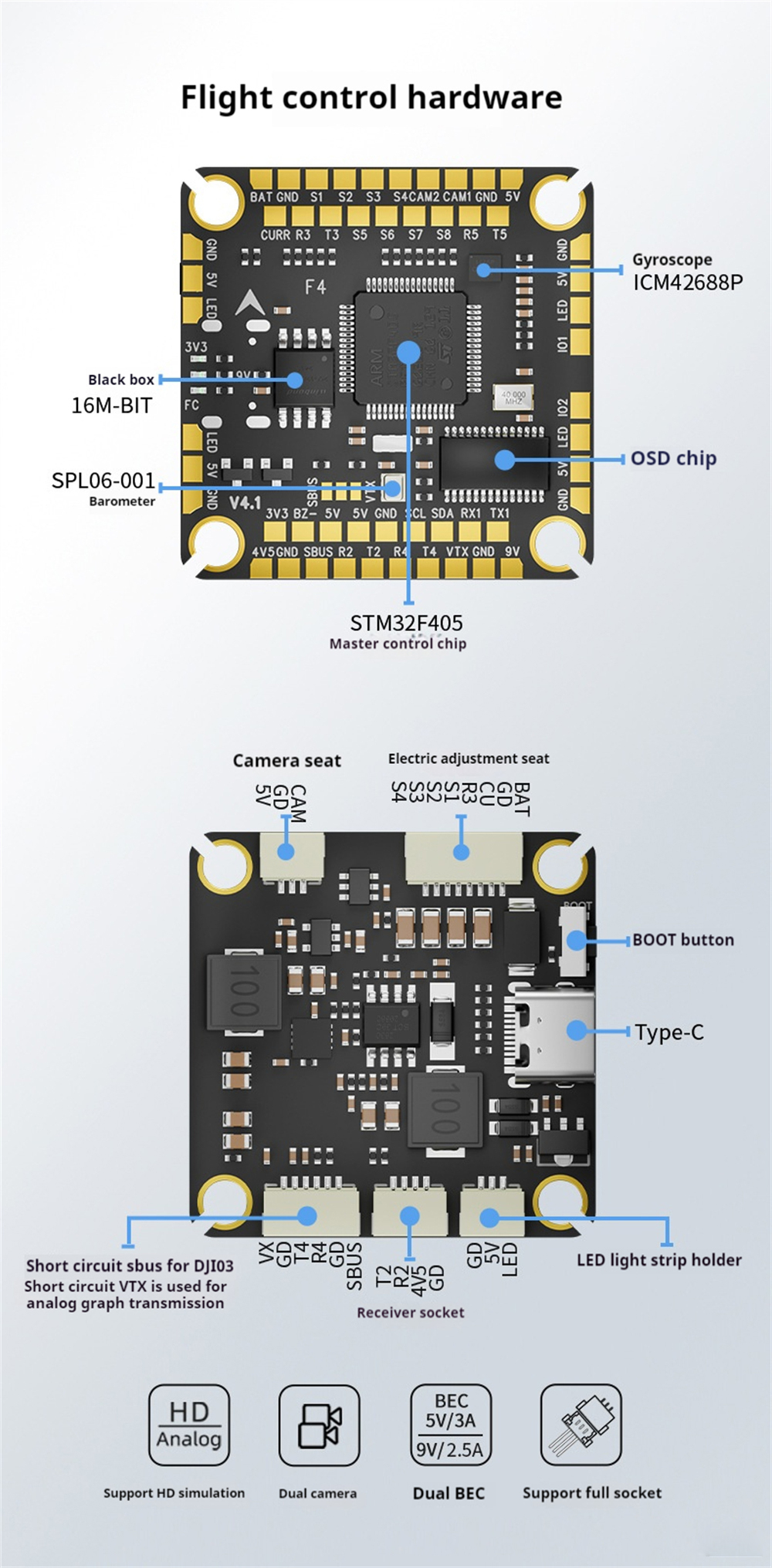

Main Chip: STM32F405RGT6 Gyroscope: ICM42688P Barometer: SPL06-001 OSD: Supported Black Box: 16MB Motor Output: 8 channels LED Strip: Supported Buzzer: Supported Receiver Protocol: ELRS/CRSF/SBUS/Frsky/Futab/Flysky/TBS Crossfire/DSMX Input Voltage: DC 12V~33V (3-8S Lipo) UART Ports: 5 ports Output Power: 5V/3A, 9V/2.5A USB Connector: Type-C DJI/Vista Digital FPV: Supported Camera Control: Supported SBUS and VTX Signal Switch: Supported Product Name: AOCODARCF405V3 Weight: 9.4g Dimensions: 37mm x 37mm Mounting Holes: M3 30.5mm x 30.5mm |

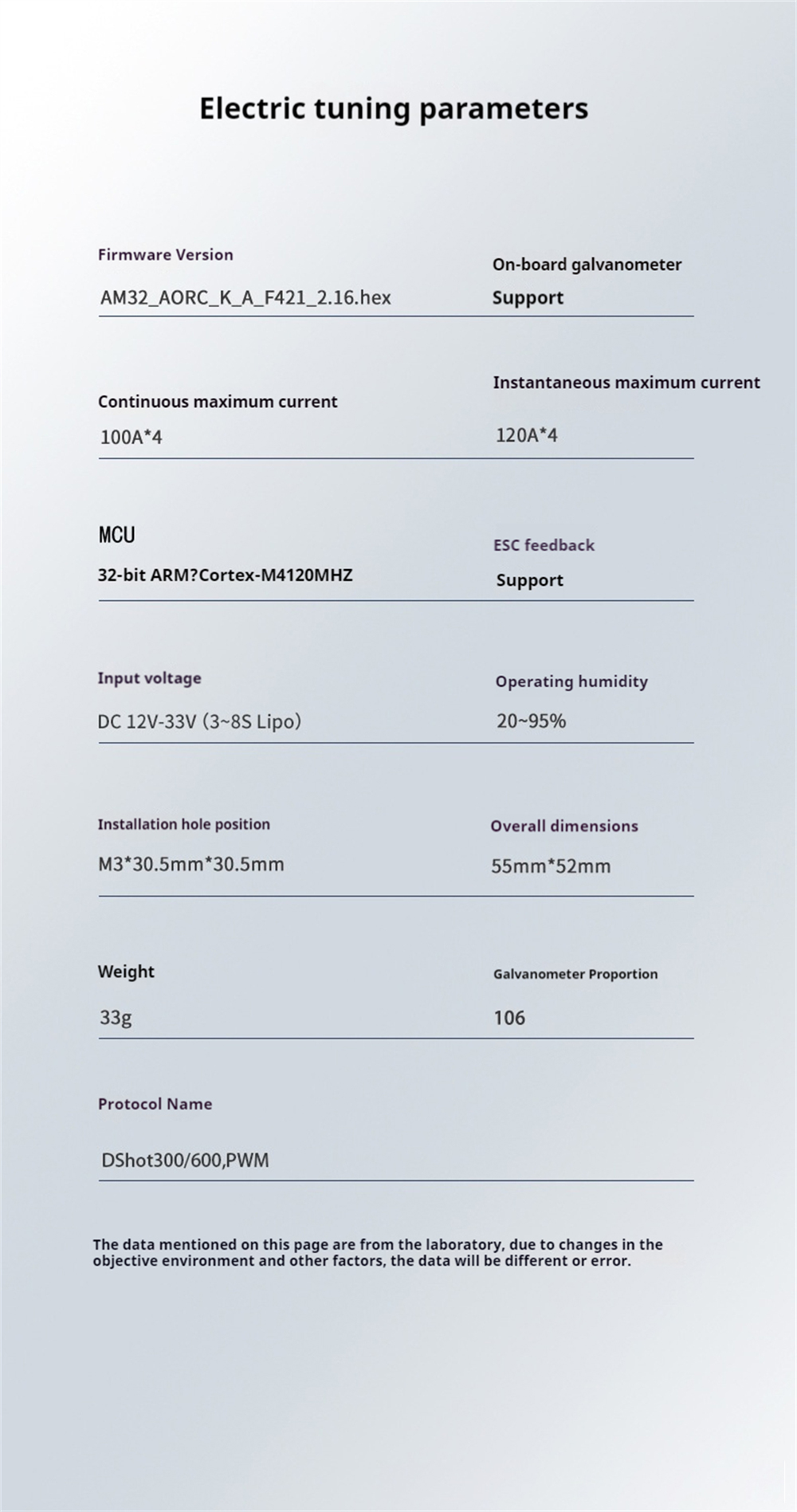

| 30100 ESC |
Continuous Current: 100A x 4 Burst Current: 120A x 4 ESC Protocol: Dshot300/600, PWM Firmware Name: AM32_AORC_K_A_F421_2.16.hex Telemetry: Supported Board Current: Supported Input Voltage: DC 12V~33V (3-8S Lipo) Operating Temperature: 20°C ~ +85°C Storage Temperature: 20°C ~ +70°C Working Humidity: 20% ~ 95% Weight: 33g Dimensions: 40.5mm x 44.5mm Mounting Holes: M3 30.5mm x 30.5mm |

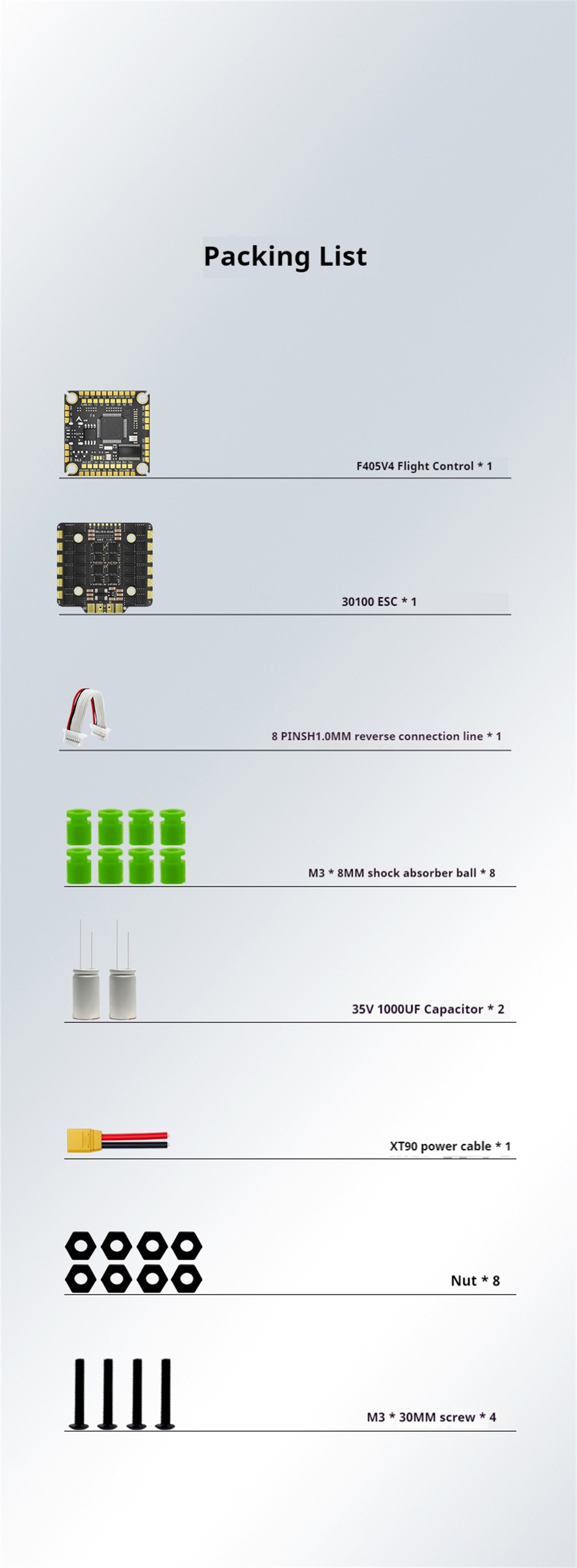

Package Included:
1 x Flight Controller
1 x ESC
1 x 8PIN SH1.0MM Reverse Connection Cable
8 x M3*8MM Shock-absorbing Ball
2 x 35V 1000UF Capacitors
1 x XT90 Power Cable
8 x Nuts
4 x M3*30MM Screws
