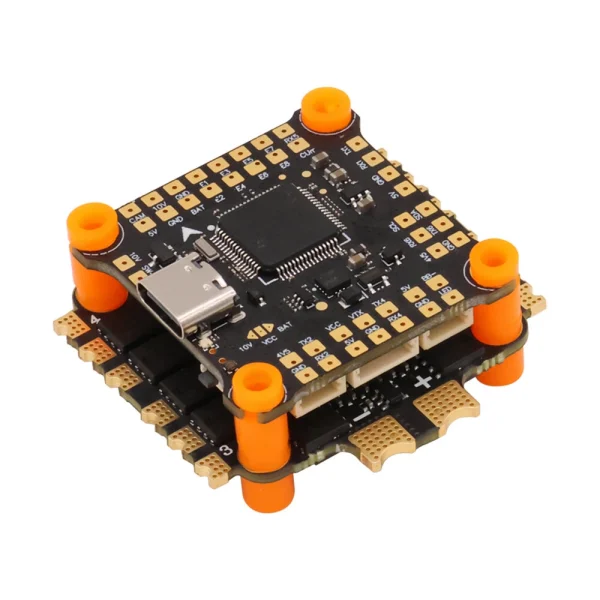

30.5×30.5mm HAKRC 45A F4V2 Stack F4 Flight Controller 2-6S with 5V 10V BEC & 45A BLHeli_S 4in1 Brushless ESC for RC Drone FPV Racing

Stack Specifications:
Brand: HAKRC

Model: 45A F4V2 Stack
Product size: 44*44*22 mm
Product net weight: 22g
Packing size: Φ62*33mm
Package weight: 60 g
Fixed hole position: 30.5*30.5mm
Fixed aperture: M4

Flight Controller Specifications:
Net Weight: 8.5g
Dimension: 36x36mm
Mounting Hole Spacing: 30.5*30.5mm Φ4mm
Processor: STM32F405RET6
Gyroscope: ICM42688
BEC: 5V/3A ; 10V/2.5A
Storage: 16MB
Input Voltage: 2S—6S
Firmware: HAKRCF405V2
Uart Ports: 5
Features four programmable rainbow LEDs
Comes with a 6P sky socket
RX2 interfaces with SBUS

ESC Specifications:
Dimension: 44mm*44mm
Net Weight: 13.5g
Mounting Hole Spacing: 20/30.5mm-20/30.5mm Φ4mm
Continuous Current: 45A
Peak Current: 50A (10s)
Input Voltage: 2S-6S
Current Ratio: 160
Configuration Software: BLHeliSuite16.7.14.9.0.3
Supports signal modes: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600

Features:

High-Performance Processor: With a STM32F405RET6 processor, enjoy smoother, more precise flight control that sets our drone apart.

Advanced Gyroscope: The ICM42688 gyroscope ensures stability during the most daring aerial maneuvers.

Powerful ESC: Our kit includes a 45A ESC that handles a peak current of 50A for 10 seconds, ideal for high-performance drones.

Programmable LEDs: Customize your flight experience with four programmable rainbow LEDs, giving your drone a unique aesthetic touch.

Versatile Compatibility: With support for signal modes like PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, and a range of input voltages (2S-6S), this flight controller adapts to your drone’s specific needs.

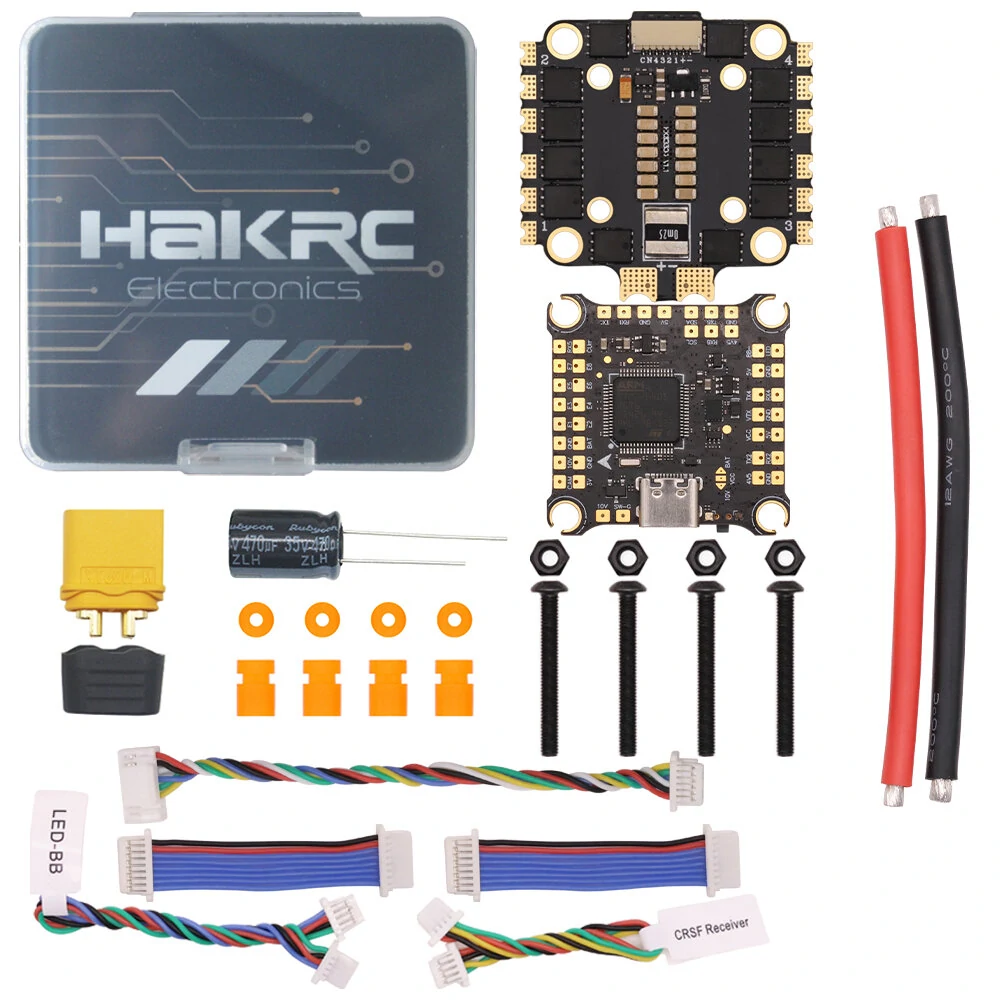

Package Includes:
1x F4 Flight Controller

1x 45A 4in1 ESC
8x M3 Orange Shock Absorbers
2x 8P Cables
1x LED 4P Cable
1x CRSF Receiver 4P Cable
1x DJI 6P Connection Cable
1x Capacitor (35v470uf)
1x XT60 Power Plug
1x Red and Black Power Cable
4x M3x25mm Screws
4x Black Nuts
