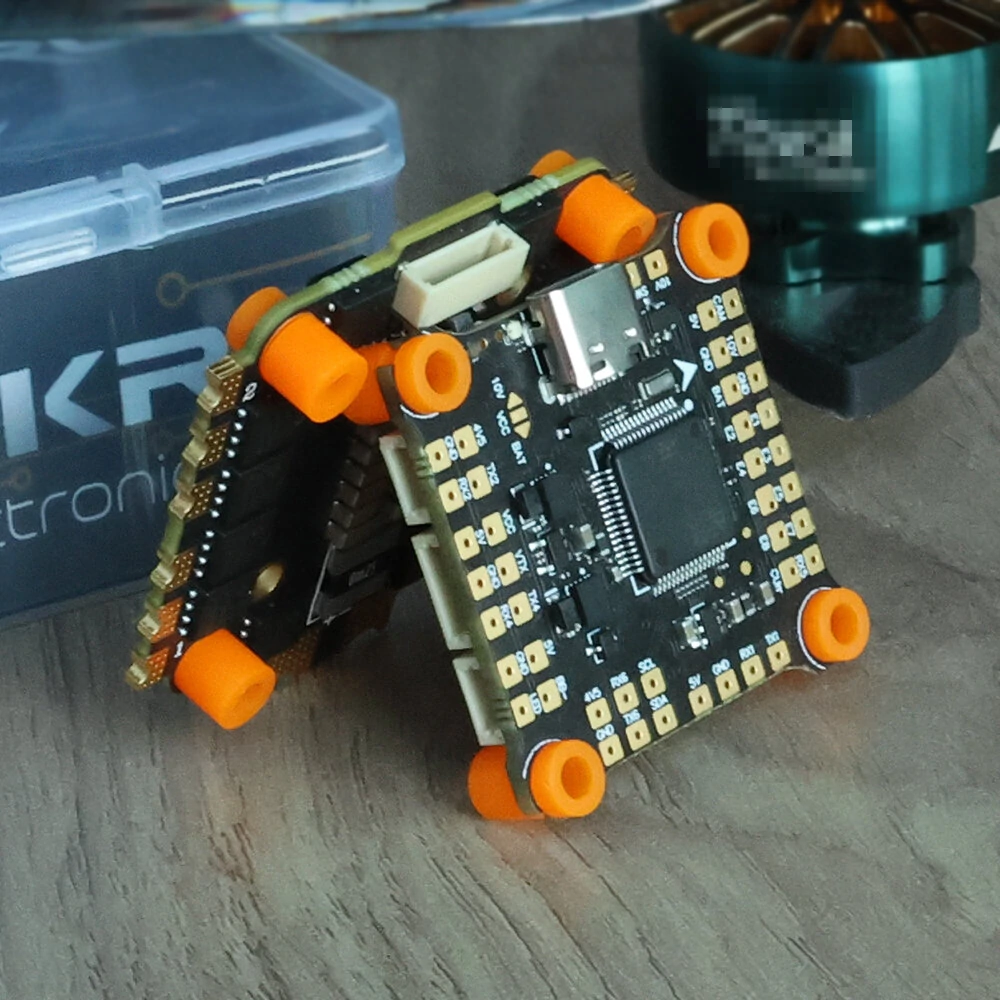

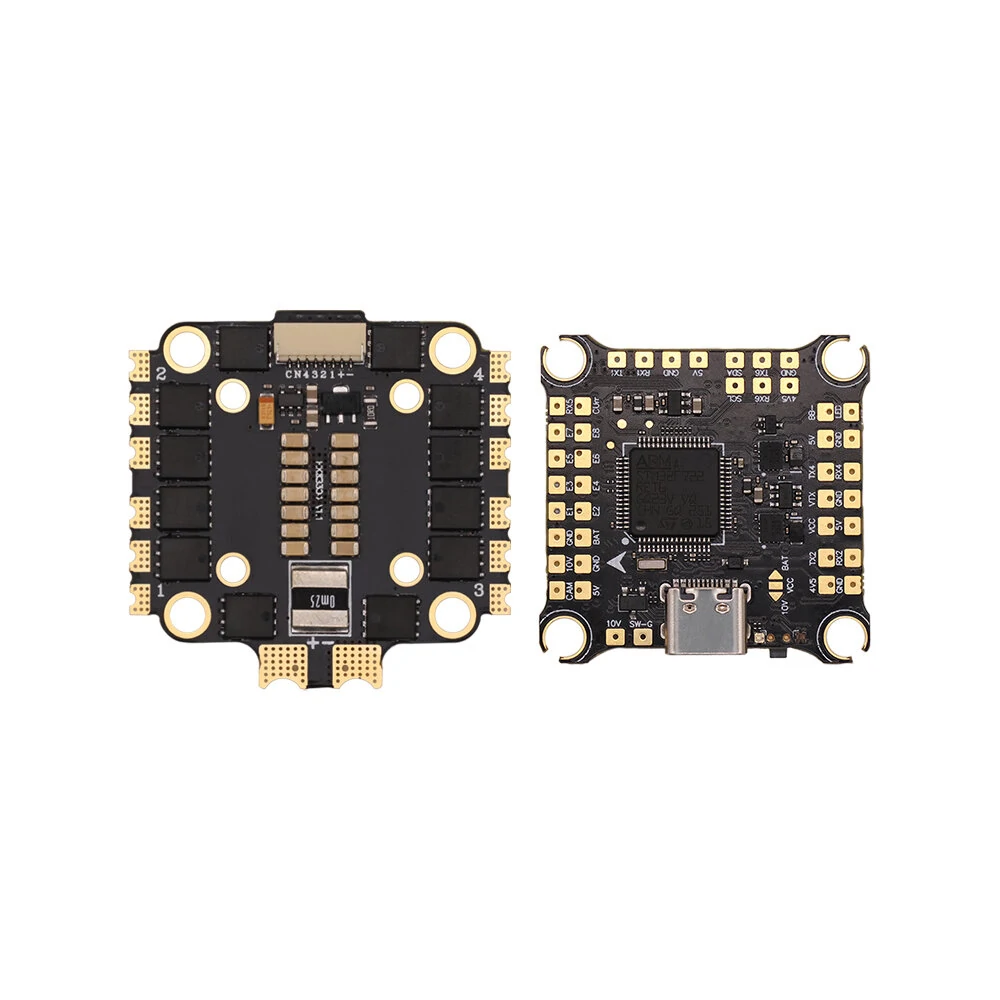

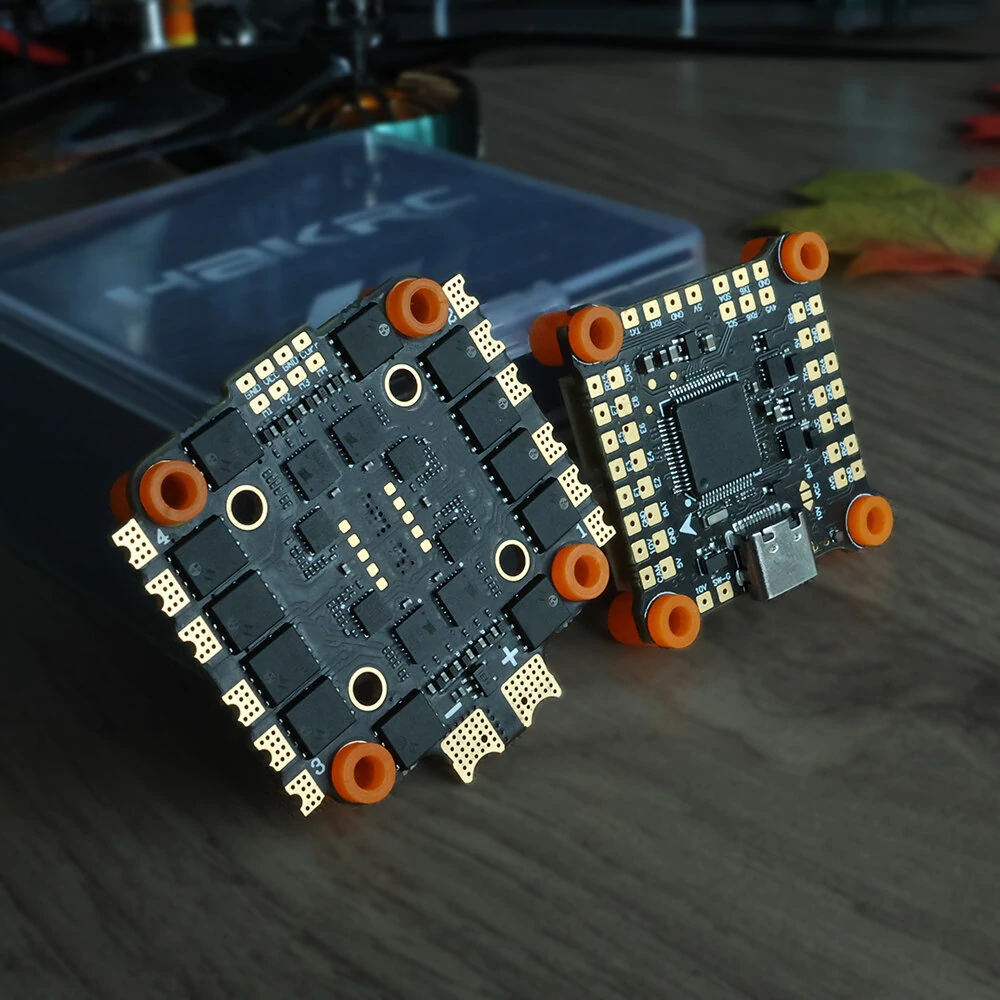

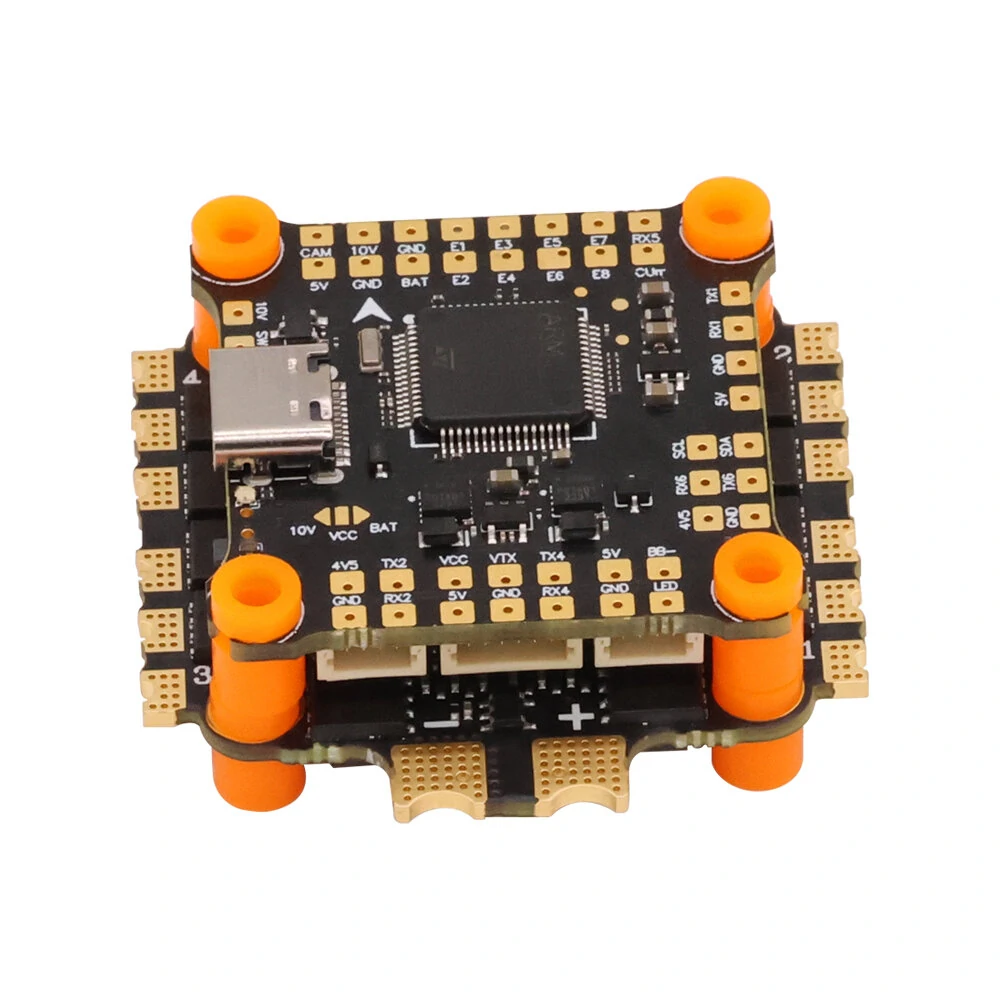

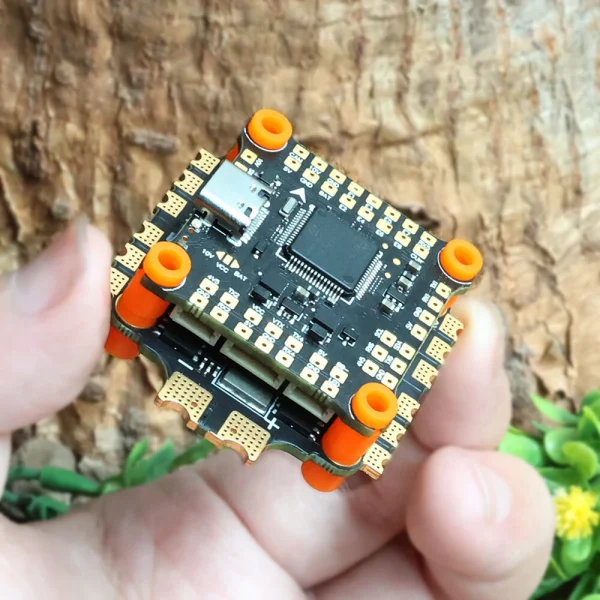

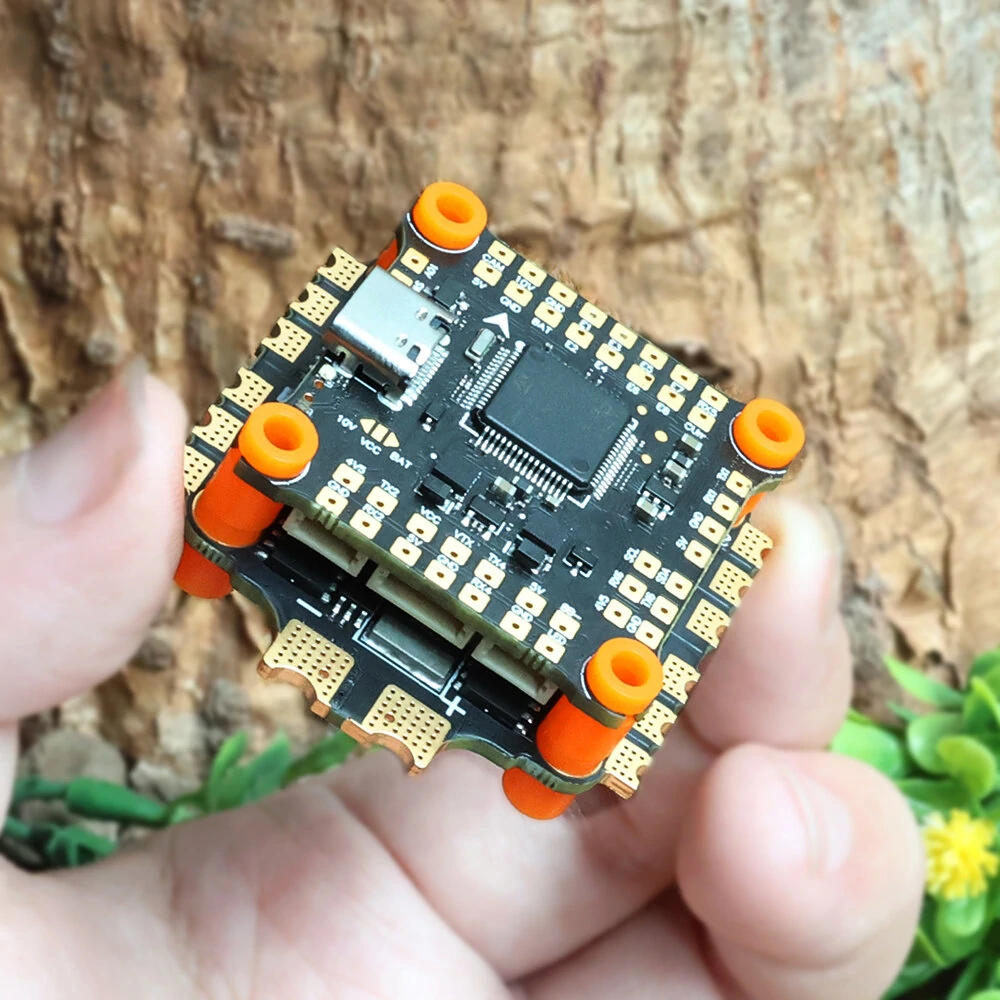

Notice: Upgrade into new V2 Version like photos showed.
July 19th, 2023. BeiJing Time
Specification:
Brand: HAKRC
| New V2 Version | Old Version |
|
Model: 45AF7 V2 Stack Stack Net Weight: 23g Packing Size: 64x64x35mm Packing Weight: 71.5g Flight Controller: Installation Hole Distance: 30.5×30.5mm, φ4mm ESC: Input Voltage: 2-6S ESC Hole Distance: 30.5*30.5/20*20mm, Φ4mm |
Model: F722 DJI 45A Stack Packing Size: Φ62*33mm Stack Weight: 25g Packing Weight: 30g Flight Controller: Installation Hole Distance: 30.5*30.5mm, φ4mm Processor: STM32F722RET6 Gyroscope: MPU6500 BEC: 5V/3A; 9V/2.5A Storage: 16MB Input Voltage: 3-6S Firmware: Betaflight_4.1.0_MATEK722se Uart serial port: 5 FC Size: 36x36mm
FC Net Weight: 8g ESC: ESC Hole Distance: 30.5*30.5/20*20mm, Φ3mm Continuous Current: 45A Maximum Current: 50A (Sustainable 10S) Assistant Software: BLHeliSuite Input Voltage: 2S-6S Drive Signal Support: Dshot150/300/600, Multishot, PWM, Oneshot. ESC Size: 44*44*5.5mm
ESC Net Weight: 14g |

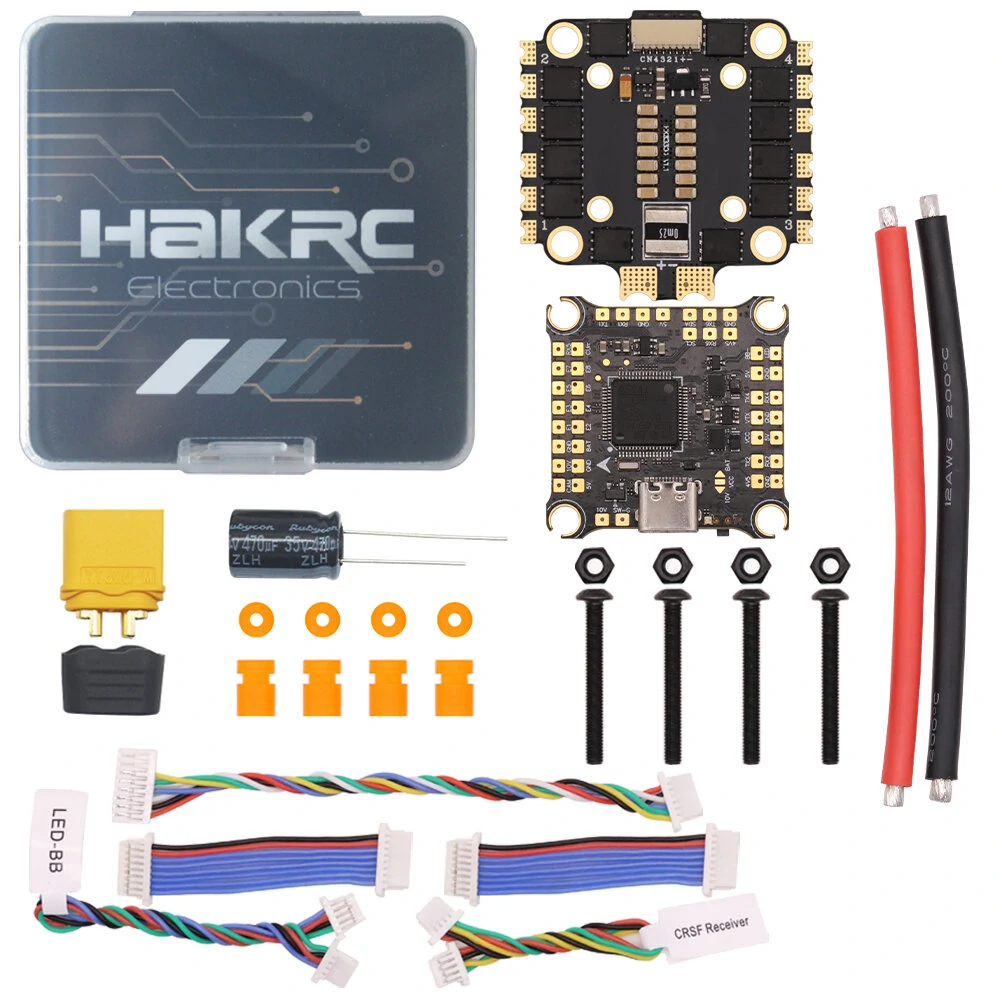

Package Included:
1 x HAKRC F7 Flight Controller
1 x HAKRC 45A 4in1 ESC
8 x M3 Orange Shock Absorption
2 x 8p Cable
1 x 4p LED Cable
1 x 4P CRSF Receiver Cable
1 x 6P Cable for DJI Digital System
1 x Capacitor (35v470uf)
1 x XT60 Plug
1 x Red and Black Cable
4 x M3*25 Screws
4 x Black Nuts
