Description
Specification:
Brand: Holybro

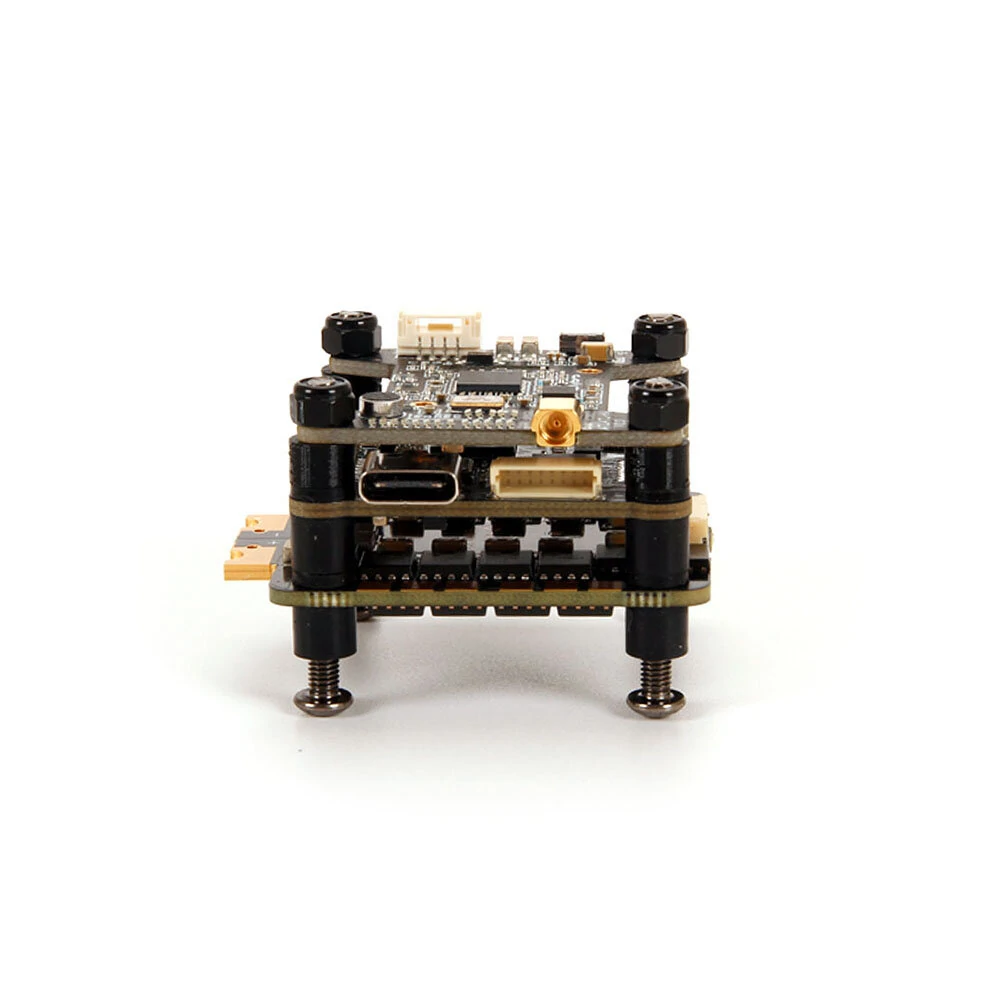

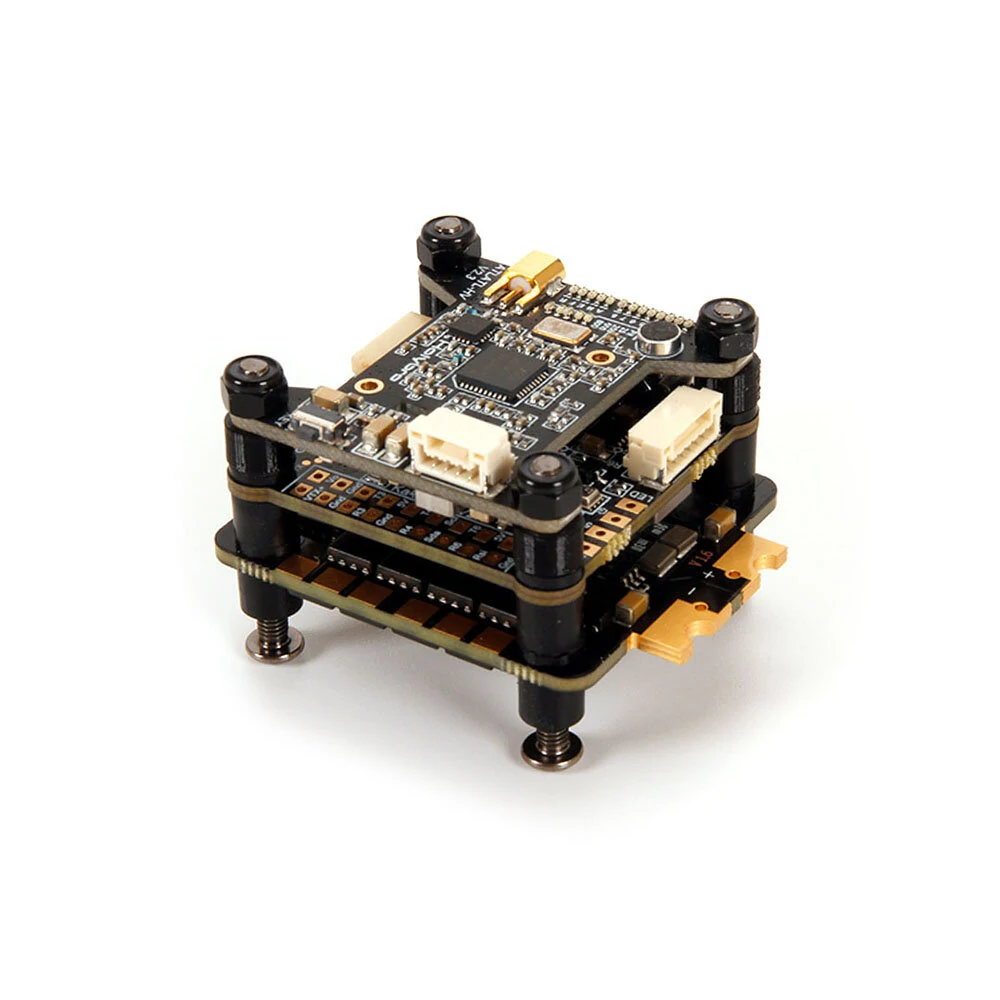

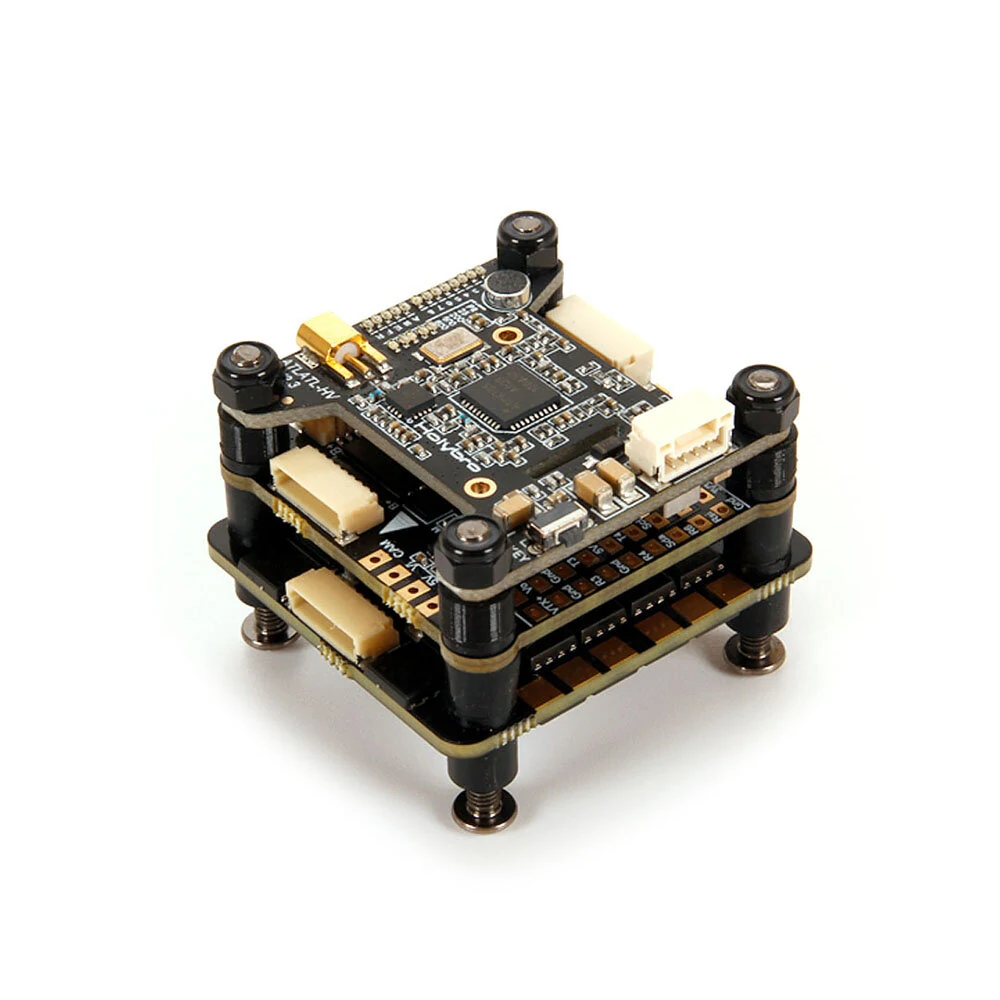

Model: KAKUTE H7 V1.3 Tekko32 F4 4in1 50A ESC Stack
Optional Version: NO VTX / With VTX
|

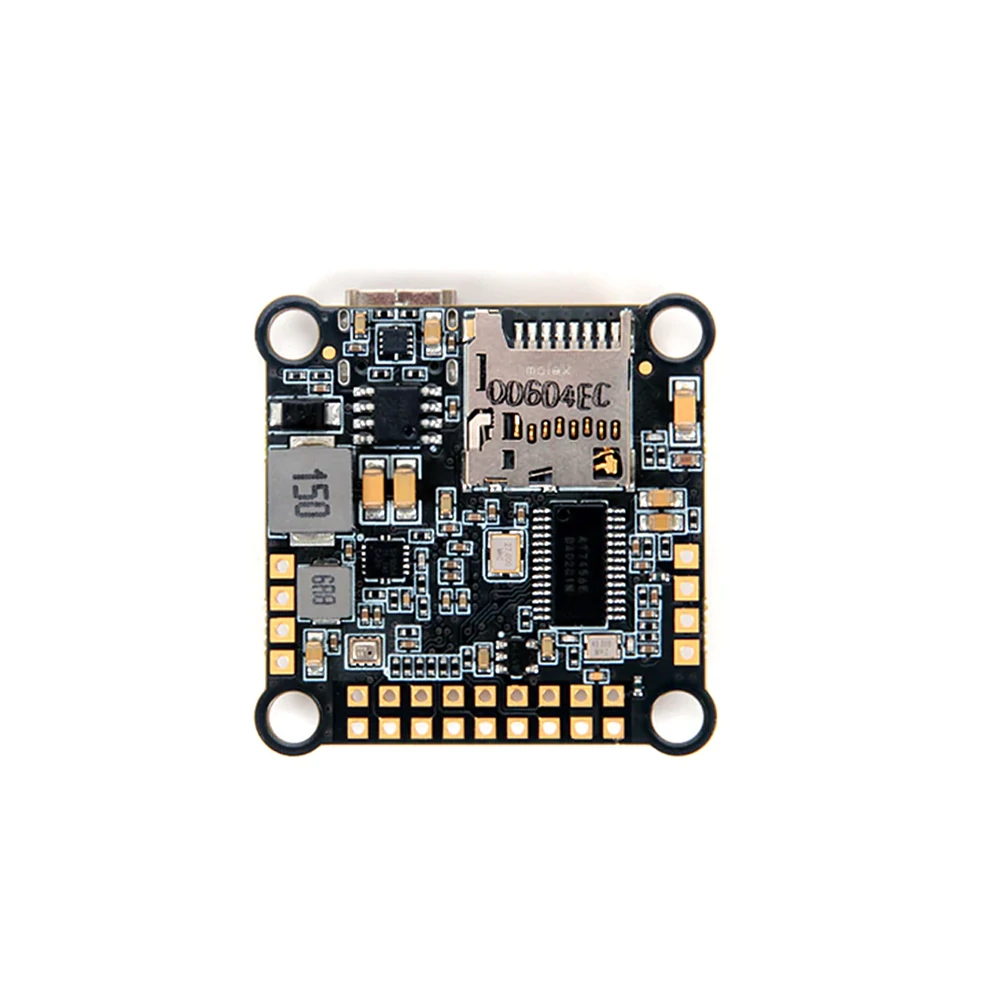

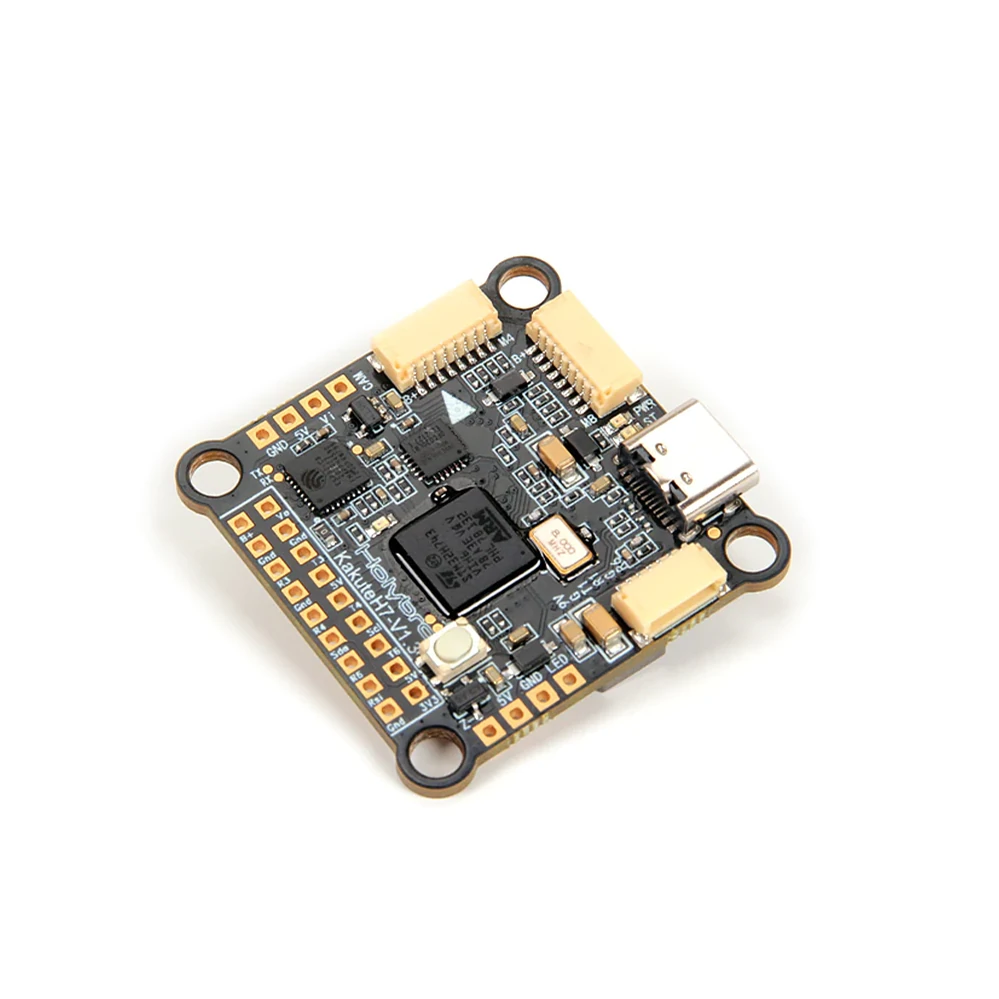

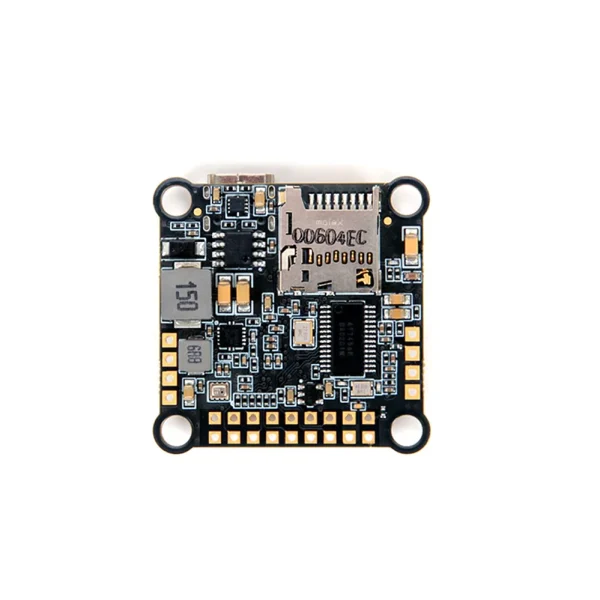

Kakute H7 V1.3
( Manual)
|
MCU: STM32H743 32-bit processor running at 480 MHz
IMU: MPU6000
Barometer: BMP280
OSD: AT7456E
Onboard Bluetooth chip: ESP32-C3
SpeedyBee IOS & Android App Compatible
Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (arm) ,
and turn on automatically when the flight controller is locked (disarm).
6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
9x PWM Outputs (8 Motor Output, 1 LED)
2x JST-SH1.0 8pin ESC port (4in1 ESCs, x8/Octocopter compatible)
1x JST-SH1.0 6pin VTX port (For HD System like Caddx Vista & Air Unit)
Battery input voltage: 7V to 42V
BEC 5V 2A Cont.
BEC 9V 3A Cont
USB Type-C
Mounting: 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets
Dimension: 35x35mm
Weight: 8g
Firmware:
BetaFlight: KakuteH7 (v4.2.11 and above)
INAV: KakuteH7 (4.0.0 & above) SD card support added in 4.1.0.
ArduPilot: KakuteH7 (4.2.0 & above)
|
|

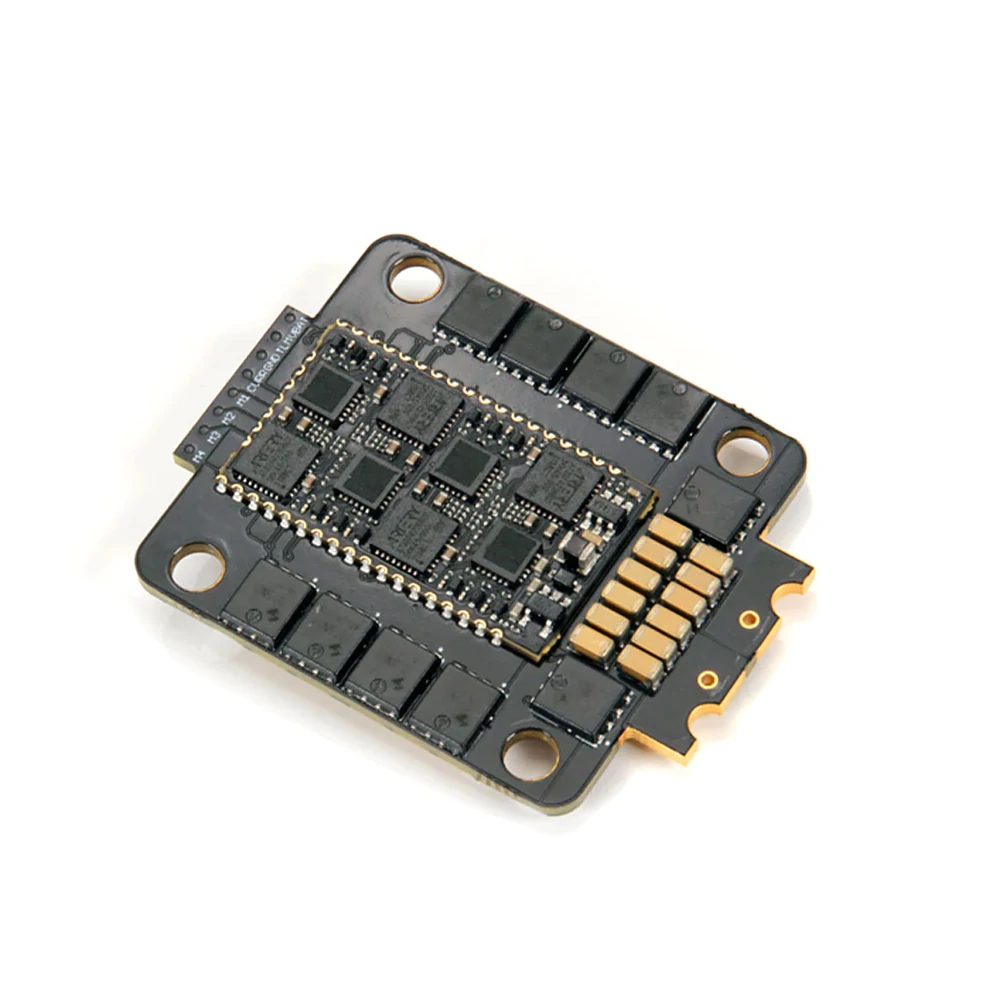

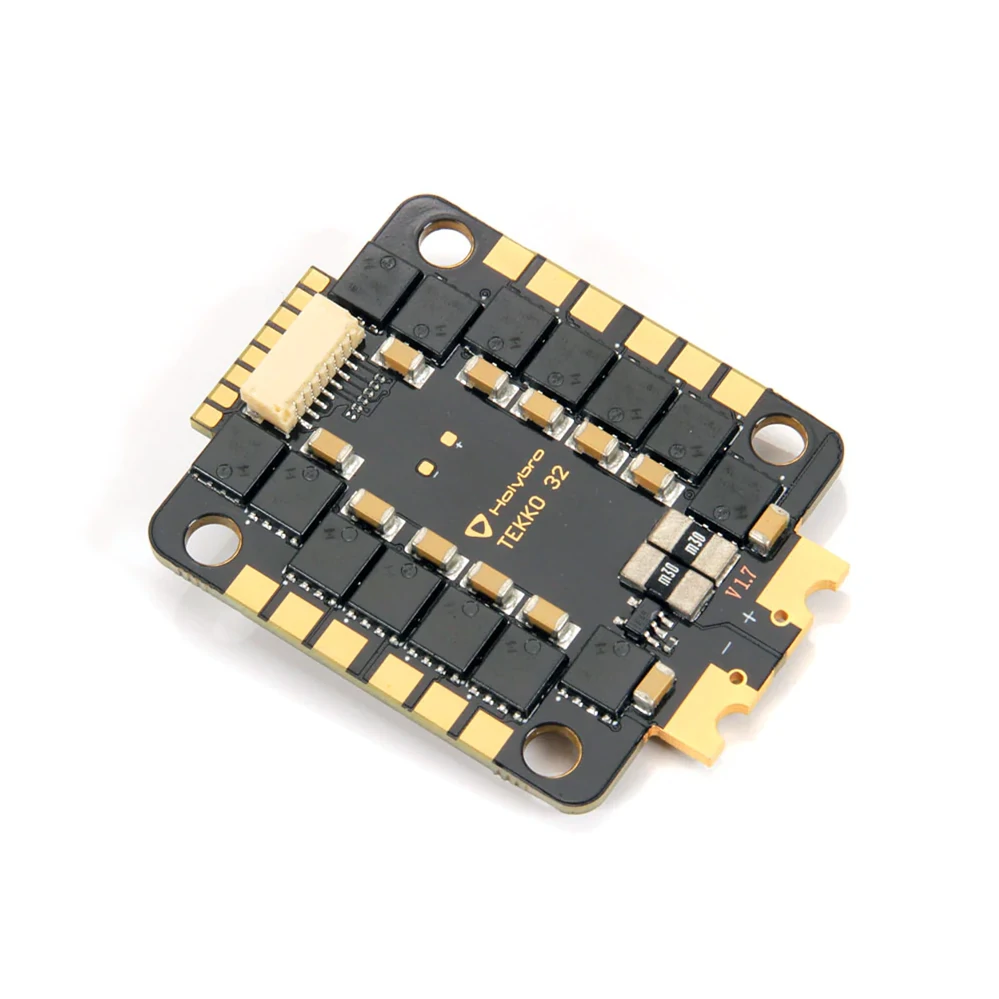

Tekko32 F4 4in1 50A ESC
( Pin Cable)
|
Continuous Current: 50A x4
Burst Current: 60A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
BLHeli_32 firmware
1000uf 35v capacitor included (highly recommended for 6s setup)
Amperage meter scale ratio: 120 (V1.9 Version)
Dimensions: 48x37x6mm / Weight: 13.8g
Mounting holes: M4 30.5×30.5mm (M3 grommets included)
Features:
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
Separate drive & control circuit, this broadens the current capability of the drive circuit
while reducing the electrical interference to the control circuit.
|
| NO VTX Version |
without VTX Module |
|
With VTX Version
( Manual)
|

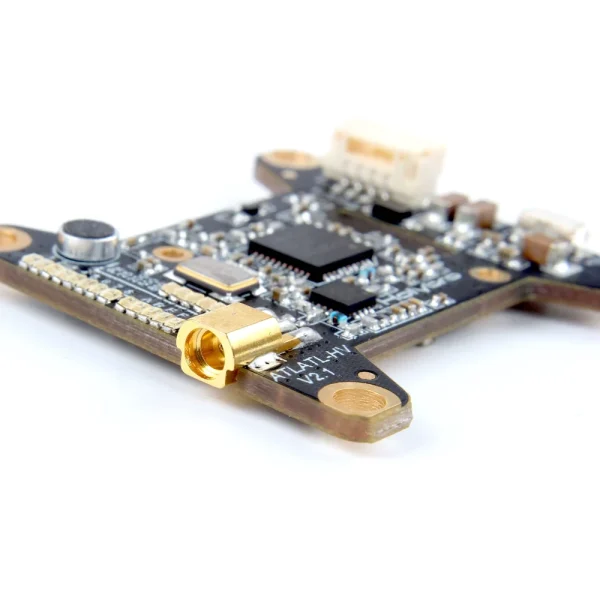

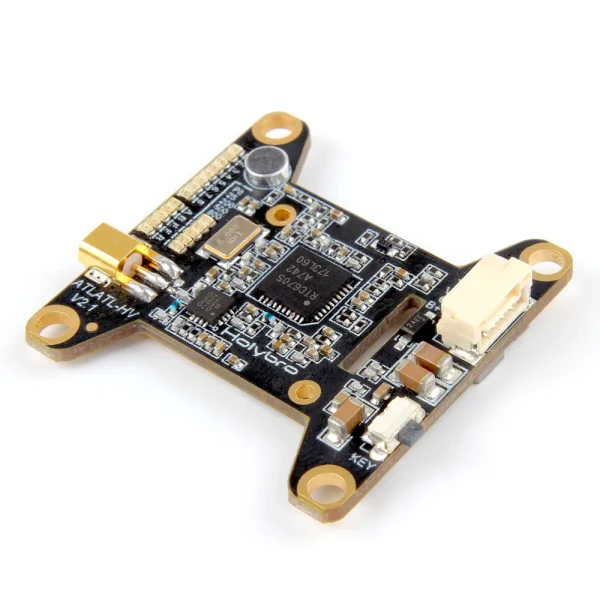

Model: Atlatl HV V2 VTX
Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
Audio: 6.5 MHz Mono
Protocol?smart audio2.0
Antenna Connector: MMCX
Input Voltage: 7 to 28 volts (2-6S LiPo) with absolute maximum 42 volts
Dimensions: 35x25x7mm (Includes USB height)
Mounting Holes: Standard 30.5mm square to center of holes
Weight: 9.3g
( VTX Table Link )
|
Package Included:
| NO VTX Version |
1x Kakute H7 v1.3 FC
1x Tekko32 F4 4in1 50A ESC
1x Electrolytic capacito: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
1x JST SH 6pin 100mm cable(for Caddx HD Systems)
|
| with VTX Version |
1x Kakute H7 v1.3 FC
1x Tekko32 F4 4in1 50A ESC
1x Atlatl HV V2 VTX
1x Electrolytic capacito: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cable
1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
1x JST SH 6pin 100mm cable(for Caddx HD Systems)
1x 80mm SMA–MMCX Cable
1x JST GHR 4pin 150mm cable |
