Specification:
Brand: iFlight

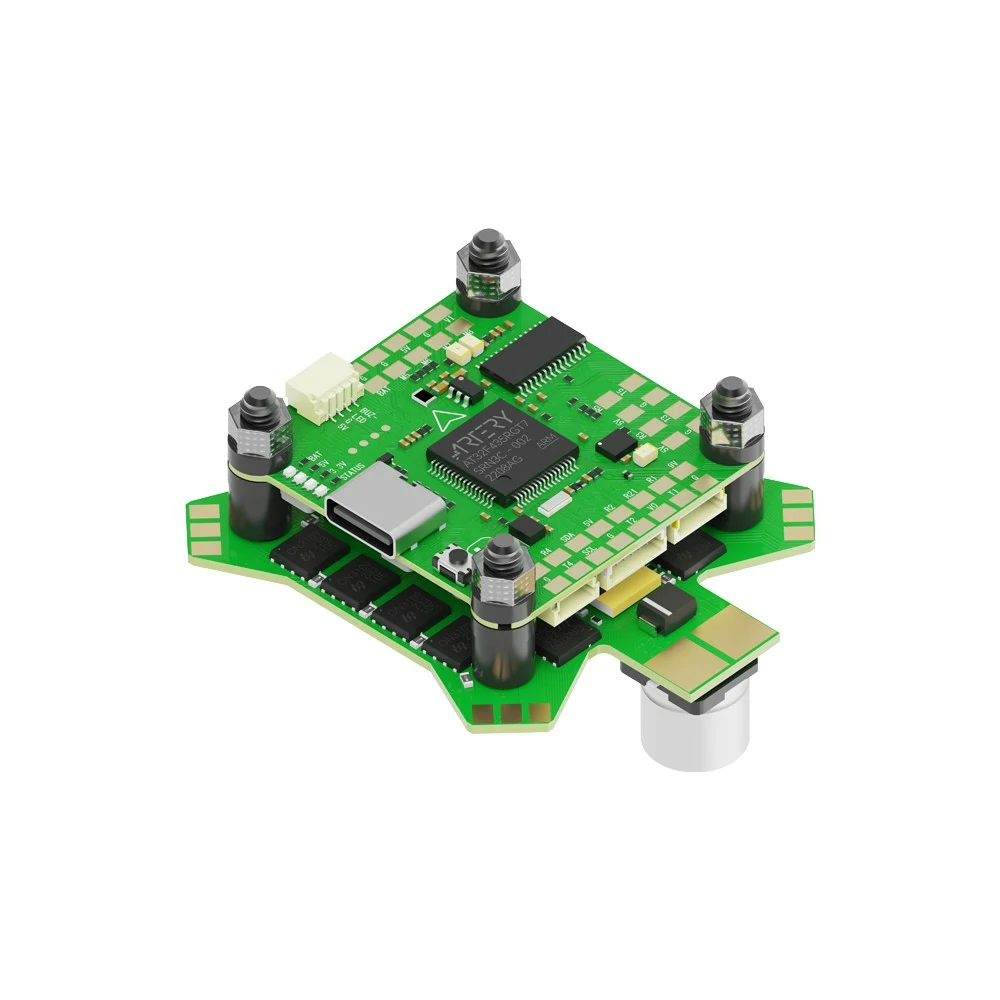

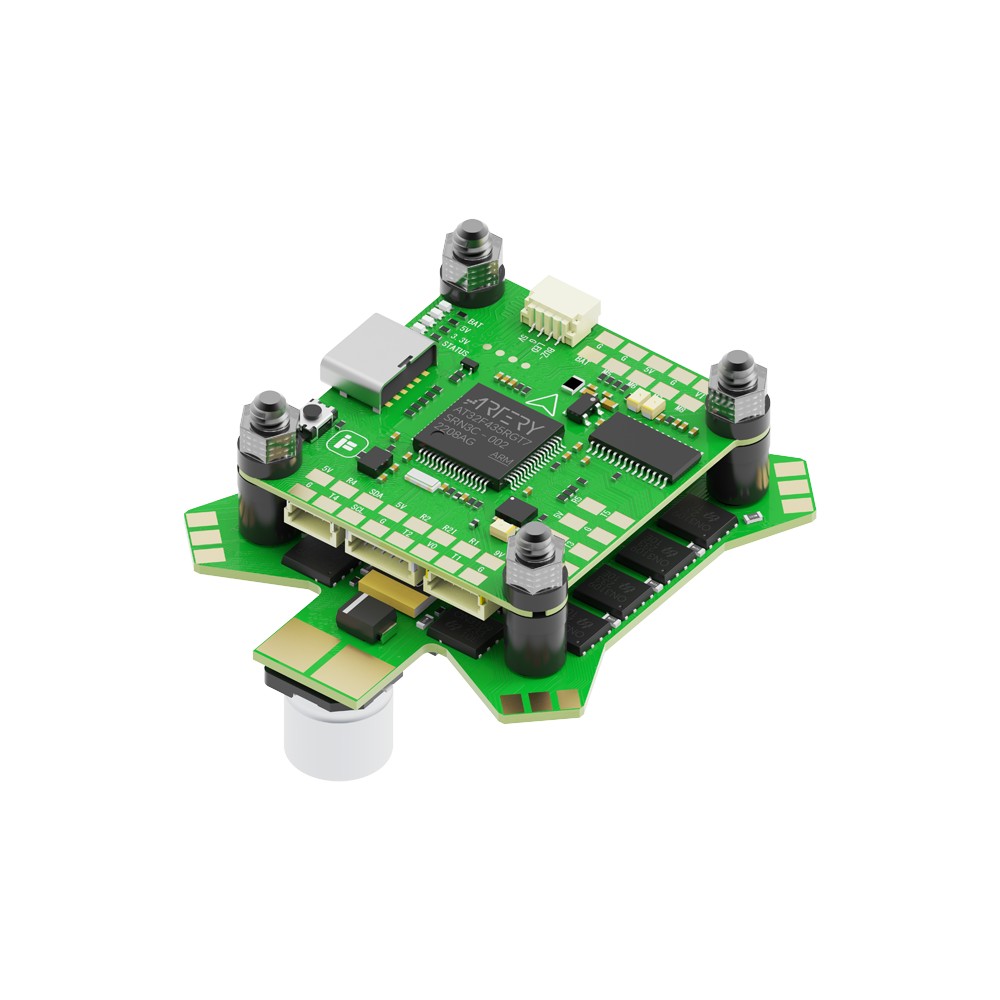

Model: BLITZ ATF435 FC & E55S ESC Stack
|

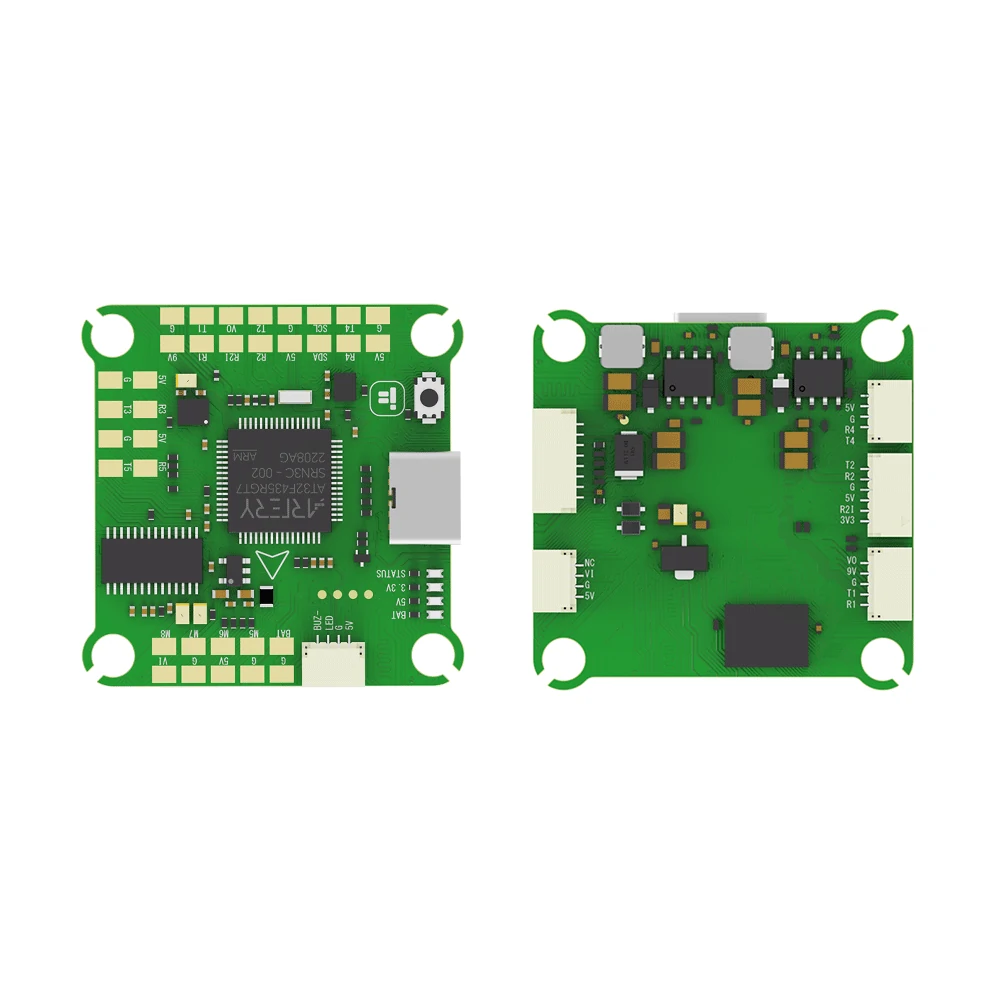

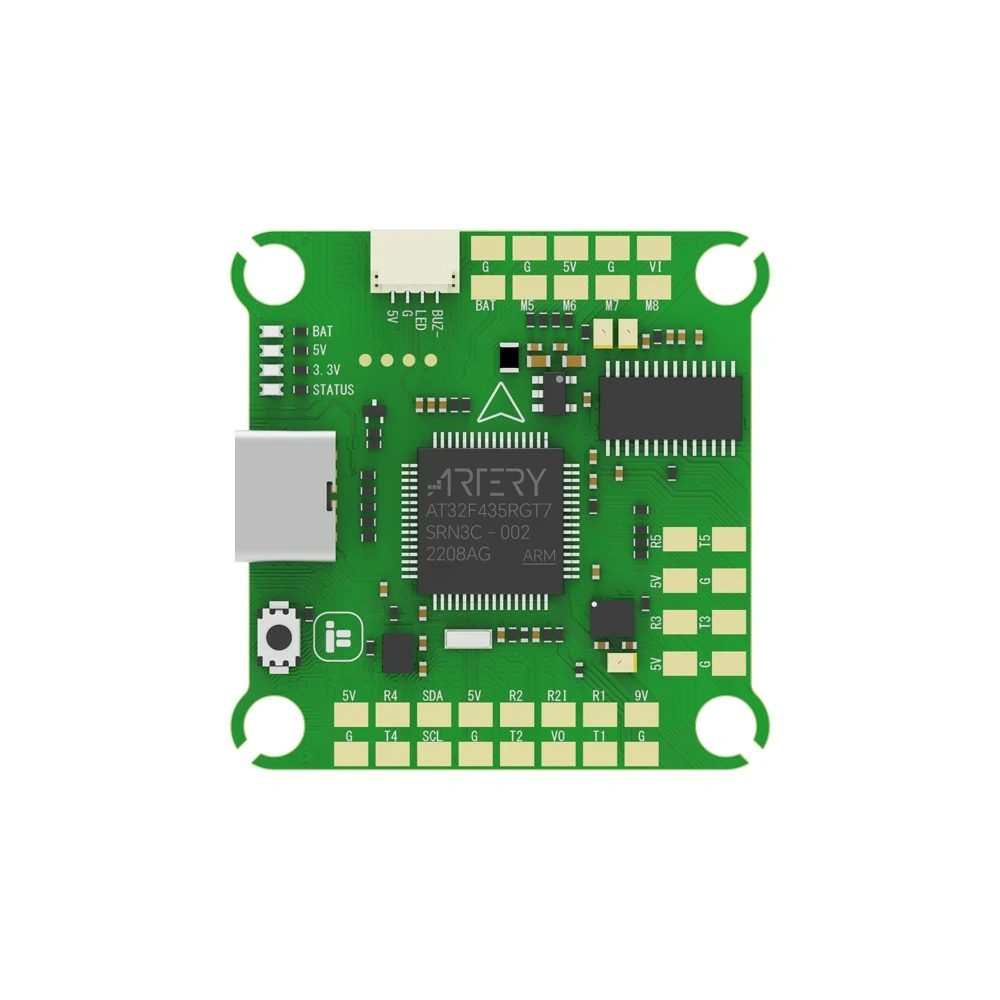

BLITZ ATF435 Flight Controller ( Separate FC Link) |
MCU: AT32F435CGU7 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 32MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFLIGHT_BLITZ_ATF435 Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter Dimensions: 36.5*35 mm Weight: 7.8g BEC: 5V 2.5A / 9V 2A |
|

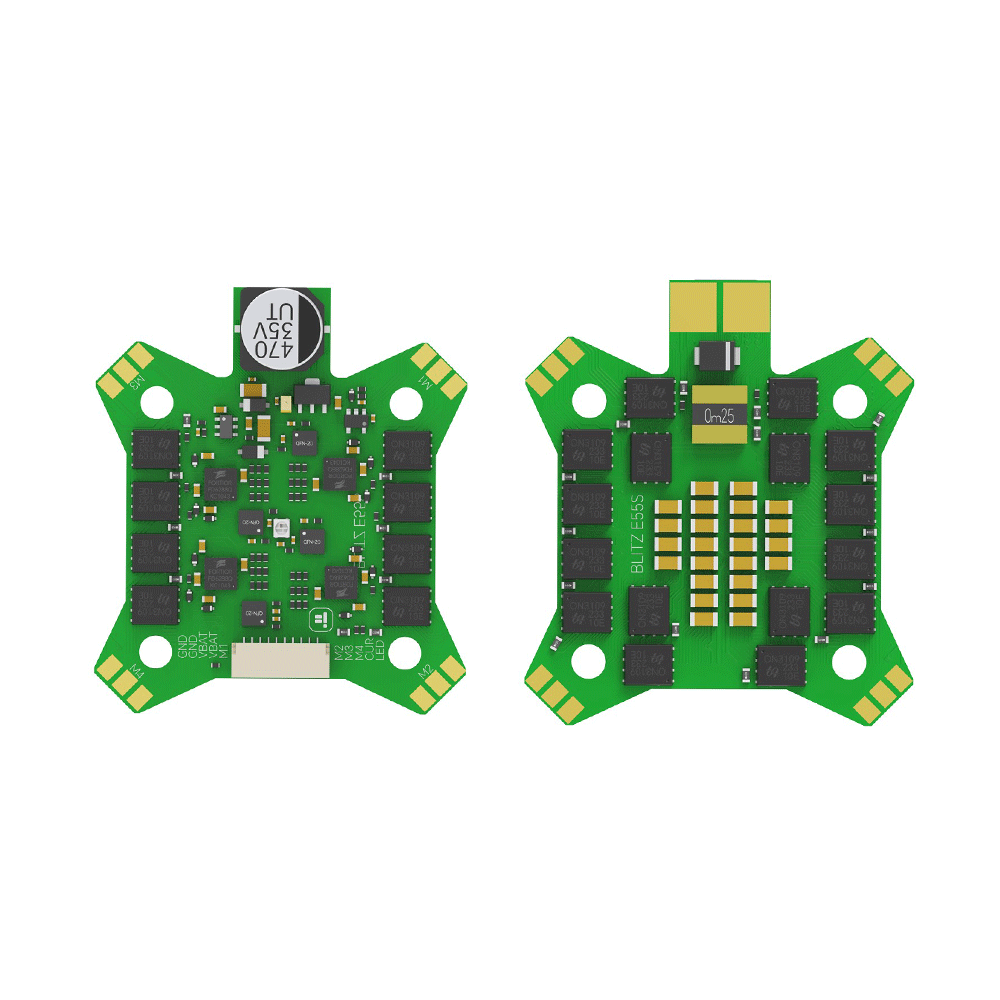

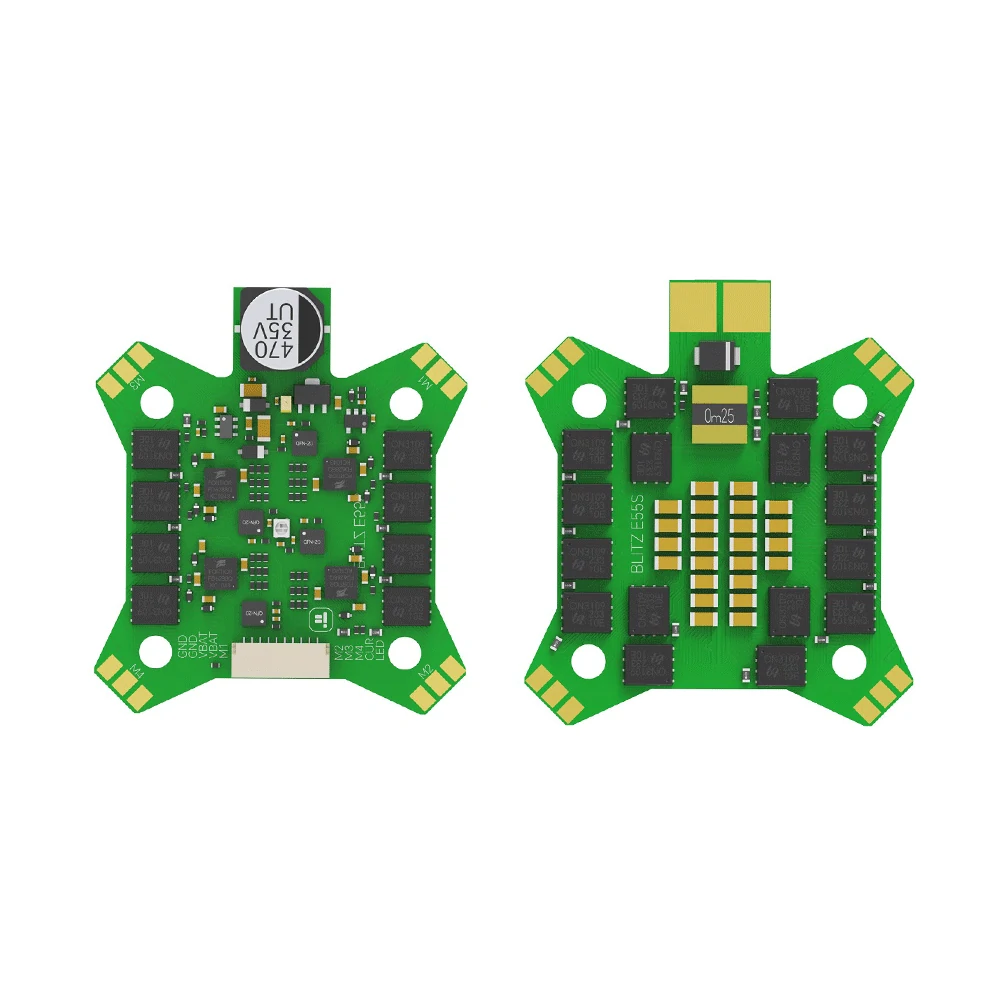

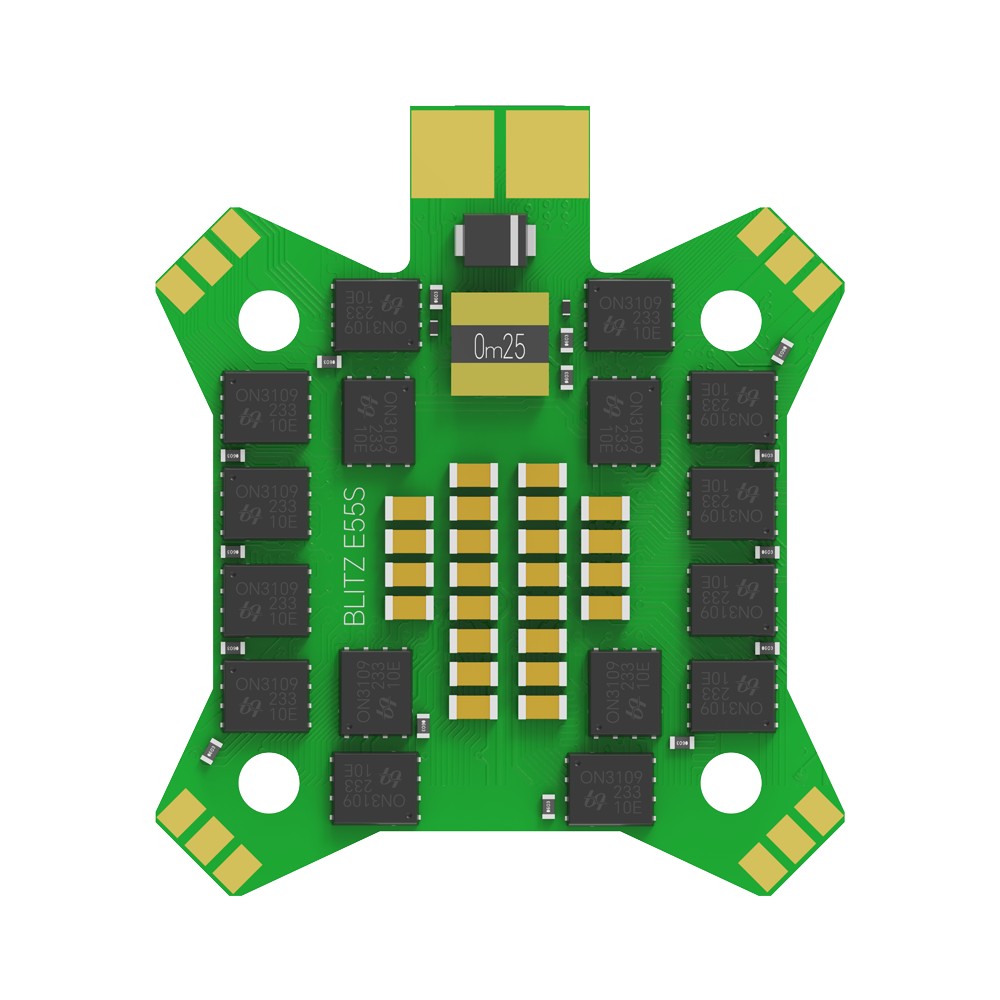

BLITZ E55S 4IN1 ESC ( Separate ESC Link) |
Mounting Holes: 30.5*30.5mm/Φ4mm Weight: 14.7g Supports 2-6S lipo input MCU: G071 Constant: 55 Amps Burst: 65 Amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay) |
Features:
Advanced FC with cutting-edge MCU and Gyro for exceptional flight stability and precision.
Comprehensive ESC supports 2-6S lipo input, DShot150/300/600, and other protocols for seamless power and communication.
Compact and lightweight design makes it ideal for various drone setups while ensuring peak performanc.
Smartaudio / IRC Tramp VTX protocol compatibility ensures reliable communication during flights.
Both FC and ESC are designed with a consistent 30.5*30.5mm mount pattern for straightforward integration.
Package Included:
1 x BLITZ ATF435 Flight Controller
1 x BLITZ E55S 4IN1 2-6S ESC
1 x silicon grommets
1 x wire harness for Flight controller
