What makes this FC PRO4 different from others?
1. Solder pads are the largest in size compared to other FC in market.
2. Proper solder pad spacing to avoid solder bridge and facilitate easy soldering.
3. ESC connector on top-side rather than bottom which makes it easy for repair.
4. TVS Diode for Reverse Polarity Protection and Voltage Spike Suppression.
5. Powerful 3A BEC to supply all your electronics.
6. Pads arrangement are executed in such a way that when you twist the wires of the camera VTX and RX you don’t get any wire overlapping this gives you a uniform twist and clean look.
7. Support DJI O3 connector on the top side.
8. Support VTX ON/OFF Pit Switch.
9. Gyroscope independent power supply, No power lines near MPU6000 Gyro to avoid any EMI interference.
10. Two stages of Quality check to reduce any faulty electronic.
11. Comes ready with I2C support and INAV.
Specifications:
Brand: Skystars

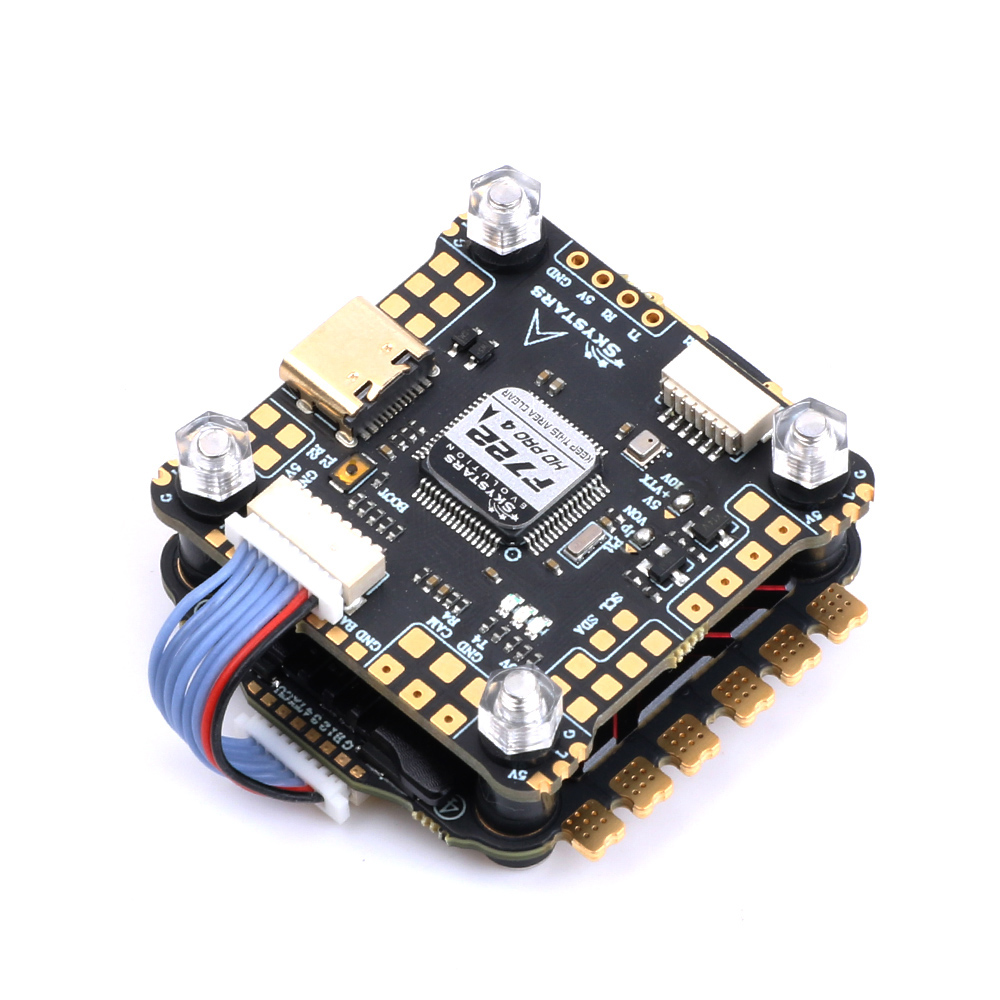

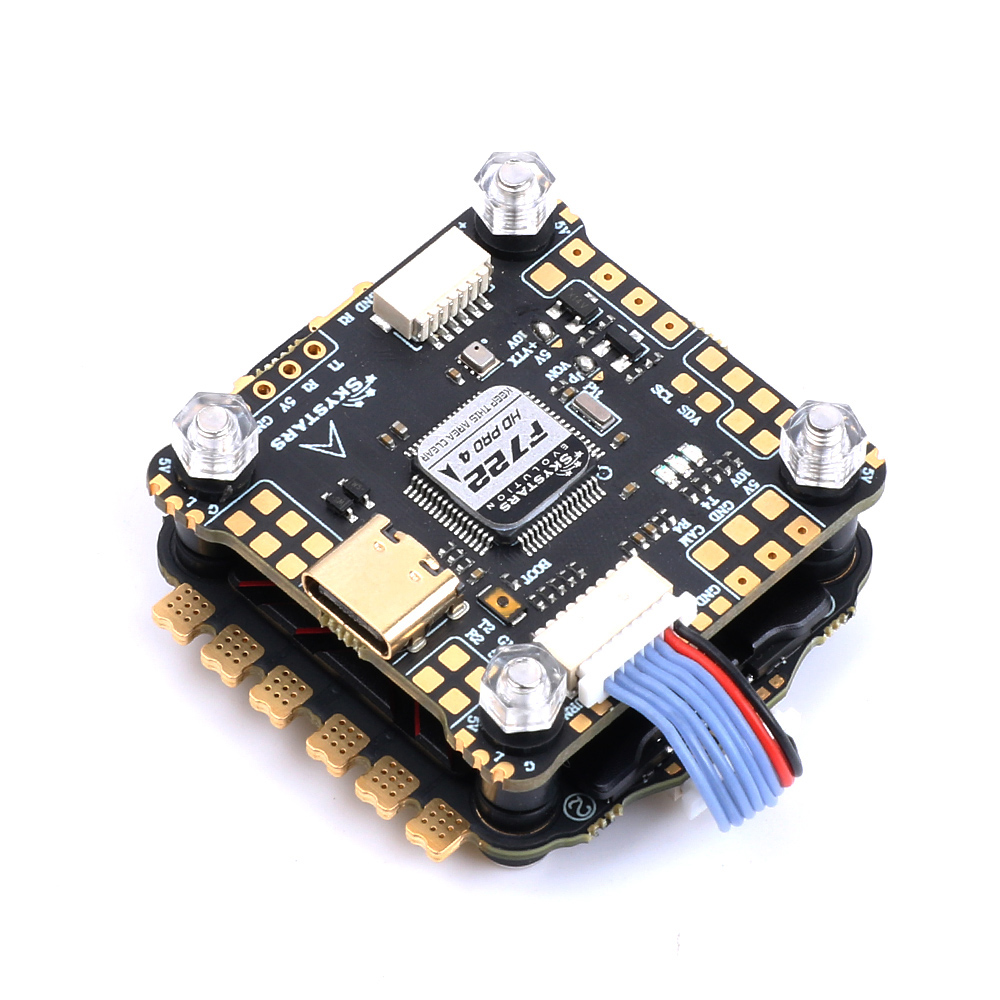

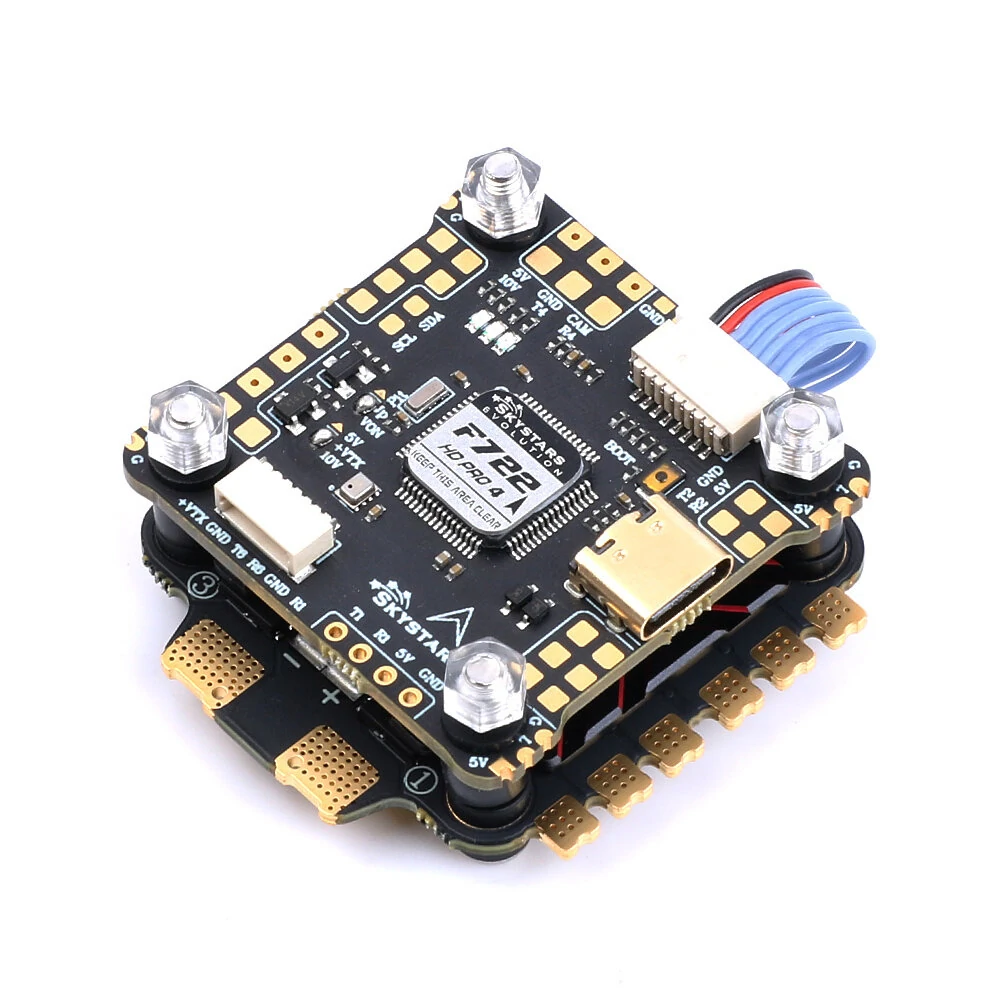

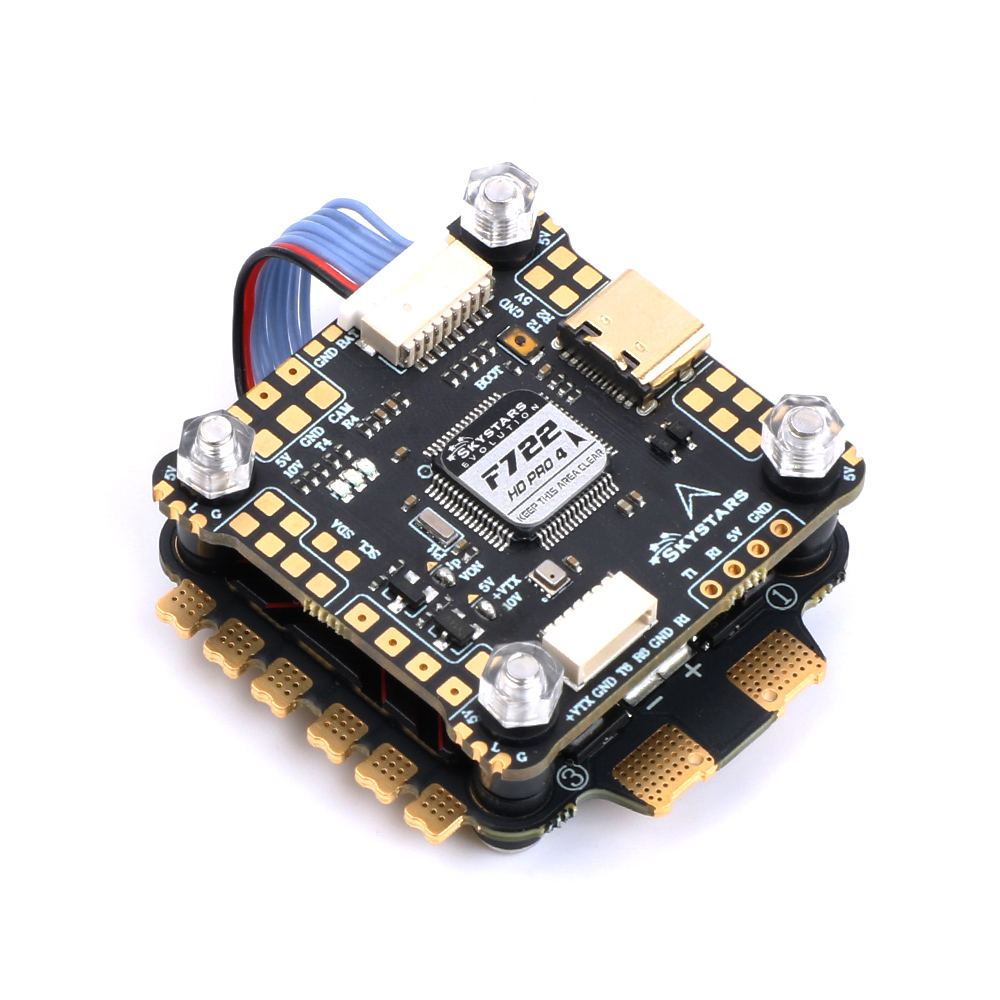

Model: F7 HD Pro4 Flight Controller KM65 ESC Stack
|
F7 HD Pro4 Flight Controller |
MCU: STM32F722RET6 216MHz The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART. (The installation hole is M4 and supports shock column installation) |

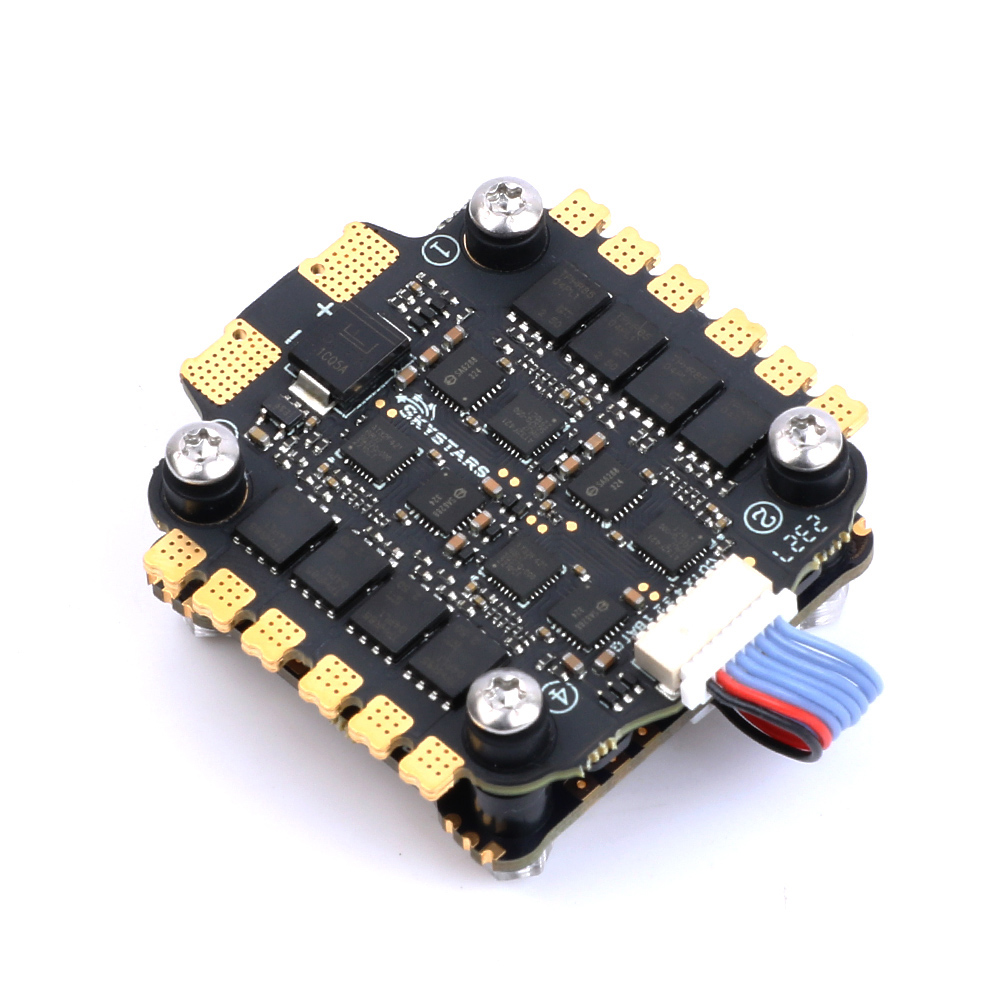

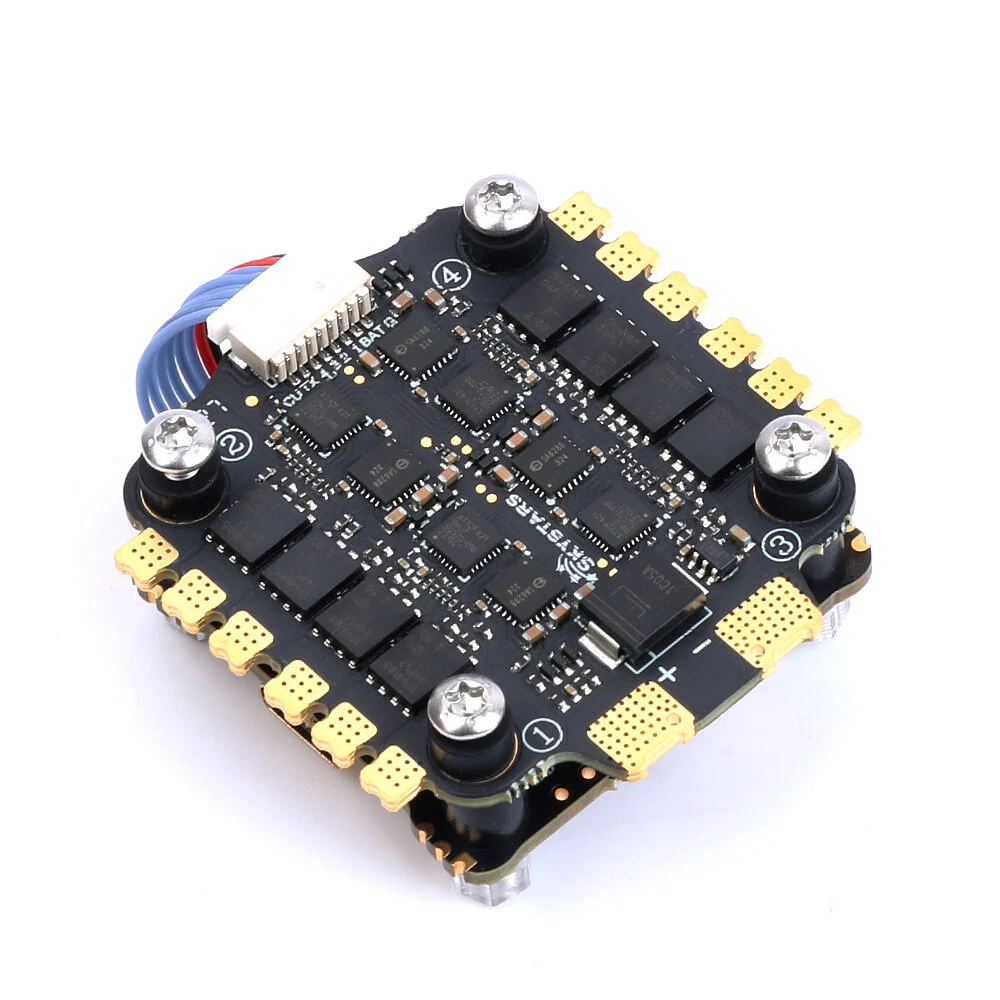

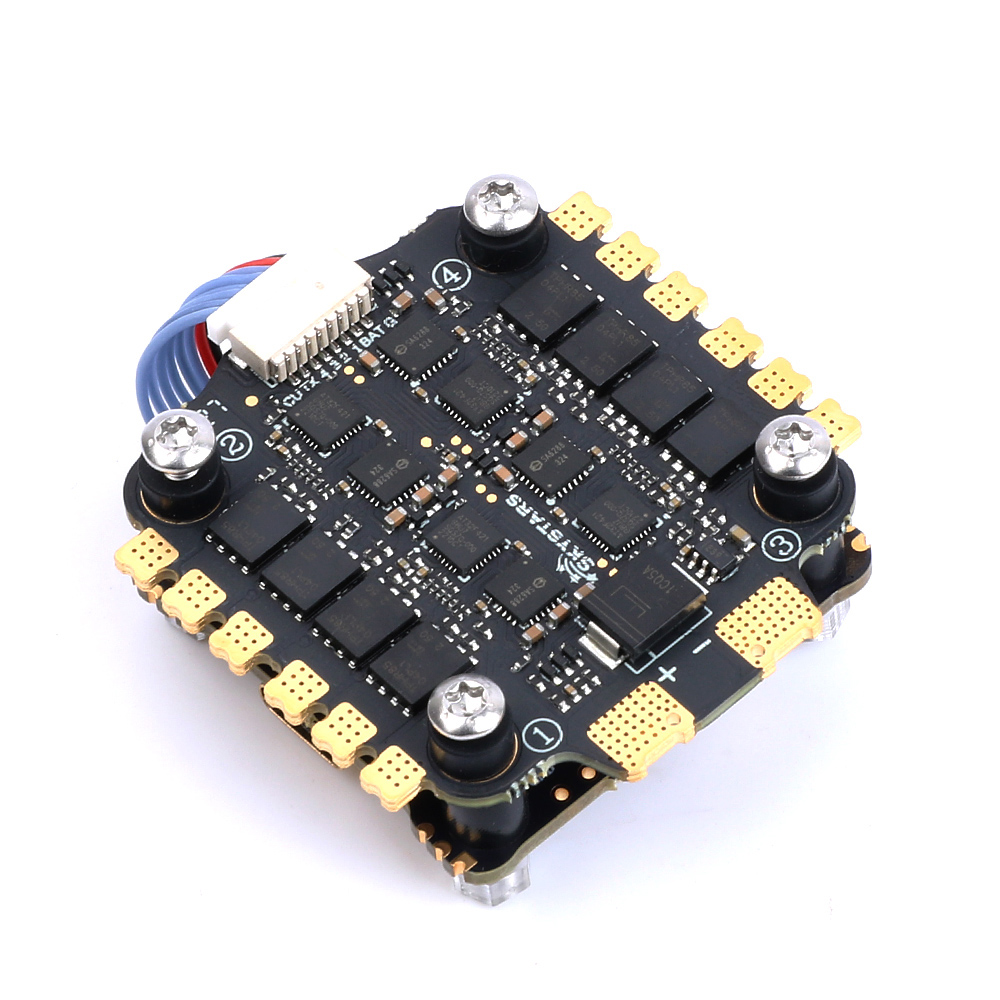

| KM65 ESC |
Specifications: Features: Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal |
Package Include:
1x F7HD Pro4 Flight Controller
1x KM65 128K BL32 4IN1 ESC
8x Silicon grommets M4 to M3
2x JST-SH1.0_8pin cable, 4cm
1x JST-GH-6P cable for DJI port, 10cm
