FC Specifications: ( Manual)

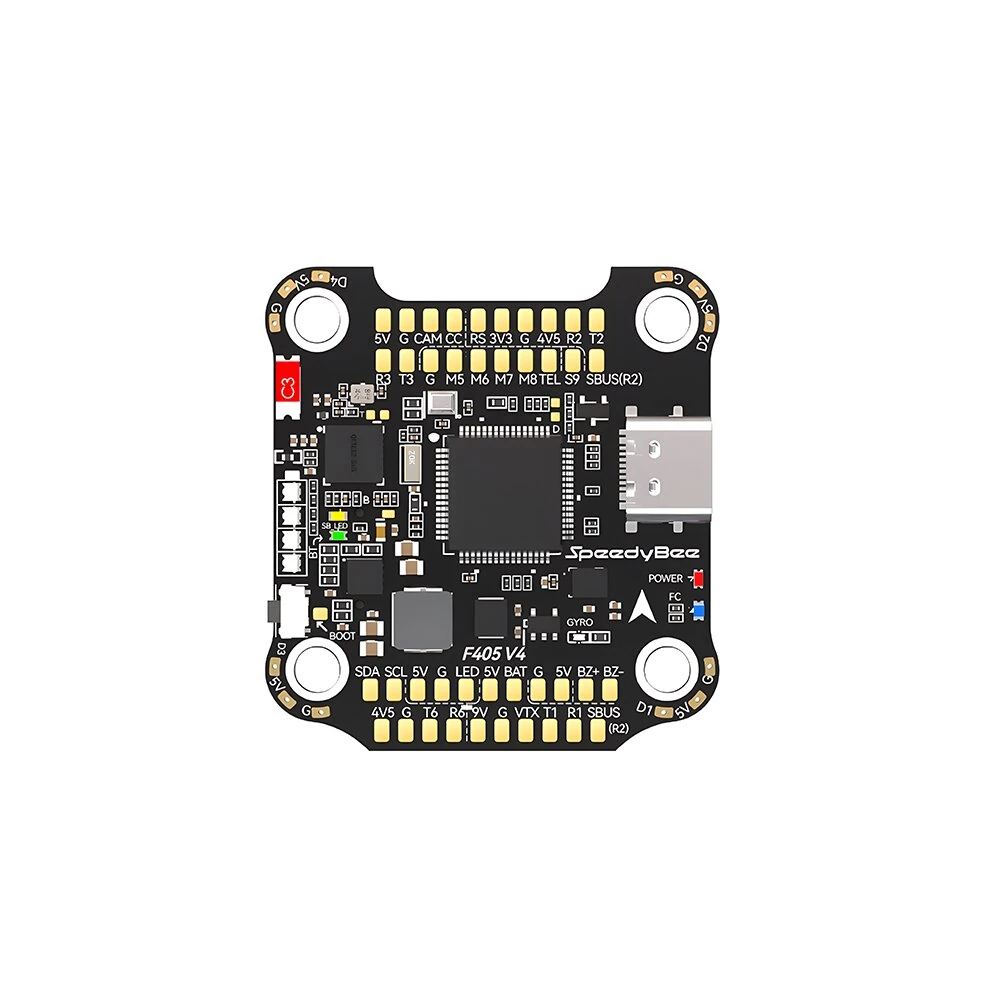

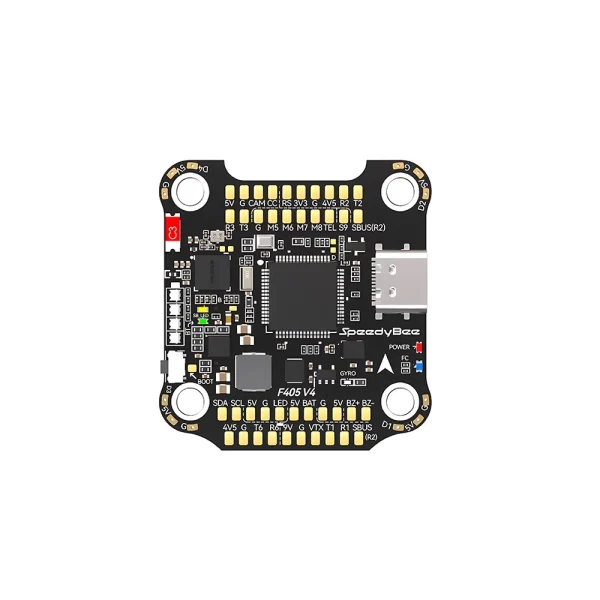

| color:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;’>Product Namecolor:rgb(0,0,0);font-size:9.0000pt;mso-font-kerning:1.0000pt;’>SpeedyBee F405 V4 30×30 Flight ControllerMCUSTM32F405IMU(Gyro)ICM42688PUSB Port TypeType-CBarometerBuilt-inOSD ChipAT7456E chipBLE BluetoothSupported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)WIFINot supportedDJI Air Unit Connection WayTwo ways supported: 6-pin connector or direct soldering.6-pin DJI Air Unit PlugSupported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed.Blackbox MicroSD Card Slot*Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC) under 32GB, so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the microSD card MUST be formatted with the FAT16 or FAT32 (recommended) format, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose ‘Overwrite format’ then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.Current Sensor InputSupported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset=0.Power Input3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)5V Output9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.9V Output2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.3.3V OutputSupported. Designed for 3.3V-input receivers. Up to 500mA current load.
