4PCS GEPRC SPEEDX2 1404 3000KV 4S 4600KV 3-4S Brushless Motor for Tern LR40 2 Inch 3 Inch 4 Inch Lightwight RC FPV Racing Drone

0 out of 5

$59.99

SKU: 4xPOA10608129 Categories: , ,
Add to wishlist

Description

Specifications:
Brand: Geprc

Model: SPEEDX2 1404

Item Name: 1404 3000KV 4S 4600KV 3-4S Brushless Motor

Optional KV Version
3000KV

Model: SPEEDX2 1404 3000KV Motor
Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
Input Volts: 14.8V（4S LiPo)
Winding: Single strand copper winding

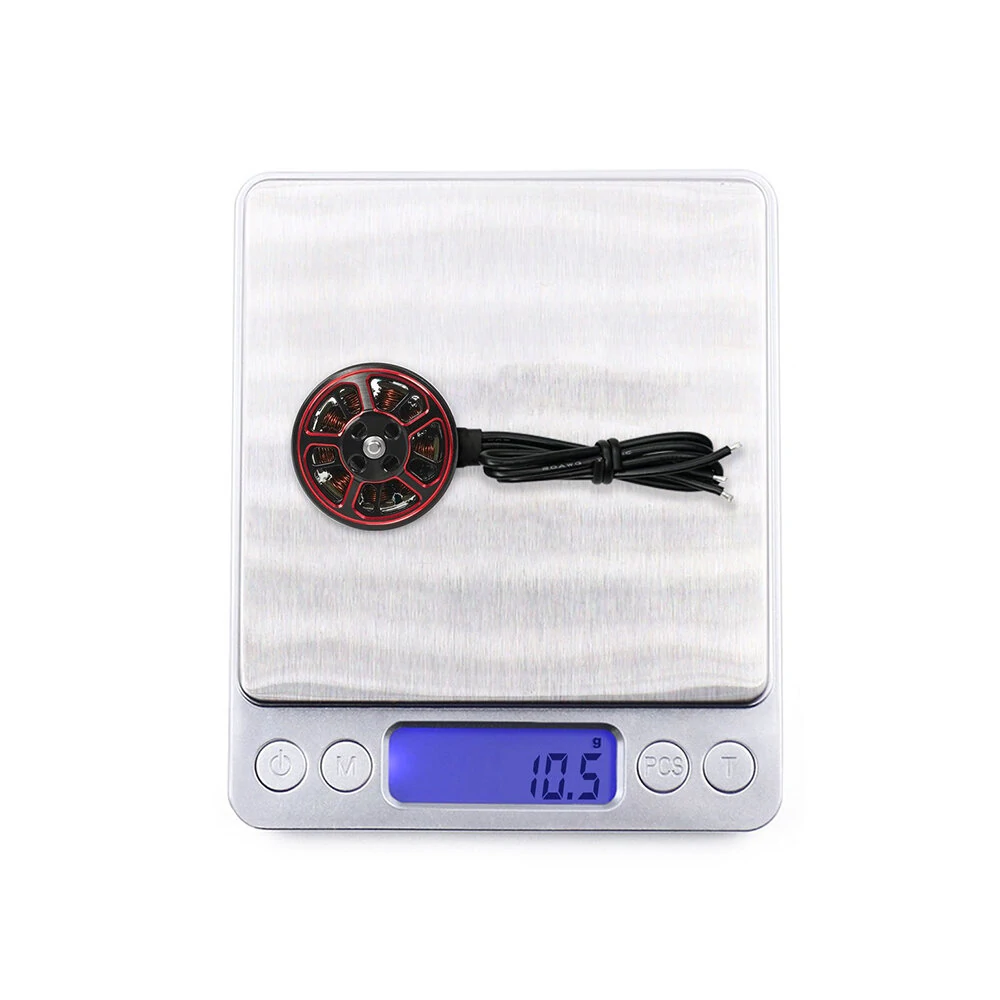

Weight: 10.5g (included wire)

Max Watt: 160W
Peak current: 10A/3″
Interphase resistance: 0.33Ω
Magnet: N52H
Bearing type: NSK/NMB

Recommend ESC: 12A/2-4S（7.4V-14.8V）
Suitable for: 3 inch – 4 inch lightweight models
4600KV

Model: SPEEDX2 1404 4600KV Motor

Configuration: 9N12P
Dimension: φ18.2mm*13.8mm
Shaft Diameter: φ1.5mm
Shaft Protruding Length: 4mm
Mounting holes: 9mm*9mm（M2）
Lead: 160mm/26AWG
Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
Winding: Single strand copper winding
Weight: 10.5g (included wire)

Max Watt: 180W
Peak current: 14.3A/3″
Interphase resistance: 0.19Ω
Magnet: N52H
Bearing type: NSK/NMB

Recommend ESC: 20A/2-4S（7.4V-14.8V）
Suitable for: 2 inch – 3 inch lightweight models

Features:
Red with black color is obviously high-end.
Use bearings with excellent performance and strong anti-wear ability.
Lightweight silhouette, strong power.
Suitable for 2-inch-4-inch lightweight chassis.

Package Included:
1x SPEEDX2 1404 3000KV OR 4600KV Motor
1 set x Screws
