Description:
Brand: Emax

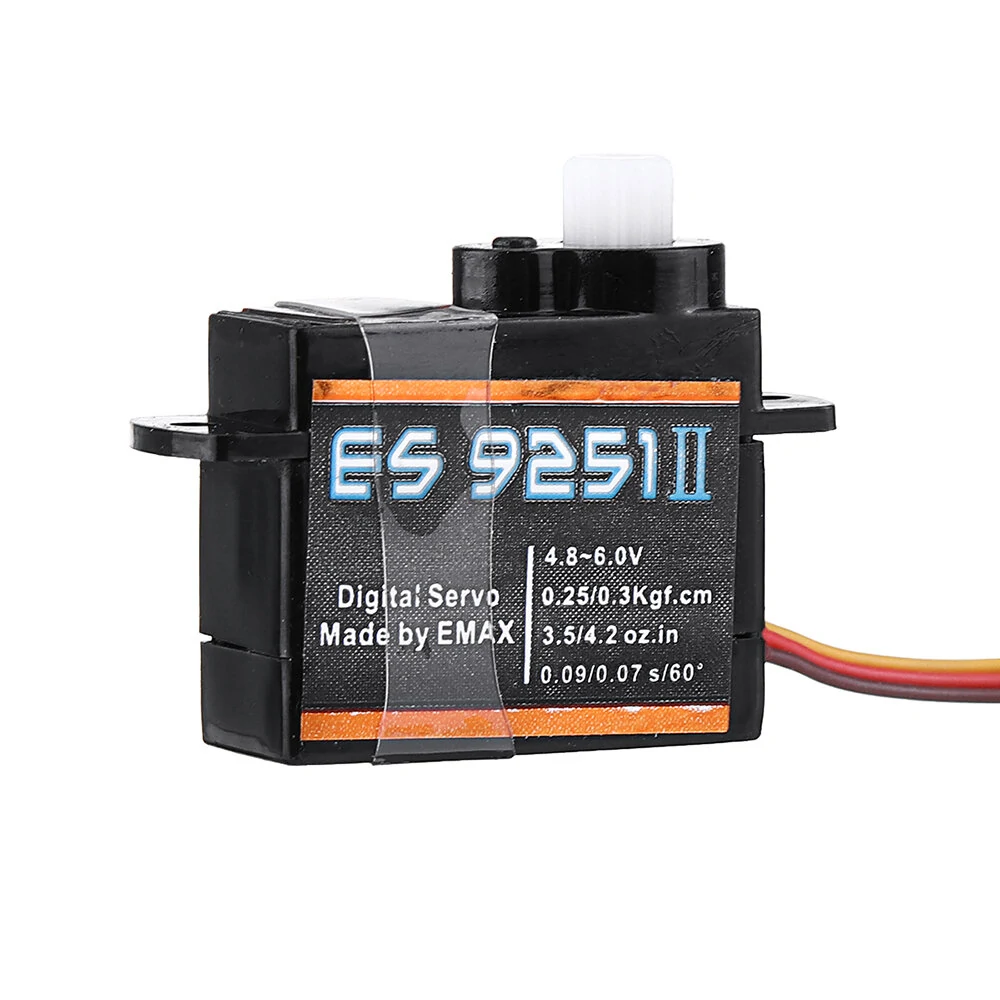

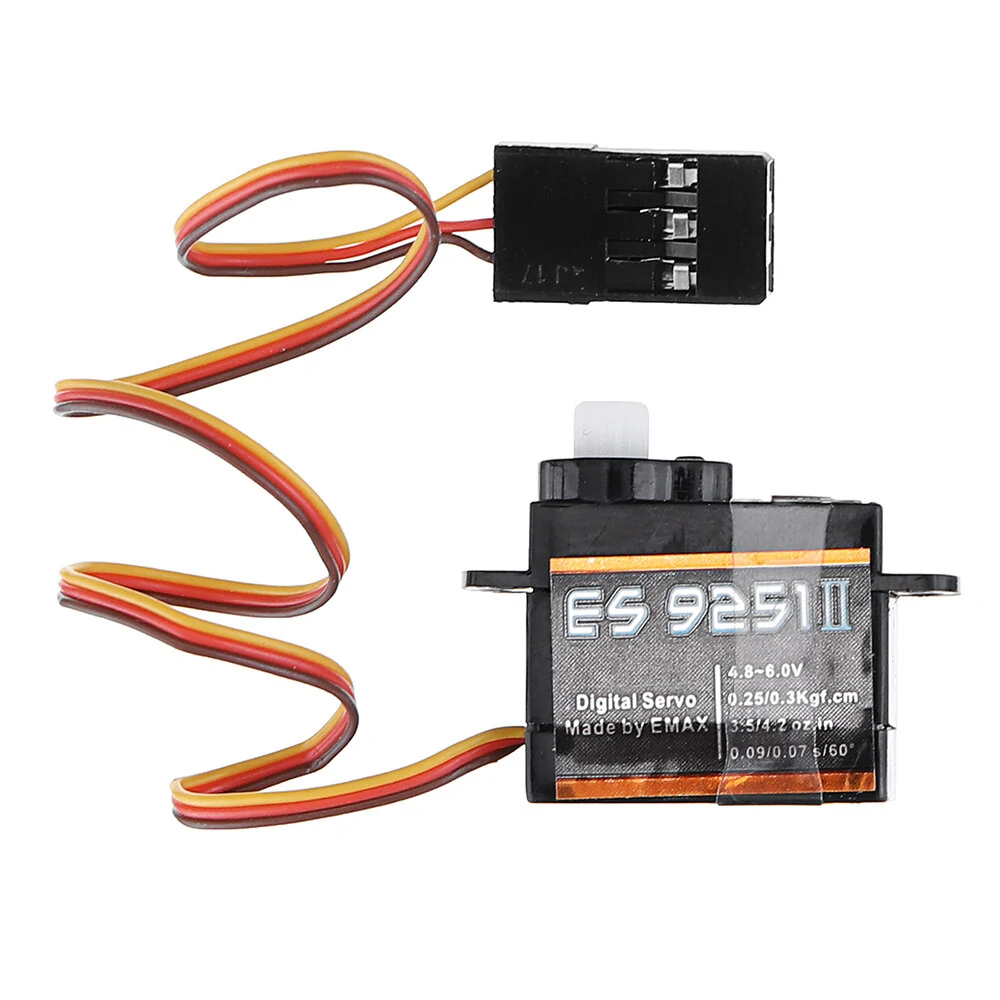

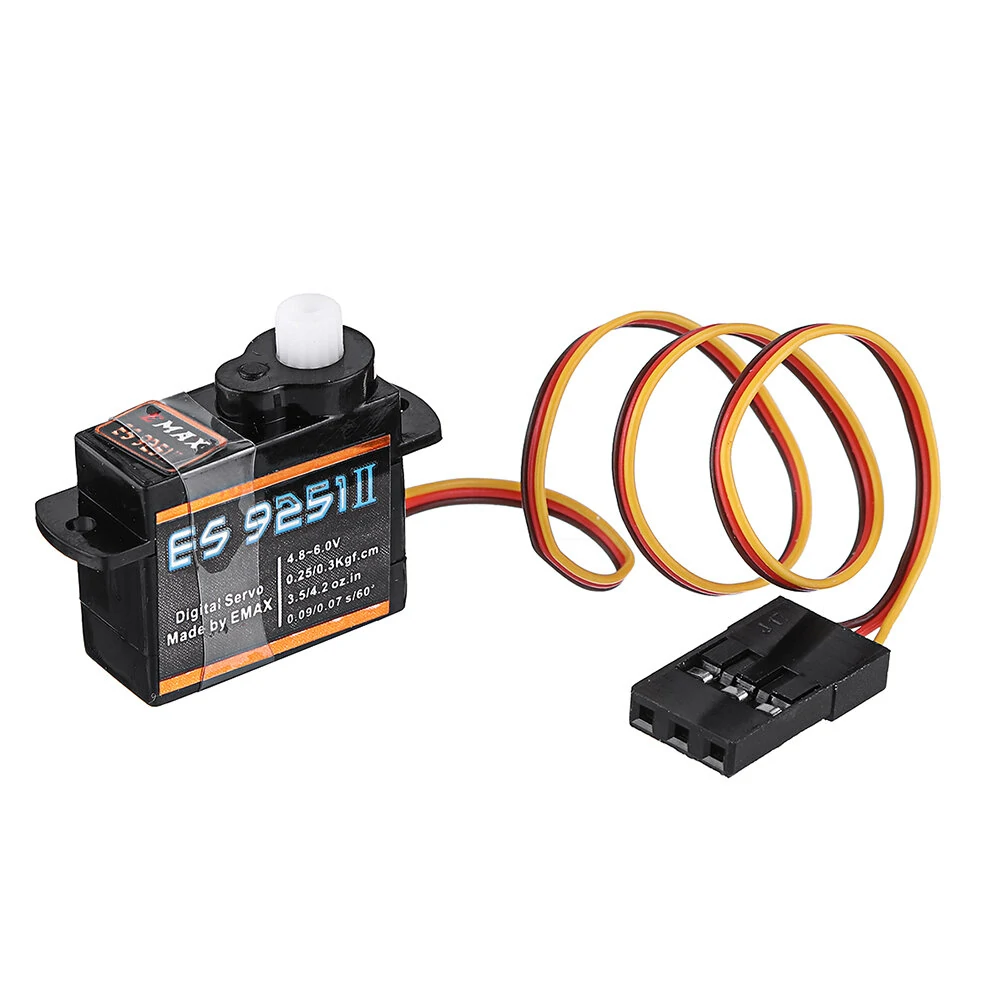

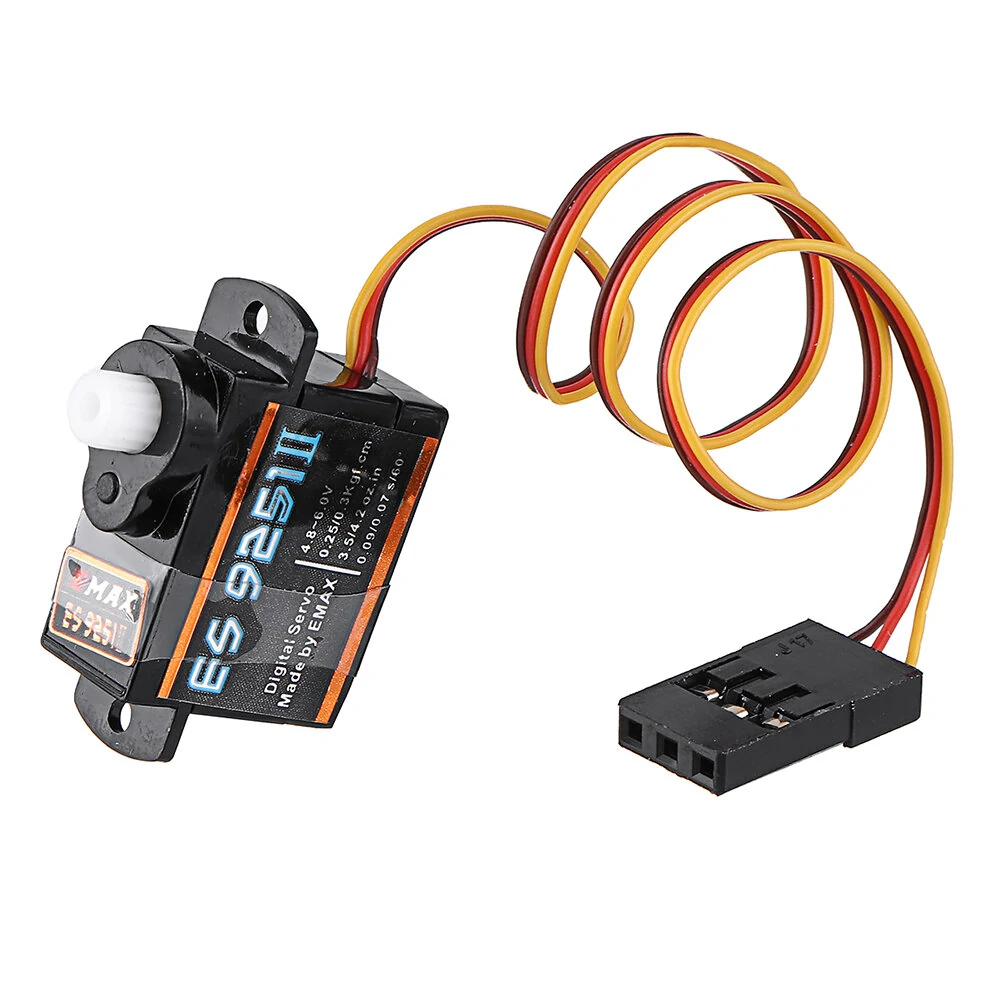

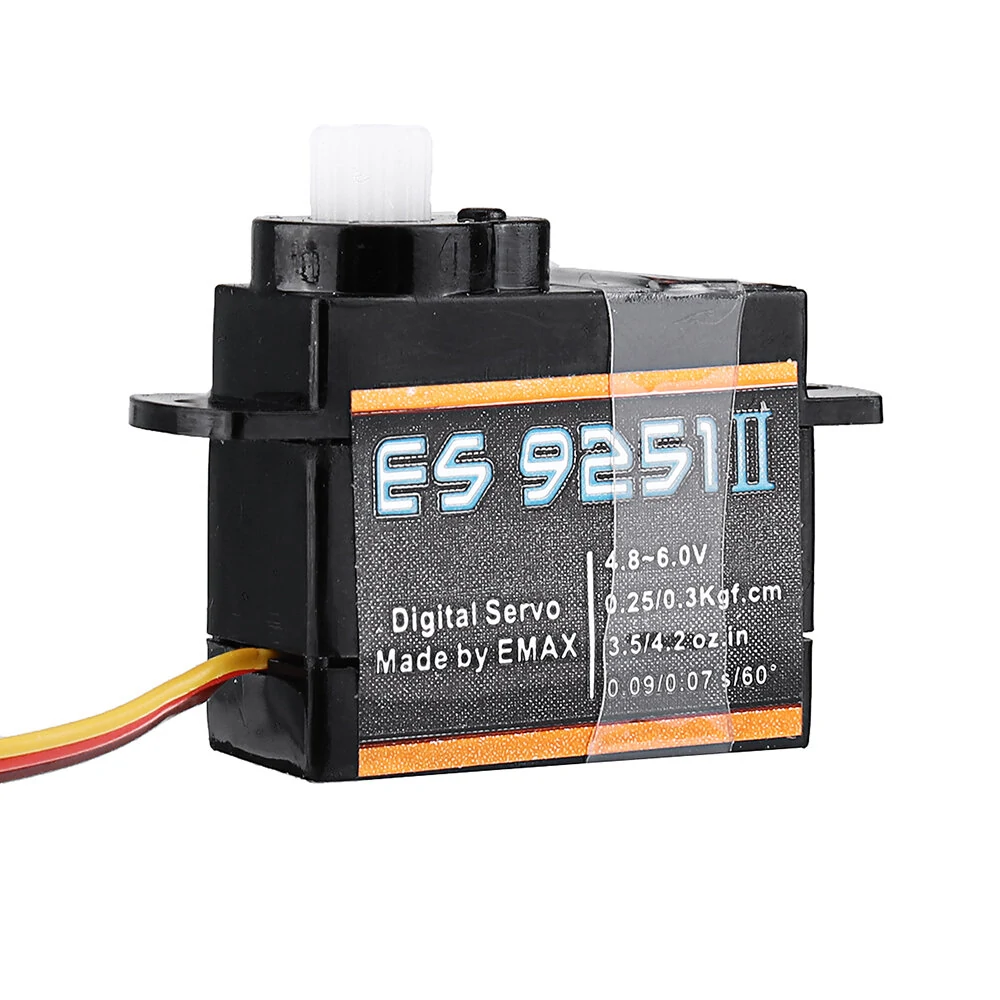

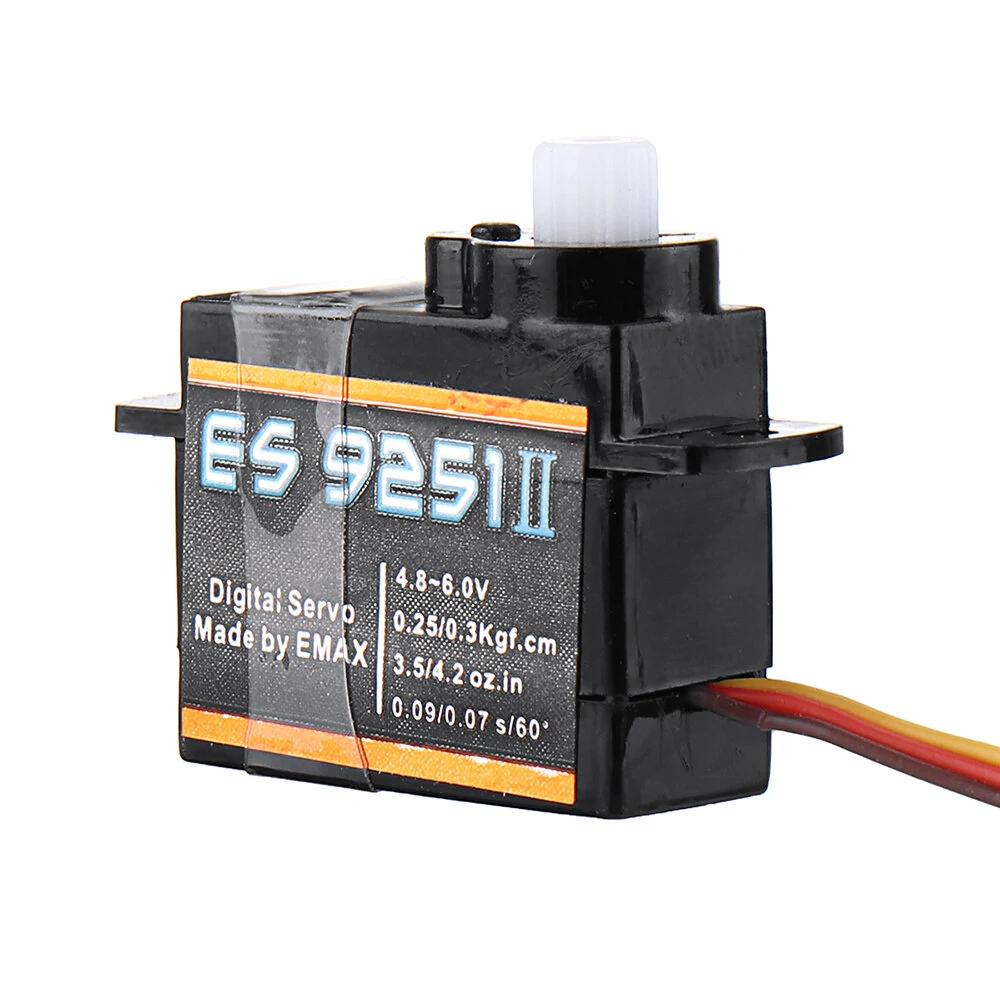

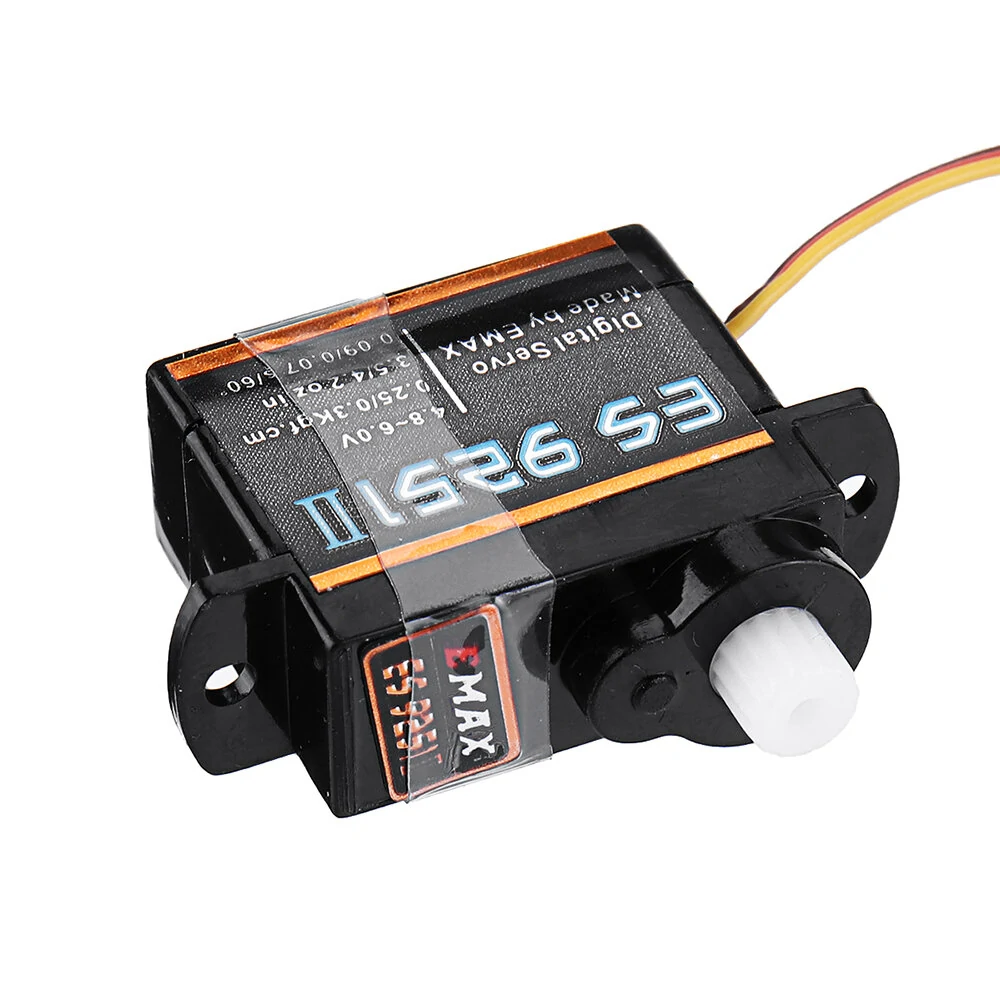

Item: ES9251II Digital Servo
Operating Voltage: 4.8V~6.0V
Operating Speed (at no load): 0.09 sec/60°(4.8v), 0.08 sec/60°(6.0v)
Running Current (at no load):25mA Max(4.8v), 315mA Max(6.0v)
Stall Torque: 0.25kg.cm Max(4.8v), 0.3kg.cm Max(6.0v)
Maximum Current: 120mA Max(4.8v),140mA Max(6.0v)
Idle Current: 2.2mA
Storage Temperature Range: -20 C~70’C
Operating Temperature Range: -10C~60C
Size: 25.49*8.25*20.25mm
Weight: 3.0±0.5g

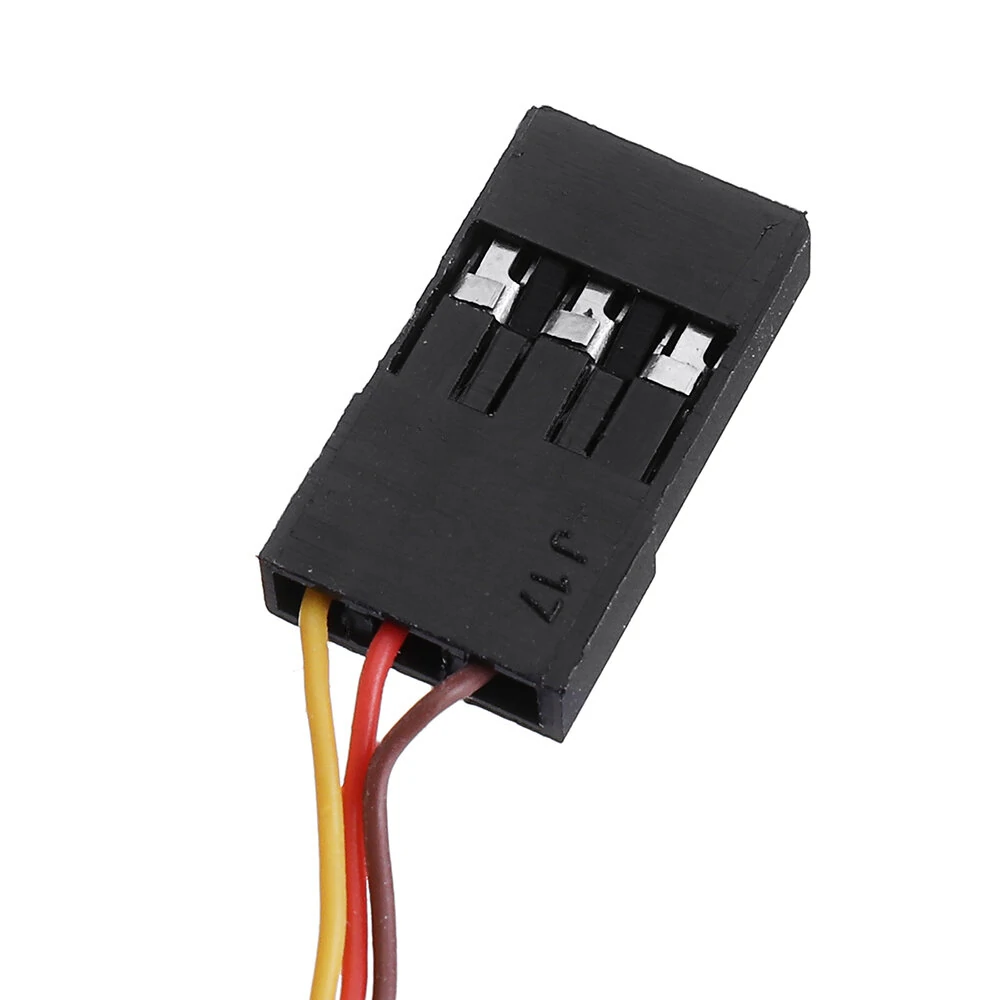

Connector Wire Gauge: JR
Connector Wire Length: 180±8mm
Flower Head: 15T
Bearing: NO
Gear Type: 1 metal gear + 5 plastic gear
Extreme Angle: 360°
Control System:PWM
Operating Travel: 90°±10° (when 1000-2000 μsec)
Neutral Position: 1500 μ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse Width Range: 700- 2300 μ sec
Maximum Travel: 145°±10° (700-2300μ sec )
Usage:For RC Airplane,RC Aircraft, RC Helicopter
English Manual, Click Here

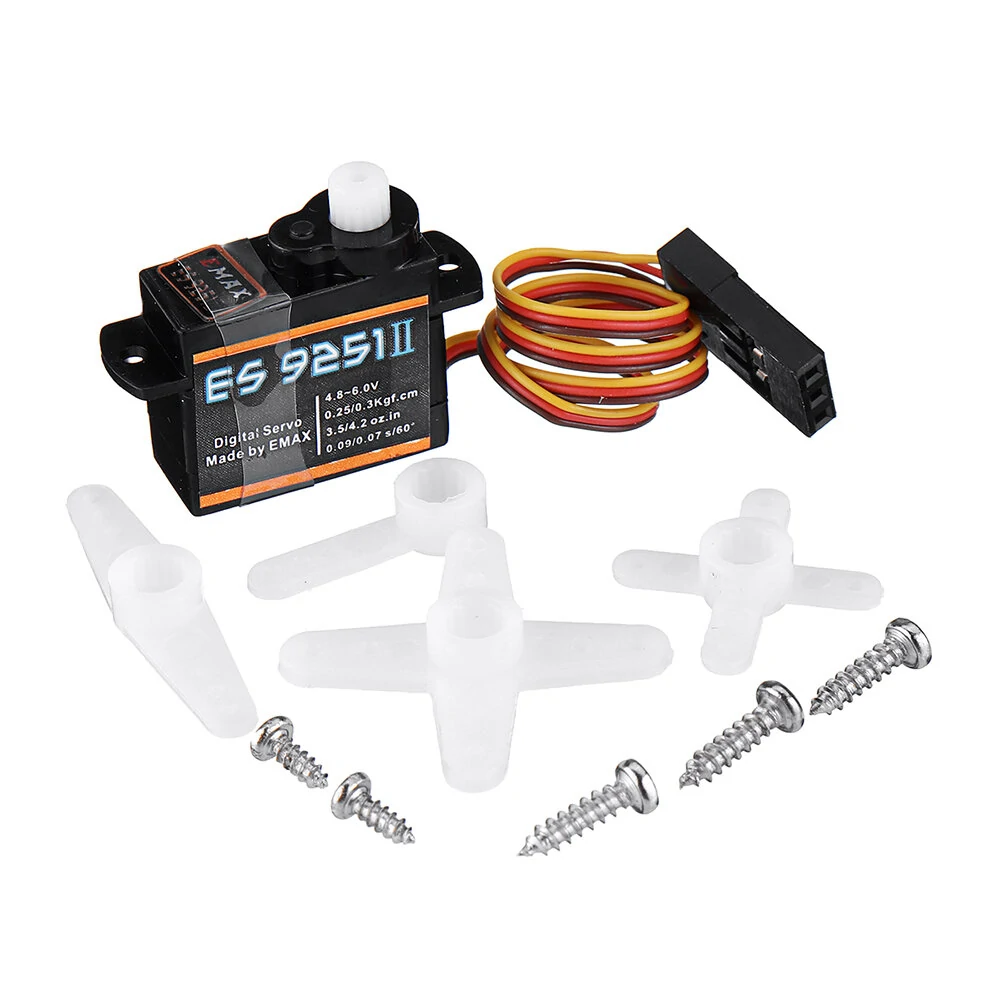

Package Included:
6 x ES9251II Digital Servo
