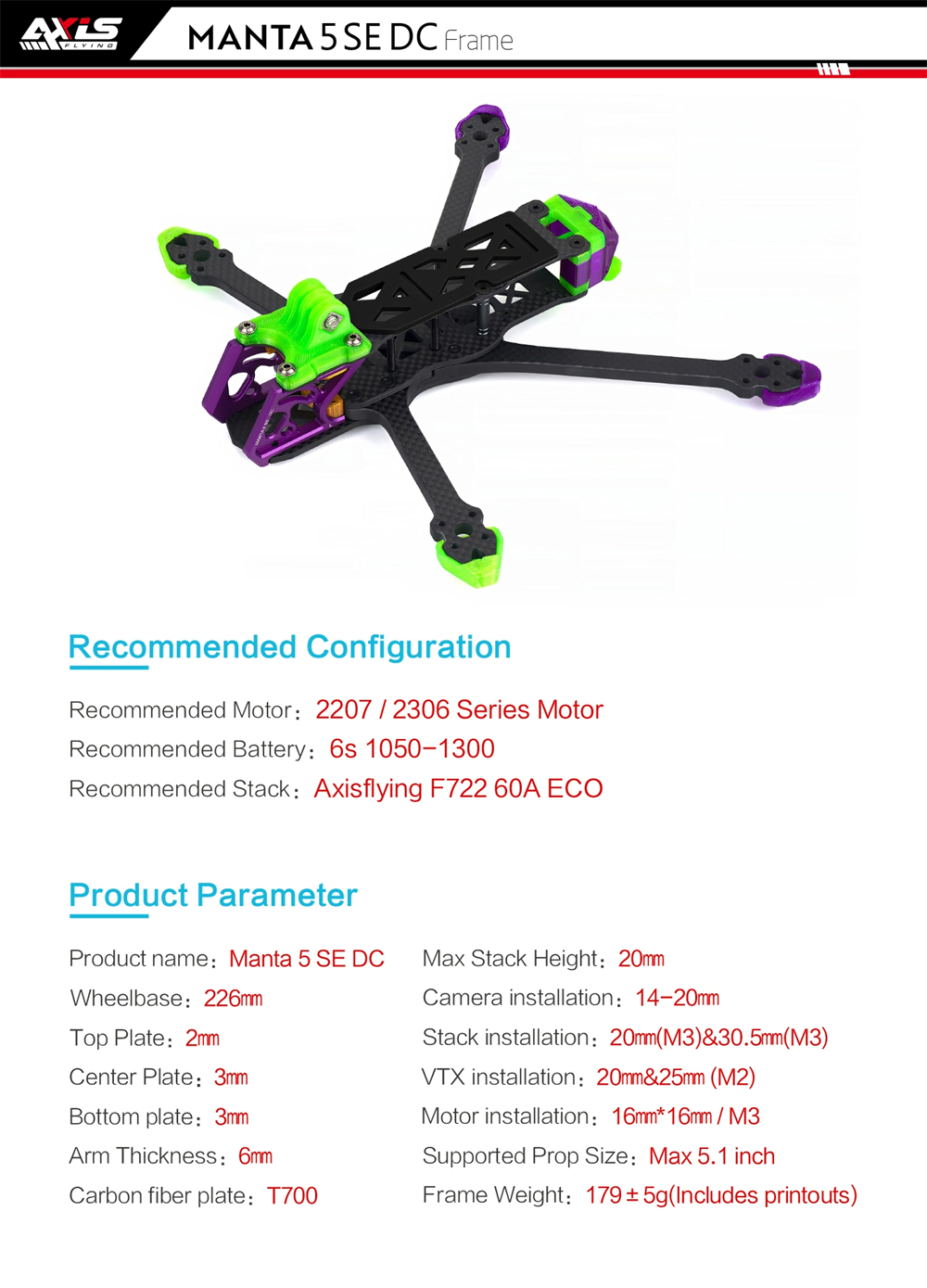

Specification:
Brand: Axisflying
Item Name: Manta 5 SE DC Frame Kit
Wheelbase: 226mm
Carbon fiber plate: T700
Top Plate: 2mm
Center Plate: 3mm
Bottom plate: 3mm
Arm Thickness: 6mm
Max Stack Height: 20mm
Camera Installation: 14–20mm
Stack Installation: 20mm(M3)&30.5mm(M3)
VTX Installation: 20mm&25mm (M2)
Motor Installation: 16mm*16mm / M3
Supported Prop Size: Max 5.1 inch

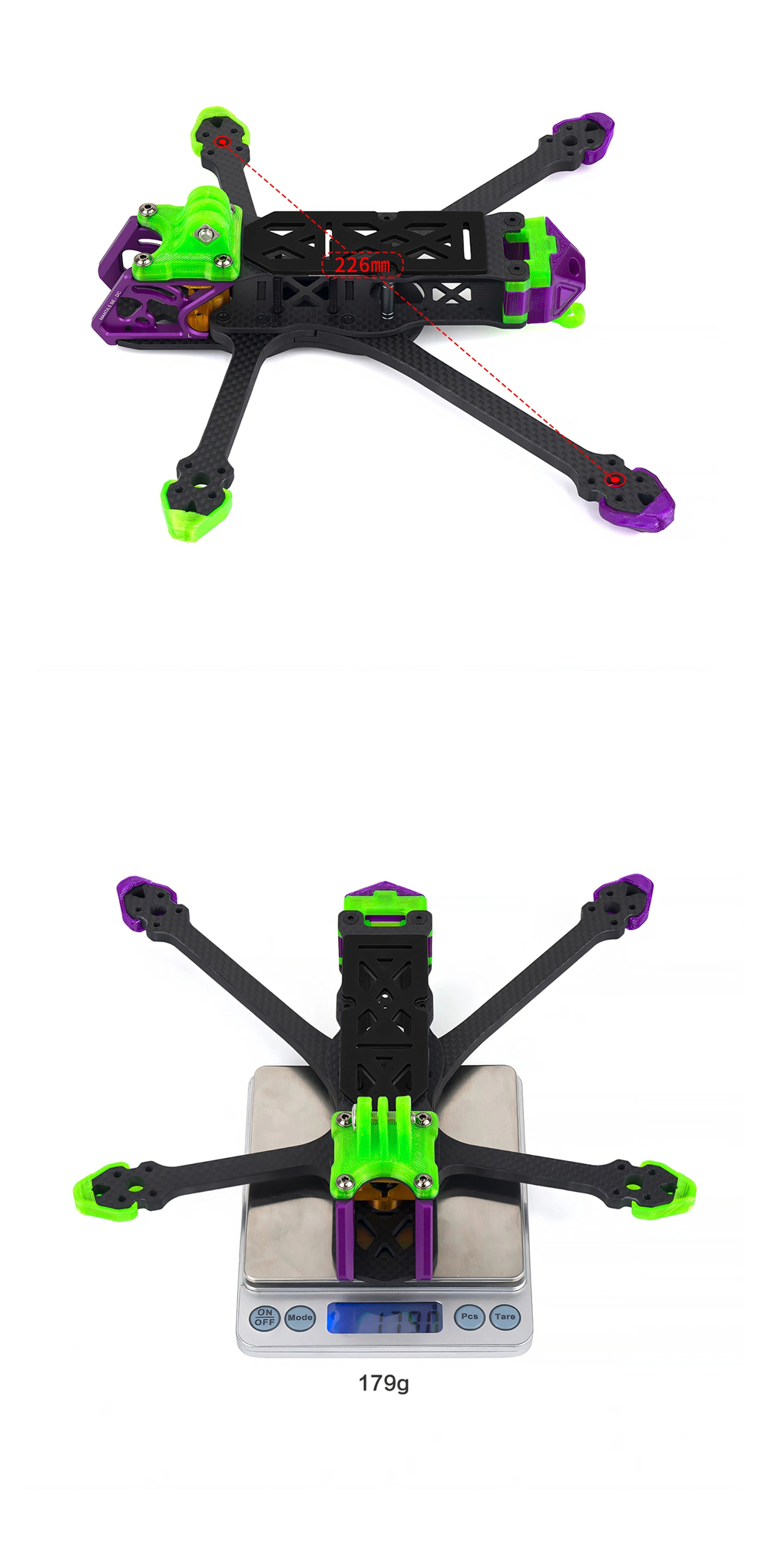

Frame Weight: 179 ± 5g(Includes printouts)
Recommended Parts(Not included):
Motor: 2207 / 2306 Series Motor
Battery: 6s 1050–1300
FC&ESC: 20*20mm Axisflying ARGUS F745 / 30.5×30.5mm Axisflying Argus ECO F405
Propeller: HQProp Freestyle Prop 5X4.3X3V2S 5043 5 Inch 3-Balde Propeller
VTX&Camera: DJI O4 PRO Air Unit

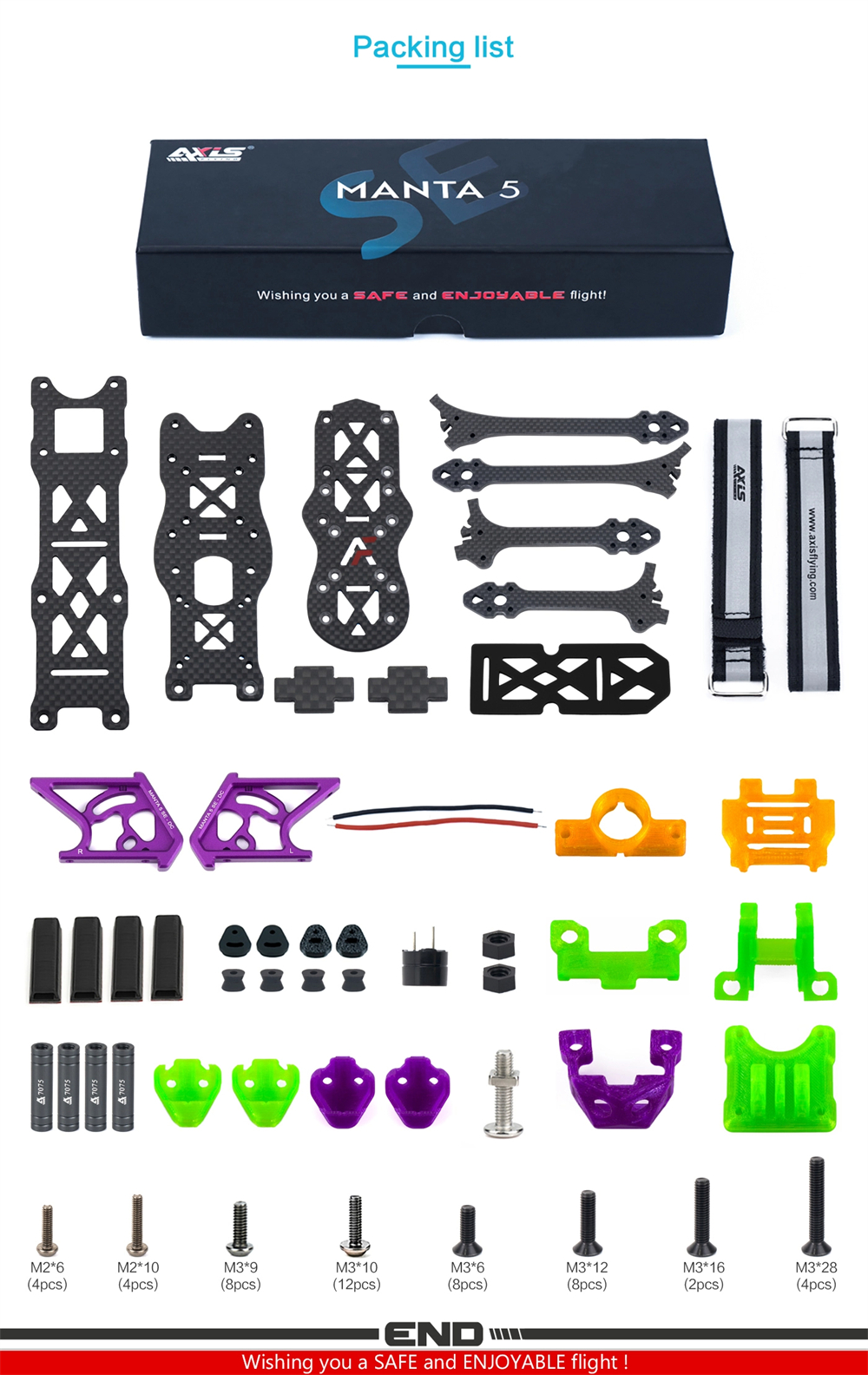

Package Included:
1x Manta 5 SE DC Frame Kit
