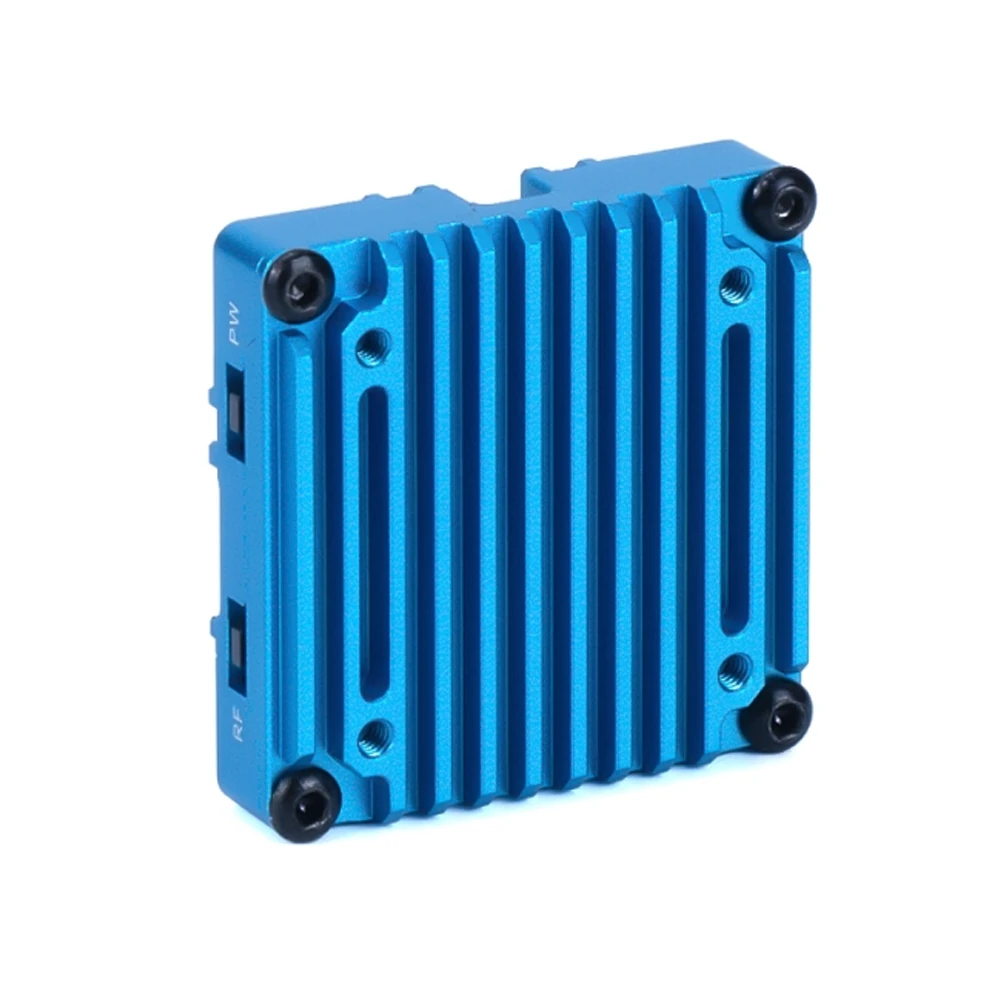

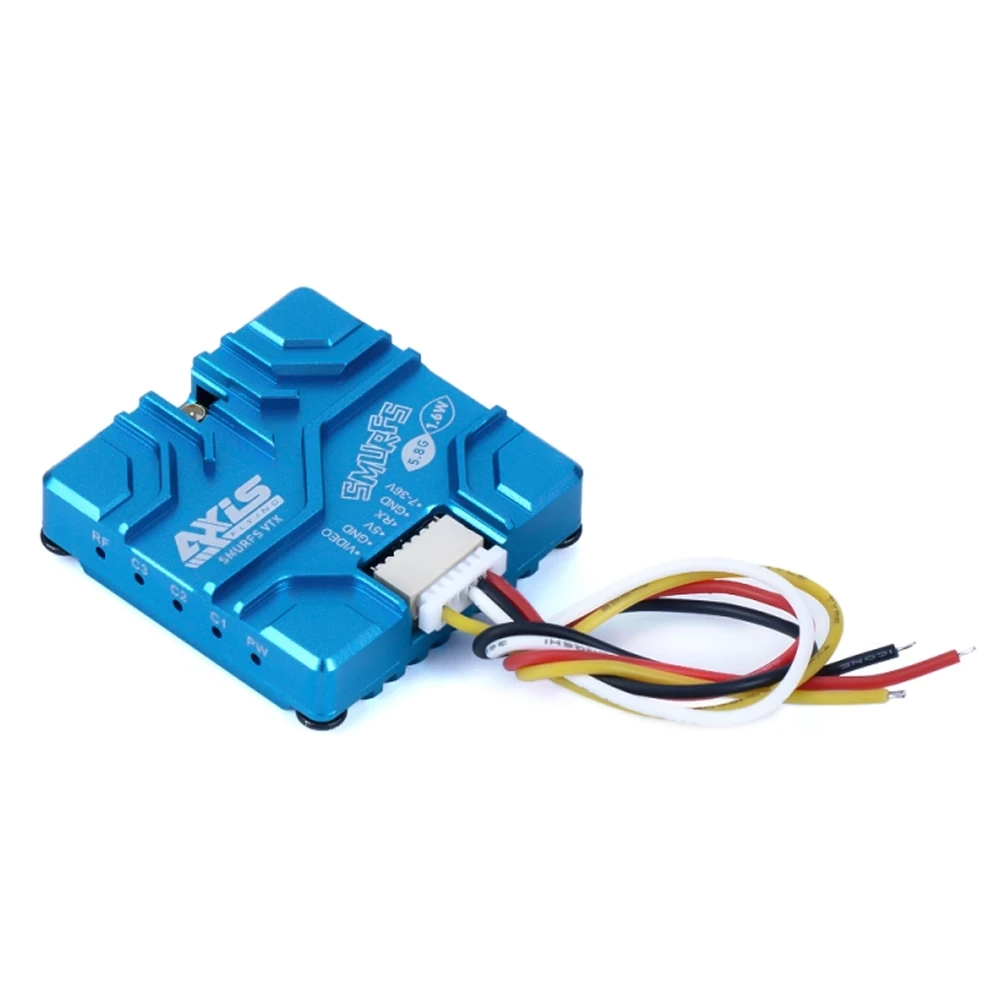

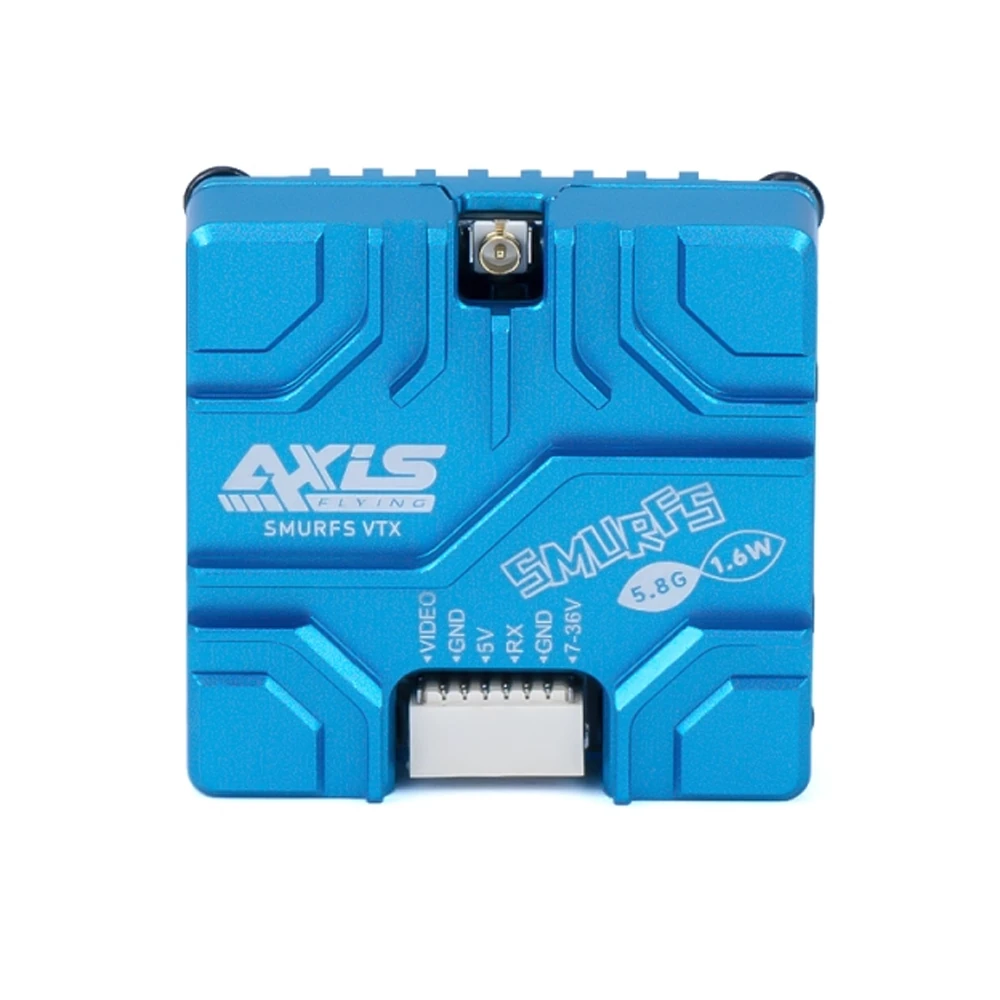

Axisflying SMURFS VTX 5.8G 1.6W Analog Image Transmission for RC Drones
WARNING:
Be sure to plug in the antenna before powering up, or you willburn this product !!!

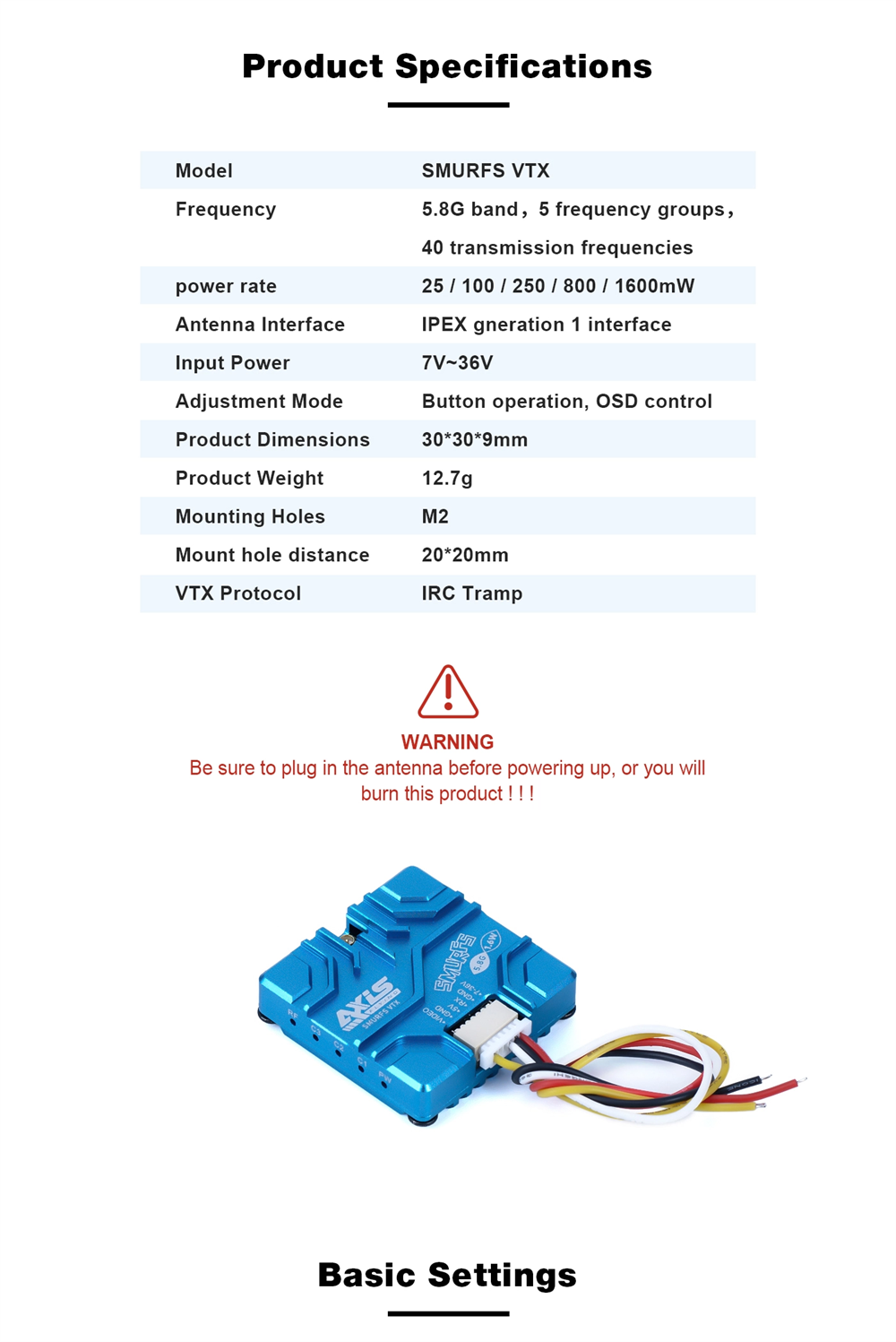

Specifications:
| Brand: | Axisflying |
| Model: | SMURFS VTX |
| Frequency: | 5.8G band, 5 frequency groups,40 transmission frequencies |
| Power rate: | 25 / 100 / 250 / 800 / 1600mW |
| Antenna Interface: | IPEX gneration 1 interface |
| Input Power: | 7V~36V |

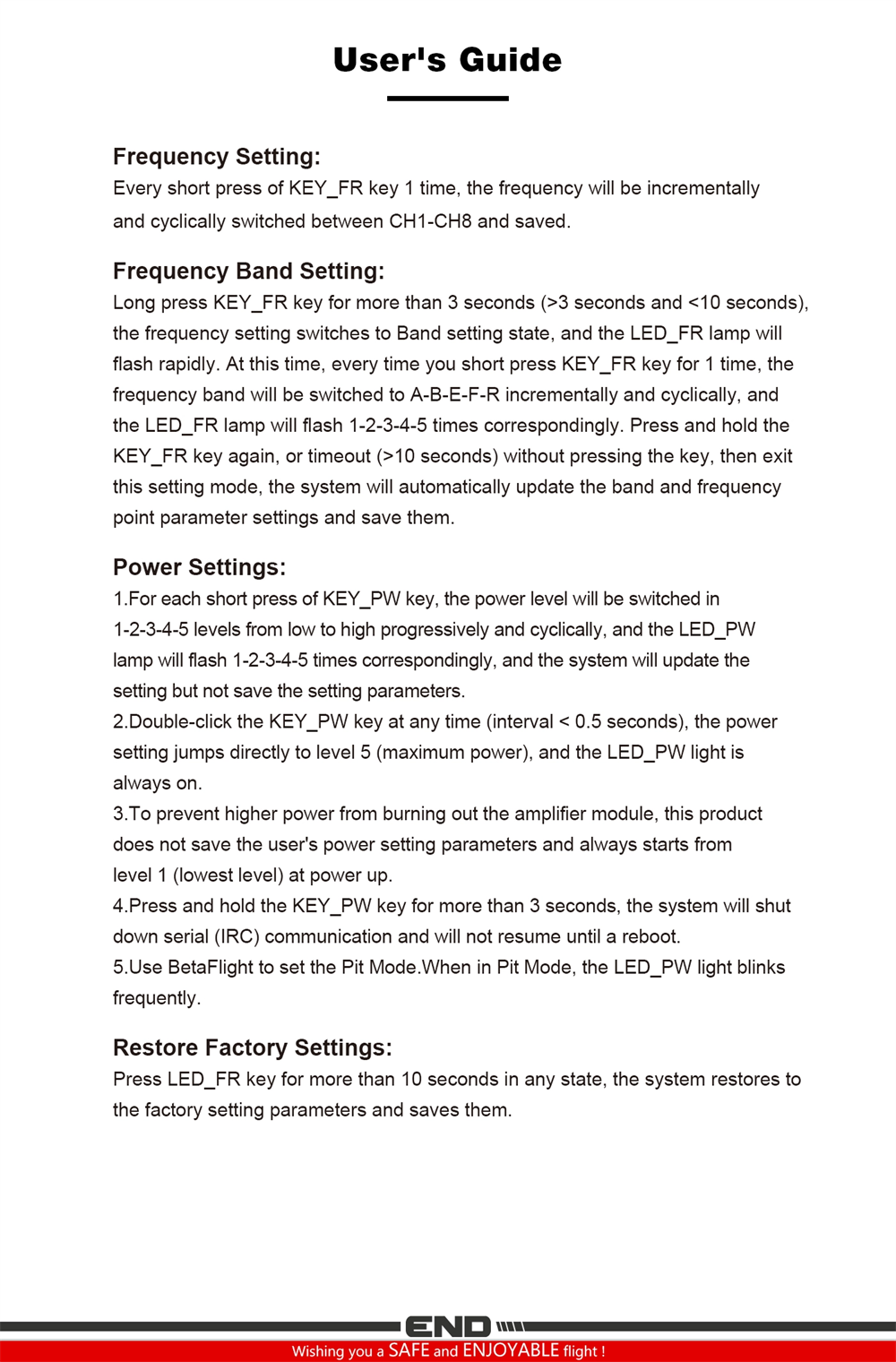

| Adjustment Mode: | Button operation, OSD control |
| Product Dimensions: | 30*30*9mm |
| Product Weight: | 12.7g |
| Mounting Holes: | M2 |
| Mount hole distance: | 20*20mm |

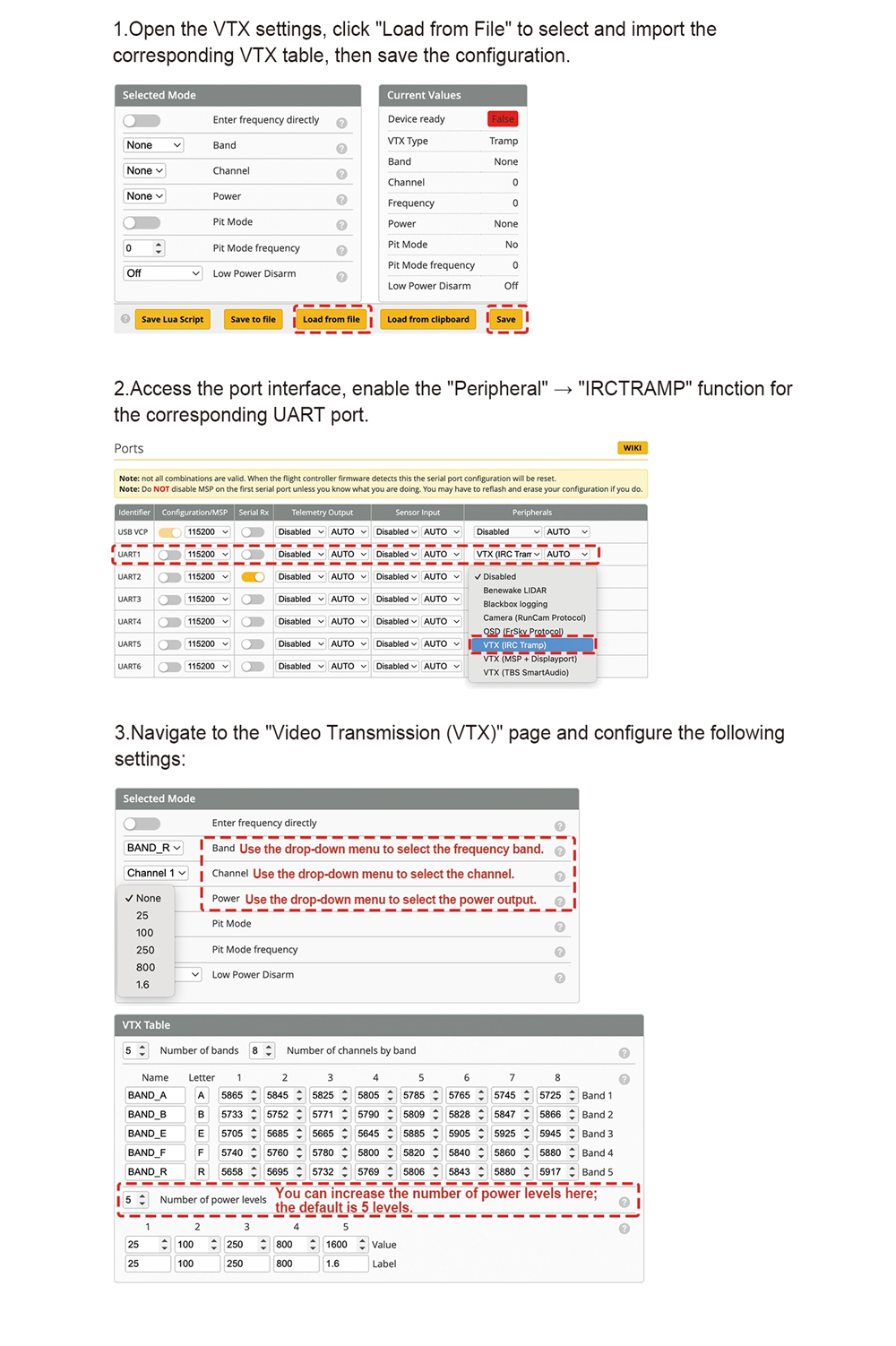

| VTX Protocol: | IRC Tramp |
Feature:
1. Operates on the 5.8G band with 5 frequency groups and 40 transmission frequencies, ensuring strong and stable signal transmission in various environments.
2. Offers selectable power rates of 25 / 100 / 250 / 800 / 1600mW to meet different flying requirements and environments.
3. Equipped with IPEX generatio 1 interface, facilitating easy and secure connection to various antennas for optimal performance.
4. Supports a wide input power range from 7V to 36V, making it compatible with different power supply setups.
5. With dimensions of 30*30*9mm and a weight of only 12.7g, it is designed for minimal impact on the fligh dynamics of drones.
Package included:

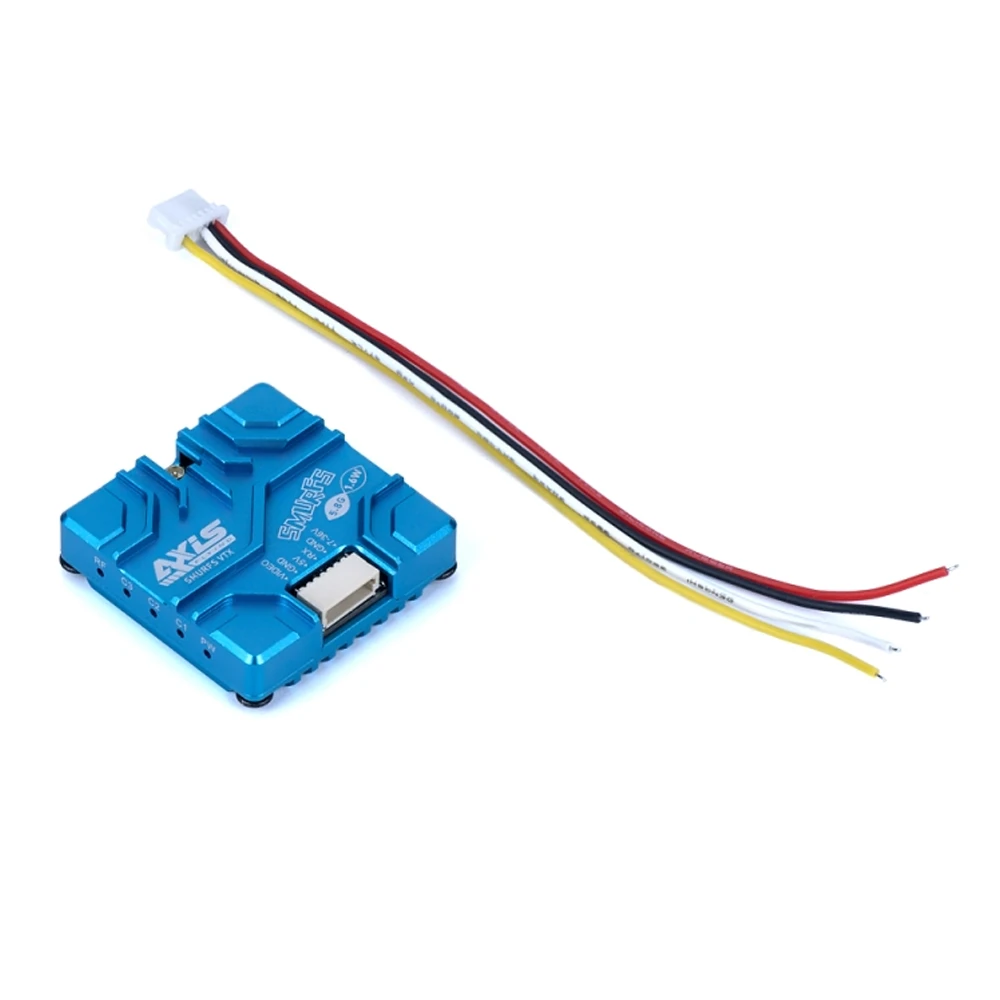

1x SMURFS VTX 5.8G 1.6W Analog Image Transmission
