BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone

BAYCK ELRS 2.4GHz 5CH PWM Receiver for Aircraft Fixed Wing FPV RC Drone

Specification:
Brand: BAYCK
Model: BK-2.4G-5CH
Frequency: 2.4Ghz

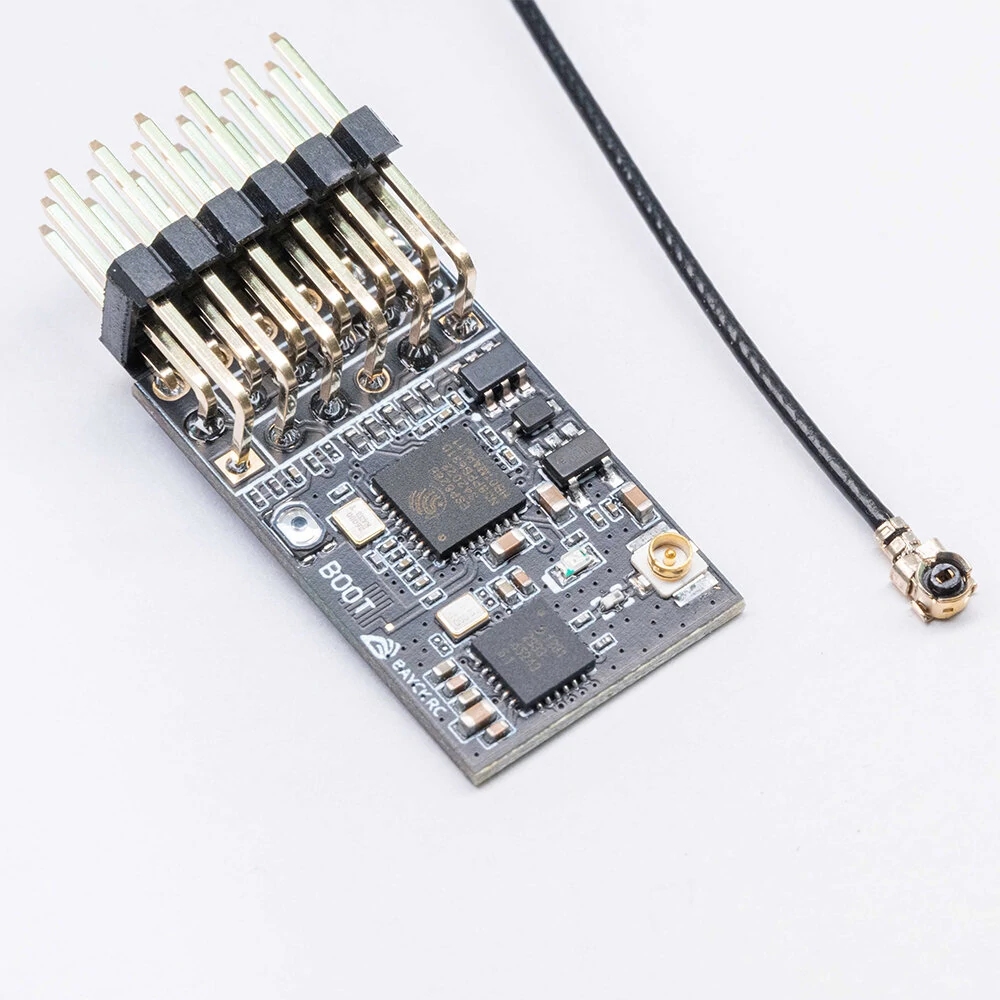

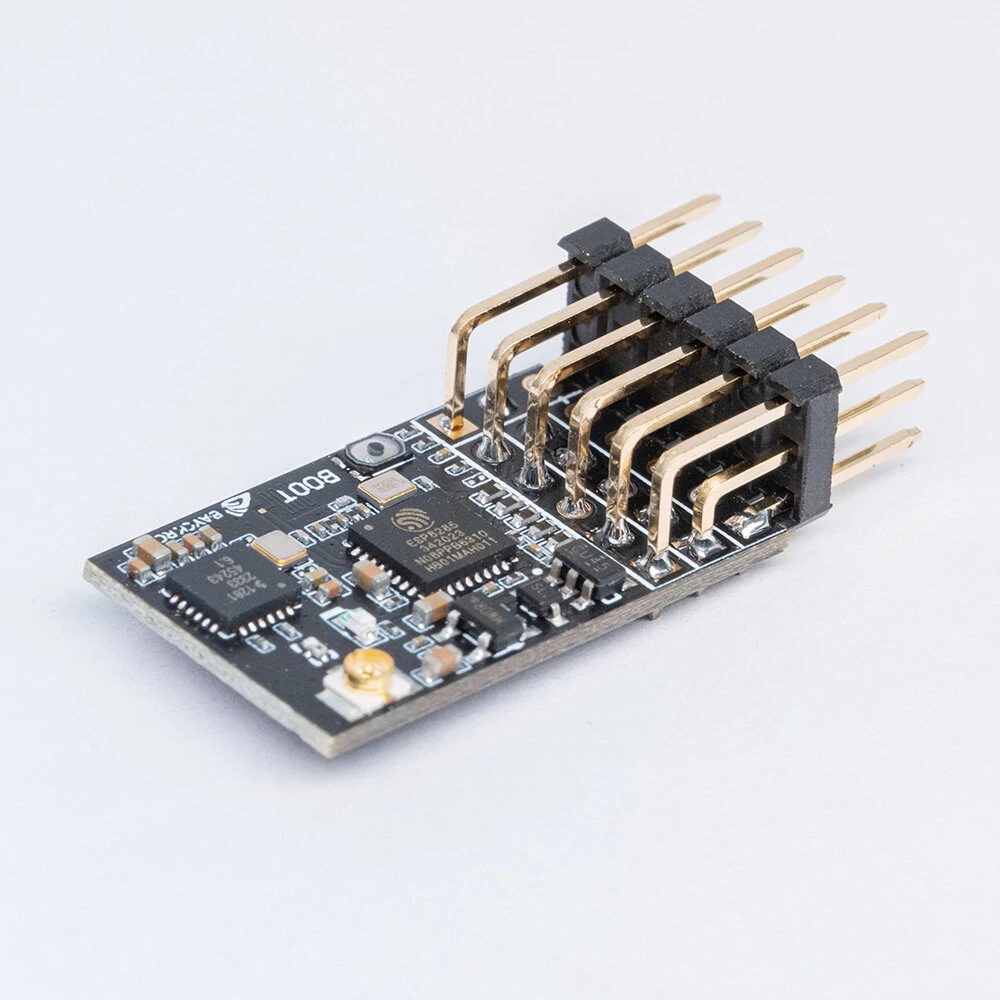

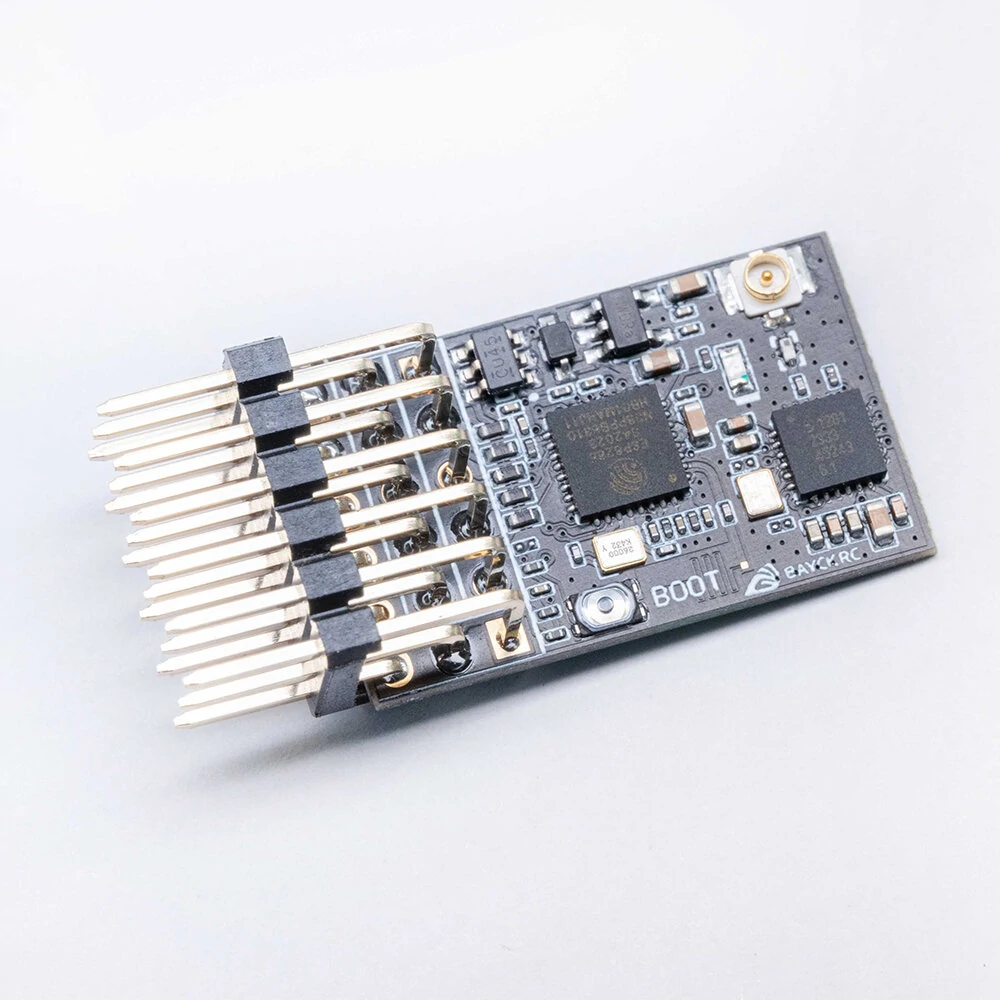

Chip: SX1281+ESP8285
Telemetry power: 12dbm
PCB color: black
RF connector: IPEX1
Input voltage: 4-10V

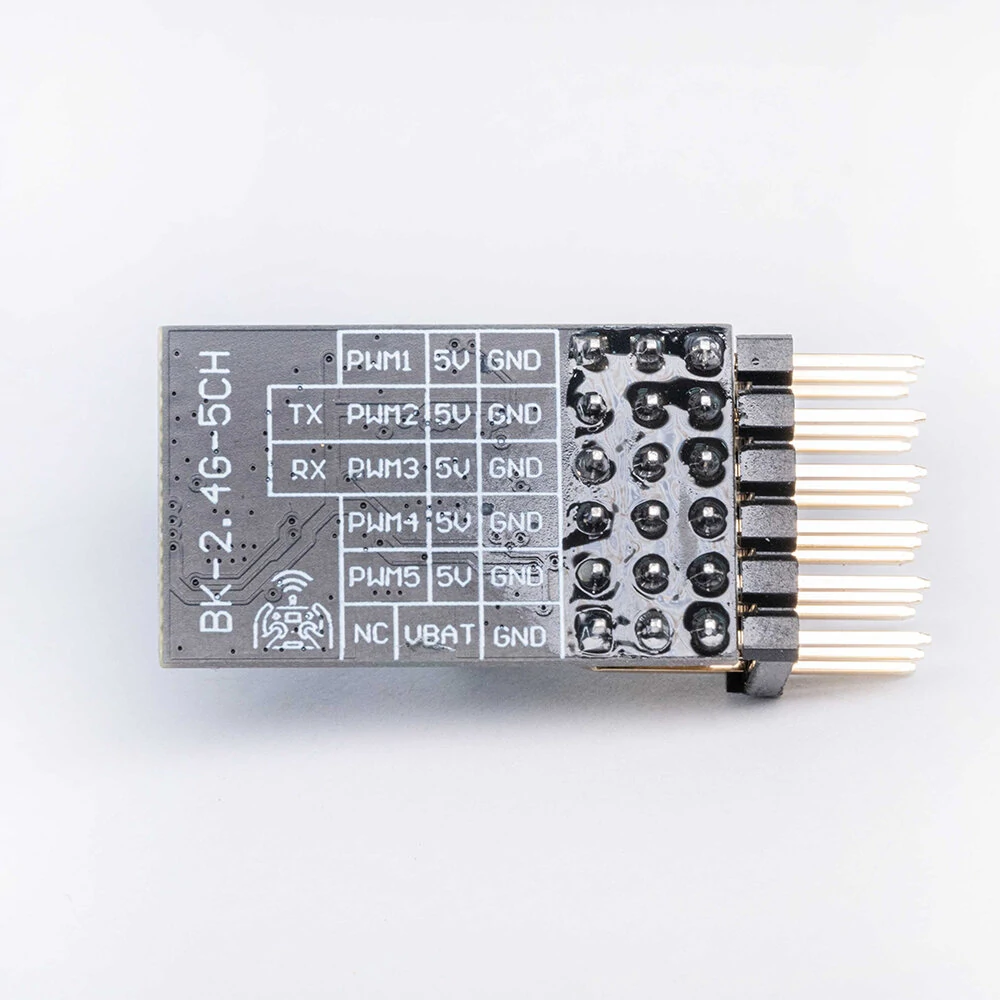

PWM channel: 5 channels
Supports a maximum voltage of 34V backhaul (requires firmware version 3.0.0 and above)
Receiver output protocol: PWM or CRSF
Power consumption: 45mA@5V (connected state), 85mA@5V (WIFI upgrade state)
Weight: 4.7g (receiver plus antenna)
PCB size: 15.5mm*25.5mm

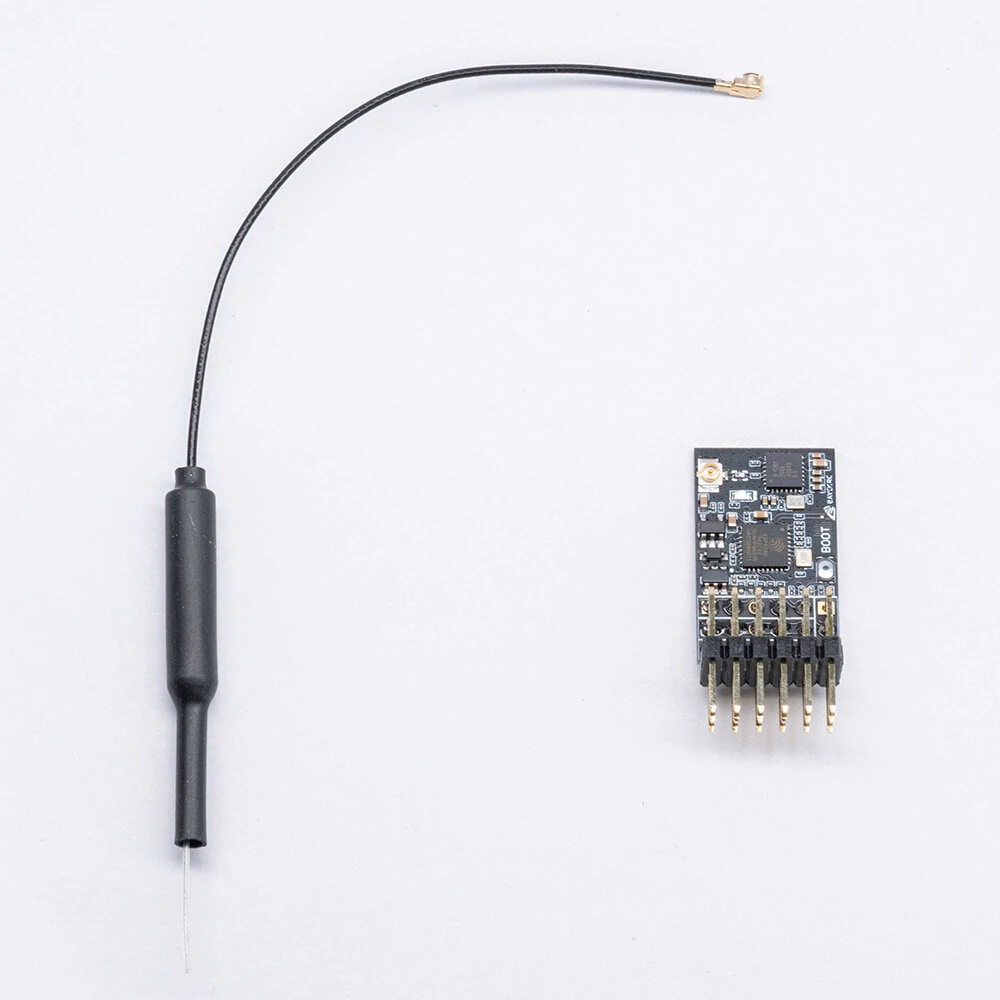

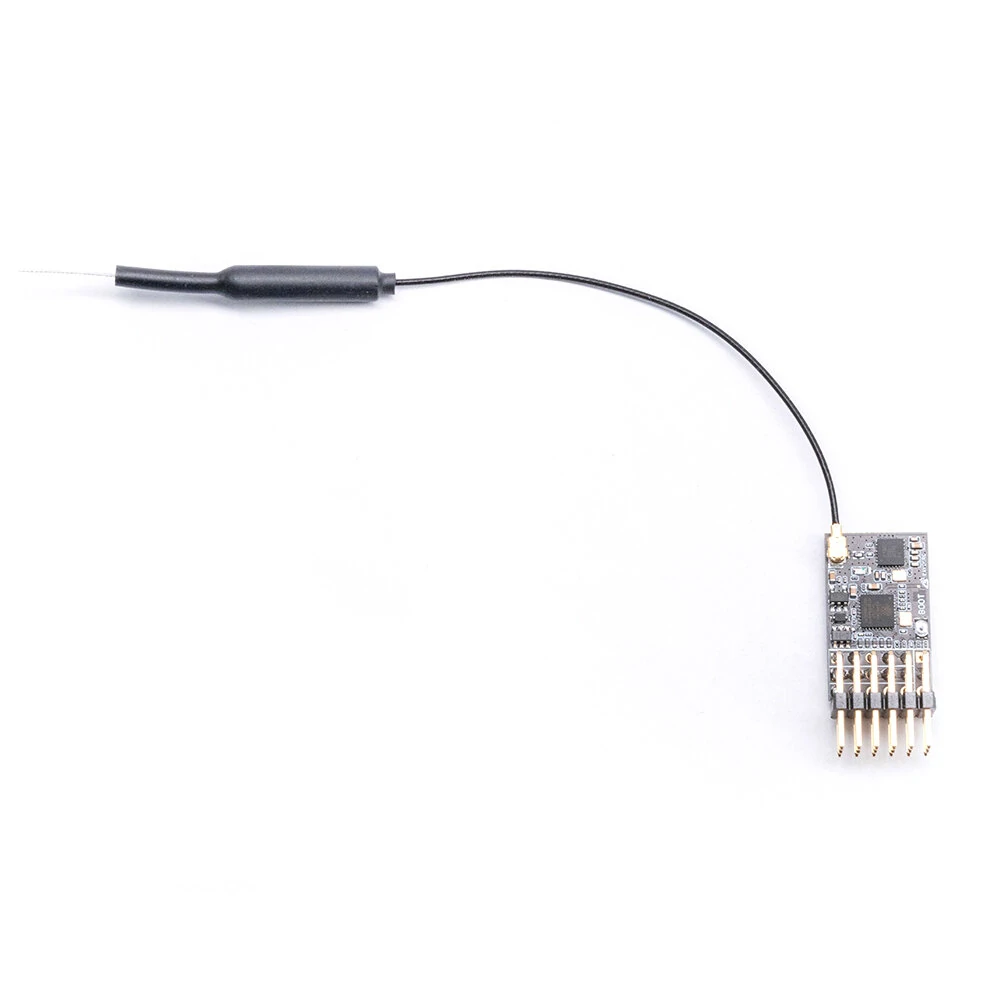

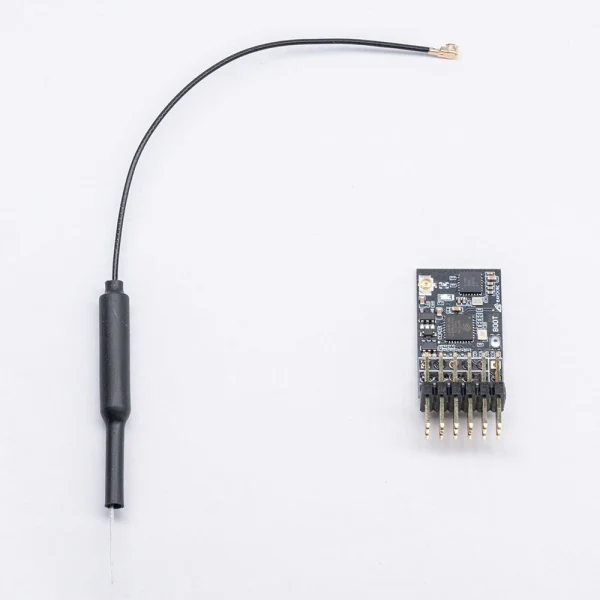

Package Included:
1x Nano Receiver
1x Antenna
Firmware: DIY 2.4 GHz/DIY 2400 RXPWMP
