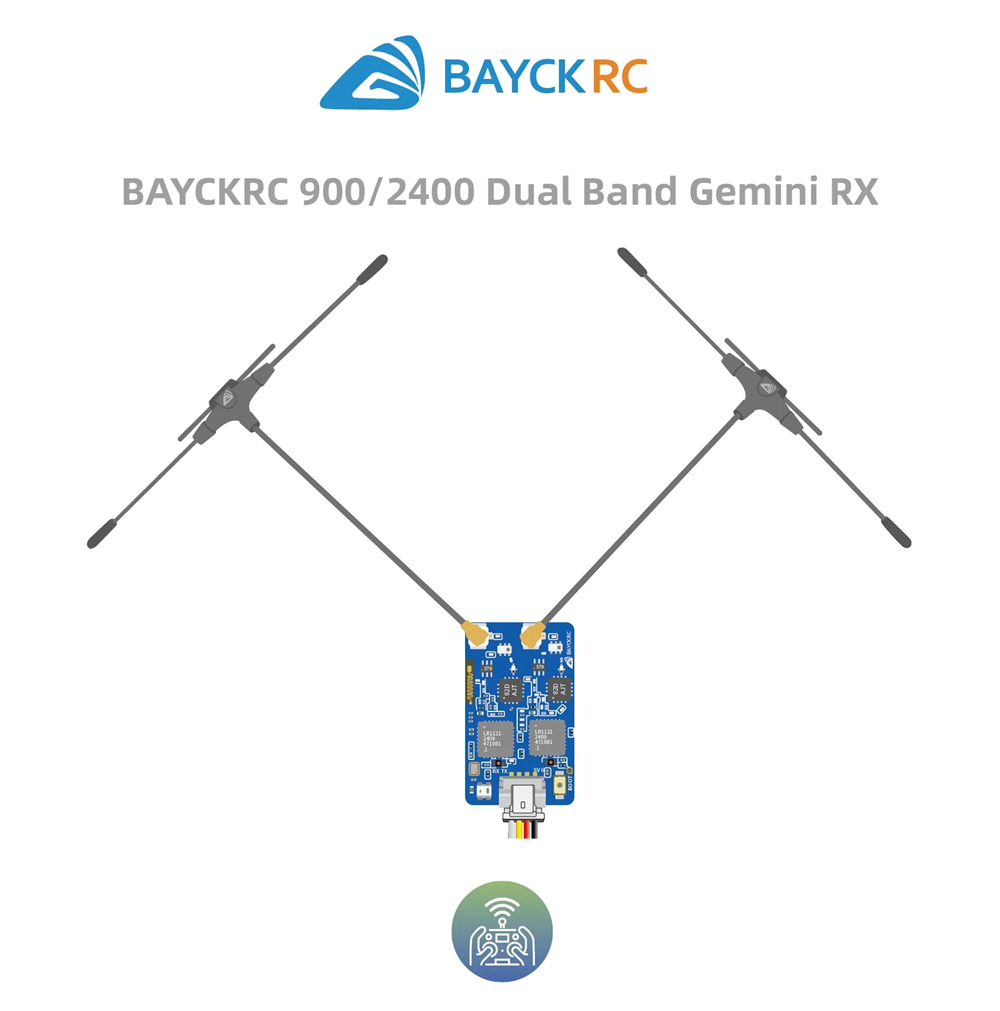

BAYCKRC 900/2400 900MHz/2.4GHz Dual Band Gemini RX ExpressLRS Receiver for FPV Racer Drone

BAYCKRC 900/2400 900MHz/2.4GHz Dual Band Gemini RX ExpressLRS Receiver for FPV Racer Drone

Description:

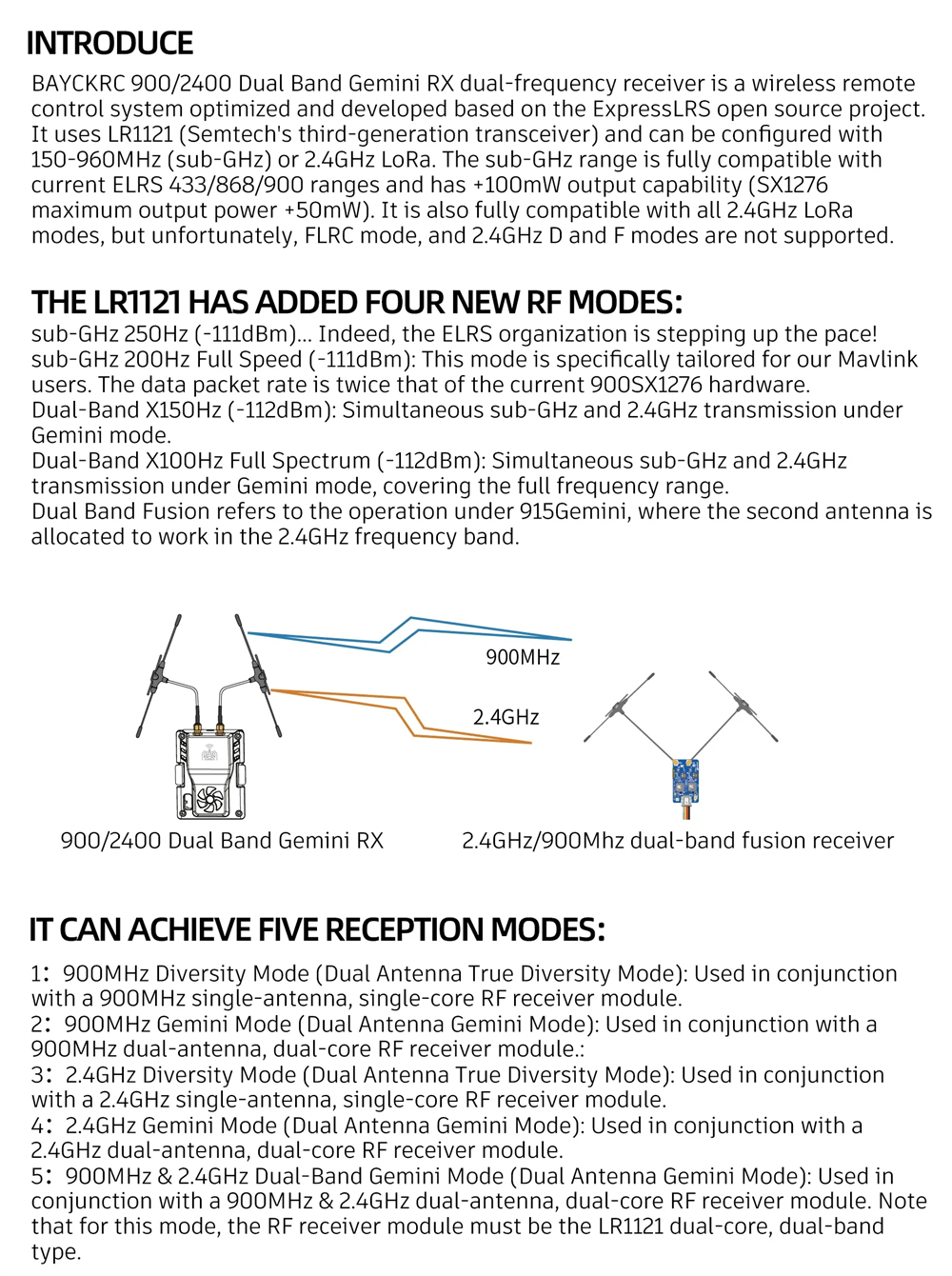

BAYCKRC 900/2400 Dual Band Gemini RX dual-frequency receiver is a wireless remote control system optimized and developed based on the ExpressLRS open source project. It uses LR1121 (Semtech’s third-generation transceiver) and can be configured with 150-960MHz (sub-GHz) or 2.4GHz LoRa. The sub-GHz range is fully compatible with the current ELRS433/868/900 range and has a +100mW output capability (SX1276 maximum output power +50mW). It is also fully compatible with all 2.4GHz LoRa modes, but unfortunately, does not support FLRC mode, and 2.4GHz D and F modes.

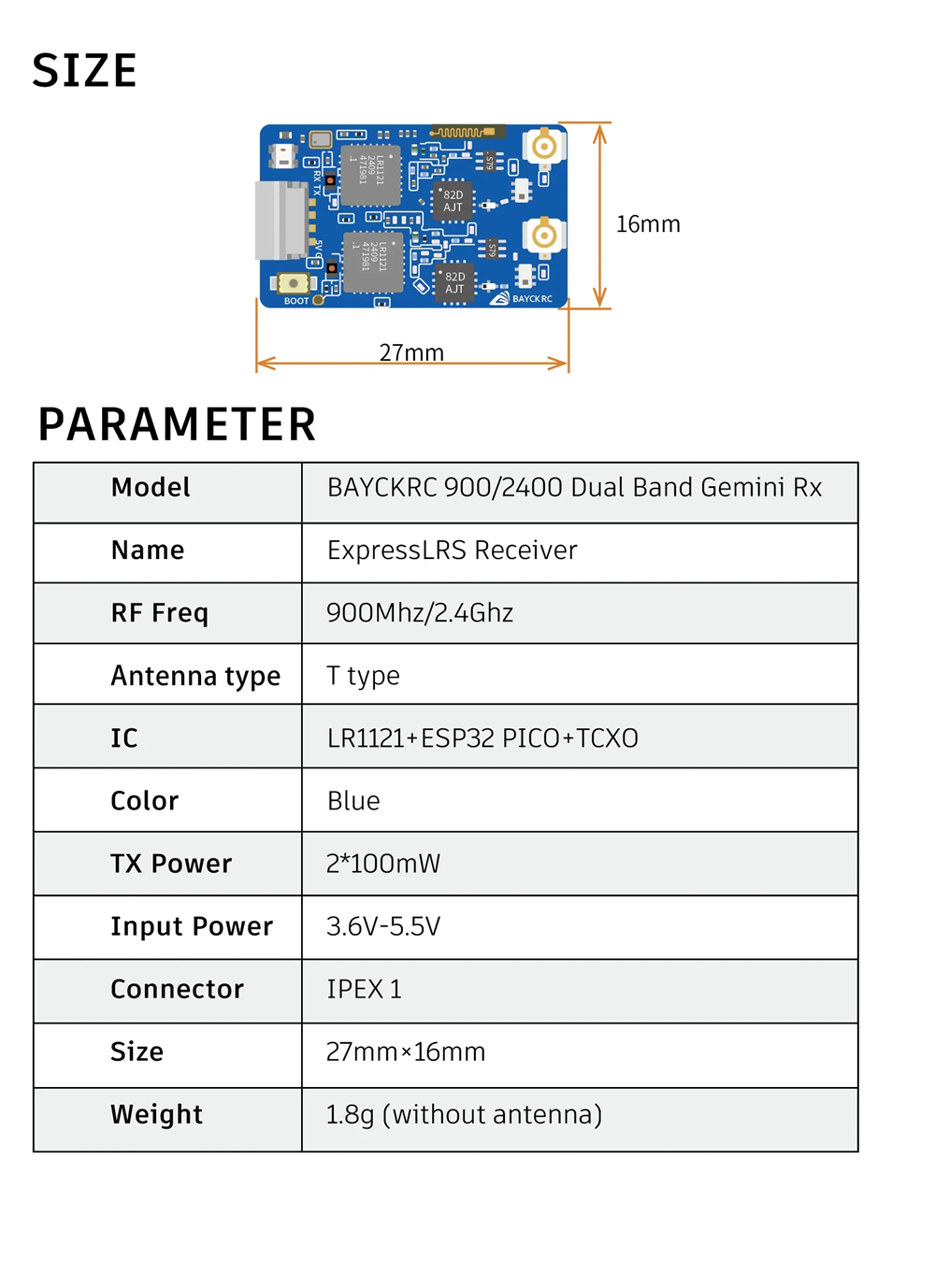

Specification:
Model: BAYCKRC 900/2400 Dual Band Gemini RX
Name: ExpressLRS Receiver
Antenna Feeder Length：80mm/120mm
Freq: 900Mhz/2.4GhzRF
Antenna Type: T Type

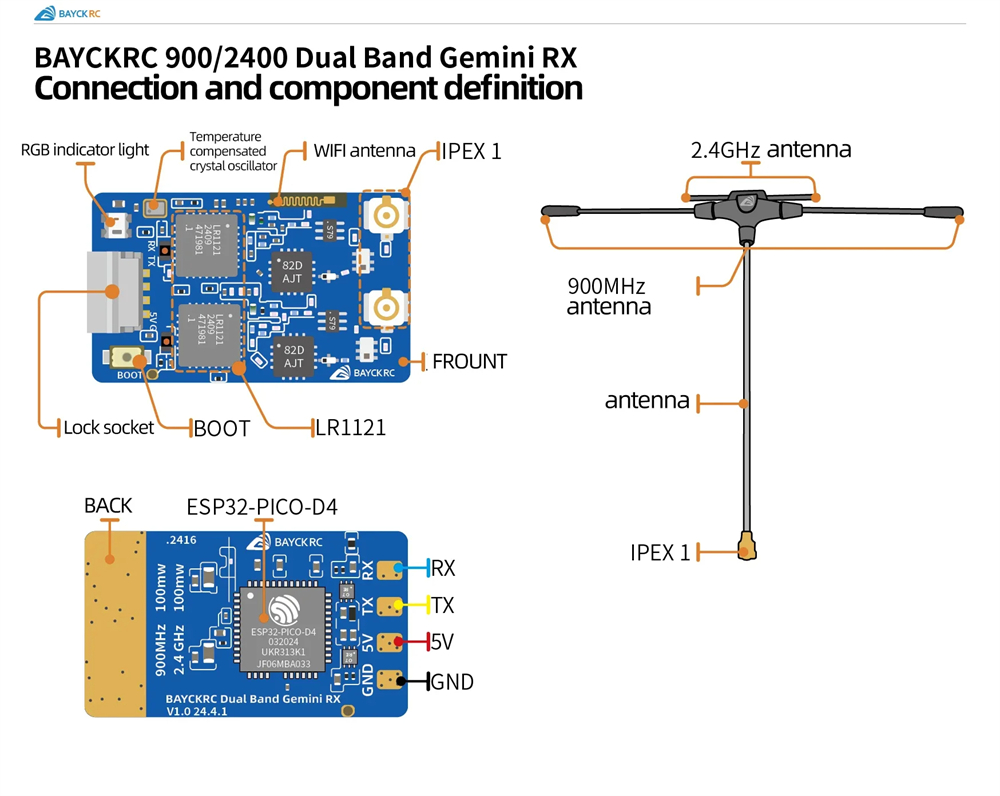

IC: LR1121+ESP32 PICO+TCXO
TX Power: 2*100mW
Color/PCB: Blue
Connector: IPEX 1
Input Power: 3.6V-5.5V
Weight: 1.8g(without antenna)
Size: 27mm*16mm

Package included:
2x 80mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
or
2x 120mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
or
1x 80mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
1x 120mm Antenna BAYCKRC 900/2400 Dual Band Gemini RX
