BLUEARROW D30T MG HV Digital High Precision Ultra-Micro Servo

Description

Specifications:

Control System: PWM Pulse Control
Processor: Integration Digital Circuit Processor
Required Pulse: 3 to 5V peak square waves
Operating Frequency: 1520μs/333Hz
Rotation Angle Sensor: High Precision Potentiometer
Rotation Angle: Left: 60°, Right: 60°
Voltage (DC): 3.5V to 7.4V
Temperature Range: -20℃ to 70℃
Operational Angle: 60 degrees at 600μs
Running Direction: Clockwise/900μs-2100μs
Pulse Width Range: 900-2100μs
Midpoint Pulse: 1500μs
Speed (No Load): 0.06sec/60°@4.2V, 0.04sec/ 60° @ 6.0V
Torque (Stall full): 1.02 [email protected], 1.35 kg.cm @ 6.0V
Standby Current/Ampere: 0.300A/4.2V, 0.300A/6.0V
Operating Current/Ampere: 0.300A/4.2V, 0.300A/6.0V
Stall Current/Ampere: 0.300 A/4.2V, 0.300 A/6.0V
Dead Width: 1μs
Bearing: Center Oily Bearing
Bearing Specification: 1.5mm×4mm×1.5mm

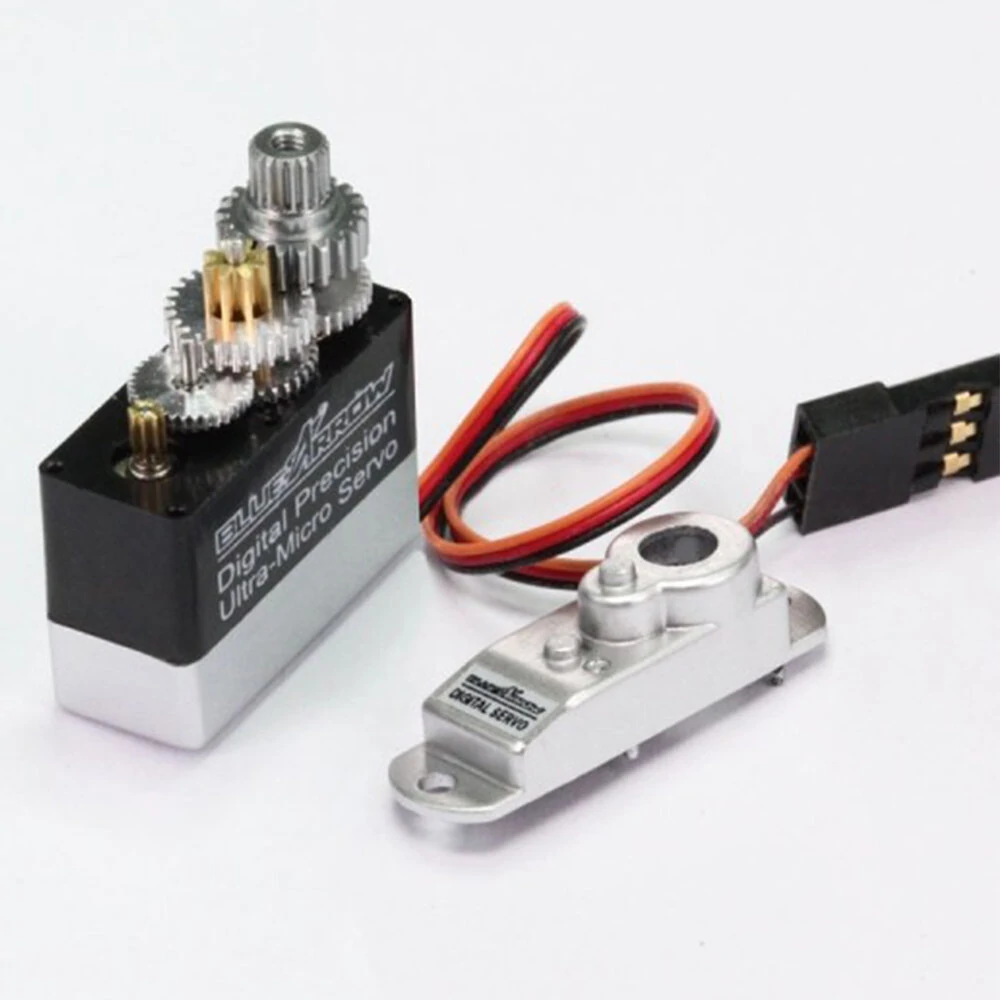

Gear Material: Chrome-Titanium Alloy (7075+6061)
Shell Material: ABS
Plug Specification: 120.00mm
Weight: 4.60g
Cable specifications: OD0.6/11×0.08mm 3p x120mm (JST-1.50mm) or (JR) Weight: 4.60g
Dimensions (Length x Width x Height): 19.60*8.00*17.40mm

Features:

This ultra-micro servo, while retaining its compact size of a 2.5g/3.6g, upgrades to a full digital circuit and metal gears for superior durability and control.

Provides precise control and is ideal for a variety of ultra-micro remote-controlled unmanned vehicles.

Lightweight and reliable with durable and smooth gearing.

High precision with excellent centering and smoothness, comes with digital circuit.

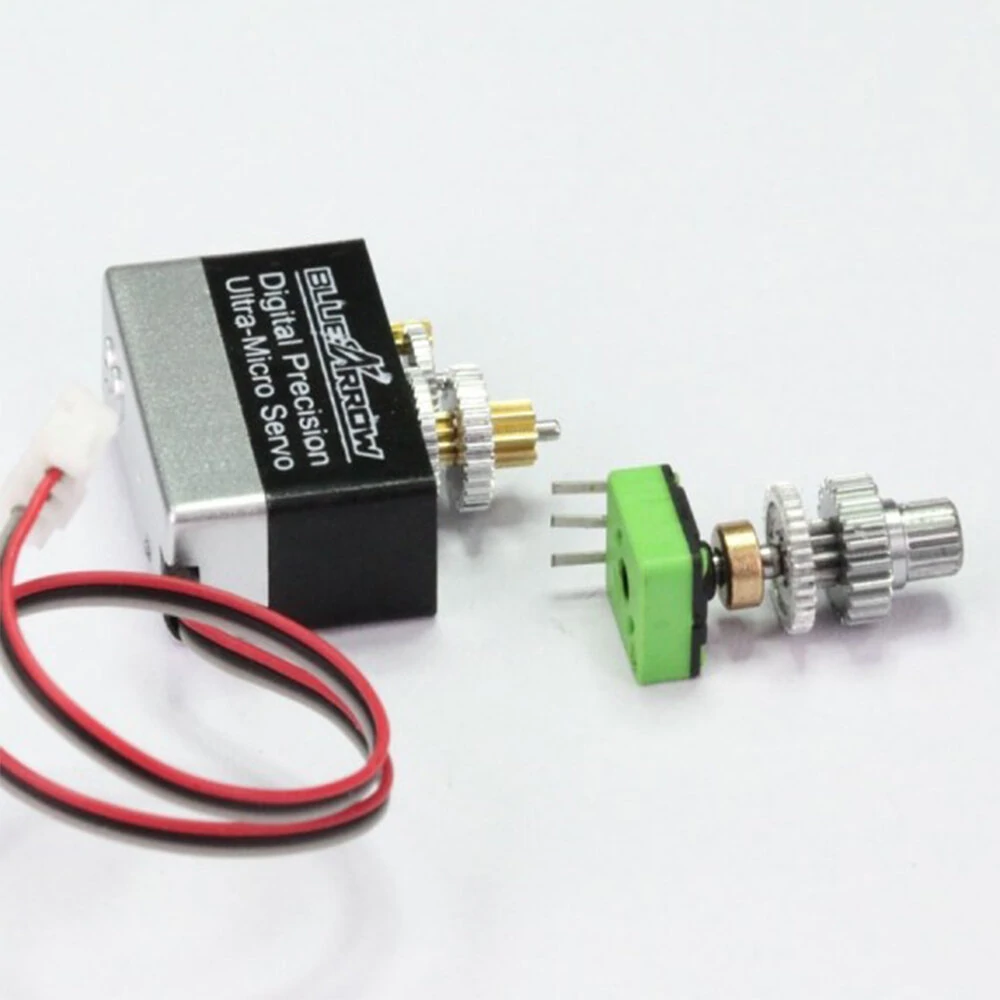

Features long-life potentiometer and hollow cup motor for greater durability and performance.

Package Included:

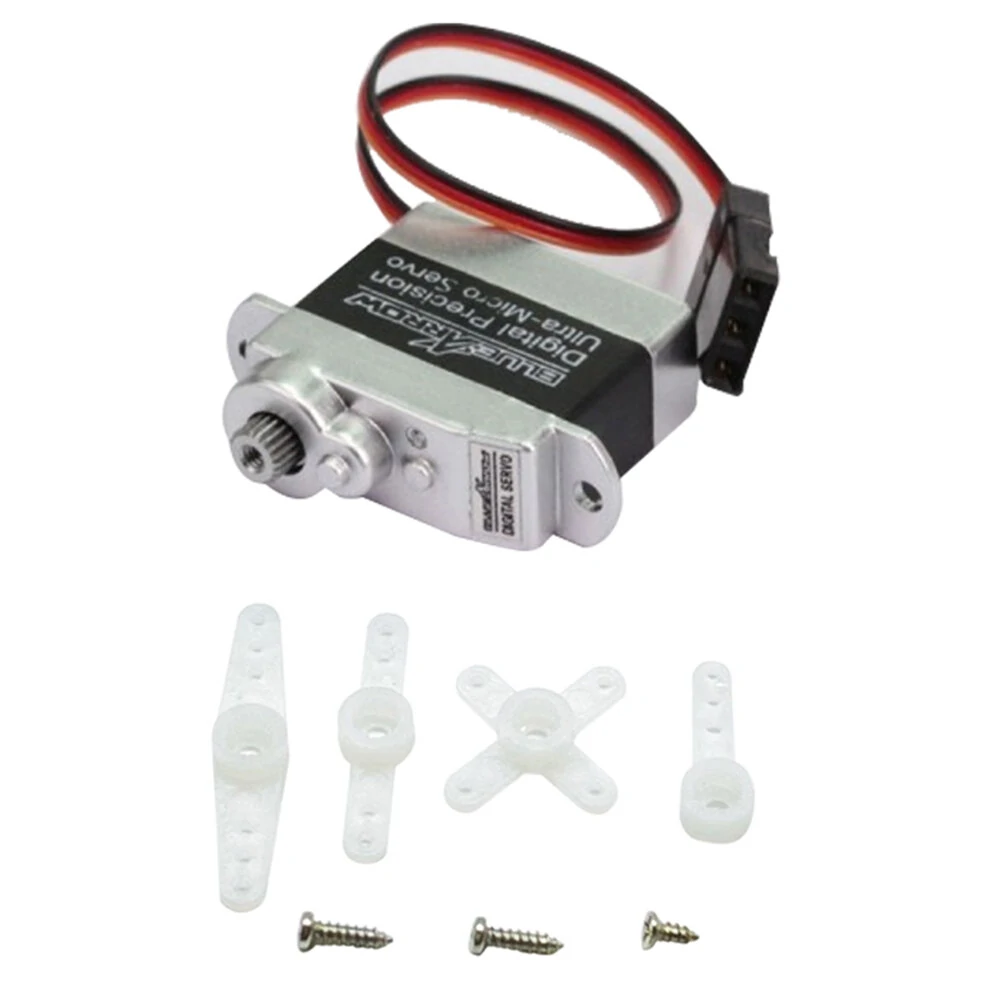

1x Digital High Precision Ultra-Micro Servo
