Specification:

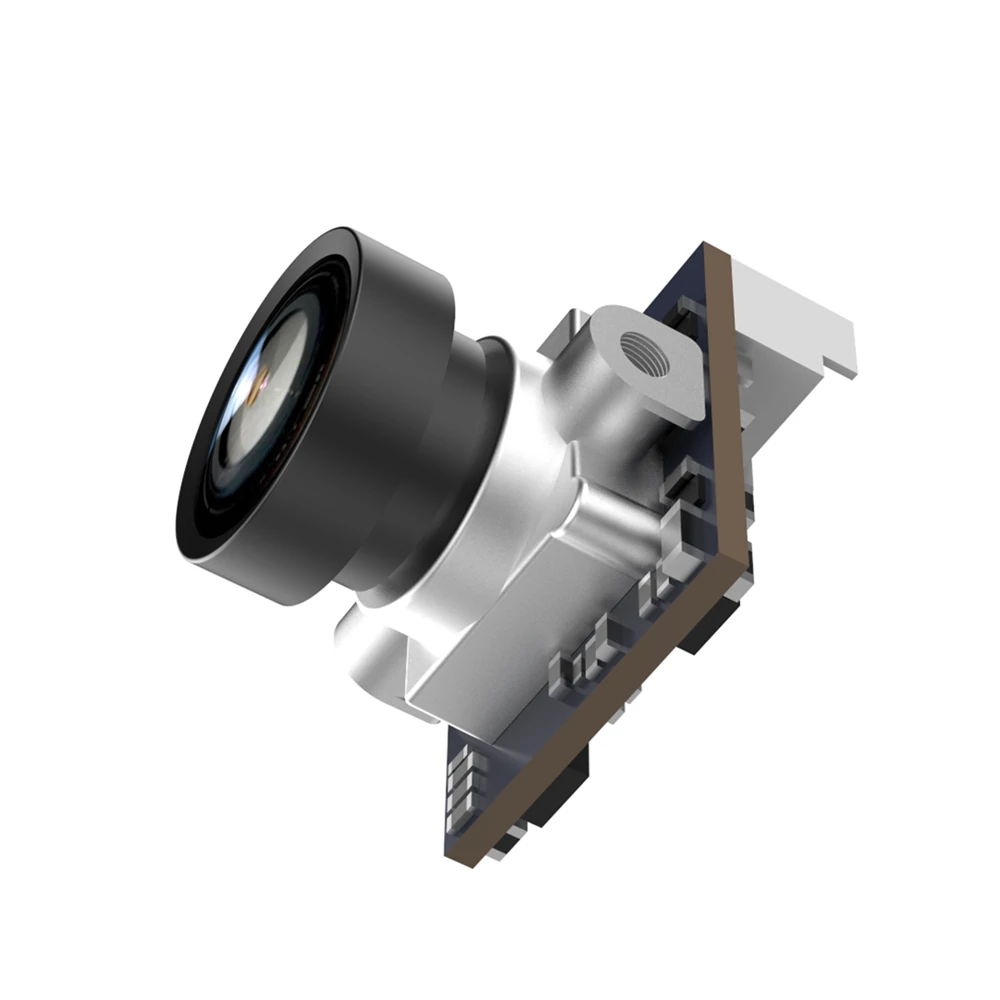

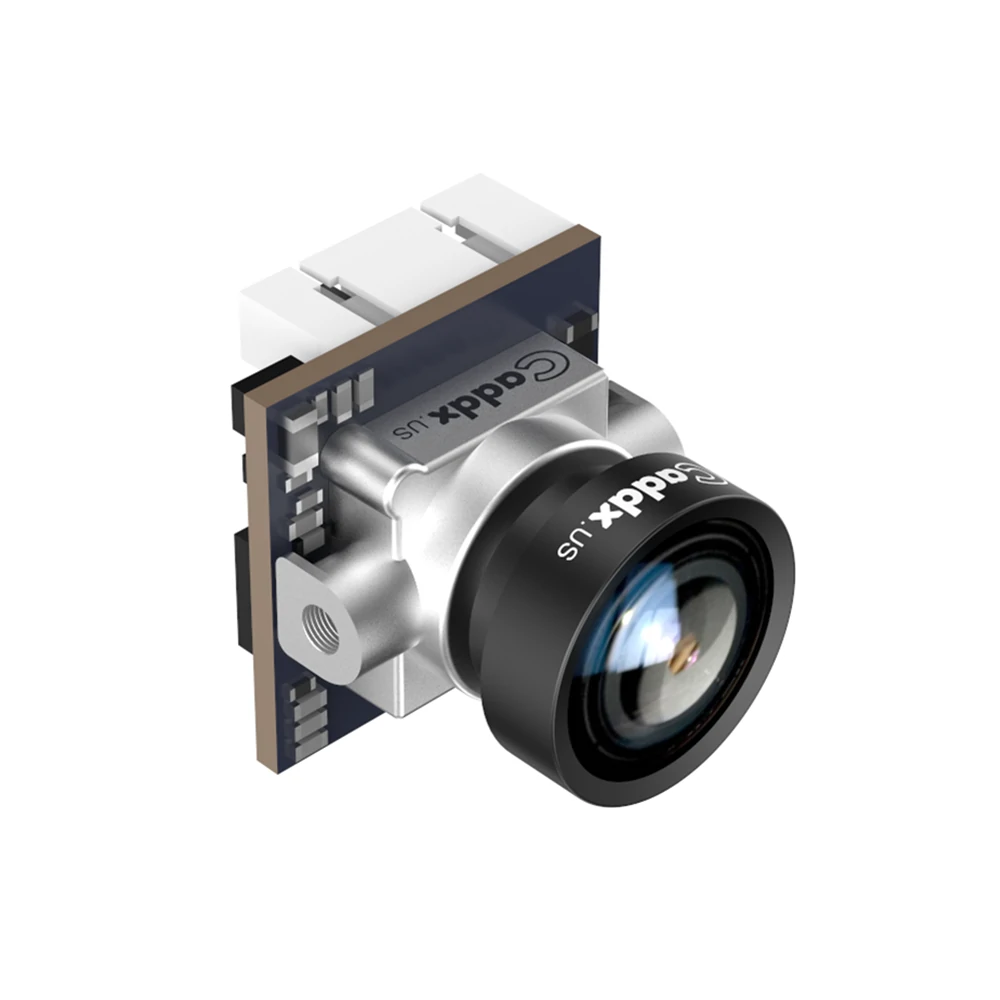

Model: Caddx Ant
Image Sensor: 1/3′ CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
MENU: Support
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 2g (N.W.)
Packing List:
Camera x1
3pin FPV silicone cable x1
Warranty card x1
Expend bracket x1
Screws x 4
