Introduction:

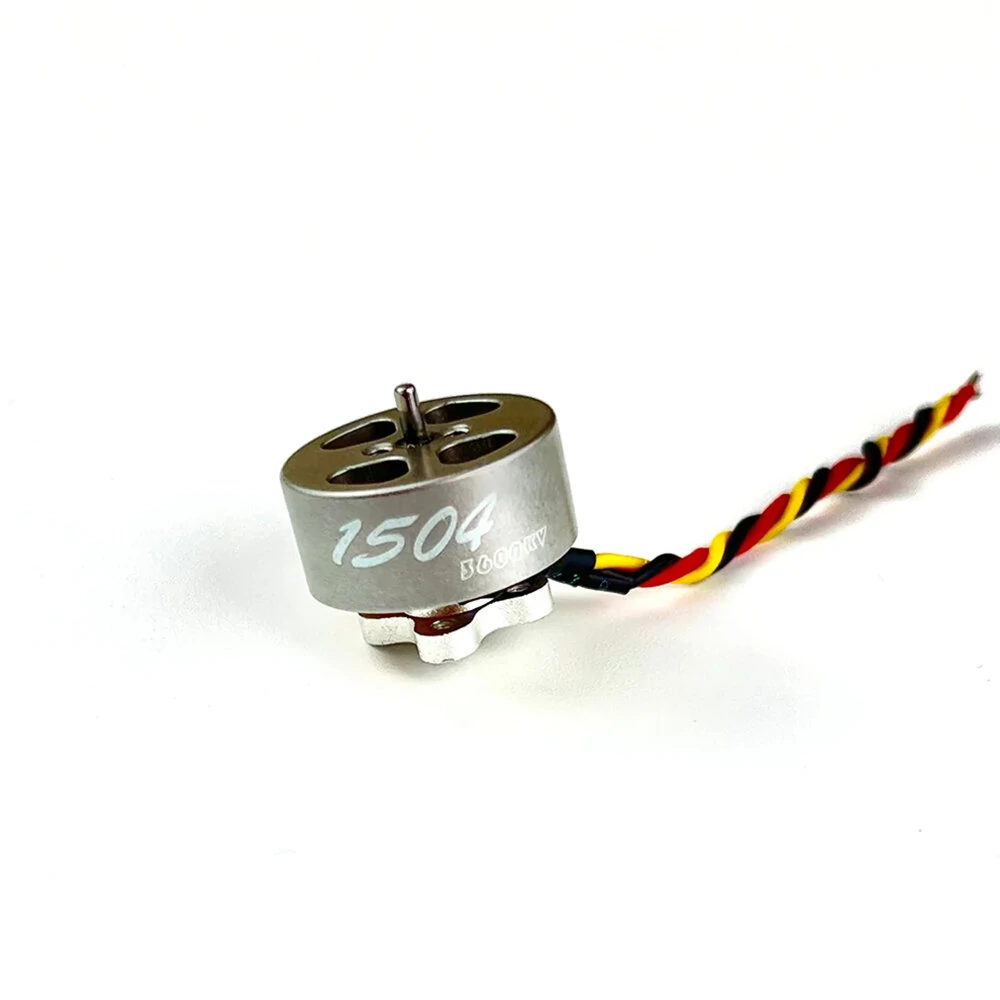

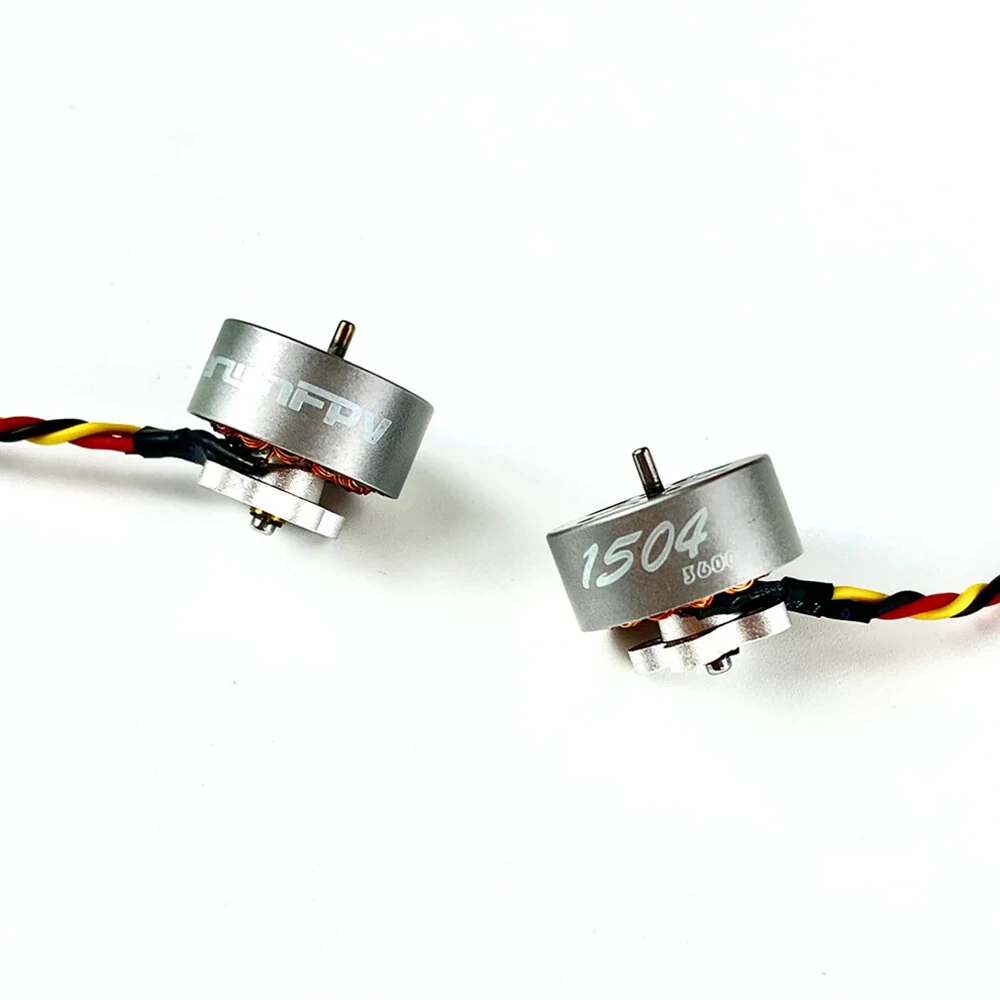

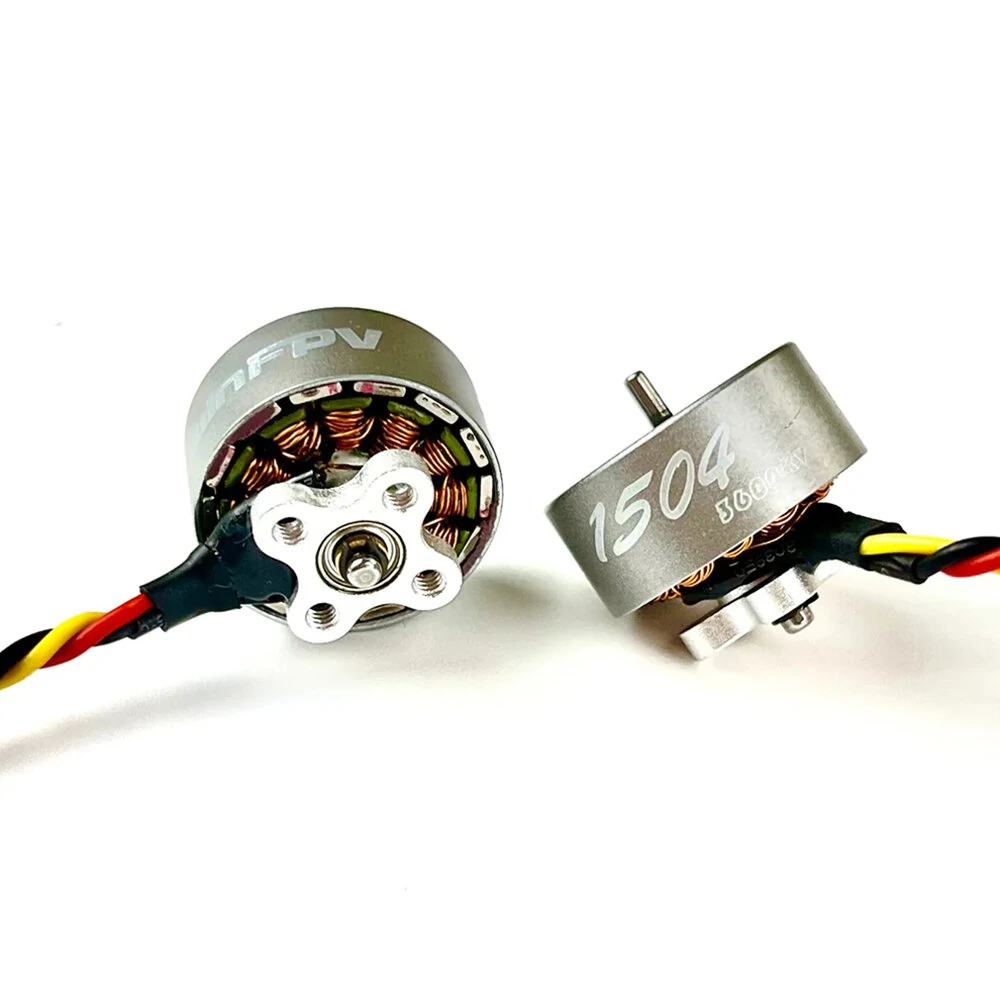

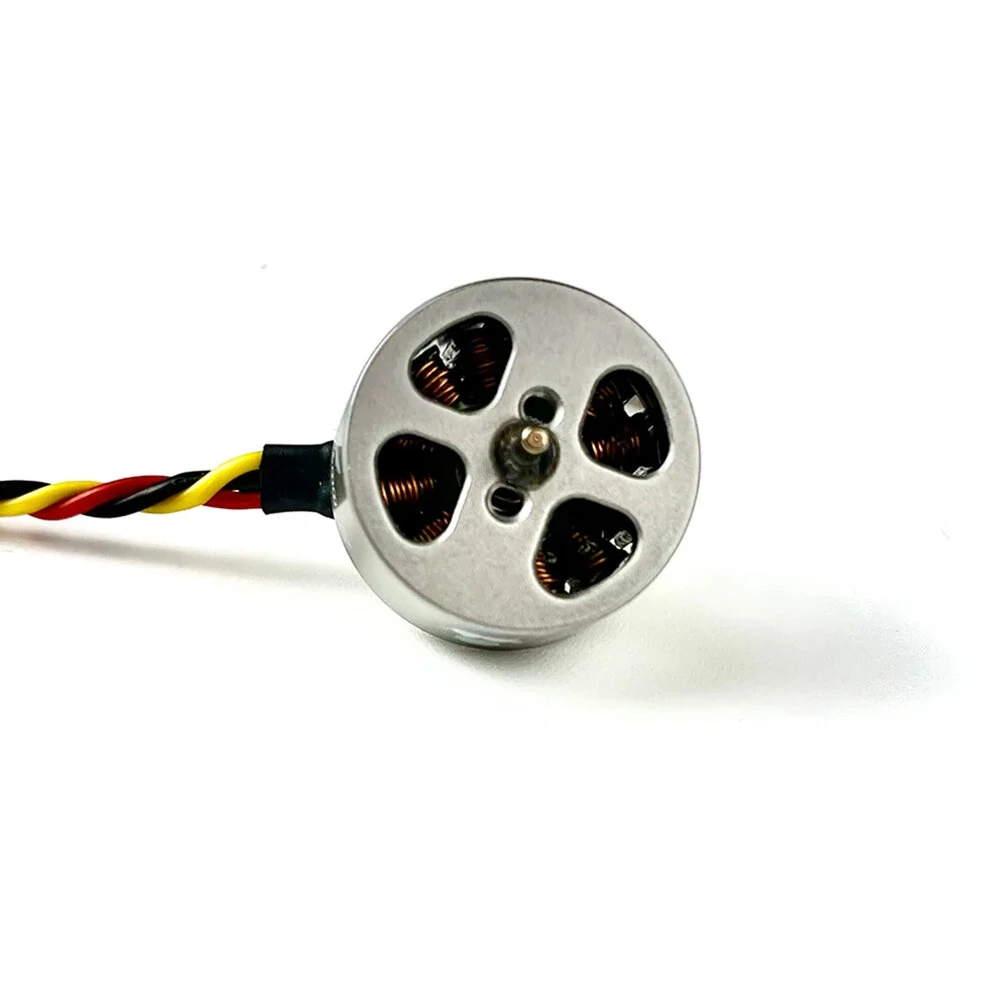

DARWINFPV 1504 Motor is a very cost-effective motor with an overall lightweight design weighing only 10g.Smooth running, powerful and easier to control. This motor is also a good choice if you are building a 2.5′ hoop or 4′ toothpick quadcopters.Features:The most cost-effective brushless motor. Like the 1504 motor of a well-known brand, it has mature production technology, sufficient raw materials and a complete supply chain, which essentially determine the characteristics of low price and high quality.Lightweight design, weighing only 10g, greatly improves the battery life of the drone.Compatible with 2.5-inch FPV drone and 3-4-inch toothpick FPV drone, which can be used for racing.The 1.5mm shaft fits perfectly with most 2.5-4 inch FPV propellers on the market.
Specifications:
Brand: DarwinFPV
Model: 1504
Item Name: 1504 2300KV 4-6S / 3600KV 4S Brushless Motor
| Optional KV Version | 2300KV | 3600KV |
| Input Voltage | 4-6S | 4S |
| Number of slot poles | 12N14P | 12N14P |
| Stator size | 15x4mm | 15x4mm |
| Out shaft diameter | 1.5mm | 1.5mm |
| Mounting hole | 9x9mm (M2) | 9x9mm (M2) |
| Weight | 10g | 10g |
| Lead wire specifications | 26#AWG | 26#AWG |
| Maximum Power | 192W | 168W |
| Maximum Current | 8A | 10.5A |
| Application: |
6S for 2.5 inch whoop FPV drone 6S for 3 inch toothpick quadcopters 4S for 4 inch toothpick quadcopters |
4S for 2.5 inch whoop FPV drone 4S for 3 inch toothpick quadcopters |
Packing Included:
1x 1504 Motor
4x M2*4 Screws
OR
2x 1504 Motor
8x M2*4 Screws
