Introduction:
DarwinFPV ‘cement’ ultra-durable camera adopts aluminum alloy potting process, protection level IP67, waterproof, dustproof, impact resistance, and is not frightened of any harsh environment of dust, sand, rain or snow. The lens employs aluminum alloy all-inclusive technology, which can protect your lens from being smashed even in severe collisions. In addition, it has a 1200TVL 160° viewing angle lens, which provides clearer and wider images.
Features:
Waterproof, dustproof, impact-resistant, super durability;
1200TVL resolution and 1/3′ CMOS sensor ensure high quality and clear images;
Global wide dynamic camera, 16:9 aspect ratio, can capture clear dynamic images even in low light conditions;
2.1mm lens, FOV 160° super wide-angle, record wider and more beautiful scenery.
Specifications：
Brand: DarwinFPV
Model: Cement
Item Name: 1200TVL 2.1mm Lens FPV Camera
Sensor type:1/3′ CMOS Sensor
Image:16:9
TV System:NTSC
Horizontal Resolution:1200TVL
Lens:2.1mm 160°
Electronic Shutter:1/50~1/100000 sec
Video Output:CVBS
Min. Illumination:0.001Lux
wb:automatic
DNR:3D DNR
WDR:100db
Input voltage:DC 3.7-24V
Working current:80mA@DC12V/170mA@DC5V
IP:IP67
Size:19*19mm
Weight:7.9g
Application: Original replace camera for Darwinfpv BabyApe II FPV Drone
Notice:
It is not advisable to soak in water for a long time! If it is used in water for a long time, the camera plug interface must be glued and sealed to avoid electrolytic reaction and cause the plug to rust and poor contact.
Packing list:

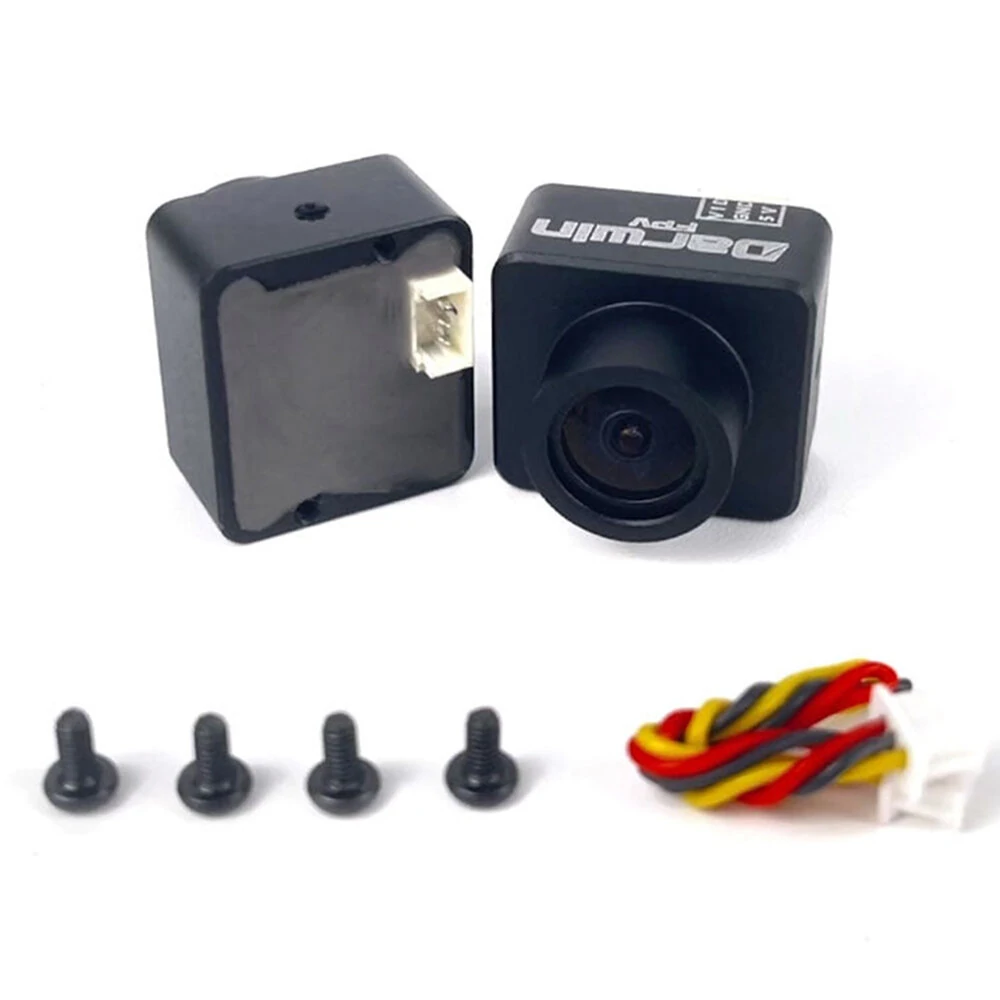

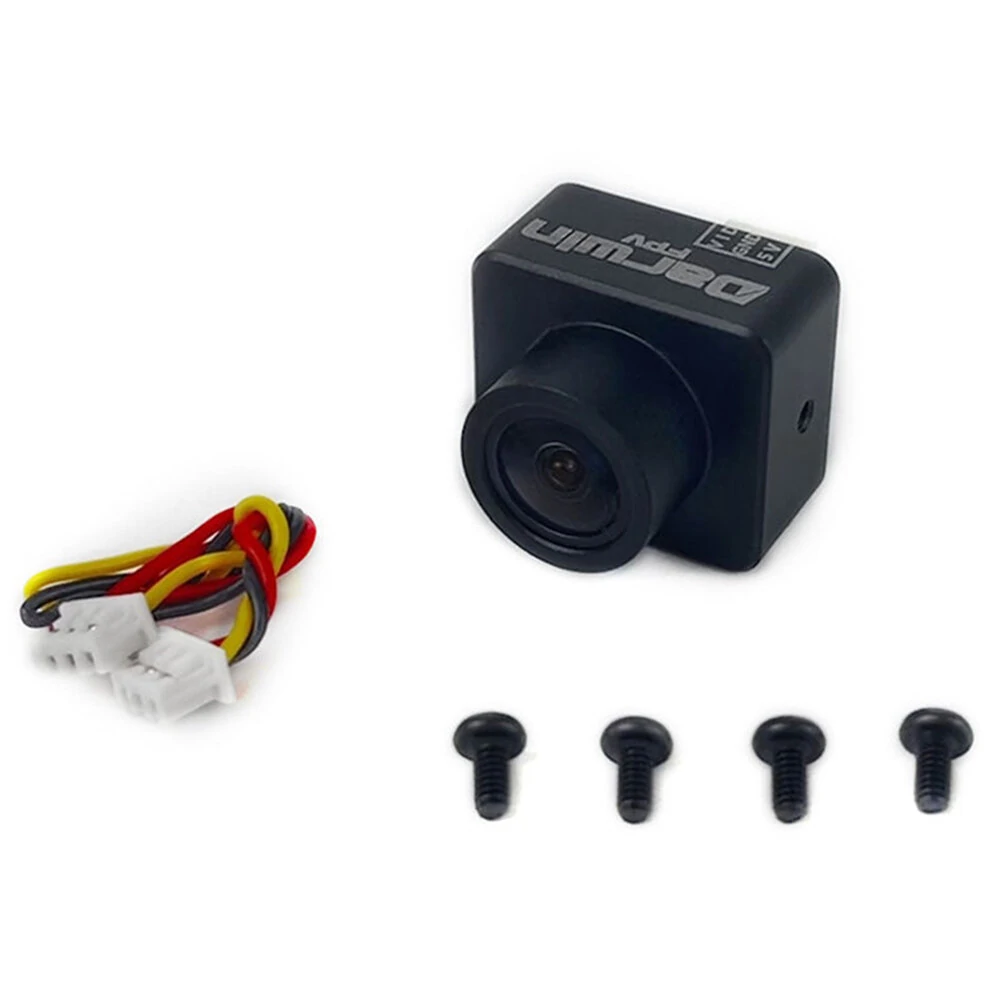

1x FPV Camera
1x cable
1x screw pack
1x Sticker
