Summary:
DarwinFPV 2006 motor is developed for 3-4 inch whoop fpv drones or 4-6 inch long range fpv drones. Compared with the 2004 motor, it has higher power and is equipped with a full GoPro with sufficient power. Especially suitable for 3.5-inch whoop fpv drone.
The motor magnetic circuit design uses the same material structure as DJI, which is more efficient and lasts longer. Plus, it has decent durability thanks to a custom-made anti-slip titanium shaft.

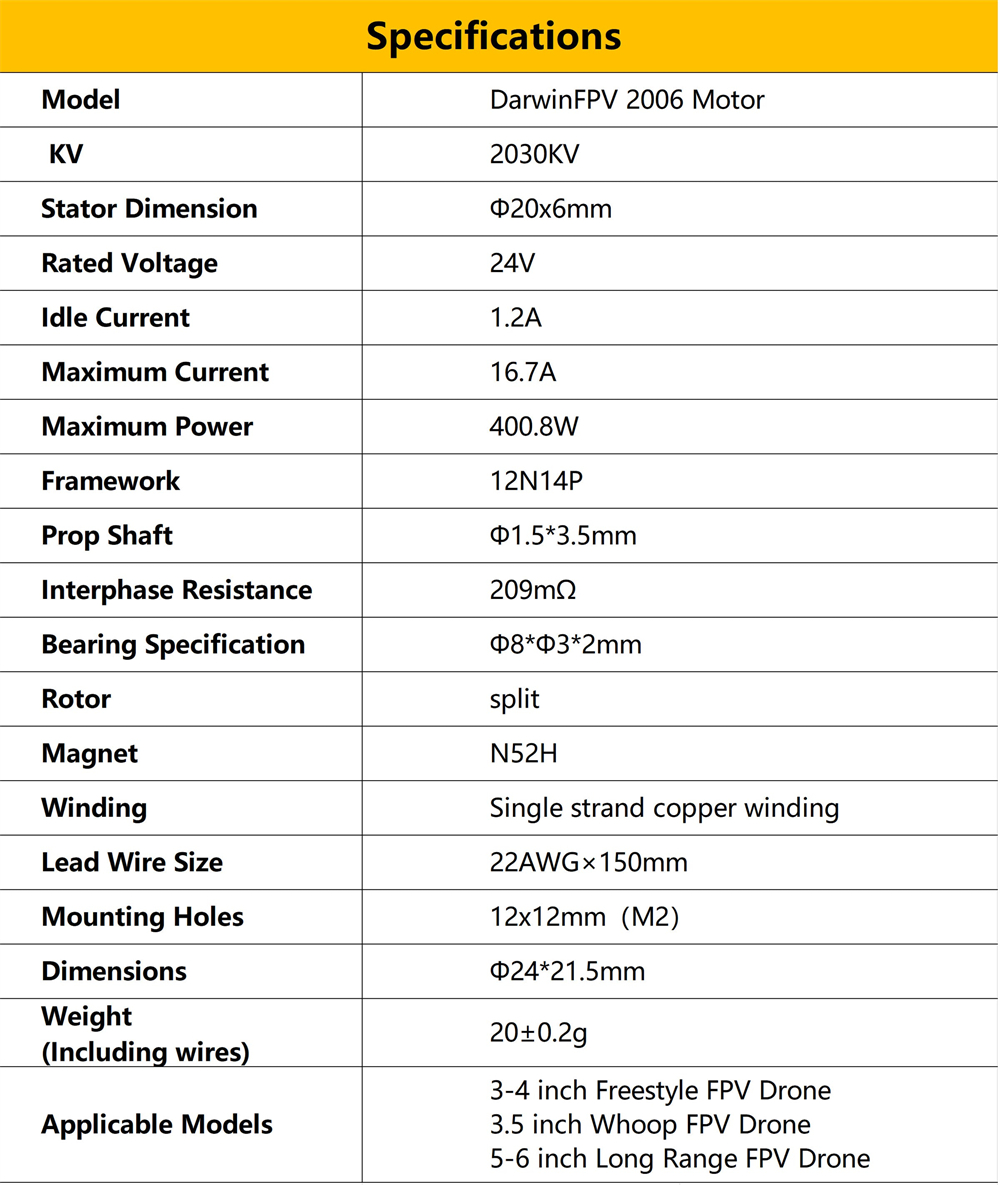

Specification:
Brand: DarwinFPV
Model: CineApe35 2006
Item Name: 2006 2030KV/3400KV Motor
KV: 2030KV/3400KV (Optional)
Stator Dimension: φ20x6mm
Rated Voltage: 24V
Idle Current: 1.2A
Maximum Current: 16.7A
Maximum Power: 400.8W
Framework: 12N14P
Prop Shaft: φ1.5*3.5mm
Interphase Resistance209mΩ
Bearing Specification: φ8*φ3*2mm
Rotor: Split
Magnet: N52H
Winding: Single Strand Copper Winding
Lead Wire Size: 22AWG×150mm

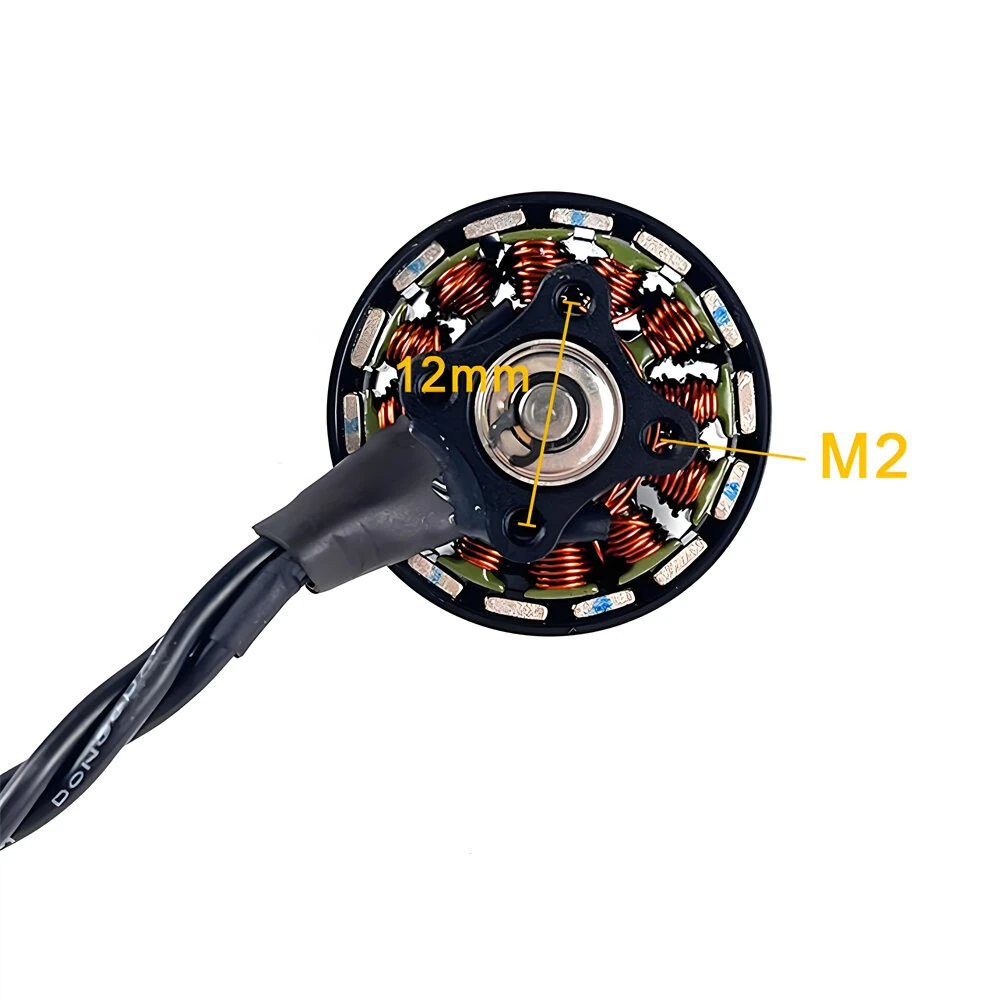

Mounting Holes: 12×12mm (M2)

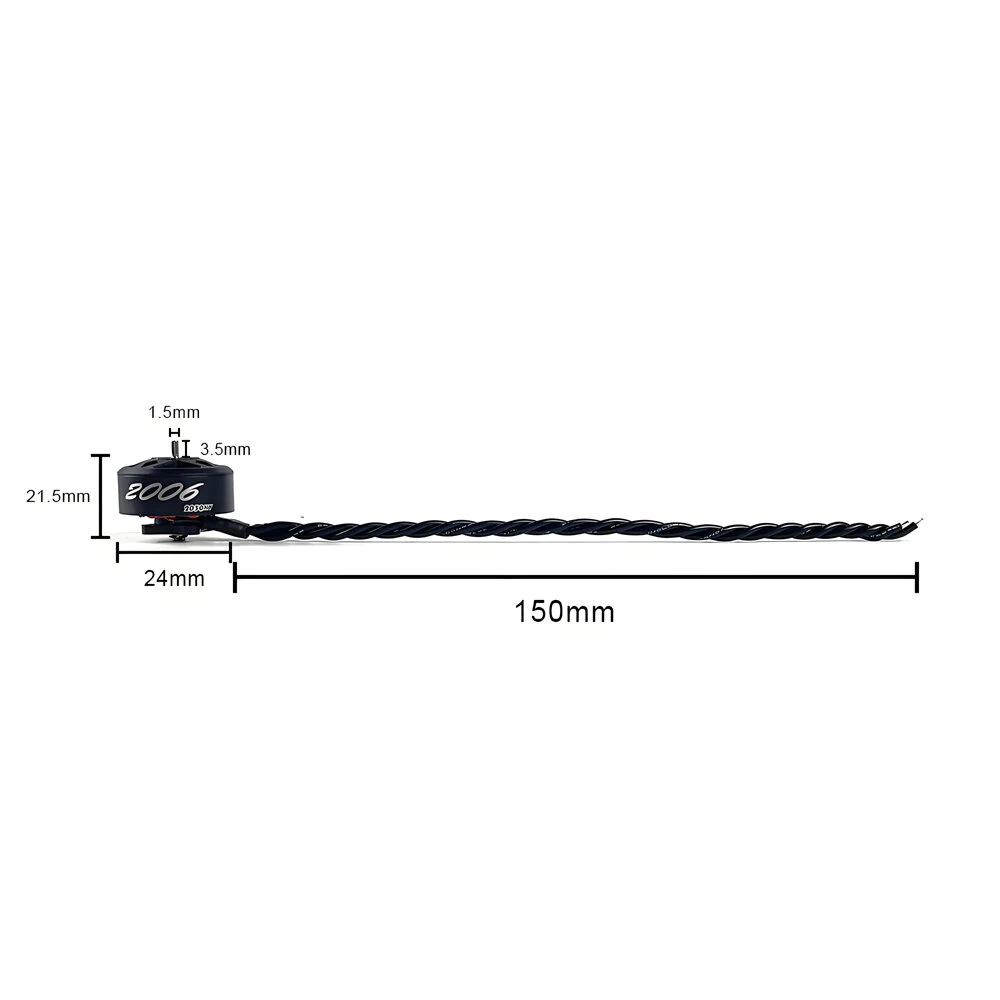

Dimensions:φ24*21.5mm

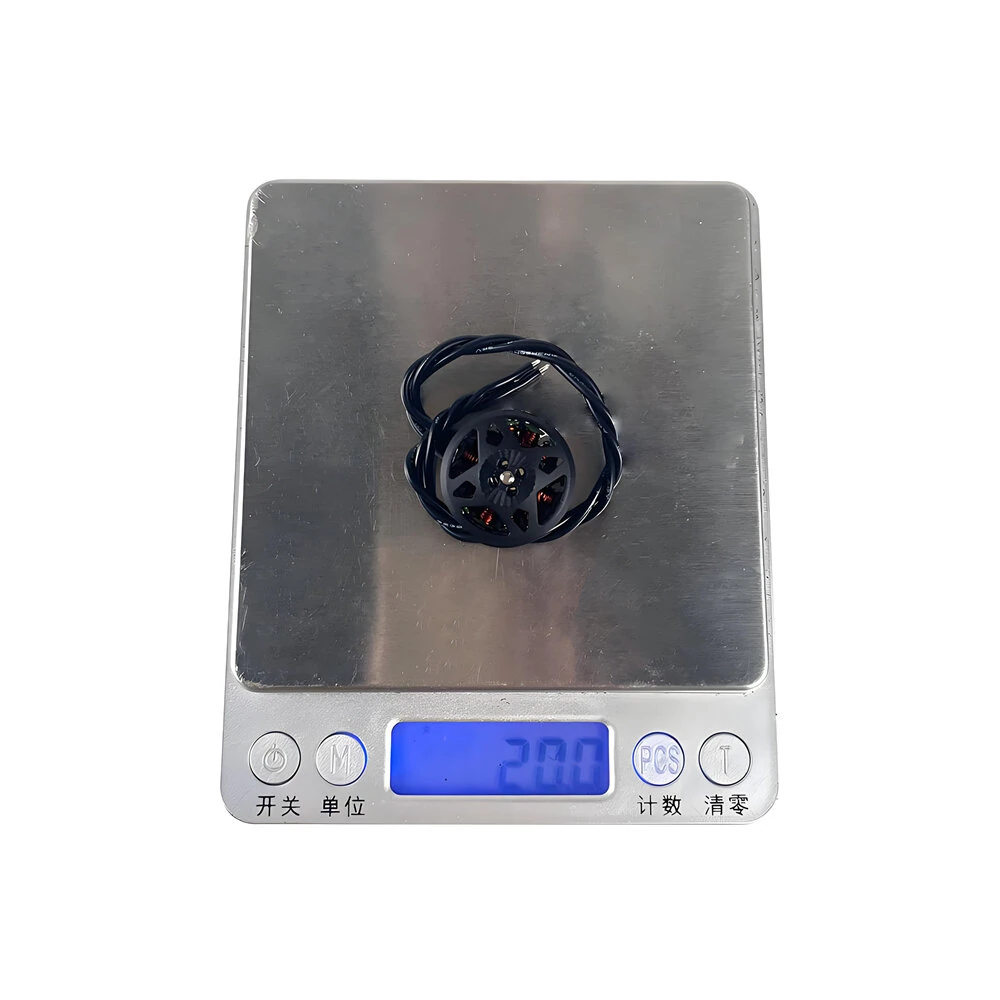

Weight: 20±0.2g(Including Wires)
Applicable Models: 3-4 inch Freestyle FPV Drone
3.5 inch Whoop FPV Drone
5-6 inch Long Range FPV Drone
Features:

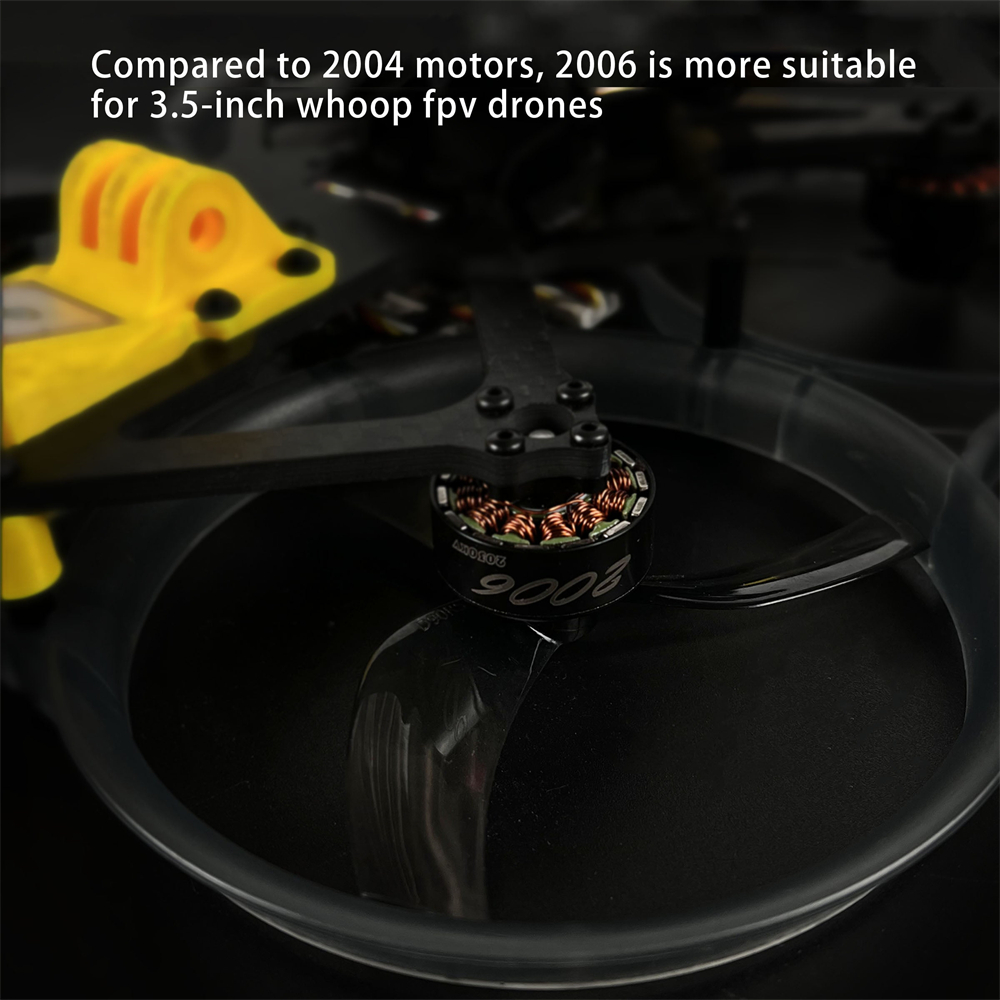

1. Compared to 2004 motors, 2006 is more suitable for 3.5-inch whoop fpv drones.

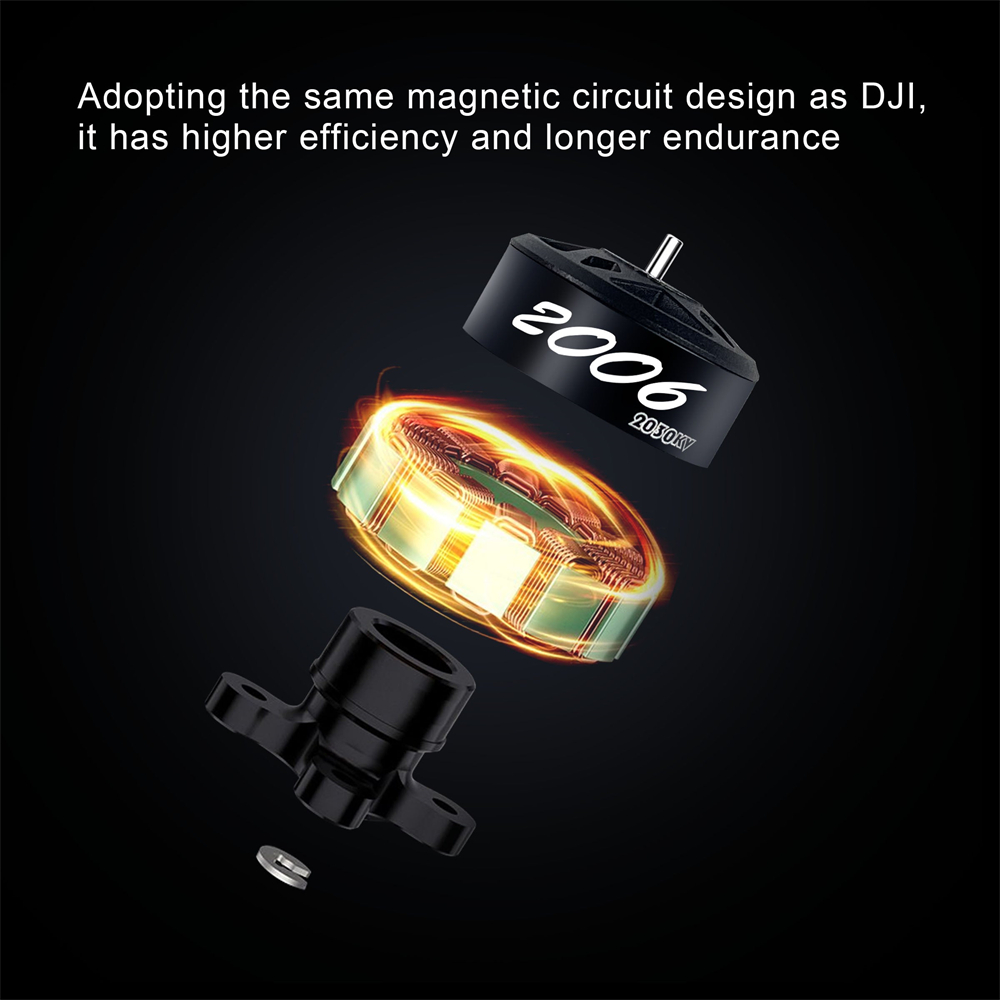

2. Adopting the same magnetic circuit design as DJI, it has higher efficiency and longer endurance.

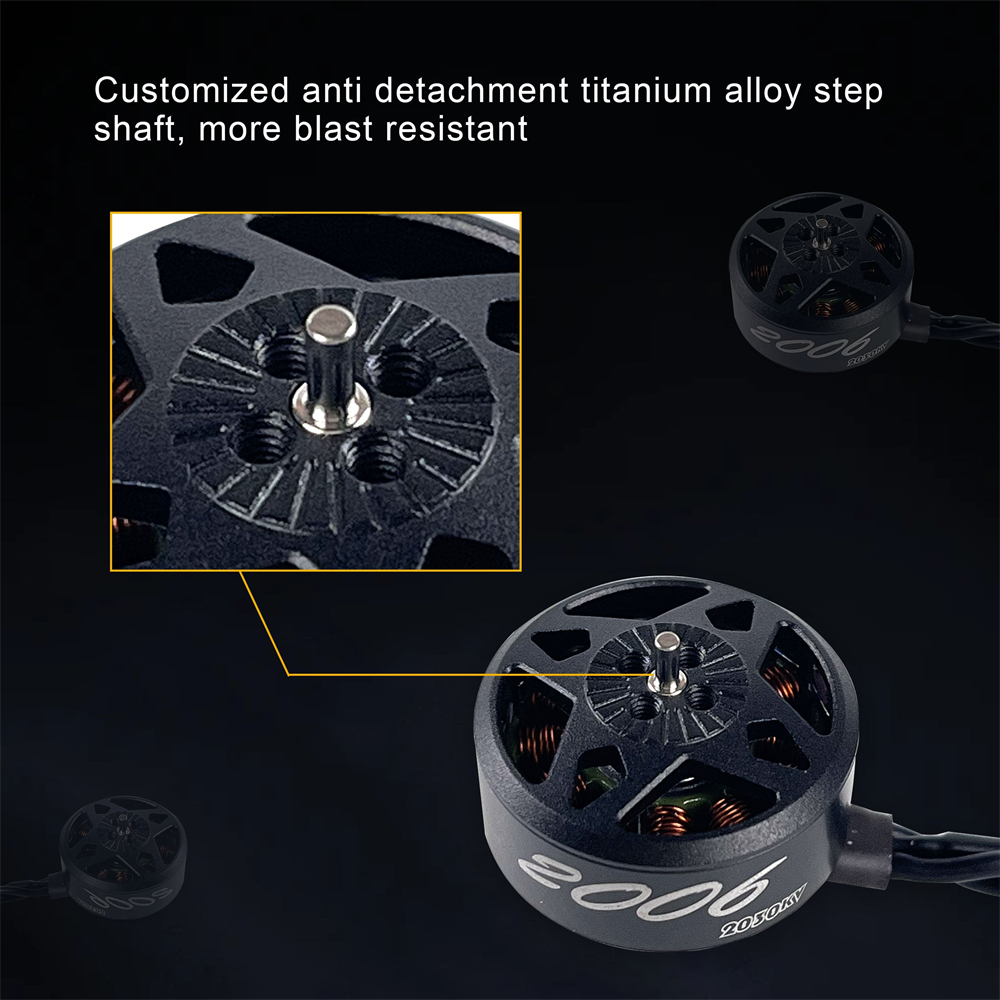

3. Customized anti detachment titanium alloy step shaft, more blas resistant.
Recommend Lipo Battery ( NOT Included):
2030KV Version: 6S 1300mAH3400KV Version: 4S 1500mAH

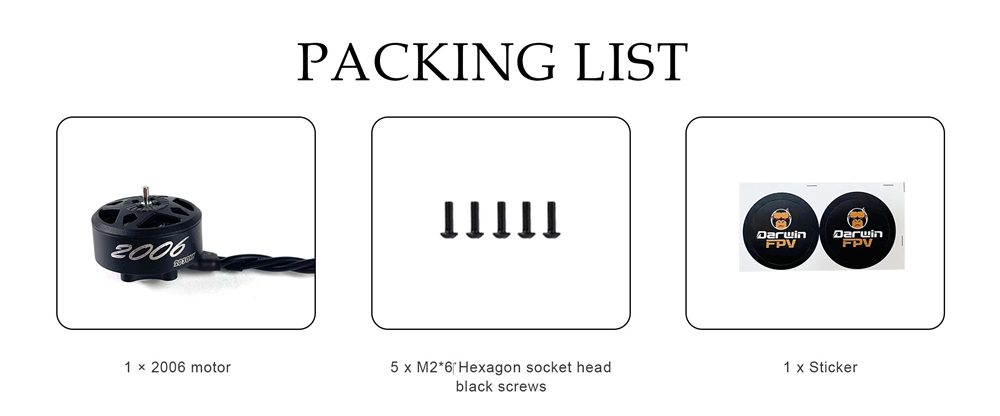

Packing Included:
1 × 2006 Motor
5 × M2*6 Hexagon Socket Head Black Screws
1 × Sticker
