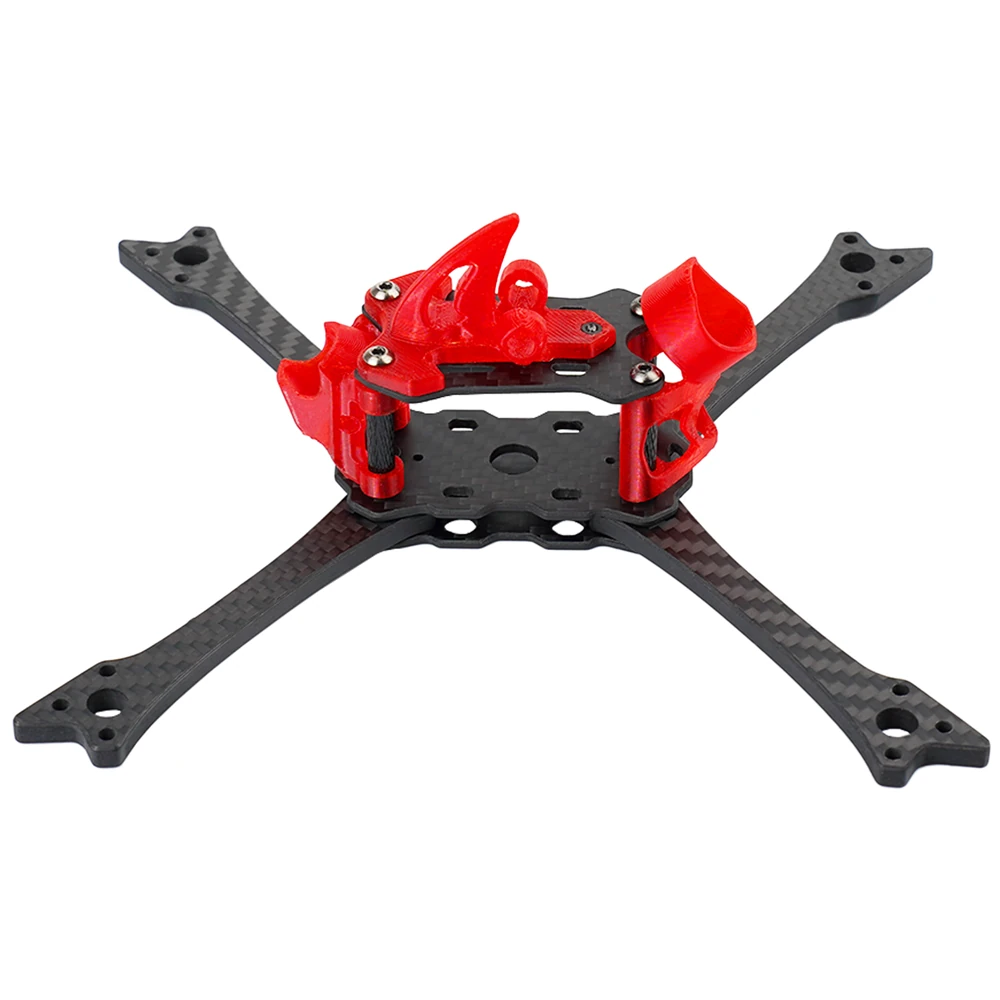

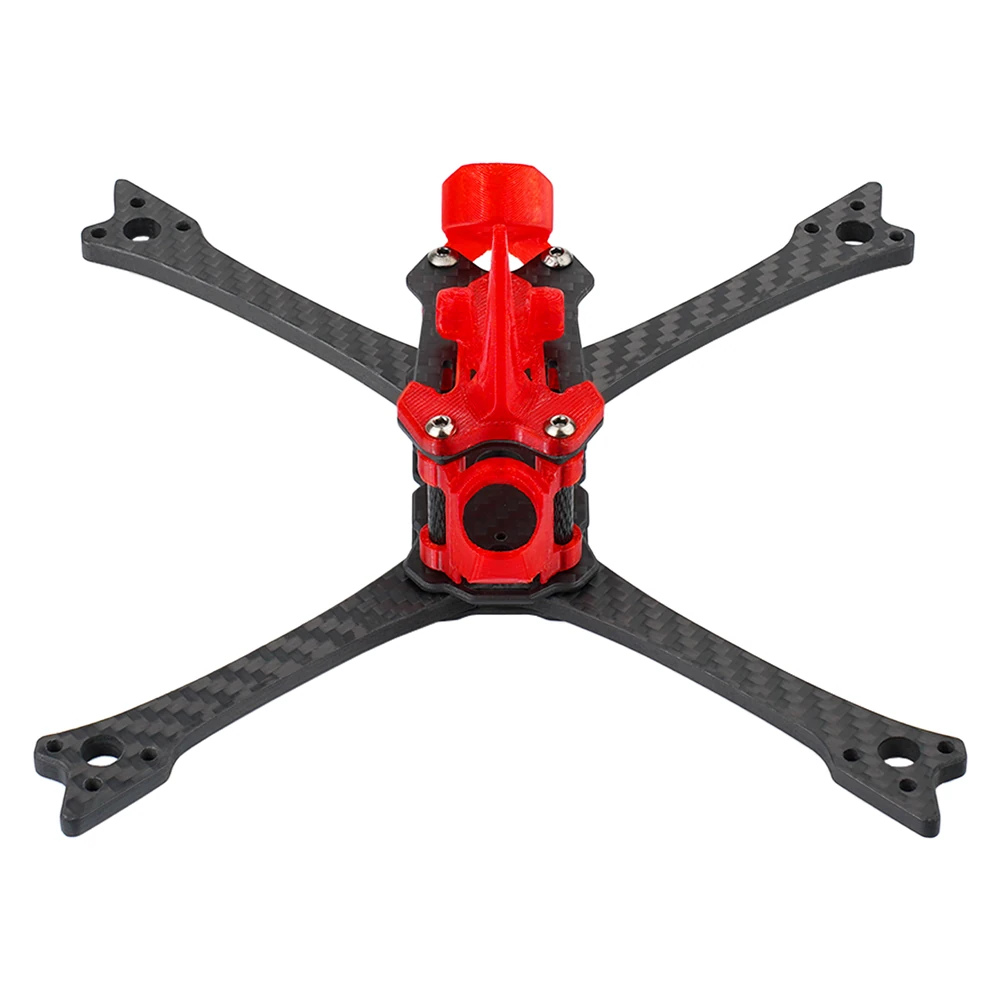

DeepSpace Raven5 190mm Wheelbase 5 Inch Racing Frame Kit Support 14mm Camera for DIY RC FPV Racing Drone

Specification:
Brand: DeepSpace
Model: Raven5

Item Name: 5 Inch Frame Kit
Wheelbase: 190mm
Propeller Size: Max 5.1 inch
Motor Mounting: 16*16mm (M3)
Stack/VTX Mounting: 20*20mm (M3)
Camera Space: 14mm
Top Plate Thickness: 2mm
Middle Plate Thickness: 2mm
Bottom Plate Thickness: 2mm
Arm Thickness: 5mm
Weight: 56.6 ±3g (excluding TPU parts)

The following Parts are Compatible: ( Not Included)FC & ESC Stack: 20x20mm iFlight Blitz Mini E55 55A BLHeli_32 32bit 2-6S 4In1 Brushless ESC Brushless Motor: iFlight XING2 2207 4-6S Brushless MotorPropeller: iFlight Nazgul 5030 5 Inch 5x3x3 3-Blade Propeller VTX & Camera: Walksnail Avatar HD Nano Kit V3

Package Included:
1 x Bottom plate
4 x Arm
1 x Fixed plate
1 x Middle plate
1 x Top plate
1 x M2*4mm dome head screw
2 x M3*6mm dome head screw
1 x M2 hex nut
2 x M3*8mm dome head screw
2 x M3*6mm Flat head hexagonal screw
2 x M3*10mm Flat head hexagonal screw
4 x M3*14mm Flat head hexagonal screw
4 x M3*25mm Standoff
1 x TPU camera pad
1 x Shark fin print
1 x TPU VTX antenna mount
1 x Battery anti-slip mat
1 x Battery strap 16*250mm
