DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With X6FG/X6DCG/X6FP/X4FMG/BL3F Receiver for RC Car Boat Tank Model Parts

Description

DumboRC X6PM-350 2.4GHz 6CH Mini Radio Transmitter Support Gyro With X6FG/X6DCG/X6FP/X4FMG/BL3F Receiver for RC Car Boat Tank Model Parts

Description:

Brand: DumboRC

Model: X6PM-350

X6PM-350 Transmitter Specification:

Channel: 6CH
Radio Transmitter Distance: 350-400 meters
Remote Control Working Current: 80-120mA

Receiver Operating Current: 30mA
Modulation Mode: GFSK
Remote Control Voltage Range: 4.8-12V

Receiver Voltage Range: 4.8-10V
RF Power: <20dbm
Voltage Alarm: 10.8V7.4V/4.4V

Product Size: 180*130*65mm
Weight: 168g

Battery: 4x AA battery (not included)

Fit For: RC Car Boat Tank Mode
Spreading Mode: FHSS 67 channepseudo-random frequency hopping

X6F Receiver Specification:

Channel: 6CH
Version: Without Gyroscope

Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 4.8-10V
Working Current: 30mA

Product Weight: 6.1g

Product Size: 35*20*13mm, antenna length 106 mm

X6FG Receiver Specification:

Channel: 6CH

Version: With Gyroscope
Model: Car/boat/tank
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Voltage Range: 3.3-10V
Working Current: 30mA

Product Weight: 6.1g

Product Size: 35*20*13mm, antenna length 106 mm

X6FP Receiver Specification:

1. Channel: 6CH

2. Supports light control in any channel

3.PPM and PWM Output

4. Voltage Return

5. C0ach function used with wirelesstrainer module (Purchase it separately).

X4FMG Receiver Specification:

Signal: PWM
Channel: 4CH
Version: With Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)

X4FM Receiver Specification:

Signal: PWM
Channel: 4CH
Version: Without Gyroscope
Voltage Range: 3V-10VDC
Size: 25*13*8mm
Weight: 2.3g
Working Current: 30mA@5V
Spread Spectrum: FHSS (67 channel pseudo-random frequency hopping)

BL3F(G) Receiver Specification:

Channel: 4CH

Version: With Gyroscope

Light Control

10A ESC

Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm

BL3F Receiver Specification:

Channel: 4CH

Version: Without Gyroscope

Light Control

10A ESC

Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Receiver Voltage Range: 4.8-10V
ESC Voltage Range: 2-3S
Compatible with: X4 X5 X6 X6A X6P Transmitter
Product Size: 40*28*19mm, antenna length 160 mm

X6DC(G) Receiver Specification:

Channel: 6CH

Version: With Gyroscope

Light Control

Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g

X6DC Receiver Specification:

Channel: 6CH

Version: Without Gyroscope

Light Control

Product Size: 35*21*14mm
Voltage: 4.8-10V
Product Weight: About 8g

DumboRC X6PM-350 Transmitter Manual, Click here

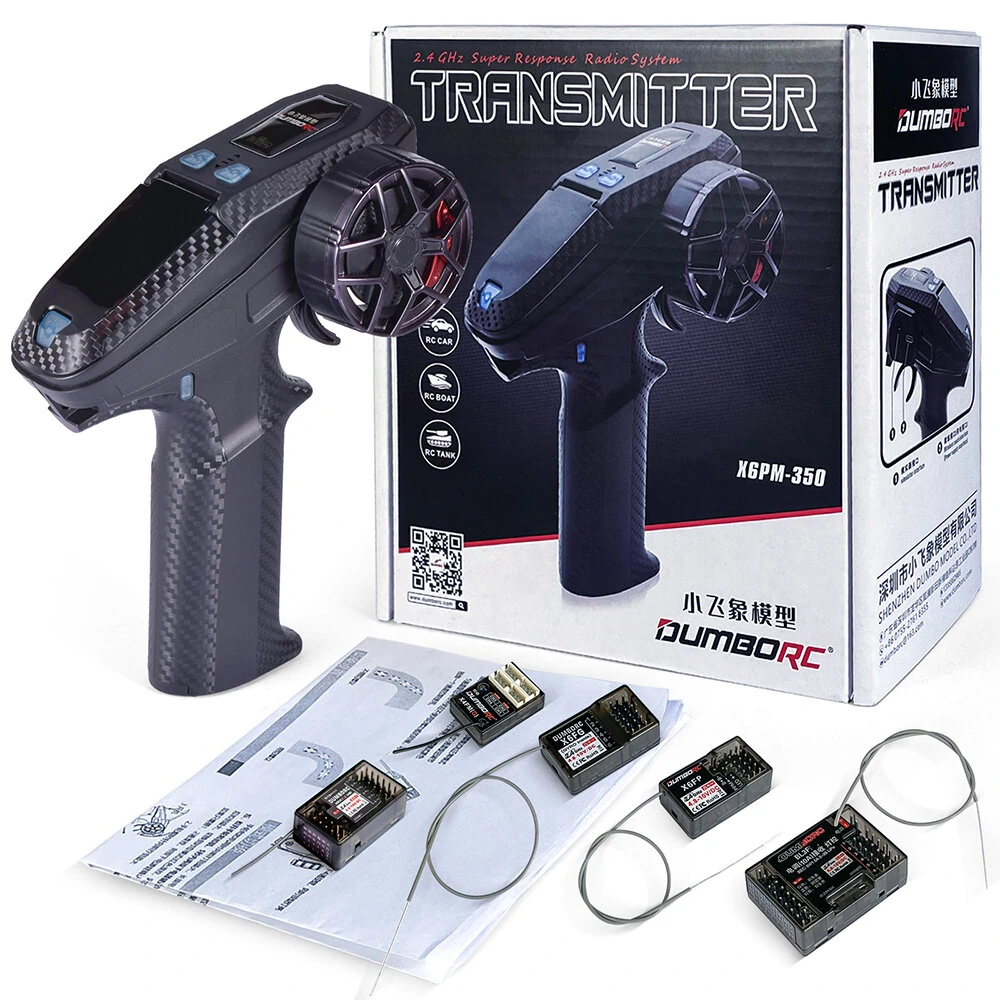

Package Included:

1x DumboRC X6PM-350 Transmitter

1x X6F/X6FG/X6DC/X6DCG/X6FP/X4FM/X4FM(G)/BL3F/BL3F(G) Receiver (Optional)

1x Manual
