Note:

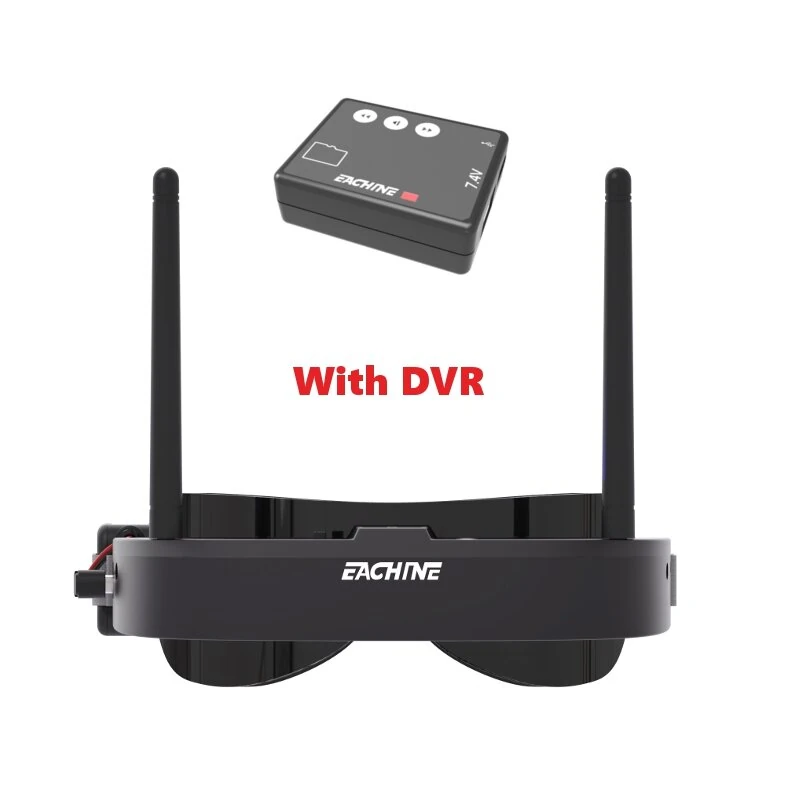

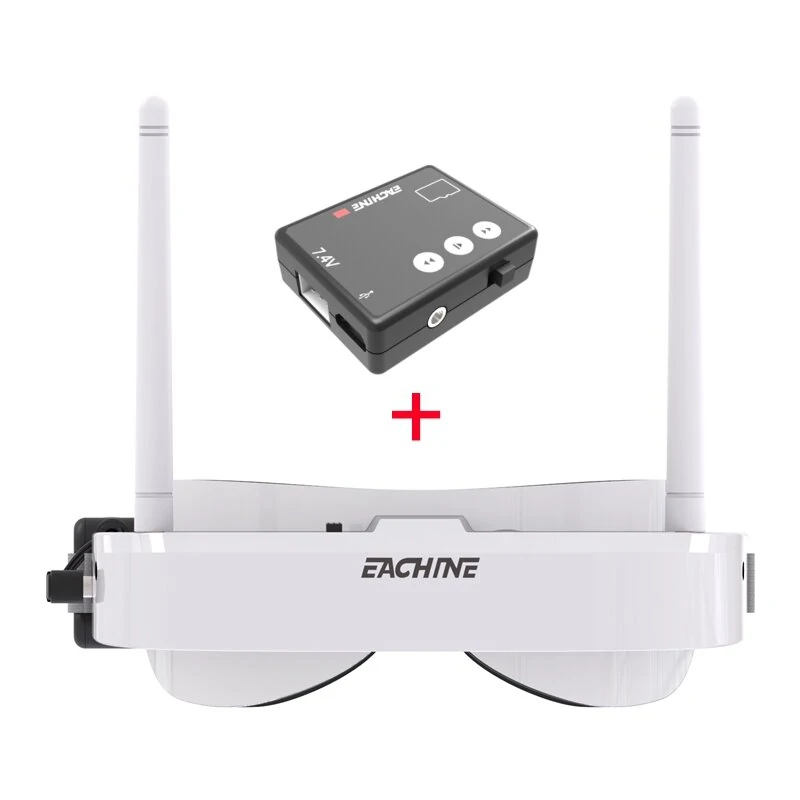

The battery will be changed to 18650 battery case in order to facilitate transport, and it doesn’t have balance plug for DVR module, the DVR module should use another power supply, thank you for your understanding!
The receiver on EV100 Goggles doesn’t receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.
Brand Story
Features
-
– High-Resolution Display: Equipped with a 720×540 resolution screen, offering clear and detailed images.
-
– Wide Field of View: Features a 28° diagonal FOV, providing a balanced visual experience.
-

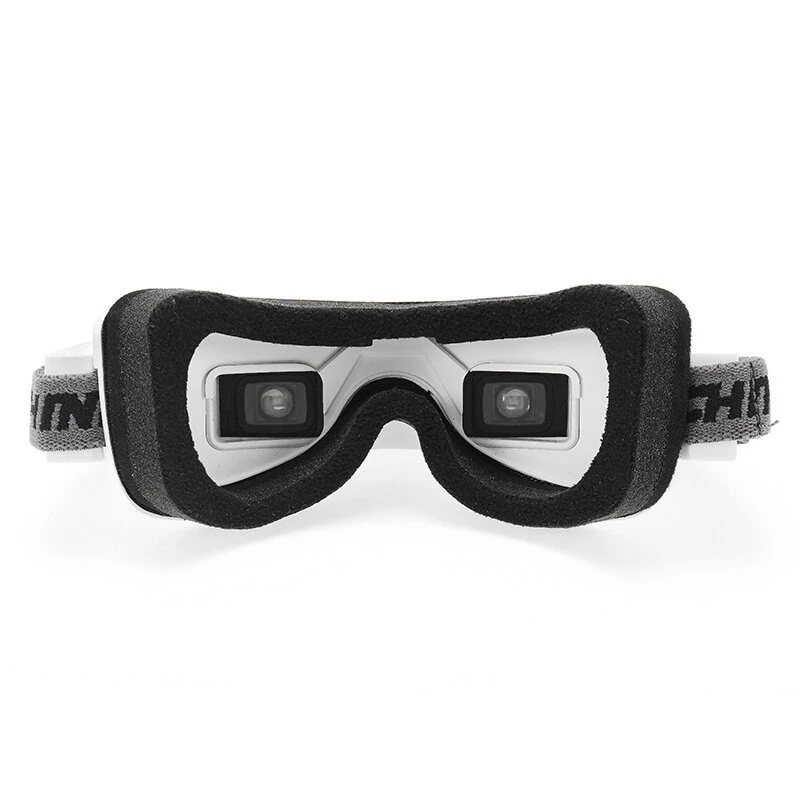

– Adjustable IPD and Focus: IPD adjustable between 58-68mm, and supports focal length adjustment for users with vision correction needs, under 400 degree myopia view directly via naked eye
-
– Dual Antenna System: Single receiver with dual antennas, enhancing signal reception and stability.
-
– Built-in Fan: Helps prevent fogging for clear vision during use.
-
– Auto Search Function: Automatically searches and selects the strongest signal channel.
-
– Racing Modes: Supports three racing modes (4/6/8 pilots) with 60-80MHz intervals between adjacent channels to reduce interference.
-
– Debug Mode: Requires a corresponding VTX that supports pitmode and extra frequency 5300MHz.
-
– AV Input and Output: Supports external HDMIto AV module and external DVR module.( it doesn’t support Audio in FPV mode, for the build-in receiver can’t receive audio. But in — AV-IN mode, the audio is available.)
-
– Firmware Upgradable: Can be upgraded via USB connection.
-
– Power Supply: Compatible with DC 7.4V input, suitable for 2S Li-ion batteries.
-
– Included Accessories: Comes with a 7.4V 1000mAh battery, two RP-SMA 3dBi antennas, and a user manual.
– High-Resolution Display: Equipped with a 720×540 resolution screen, offering clear and detailed images.
– Wide Field of View: Features a 28° diagonal FOV, providing a balanced visual experience.
– Adjustable IPD and Focus: IPD adjustable between 58-68mm, and supports focal length adjustment for users with vision correction needs, under 400 degree myopia view directly via naked eye
– Dual Antenna System: Single receiver with dual antennas, enhancing signal reception and stability.
– Built-in Fan: Helps prevent fogging for clear vision during use.
– Auto Search Function: Automatically searches and selects the strongest signal channel.
– Racing Modes: Supports three racing modes (4/6/8 pilots) with 60-80MHz intervals between adjacent channels to reduce interference.
– Debug Mode: Requires a corresponding VTX that supports pitmode and extra frequency 5300MHz.
– AV Input and Output: Supports external HDMIto AV module and external DVR module.( it doesn’t support Audio in FPV mode, for the build-in receiver can’t receive audio. But in — AV-IN mode, the audio is available.)
– Firmware Upgradable: Can be upgraded via USB connection.
– Power Supply: Compatible with DC 7.4V input, suitable for 2S Li-ion batteries.
– Included Accessories: Comes with a 7.4V 1000mAh battery, two RP-SMA 3dBi antennas, and a user manual.
Usage Advantages
-
* Cost-Effective: One of the most affordable FPV goggles on the market, making it accessible to a wide range of users.
