We are sorry to inform you that due to the continuous increase in chip prices, we have to adjust the sales price from December 18, 2024. Thank you for your understanding.
New version comes with 3.7V 2000mAh battery，send randomly
EV800D vs EV800DM
|
Comparison |
EV800D |
EV800DM |
|
Weight |
362g without antenna |
320g without antenna |
|
DVR |
720*576px |
720*576px |
|
Diversity |
Yes |
Yes |
|
Screen size |
5.0 inch |
3.0 inch |
|
Screen resolution |
800*480 |
900*600 |
|
Ratio |
16:9, 4:3 |
4:3 |
|
Separable Design |
Removable screen, can be used as a monitor. |
NO |
|
Support Tripod |
Yes, with 1/4 inch screw hole |
NO |
|
Varifocal |
NO |
20mm focal length adjustable; |
|
Glasses Fit |
NO |
Fit for wear with 140mm*40mm glasses; |
|
Battery |
7.4V/1200mAhor 3.7V/2000mAh |
3.7V/2000mAh |
Features:

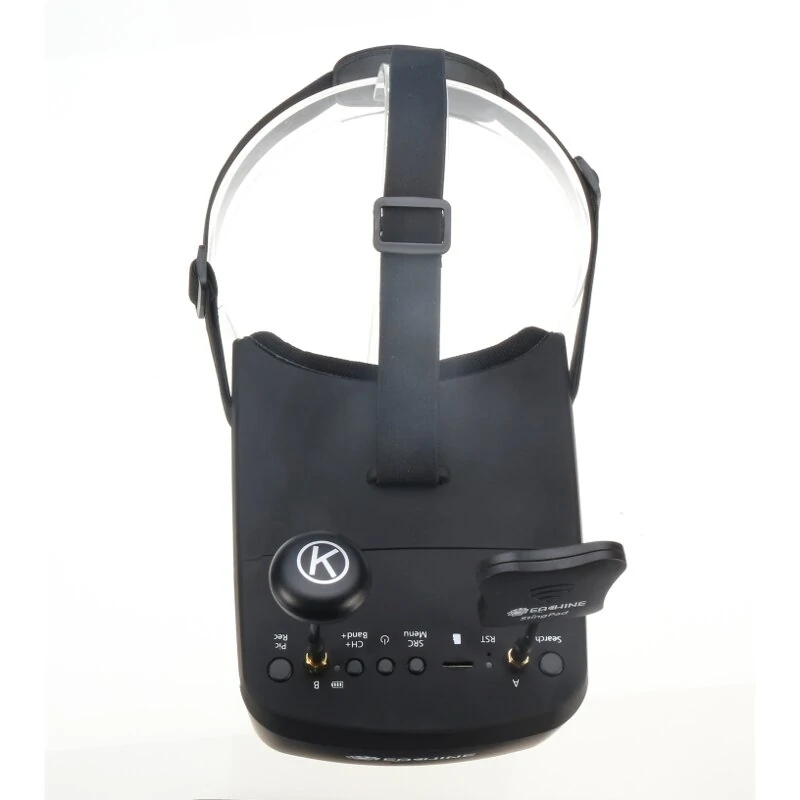

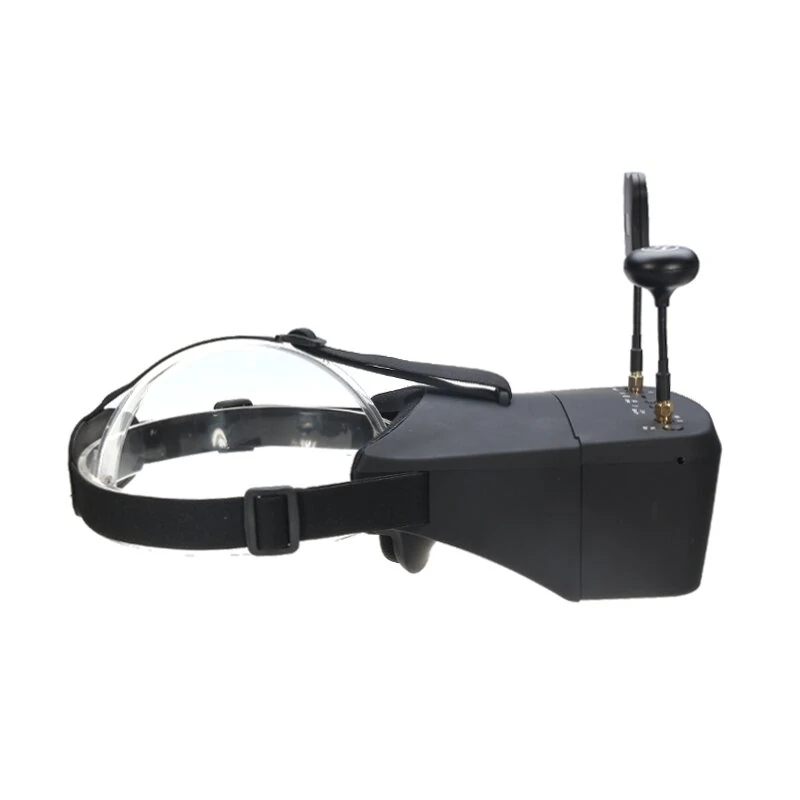

EV800D Goggles
– Built-in with super HD DVR up to 720*576px resolution;
– Diversity Goggles 40ch Auto-Searching;
– Two system (Display/Re cord duo core separated chipsets ) ensure no delay in displaying and no frame lost in recording(please use C10 card to ensure the full frame recording);
– Work friendly with p ilot-OSD, no block on the important flying OSD information;

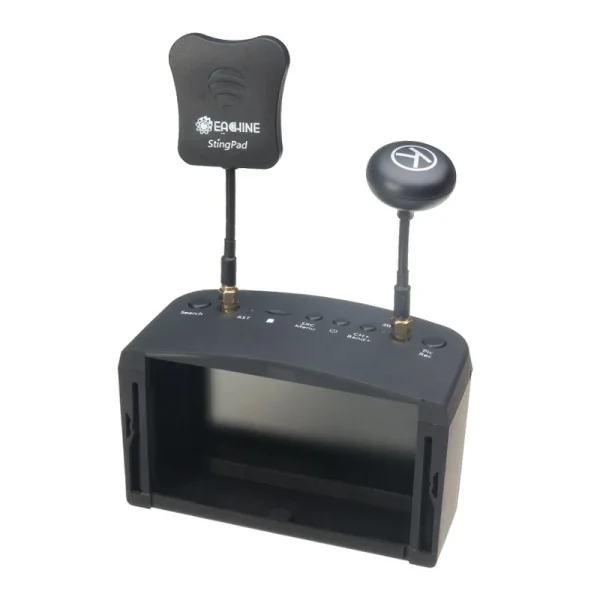

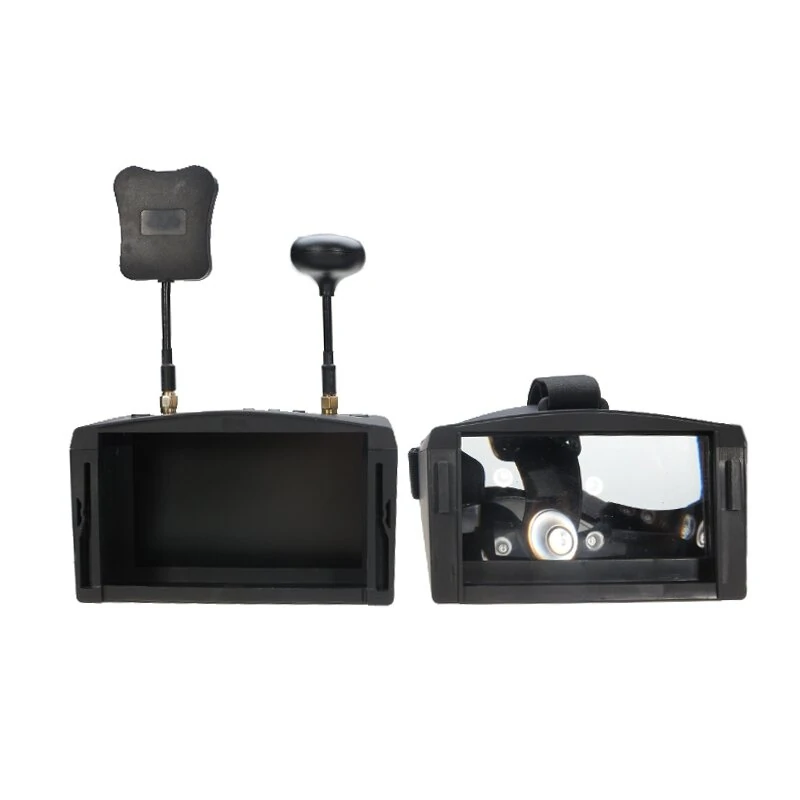

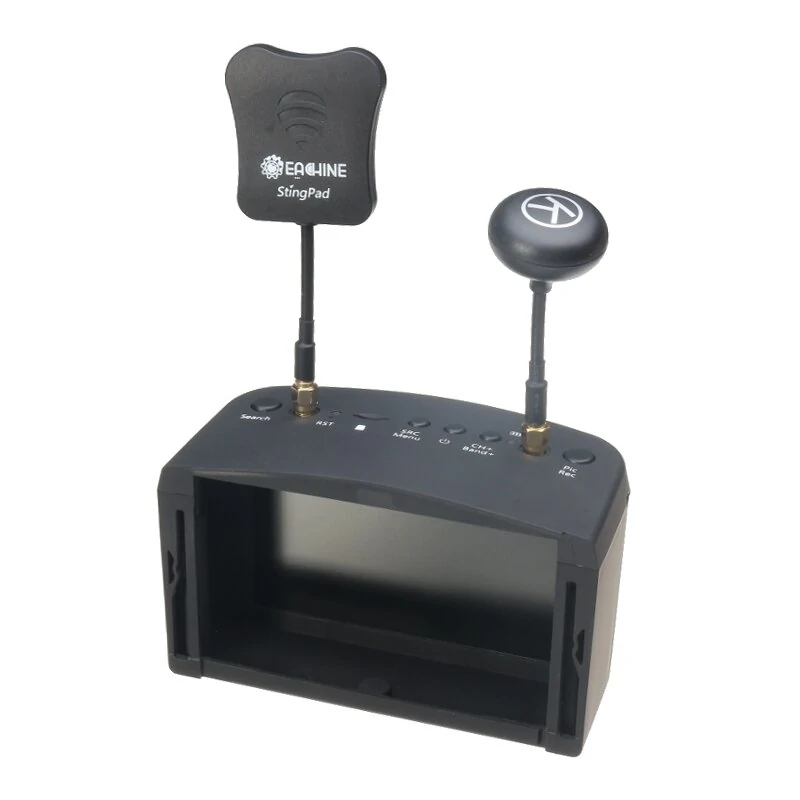

– Separable design, 5 inch screen can be used as small monitor on radio controller or with tripod;
– HD high brightness 5 inch LCD specially tuned for FPV racing;
– Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module;
– Advanced auto-searching function and the working frequency show on screen;
– Built-in 7.4V 1200mAh/3.7V/2000mAh battery, each full charge offer 2 hours working time;
– Wide rang re-charge voltag 11-20V; US plug
– Accept 2S or 3S batteries as back-up power source, to prolong the working time;
– Nice ergonomic design and fit different faces;
– Super-wide visible angle up to 82 degree;
– 92% transparent lens adopted, no distort, no blur on the edge of screen;
– Light weight 375g with 3.5 hr 1200mAh battery, RTF for any scale racing game;
– 5 Inch 800*480px HD high brightness LCD

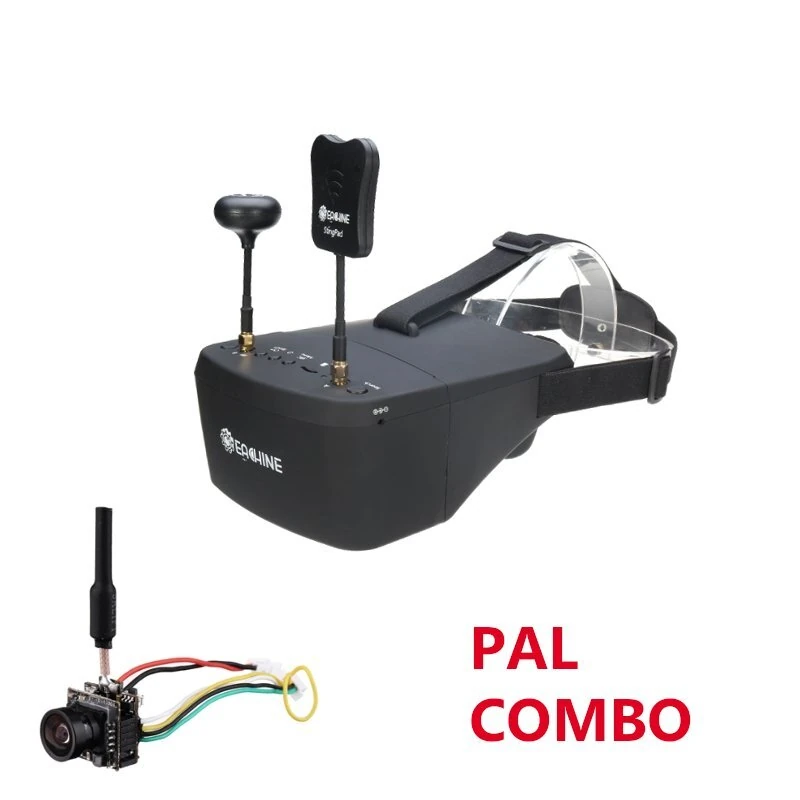

TX06 AIO Camera
– OSD configuration using FC Uart
– Super small and lightweight
– 700TVL high picture quality,Low Power Consumption.
– 48CH channel
– Power by 1S lipo battery
– Plug and play,designed for DIY
– Super Mini 5.8GHz 48CH FPV Transmitter +700TVL FPV Camera+Brass dipole Antenna+OSD
Appearance |
Dimension: 180*145*82mm Weight: 362g without antenna Belt : three-way adjustable belt |
| Specification |
Build in DVR (C10 card required) |
| Diversity |
– 90dB Super sensitiveness in 2pcs RX5808 PRO modules Great performance when two types (Linear and Omni) antennas are used |
| Display |
Screen size: 5.0 inch Screen resolution: 800*480(No blur after enlarge by the lens) Screen brightness: 600cd/ m2 with special high brightness backlight LED for outdoor FPV Ratio : 16:9, 4:3 View Angle: 140/120 degree(Horizontal/Vertical) |
| Lens |
3x boost of the video to acquire intense feel-in-there video; 92% transparent rate distort if light; |
| Battery |
Built-in 7.4V/1200/3.7V/2000mAh mAh battery; Typical recharging voltag is 12V |
TX06 AIO Camera :
| Transmitting Power: | 25mW |
| Frequency: | 5.8G 48CH |
| Input Voltag: | 3.3-5.5V |
| Current Consumption: | 280mA(Typical) |
| Camera Resolution: | 700TVL |
| Video Format: | NTSC/PAL |
| Field of View : | 120° Viewing Angle |
| Antenna Dimensions: | 35mm*4.2mm diameter |
| Antenna: | Brass dipole Antenna |
| Frequency: | 5.8GHz 6 bands 48 channels |
| With Goggles： | 5474-5945MHZ |
| Size: | 14*13.8mm(L*W) |
| Weight: | 2.8g |
Frequencies (5.8GHz)
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 |
