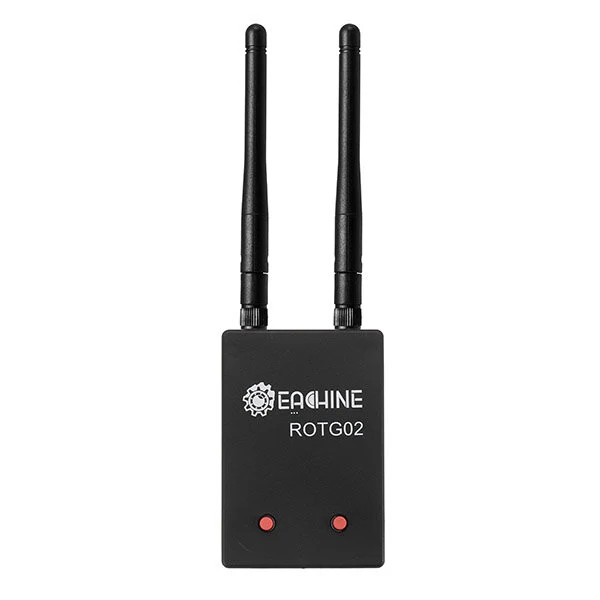

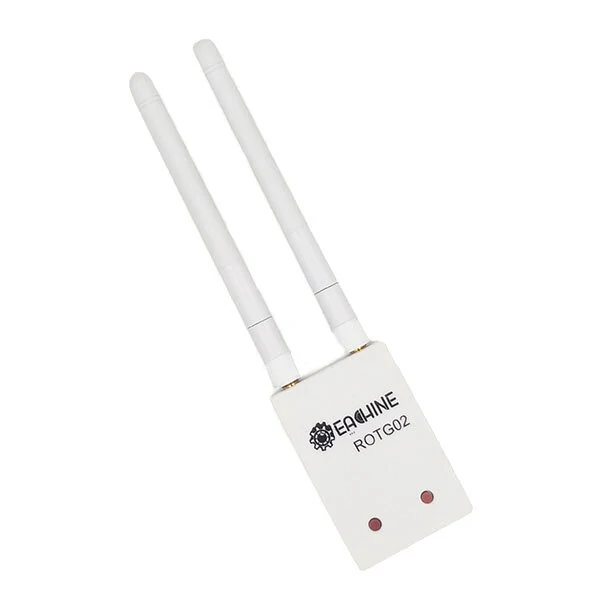

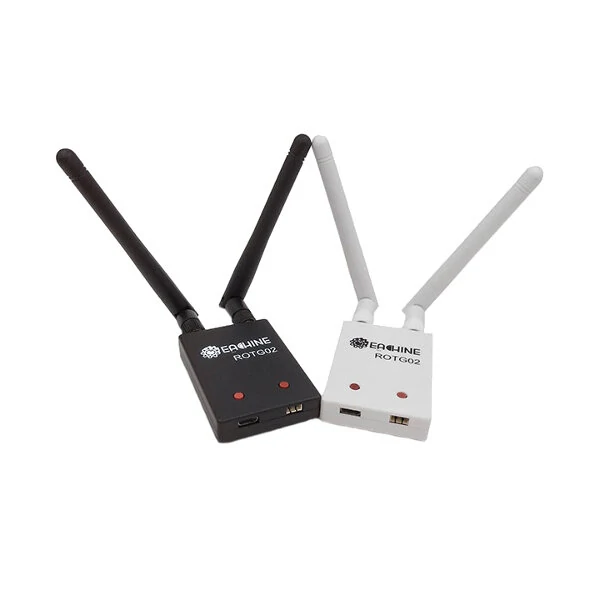

Eachine ROTG02 UVC OTG 5.8G 150CH Diversity Audio FPV Receiver for Android Smartphone

Description

Description :Eachine ROTG02 UVC receiver is a new receiver that you can connect to your smart phone and computer.PAD directly instead of heavy monitor and good for those who feel dizzy when wear FPV goggles. It has low latency around 100ms .150CH auto search allows to cover all 5.8G frequency bands.

Please note:This Receiver only suits for Android phone that support UVC and make sure your phone can work with OTG connector.

Notice:*An antenna has been added to a single antenna receiver  to provide more stble signals*Add a button to make it more convenient to adjust the channel*Increase the function of channel waveform display*Adding app audio playbac*Long press any button to enter the automatic scanning mode*Mobil phones with Qualcomm CPU support almost all*Some phones need to open the OTG function in the settings
Parameter :

Brand	Eachine
Model	ROTG02
Name	UVC OTG FPV Receiver
Channel	150CH
Frequency	5645~5945
Sensitivity	-90dBm
Working Current	300mA/5V
Power Supply	5V(by smart phone)
Operating Temperature	-10~60℃
Connector	RP-SMA Female
Weight	About 35g
Size	61*41*11 mm
Color	Black/White



APP Download:http://files.banggood.com/2016/11/fuav.2.0.apk

https://drive.google.com/file/d/1Ka0uvNmWJ7MRUdHQfHMyE4aom2Ta9DYA/view?usp=sharing
                   Here’s the phone list support this receiver that we have test .Sumsung: S3(I9300,I9308), S4(I9500,I9507V,I9508,S5,S6,S6, edge+,S7edge, NOTE3,NOTE4,NOTE5,A5100,A8000,ON7,P600,N7100,N5100,Ta S2..)OPPO:A31,A31C,A33,A51,A53,A33M,A51,A53,A5M,N3,FIND7,R7005, R7007,3007,R2017,R8000,R8205,R8207,R7SM,R7 PLUS,R9 PLUS, ect..XIAOMI: XIAOMI 3,XIAOMI 4,XIAOMI 4C,XIAOMI5,XIAOMI pad, XIAOMI Red Note,XIAOMI Red Note3,ect…HUAWEI:MATE8, C199,Honor8:GPRO2,G3,NEXUS5,L24,GPAD8.3, ect..:XPRO,NEXUS6,MOTO E,MZ617,ect..SONY:Z1,Z2,Z3,C3,SGP321,ect……..

Recommanded PartsFPV Camera : 5.8Ghz AIO Camera    Click HereFPV VTX :  5.8Ghz VTX    Click Here

Note:

There are 2 same connecters on USB cable, but in different function.  One side is special for mobil, the other is special for receiver.Please connect them correctly. If it doesn’t work , please try to plug them in reverse.

Package Included: 1 x Eachine ROTG02 FPV Receiver 2 x RP-SMA Antenna1 x USB Cable1 x Micr Type-C Cable

,,,,,
