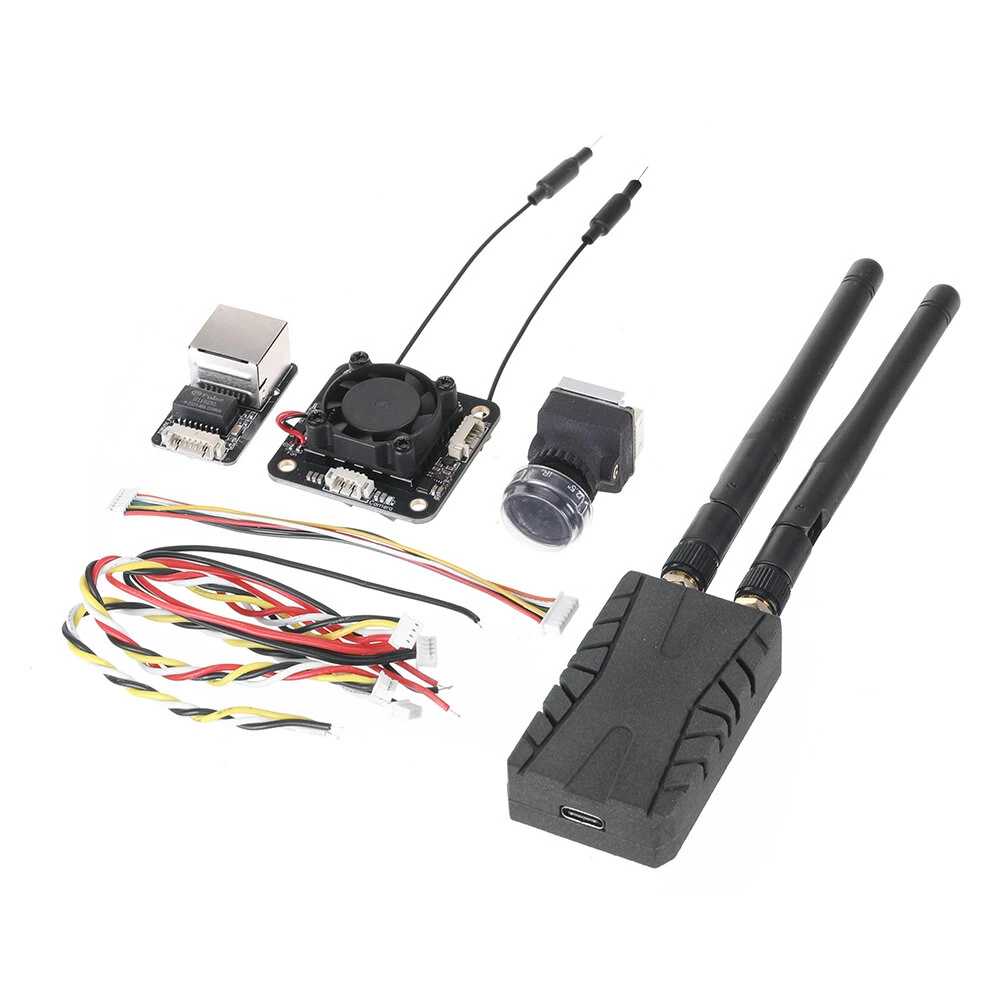

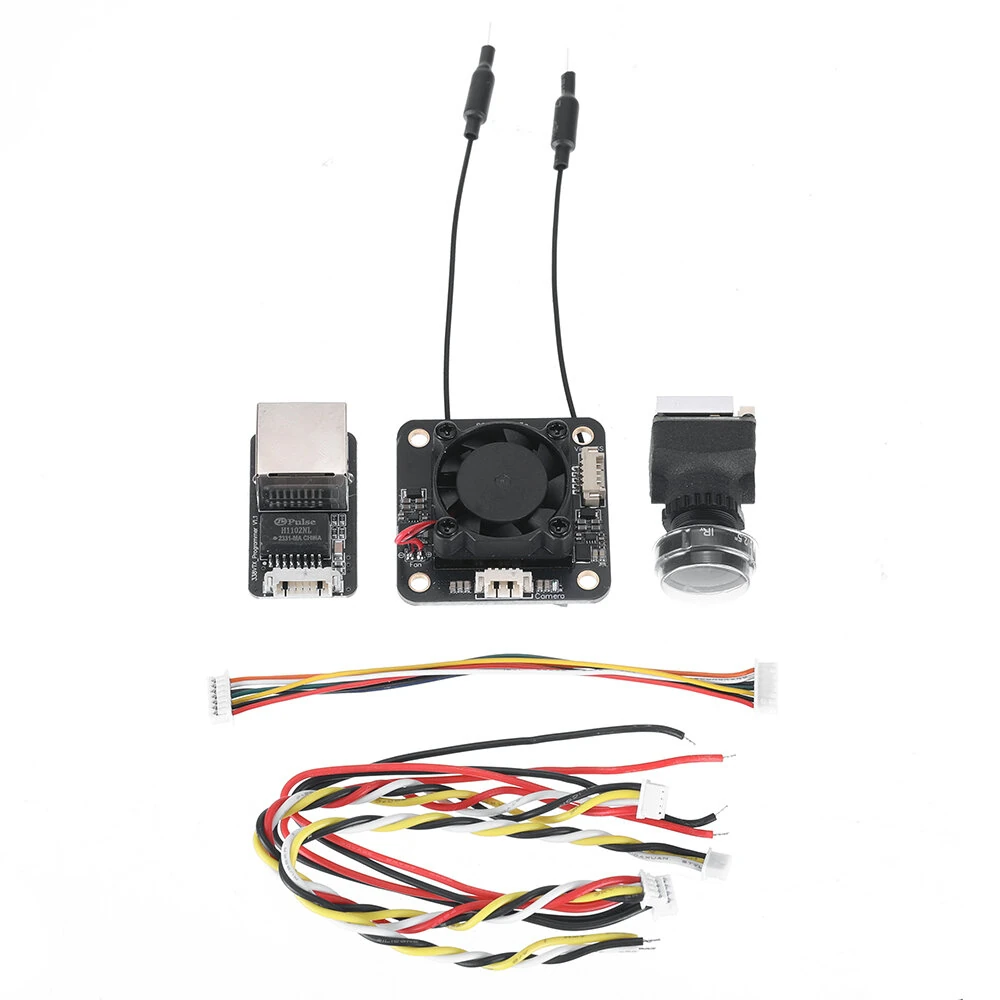

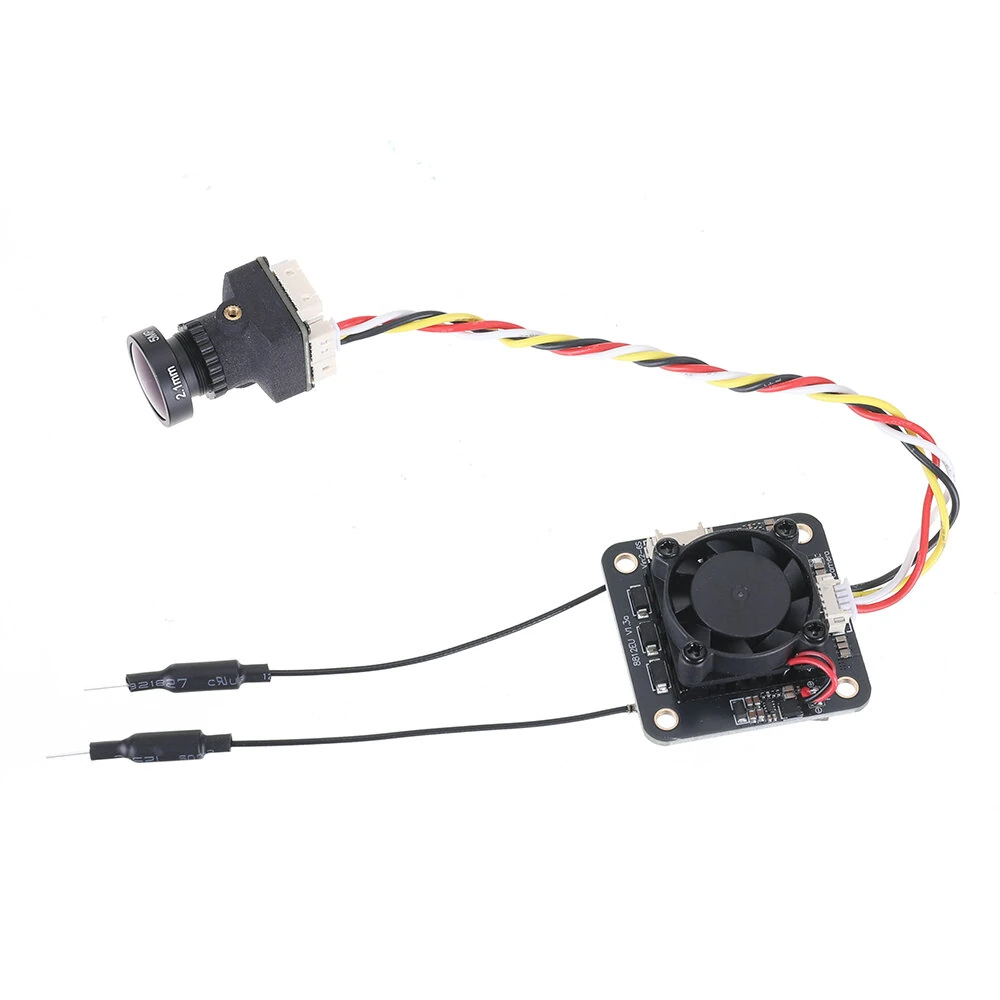

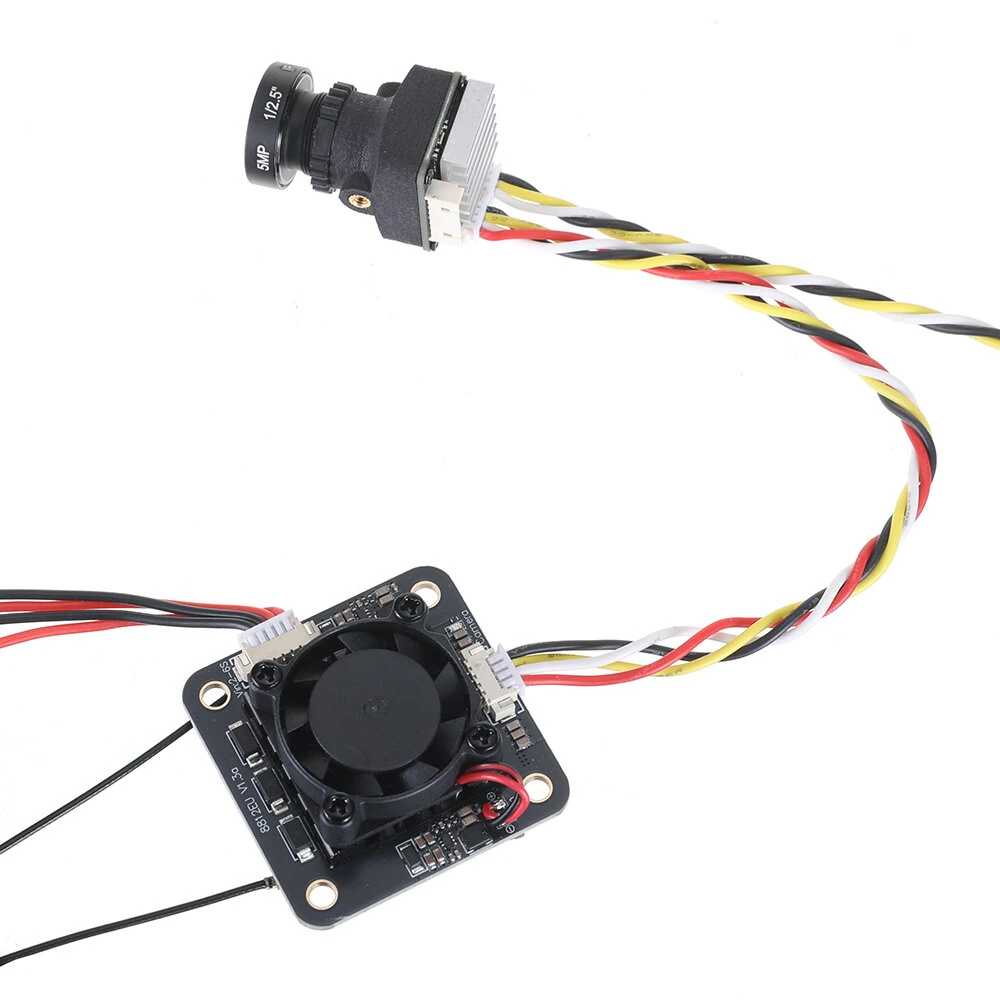

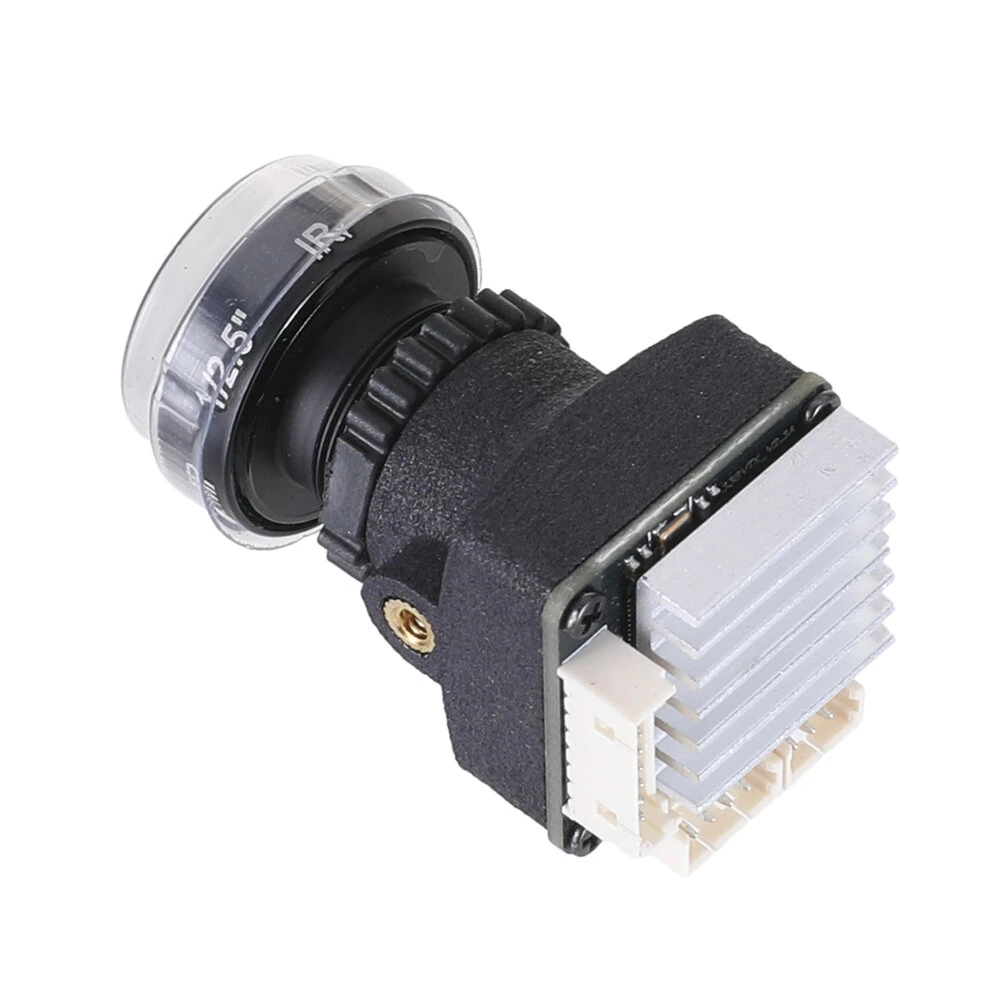

Eachine Sphere Link 5.8GHz WIFI Digital HD 800mW FPV Transmitter VTX with 1080P FOV 140 FPV Camera MAVLINK Protocol Based on OpenIPC for RC Drone

Sensor:

IMX415 or IMX335

Processor:

SSC338Q (ARM A7 Dual core) or SSC30KQ (ARM A7)

FOV:

140°

Resolution:

SSC338Q: 1080P@90FPS/ 800P@120FPS

SSC30KQ: 1080P @60FPS/ 720P@120FPS

Delay:

40 to 50 MS @ FPS120

Input Voltag:

7-26V (2S-6S)

Current:

3A Max.

Power:

800mW

Weight:

33g (unit)

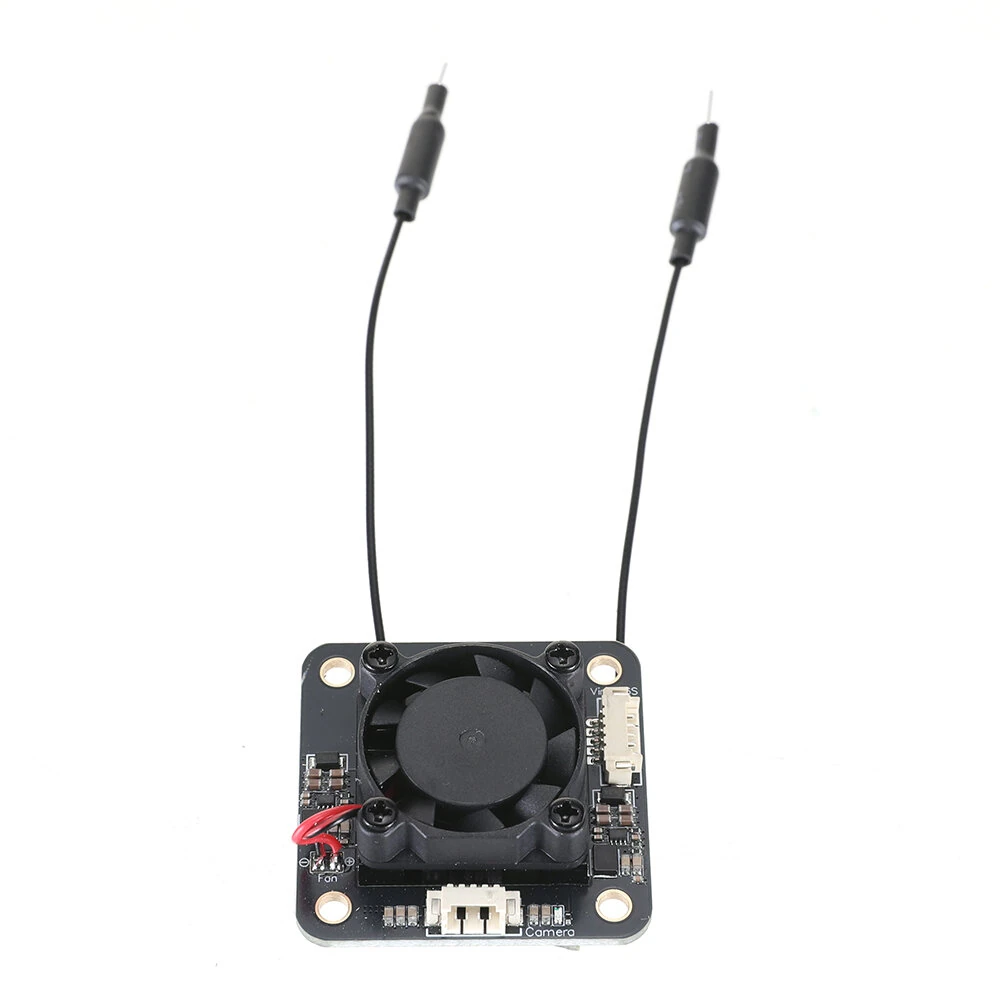

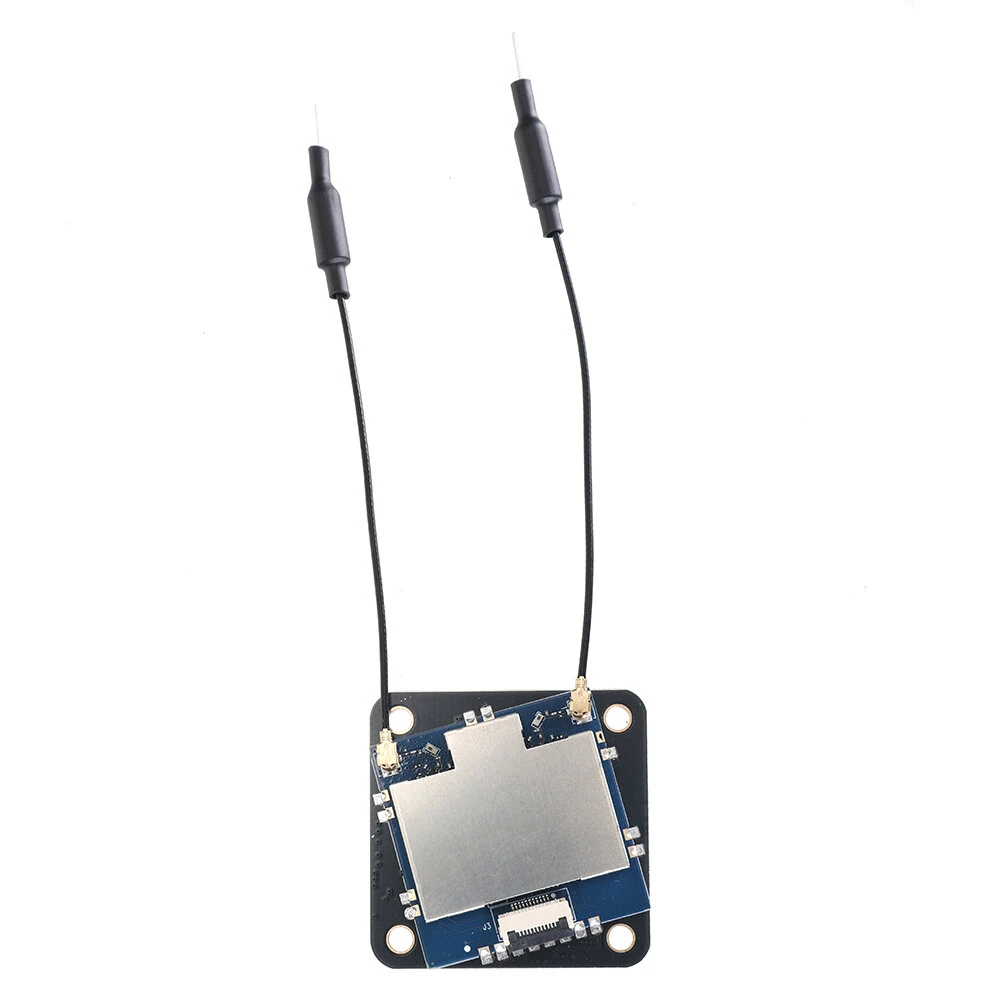

TX Board Size:

39*39*17MM (Fan include), 39*39*9 MM (Without Fan)

Mount Hole:

30.5*30.5MM

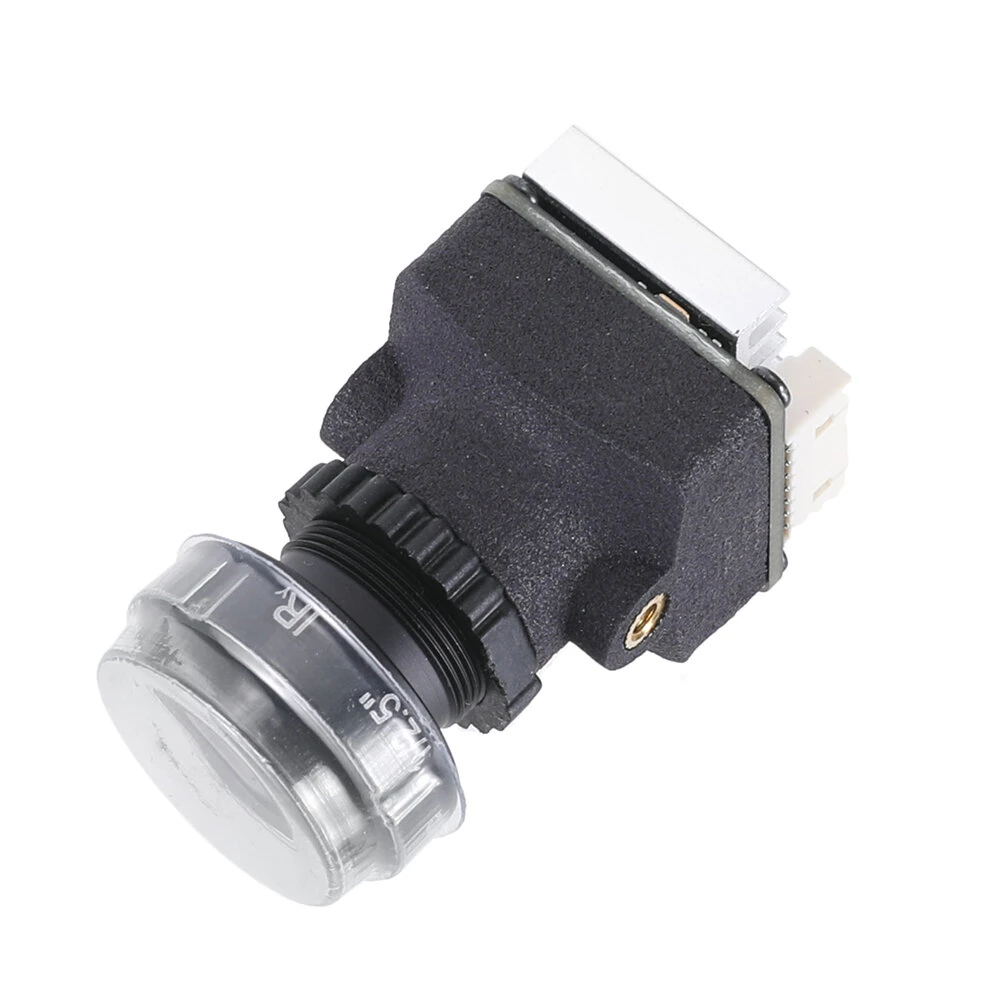

Camera Size:

19*19*31 MM (Connecter Include) /M twelve Lens Interface

OSD Protocol:

MAVLINK

Receive Adapter:

RTL8812AU Adapter with Type C Connector
