Description:
| Brand Name: | Eachine |
| Item Name: | TS832 transmitter |
| Antenna Gain: | 2db |
| Frequency: | 5.8G |
| Transmitting Power: | 600mA |
| Power Input: | 7.4-16V (3S Lipo suggested) |
| Video Format: | NTSC / PAL Auto |
| Working Current: | 220mA at 12V |
| Audio Bandwidth : | 6.5M |
| Video Bandwidth: | 8M |
| Weight: | about 22g |
| Dimension: | 54x 32x 10mm(excluding antenna) |

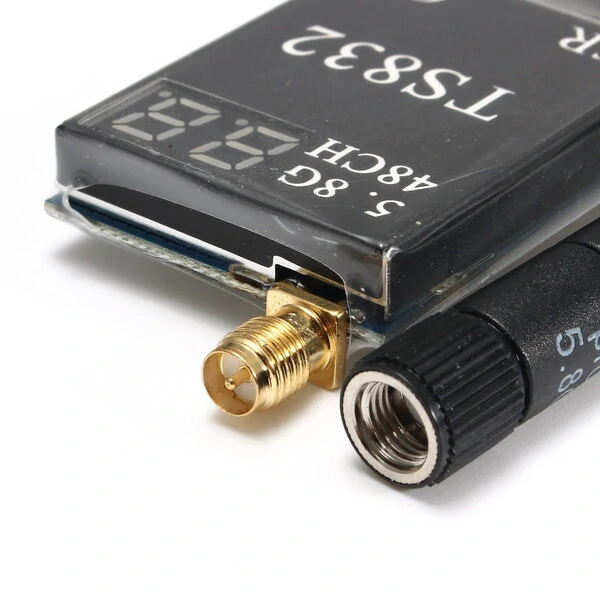

| Connector: | Transmitter module side RP-SMA jack, Antenna RP-SMA plug |
| Frequency Table | ||||||||
| Frequency Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Frequency Band B | 5733 | 5752 | 5711 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Frequency Band C | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Frequency Band D | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Frequency Band H | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Frequency Band L | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Features:
– 48 channels choice to get the best transmitting quality.
– Compatible with A,B,E and F frequency bands
– Smaller size with lighter weight.
– 48 CH compatible to all FPV 5.8g receivers.
– 5.8G 600mW 48 Channels AV wireless FPV transmitter
– Super small 200mA current for 600mW wireless transmitter power.
– 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna.

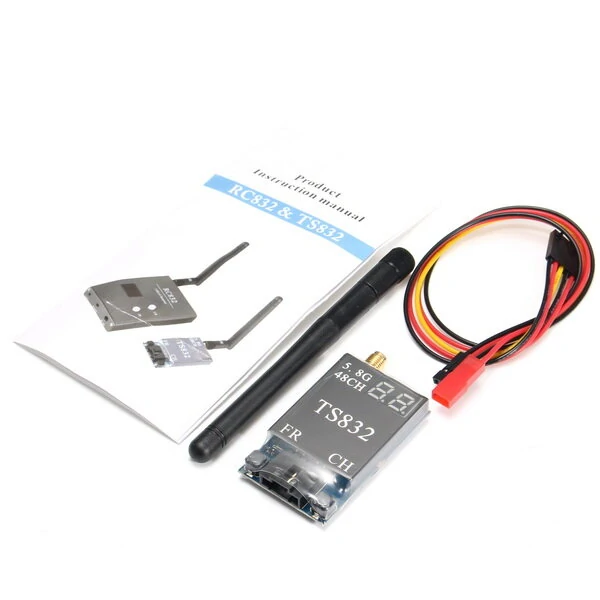

Package Included:1 x cable1 x antenna1 x Eachine TS832 transmitter
or
1 x Eachine TS832 transmitter+ RC832 receiver set
,
,
,
,
,
,
,
