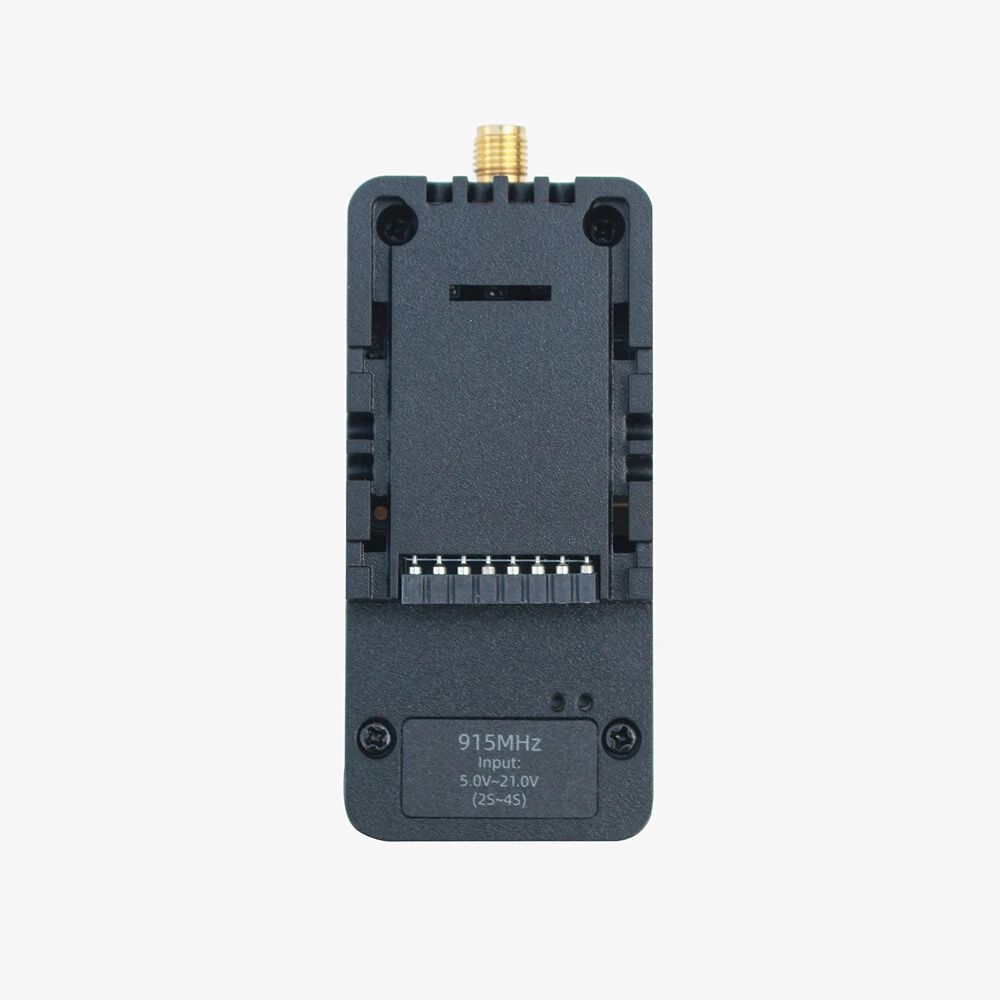

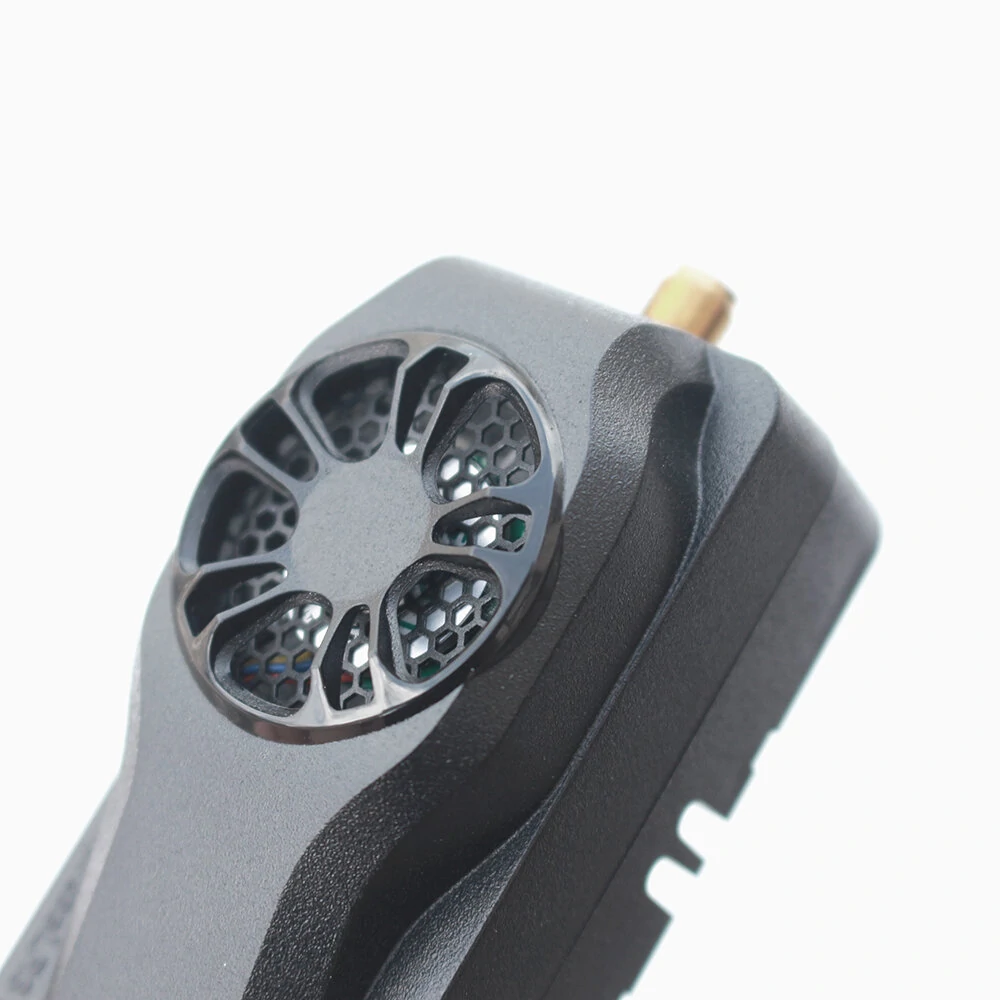

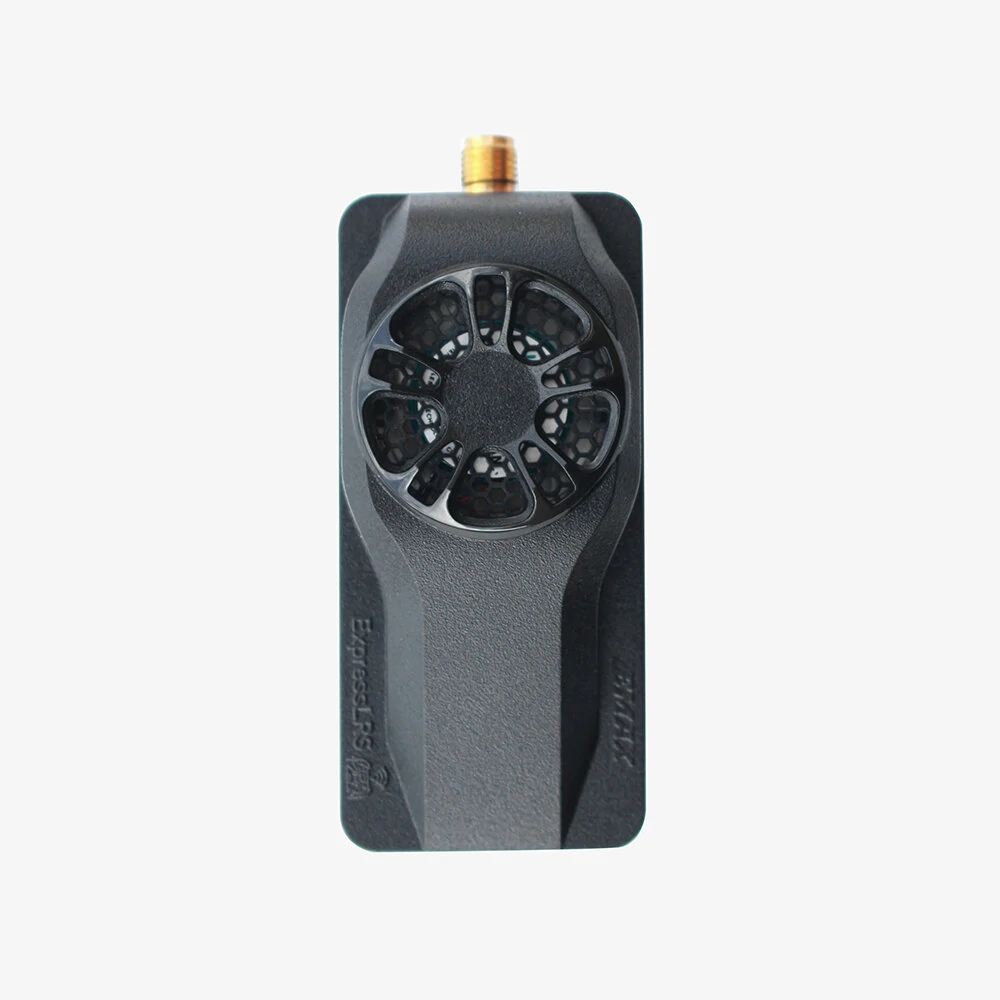

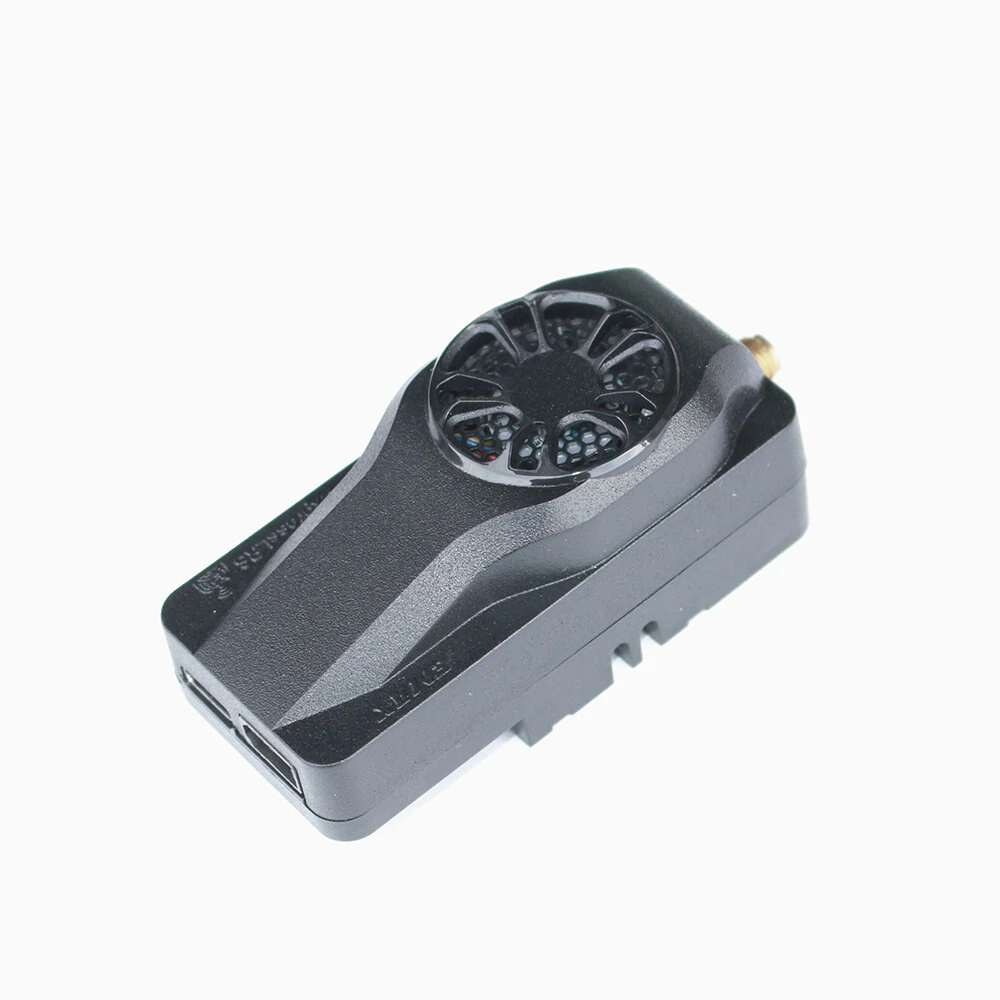

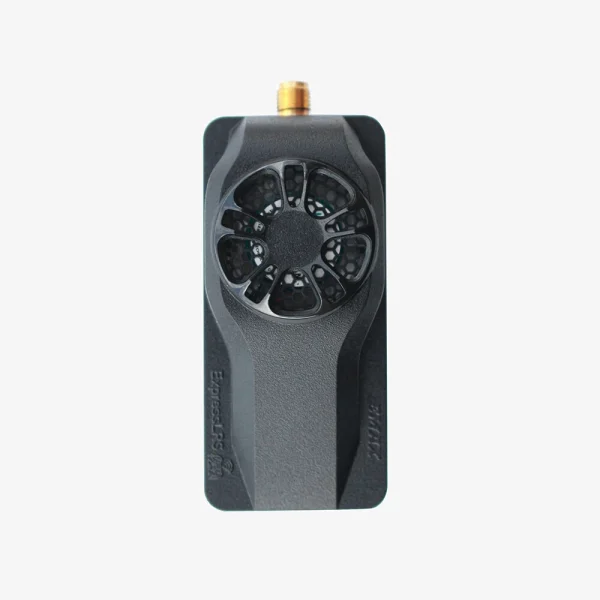

Emax Aeris Link ExpressLRS ELRS 2.4GHz & 915MHz Micro Transmitter RF TX Module With Cooling Fan OLED For RC Airplane FPV RC Drone

Emax Aeris Link ExpressLRS ELRS 2.4GHz & 915MHz Micro Transmitter RF TX Module With Cooling Fan OLED For RC Airplane FPV RC Drone

Specifications:

Brand: Emax

Model: Aeris Link

Item: Transmitter RF TX Module
Weight: Approximately 39g (excluding antenna)
Dimensions: 72 × 32 × 32mm (exdluding antenna)
Operating Frequency:
2.4G Version: 2.4GHz ISM
915M/868M Version: 915MHz FCC/868MHz EU

Output Power: 10mW (default)
2.4G Version Supports adjustable power levels of 25mW/50mW/100mW/250mW/500mW/1000mW
915M Versior: Supports adjustable power levels of 25mW/50mW/100mW/250mW/500mW/1000mW/2000mW

Refresh Rate:
2.4G Version: 50hz, 100hz FULL, 150hz, 250hz, 333hz FULL, 500hz, D250hz, D500hz,F500hz,F1000hz.
915M Version: 25hz, 50hz, 100hz, 100hz Full, 200hz

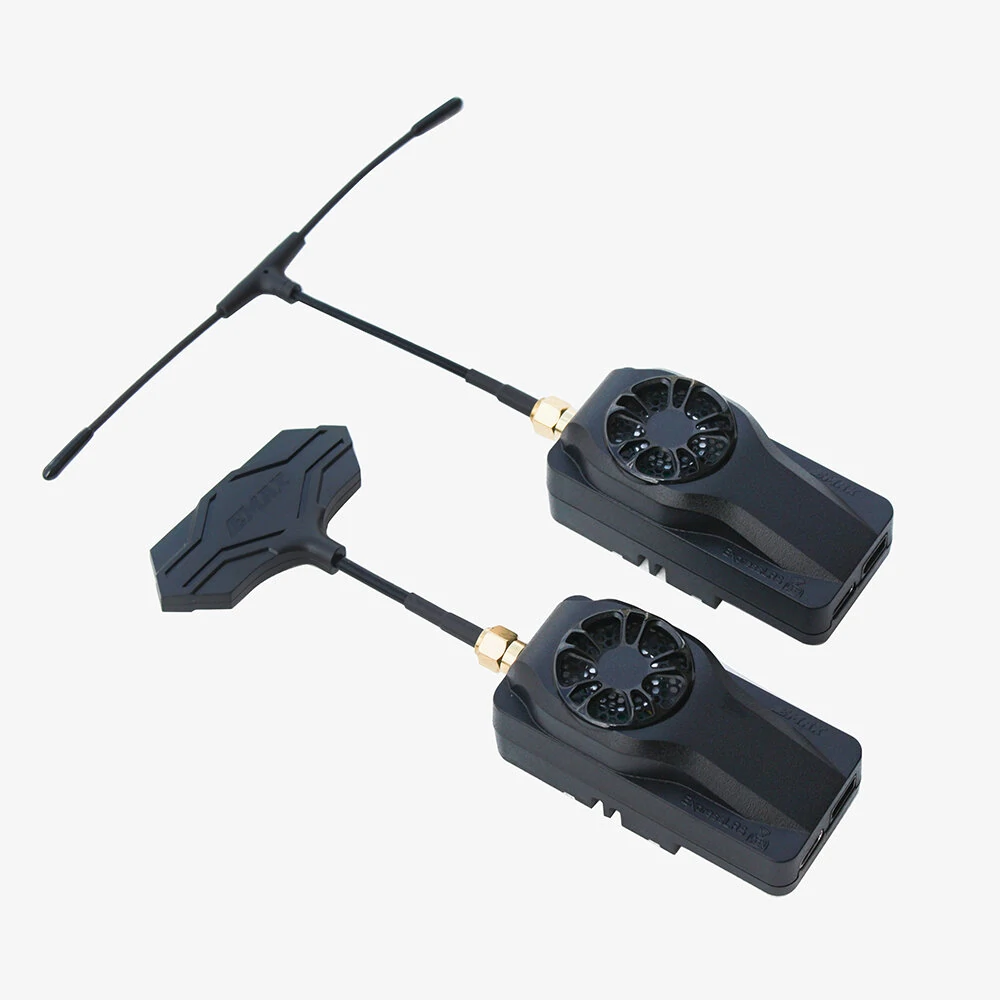

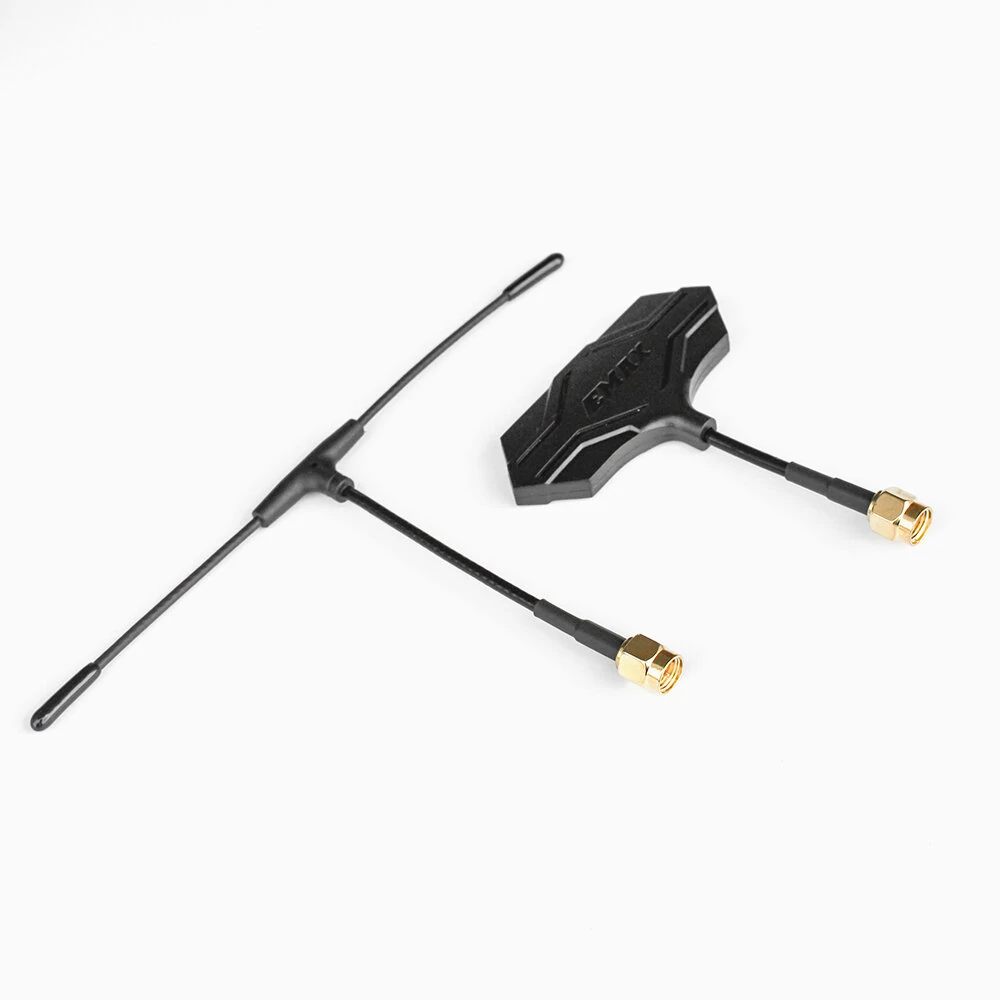

Antenna:
2.4G Version: Comes with a built-in gain T-shaped antenna, and can aso use other antennas with RP-SMA-) intemal thread and female connector.
915M Version: Comes with a built-in gain T-shaped antenna, and can also use other antennas with SMA-J internal thread and male connector.

Configuration: Supports Crosfire serial data protocol (CRSF) signal and uses LUA scripts to control the high-frequency module. Compatible with OpenTX remote controllers.

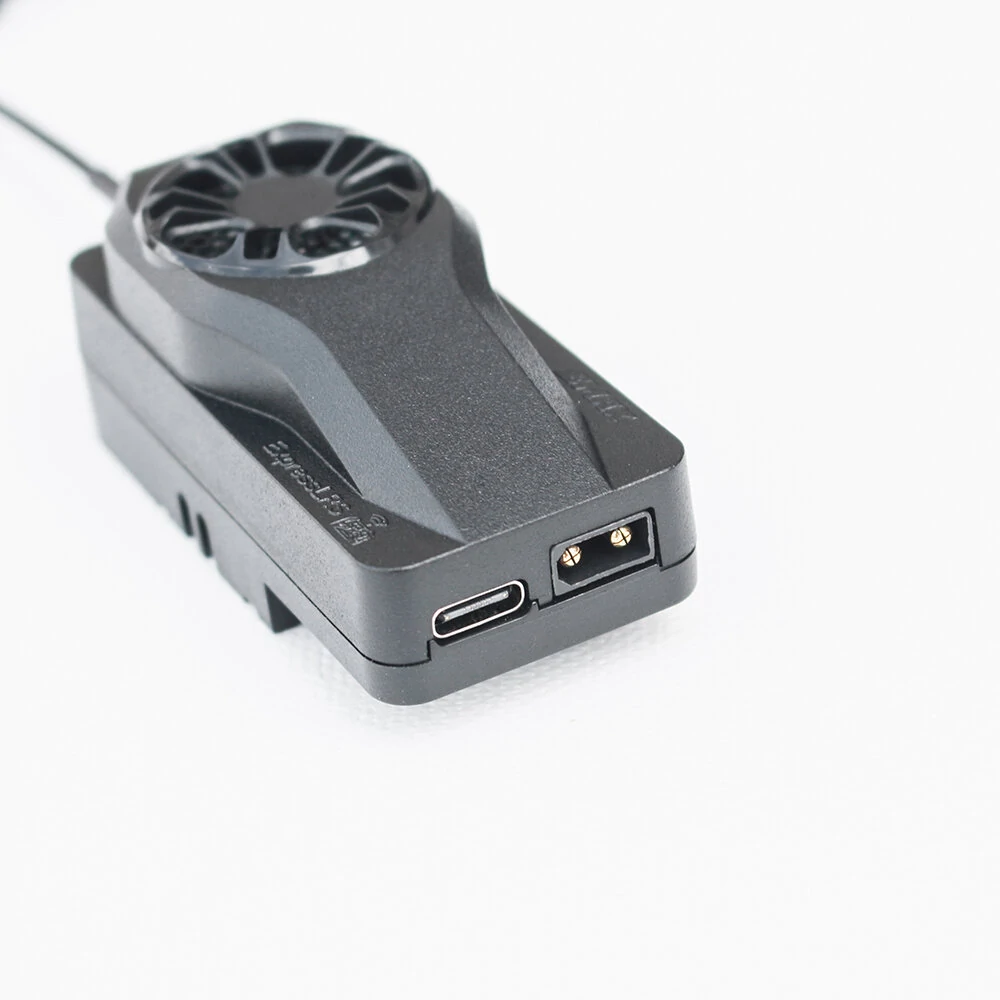

Interface: Type-C interface.

External Power: XT30 interface (supports voltage input of 5-21V, recommended to use 2S (8.4V))

Product Included:

2.4G Version:
1X Eris Link Micro ExpressLRS 2.4G (Complete set)
1X 2.4G-T Type Antenna
1X Product Introduction Manual/Website Card

915M Version:
1X Eris Link Micro ExpressL.RS 915M (Complete set)
1X 915M-T Type Antenna
1X Product Introduction Manual/Website Card
