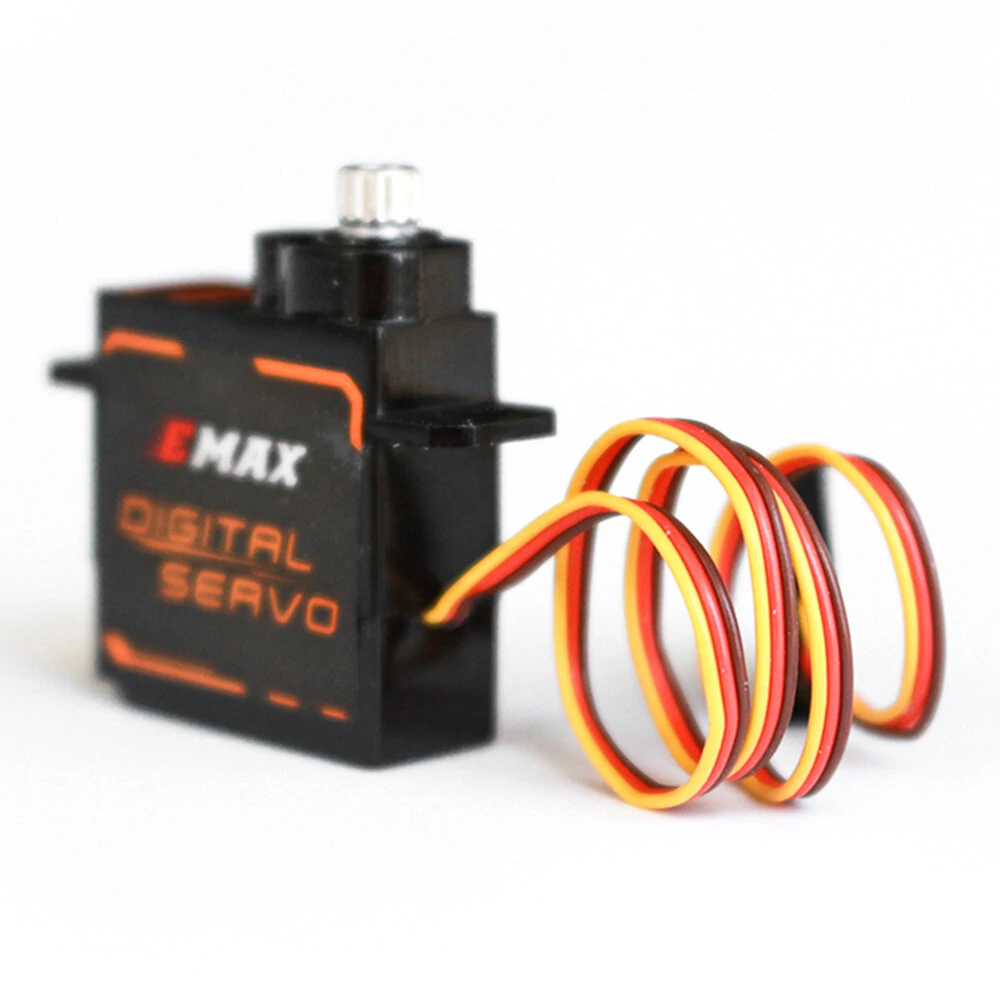

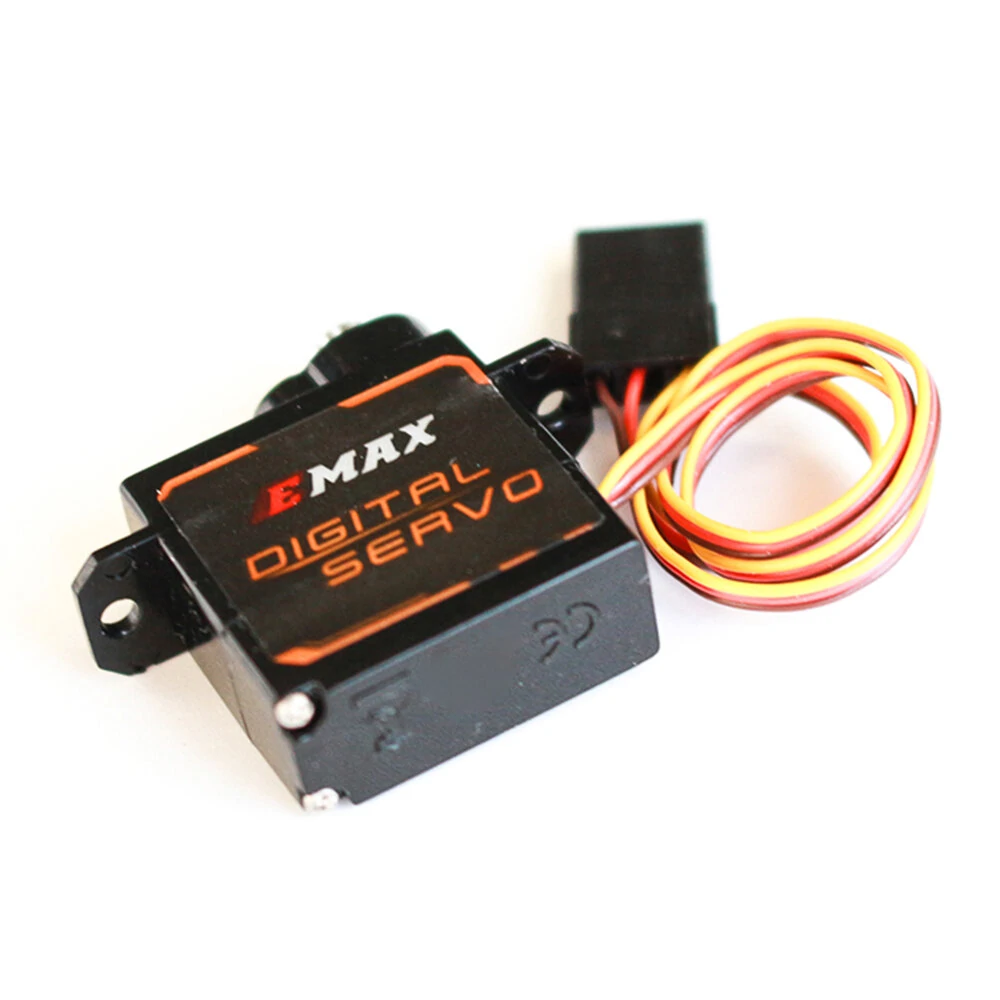

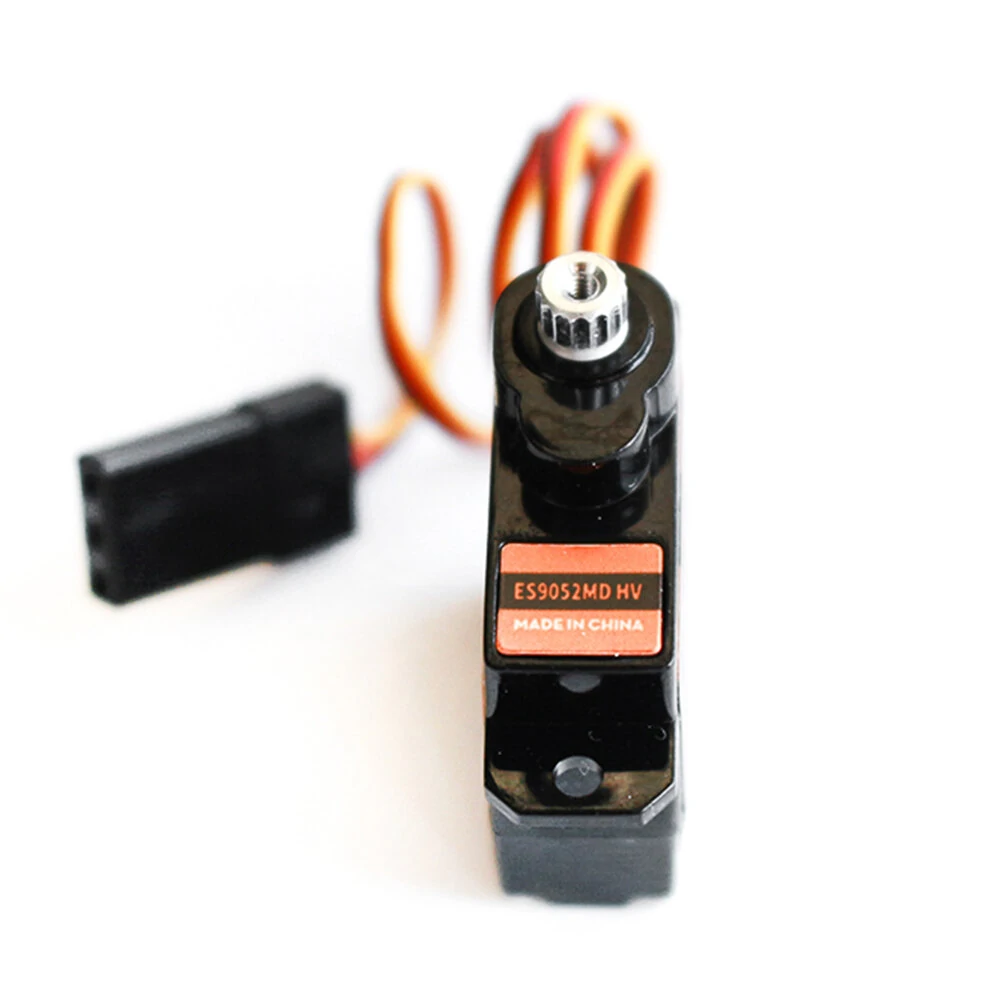

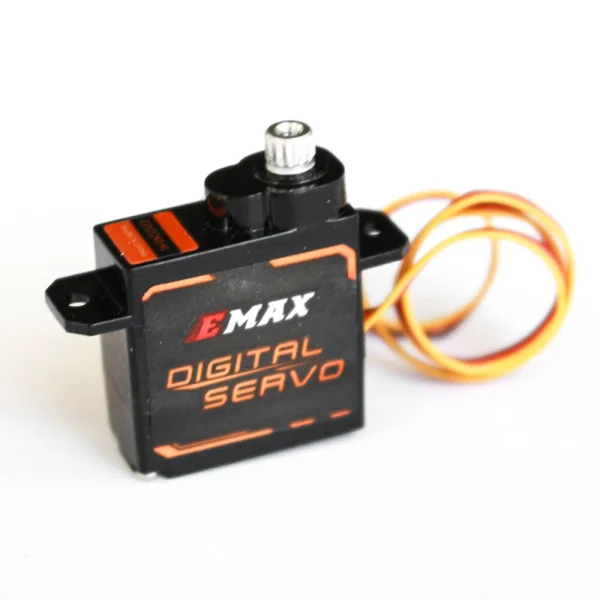

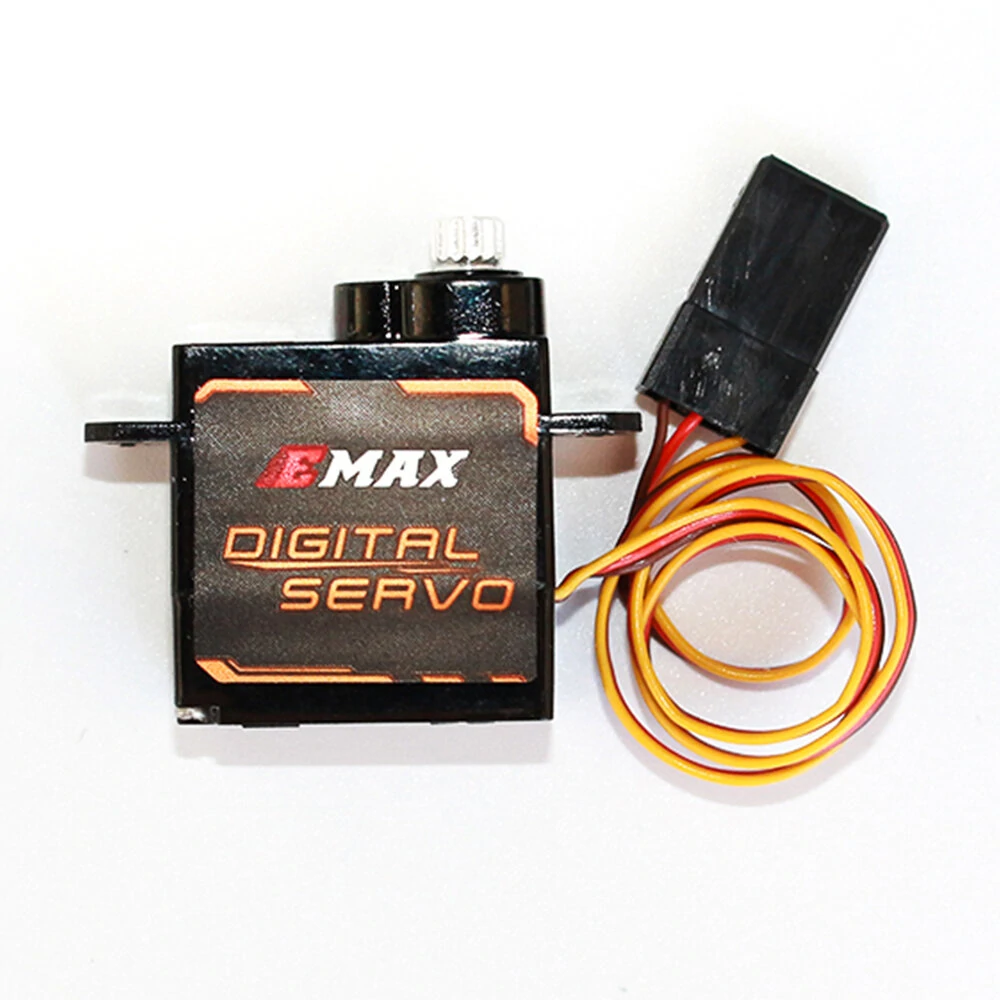

EMAX ES9052MD HV All-Purpose High Voltage Metal Gear Digital Servo

Description

Mechanical Specification:

Overall Dimensions: See Drawing Below
Weight: 5.8±0.5 g(0.195 oz)
Connector Wire Gauge: JR
Connector Wire Length: 180±8mm (W/O Connector)
Output Gear Spline: 15T
Bearing: NO
Gear Type: Metal
Extreme Angle: 360°

Control Specification:

Control System: PWM
Operating Travel: 90° ±10( when 1000-2000 μ sec )
Neutral Position:1500 μ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 μ sec
Pulse Width Range: 600-2400 μ sec
Maximum Travel:160° ±10°( 600-2400μ sec )

Features:

-High voltage capabilities for increased performance.
-Fast and precise movement for smooth control.
-Compact size for easy installation in tight spaces.
-Durables construction for long-lasting use.
-Compatible with a wide range of RC models.

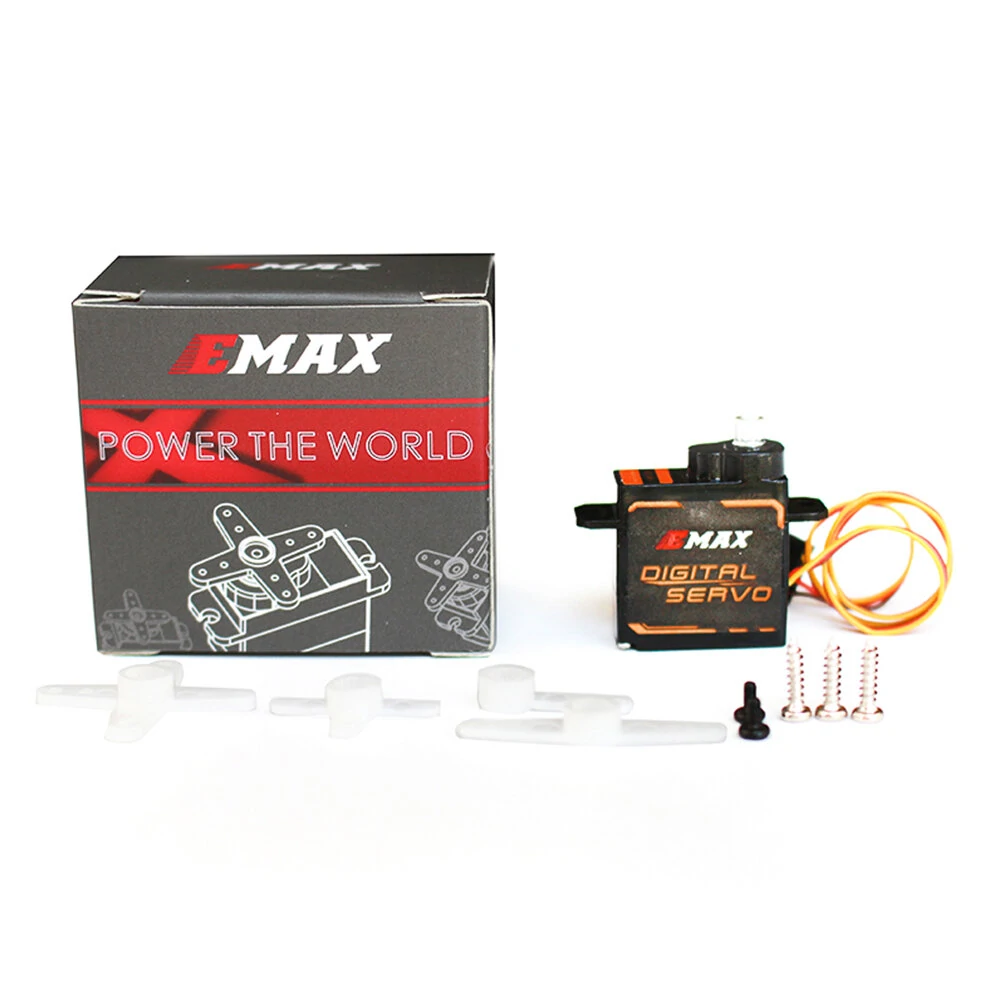

Package Includes:

1 x EMAX ES9052MD HV High Voltage Servo
