EMAX Tinyhawk Nanoscout 65mm 1S Whoop FPV Racing Drone BNF/RTF with 08015 22000KV Motor RunCam Nano 3 Camera

$109.99$256.49

Buy Now
Availability: In Stock
SKU:2025953

BNF Version Introduction Clink HereRTF Version Introduction Clink Here.


Description:

Tinyhawk Nanoscout is a return to tradition, bringing to the table a more traditional ‘whoop’ frame with superior Tinyhawk performance and durability. Crafted meticulously with a 65mm wheelbase, this compact redefines what it means to experience flight.



Notes to Buyers:

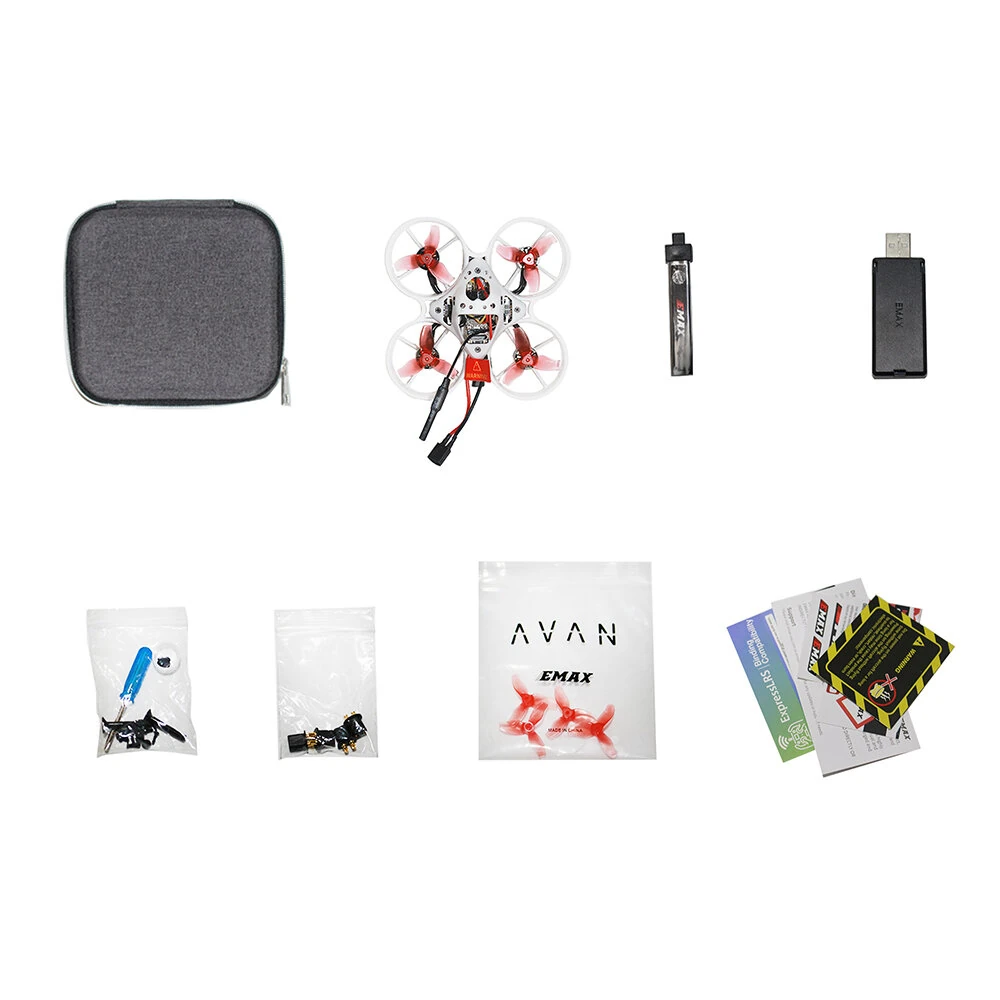

BNF (Bind-N-Fly) only has a receiver, no transmitter, no remote control.

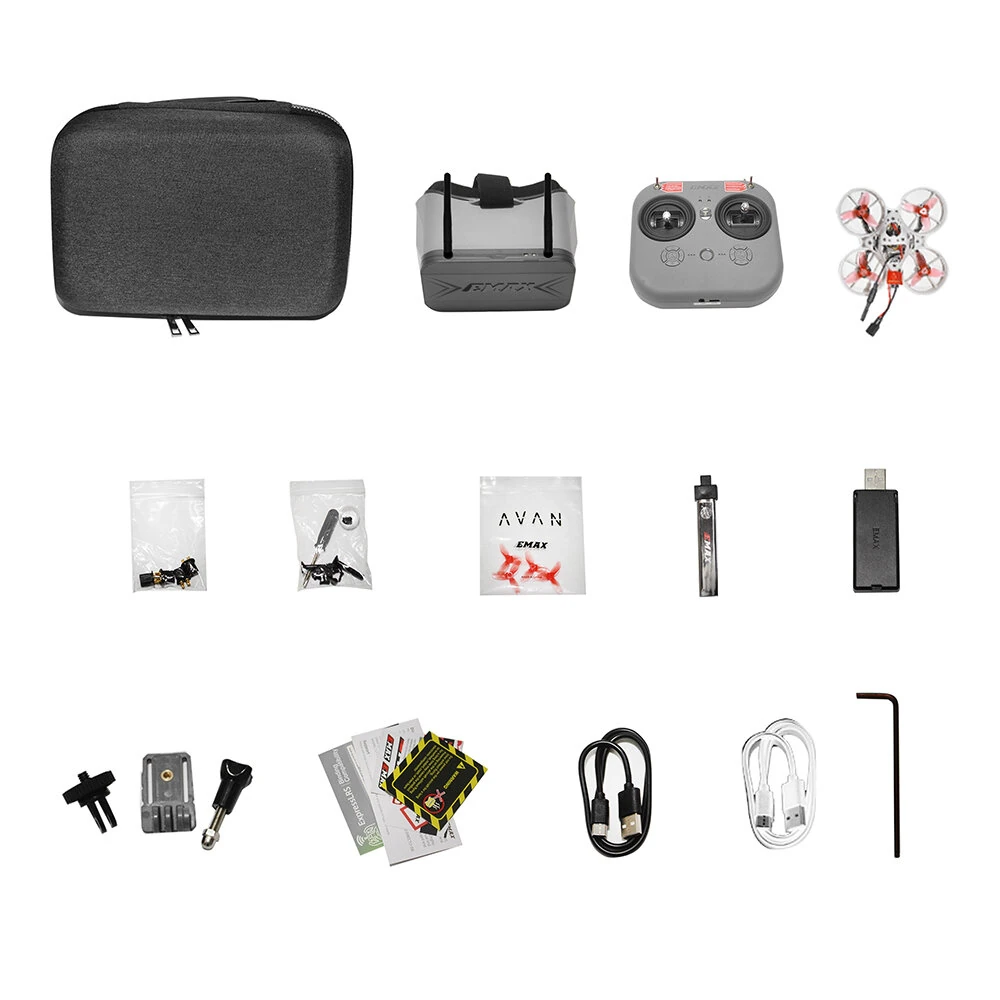

RTF (Ready to Fly) airplanes come with everything you need to fly in the box. A transmitter, receiver, battery, charger, and all other required electronics are included and pre-installed from the factory.



Feature:

1. Lightweight body design, more comfortable flight control, the new Tinyhawk Nanoscout, the aircraft wheelbase is only 65mm, and the bare weight is only 23.1g.

2. Excellent performance, durabl The sturdy frame made of high-quality materials can withstand the test of intense flight.

3. The newly designed 0801522000KV double ball high-speed bearing brushless motor is adopted, and it is matched with 31mm propeller to better improve flight efficiency and show extraordinary speed and responsiveness.

4. It adopts high-capacity 320mAh 1S high-voltage lithium battery, Emax’s self-developed EM2.0 power interface, and continuous and stable discharge performance, making flying more handy.

5. 4 types of image transmission power are adjustable 25mW/100mW/200mW/400mW, matched with RunCam Nano 3 camera with both clarity and low latency, ELRS (2.4G) receiver.

6. The Tinyhawk Nanoscout flight control system integrates the ELRS (2.4G) receiver, 6A BlHeliSuite ESC, and F411 integrated board.



Specification:

Brand: EMAX

Model: Tinyhawk Nanoscout

Item: 65mm 1S Whoop FPV Racing Drone

Name

Specification

Tinyhawk Nanoscout

Wheelbase:

65mm

Motor:

08015(22000KV)

Propeller:

31mm

Battery:

1S HV 320mAh(EM2.0)

Camera:

RunCam Nano 3

VTX:

EMAX-32-bit open-source simulation image transmission

Power: 25mW/100mW/200mW/400mW

FC:

STM32F411 (100MHz) main control

Integrated 4-in-1-6A-8 bit electronic control, input voltage 1S

Onboard ELRS (2.4G) receiver (SPI communication)

Maximum Size:

L*W*H=84x84x35mm

Weight:

23.1g (excluding battery)

E8 Transmitter(ELRS-2.4G)



Maximum Size:

L*W*H=150x140x45mm

Weight:

260g(excluding battery)

Number of Channels:

8CH

Agreement:

ELRS-2.4G

Working Frequency:

2.4gHz(2400-2483.5MHz)

Power:
