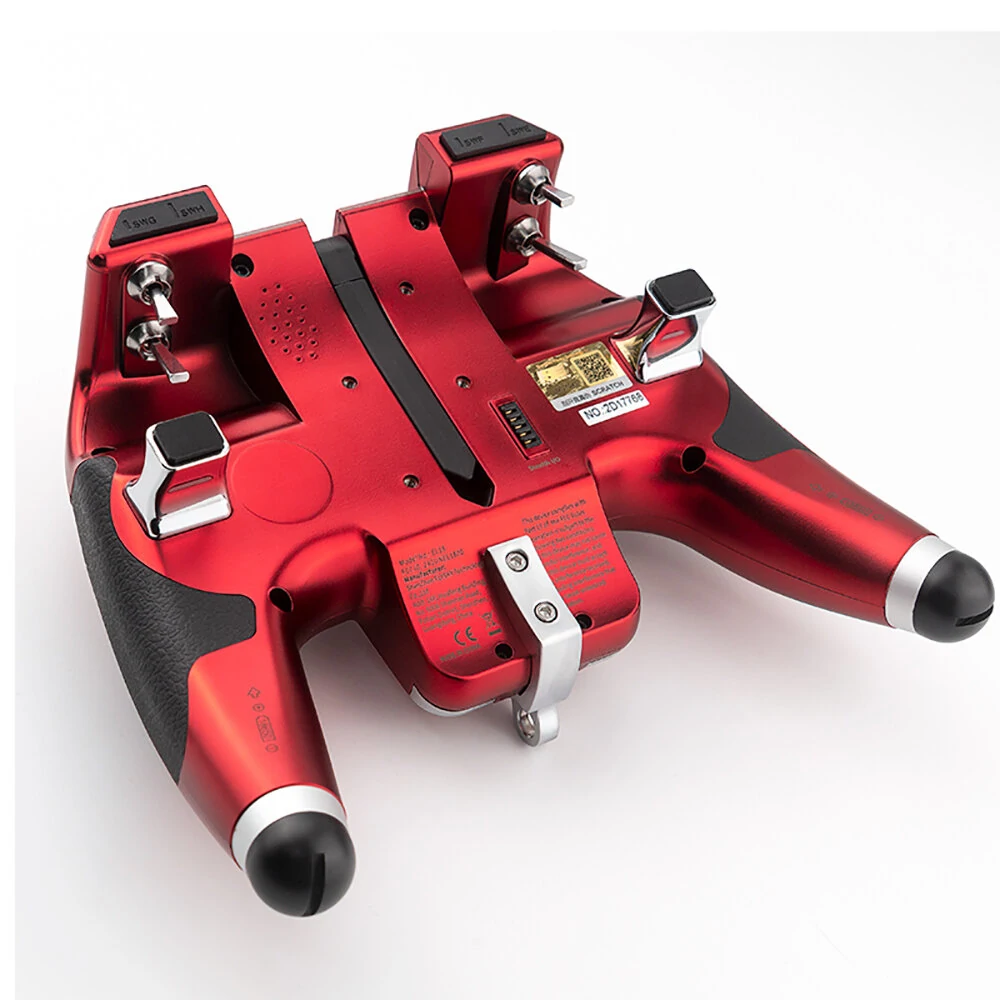

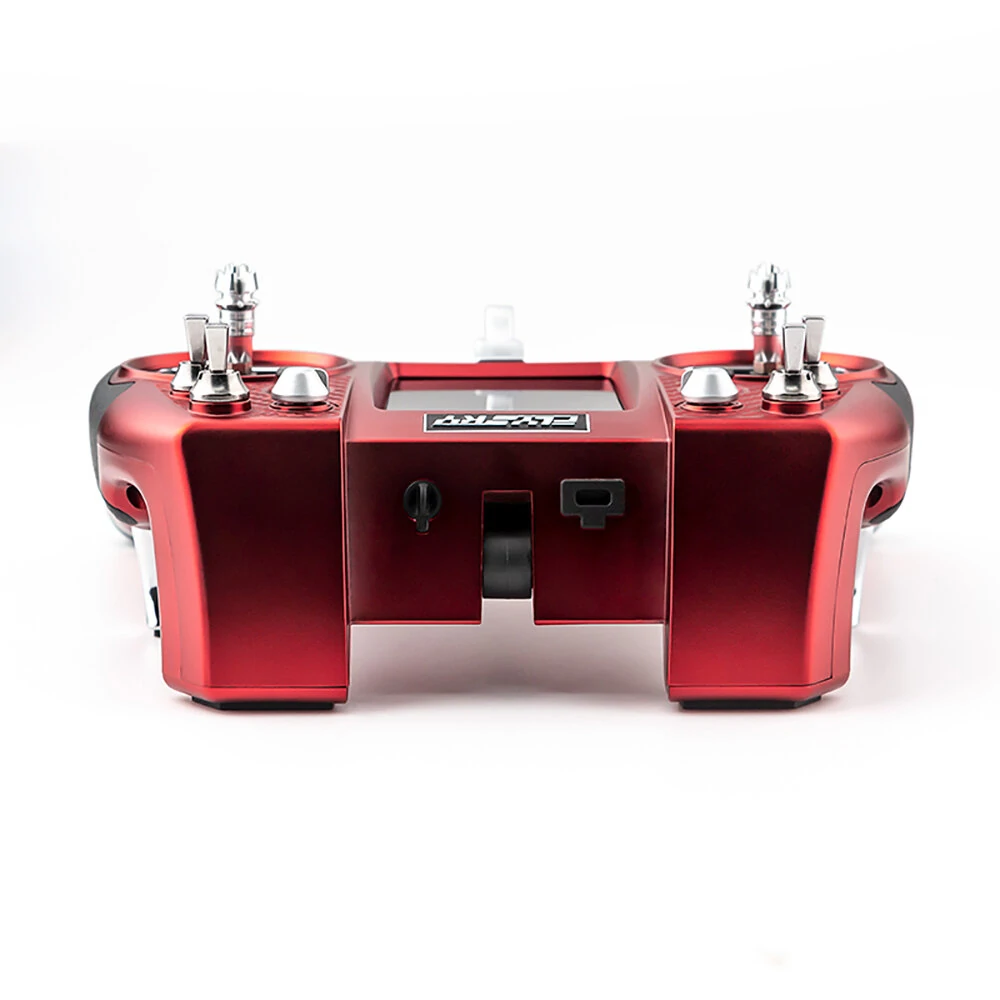

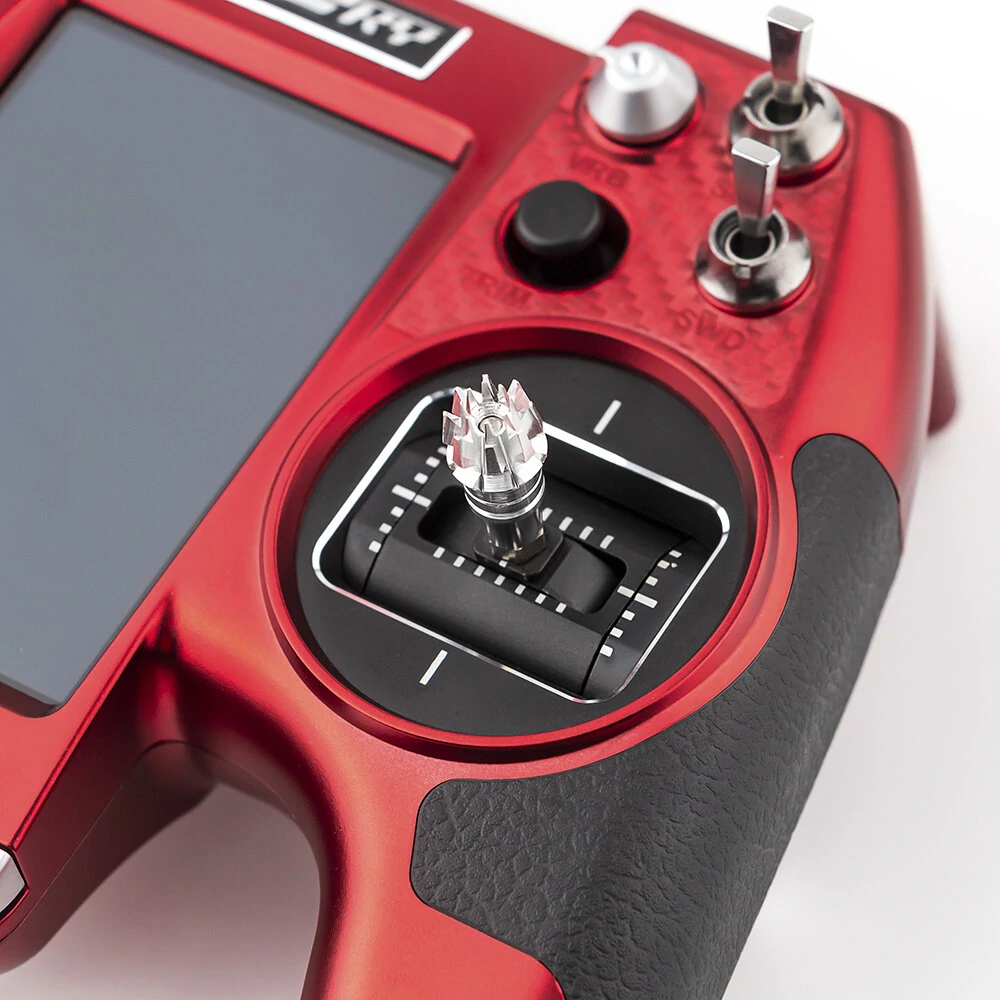

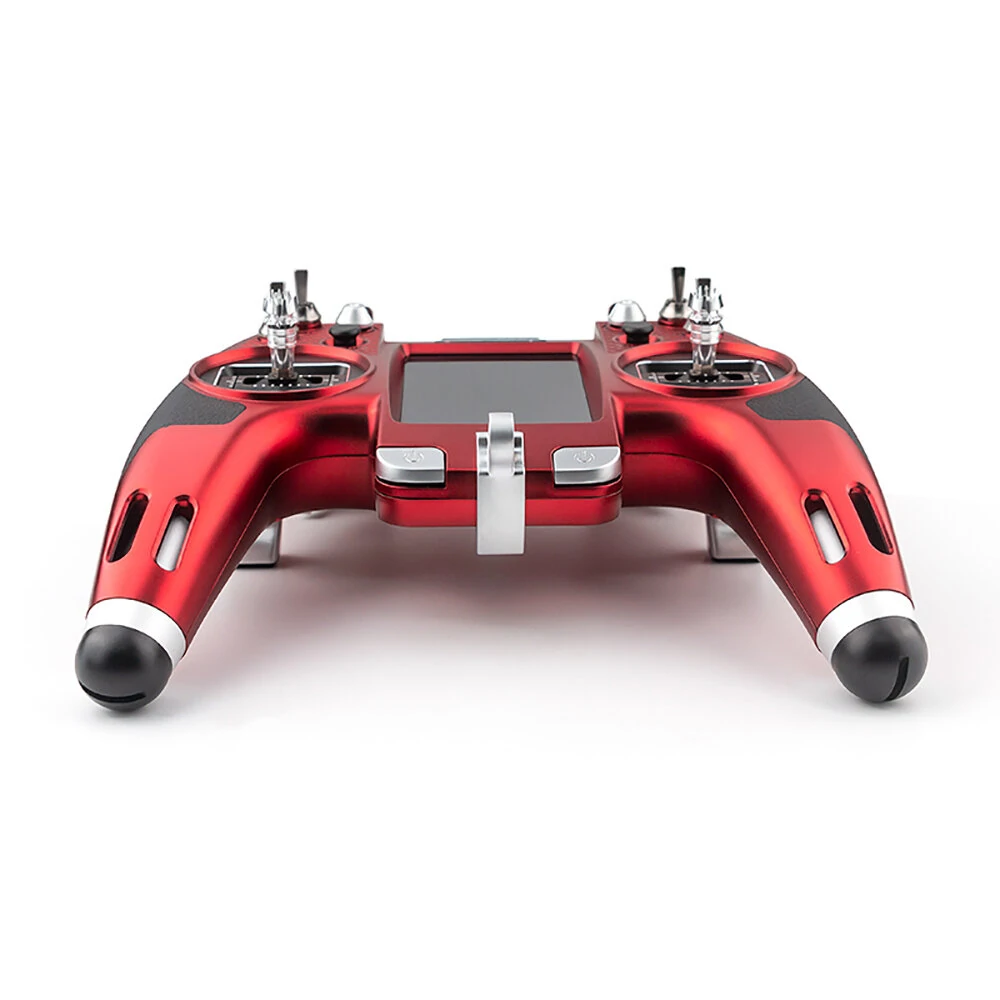

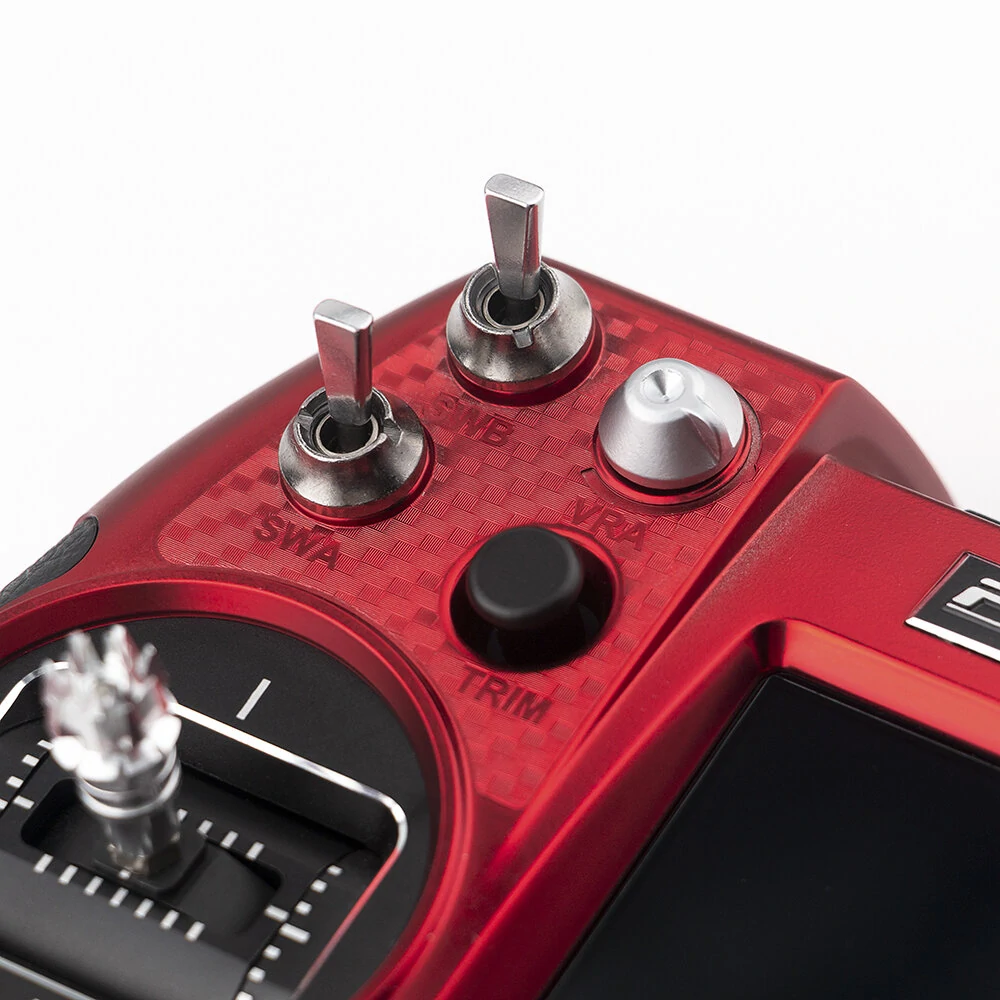

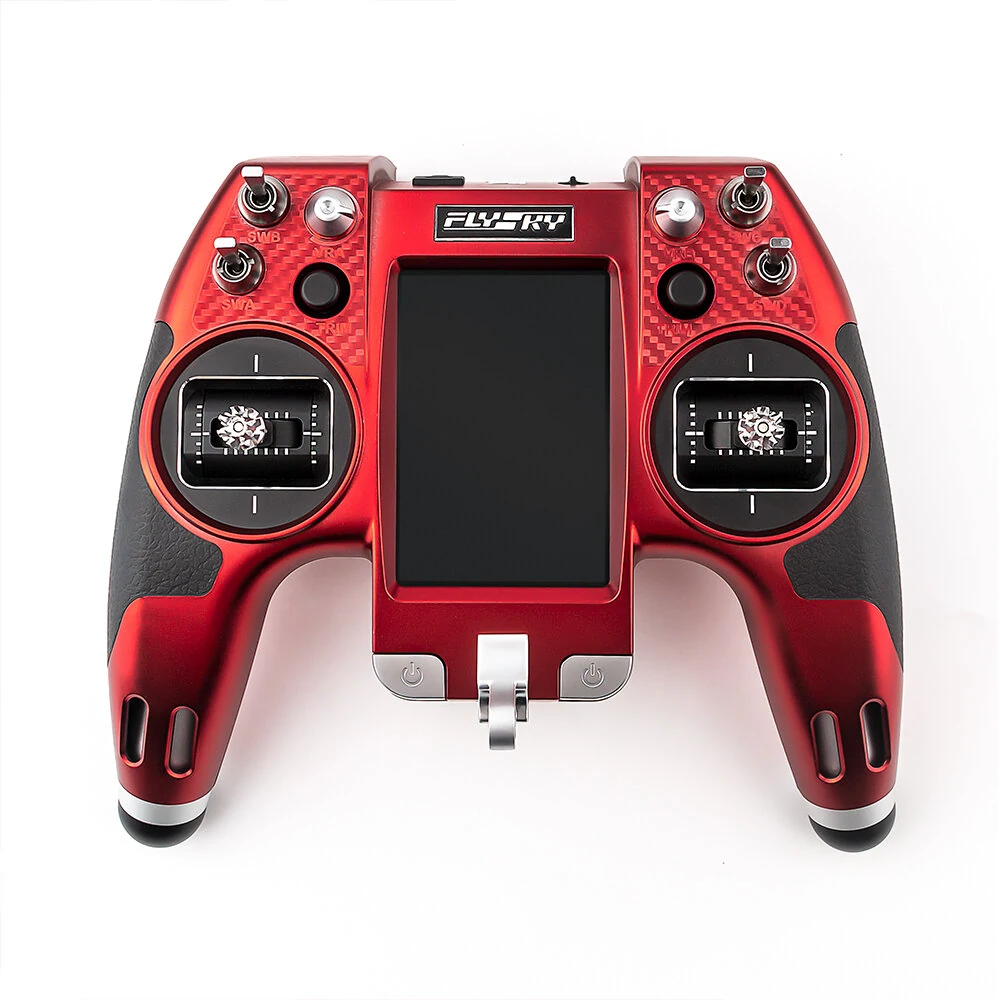

Flysky Elysium EL18 2.4GHz 3.5-Inch Touch Screen AFHDS 3 OpenTX/EdgeTX System Remote Controller RC Transmitter Limited Edition w/High-Precision CNC Hall Gimbals & Tmr Micro Receiver

Flysky Elysium EL18 2.4GHz 3.5-Inch Touch Screen AFHDS 3 OpenTX/EdgeTX System Remote Controller RC Transmitter Limited Edition for FPV Racing Drone

Description:

Brand: Flysky

Item: Elysium E18 RC Transmitter

Color: Red

Number of Channels: 18-channel is for Internal RF, and 32-channel is for External RF.

RF: 2.4 GHz ISM

2.4GHz Protocol: AFHDS 3

Maximum Power: < 20dBm (e.i.r.p.) （EU)

Antenna: Two antennas, one is a built-in antenna, the other is external rotatable antenna.

Input Power: 2* 18650 Li-Ion battery

Working Current: 400mA/4.2V

Data Output: Type-C USB

Charging Port: Type-C USB

Resolution: 4096

Screen: 320*480 resolution IPS colour touch-screen

Distance: > 3500m (Air distance without interference)

Online Update: Yes

Temperature Range: -10℃ ~ +60℃

Humidity Range: 20% ~ 95％

Dimensions: 205*183.6*82.9mm

Weight: 726g

Compatible Receivers: Classic version receivers, such as FTr10 or FTr16s, etc. Enhanced version receivers, such as FTr8B, FTr12B or Tmr, etc.

Compatible Models: Racing drones, fixed-wingaircraft, gliders or multicopters, etc.

Certifications CE，FCC ID: 2A2UNEL1800, UKCA

Flysky Elysium EL18 Transmitter Manual, Click Here

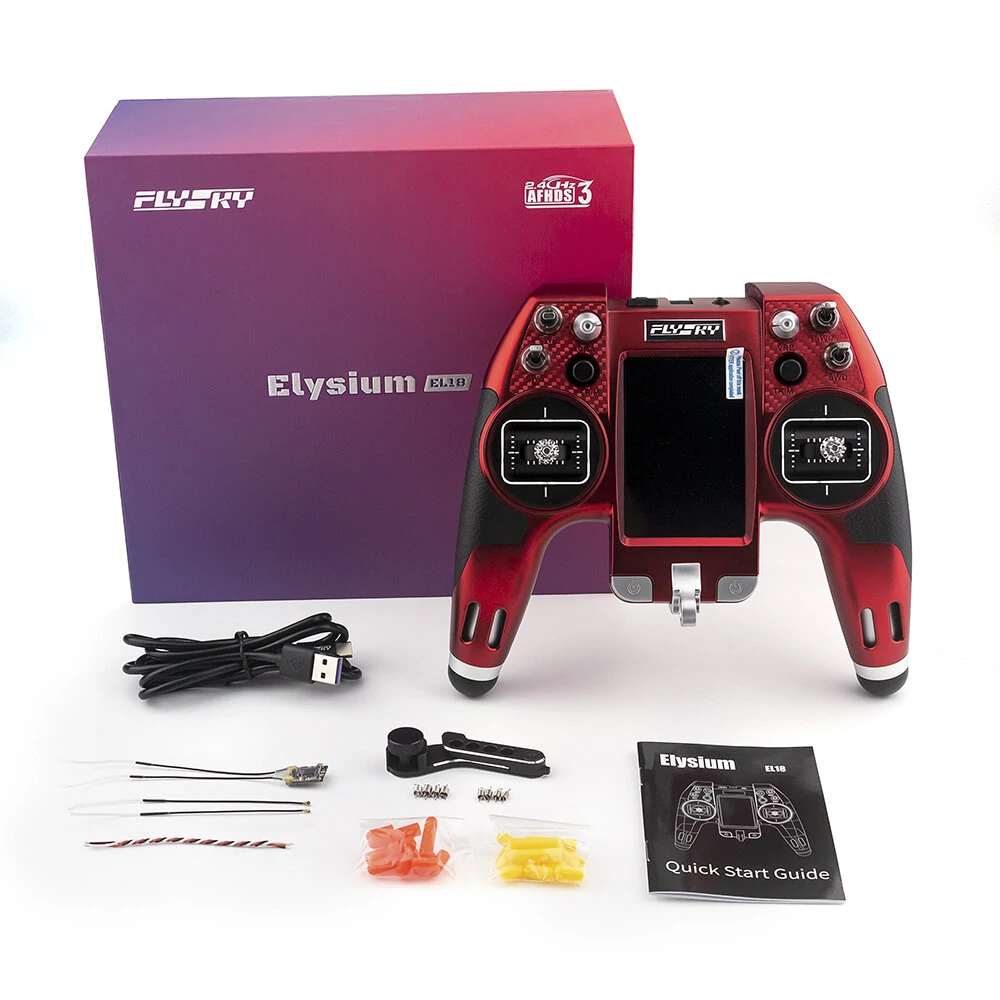

Package Included:

1x Flysky Elysium EL18 Transmitter (Red / Blue / Purple / Rose Gold Optional)

1pc x TMR Receiver

1pc x 4G Micro SD Card

1pc x Shelf of the center of gravity adjustment

2pcs x TMR receiver antenna

1pc x usb to usc-c charging cable

2 sets x EL18 Toggle Switch Color Switch Cap (yellow and orange)

4pcs x Spring (High elasticity 13T Hard)

4pcs x Spring (Low elasticity 14T Hard)

1pc x EdgeTX quick start guide (Paper file)

1pc x EdgeTX user manual (Electrinuc archives)
