Summary:
The GEPRC ELRS Nano 915M PA500 receiver is an advanced reception system based on the ExpressLRS open-source project. ExpressLRS offers long-range operation, low latency, high refresh rates, and affordability.

The ELRS Nano 915M PA500 receiver features a TCXO (temperature-compensated crystal oscillator) to prevent frequency shift caused by temperature changes. It adopts an integrated high-power PA chip, boasting a telemetry power of up to 500mW. It features a built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.

Feature:
1. Compact size of 13x23x5.5mm
2. Weighing only 1.9g
3. WIFI firmware upgrade
4. ELRS open-source project, long-range remote control
5. Maximum refresh rate of 200Hz
6. Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations
7. Features a built-in high-power PA chip, providing a maximum Telemetry power of 500mW

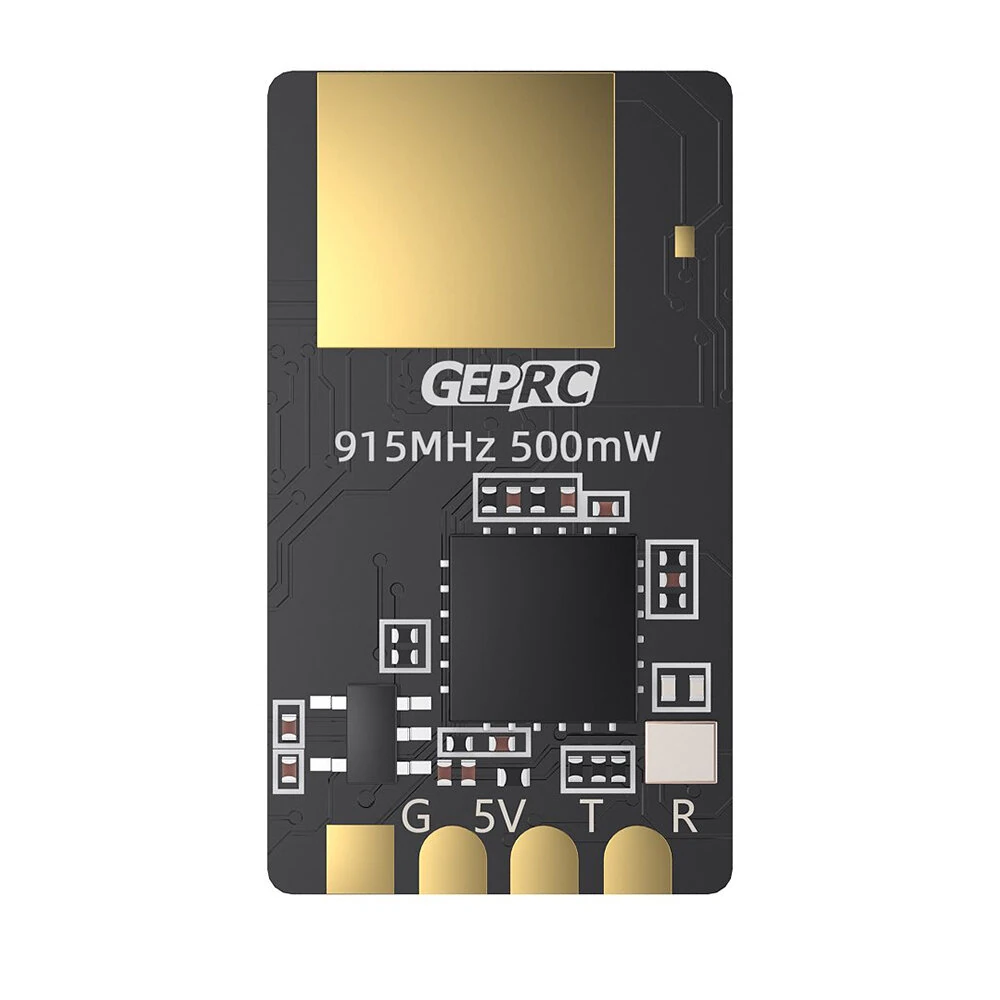

8. Equipped with an sh1.0 connector for easy installation

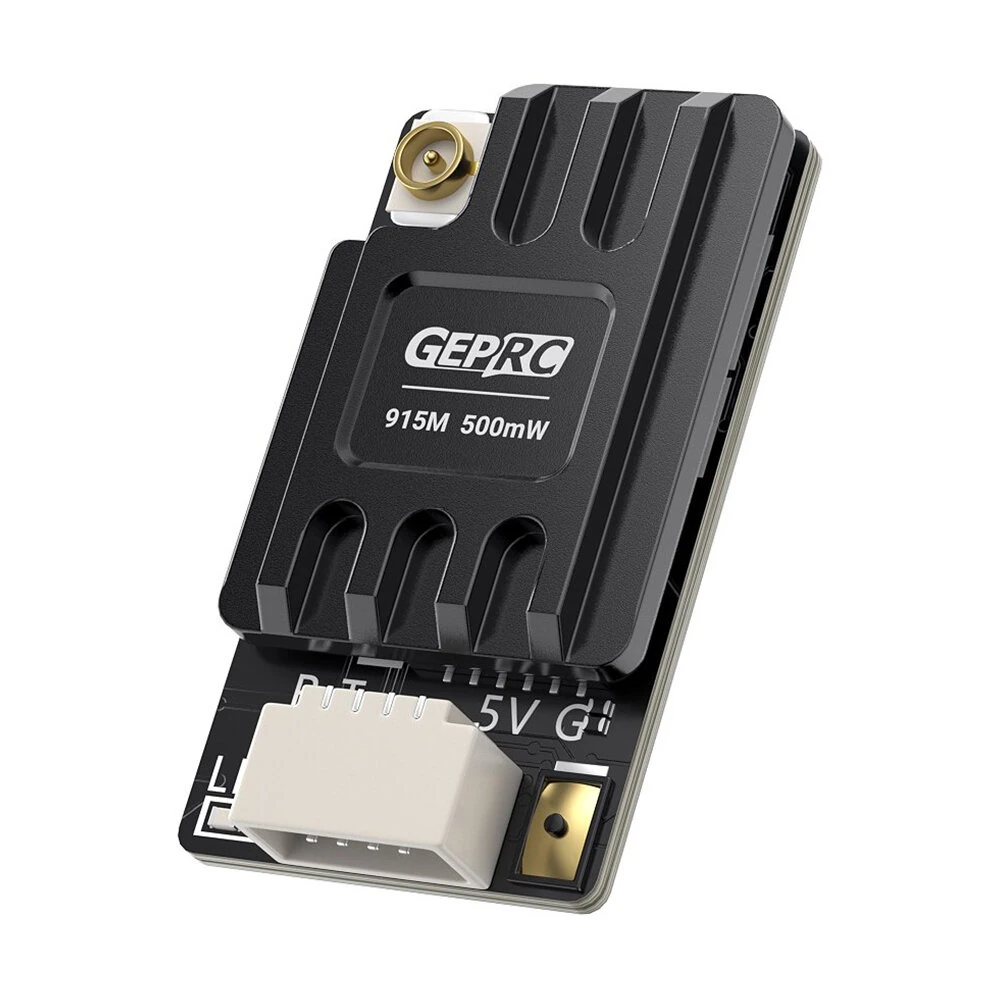

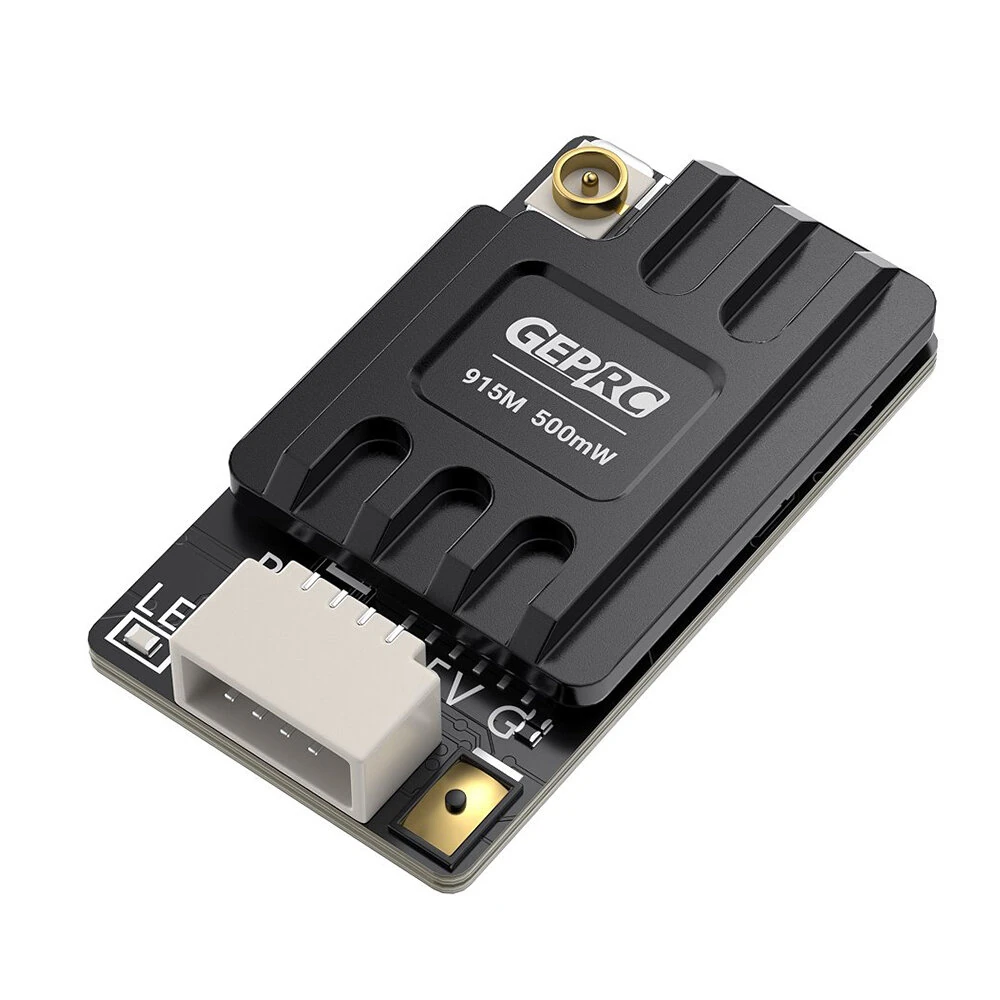

9. Adopts an aluminum alloy CNC shell to optimize heat dissipation

Specifications:
Brand: GEPRC

Model: ELRS Nano 915M PA500 receiver

Dimension: 13x23x5.5mm
Weight: 1.9g (RX only)
Chips: ESP8285, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC /868MHz EU
Refresh Rate: 25Hz-200Hz
Operating Voltage: 5V
Antenna Connector: ipex1
Telemetry Power: 500mW
Firmware: GEPRC Nano 915M PA500 RX

Includes:
1 x ELRS Nano 915M PA500 receiver

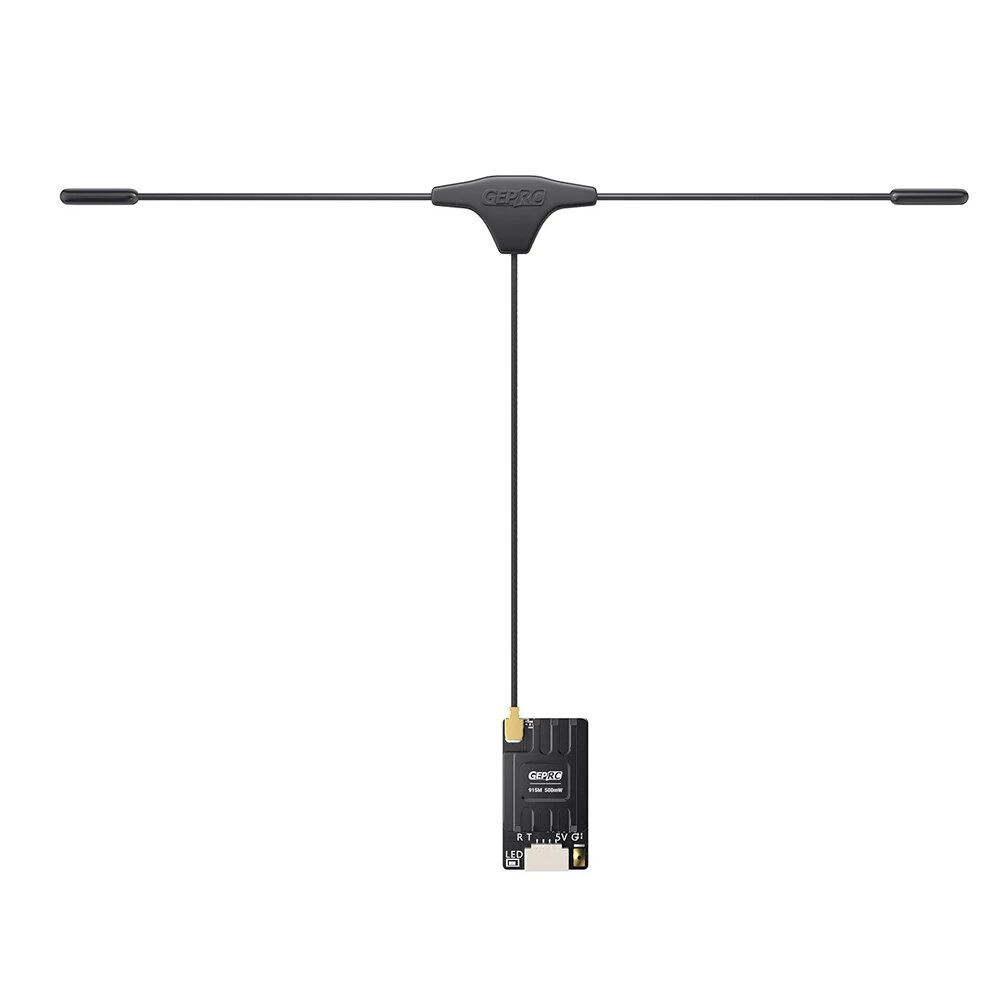

1 x Antenna
1 x Heat shrink tube
1 x 4pin silicone cable
1 x User manual
