GEPRC GEP M1025 Series M10 Chip GPS Module for RC Drone FPV Racing Helicopter Quadcopter RC Airplane Car

Description

Summary:

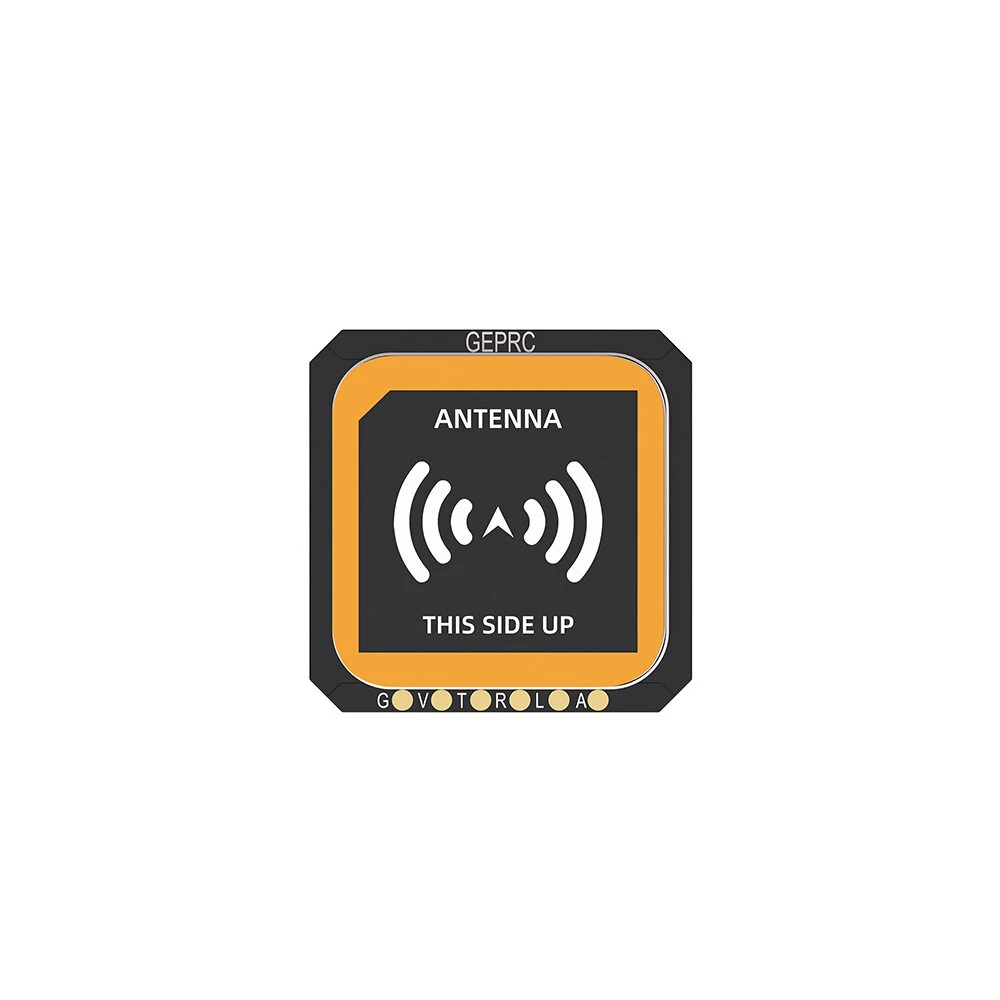

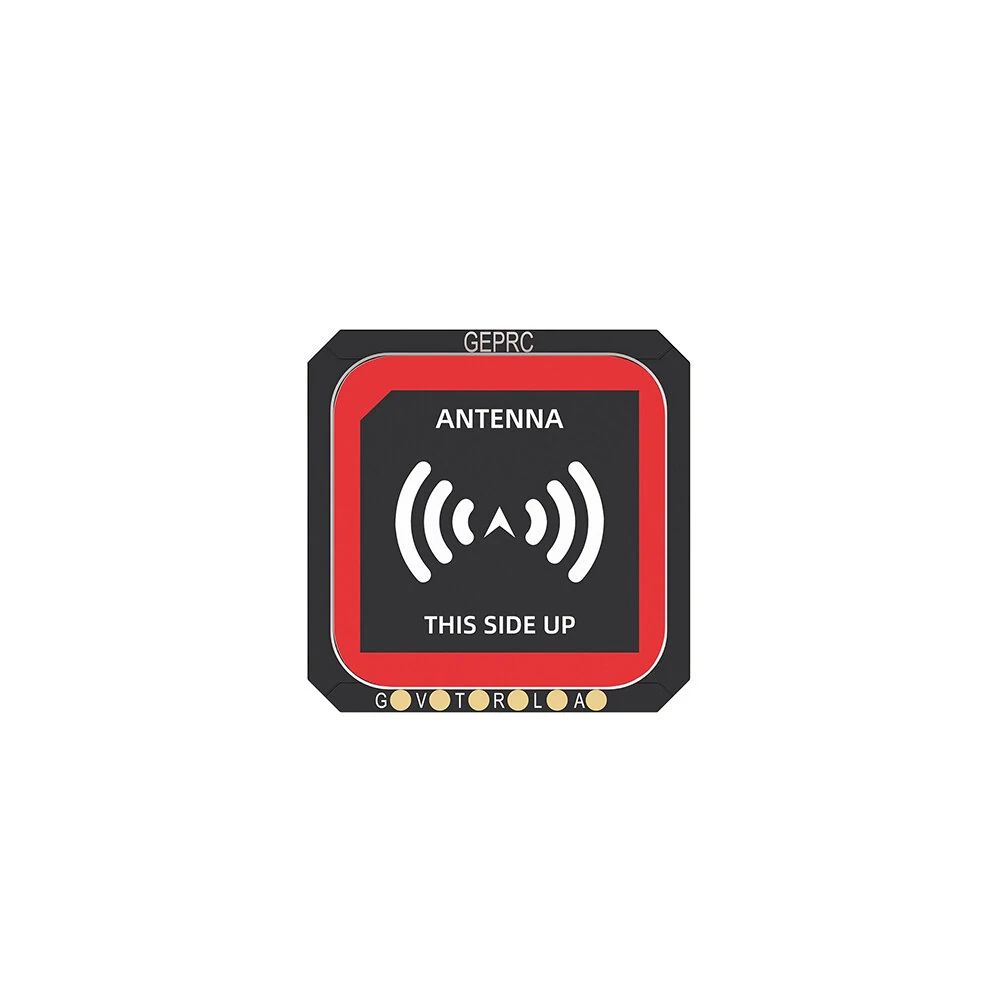

The GEPRC GPS series product line has been fully upgraded. The GEP-M1025 series of GPS products based on u-blox M10050 chip and using 25*25mm antenna are now launched.

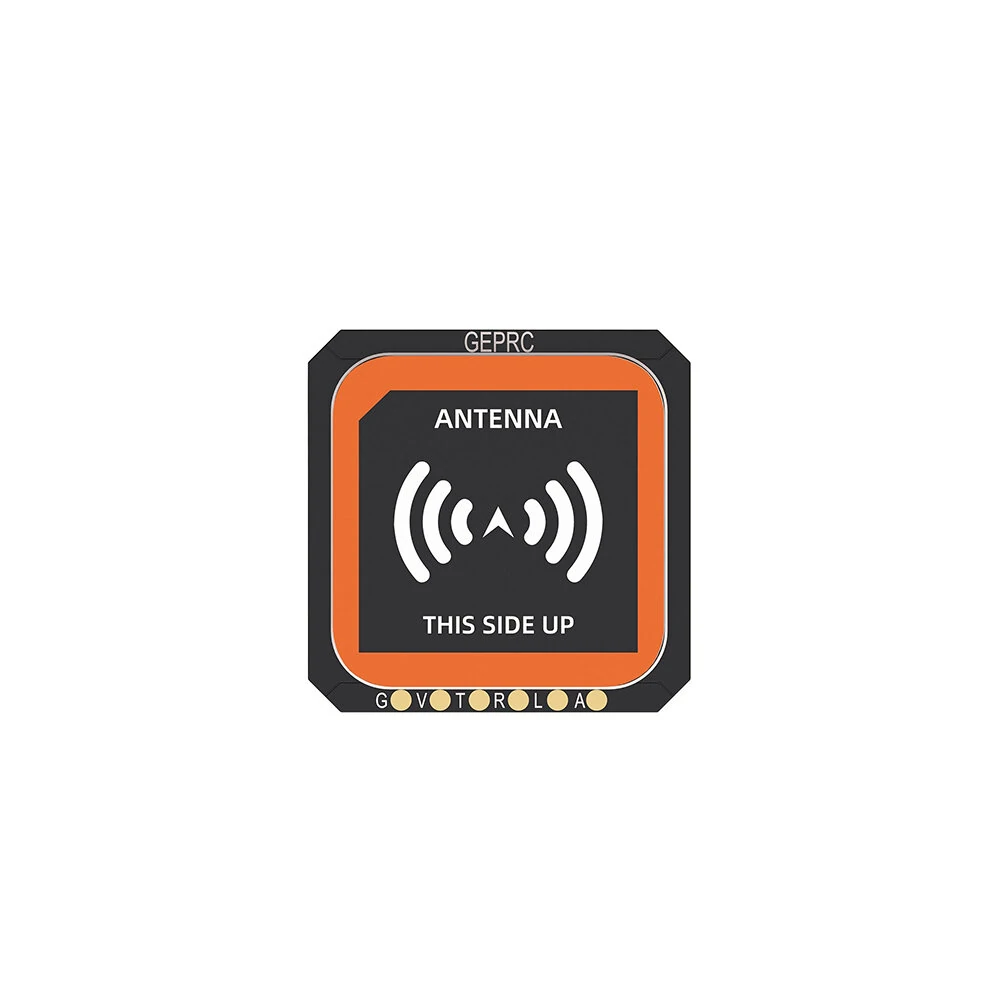

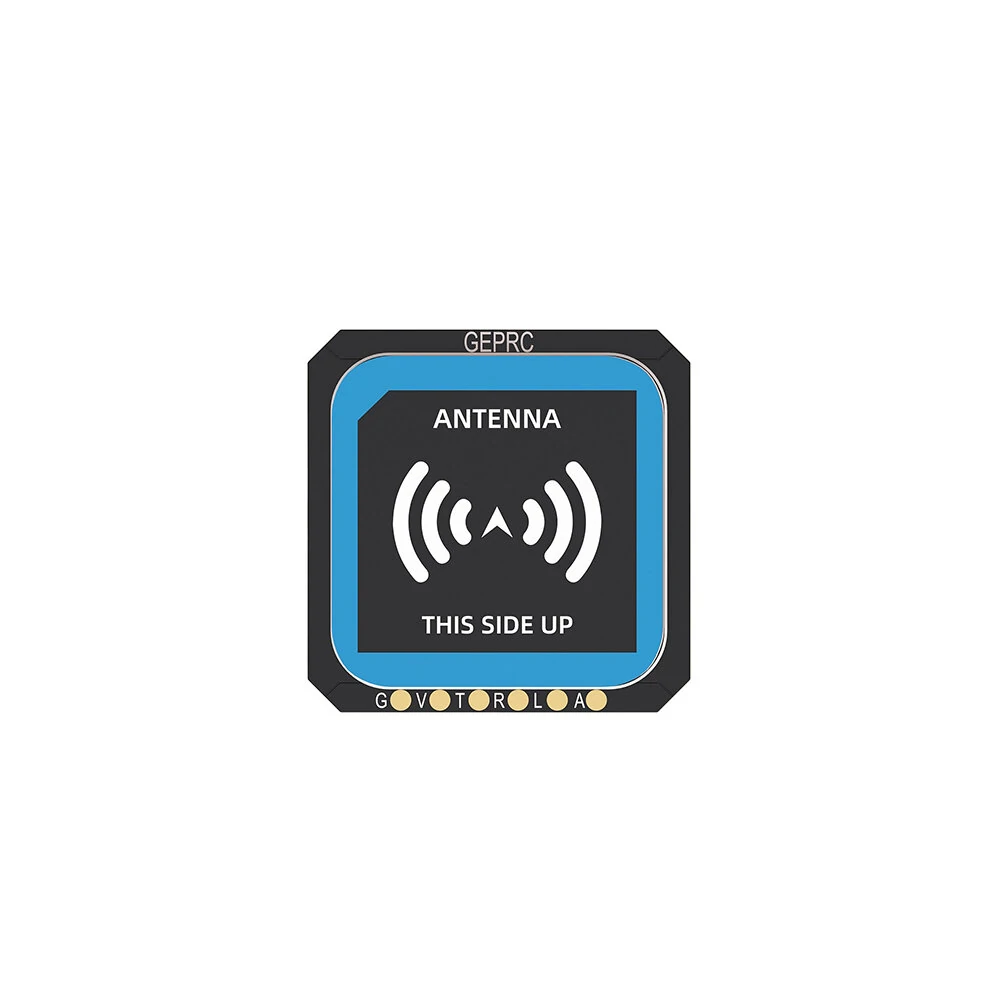

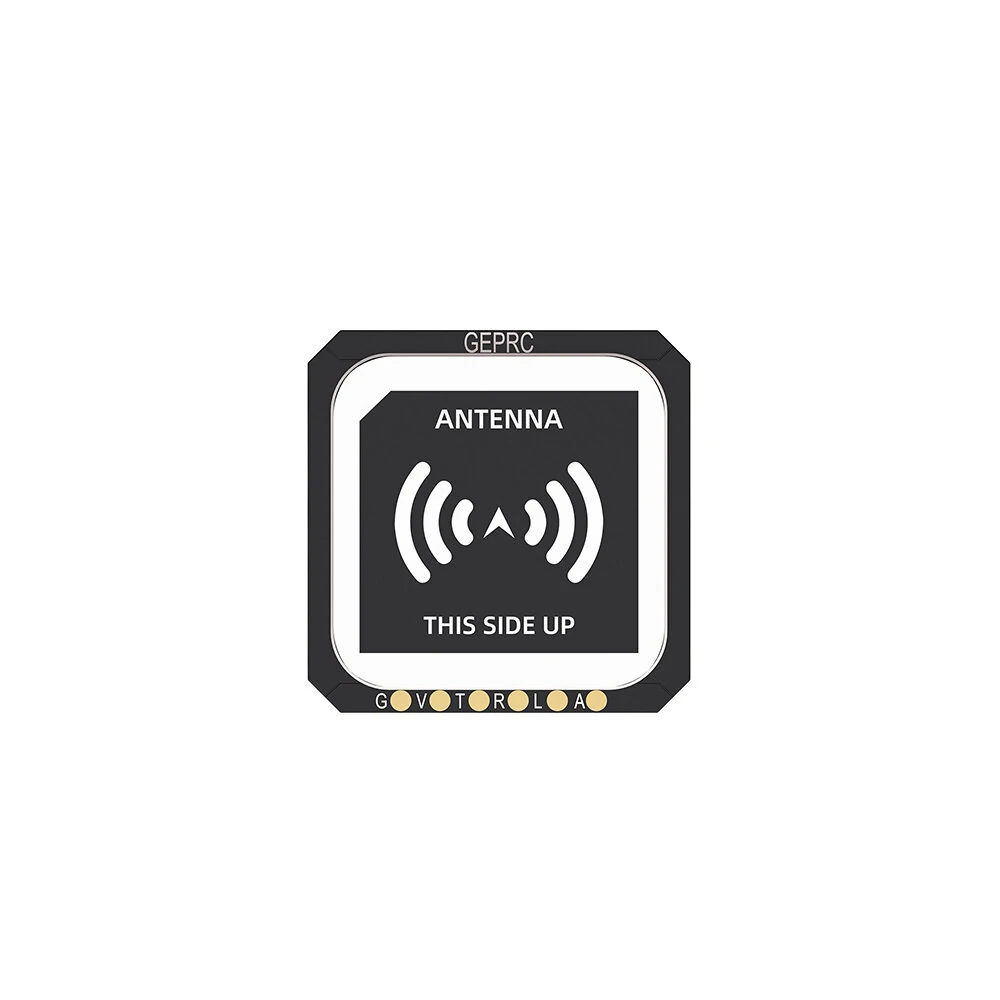

The GEP-M1025 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. 25*25mm ceramic antenna provides better reception capabilities. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

Optional QMC5883L/IST8310 magnetometer and DPS310/MS5611 barometer. A variety of matching solution provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.

Specifications:
Name: GPS Module
Model: M1025 / M1025Q / M1025 DQ / GEP-M1025 MQ / M1025I / M1025 DI / M1025-MI

Diffirence:

	magnetometer	barometer

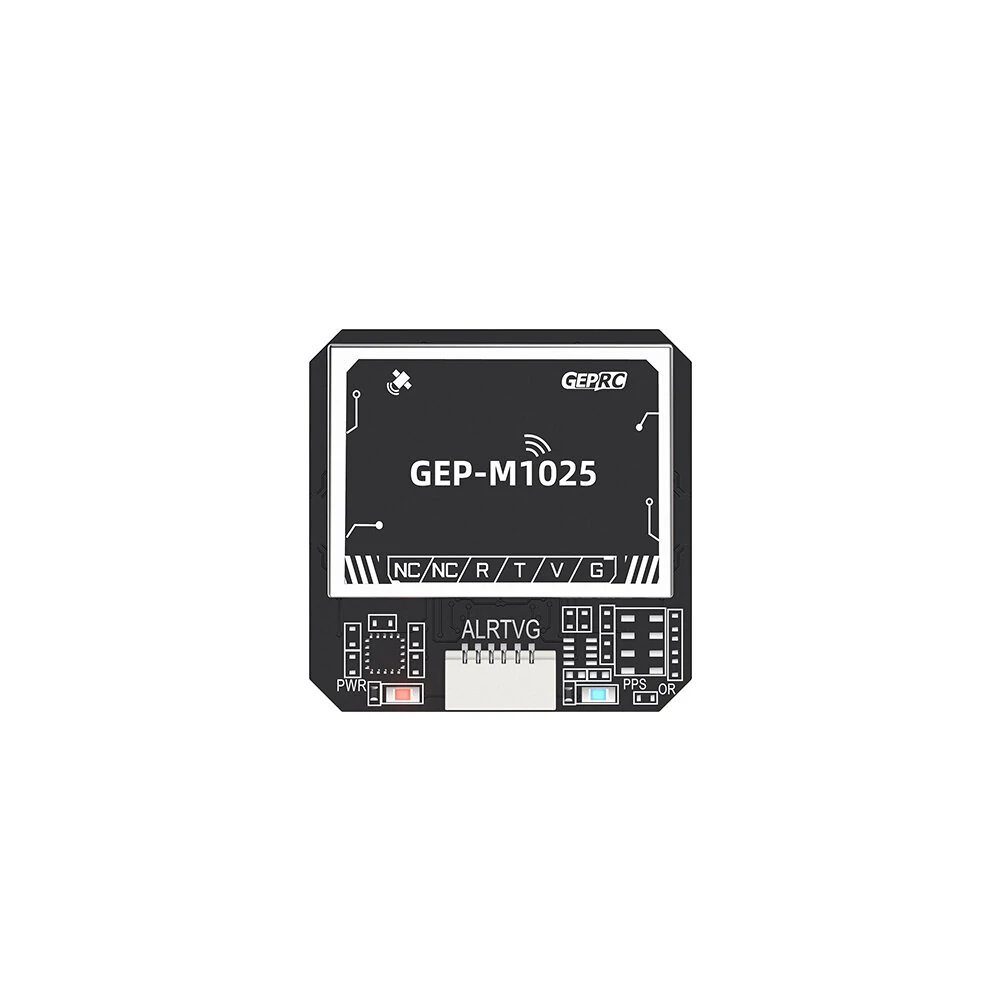

M1025	NO	NO
M1025Q	QMC5883L	NO

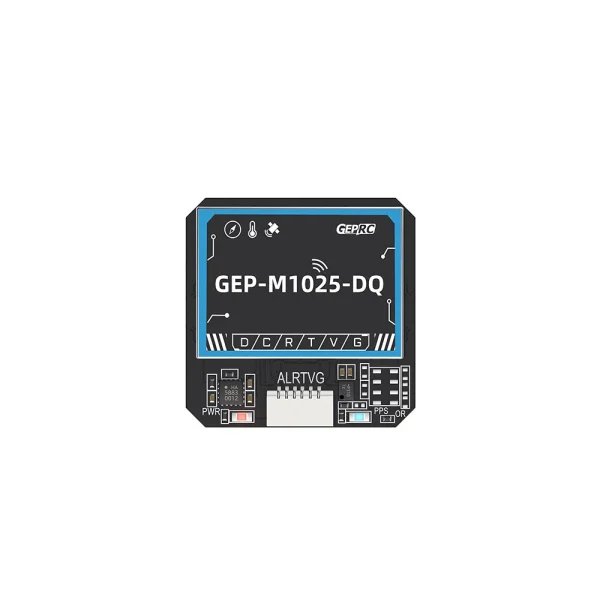

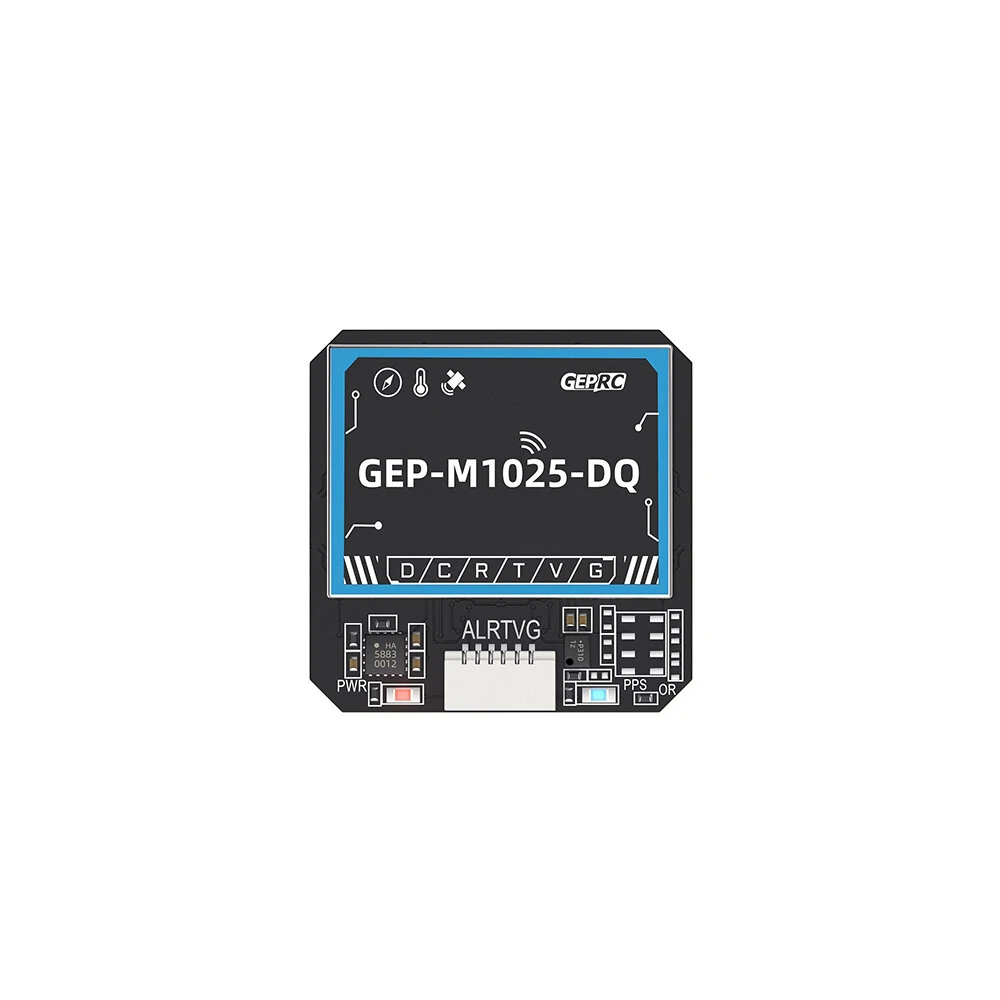

M1025 DQ	QMC5883L	DPS310

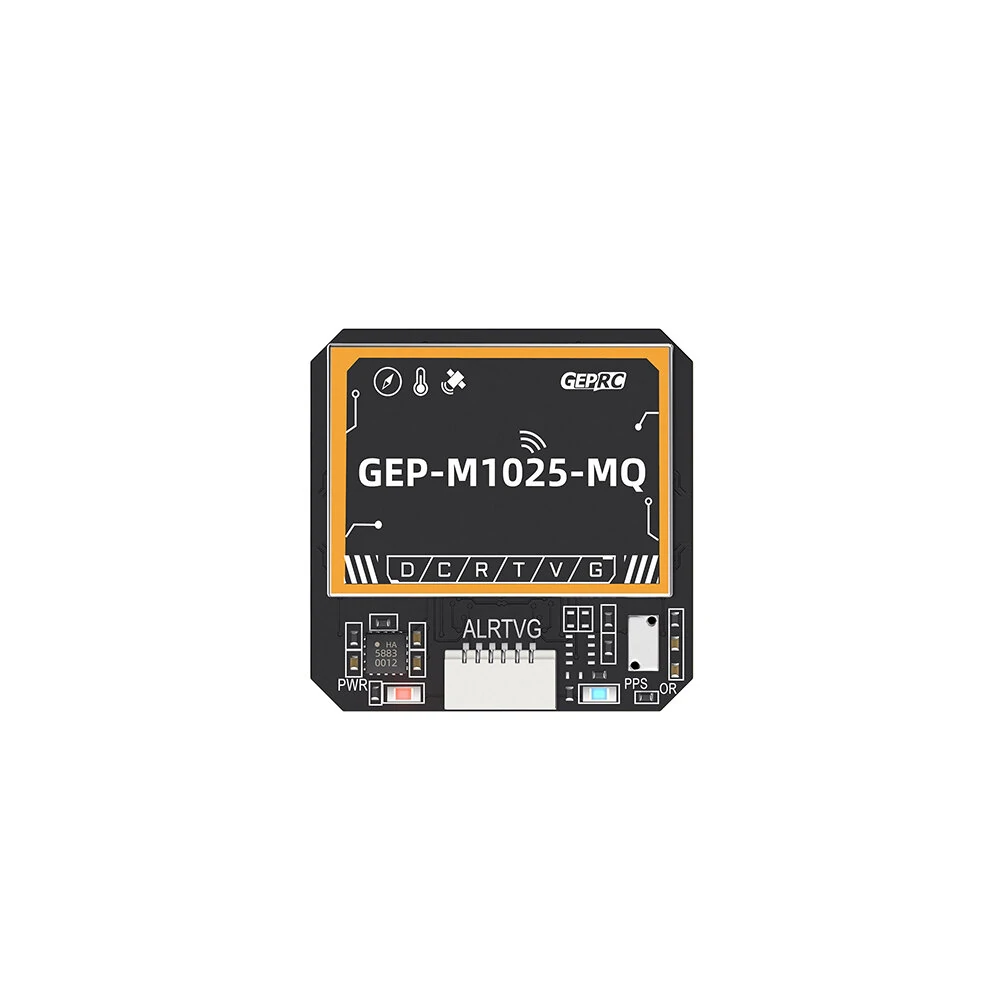

M1025 MQ	QMC5883L	MS5611
M1025I	IST8310	NO
M1025 DI	IST8310	DPS310

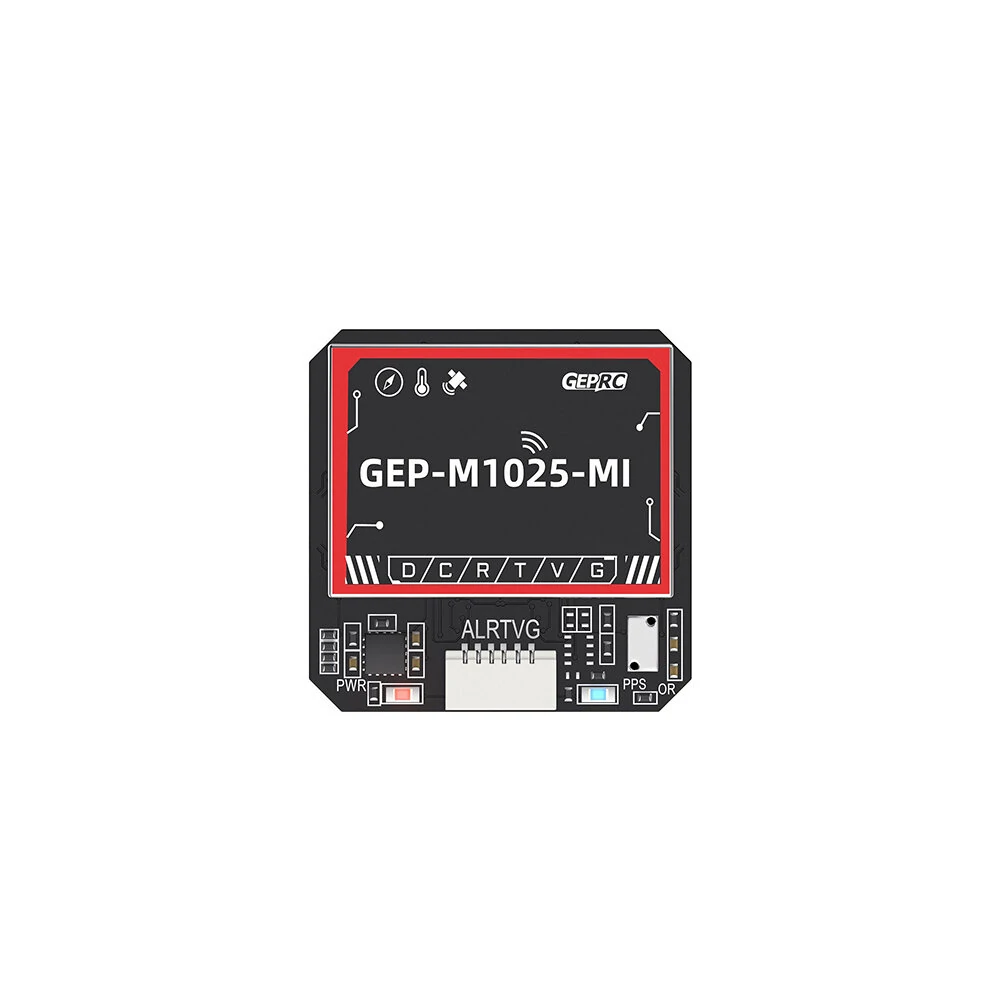

M1025-MI	IST8310	MS5611

GPS Parameters

Features:
1. u-blox M10 series chip
2. GPS+BDS+Galileo+QZSS+SBAS joint positioning
3. Fast positioning speed,Up to 32 satellites
4. Stable connection quality
5. 25*25mm antenna size, better signal receiving performance
6. Built-in Flash chip and Farad capacitor
7. Onboard indicator light, easy to use
8. Optional integrated magnetometer+barometer, more collocation scheme

Package Included:
1 X GPS Module
1 X Terminal Wire
1 X Gps Module Instruction Manual
1 X Geprc Sticker
1 X Heat Shrink Tubing
