Note:
– Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
– Comes unassembled. Need build by buyers.
– Compatible only with O4 Pro VTX; VR silicone is not compatible with 03 or analog cameras.
Description:

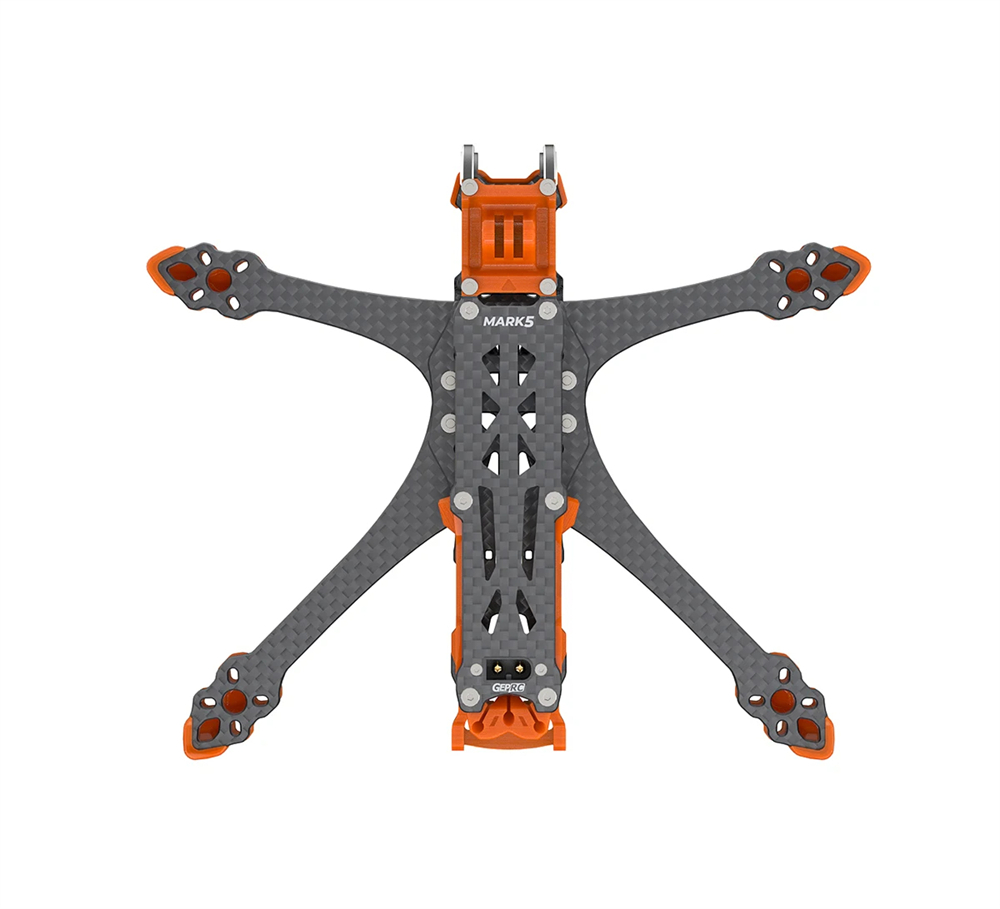

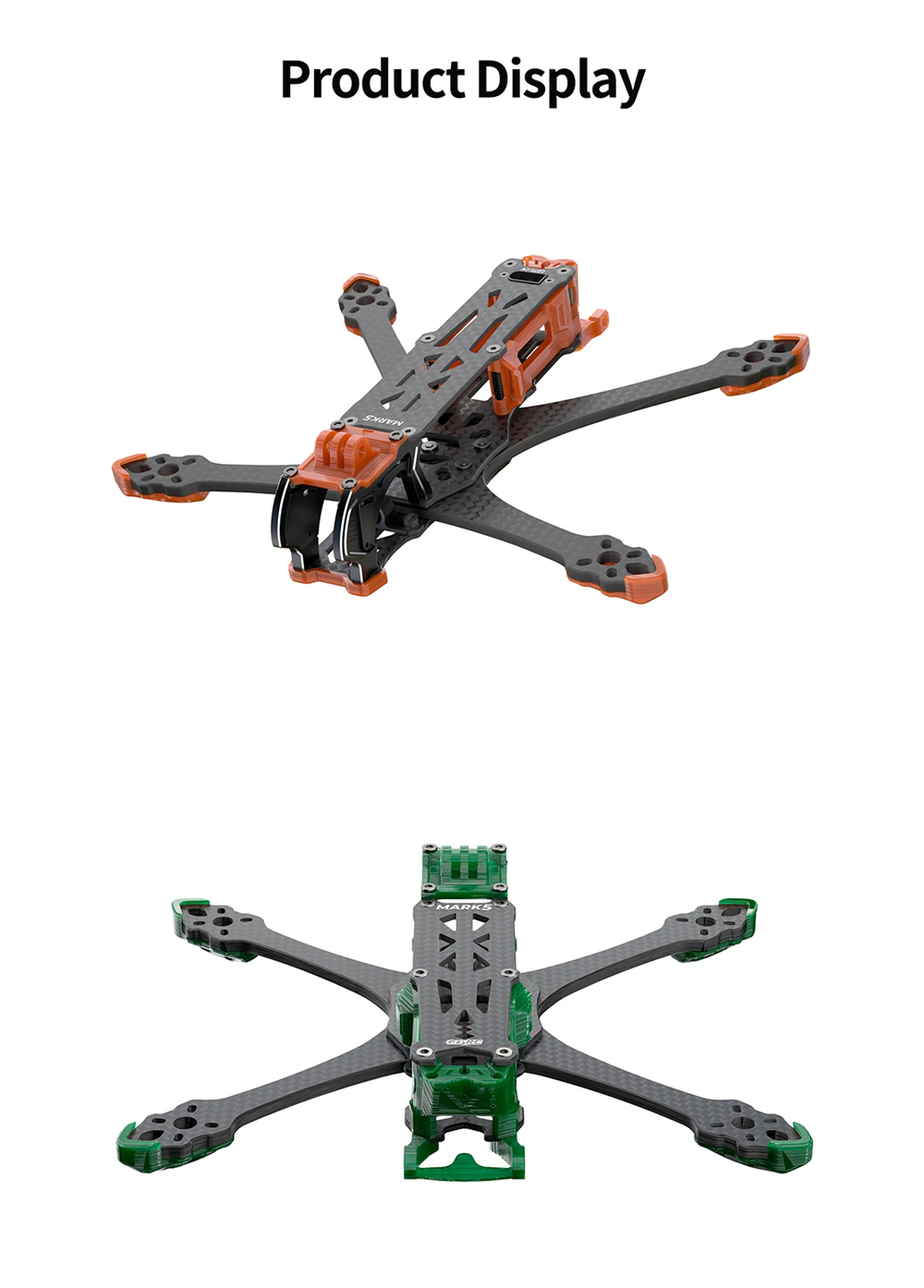

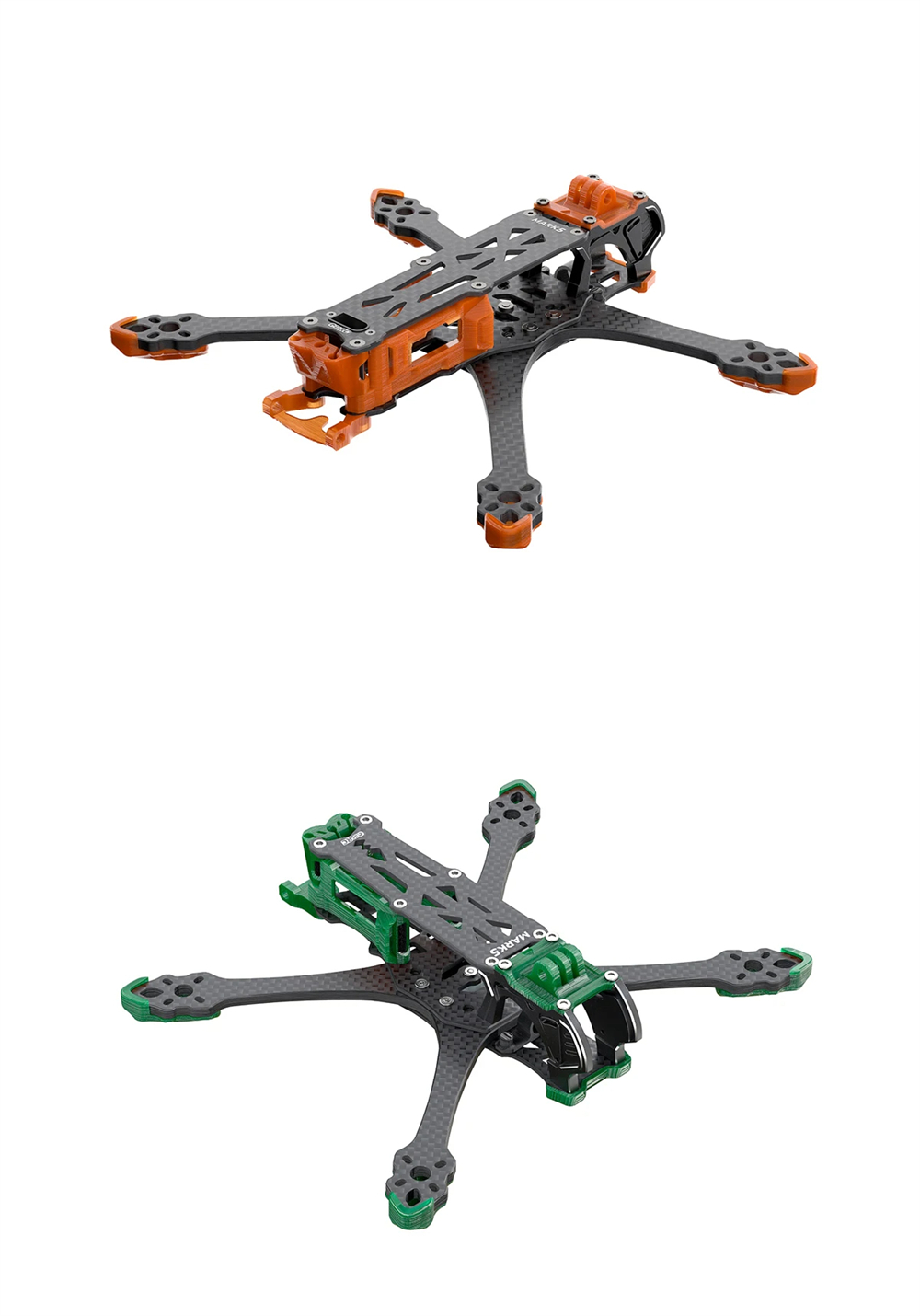

The GEPRC MARK5 frame is designed specifically for the DJI O4 Air Unit Pro.

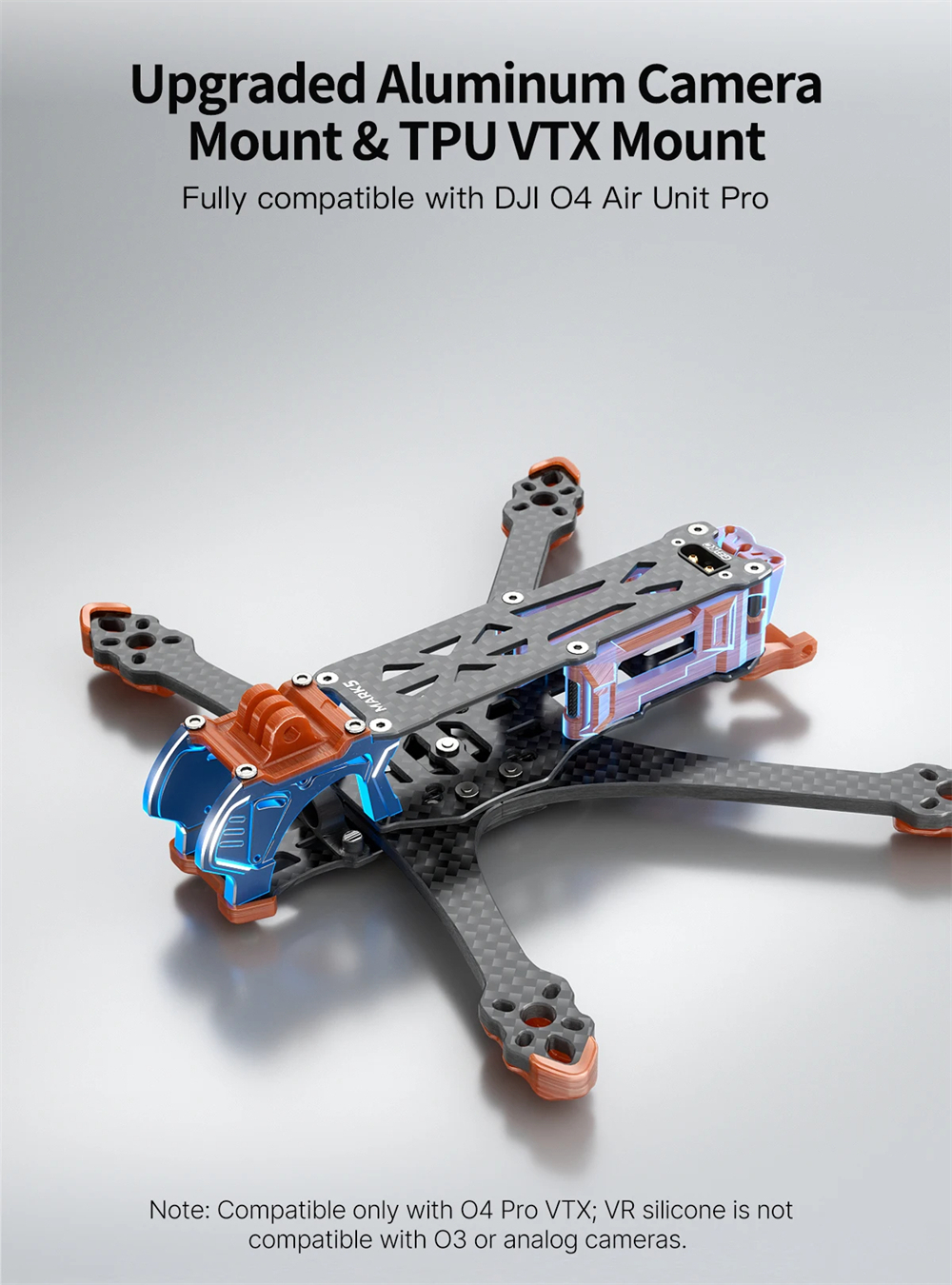

It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

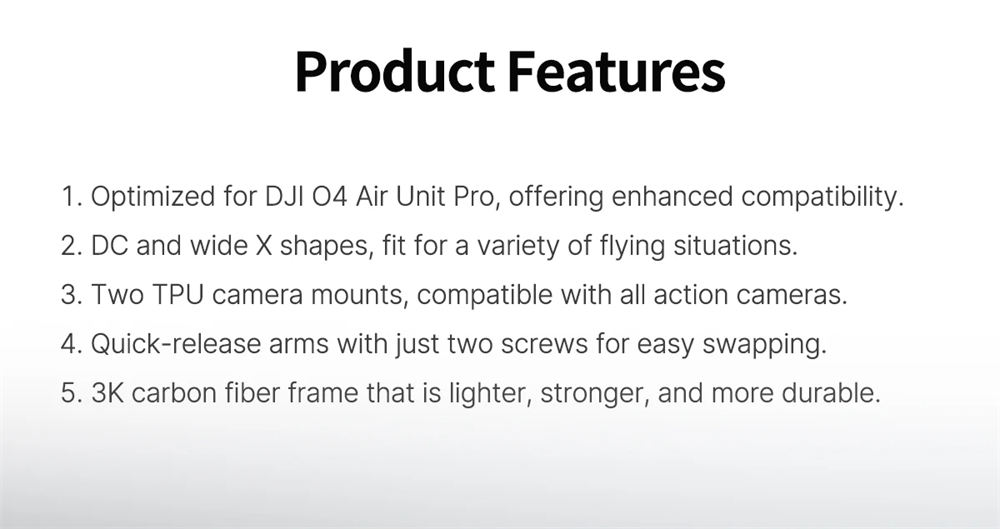

Features:
– Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.

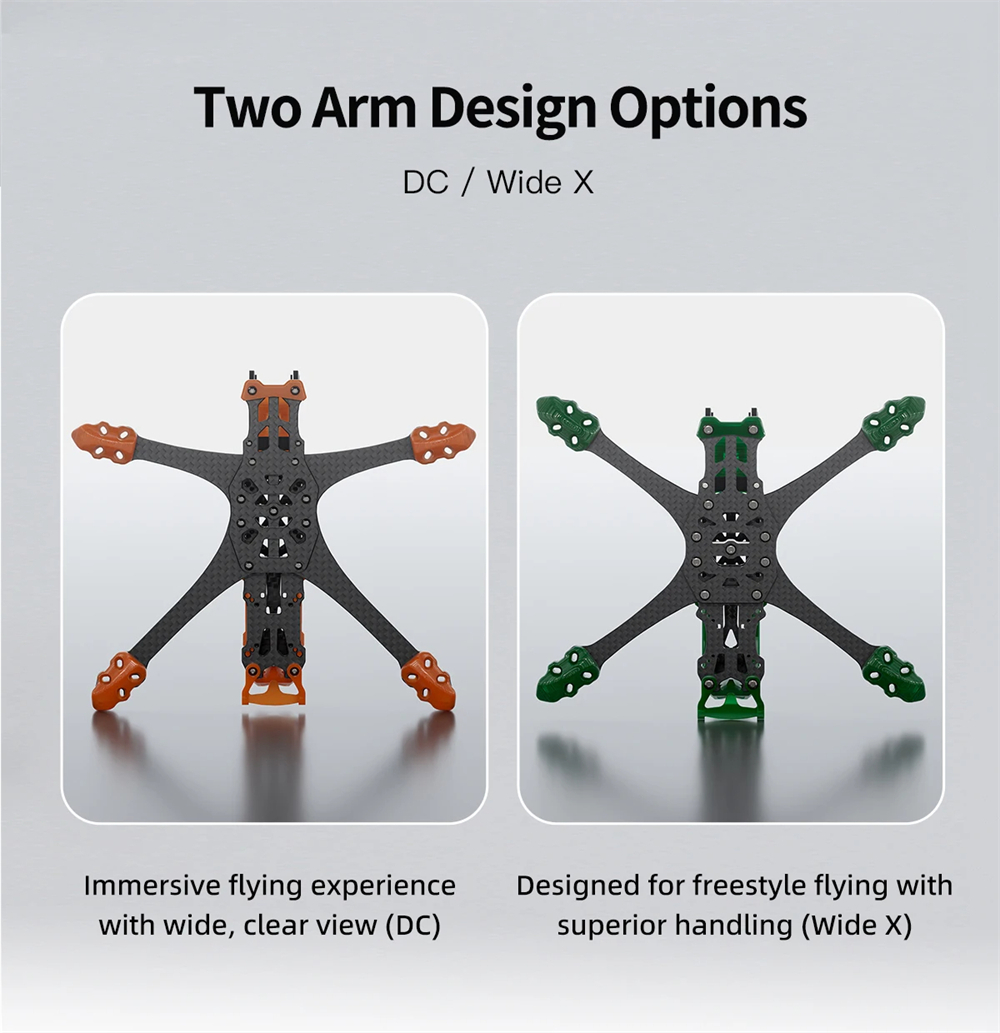

– DC and wide X shapes, fit for a variety of flying situations.
– Two TPU camera mounts, compatible with all action cameras.
– Quick-release arms with just two screws for easy swapping.
– 3K carbon fiber frame that is lighter, stronger, and more durabl.

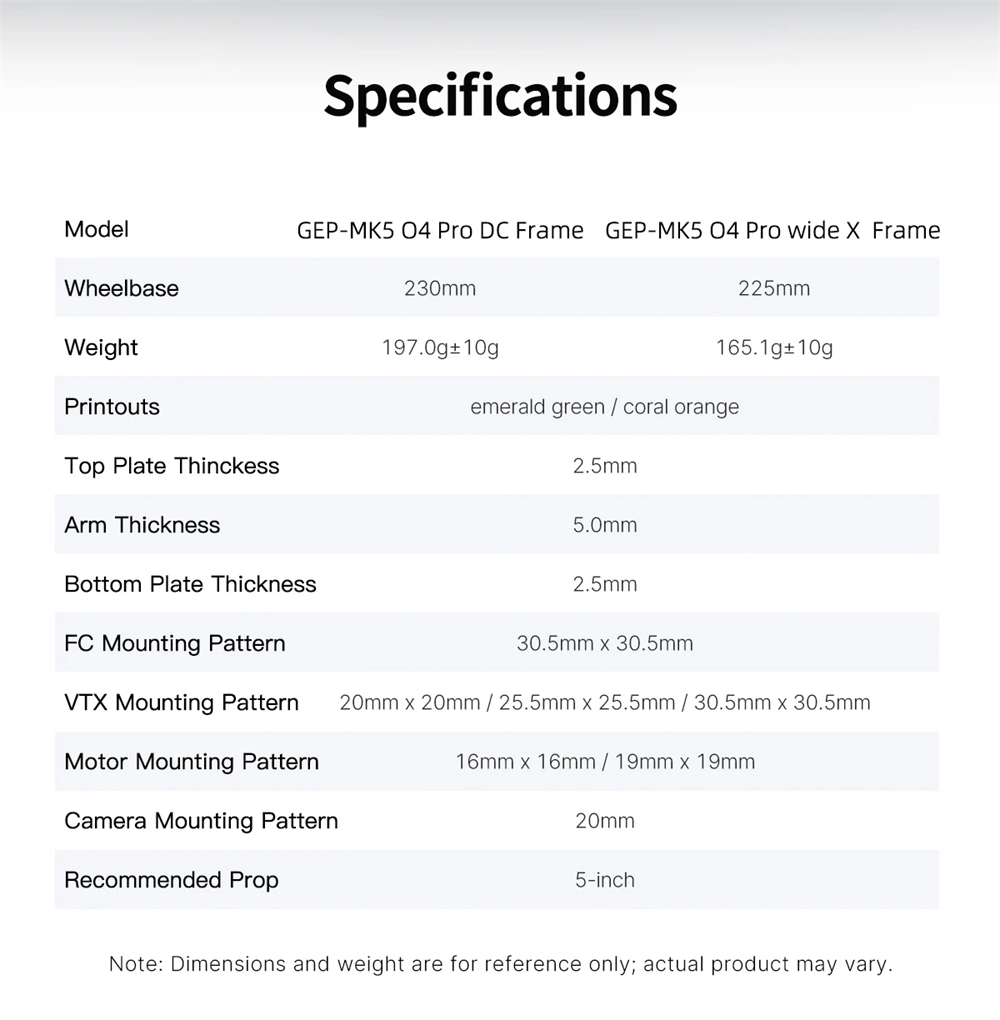

Specification:
Brand: GEPRC
Model: MARK5
Item Name: 5 Inch 6S Frame Kit
Type: DC
|
Model: |
MARK5 Wide X Frame |
MARK5 DC Frame |
|

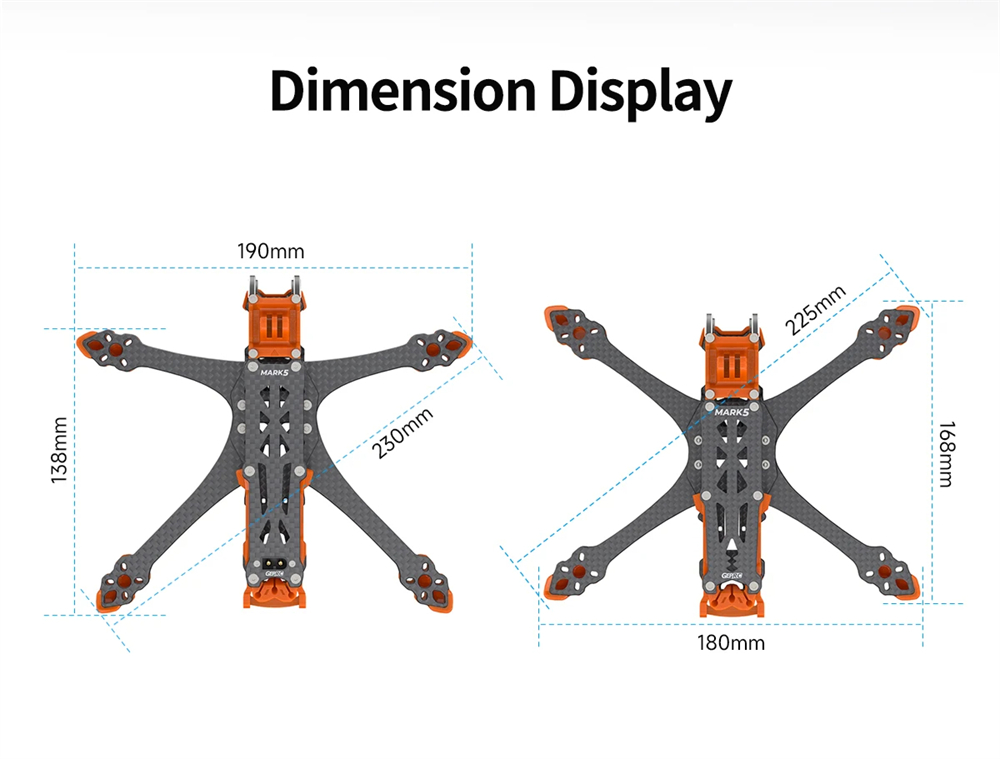

Wheelbase: |
225mm |
230mm |
|
Weight: |
165.1g ± 10g |
197.0g ± 10g |
|
Color: |
Emerald green/coral orange |
|
|
Top Plate Thickness: |
2.5mm |
|
|
Arm Thickness: |
5.0mm |
|
|
Bottom Plate Thickness: |
2.5mm |
|
|
FC Mounting Pattern: |
30.5mm * 30.5mm |
|
|
VTX Mounting Pattern: |
20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm |
|
|
Motor Mounting Pattern: |
16mm * 16mm / 19mm * 19mm |
|
|
Camera Mounting Pattern: |
20mm |
|
|
Recommended Propeller: |
5 Inch |
|
Recommand Parts (Not Included):
FC&ESC: Geprc F722 BT 50A V3 StackCamera&VTX: DJI O4 Air Unit PROMotor: SPEEDX2 2107.5 1960KVPropellers: GEMFAN 5136Battery: LiPo 6S 1050mAh–1550mAh

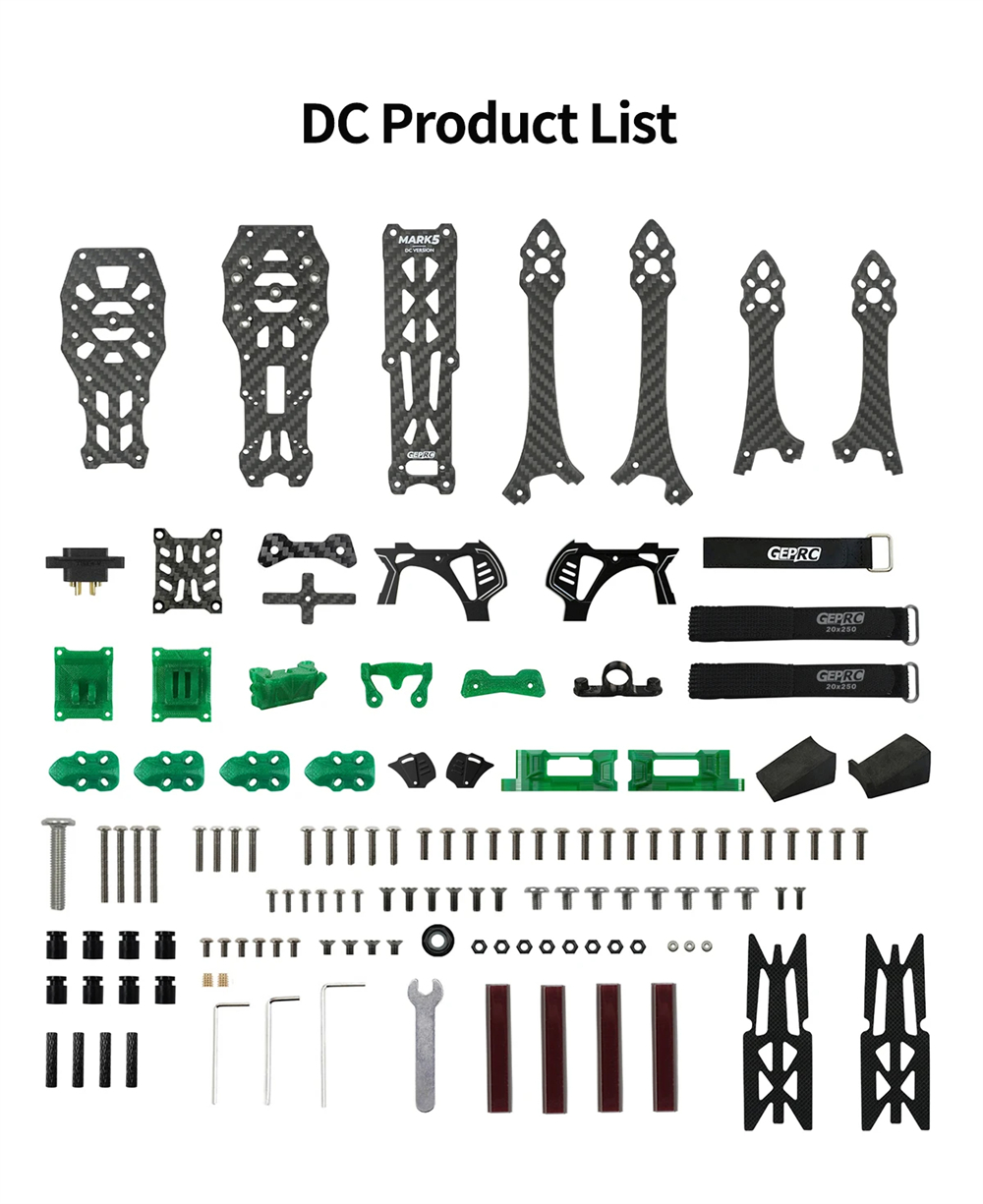

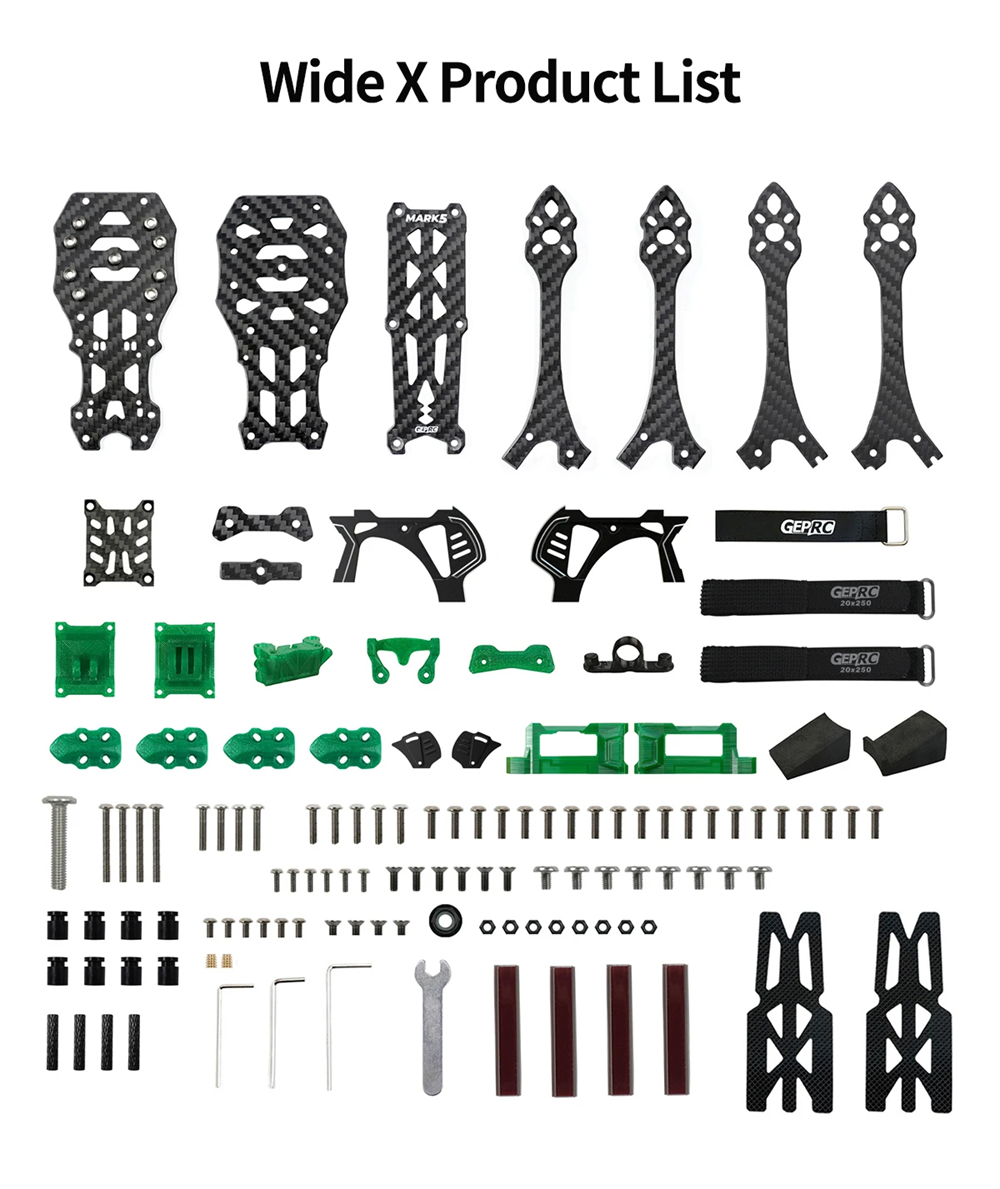

Package Included:
1 x Frame Kit
1 x 15*250mm heavy-duty straps
2 x Battery anti-slip pads
1 x 3D printouts pack
2 x 20*250mm rubber anti-slip straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2mm
1 x L-shaped screwdriver 3mm
1 x M8 wench
1 x Screw pack
