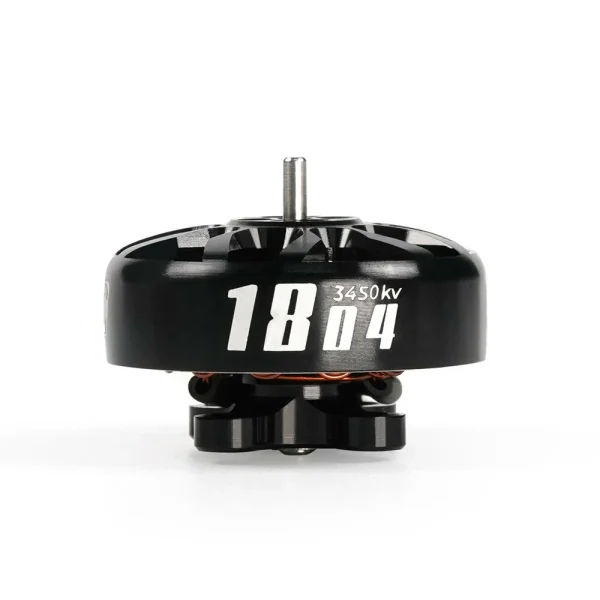

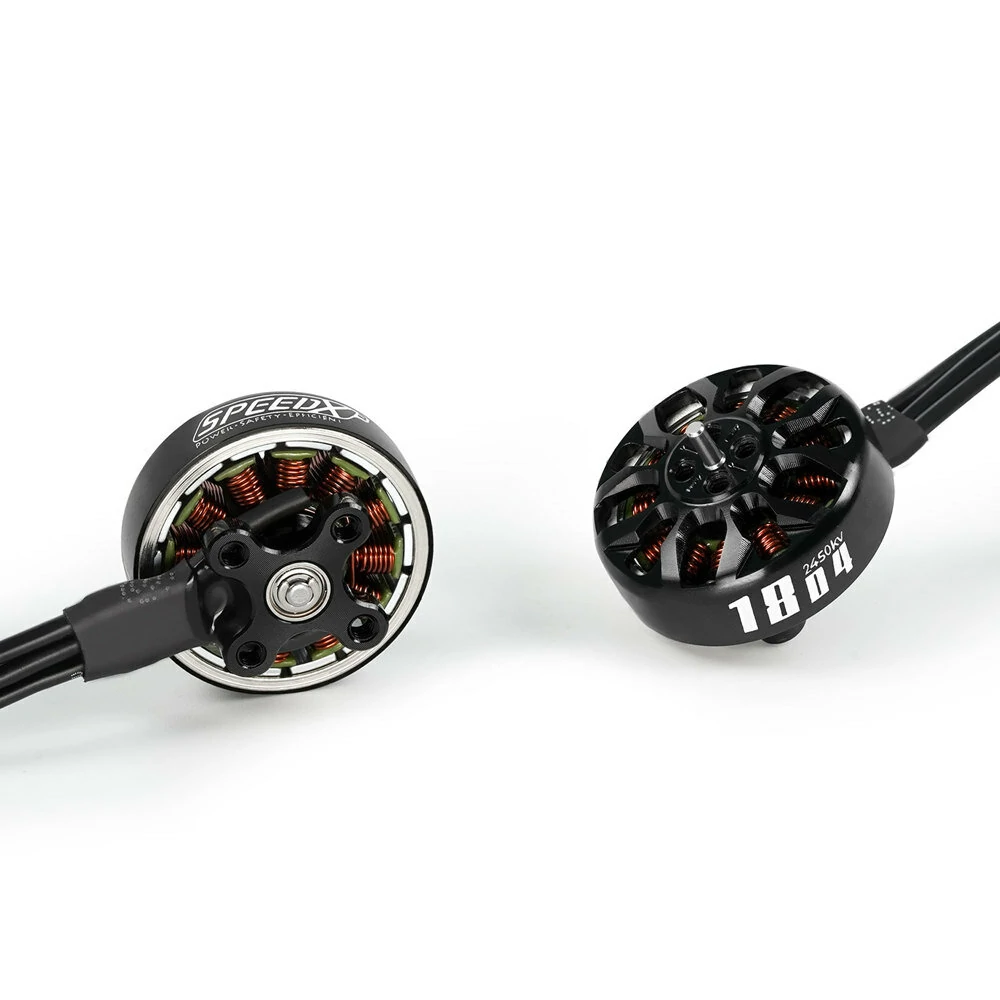

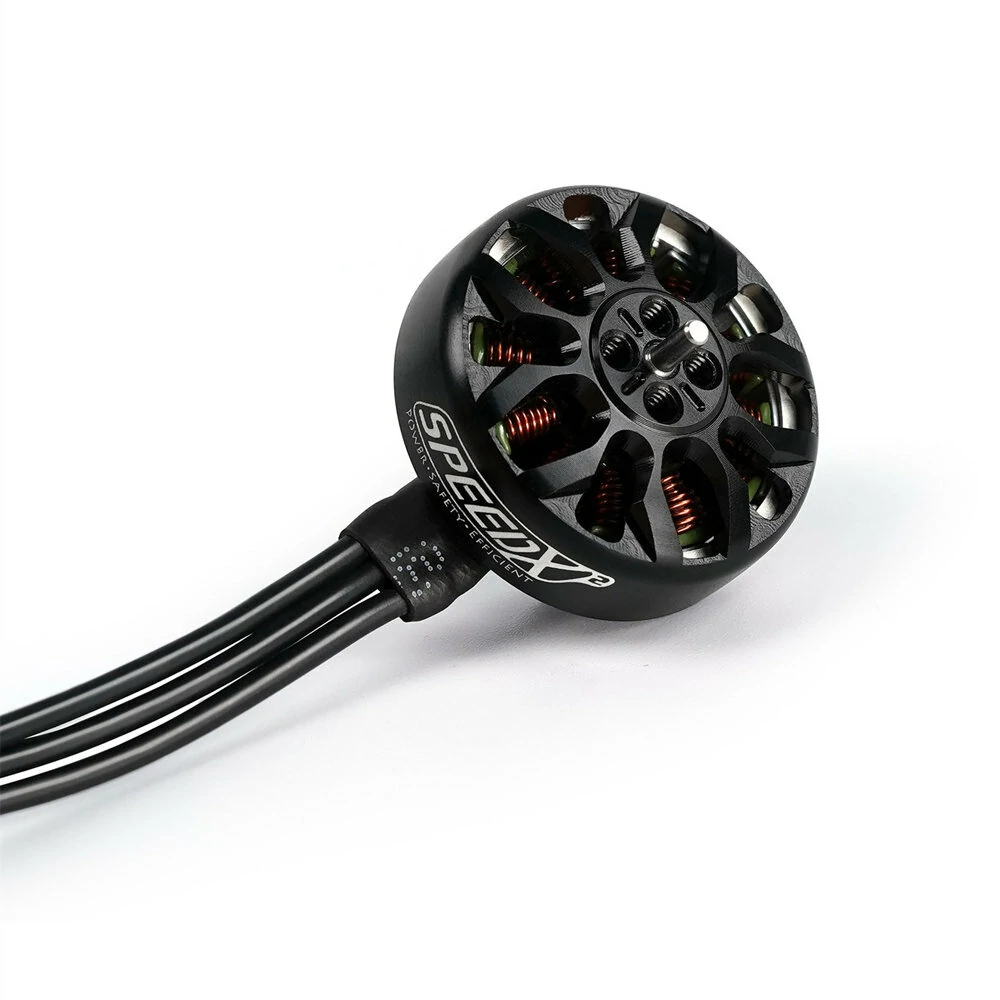

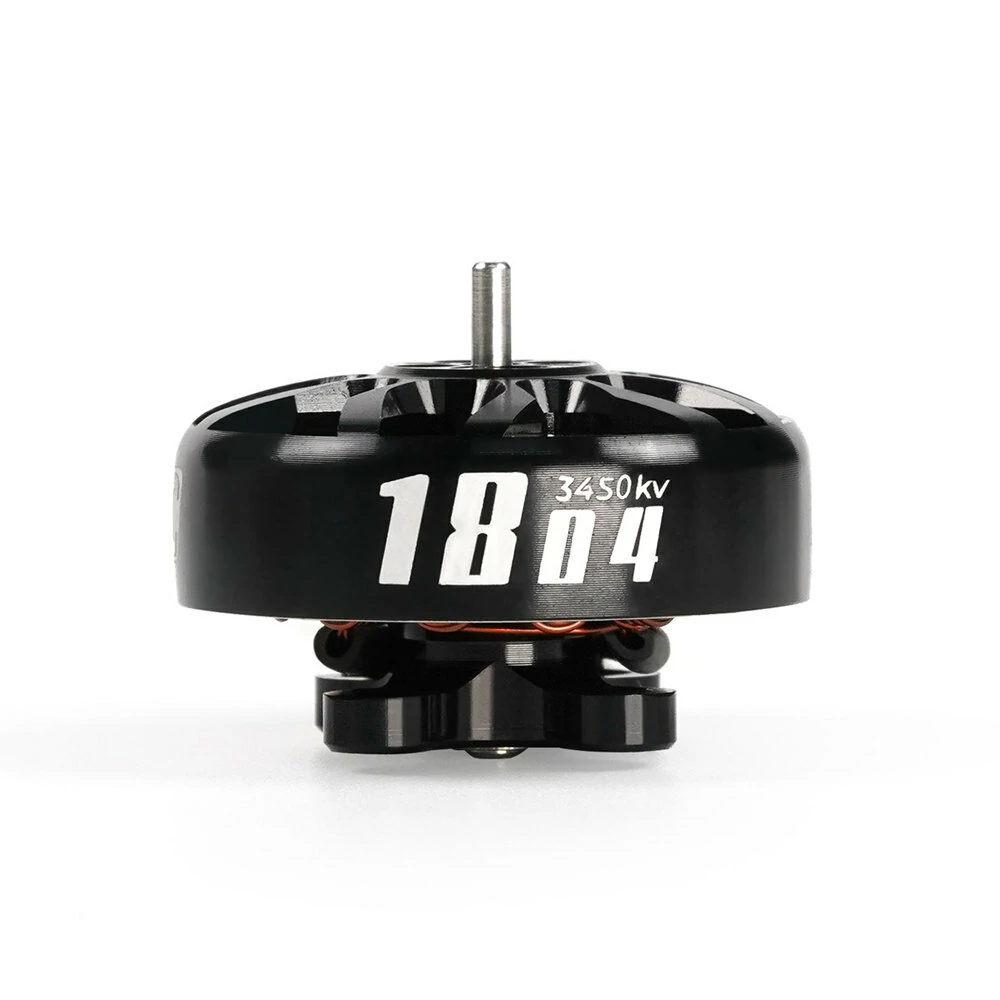

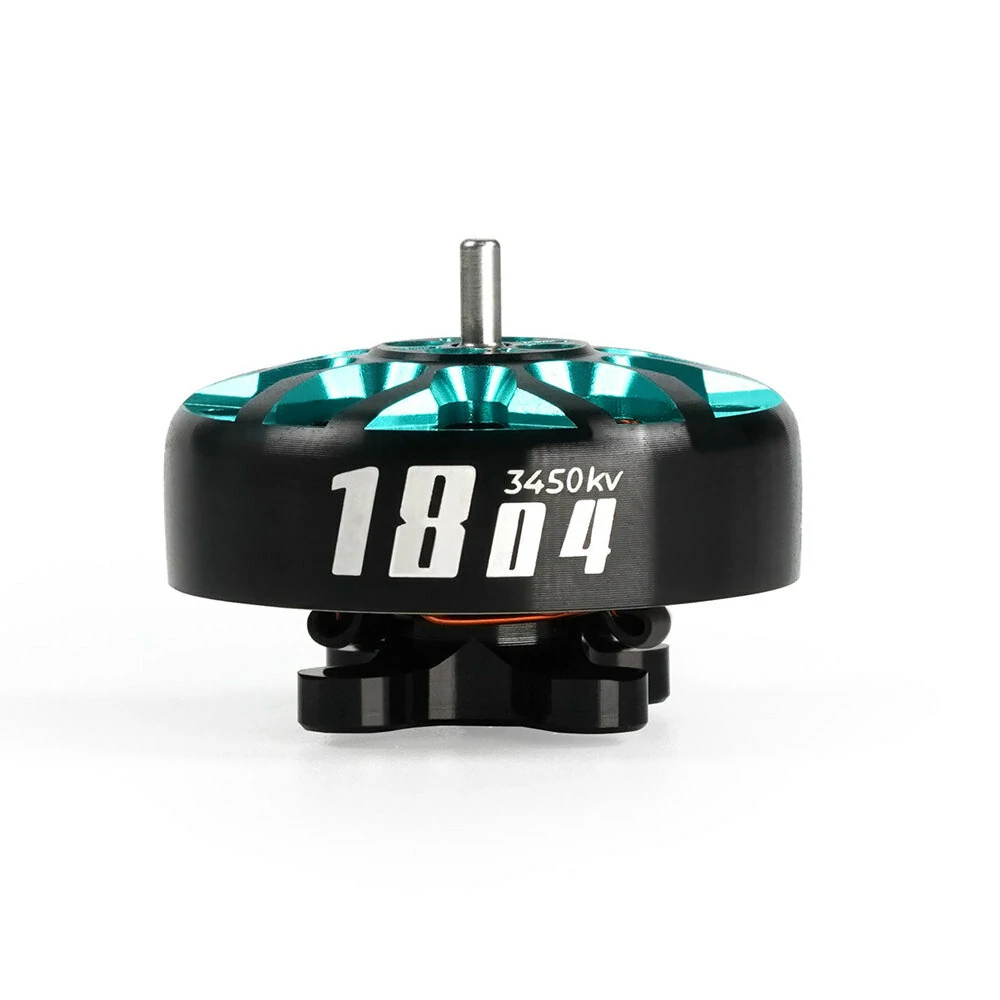

Geprc SPEEDX2 1804 2450KV 4-6S / 3450KV 2-4S Brushless Motor for Cinebot30 HD 3 Inch Whoop 3-4 Inch Toothpick Long Range FPV Racing Drone RC

Description

Features:

1. Lightweight design, only 13.g (13CM Wire)
2. High-quality arc magnetic steel, strong magnetic force, and more efficient flight.
3. Optimized magnetic circuit design, large motor torque, strong explosive power, and extremely quick response speed.
4. High strength motor structure, outstanding durability.
5. Suitable for 3″ whoop FPV, 3-4″ Toothpick & Long Range FPV.

Specifiction:

Brand: Geprc

Model: SPEEDX2 1804

Item Name: 1804 2450KV 4-6S / 3450KV 2-4S Brushless Motor

Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 18mm
Stator Height: 4mm
Shaft Diameter: Φ2mm(in)Φ1.5mm(out)
Size: Φ22.74mm*13.2mm
Lead Wires: 24#AWG 150mm

Mounting Holes: 12mm x 12mm(M2 Screw)

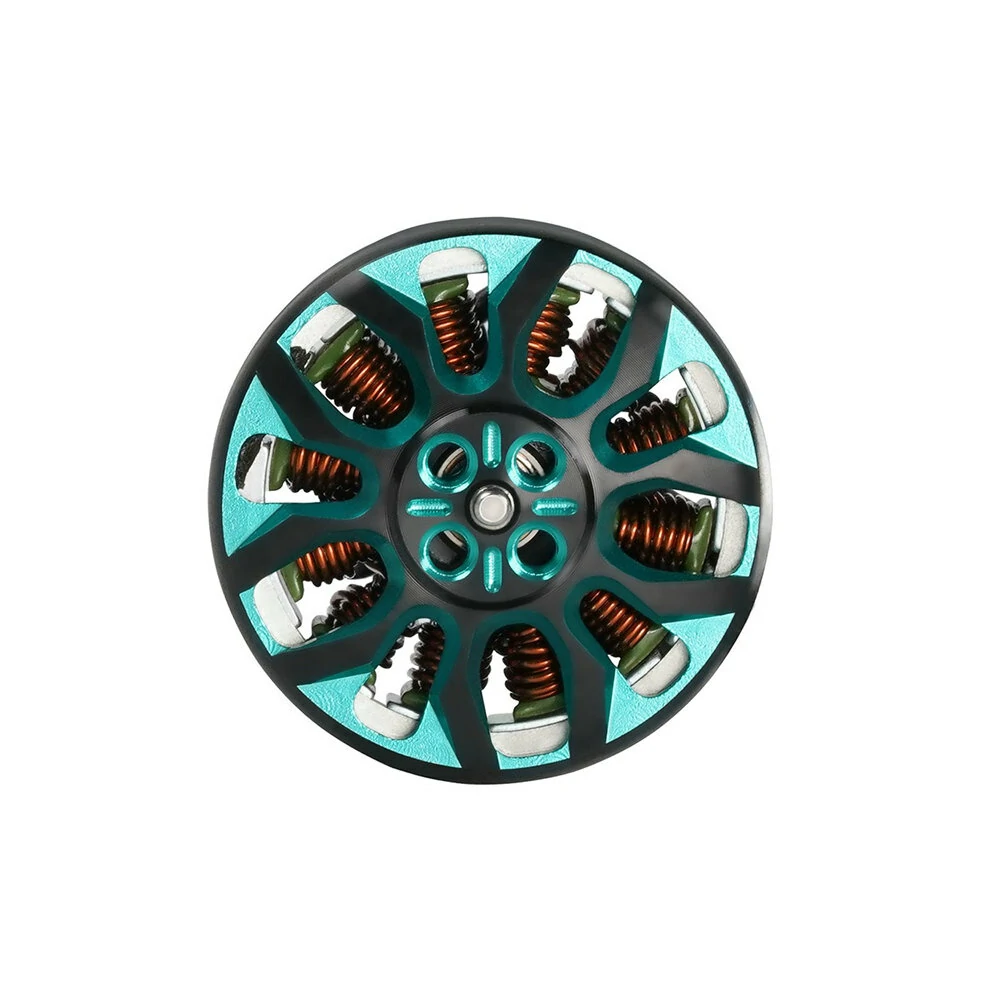

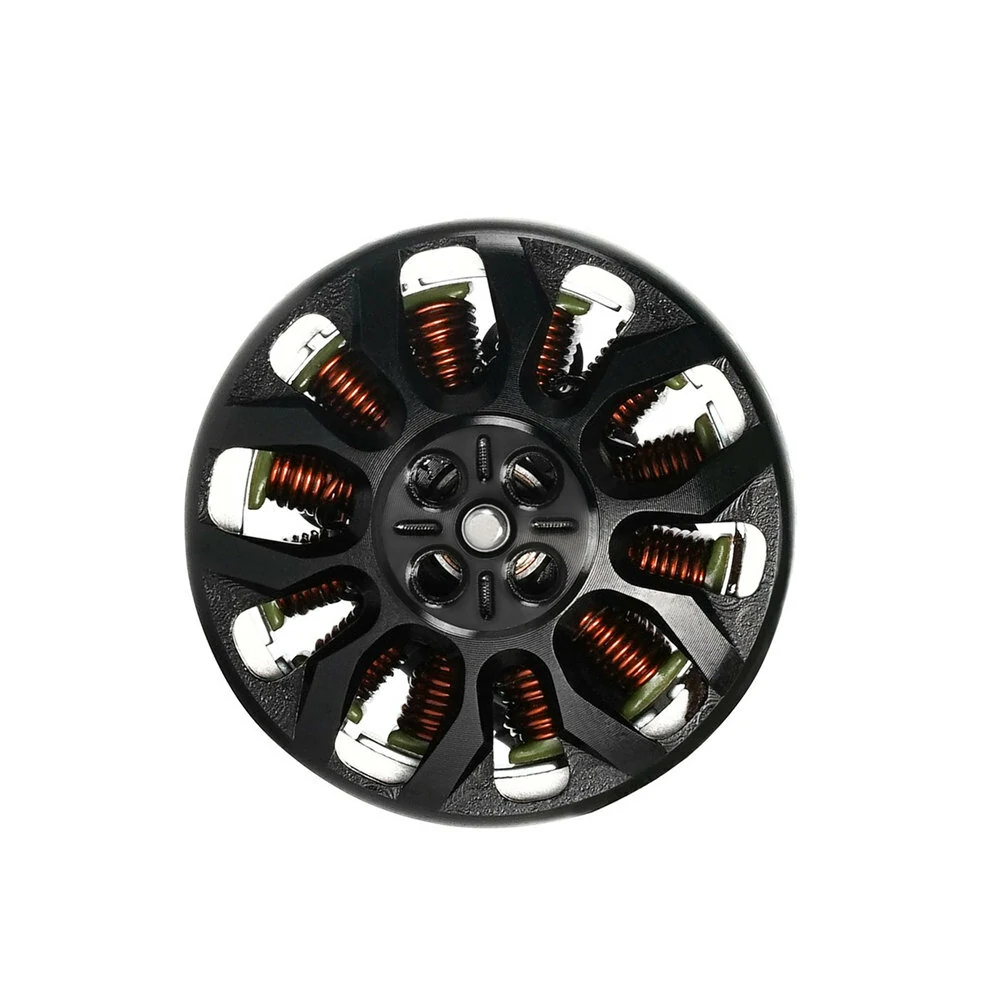

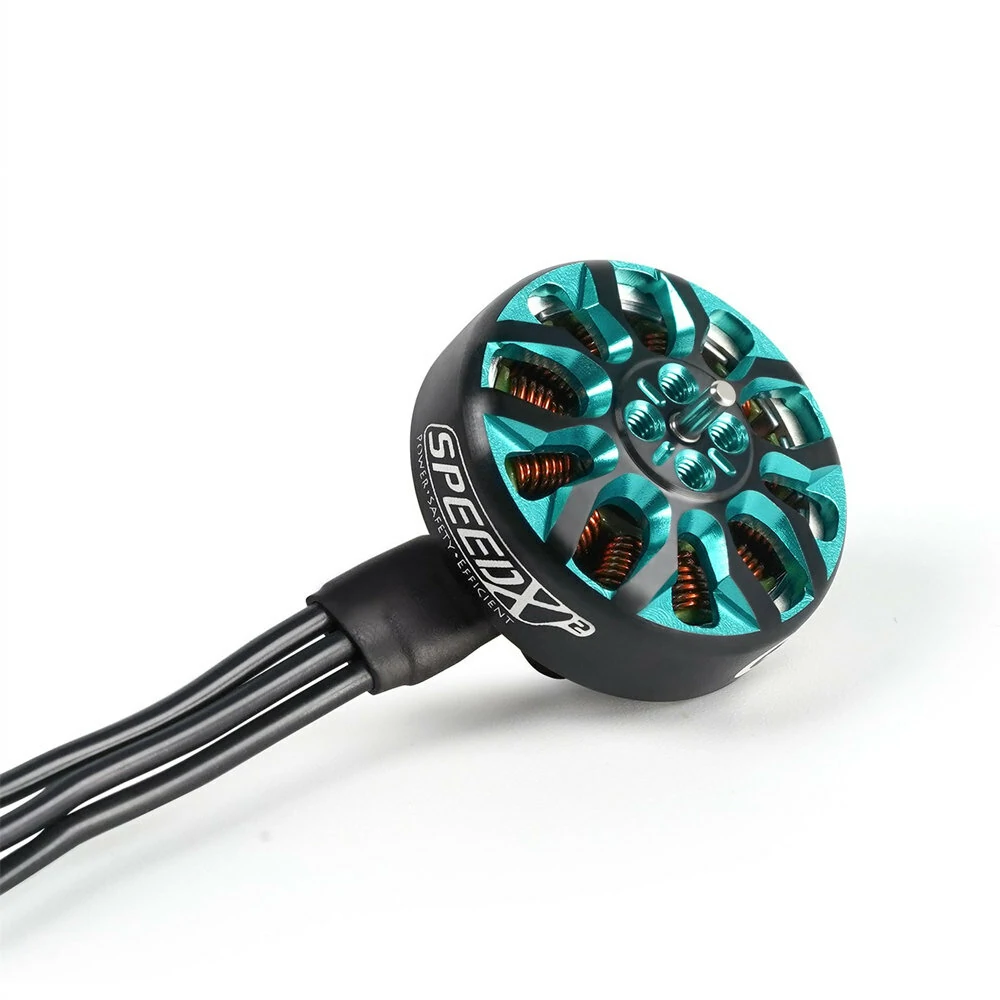

Color: Black / Black + Cyan

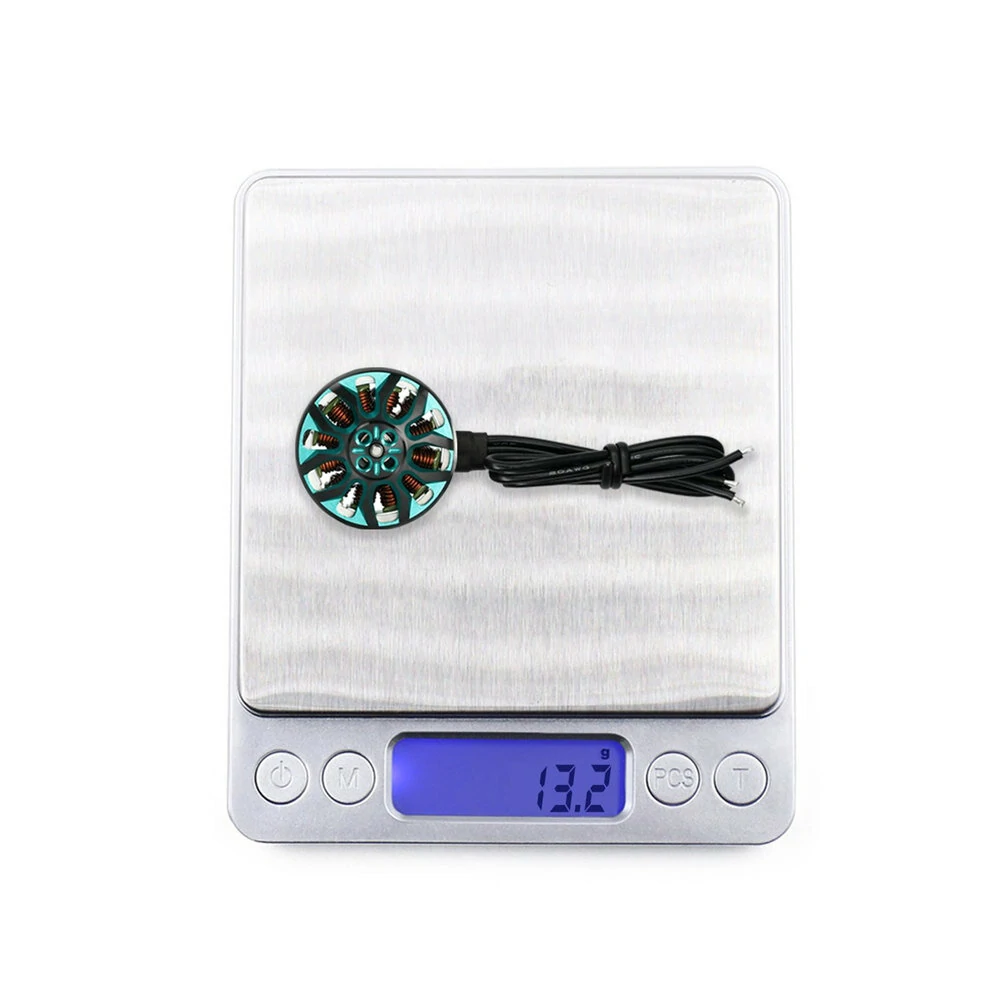

Weight: 13.2 g (13CM Wire)

	2450KV	3450KV
Input Voltage	4-6S	2-4S
Max Continuous Power(W) (3S)	452.2W	404.8W
Max Current (5S)	18.8A	25.3A

Package Included:

1x SPEEDX2 1804 Motor
5x M2*6mm Screw
5x M2*8mm Screw
